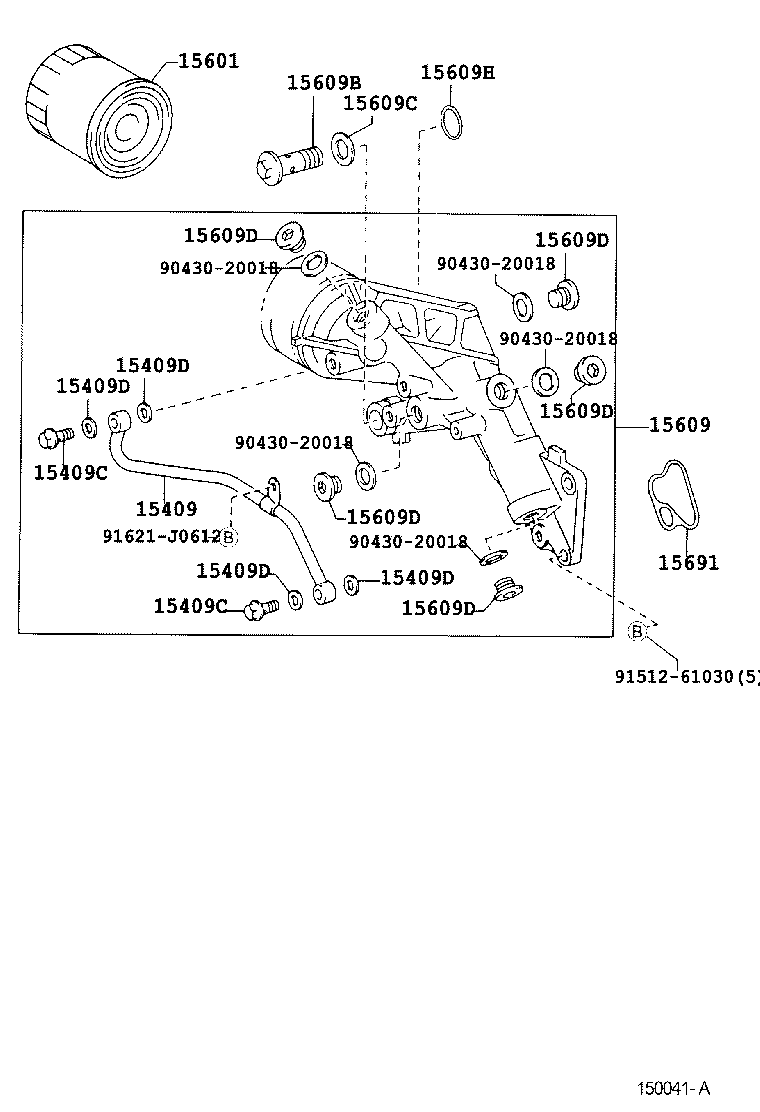

Toyota Gaia CXM10 OIL FILTER - JDM Part Detective

Part #	Description	Period	Qty
15409 - PIPE OR HOSE, OIL FILTER OUTLET
15431-64061	3CTE..CXM10	04/2001 - 09/2004	1
15431-64061	3CTE..CXM10	05/1998 - 04/2001	1
15409C - BOLT, UNION(FOR OIL FILTER OUTLET PIPE)
90401-10031	3CTE..CXM10	05/1998 - 04/2001	2
90401-10031	3CTE..CXM10	04/2001 - 09/2004	2
15409C - BOLT, UNION(FOR OIL FILTER OUTLET PIPE)
90401-10031	3CTE..CXM10	05/1998 - 04/2001	2
90401-10031	3CTE..CXM10	04/2001 - 09/2004	2
15409D - GASKET(FOR OIL FILTER OUTLET PIPE)
90430-10015	3CTE..CXM10	04/2001 - 09/2004	4
90430-10015	3CTE..CXM10	05/1998 - 04/2001	4
15409D - GASKET(FOR OIL FILTER OUTLET PIPE)
90430-10015	3CTE..CXM10	04/2001 - 09/2004	4
90430-10015	3CTE..CXM10	05/1998 - 04/2001	4
15409D - GASKET(FOR OIL FILTER OUTLET PIPE)
90430-10015	3CTE..CXM10	04/2001 - 09/2004	4
90430-10015	3CTE..CXM10	05/1998 - 04/2001	4
15409D - GASKET(FOR OIL FILTER OUTLET PIPE)
90430-10015	3CTE..CXM10	04/2001 - 09/2004	4
90430-10015	3CTE..CXM10	05/1998 - 04/2001	4
15601 - FILTER SUB-ASSY, OIL
90915-30003	3CTE..CXM10	05/1998 - 04/2001	1
90915-30003	3CTE..CXM10	04/2001 - 09/2004	1
15609 - BRACKET SUB-ASSY, OIL FILTER
15609-64070	3CTE..CXM10	05/1998 - 04/2001	1
15609-64070	3CTE..CXM10	04/2001 - 09/2004	1
15609B - UNION(FOR OIL FILTER BRACKET)
90401-18020	3CTE..CXM10	04/2001 - 09/2004	1
90401-18020	3CTE..CXM10	05/1998 - 04/2001	1
15609C - GASKET(FOR OIL FILTER BRACKET UNION)
90430-20014	3CTE..CXM10	05/1998 - 04/2001	1
90430-20014	3CTE..CXM10	04/2001 - 09/2004	1
15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)
90341-20002	3CTE..CXM10	05/1998 - 04/2001	5
90341-20002	3CTE..CXM10	04/2001 - 09/2004	5
15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)
90341-20002	3CTE..CXM10	05/1998 - 04/2001	5
90341-20002	3CTE..CXM10	04/2001 - 09/2004	5
15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)
90341-20002	3CTE..CXM10	05/1998 - 04/2001	5
90341-20002	3CTE..CXM10	04/2001 - 09/2004	5
15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)
90341-20002	3CTE..CXM10	05/1998 - 04/2001	5
90341-20002	3CTE..CXM10	04/2001 - 09/2004	5
15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)
90341-20002	3CTE..CXM10	05/1998 - 04/2001	5
90341-20002	3CTE..CXM10	04/2001 - 09/2004	5
15609H - RING, O(FOR OIL FILTER BRACKET)
90301-22004	3CTE..CXM10	04/2001 - 09/2004	1
90301-22004	3CTE..CXM10	05/1998 - 04/2001	1
15691 - GASKET, OIL FILTER
15691-64041	3CTE..CXM10	04/2001 - 09/2004	1
15691-64041	3CTE..CXM10	05/1998 - 04/2001	1
Common parts
90430-20018
91512-61030
91621-J0612

CXM10G-BRSET (1998)

(9805- )3CTE
