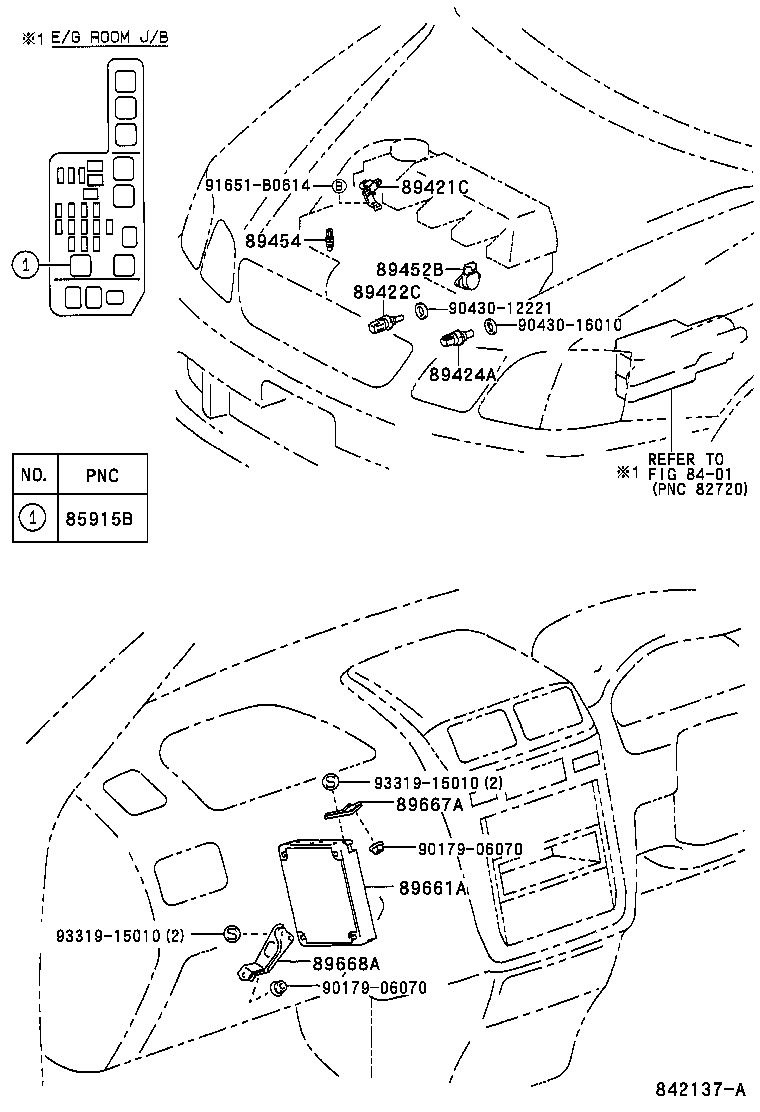

Toyota Gaia CXM10 ELECTRONIC CONTROLED DIESEL (ECD)

Part #	Description	Period	Qty
85915B - RELAY, MAIN (FOR DIESEL TURBO)
85915-26010	CXM10	05/1998 - 04/2001	1
85915-26010	CXM10	04/2001 - 12/2999	1
89421C - SENSOR, TURBO PRESSURE (FOR DIESEL TURBO)
89420-20260	CXM10	04/2001 - 12/2999	1
89420-20260	CXM10	05/1998 - 04/2001	1
89422C - SENSOR, DIESEL ENGINE WATER TEMPERATURE
89422-35010	CXM10	05/1998 - 04/2001	1
89422-35010	CXM10	04/2001 - 12/2999	1
89424A - SENSOR, INLET AIR TEMPERATURE (FOR DIESEL TURBO)
89424-60010	CXM10	04/2001 - 12/2999	1
89424-60010	CXM10	05/1998 - 04/2001	1
89452B - SENSOR, THROTTLE POSITION
89452-21020	CXM10	04/2001 - 12/2999	1
89452-21020	CXM10	05/1998 - 04/2001	1
89454 - SENSOR, FUEL TEMPERATURE
89454-60010	CXM10	05/1998 - 04/2001	1
89454-60010	CXM10	04/2001 - 12/2999	1
89661A - COMPUTER, ENGINE CONTROL
89661-44070	CXM10 DENSO	05/1998 - 04/2001	1
89661-44070	CXM10 DENSO	04/2001 - 12/2999	1
89667A - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-44030	CXM10	05/1998 - 04/2001	1
89667-44030	CXM10	04/2001 - 12/2999	1
89668A - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-44030	CXM10	05/1998 - 04/2001	1
89668-44030	CXM10	04/2001 - 12/2999	1
Common parts
90179-06070
90430-12221
90430-16010
91651-B0614
93319-15010
Linked diagrams
8401

CXM10G-BPSET (1998)
