CXM10G-BPSET (1998)
Toyota Gaia

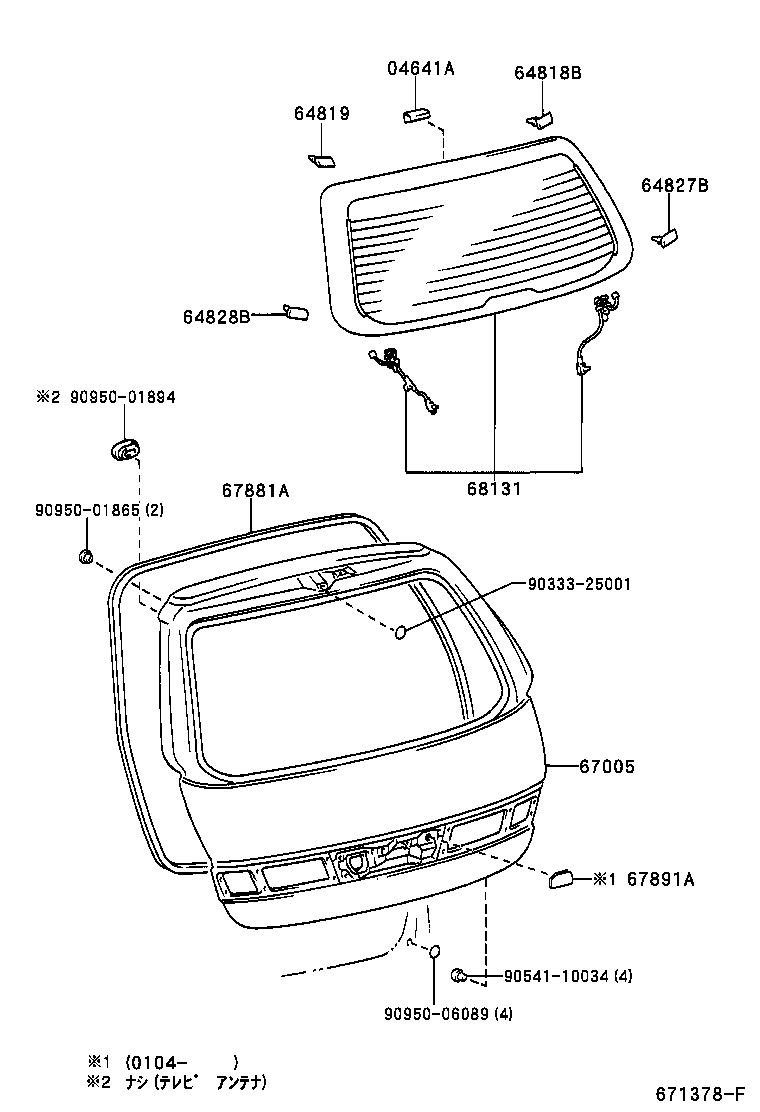

ILLUST NO. 2 OF 2(9805- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04641A - DAM KIT, BACK WINDOW GLASS ADHESIVE | ||||
| 68294-44040 |
ACM1#,CXM10,SXM15 |
2 | ||
| 68294-44040 |
CXM10,SXM1# |
2 | ||
| 64818B - SPACER, BACK DOOR GLASS, NO.1 | ||||
| 64818-44020 |
CXM10,SXM1# |
1 | ||
| 64818-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 64819 - SPACER, BACK WINDOW GLASS, NO.2 | ||||
| 64819-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 64819-44020 |
CXM10,SXM1# |
1 | ||
| 64827B - CLIP, BACK WINDOW GLASS, RH | ||||
| 64827-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 64827-44010 |
CXM10,SXM1# |
1 | ||
| 64828B - CLIP, BACK WINDOW GLASS, LH | ||||
| 64828-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 64828-44010 |
CXM10,SXM1# |
1 | ||
| 67005 - PANEL SUB-ASSY, BACK DOOR | ||||
| 67005-44021 |
CXM10,SXM1# |
1 | ||
| 67005-44031 |
ACM1#,CXM10 ｱﾘ(ﾊﾞﾂｸ ﾓﾆﾀ-) |
1 | ||
| 67005-44020 |
CXM10,SXM1# |
1 | ||
| 67005-44021 |
ACM1#,CXM10 |
1 | ||
| 67005-44030 |
CXM10,SXM1# ｱﾘ(ﾊﾞﾂｸ ﾓﾆﾀ-) |
1 | ||
| 67005-44031 |
CXM10,SXM1# ｱﾘ(ﾊﾞﾂｸ ﾓﾆﾀ-) |
1 | ||
| 67881A - WEATHERSTRIP, BACK DOOR | ||||
| 67881-44020 |
CXM10,SXM1# |
1 | ||
| 67881-44020 |
ACM1#,CXM10,SXM15 |
1 | ||
| 67891A - SEAL, BACK DOOR | ||||
| 67891-44010 |
ACM1#,CXM10,SXM15 |
1 | ||
| 68131 - GLASS, BACK DOOR | ||||
| 68105-44080 |
CXM10,SXM1# *EHSERT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68105-44070 |
CXM10,SXM1# *EHTT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ,ｱﾘ(ｱﾝﾃﾅ) |
1 | ||
| 68105-44060 |
CXM10,SXM1# *EHTT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68105-44410 |
ACM1#,CXM10,SXM15 *EHTT,厚さ=3.5,ﾀﾞｰｸｸﾞﾚｰ,ｱﾘ(ｱﾝﾃﾅ) |
1 | ||
| 68105-44400 |
ACM1#,CXM10,SXM15 *EHTT,厚さ=3.5,ｸﾞﾘｰﾝ,ｱﾘ(ｱﾝﾃﾅ) |
1 | ||
| 68105-44390 |
ACM1#,CXM10,SXM15 *EHTT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68105-44270 |
ACM1#,CXM10,SXM15 *EHTT,厚さ=3.5,ﾀﾞｰｸｸﾞﾚｰ |
1 | ||
| 68105-44090 |
CXM10,SXM1# *EHSERT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ,ｱﾘ(ｱﾝﾃﾅ) |
1 | ||
| Common parts | ||||
| 90333-25001 | ||||
| 90541-10034 | ||||
| 90950-01865 | ||||
| 90950-01894 | ||||
| 90950-06089 | ||||

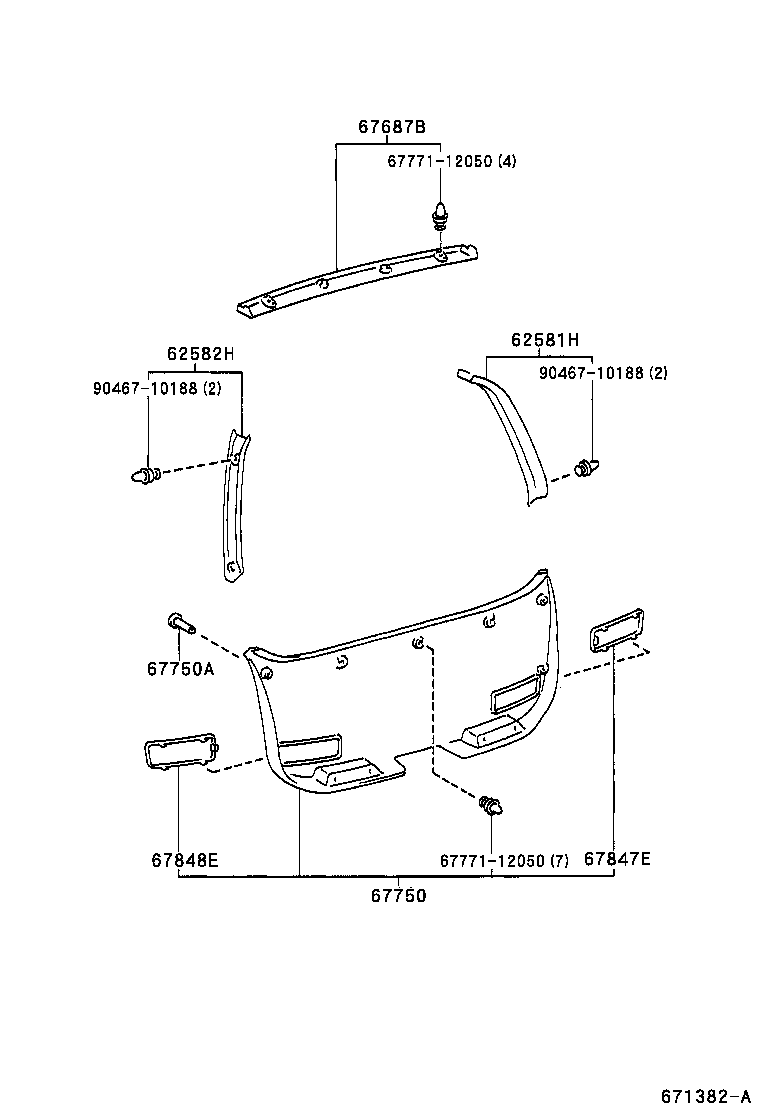

ILLUST NO. 1 OF 2(9805- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62581H - GARNISH, REAR WINDOW SIDE, RH | ||||
| 62581-44020A0 |
CXM10,SXM1# IVORY,TRIM0# |
1 | ||
| 62581-44020A0 |
ACM1#,CXM10,SXM15 IVORY,TRIM0# |
1 | ||
| 62582H - GARNISH, REAR WINDOW SIDE, LH | ||||
| 62582-44020A0 |
CXM10,SXM1# IVORY,TRIM0# |
1 | ||
| 62582-44020A0 |
ACM1#,CXM10,SXM15 IVORY,TRIM0# |
1 | ||
| 67687B - GARNISH, BACK WINDOW | ||||
| 67687-44020A0 |
ACM1#,CXM10 IVORY,TRIM0# |
1 | ||
| 67687-44020A0 |
CXM10,SXM1# IVORY,TRIM0# |
1 | ||
| 67750 - BOARD ASSY, BACK DOOR TRIM | ||||
| 67750-44020A0 |
CXM10,SXM1# IVORY,TRIM0# |
1 | ||
| 67750-44050A0 |
ACM1#,CXM10 IVORY,TRIM0# |
1 | ||
| 67750A - CLIP(FOR BACK DOOR TRIM) | ||||
| 90467-10199A0 |
ACM1#,CXM10 IVORY,TRIM0# |
2 | ||
| 90467-10199A0 |
CXM10,SXM1# IVORY,TRIM0# |
2 | ||
| 67847E - COVER, BACK DOOR SERVICE HOLE, RH | ||||
| 67847-44020A0 |
CXM10,SXM1# IVORY,TRIM0# |
1 | ||
| 67847-44020A0 |
ACM1#,CXM10 IVORY,TRIM0# |
1 | ||
| 67848E - COVER, BACK DOOR SERVICE HOLE, LH | ||||
| 67848-44020A0 |
CXM10,SXM1# IVORY,TRIM0# |
1 | ||
| 67848-44020A0 |
ACM1#,CXM10 IVORY,TRIM0# |
1 | ||
| Common parts | ||||
| 67771-12050 | ||||
| 90467-10188 | ||||
