ACM10G-BRSEH (2001)

Toyota Gaia

Production Apr 2001 - Sep 2004
Engine 1AZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

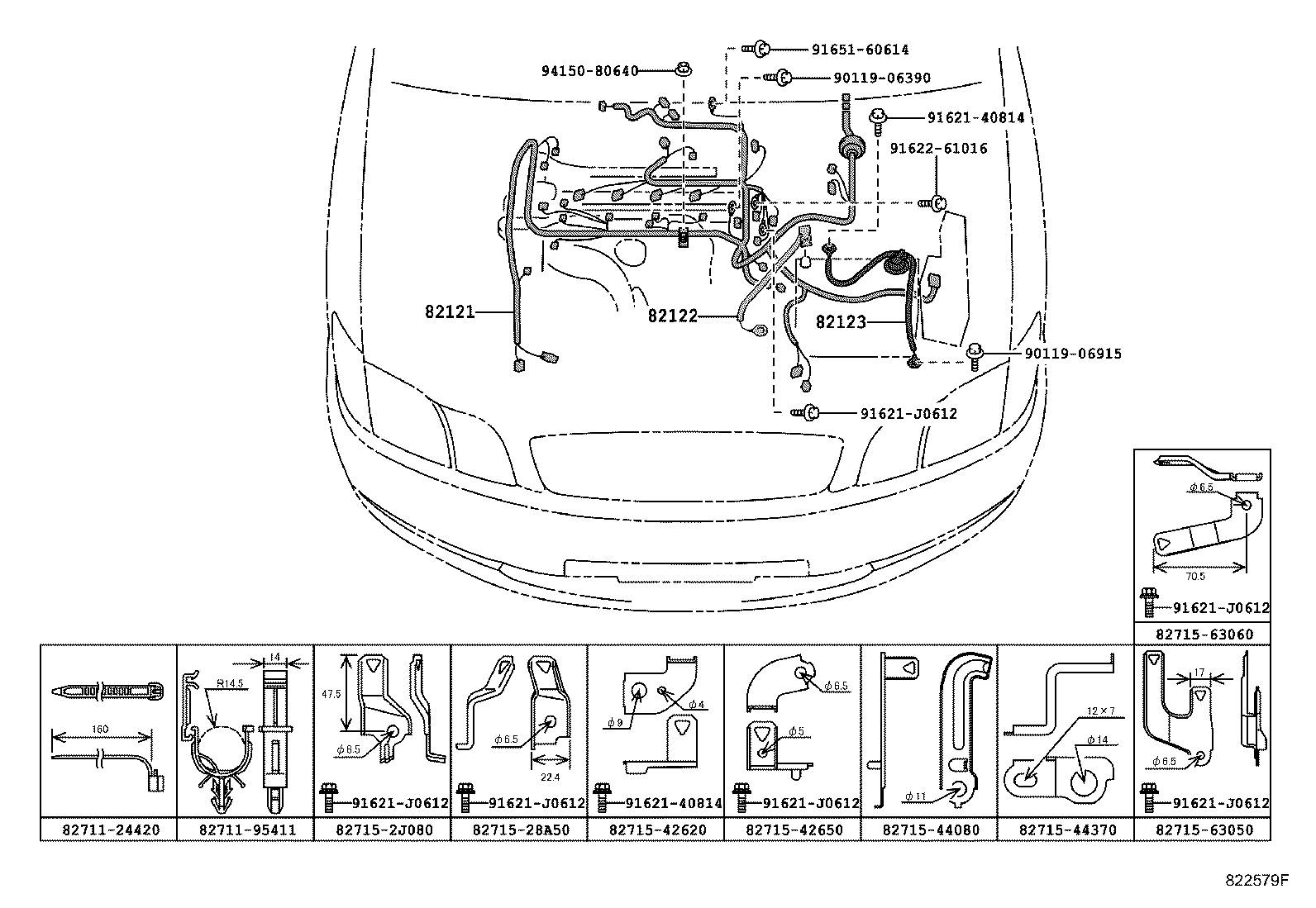

ILLUST NO. 2 OF 8(0104- )ACM1#

Click highlighted areas on diagram

ｴﾝｼﾞﾝ ﾜｲﾔ

diagram 82121 82122 82123 8271124420 8271195411 8271528A50 827152J080 8271542620 8271542650 8271544080 8271544370 8271563050 8271563060 9011906390 9011906915 9162140814 9162140814 91621J0612 91621J0612 91621J0612 91621J0612 91621J0612 91621J0612 9162261016 9165160614 9415080640
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-44490

ACM10

 1
82121-44491

ACM10

 1
82122 - WIRE, ENGINE, NO.2
82122-44030

ACM1#,SXM15

 1
82123 - WIRE, ENGINE, NO.3
82123-44010

ACM1#,SXM15

 1
Common parts
82711-24420
82711-95411
82715-28A50
82715-2J080
82715-42620
82715-42650
82715-44080
82715-44370
82715-63050
82715-63060
90119-06390
90119-06915
91621-40814
91621-J0612
91622-61016
91651-60614
94150-80640
