ACM10G-BRSEH (2001)
Toyota Gaia

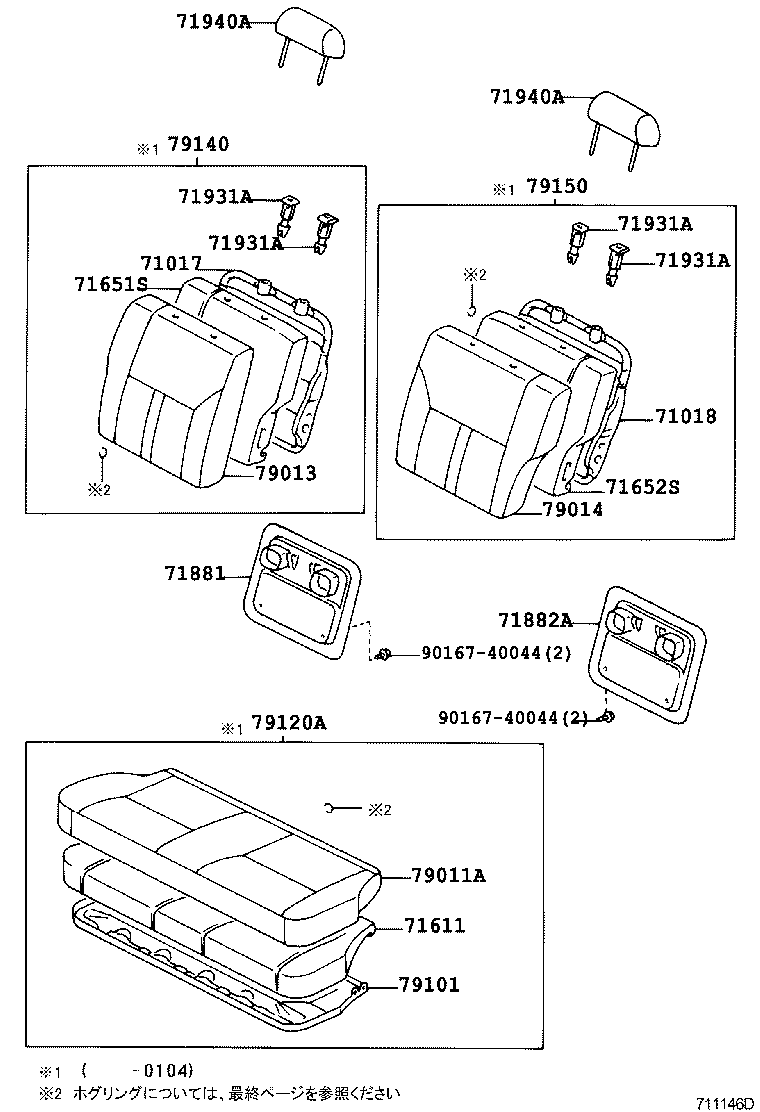

ILLUST NO. 1 OF 2(9805-0208)07S
ﾘﾔ NO.1 ｼ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 79103-44010 |
ACM10,CXM10,SXM15..07S |
1 | ||
| 71017-44040 |
ACM1#,CXM10..07S |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 79104-44010 |
ACM10,CXM10,SXM15..07S |
1 | ||
| 71017-44040 |
ACM1#,CXM10..07S |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 79135-44090 |
ACM10,CXM10,SXM15..07S |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 79175-44120 |
ACM1#,CXM10..07S |
1 | ||
| 79175-44010 |
ACM10,CXM10,SXM15..07S |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 79185-44010 |
ACM10,CXM10,SXM15..07S |
1 | ||
| 79185-44080 |
ACM1#,CXM10..07S |
1 | ||
| 71881 - BOARD, REAR SEAT BACK, RH | ||||
| 71881-44010B1 |
ACM10,SXM15..07S DK.GRAY,TRIM1# |
1 | ||
| 71881-44020B1 |
ACM15;ACM10..07S DK.GRAY,TRIM1# |
2 | ||
| 71881-44010A0 |
ACM10,CXM10,SXM15..07S IVORY,TRIM0# |
1 | ||
| 71881-44020A0 |
ACM15;ACM10,CXM10..07S IVORY,TRIM0# |
2 | ||
| 71882A - BOARD, REAR SEAT BACK, LH | ||||
| 71881-44010B1 |
ACM10,SXM15..07S DK.GRAY,TRIM1# |
1 | ||
| 71881-44010A0 |
ACM10,CXM10,SXM15..07S IVORY,TRIM0# |
1 | ||
| 71881-44020A0 |
ACM1#,CXM10 IVORY,TRIM0# |
1 | ||
| 71881-44020B1 |
ACM1# DK.GRAY,TRIM1# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-44010P4 |
ACM10 ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71931-28030P1 |
ACM10 ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71930-44010P4 |
ACM1# ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ(ｻｲﾄﾞﾘﾌﾄｱﾂﾌﾟ ｼ-ﾄ),DK.GRAY,TRIM1# |
1 | ||
| 71930-44010A1 |
ACM10,CXM10 ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71931-28030A1 |
ACM10,CXM10 ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71930-44010A1 |
ACM1#,CXM10 ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ(ｻｲﾄﾞﾘﾌﾄｱﾂﾌﾟ ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71931-28030P1 |
ACM1# ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ(ｻｲﾄﾞﾘﾌﾄｱﾂﾌﾟ ｼ-ﾄ),DK.GRAY,TRIM1# |
1 | ||
| 71931-28030A1 |
ACM1#,CXM10 ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ(ｻｲﾄﾞﾘﾌﾄｱﾂﾌﾟ ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-44010P4 |
ACM10 ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71931-28030P1 |
ACM10 ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71930-44010P4 |
ACM1# ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ(ｻｲﾄﾞﾘﾌﾄｱﾂﾌﾟ ｼ-ﾄ),DK.GRAY,TRIM1# |
1 | ||
| 71930-44010A1 |
ACM10,CXM10 ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71931-28030A1 |
ACM10,CXM10 ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71930-44010A1 |
ACM1#,CXM10 ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ(ｻｲﾄﾞﾘﾌﾄｱﾂﾌﾟ ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71931-28030P1 |
ACM1# ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ(ｻｲﾄﾞﾘﾌﾄｱﾂﾌﾟ ｼ-ﾄ),DK.GRAY,TRIM1# |
1 | ||
| 71931-28030A1 |
ACM1#,CXM10 ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ(ｻｲﾄﾞﾘﾌﾄｱﾂﾌﾟ ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-44010P4 |
ACM10 ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71931-28030P1 |
ACM10 ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71930-44010P4 |
ACM1# ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ(ｻｲﾄﾞﾘﾌﾄｱﾂﾌﾟ ｼ-ﾄ),DK.GRAY,TRIM1# |
1 | ||
| 71930-44010A1 |
ACM10,CXM10 ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71931-28030A1 |
ACM10,CXM10 ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71930-44010A1 |
ACM1#,CXM10 ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ(ｻｲﾄﾞﾘﾌﾄｱﾂﾌﾟ ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71931-28030P1 |
ACM1# ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ(ｻｲﾄﾞﾘﾌﾄｱﾂﾌﾟ ｼ-ﾄ),DK.GRAY,TRIM1# |
1 | ||
| 71931-28030A1 |
ACM1#,CXM10 ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ(ｻｲﾄﾞﾘﾌﾄｱﾂﾌﾟ ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-44010P4 |
ACM10 ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71931-28030P1 |
ACM10 ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71930-44010P4 |
ACM1# ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ(ｻｲﾄﾞﾘﾌﾄｱﾂﾌﾟ ｼ-ﾄ),DK.GRAY,TRIM1# |
1 | ||
| 71930-44010A1 |
ACM10,CXM10 ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71931-28030A1 |
ACM10,CXM10 ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71930-44010A1 |
ACM1#,CXM10 ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ(ｻｲﾄﾞﾘﾌﾄｱﾂﾌﾟ ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71931-28030P1 |
ACM1# ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ(ｻｲﾄﾞﾘﾌﾄｱﾂﾌﾟ ｼ-ﾄ),DK.GRAY,TRIM1# |
1 | ||
| 71931-28030A1 |
ACM1#,CXM10 ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ(ｻｲﾄﾞﾘﾌﾄｱﾂﾌﾟ ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71910-44370A0 |
ACM10,SXM15 ﾘﾐﾃﾂﾄﾞﾅﾋﾞｽﾍﾟｼﾔﾙ *(A) OR ﾘﾐﾃﾂﾄﾞ *(B),IVORY,TRIM03 |
1 | ||
| 71910-44390B1 |
ACM1# S-EDITION *(S),S-EDITIONﾅﾋﾞｽﾍﾟｼﾔﾙ *(T),DK.GRAY,TRIM1# |
1 | ||
| 71910-44340B0 |
ACM10 DARK GRAY,TRIM1# |
2 | ||
| 71910-44330A0 |
ACM10,CXM10 ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
2 | ||
| 71910-44320A0 |
ACM10,CXM10 ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
2 | ||
| 71910-44320A0 |
ACM1#,CXM10 ｳｴﾙｷﾔﾌﾞ(ｻｲﾄﾞﾘﾌﾄｱﾂﾌﾟ ｼ-ﾄ) & ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71910-44440A0 |
ACM1#..07S ﾘﾐﾃﾂﾄﾞ *(K),ﾘﾐﾃﾂﾄﾞﾅﾋﾞｽﾍﾟｼﾔﾙ *(J),IVORY,TRIM0# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71910-44370A0 |
ACM10,SXM15 ﾘﾐﾃﾂﾄﾞﾅﾋﾞｽﾍﾟｼﾔﾙ *(A) OR ﾘﾐﾃﾂﾄﾞ *(B),IVORY,TRIM03 |
1 | ||
| 71910-44390B1 |
ACM1# S-EDITION *(S),S-EDITIONﾅﾋﾞｽﾍﾟｼﾔﾙ *(T),DK.GRAY,TRIM1# |
1 | ||
| 71910-44340B0 |
ACM10 DARK GRAY,TRIM1# |
2 | ||
| 71910-44330A0 |
ACM10,CXM10 ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
2 | ||
| 71910-44320A0 |
ACM10,CXM10 ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
2 | ||
| 71910-44320A0 |
ACM1#,CXM10 ｳｴﾙｷﾔﾌﾞ(ｻｲﾄﾞﾘﾌﾄｱﾂﾌﾟ ｼ-ﾄ) & ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71910-44440A0 |
ACM1#..07S ﾘﾐﾃﾂﾄﾞ *(K),ﾘﾐﾃﾂﾄﾞﾅﾋﾞｽﾍﾟｼﾔﾙ *(J),IVORY,TRIM0# |
2 | ||
| 79011A - COVER SUB-ASSY, NO.1 SEAT CUSHION | ||||
| 79011-44450A0 |
ACM10,CXM10,SXM15..07S ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 79011-44530A0 |
ACM10,SXM15..07S ﾘﾐﾃﾂﾄﾞﾅﾋﾞｽﾍﾟｼﾔﾙ *(A) OR ﾘﾐﾃﾂﾄﾞ *(B),IVORY,TRIM03 |
1 | ||
| 79011-44470A0 |
ACM10,CXM10,SXM15..07S ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 79011-44490B0 |
ACM10,SXM15..07S ｼ-ﾄ = TYPE C-*104,DARK GRAY,TRIM1# |
1 | ||
| 79013 - COVER SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79013-44490A0 |
ACM10,CXM10,SXM15..07S ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 79013-44470A0 |
ACM10,CXM10,SXM15..07S ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 79013-44550A0 |
ACM10,SXM15..07S ﾘﾐﾃﾂﾄﾞﾅﾋﾞｽﾍﾟｼﾔﾙ *(A) OR ﾘﾐﾃﾂﾄﾞ *(B),IVORY,TRIM03 |
1 | ||
| 79013-44640B0 |
ACM1#..07S S-EDITION *(S),S-EDITIONﾅﾋﾞｽﾍﾟｼﾔﾙ *(T),DK.GRAY,TRIM1# |
1 | ||
| 79013-44510B0 |
ACM10,SXM15..07S ｼ-ﾄ = TYPE C-*104,DARK GRAY,TRIM1# |
1 | ||
| 79013-44570A0 |
ACM1#,CXM10..07S ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 79013-44590A0 |
ACM1#,CXM10..07S ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 79013-44750A0 |
ACM1#..07S ﾘﾐﾃﾂﾄﾞ *(K),ﾘﾐﾃﾂﾄﾞﾅﾋﾞｽﾍﾟｼﾔﾙ *(J),IVORY,TRIM0# |
1 | ||
| 79013-44610B0 |
ACM1#..07S ｼ-ﾄ = TYPE C-*104,DARK GRAY,TRIM1# |
1 | ||
| 79014 - COVER SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79014-44460A0 |
ACM10,SXM15..07S ﾘﾐﾃﾂﾄﾞﾅﾋﾞｽﾍﾟｼﾔﾙ *(A) OR ﾘﾐﾃﾂﾄﾞ *(B),IVORY,TRIM03 |
1 | ||
| 79014-44400A0 |
ACM10,CXM10,SXM15..07S ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 79014-44440B0 |
ACM10,SXM15..07S ｼ-ﾄ = TYPE C-*104,DARK GRAY,TRIM1# |
1 | ||
| 79014-44540B |
ACM1#..07S S-EDITION *(S),S-EDITIONﾅﾋﾞｽﾍﾟｼﾔﾙ *(T),TRIM1# |
1 | ||
| 79014-44420A0 |
ACM10,CXM10,SXM15..07S ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 79014-44500A0 |
ACM1#,CXM10..07S ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 79014-44480A0 |
ACM1#,CXM10..07S ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 79014-44520B0 |
ACM1#..07S ｼ-ﾄ = TYPE C-*104,DARK GRAY,TRIM1# |
1 | ||
| 79014-44580A0 |
ACM1#..07S ﾘﾐﾃﾂﾄﾞ *(K),ﾘﾐﾃﾂﾄﾞﾅﾋﾞｽﾍﾟｼﾔﾙ *(J),IVORY,TRIM0# |
1 | ||
| 79101 - FRAME SUB-ASSY, NO.1 SEAT CUSHION | ||||
| 79101-44040 |
ACM10,CXM10,SXM15..07S |
1 | ||
| Common parts | ||||
| 90167-40044 | ||||

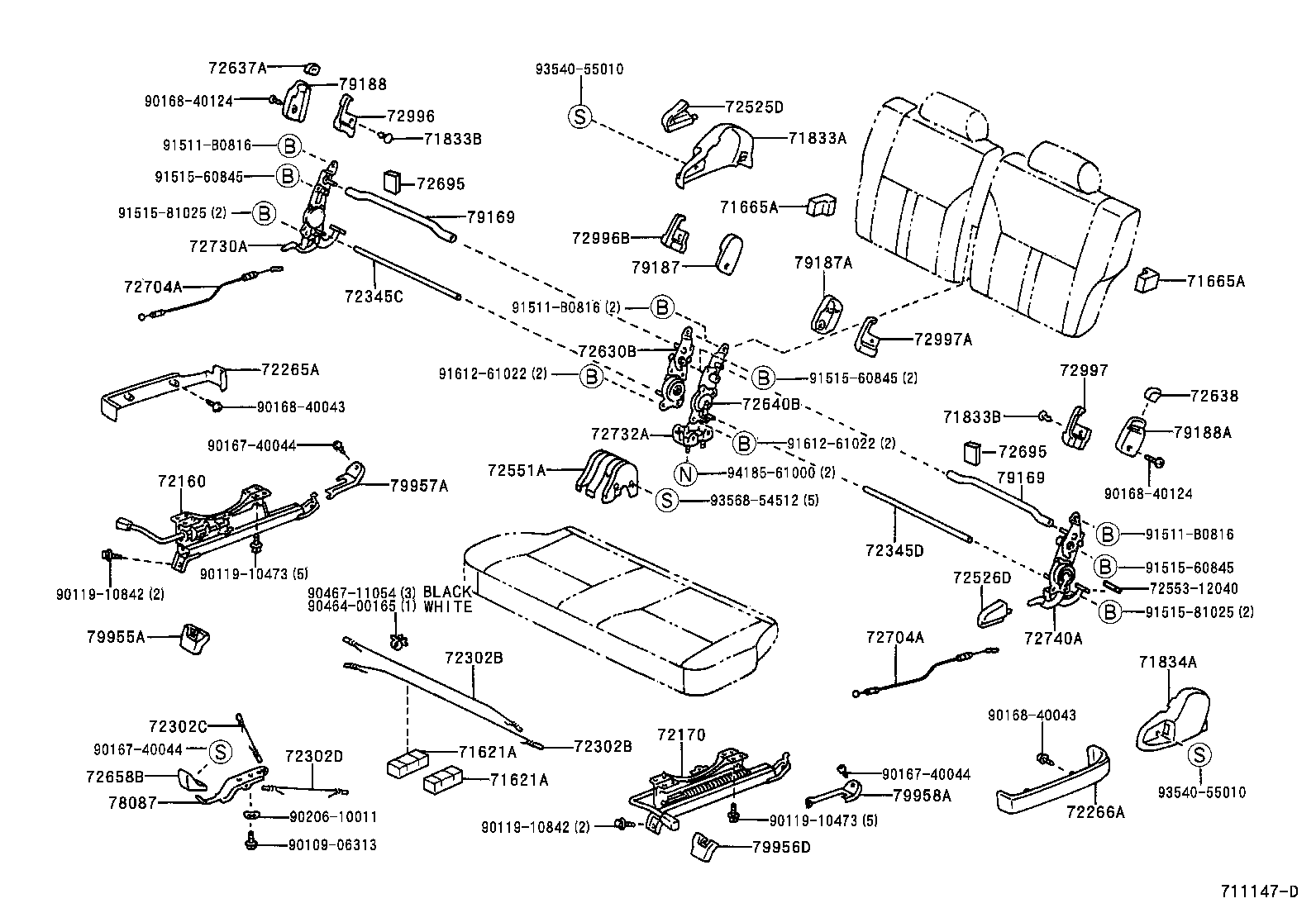

ILLUST NO. 2 OF 2(9805-0208)07S
ﾘﾔ NO.1 ｼ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71621A - PAD, REAR SEAT CUSHION SILENCER, A | ||||
| 71621-44010 |
ACM10,CXM10,SXM15..07S |
2 | ||
| 71621A - PAD, REAR SEAT CUSHION SILENCER, A | ||||
| 71621-44010 |
ACM10,CXM10,SXM15..07S |
2 | ||
| 71665A - PAD, REAR SEAT BACK, SIDE A | ||||
| 71665-44010 |
ACM10,CXM10,SXM15..07S |
4 | ||
| 71665-44020 |
ACM1#,CXM10 |
4 | ||
| 71665A - PAD, REAR SEAT BACK, SIDE A | ||||
| 71665-44010 |
ACM10,CXM10,SXM15..07S |
4 | ||
| 71665-44020 |
ACM1#,CXM10 |
4 | ||
| 71833A - COVER, REAR SEAT RECLINING, NO.1 RH | ||||
| 71833-44010B1 |
ACM10,SXM15..07S DK.GRAY,TRIM1# |
1 | ||
| 71833-44010A0 |
ACM10,CXM10,SXM15..07S IVORY,TRIM0# |
1 | ||
| 71833B - CLIP (FOR REAR SEAT RECLINING COVER) | ||||
| 90467-05017A0 |
ACM10,CXM10 IVORY,TRIM0# |
2 | ||
| 90467-05017B6 |
ACM10 DK.GRAY,TRIM1# |
2 | ||
| 71833B - CLIP (FOR REAR SEAT RECLINING COVER) | ||||
| 90467-05017A0 |
ACM10,CXM10 IVORY,TRIM0# |
2 | ||
| 90467-05017B6 |
ACM10 DK.GRAY,TRIM1# |
2 | ||
| 71834A - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 71834-44010A0 |
ACM10,CXM10,SXM15..07S IVORY,TRIM0# |
1 | ||
| 71834-44010B1 |
ACM10,SXM15..07S DK.GRAY,TRIM1# |
1 | ||
| 72160 - TRACK ASSY, REAR SEAT, OUTER RH | ||||
| 72160-44021 |
ACM1#,CXM10 |
1 | ||
| 72160-44011 |
ACM10,CXM10,SXM15..07S |
1 | ||
| 72170 - TRACK ASSY, REAR SEAT, OUTER LH | ||||
| 72170-44021 |
ACM1#,CXM10 |
1 | ||
| 72170-44011 |
ACM10,CXM10,SXM15..07S |
1 | ||
| 72265A - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-44010B1 |
ACM10,SXM15..07S DK.GRAY,TRIM1# |
1 | ||
| 72265-44020A0 |
ACM10,CXM10..07S IVORY,TRIM0# |
1 | ||
| 72265-44010A0 |
ACM10,CXM10,SXM15..07S IVORY,TRIM0# |
1 | ||
| 72265-44020B1 |
ACM10..07S DK.GRAY,TRIM1# |
1 | ||
| 72266A - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72266-44010A0 |
ACM10,CXM10,SXM15..07S IVORY,TRIM0# |
1 | ||
| 72266-44020A0 |
ACM10,CXM10..07S IVORY,TRIM0# |
1 | ||
| 72266-44010B1 |
ACM10,SXM15..07S DK.GRAY,TRIM1# |
1 | ||
| 72266-44020B1 |
ACM10..07S DK.GRAY,TRIM1# |
1 | ||
| 72302B - WIRE SUB-ASSY, REAR SEAT TRACK EQUALIZING | ||||
| 72302-44010 |
ACM10,CXM10,SXM15..07S |
2 | ||
| 72302B - WIRE SUB-ASSY, REAR SEAT TRACK EQUALIZING | ||||
| 72302-44010 |
ACM10,CXM10,SXM15..07S |
2 | ||
| 72302C - WIRE SUB-ASSY, REAR SEAT TRACK EQUALIZING, RH | ||||
| 72302-44020 |
ACM10,CXM10,SXM15..07S |
1 | ||
| 72302D - WIRE SUB-ASSY, REAR SEAT TRACK EQUALIZING, LH | ||||
| 72302-44020 |
ACM10,CXM10,SXM15..07S |
1 | ||
| 72345C - PIPE,RECLINING CONNECTING, RH | ||||
| 72345-44010 |
ACM10,CXM10,SXM15..07S |
1 | ||
| 72345-44020 |
ACM1#,CXM10 |
1 | ||
| 72345D - PIPE, RECLINING CONNECTING, LH | ||||
| 72345-44010 |
ACM10,CXM10,SXM15..07S |
1 | ||
| 72345-44020 |
ACM1#,CXM10 |
1 | ||
| 72525D - HANDLE, RECLINING ADJUSTER RELEASE, NO.2 RH | ||||
| 72525-44010A0 |
ACM10,CXM10..07S IVORY,TRIM0# |
1 | ||
| 72525-16010A1 |
ACM10,CXM10,SXM15..07S IVORY,TRIM0# |
1 | ||
| 72525-16010S1 |
ACM10,SXM15..07S DK.GRAY,TRIM1# |
1 | ||
| 72525-44010B4 |
ACM10..07S DK.GRAY,TRIM1# |
1 | ||
| 72526D - HANDLE, RECLINING ADJUSTER RELEASE, NO.3 LH | ||||
| 72526-16010S1 |
ACM10,SXM15..07S DK.GRAY,TRIM1# |
1 | ||
| 72526-44010A0 |
ACM10,CXM10..07S IVORY,TRIM0# |
1 | ||
| 72526-16010A1 |
ACM10,CXM10,SXM15..07S IVORY,TRIM0# |
1 | ||
| 72526-44010B4 |
ACM10..07S DK.GRAY,TRIM1# |
1 | ||
| 72551A - COVER, RECLINING HINGE | ||||
| 72551-44010A0 |
ACM10,CXM10,SXM15..07S IVORY,TRIM0# |
1 | ||
| 72551-44010B1 |
ACM10,SXM15..07S DK.GRAY,TRIM1# |
1 | ||
| 72630B - ADJUSTER ASSY, REAR NO.1 SEAT, INNER RH | ||||
| 72630-44010 |
ACM10,CXM10,SXM15..07S |
1 | ||
| 72637A - HANDLE, REAR SEAT LOCK | ||||
| 72637-44030A0 |
ACM1#,CXM10 IVORY,TRIM0# |
1 | ||
| 72637-44030B1 |
ACM1# DK.GRAY,TRIM1# |
1 | ||
| 72638 - HANDLE, REAR SEAT LOCK, LH | ||||
| 72638-44030B1 |
ACM1# DK.GRAY,TRIM1# |
1 | ||
| 72638-44030A0 |
ACM1#,CXM10 IVORY,TRIM0# |
1 | ||
| 72640B - ADJUSTER ASSY, REAR NO.1 SEAT, INNER LH | ||||
| 72640-44010 |
ACM10,CXM10,SXM15..07S |
1 | ||
| 72658B - KNOB, REAR SEAT LOCK HANDLE | ||||
| 72658-44010A0 |
ACM10,CXM10,SXM15..07S IVORY,TRIM0# |
1 | ||
| 72658-44010B1 |
ACM10,SXM15..07S DK.GRAY,TRIM1# |
1 | ||
| 72695 - SILENCER, REAR SEAT BACK LOCK CONTROL ROD | ||||
| 72695-44010 |
ACM10,CXM10,SXM15..07S |
4 | ||
| 72695 - SILENCER, REAR SEAT BACK LOCK CONTROL ROD | ||||
| 72695-44010 |
ACM10,CXM10,SXM15..07S |
4 | ||
| 72704A - CABLE, REAR SEAT RECLINING CONTROL | ||||
| 72704-44031 |
ACM1#,CXM10 |
2 | ||
| 72704-44010 |
ACM10,CXM10,SXM15..07S |
2 | ||
| 72704A - CABLE, REAR SEAT RECLINING CONTROL | ||||
| 72704-44031 |
ACM1#,CXM10 |
2 | ||
| 72704-44010 |
ACM10,CXM10,SXM15..07S |
2 | ||
| 72730A - ADJUSTER ASSY, REAR SEAT RECLINING, RH | ||||
| 72710-44010 |
ACM10,CXM10,SXM15..07S |
1 | ||
| 72510-44050 |
ACM1#,CXM10..07S |
1 | ||
| 72732A - BRACKET, REAR SEAT ADJUSTER, INNER | ||||
| 72732-44010 |
ACM10,CXM10,SXM15..07S |
1 | ||
| 72740A - ADJUSTER ASSY, REAR SEAT RECLINING, LH | ||||
| 72720-44010 |
ACM10,CXM10,SXM15..07S |
1 | ||
| 72520-44050 |
ACM1#,CXM10..07S |
1 | ||
| 72996 - COVER, REAR SEAT BACK, RH | ||||
| 72996-44010A0 |
ACM10,CXM10,SXM15..07S IVORY,TRIM0# |
1 | ||
| 72996-44030B1 |
ACM15;ACM10..07S DK.GRAY,TRIM1# |
1 | ||
| 72996-44010B1 |
ACM10,SXM15..07S DK.GRAY,TRIM1# |
1 | ||
| 72996-44030A0 |
ACM15;ACM10,CXM10..07S IVORY,TRIM0# |
1 | ||
| 72996B - COVER, REAR SEAT BACK, INNER RH | ||||
| 72997-44010A0 |
ACM10,CXM10,SXM15..07S IVORY,TRIM0# |
1 | ||
| 72997-44010B1 |
ACM10,SXM15..07S DK.GRAY,TRIM1# |
1 | ||
| 72997-44030B1 |
ACM1#..07S DK.GRAY,TRIM1# |
1 | ||
| 72997-44030A0 |
ACM1#,CXM10..07S IVORY,TRIM0# |
1 | ||
| 72997 - COVER, REAR SEAT BACK, LH | ||||
| 72997-44020B1 |
ACM10,SXM15..07S DK.GRAY,TRIM1# |
1 | ||
| 72997-44020A0 |
ACM10,CXM10,SXM15..07S IVORY,TRIM0# |
1 | ||
| 72997A - COVER, REAR SEAT BACK, INNER LH | ||||
| 72996-44020B1 |
ACM10,SXM15..07S DK.GRAY,TRIM1# |
1 | ||
| 72996-44020A0 |
ACM10,CXM10,SXM15..07S IVORY,TRIM0# |
1 | ||
| 72997-44030B1 |
ACM1# DK.GRAY,TRIM1# |
1 | ||
| 72997-44030A0 |
ACM1#,CXM10 IVORY,TRIM0# |
1 | ||
| 78087 - LEVER SUB-ASSY, SUB SEAT LOCK | ||||
| 78087-44010 |
ACM10,CXM10,SXM15..07S |
1 | ||
| 79169 - ROD, REAR SEAT HINGE CONNECTOR | ||||
| 79169-44010 |
ACM10,CXM10,SXM15..07S |
2 | ||
| 79169-44020 |
ACM1#,CXM10 |
2 | ||
| 79169 - ROD, REAR SEAT HINGE CONNECTOR | ||||
| 79169-44010 |
ACM10,CXM10,SXM15..07S |
2 | ||
| 79169-44020 |
ACM1#,CXM10 |
2 | ||
| 79187 - COVER, NO.1 SEAT INNER BRACKET | ||||
| 79187-44010B1 |
ACM10,SXM15..07S DK.GRAY,TRIM1# |
1 | ||
| 79187-44010A0 |
ACM10,CXM10,SXM15..07S IVORY,TRIM0# |
1 | ||
| 79187-44070A0 |
ACM1#,CXM10..07S IVORY,TRIM0# |
1 | ||
| 79187-44070B0 |
ACM1#..07S DK.GRAY,TRIM1# |
1 | ||
| 79187A - COVER, NO.1 SEAT INNER BRACKET, LH | ||||
| 79187-44080A0 |
ACM1#,CXM10..07S IVORY,TRIM0# |
1 | ||
| 79187-44080B0 |
ACM1#..07S DK.GRAY,TRIM1# |
1 | ||
| 79187-44020A0 |
ACM10,CXM10,SXM15..07S IVORY,TRIM0# |
1 | ||
| 79187-44020B1 |
ACM10,SXM15..07S DK.GRAY,TRIM1# |
1 | ||
| 79188 - COVER, NO.1 SEAT OUTER BRACKET | ||||
| 79188-44010A0 |
ACM10,CXM10,SXM15..07S IVORY,TRIM0# |
1 | ||
| 79188-44030A0 |
ACM10,CXM10..07S IVORY,TRIM0# |
1 | ||
| 79188-44010B1 |
ACM10,SXM15..07S DK.GRAY,TRIM1# |
1 | ||
| 79188-44030B1 |
ACM10..07S DK.GRAY,TRIM1# |
1 | ||
| 79188A - COVER, NO.1 SEAT OUTER BRACKET, LH | ||||
| 79188-44020B1 |
ACM10,SXM15..07S DK.GRAY,TRIM1# |
1 | ||
| 79188-44040A0 |
ACM10,CXM10..07S IVORY,TRIM0# |
1 | ||
| 79188-44040B1 |
ACM10..07S DK.GRAY,TRIM1# |
1 | ||
| 79188-44020A0 |
ACM10,CXM10,SXM15..07S IVORY,TRIM0# |
1 | ||
| 79955A - COVER, REAR SEAT FRONT BRACKET, RH | ||||
| 79955-44010A0 |
ACM1#,CXM10 IVORY,TRIM0# |
1 | ||
| 79955-44010B1 |
ACM1# DK.GRAY,TRIM1# |
1 | ||
| 79956D - COVER, REAR SEAT FRONT BRACKET, LH | ||||
| 79956-44010A0 |
ACM1#,CXM10 IVORY,TRIM0# |
1 | ||
| 79956-44010B1 |
ACM1# DK.GRAY,TRIM1# |
1 | ||
| 79957A - COVER, REAR SEAT REAR BRACKET, RH | ||||
| 79957-44010A0 |
ACM1#,CXM10 IVORY,TRIM0# |
1 | ||
| 79957-44010B1 |
ACM1# DK.GRAY,TRIM1# |
1 | ||
| 79958A - COVER, REAR SEAT REAR BRACKET, LH | ||||
| 79958-44010B1 |
ACM1# DK.GRAY,TRIM1# |
1 | ||
| 79958-44010A0 |
ACM1#,CXM10 IVORY,TRIM0# |
1 | ||
| Common parts | ||||
| 72553-12040 | ||||
| 90109-06313 | ||||
| 90119-10473 | ||||
| 90119-10842 | ||||
| 90167-40044 | ||||
| 90168-40043 | ||||
| 90168-40124 | ||||
| 90206-10011 | ||||
| 90464-00165 | ||||
| 90467-11054 | ||||
| 91511-B0816 | ||||
| 91515-60845 | ||||
| 91515-81025 | ||||
| 91612-61022 | ||||
| 93540-55010 | ||||
| 93568-54512 | ||||
| 94185-61000 | ||||

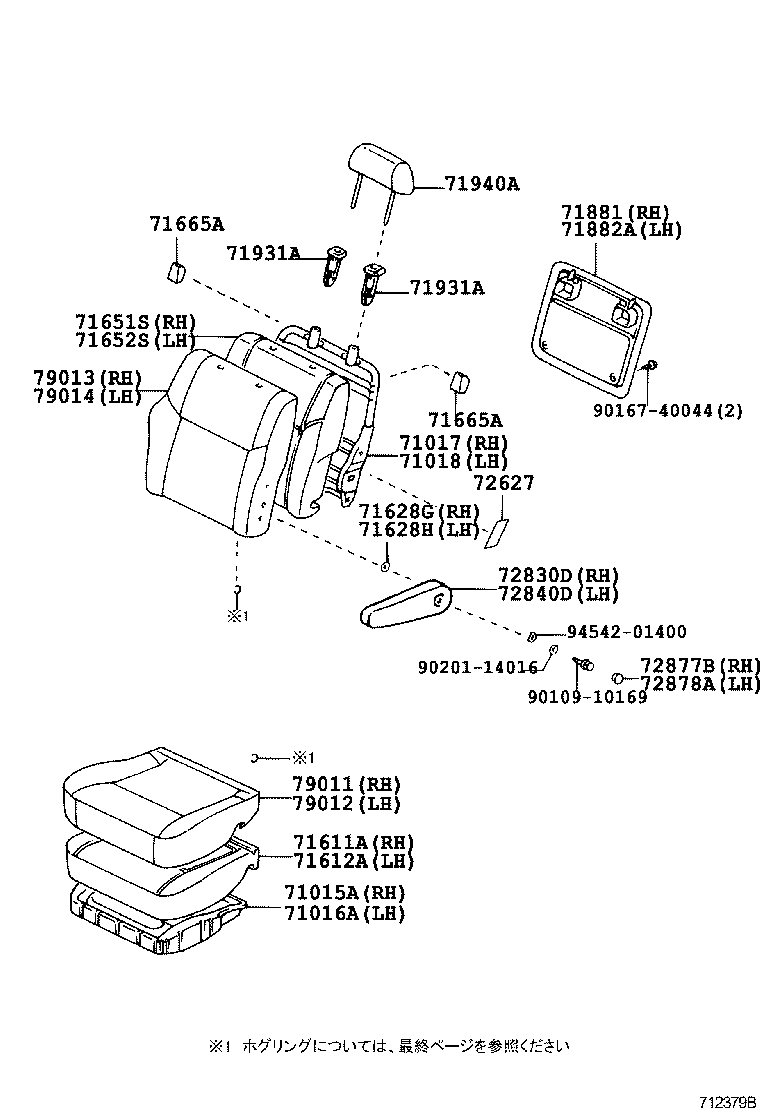

ILLUST NO. 1 OF 2(0208- )07S
ﾘﾔ NO.1 ｼ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015A - FRAME SUB-ASSY, REAR SEAT CUSHION, RH | ||||
| 71015-44030 |
ACM1#,CXM10..07S |
1 | ||
| 71016A - FRAME SUB-ASSY, REAR SEAT CUSHION, LH | ||||
| 71016-44020 |
ACM1#,CXM10..07S |
1 | ||
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 79103-44010 |
ACM10,CXM10,SXM15..07S |
1 | ||
| 71017-44040 |
ACM1#,CXM10..07S |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 79104-44010 |
ACM10,CXM10,SXM15..07S |
1 | ||
| 71017-44040 |
ACM1#,CXM10..07S |
1 | ||
| 71611A - PAD, REAR SEAT CUSHION, RH | ||||
| 79135-44110 |
ACM1#,CXM10..07S |
1 | ||
| 71612A - PAD, REAR SEAT CUSHION, LH | ||||
| 79136-44040 |
ACM1#,CXM10..07S |
1 | ||
| 71628G - SPACER, REAR SEAT CUSHION, RH | ||||
| 71628-44030 |
ACM1#,CXM10 |
1 | ||
| 71628H - SPACER, REAR SEAT CUSHION, LH | ||||
| 71628-44030 |
ACM1#,CXM10 |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 79175-44120 |
ACM1#,CXM10..07S |
1 | ||
| 79175-44010 |
ACM10,CXM10,SXM15..07S |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 79185-44010 |
ACM10,CXM10,SXM15..07S |
1 | ||
| 79185-44080 |
ACM1#,CXM10..07S |
1 | ||
| 71665A - PAD, REAR SEAT BACK, SIDE A | ||||
| 71665-44010 |
ACM10,CXM10,SXM15..07S |
4 | ||
| 71665-44020 |
ACM1#,CXM10 |
4 | ||
| 71665A - PAD, REAR SEAT BACK, SIDE A | ||||
| 71665-44010 |
ACM10,CXM10,SXM15..07S |
4 | ||
| 71665-44020 |
ACM1#,CXM10 |
4 | ||
| 71881 - BOARD, REAR SEAT BACK, RH | ||||
| 71881-44010B1 |
ACM10,SXM15..07S DK.GRAY,TRIM1# |
1 | ||
| 71881-44020B1 |
ACM15;ACM10..07S DK.GRAY,TRIM1# |
2 | ||
| 71881-44010A0 |
ACM10,CXM10,SXM15..07S IVORY,TRIM0# |
1 | ||
| 71881-44020A0 |
ACM15;ACM10,CXM10..07S IVORY,TRIM0# |
2 | ||
| 71882A - BOARD, REAR SEAT BACK, LH | ||||
| 71881-44010B1 |
ACM10,SXM15..07S DK.GRAY,TRIM1# |
1 | ||
| 71881-44010A0 |
ACM10,CXM10,SXM15..07S IVORY,TRIM0# |
1 | ||
| 71881-44020A0 |
ACM1#,CXM10 IVORY,TRIM0# |
1 | ||
| 71881-44020B1 |
ACM1# DK.GRAY,TRIM1# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-44010P4 |
ACM10 ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71931-28030P1 |
ACM10 ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71930-44010P4 |
ACM1# ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ(ｻｲﾄﾞﾘﾌﾄｱﾂﾌﾟ ｼ-ﾄ),DK.GRAY,TRIM1# |
1 | ||
| 71930-44010A1 |
ACM10,CXM10 ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71931-28030A1 |
ACM10,CXM10 ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71930-44010A1 |
ACM1#,CXM10 ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ(ｻｲﾄﾞﾘﾌﾄｱﾂﾌﾟ ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71931-28030P1 |
ACM1# ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ(ｻｲﾄﾞﾘﾌﾄｱﾂﾌﾟ ｼ-ﾄ),DK.GRAY,TRIM1# |
1 | ||
| 71931-28030A1 |
ACM1#,CXM10 ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ(ｻｲﾄﾞﾘﾌﾄｱﾂﾌﾟ ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-44010P4 |
ACM10 ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71931-28030P1 |
ACM10 ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71930-44010P4 |
ACM1# ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ(ｻｲﾄﾞﾘﾌﾄｱﾂﾌﾟ ｼ-ﾄ),DK.GRAY,TRIM1# |
1 | ||
| 71930-44010A1 |
ACM10,CXM10 ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71931-28030A1 |
ACM10,CXM10 ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71930-44010A1 |
ACM1#,CXM10 ﾛｯｸ付,ｳｴﾙｷﾔﾌﾞ(ｻｲﾄﾞﾘﾌﾄｱﾂﾌﾟ ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71931-28030P1 |
ACM1# ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ(ｻｲﾄﾞﾘﾌﾄｱﾂﾌﾟ ｼ-ﾄ),DK.GRAY,TRIM1# |
1 | ||
| 71931-28030A1 |
ACM1#,CXM10 ﾛｯｸ無,ｳｴﾙｷﾔﾌﾞ(ｻｲﾄﾞﾘﾌﾄｱﾂﾌﾟ ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71910-44370A0 |
ACM10,SXM15 ﾘﾐﾃﾂﾄﾞﾅﾋﾞｽﾍﾟｼﾔﾙ *(A) OR ﾘﾐﾃﾂﾄﾞ *(B),IVORY,TRIM03 |
1 | ||
| 71910-44390B1 |
ACM1# S-EDITION *(S),S-EDITIONﾅﾋﾞｽﾍﾟｼﾔﾙ *(T),DK.GRAY,TRIM1# |
1 | ||
| 71910-44340B0 |
ACM10 DARK GRAY,TRIM1# |
2 | ||
| 71910-44330A0 |
ACM10,CXM10 ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
2 | ||
| 71910-44320A0 |
ACM10,CXM10 ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
2 | ||
| 71910-44320A0 |
ACM1#,CXM10 ｳｴﾙｷﾔﾌﾞ(ｻｲﾄﾞﾘﾌﾄｱﾂﾌﾟ ｼ-ﾄ) & ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71910-44440A0 |
ACM1#..07S ﾘﾐﾃﾂﾄﾞ *(K),ﾘﾐﾃﾂﾄﾞﾅﾋﾞｽﾍﾟｼﾔﾙ *(J),IVORY,TRIM0# |
2 | ||
| 72627 - PLATE, REAR SEAT BACK PROTECTOR | ||||
| 72627-44020 |
ACM1#,CXM10..07S |
2 | ||
| 72830D - ARMREST ASSY, REAR SEAT, RH | ||||
| 72830-44300B1 |
ACM1#..07S S-EDITION *(S),S-EDITIONﾅﾋﾞｽﾍﾟｼﾔﾙ *(T),DK.GRAY,TRIM1# |
1 | ||
| 72830-44280A0 |
ACM1#,CXM10..07S ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 72830-44290B0 |
ACM1#..07S ｼ-ﾄ = TYPE C-*104,DK.GRAY,TRIM1# |
1 | ||
| 72830-44370A0 |
ACM1#..07S ﾘﾐﾃﾂﾄﾞ *(K),ﾘﾐﾃﾂﾄﾞﾅﾋﾞｽﾍﾟｼﾔﾙ *(J),IVORY,TRIM0# |
1 | ||
| 72830-44270A0 |
ACM1#,CXM10..07S ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 72840D - ARMREST ASSY, REAR SEAT, LH | ||||
| 72840-44170B1 |
ACM1#..07S S-EDITION *(S),S-EDITIONﾅﾋﾞｽﾍﾟｼﾔﾙ *(T),DK.GRAY,TRIM1# |
1 | ||
| 72840-44210A0 |
ACM1#..07S ﾘﾐﾃﾂﾄﾞ *(K),ﾘﾐﾃﾂﾄﾞﾅﾋﾞｽﾍﾟｼﾔﾙ *(J),IVORY,TRIM0# |
1 | ||
| 72840-44160B0 |
ACM1#..07S ｼ-ﾄ = TYPE C-*104,DK.GRAY,TRIM1# |
1 | ||
| 72840-44140A0 |
ACM1#,CXM10..07S ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 72840-44150A0 |
ACM1#,CXM10..07S ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 72877B - COVER, SEAT ARMREST, RH | ||||
| 72877-32070A1 |
ACM1#,CXM10..07S IVORY,TRIM0# |
1 | ||
| 72877-32070B1 |
ACM1#..07S DK.GRAY,TRIM1# |
1 | ||
| 72878A - COVER, SEAT ARMREST, NO.2 LH | ||||
| 72877-32070A1 |
ACM1#,CXM10..07S IVORY,TRIM0# |
1 | ||
| 72877-32070B1 |
ACM1#..07S DK.GRAY,TRIM1# |
1 | ||
| 79011 - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79011-44560A0 |
ACM1#,CXM10..07S ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 79011-44590B0 |
ACM1#..07S S-EDITION *(S),S-EDITIONﾅﾋﾞｽﾍﾟｼﾔﾙ *(T),DK.GRAY,TRIM1# |
1 | ||
| 79011-44680A0 |
ACM1#..07S ﾘﾐﾃﾂﾄﾞ *(K),ﾘﾐﾃﾂﾄﾞﾅﾋﾞｽﾍﾟｼﾔﾙ *(J),IVORY,TRIM0# |
1 | ||
| 79011-44570B0 |
ACM1#..07S ｼ-ﾄ = TYPE C-*104,DARK GRAY,TRIM1# |
1 | ||
| 79011-44550A0 |
ACM1#,CXM10..07S ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 79012 - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79012-44150B0 |
ACM1#..07S S-EDITION *(S),S-EDITIONﾅﾋﾞｽﾍﾟｼﾔﾙ *(T),DK.GRAY,TRIM1# |
1 | ||
| 79012-44120A0 |
ACM1#,CXM10..07S ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 79012-44160A0 |
ACM1#..07S ﾘﾐﾃﾂﾄﾞ *(K),ﾘﾐﾃﾂﾄﾞﾅﾋﾞｽﾍﾟｼﾔﾙ *(J),IVORY,TRIM0# |
1 | ||
| 79012-44140B0 |
ACM1#..07S ｼ-ﾄ = TYPE C-*104,DARK GRAY,TRIM1# |
1 | ||
| 79012-44130A0 |
ACM1#,CXM10..07S ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 79013 - COVER SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79013-44490A0 |
ACM10,CXM10,SXM15..07S ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 79013-44470A0 |
ACM10,CXM10,SXM15..07S ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 79013-44550A0 |
ACM10,SXM15..07S ﾘﾐﾃﾂﾄﾞﾅﾋﾞｽﾍﾟｼﾔﾙ *(A) OR ﾘﾐﾃﾂﾄﾞ *(B),IVORY,TRIM03 |
1 | ||
| 79013-44640B0 |
ACM1#..07S S-EDITION *(S),S-EDITIONﾅﾋﾞｽﾍﾟｼﾔﾙ *(T),DK.GRAY,TRIM1# |
1 | ||
| 79013-44510B0 |
ACM10,SXM15..07S ｼ-ﾄ = TYPE C-*104,DARK GRAY,TRIM1# |
1 | ||
| 79013-44570A0 |
ACM1#,CXM10..07S ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 79013-44590A0 |
ACM1#,CXM10..07S ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 79013-44750A0 |
ACM1#..07S ﾘﾐﾃﾂﾄﾞ *(K),ﾘﾐﾃﾂﾄﾞﾅﾋﾞｽﾍﾟｼﾔﾙ *(J),IVORY,TRIM0# |
1 | ||
| 79013-44610B0 |
ACM1#..07S ｼ-ﾄ = TYPE C-*104,DARK GRAY,TRIM1# |
1 | ||
| 79014 - COVER SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79014-44460A0 |
ACM10,SXM15..07S ﾘﾐﾃﾂﾄﾞﾅﾋﾞｽﾍﾟｼﾔﾙ *(A) OR ﾘﾐﾃﾂﾄﾞ *(B),IVORY,TRIM03 |
1 | ||
| 79014-44400A0 |
ACM10,CXM10,SXM15..07S ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 79014-44440B0 |
ACM10,SXM15..07S ｼ-ﾄ = TYPE C-*104,DARK GRAY,TRIM1# |
1 | ||
| 79014-44540B |
ACM1#..07S S-EDITION *(S),S-EDITIONﾅﾋﾞｽﾍﾟｼﾔﾙ *(T),TRIM1# |
1 | ||
| 79014-44420A0 |
ACM10,CXM10,SXM15..07S ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 79014-44500A0 |
ACM1#,CXM10..07S ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 79014-44480A0 |
ACM1#,CXM10..07S ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 79014-44520B0 |
ACM1#..07S ｼ-ﾄ = TYPE C-*104,DARK GRAY,TRIM1# |
1 | ||
| 79014-44580A0 |
ACM1#..07S ﾘﾐﾃﾂﾄﾞ *(K),ﾘﾐﾃﾂﾄﾞﾅﾋﾞｽﾍﾟｼﾔﾙ *(J),IVORY,TRIM0# |
1 | ||
| Common parts | ||||
| 90109-10169 | ||||
| 90167-40044 | ||||
| 90201-14016 | ||||
| 94542-01400 | ||||
ILLUST NO. 2 OF 2(0208- )07S
ﾘﾔ NO.1 ｼ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811G - SHIELD, REAR SEAT CUSHION, RH | ||||
| 71811-44020A0 |
ACM10,CXM10..07S IVORY,TRIM0# |
1 | ||
| 71811-44020B1 |
ACM10..07S DK.GRAY,TRIM1# |
1 | ||
| 71812F - SHIELD, REAR SEAT CUSHION, LH | ||||
| 71812-44020B1 |
ACM10..07S DK.GRAY,TRIM1# |
1 | ||
| 71812-44020A0 |
ACM10,CXM10..07S IVORY,TRIM0# |
1 | ||
| 71833B - CLIP (FOR REAR SEAT RECLINING COVER) | ||||
| 90467-05017A0 |
ACM10,CXM10 IVORY,TRIM0# |
2 | ||
| 90467-05017B6 |
ACM10 DK.GRAY,TRIM1# |
2 | ||
| 71833B - CLIP (FOR REAR SEAT RECLINING COVER) | ||||
| 90467-05017A0 |
ACM10,CXM10 IVORY,TRIM0# |
2 | ||
| 90467-05017B6 |
ACM10 DK.GRAY,TRIM1# |
2 | ||
| 71861A - SHIELD, REAR SEAT CUSHION, INNER RH | ||||
| 71861-44070A0 |
ACM1#,CXM10..07S IVORY,TRIM0# |
1 | ||
| 71861-44070B0 |
ACM1#..07S DK.GRAY,TRIM1# |
1 | ||
| 71862A - SHIELD, REAR SEAT CUSHION, INNER LH | ||||
| 71862-44070B0 |
ACM1#..07S DK.GRAY,TRIM1# |
1 | ||
| 71862-44070A0 |
ACM1#,CXM10..07S IVORY,TRIM0# |
1 | ||
| 72129B - PROTECTOR, SEAT TRACK LOWER RAIL | ||||
| 72129-44020 |
ACM1#,CXM10 ﾌﾛﾝﾄ |
2 | ||
| 72129-44040 |
ACM1#,CXM10 ﾘﾔ |
2 | ||
| 72129B - PROTECTOR, SEAT TRACK LOWER RAIL | ||||
| 72129-44020 |
ACM1#,CXM10 ﾌﾛﾝﾄ |
2 | ||
| 72129-44040 |
ACM1#,CXM10 ﾘﾔ |
2 | ||
| 72160 - TRACK ASSY, REAR SEAT, OUTER RH | ||||
| 72160-44021 |
ACM1#,CXM10 |
1 | ||
| 72160-44011 |
ACM10,CXM10,SXM15..07S |
1 | ||
| 72170 - TRACK ASSY, REAR SEAT, OUTER LH | ||||
| 72170-44021 |
ACM1#,CXM10 |
1 | ||
| 72170-44011 |
ACM10,CXM10,SXM15..07S |
1 | ||
| 72210F - CABLE ASSY, SEAT TRACK CONTROL | ||||
| 72210-44011 |
ACM1#,CXM10 |
2 | ||
| 72265A - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-44010B1 |
ACM10,SXM15..07S DK.GRAY,TRIM1# |
1 | ||
| 72265-44020A0 |
ACM10,CXM10..07S IVORY,TRIM0# |
1 | ||
| 72265-44010A0 |
ACM10,CXM10,SXM15..07S IVORY,TRIM0# |
1 | ||
| 72265-44020B1 |
ACM10..07S DK.GRAY,TRIM1# |
1 | ||
| 72266A - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72266-44010A0 |
ACM10,CXM10,SXM15..07S IVORY,TRIM0# |
1 | ||
| 72266-44020A0 |
ACM10,CXM10..07S IVORY,TRIM0# |
1 | ||
| 72266-44010B1 |
ACM10,SXM15..07S DK.GRAY,TRIM1# |
1 | ||
| 72266-44020B1 |
ACM10..07S DK.GRAY,TRIM1# |
1 | ||
| 72345C - PIPE,RECLINING CONNECTING, RH | ||||
| 72345-44010 |
ACM10,CXM10,SXM15..07S |
1 | ||
| 72345-44020 |
ACM1#,CXM10 |
1 | ||
| 72345D - PIPE, RECLINING CONNECTING, LH | ||||
| 72345-44010 |
ACM10,CXM10,SXM15..07S |
1 | ||
| 72345-44020 |
ACM1#,CXM10 |
1 | ||
| 72506E - ROD SUB-ASSY, RECLINING CONNECTING, RH | ||||
| 72506-44020 |
ACM1#,CXM10..07S |
1 | ||
| 72506F - ROD SUB-ASSY, RECLINING CONNECTING, LH | ||||
| 72506-44030 |
ACM1#,CXM10..07S |
1 | ||
| 72525D - HANDLE, RECLINING ADJUSTER RELEASE, NO.2 RH | ||||
| 72525-44010A0 |
ACM10,CXM10..07S IVORY,TRIM0# |
1 | ||
| 72525-16010A1 |
ACM10,CXM10,SXM15..07S IVORY,TRIM0# |
1 | ||
| 72525-16010S1 |
ACM10,SXM15..07S DK.GRAY,TRIM1# |
1 | ||
| 72525-44010B4 |
ACM10..07S DK.GRAY,TRIM1# |
1 | ||
| 72526D - HANDLE, RECLINING ADJUSTER RELEASE, NO.3 LH | ||||
| 72526-16010S1 |
ACM10,SXM15..07S DK.GRAY,TRIM1# |
1 | ||
| 72526-44010A0 |
ACM10,CXM10..07S IVORY,TRIM0# |
1 | ||
| 72526-16010A1 |
ACM10,CXM10,SXM15..07S IVORY,TRIM0# |
1 | ||
| 72526-44010B4 |
ACM10..07S DK.GRAY,TRIM1# |
1 | ||
| 72530B - ADJUSTER ASSY, RECLINING SEAT, INNER RH | ||||
| 72530-44060 |
ACM1#,CXM10..07S |
1 | ||
| 72540B - ADJUSTER ASSY, RECLINING SEAT, INNER LH | ||||
| 72540-44060 |
ACM1#,CXM10..07S |
1 | ||
| 72637A - HANDLE, REAR SEAT LOCK | ||||
| 72637-44030A0 |
ACM1#,CXM10 IVORY,TRIM0# |
1 | ||
| 72637-44030B1 |
ACM1# DK.GRAY,TRIM1# |
1 | ||
| 72638 - HANDLE, REAR SEAT LOCK, LH | ||||
| 72638-44030B1 |
ACM1# DK.GRAY,TRIM1# |
1 | ||
| 72638-44030A0 |
ACM1#,CXM10 IVORY,TRIM0# |
1 | ||
| 72704A - CABLE, REAR SEAT RECLINING CONTROL | ||||
| 72704-44031 |
ACM1#,CXM10 |
2 | ||
| 72704-44010 |
ACM10,CXM10,SXM15..07S |
2 | ||
| 72730A - ADJUSTER ASSY, REAR SEAT RECLINING, RH | ||||
| 72710-44010 |
ACM10,CXM10,SXM15..07S |
1 | ||
| 72510-44050 |
ACM1#,CXM10..07S |
1 | ||
| 72740A - ADJUSTER ASSY, REAR SEAT RECLINING, LH | ||||
| 72720-44010 |
ACM10,CXM10,SXM15..07S |
1 | ||
| 72520-44050 |
ACM1#,CXM10..07S |
1 | ||
| 72995B - COVER, NO.1 SEAT CUSHION, RH | ||||
| 72995-44010A0 |
ACM10,CXM10..07S IVORY,TRIM0# |
1 | ||
| 72995-44010B1 |
ACM10..07S DK.GRAY,TRIM1# |
1 | ||
| 72996 - COVER, REAR SEAT BACK, RH | ||||
| 72996-44010A0 |
ACM10,CXM10,SXM15..07S IVORY,TRIM0# |
1 | ||
| 72996-44030B1 |
ACM15;ACM10..07S DK.GRAY,TRIM1# |
1 | ||
| 72996-44010B1 |
ACM10,SXM15..07S DK.GRAY,TRIM1# |
1 | ||
| 72996-44030A0 |
ACM15;ACM10,CXM10..07S IVORY,TRIM0# |
1 | ||
| 72996B - COVER, REAR SEAT BACK, INNER RH | ||||
| 72997-44010A0 |
ACM10,CXM10,SXM15..07S IVORY,TRIM0# |
1 | ||
| 72997-44010B1 |
ACM10,SXM15..07S DK.GRAY,TRIM1# |
1 | ||
| 72997-44030B1 |
ACM1#..07S DK.GRAY,TRIM1# |
1 | ||
| 72997-44030A0 |
ACM1#,CXM10..07S IVORY,TRIM0# |
1 | ||
| 72997 - COVER, REAR SEAT BACK, LH | ||||
| 72997-44020B1 |
ACM10,SXM15..07S DK.GRAY,TRIM1# |
1 | ||
| 72997-44020A0 |
ACM10,CXM10,SXM15..07S IVORY,TRIM0# |
1 | ||
| 72997A - COVER, REAR SEAT BACK, INNER LH | ||||
| 72996-44020B1 |
ACM10,SXM15..07S DK.GRAY,TRIM1# |
1 | ||
| 72996-44020A0 |
ACM10,CXM10,SXM15..07S IVORY,TRIM0# |
1 | ||
| 72997-44030B1 |
ACM1# DK.GRAY,TRIM1# |
1 | ||
| 72997-44030A0 |
ACM1#,CXM10 IVORY,TRIM0# |
1 | ||
| 72998A - COVER, NO.1 SEAT CUSHION, LH | ||||
| 72998-44010B1 |
ACM10..07S DK.GRAY,TRIM1# |
1 | ||
| 72998-44010A0 |
ACM10,CXM10..07S IVORY,TRIM0# |
1 | ||
| 79169 - ROD, REAR SEAT HINGE CONNECTOR | ||||
| 79169-44010 |
ACM10,CXM10,SXM15..07S |
2 | ||
| 79169-44020 |
ACM1#,CXM10 |
2 | ||
| 79187 - COVER, NO.1 SEAT INNER BRACKET | ||||
| 79187-44010B1 |
ACM10,SXM15..07S DK.GRAY,TRIM1# |
1 | ||
| 79187-44010A0 |
ACM10,CXM10,SXM15..07S IVORY,TRIM0# |
1 | ||
| 79187-44070A0 |
ACM1#,CXM10..07S IVORY,TRIM0# |
1 | ||
| 79187-44070B0 |
ACM1#..07S DK.GRAY,TRIM1# |
1 | ||
| 79187A - COVER, NO.1 SEAT INNER BRACKET, LH | ||||
| 79187-44080A0 |
ACM1#,CXM10..07S IVORY,TRIM0# |
1 | ||
| 79187-44080B0 |
ACM1#..07S DK.GRAY,TRIM1# |
1 | ||
| 79187-44020A0 |
ACM10,CXM10,SXM15..07S IVORY,TRIM0# |
1 | ||
| 79187-44020B1 |
ACM10,SXM15..07S DK.GRAY,TRIM1# |
1 | ||
| 79188 - COVER, NO.1 SEAT OUTER BRACKET | ||||
| 79188-44010A0 |
ACM10,CXM10,SXM15..07S IVORY,TRIM0# |
1 | ||
| 79188-44030A0 |
ACM10,CXM10..07S IVORY,TRIM0# |
1 | ||
| 79188-44010B1 |
ACM10,SXM15..07S DK.GRAY,TRIM1# |
1 | ||
| 79188-44030B1 |
ACM10..07S DK.GRAY,TRIM1# |
1 | ||
| 79188A - COVER, NO.1 SEAT OUTER BRACKET, LH | ||||
| 79188-44020B1 |
ACM10,SXM15..07S DK.GRAY,TRIM1# |
1 | ||
| 79188-44040A0 |
ACM10,CXM10..07S IVORY,TRIM0# |
1 | ||
| 79188-44040B1 |
ACM10..07S DK.GRAY,TRIM1# |
1 | ||
| 79188-44020A0 |
ACM10,CXM10,SXM15..07S IVORY,TRIM0# |
1 | ||
| 79955A - COVER, REAR SEAT FRONT BRACKET, RH | ||||
| 79955-44010A0 |
ACM1#,CXM10 IVORY,TRIM0# |
1 | ||
| 79955-44010B1 |
ACM1# DK.GRAY,TRIM1# |
1 | ||
| 79956B - COVER, REAR SEAT LEG SIDE, RH | ||||
| 79966-44010B1 |
ACM10..07S DK.GRAY,TRIM1# |
1 | ||
| 79966-44010A0 |
ACM10,CXM10..07S IVORY,TRIM0# |
1 | ||
| 79956C - COVER, REAR SEAT LEG SIDE, LH | ||||
| 79966-44020B1 |
ACM10..07S DK.GRAY,TRIM1# |
1 | ||
| 79966-44020A0 |
ACM10,CXM10..07S IVORY,TRIM0# |
1 | ||
| 79956D - COVER, REAR SEAT FRONT BRACKET, LH | ||||
| 79956-44010A0 |
ACM1#,CXM10 IVORY,TRIM0# |
1 | ||
| 79956-44010B1 |
ACM1# DK.GRAY,TRIM1# |
1 | ||
| 79957A - COVER, REAR SEAT REAR BRACKET, RH | ||||
| 79957-44010A0 |
ACM1#,CXM10 IVORY,TRIM0# |
1 | ||
| 79957-44010B1 |
ACM1# DK.GRAY,TRIM1# |
1 | ||
| 79958A - COVER, REAR SEAT REAR BRACKET, LH | ||||
| 79958-44010B1 |
ACM1# DK.GRAY,TRIM1# |
1 | ||
| 79958-44010A0 |
ACM1#,CXM10 IVORY,TRIM0# |
1 | ||
| 79959A - COVER, REAR SEAT LEG, RH | ||||
| 79959-44010A0 |
ACM10,CXM10..07S IVORY,TRIM0# |
1 | ||
| 79959-44010B1 |
ACM10..07S DK.GRAY,TRIM1# |
1 | ||
| 79959B - COVER, REAR SEAT LEG, LH | ||||
| 79959-44020B1 |
ACM10..07S DK.GRAY,TRIM1# |
1 | ||
| 79959-44020A0 |
ACM10,CXM10..07S IVORY,TRIM0# |
1 | ||
| Common parts | ||||
| 90119-10473 | ||||
| 90119-10842 | ||||
| 90119-10862 | ||||
| 90167-40044 | ||||
| 90168-40043 | ||||
| 91511-B0816 | ||||
| 91515-60845 | ||||
| 94170-60820 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(0104- )
| Part # | Description | Qty | Price |
|---|
Part Price Details
Loading price information...
Part Number:
Price:
