ACM10G-BRSEH (2001)
Toyota Gaia
Production
Apr 2001
-
Sep 2004
Engine
1AZFSE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0104- )ACM1#

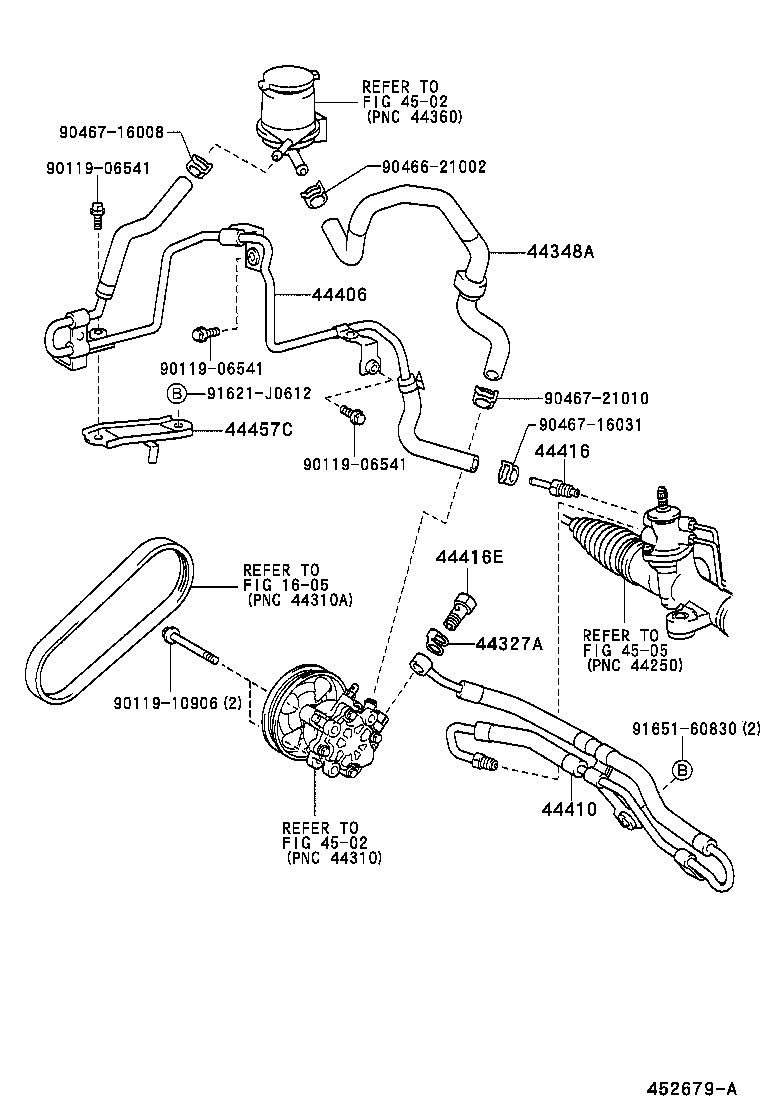

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-30030 |
ACM1# |
1 | ||
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-44080 |
ACM1# |
1 | ||
| 44406 - TUBE SUB-ASSY, RETURN | ||||
| 44406-44150 |
ACM10 |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-44150 |
ACM10 |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-20220 |
ACM1#,CXM10,SXM15 |
1 | ||
| 44416E - BOLT, UNION(FOR RETURN TUBE) | ||||
| 96341-41603 |
ACM1# |
1 | ||
| 44457C - BRACKET, POWER STEERING TUBE SUPPORT, NO.1 | ||||
| 44457-44020 |
ACM1#,SXM15 |
1 | ||
| Common parts | ||||
| 90119-06541 | ||||
| 90119-10906 | ||||
| 90466-21002 | ||||
| 90467-16008 | ||||
| 90467-16031 | ||||
| 90467-21010 | ||||
| 91621-J0612 | ||||
| 91651-60830 | ||||
| Linked diagrams | ||||
| 1605 | ||||
| 4502 | ||||
| 4505 | ||||
