ACM10G-BRSEH (2001)

Toyota Gaia

Production Apr 2001 - Sep 2004
Engine 1AZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0104- )1AZFSE

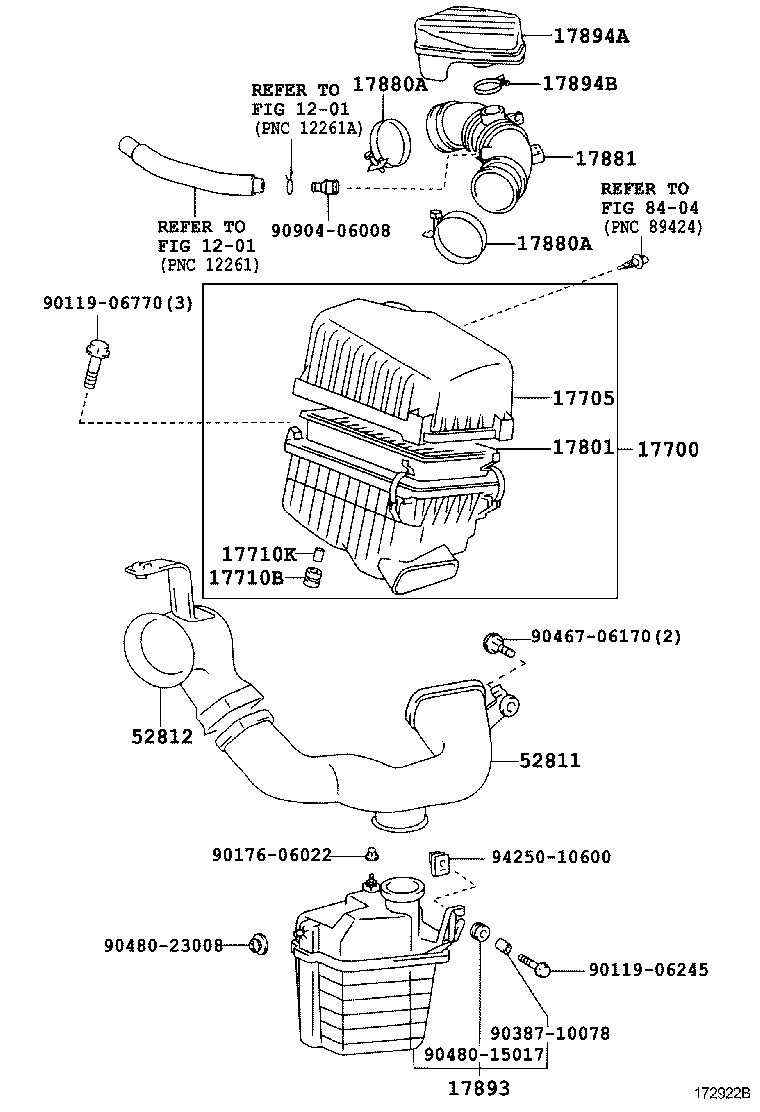

Click highlighted areas on diagram

diagram 1201 1201 17700 17705 17710B 17710K 17801 17880A 17880A 17881 17893 17894A 17894B 52811 52812 8404 9011906245 9011906770 9017606022 9038710078 9046706170 9048015017 9048023008 9090406008 9425010600
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-74720

1AZFSE..ACM1#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-74520

1AZFSE..ACM1#

 1
17710B - GROMMET
90480-11014

1AZFSE..ACM1#

 3
17710K - COLLAR(FOR AIR CLEANER)
90387-09064

1AZFSE..ACM1#

 3
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-74020

1AZFSE..ACM1#

 1
17880A - CLAMP, HOSE
96111-10750

1AZFSE..ACM1#

 2
17880A - CLAMP, HOSE
96111-10750

1AZFSE..ACM1#

 2
17881 - HOSE, AIR CLEANER, NO.1
17881-28130

1AZFSE..ACM1#

 1
17893 - RESONATOR, INTAKE AIR
17893-74430

1AZFSE..ACM1#

 1
17894A - RESONATOR, INTAKE AIR, NO.2
17894-28010

1AZFSE..ACM1#

 1
17894B - CLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2)
96111-10480

1AZFSE..ACM1#

 1
52811 - DUCT, COOL AIR INTAKE, NO.1
52811-44130

ACM1#

 1
52812 - DUCT, COOL AIR INTAKE, NO.2
52812-44050

ACM1#

 1
Common parts
90119-06245
90119-06770
90176-06022
90387-10078
90467-06170
90480-15017
90480-23008
90904-06008
94250-10600
Linked diagrams
1201
8404
