ACM10G-BRSEH (2001)
Toyota Gaia
Production
Apr 2001
-
Sep 2004
Engine
1AZFSE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0104- )1AZFSE..ACM10

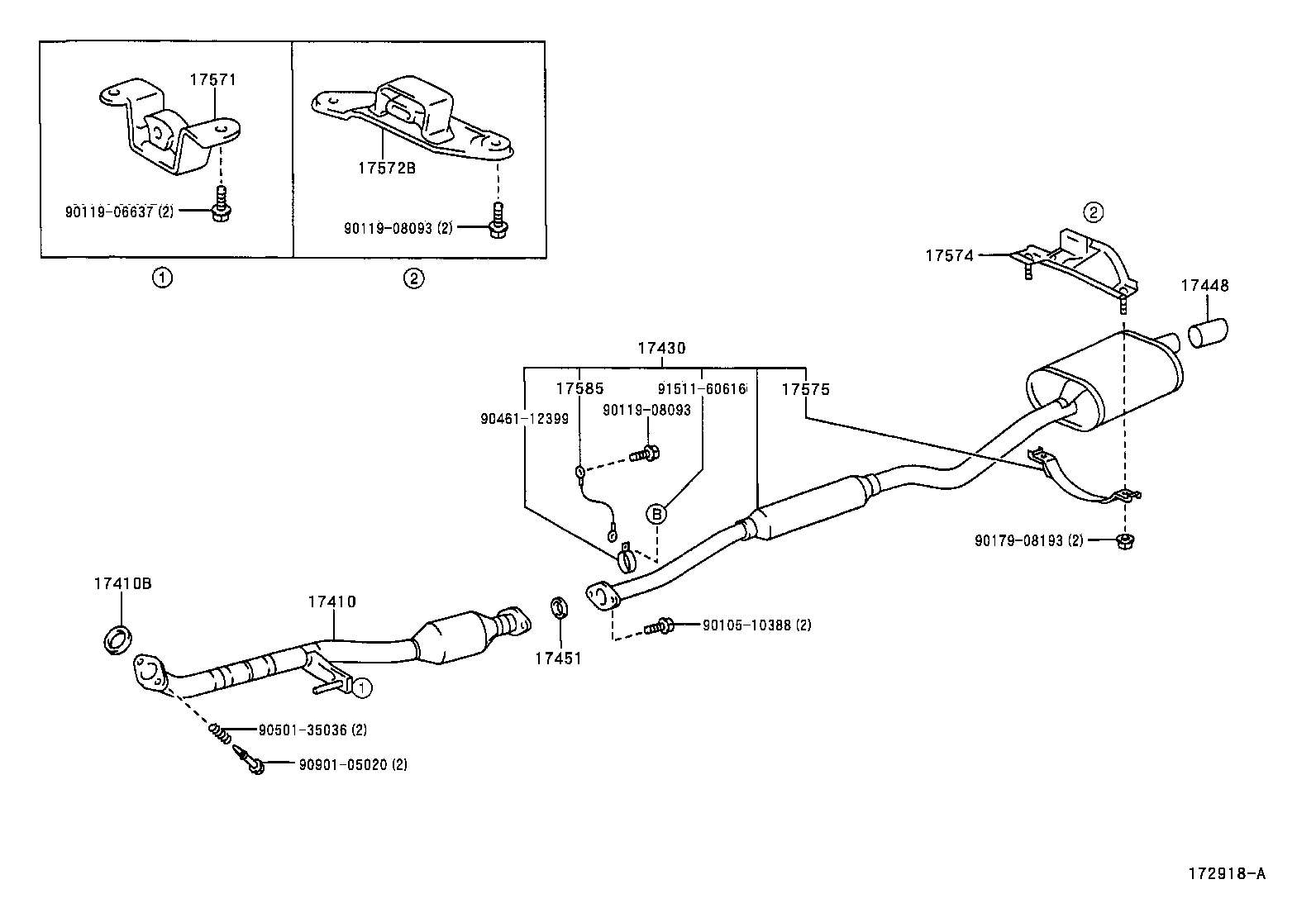

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-28340 |
1AZFSE..ACM10 |
1 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 17451-22070 |
1AZFSE..ACM1# |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-28310 |
1AZFSE..ACM10 |
1 | ||
| 17448 - BAFFLE, TAIL PIPE | ||||
| 17448-74080 |
1AZFSE,3CTE,3SFE..ACM1#,CXM10,SXM15 |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06062 |
1AZFSE,3CTE,3SFE..ACM10,CXM10,SXM15 |
1 | ||
| 17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1 | ||||
| 17571-74450 |
1AZFSE,3CTE..ACM10,CXM10 |
1 | ||
| 17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17572-74120 |
1AZFSE,3CTE,3SFE..ACM1#,CXM10,SXM15 |
1 | ||
| 17574 - BRACKET, EXHAUST PIPE SUPPORT, NO.4 | ||||
| 17574-74140 |
1AZFSE,3CTE,3SFE..ACM1#,CXM10,SXM15 |
1 | ||
| 17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5 | ||||
| 17575-74140 |
1AZFSE,3CTE,3SFE..ACM1#,CXM10,SXM15 |
1 | ||
| 17585 - HANGER, EXHAUST PIPE | ||||
| 17585-74080 |
1AZFSE,3CTE..ACM10,CXM10 |
1 | ||
| Common parts | ||||
| 90105-10388 | ||||
| 90119-06637 | ||||
| 90119-08093 | ||||
| 90179-08193 | ||||
| 90461-12399 | ||||
| 90501-35036 | ||||
| 90901-05020 | ||||
| 91511-60616 | ||||
