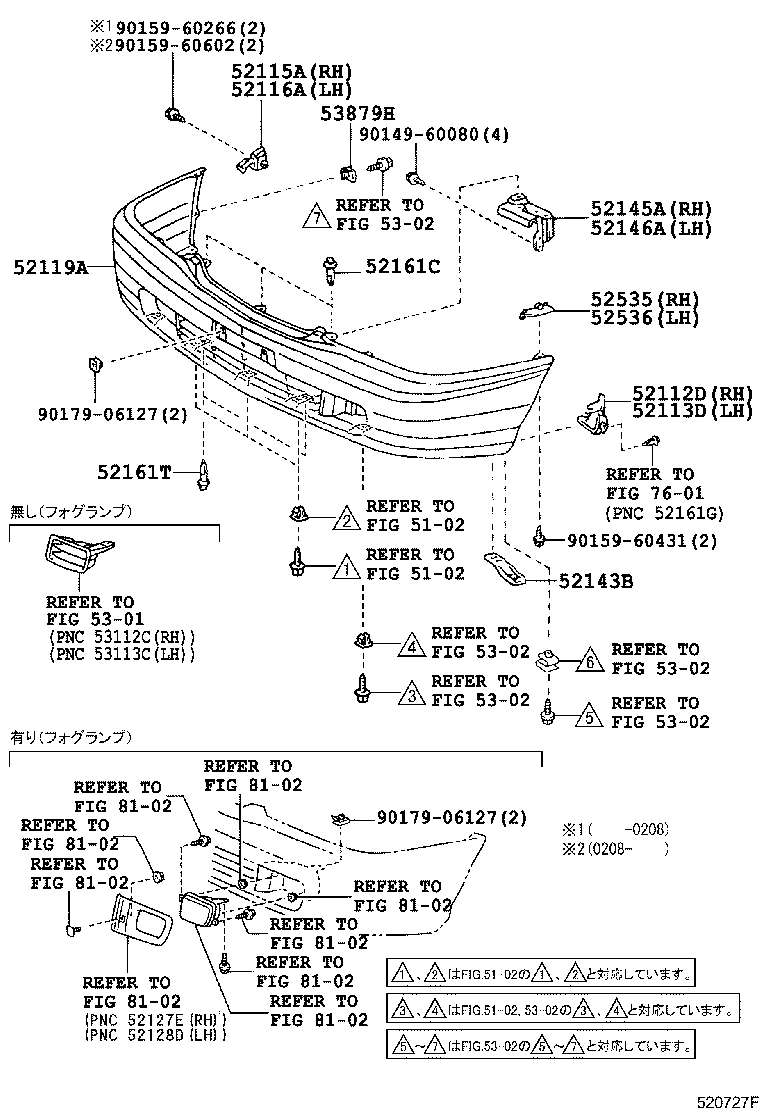

Toyota Gaia ACM10 FRONT BUMPER & BUMPER STAY

Part #	Description	Period	Qty
52112D - EXTENSION, FRONT BUMPER, RH
52112-44020	ACM1#,SXM15	04/2001 - 12/2999	1
52113D - EXTENSION, FRONT BUMPER, LH
52113-44020	ACM1#,SXM15	04/2001 - 12/2999	1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-44020	ACM1#,CXM10,SXM15	04/2001 - 12/2999	1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-44020	ACM1#,CXM10,SXM15	04/2001 - 12/2999	1
52119A - COVER, FRONT BUMPER
52119-44090D0	ACM1#,CXM10,SXM15 RED MC.,3M8	04/2001 - 09/2004	1
52119-44090C0	ACM1#,CXM10,SXM15 BLACK,202	04/2001 - 09/2004	1
52119-44180J0	ACM1# S-EDITION *(S) & ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ-),BLUE ME.,8P2	08/2002 - 05/2004	1
52119-44090F0	ACM1#,CXM10,SXM15 CHAMPAGNE ME.,583	04/2001 - 09/2004	1
52119-44090D1	ACM1#,CXM10,SXM15 LT.ROSE M.M.,3Q1	04/2001 - 09/2004	1
52119-44100D0	ACM1#,CXM10,SXM15 ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ-),RED MC.,3M8	04/2001 - 09/2004	1
52119-44090B2	ACM1#,CXM10,SXM15 SILVER ME.,1C0	04/2001 - 09/2004	1
52119-44100B1	ACM1#,CXM10,SXM15 ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ-),SILVER ME.,1C0	04/2001 - 09/2004	1
52119-44170J0	ACM1# S-EDITION (S),S-EDITIONﾅﾋﾞｽﾍﾟｼﾔﾙ (T),BLUE ME.,8P2	08/2002 - 05/2004	1
52119-44090G0	ACM1#,CXM10,SXM15 DK GREEN MICA,6M1	04/2001 - 09/2004	1
52119-44170C0	ACM1#,SXM15 ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ & ﾌｵｸﾞﾗﾝﾌﾟ = ﾒｰｶｿｳﾁﾔｸ),BLACK,202	04/2001 - 09/2004	1
52119-44090A1	ACM1#,SXM15 WHITE PM.,042	04/2001 - 09/2004	1
52119-44100A1	ACM1#,SXM15 ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ-),WHITE PM.,042	04/2001 - 09/2004	1
52119-44100C0	ACM1#,CXM10,SXM15 ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ-),BLACK,202	04/2001 - 09/2004	1
52119-44100G0	ACM1#,CXM10,SXM15 ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ-),DK GREEN MICA,6M1	04/2001 - 09/2004	1
52119-44170A1	ACM1#,SXM15 ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ & ﾌｵｸﾞﾗﾝﾌﾟ = ﾒｰｶｿｳﾁﾔｸ),WHITE PM.,042	04/2001 - 09/2004	1
52119-44290C0	ACM1#,CXM10,SXM15 ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ = ﾒ-ｶｿｳﾁﾔｸ),BLACK,202	04/2001 - 09/2004	1
52119-44100D1	ACM1#,CXM10,SXM15 ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ-),LT.ROSE M.M.,3Q1	04/2001 - 09/2004	1
52119-44290D1	ACM1#,CXM10,SXM15 ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ = ﾒ-ｶｿｳﾁﾔｸ),LT.ROSE M.M.,3Q1	04/2001 - 09/2004	1
52119-44180C0	ACM1#,SXM15 ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ & ｸﾘｱﾗﾝｽｿﾅ- & ﾌｵｸﾞﾗﾝﾌﾟ = ﾒｰｶｿｳﾁﾔｸ),BLACK,202	04/2001 - 09/2004	1
52119-44180A1	ACM1#,SXM15 ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ & ｸﾘｱﾗﾝｽｿﾅ- & ﾌｵｸﾞﾗﾝﾌﾟ = ﾒｰｶｿｳﾁﾔｸ),WHITE PM.,042	04/2001 - 09/2004	1
52119-44100F0	ACM1#,CXM10,SXM15 ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ-),CHAMPAGNE ME.,583	04/2001 - 09/2004	1
52119-44290D0	ACM1#,CXM10,SXM15 ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ = ﾒ-ｶｿｳﾁﾔｸ),RED MC.,3M8	04/2001 - 09/2004	1
52119-44290G0	ACM1#,CXM10,SXM15 ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ = ﾒ-ｶｿｳﾁﾔｸ),DK GREEN MICA,6M1	04/2001 - 09/2004	1
52119-44290A0	ACM1#,SXM15 ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ = ﾒ-ｶｿｳﾁﾔｸ),WHITE PM.,042	04/2001 - 09/2004	1
52119-44170B1	ACM1#,SXM15 ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ & ﾌｵｸﾞﾗﾝﾌﾟ = ﾒｰｶｿｳﾁﾔｸ),SILVER ME.,1C0	04/2001 - 09/2004	1
52119-44290B0	ACM1#,CXM10,SXM15 ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ = ﾒ-ｶｿｳﾁﾔｸ),SILVER ME.,1C0	04/2001 - 09/2004	1
52119-44290F0	ACM1#,CXM10,SXM15 ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ = ﾒ-ｶｿｳﾁﾔｸ),CHAMPAGNE ME.,583	04/2001 - 09/2004	1
52119-44180B1	ACM1#,SXM15 ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ & ｸﾘｱﾗﾝｽｿﾅ- & ﾌｵｸﾞﾗﾝﾌﾟ = ﾒｰｶｿｳﾁﾔｸ),SILVER ME.,1C0	04/2001 - 09/2004	1
52119-44300F0	ACM1#,CXM10,SXM15 ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ = ﾒ-ｶｿｳﾁﾔｸ & ｸﾘｱﾗﾝｽｿﾅ-),CHAMPAGNE ME.,583	04/2001 - 09/2004	1
52119-44300B0	ACM1#,CXM10,SXM15 ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ = ﾒ-ｶｿｳﾁﾔｸ & ｸﾘｱﾗﾝｽｿﾅ-),SILVER ME.,1C0	04/2001 - 09/2004	1
52119-44300A0	ACM1#,SXM15 ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ = ﾒ-ｶｿｳﾁﾔｸ & ｸﾘｱﾗﾝｽｿﾅ-),WHITE PM.,042	04/2001 - 09/2004	1
52119-44300G0	ACM1#,CXM10,SXM15 ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ = ﾒ-ｶｿｳﾁﾔｸ & ｸﾘｱﾗﾝｽｿﾅ-),DK GREEN MICA,6M1	04/2001 - 09/2004	1
52119-44300C0	ACM1#,CXM10,SXM15 ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ = ﾒ-ｶｿｳﾁﾔｸ & ｸﾘｱﾗﾝｽｿﾅ-),BLACK,202	04/2001 - 09/2004	1
52119-44300D0	ACM1#,CXM10,SXM15 ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ = ﾒ-ｶｿｳﾁﾔｸ & ｸﾘｱﾗﾝｽｿﾅ-),RED MC.,3M8	04/2001 - 09/2004	1
52119-44300D1	ACM1#,CXM10,SXM15 ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ = ﾒ-ｶｿｳﾁﾔｸ & ｸﾘｱﾗﾝｽｿﾅ-),LT.ROSE M.M.,3Q1	04/2001 - 09/2004	1
52143B - BRACKET, FRONT BUMPER SIDE
52143-44020	ACM1#,SXM15	04/2001 - 12/2999	2
52145A - STAY, FRONT BUMPER, NO.2 RH
52145-44020	ACM1#,CXM10	04/2001 - 09/2004	1
52146A - STAY, FRONT BUMPER, NO.2 LH
52146-44020	ACM1#,CXM10	04/2001 - 09/2004	1
52161C - PIECE, FRONT BUMPER
52161-44010B0	ACM1# S-EDITION (S),S-EDITIONﾅﾋﾞｽﾍﾟｼﾔﾙ (T),MOON GRAY,8P2	08/2002 - 05/2004	3
52161-44010C0	ACM1#,SXM15 BLACK,202 ,3M8 ,6M1	04/2001 - 09/2004	3
52161-44010B0	ACM1#,SXM15 MOON GRAY,042 ,1C0 ,3Q1 ,583	04/2001 - 09/2004	3
52161T - PIECE, FRONT BUMPER
52161-44010C0	ACM1#,SXM15 BLACK,042 ,1C0 ,202 ,3M8 ,3Q1 ,583 ,6M1	04/2001 - 09/2004	2
52161-44010C0	ACM1# S-EDITION (S),S-EDITIONﾅﾋﾞｽﾍﾟｼﾔﾙ (T),BLACK,8P2	08/2002 - 05/2004	2
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-44020	ACM1#,CXM10,SXM15	04/2001 - 12/2999	1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-44020	ACM1#,CXM10,SXM15	04/2001 - 12/2999	1
53879H - RETAINER, FRONT FENDER LINER
53879-44010	ACM1#,CXM10,SXM15	04/2001 - 12/2999	2
Common parts
90149-60080
90159-60266
90159-60431
90159-60602
90179-06127
Linked diagrams
5102
5301
5302
7601
8102

ACM10G-BPSEH (2001)

(0104- )
