NCP25-CHSNK (1999)

Toyota Fun Cargo

Production Aug 1999 - Sep 2005
Engine 1NZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9908- )

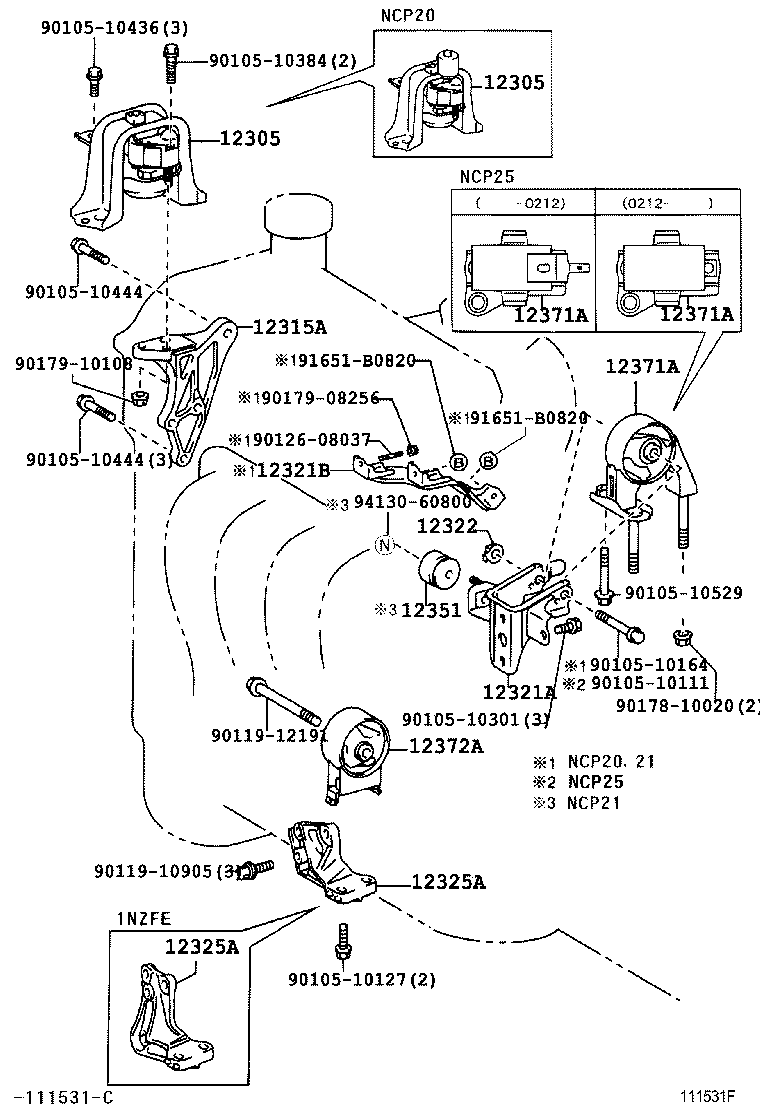

Click highlighted areas on diagram

diagram 12305 12305 12315A 12321A 12321B 12322 12325A 12325A 12351 12371A 12371A 12371A 12372A 9010510111 9010510127 9010510164 9010510301 9010510384 9010510436 9010510444 9010510444 9010510529 9011910905 9011912191 9012608037 9017810020 9017908256 9017910108 91651B0820 91651B0820 9413060800
Part # Description Qty Price
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-21030

1NZFE..NCP25

 1
12305-21030

1NZFE..NCP25

 1
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-21030

1NZFE..NCP25

 1
12305-21030

1NZFE..NCP25

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-21040

1NZFE..NCP21,25

 1
12315-21040

1NZFE..NCP21,25

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-21050

1NZFE..NCP25

 1
12321-21050

1NZFE..NCP25

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-21070

1NZFE..NCP25

 1
12325-21070

1NZFE..NCP25

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-21070

1NZFE..NCP25

 1
12325-21070

1NZFE..NCP25

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-21040

1NZFE..NCP25

 1
12371-21041

1NZFE..NCP25

 1
12371-21040

1NZFE..NCP25

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-21040

1NZFE..NCP25

 1
12371-21041

1NZFE..NCP25

 1
12371-21040

1NZFE..NCP25

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-21040

1NZFE..NCP25

 1
12371-21041

1NZFE..NCP25

 1
12371-21040

1NZFE..NCP25

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-23020

1NZFE,2NZFE..NCP20,25

 1
12372-23020

1NZFE,2NZFE..NCP20,25

 1
Common parts
90105-10111
90105-10127
90105-10164
90105-10301
90105-10384
90105-10436
90105-10444
90105-10529
90119-10905
90119-12191
90126-08037
90178-10020
90179-08256
90179-10108
91651-B0820
94130-60800
