NCP25-CHSGK (1999)
Toyota Fun Cargo

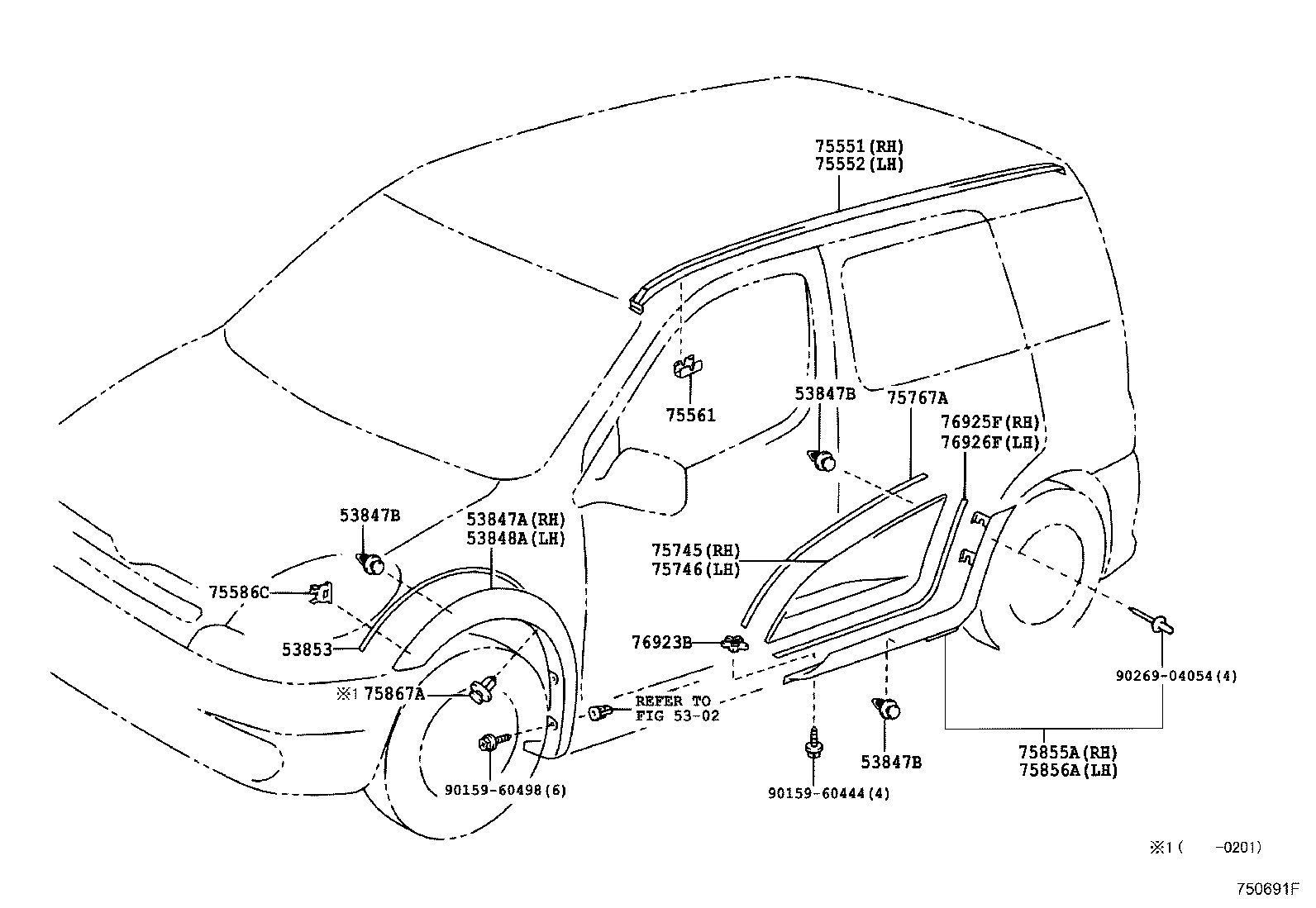

ILLUST NO. 1 OF 2(9908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53847A - EXTENSION, FRONT WHEEL OPENING OR ARCH MOULDING, RH | ||||
| 53847-52020B0 |
NCP2#..G,X SILVER ME,KD6 ,KF2 ,199 |
1 | ||
| 53847-52020C2 |
NCP2#..G,X GRAY ME.,KD7 ,KE1 ,KE3 ,KE7 ,KF4 ,KF5 ,KF6 |
1 | ||
| 53847-52040B0 |
NCP2#..G,X GRAY ME.,KK4 ,KK5 ,KK6 ,KK7 ,KK8 ,KK9 |
1 | ||
| 53847-52040B1 |
NCP2#..G,X SILVER M.M.,1E7 ,KJ8 ,KK1 ,KK2 |
1 | ||
| 53847-52040C0 |
NCP2#..G,X BLACK MC.,209 |
1 | ||
| 53847-52020B0 |
NCP2#..G,X SILVER ME,KF2 ,KJ6 ,199 |
1 | ||
| 53847-52020A1 |
NCP2#..G,X WHITE,068 |
1 | ||
| 53847-52040H0 |
NCP2#..G,X AQUA M.M.,774 |
1 | ||
| 53847-52040F0 |
NCP2#..G,X CHAMPAGNE ME.,583 |
1 | ||
| 53847-52040A0 |
NCP2#..G,X WHITE,068 |
1 | ||
| 53847-52040J0 |
NCP2#..G,X BLUE MC.,8M6 |
1 | ||
| 53847-52040D0 |
NCP2#..G,X SUPER RED 5,3P0 |
1 | ||
| 53847-52040G0 |
NCP2#..G,X DARK GREEN MC.,6R4 |
1 | ||
| 53847B - CLIP, FRONT WHEEL OPENING EXTENSOION | ||||
| 90467-10162 |
NCP2# |
30 | ||
| 75881-52010 |
NCP2# |
30 | ||
| 75881-52010 |
NCP2#..G,X |
30 | ||
| 53847B - CLIP, FRONT WHEEL OPENING EXTENSOION | ||||
| 90467-10162 |
NCP2# |
30 | ||
| 75881-52010 |
NCP2# |
30 | ||
| 75881-52010 |
NCP2#..G,X |
30 | ||
| 53847B - CLIP, FRONT WHEEL OPENING EXTENSOION | ||||
| 90467-10162 |
NCP2# |
30 | ||
| 75881-52010 |
NCP2# |
30 | ||
| 75881-52010 |
NCP2#..G,X |
30 | ||
| 53848A - EXTENSION, FRONT WHEEL OPENING OR ARCH MOULDING, LH | ||||
| 53848-52020C2 |
NCP2#..G,X GRAY ME.,KD7 ,KE1 ,KE3 ,KE7 ,KF4 ,KF5 ,KF6 |
1 | ||
| 53848-52040B0 |
NCP2#..G,X GRAY ME.,KK4 ,KK5 ,KK6 ,KK7 ,KK8 ,KK9 |
1 | ||
| 53848-52020A1 |
NCP2#..G,X WHITE,068 |
1 | ||
| 53848-52040A0 |
NCP2#..G,X WHITE,068 |
1 | ||
| 53848-52040H0 |
NCP2#..G,X AQUA M.M.,774 |
1 | ||
| 53848-52040F0 |
NCP2#..G,X CHAMPAGNE ME.,583 |
1 | ||
| 53848-52040C0 |
NCP2#..G,X BLACK MC.,209 |
1 | ||
| 53848-52040J0 |
NCP2#..G,X BLUE MC.,8M6 |
1 | ||
| 53848-52040G0 |
NCP2#..G,X DARK GREEN MC.,6R4 |
1 | ||
| 53848-52040B1 |
NCP2#..G,X SILVER M.M.,1E7 ,KJ8 ,KK1 ,KK2 |
1 | ||
| 53848-52040D0 |
NCP2#..G,X SUPER RED 5,3P0 |
1 | ||
| 53848-52020B0 |
NCP2#..G,X SILVER ME,KF2 ,KJ6 ,199 |
1 | ||
| 53848-52020B0 |
NCP2#..G,X SILVER ME,KD6 ,KF2 ,199 |
1 | ||
| 53853 - PAD, FRONT WHEEL OPENING EXTENSION, NO.3 | ||||
| 53853-52010B0 |
NCP2# LT. GRAY,KD7 ,KE1 ,KE3 ,KE7 ,KF2 ,KF4 ,KF5 ,KF6 ,KJ6 ,199 ,209 ,3P0 ,583 ,584 ,6R4 ,6S2 ,8M6 |
2 | ||
| 53853-52010C0 |
NCP2# BLACK,209 ,3P0 ,6R4 ,8M6 |
2 | ||
| 53853-52010B0 |
NCP2# LT. GRAY,KD7 ,KE1 ,KE3 ,KE7 ,KF2 ,KF4 ,KF5 ,KF6 ,KJ6 ,068 ,199 ,209 ,3P0 ,583 ,584 ,6R4 ,6S2 ,8M6 |
2 | ||
| 53853-52010C0 |
NCP2#..G,X BLACK,209 ,3P0 ,6R4 ,8M6 |
2 | ||
| 53853-52010B0 |
NCP2#..G,X LT. GRAY,KJ8 ,KK1 ,KK2 ,KK4 ,KK5 ,KK6 ,KK7 ,KK8 ,KK9 |
2 | ||
| 53853-52010B0 |
NCP2#..G,X LT. GRAY,068 ,1E7 ,209 ,3P0 ,583 ,6R4 ,774 ,8M6 ,KJ8 ,KK1 ,KK2 ,KK4 ,KK5 ,KK6 ,KK7 ,KK8 ,KK9 |
2 | ||
| 53853-52010B0 |
NCP2# LT. GRAY,KD6 ,KD7 ,KE1 ,KE3 ,KE7 ,KF2 ,KF4 ,KF5 ,KF6 ,040 ,199 ,209 ,3P0 ,583 ,584 ,6R4 ,6S2 ,8M6 |
2 | ||
| 75551 - MOULDING, ROOF DRIP SIDE FINISH, RH | ||||
| 75551-52020 |
NCP2# |
1 | ||
| 75551-52022 |
NCP2# |
1 | ||
| 75551-52021 |
NCP2# |
1 | ||
| 75551-52021 |
NCP2# |
1 | ||
| 75552 - MOULDING, ROOF DRIP SIDE FINISH, LH | ||||
| 75552-52011 |
NCP2# |
1 | ||
| 75552-52010 |
NCP2# |
1 | ||
| 75552-52012 |
NCP2# |
1 | ||
| 75552-52011 |
NCP2# |
1 | ||
| 75561 - CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1 | ||||
| 75561-52020 |
NCP2# |
4 | ||
| 75561-52010 |
NCP2# |
4 | ||
| 75586C - RETAINER, FRONT WHEEL OPENING EXTENSOION | ||||
| 53861-52010 |
NCP2# |
2 | ||
| 53861-52010 |
NCP2#..G,X |
2 | ||
| 75586-28010 |
NCP2# |
2 | ||
| 75745 - MOULDING, REAR DOOR OUTSIDE, LOWER RH | ||||
| 75745-52020C2 |
NCP2#..G,X GRAY ME.,KD7 ,KE1 ,KE3 ,KE7 ,KF4 ,KF5 ,KF6 |
1 | ||
| 75745-52060B1 |
NCP2#..G,X SILVER M.M.,1E7 ,KJ8 ,KK1 ,KK2 |
1 | ||
| 75745-52060B0 |
NCP2#..G,X GRAY ME.,KK4 ,KK5 ,KK6 ,KK7 ,KK8 ,KK9 |
1 | ||
| 75745-52020A1 |
NCP2#..G,X WHITE,068 |
1 | ||
| 75745-52060D0 |
NCP2#..G,X SUPER RED 5,3P0 |
1 | ||
| 75745-52020B0 |
NCP2#..G,X SILVER ME,KD6 ,KF2 ,199 |
1 | ||
| 75745-52060F0 |
NCP2#..G,X CHAMPAGNE ME.,583 |
1 | ||
| 75745-52020B0 |
NCP2#..G,X SILVER ME,KF2 ,KJ6 ,199 |
1 | ||
| 75745-52060H0 |
NCP2#..G,X AQUA M.M.,774 |
1 | ||
| 75745-52060G0 |
NCP2#..G,X DARK GREEN MC.,6R4 |
1 | ||
| 75745-52060A0 |
NCP2#..G,X WHITE,068 |
1 | ||
| 75745-52060C0 |
NCP2#..G,X BLACK MC.,209 |
1 | ||
| 75745-52060J0 |
NCP2#..G,X BLUE MC.,8M6 |
1 | ||
| 75746 - MOULDING, REAR DOOR OUTSIDE, LOWER LH | ||||
| 75746-52020A1 |
NCP2#..G,X WHITE,068 |
1 | ||
| 75746-52060B1 |
NCP2#..G,X SILVER M.M.,1E7 ,KJ8 ,KK1 ,KK2 |
1 | ||
| 75746-52060H0 |
NCP2#..G,X AQUA M.M.,774 |
1 | ||
| 75746-52020B0 |
NCP2#..G,X SILVER ME,KF2 ,KJ6 ,199 |
1 | ||
| 75746-52020B0 |
NCP2#..G,X SILVER ME,KD6 ,KF2 ,199 |
1 | ||
| 75746-52020C2 |
NCP2#..G,X GRAY ME.,KD7 ,KE1 ,KE3 ,KE7 ,KF4 ,KF5 ,KF6 |
1 | ||
| 75746-52060J0 |
NCP2#..G,X BLUE MC.,8M6 |
1 | ||
| 75746-52060B0 |
NCP2#..G,X GRAY ME.,KK4 ,KK5 ,KK6 ,KK7 ,KK8 ,KK9 |
1 | ||
| 75746-52060D0 |
NCP2#..G,X SUPER RED 5,3P0 |
1 | ||
| 75746-52060C0 |
NCP2#..G,X BLACK MC.,209 |
1 | ||
| 75746-52060A0 |
NCP2#..G,X WHITE,068 |
1 | ||
| 75746-52060G0 |
NCP2#..G,X DARK GREEN MC.,6R4 |
1 | ||
| 75746-52060F0 |
NCP2#..G,X CHAMPAGNE ME.,583 |
1 | ||
| 75767A - PAD, REAR DOOR MOULDING, NO.1 | ||||
| 75767-52010B0 |
NCP2# LT. GRAY,KD7 ,KE1 ,KE3 ,KE7 ,KF2 ,KF4 ,KF5 ,KF6 ,KJ6 ,068 ,199 ,209 ,3P0 ,583 ,584 ,6R4 ,6S2 ,8M6 |
2 | ||
| 75767-52010B0 |
NCP2#..G,X LT. GRAY,KJ8 ,KK1 ,KK2 ,KK4 ,KK5 ,KK6 ,KK7 ,KK8 ,KK9 |
2 | ||
| 75767-52010C0 |
NCP2#..G,X BLACK,209 ,3P0 ,6R4 ,8M6 |
2 | ||
| 75767-52010B0 |
NCP2# LT. GRAY,KD6 ,KD7 ,KE1 ,KE3 ,KE7 ,KF2 ,KF4 ,KF5 ,KF6 ,040 ,199 ,209 ,3P0 ,583 ,584 ,6R4 ,6S2 ,8M6 |
2 | ||
| 75767-52010B0 |
NCP2# LT. GRAY,KD7 ,KE1 ,KE3 ,KE7 ,KF2 ,KF4 ,KF5 ,KF6 ,KJ6 ,199 ,209 ,3P0 ,583 ,584 ,6R4 ,6S2 ,8M6 |
2 | ||
| 75767-52010B0 |
NCP2#..G,X LT. GRAY,068 ,1E7 ,209 ,3P0 ,583 ,6R4 ,774 ,8M6 ,KJ8 ,KK1 ,KK2 ,KK4 ,KK5 ,KK6 ,KK7 ,KK8 ,KK9 |
2 | ||
| 75767-52010C0 |
NCP2# BLACK,209 ,3P0 ,6R4 ,8M6 |
2 | ||
| 75855A - MOULDING, ROCKER PANEL, REAR RH | ||||
| 75855-52901B0 |
NCP2#..G,X SILVER ME.,KF2 ,KJ6 |
1 | ||
| 75855-52901A0 |
NCP2#..G,X WHITE,068 |
1 | ||
| 75855-52903D0 |
NCP2#..G,X SUPER RED 5,3P0 |
1 | ||
| 75855-52903A0 |
NCP2#..G,X WHITE,068 |
1 | ||
| 75855-52903C1 |
NCP2#..G,X BLACK ME.,209 |
1 | ||
| 75855-52903G0 |
NCP2#..G,X DARK GREEN MC.,6R4 |
1 | ||
| 75855-52901C0 |
NCP2#..G,X GRAY ME.,KD7 ,KE1 ,KE3 ,KE7 ,KF4 ,KF5 ,KF6 |
1 | ||
| 75855-52903B2 |
NCP2#..G,X GRAY ME.,KK4 ,KK5 ,KK6 ,KK7 ,KK8 ,KK9 |
1 | ||
| 75855-52903H0 |
NCP2#..G,X AQUA M.M.,774 |
1 | ||
| 75855-52901B0 |
NCP2#..G,X SILVER ME.,KD6 ,KF2 |
1 | ||
| 75855-52903F0 |
NCP2#..G,X CHAMPAGNE ME.,583 |
1 | ||
| 75855-52903J0 |
NCP2#..G,X BLUE MC.,8M6 |
1 | ||
| 75855-52903B3 |
NCP2#..G,X SILVER M.M.,1E7 ,KJ8 ,KK1 ,KK2 |
1 | ||
| 75856A - MOULDING, ROCKER PANEL, REAR LH | ||||
| 75856-52901B1 |
NCP2#..G,X SILVER ME,KD6 ,KF2 |
1 | ||
| 75856-52901B1 |
NCP2#..G,X SILVER ME,KF2 ,KJ6 |
1 | ||
| 75856-52903F0 |
NCP2#..G,X CHAMPAGNE ME.,583 |
1 | ||
| 75856-52901A0 |
NCP2#..G,X WHITE,068 |
1 | ||
| 75856-52901C2 |
NCP2#..G,X GRAY ME,KD7 ,KE1 ,KE3 ,KE7 ,KF4 ,KF5 ,KF6 |
1 | ||
| 75856-52903D0 |
NCP2#..G,X SUPER RED 5,3P0 |
1 | ||
| 75856-52903G0 |
NCP2#..G,X DARK GREEN MC.,6R4 |
1 | ||
| 75856-52903A0 |
NCP2#..G,X WHITE,068 |
1 | ||
| 75856-52903H0 |
NCP2#..G,X AQUA M.M.,774 |
1 | ||
| 75856-52903B1 |
NCP2#..G,X GRAY ME.,KK4 ,KK5 ,KK6 ,KK7 ,KK8 ,KK9 |
1 | ||
| 75856-52903B2 |
NCP2#..G,X SILVER M.M.,1E7 ,KJ8 ,KK1 ,KK2 |
1 | ||
| 75856-52903C0 |
NCP2#..G,X BLACK MC.,209 |
1 | ||
| 75856-52903J0 |
NCP2#..G,X BLUE MC.,8M6 |
1 | ||
| 75867A - CLIP, ROCKER PANEL MOULDING | ||||
| 90467-08185 |
NCP2# |
4 | ||
| 76923B - RETAINER, SIDE MUDGUARD | ||||
| 76923-52020 |
NCP2# |
4 | ||
| 76923-52020 |
NCP2#..G,X |
4 | ||
| 76925F - PROTECTOR, SIDE MUDGUARD, RH | ||||
| 76925-52010B0 |
NCP2# LT. GRAY,KD6 ,KD7 ,KE1 ,KE3 ,KE7 ,KF2 ,KF4 ,KF5 ,KF6 ,040 ,199 ,209 ,3P0 ,583 ,584 ,6R4 ,6S2 ,8M6 |
1 | ||
| 76925-52010B0 |
NCP2# LT. GRAY,KD7 ,KE1 ,KE3 ,KE7 ,KF2 ,KF4 ,KF5 ,KF6 ,KJ6 ,068 ,199 ,209 ,3P0 ,583 ,584 ,6R4 ,6S2 ,8M6 |
1 | ||
| 76925-52010B0 |
NCP2#..G,X LT. GRAY,068 ,1E7 ,209 ,3P0 ,583 ,6R4 ,774 ,8M6 ,KJ8 ,KK1 ,KK2 ,KK4 ,KK5 ,KK6 ,KK7 ,KK8 ,KK9 |
1 | ||
| 76925-52010C0 |
NCP2# BLACK,209 ,3P0 ,6R4 ,8M6 |
1 | ||
| 76925-52010B0 |
NCP2# LT. GRAY,KD7 ,KE1 ,KE3 ,KE7 ,KF2 ,KF4 ,KF5 ,KF6 ,KJ6 ,199 ,209 ,3P0 ,583 ,584 ,6R4 ,6S2 ,8M6 |
1 | ||
| 76925-52010C0 |
NCP2#..G,X BLACK,209 ,3P0 ,6R4 ,8M6 |
1 | ||
| 76925-52010B0 |
NCP2#..G,X LT. GRAY,KJ8 ,KK1 ,KK2 ,KK4 ,KK5 ,KK6 ,KK7 ,KK8 ,KK9 |
1 | ||
| 76926F - PROTECTOR, SIDE MUDGUARD, LH | ||||
| 76925-52010B0 |
NCP2# LT. GRAY,KD7 ,KE1 ,KE3 ,KE7 ,KF2 ,KF4 ,KF5 ,KF6 ,KJ6 ,068 ,199 ,209 ,3P0 ,583 ,584 ,6R4 ,6S2 ,8M6 |
1 | ||
| 76925-52010B0 |
NCP2# LT. GRAY,KD6 ,KD7 ,KE1 ,KE3 ,KE7 ,KF2 ,KF4 ,KF5 ,KF6 ,040 ,199 ,209 ,3P0 ,583 ,584 ,6R4 ,6S2 ,8M6 |
1 | ||
| 76925-52010C0 |
NCP2# BLACK,209 ,3P0 ,6R4 ,8M6 |
1 | ||
| 76925-52010B0 |
NCP2# LT. GRAY,KD7 ,KE1 ,KE3 ,KE7 ,KF2 ,KF4 ,KF5 ,KF6 ,KJ6 ,199 ,209 ,3P0 ,583 ,584 ,6R4 ,6S2 ,8M6 |
1 | ||
| 76925-52010B0 |
NCP2#..G,X LT. GRAY,KJ8 ,KK1 ,KK2 ,KK4 ,KK5 ,KK6 ,KK7 ,KK8 ,KK9 |
1 | ||
| 76925-52010B0 |
NCP2#..G,X LT. GRAY,068 ,1E7 ,209 ,3P0 ,583 ,6R4 ,774 ,8M6 ,KJ8 ,KK1 ,KK2 ,KK4 ,KK5 ,KK6 ,KK7 ,KK8 ,KK9 |
1 | ||
| 76925-52010C0 |
NCP2#..G,X BLACK,209 ,3P0 ,6R4 ,8M6 |
1 | ||
| Common parts | ||||
| 90159-60444 | ||||
| 90159-60498 | ||||
| 90269-04054 | ||||
| Linked diagrams | ||||
| 5302 | ||||

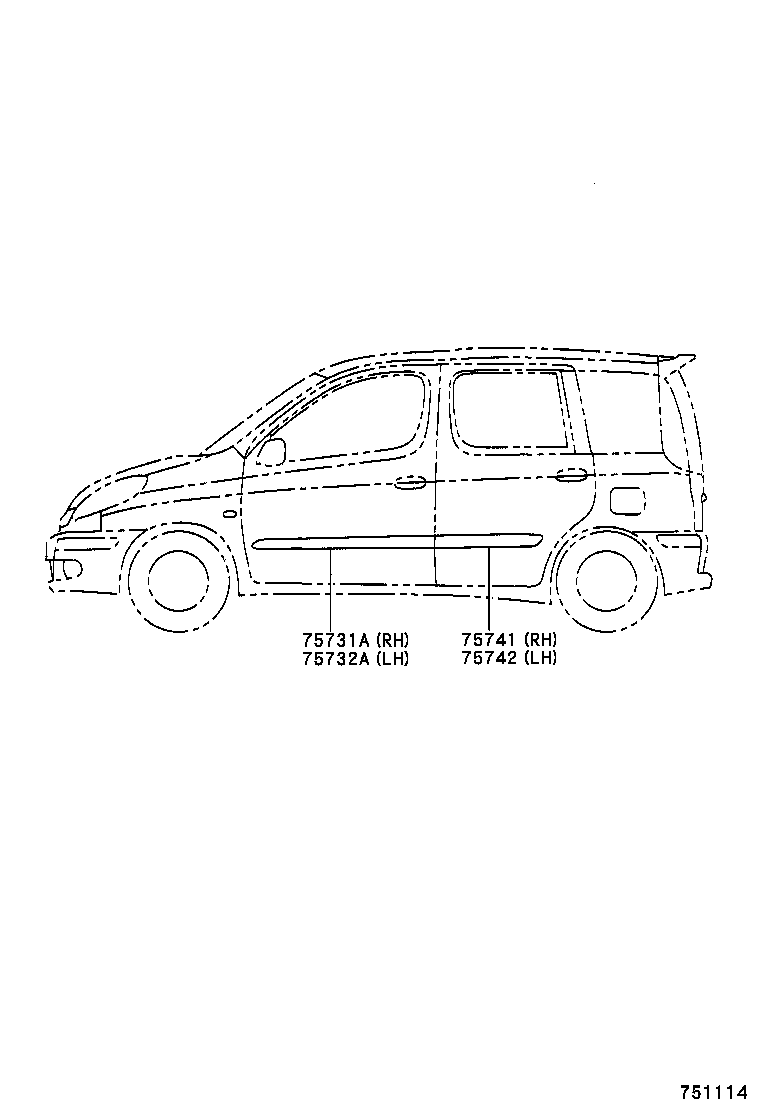

ILLUST NO. 2 OF 2(0208- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75731A - MOULDING, FRONT DOOR, OUTSIDE RH | ||||
| 75731-52060A1 |
NCP2#..G,X WHITE,068 |
1 | ||
| 75731-52060B0 |
NCP2#..G,X SILVER M.M.,1E7 |
1 | ||
| 75731-52060J0 |
NCP2#..G,X BLUE MC.,8M6 |
1 | ||
| 75731-52060G0 |
NCP2#..G,X DARK GREEN MC.,6R4 |
1 | ||
| 75731-52060D0 |
NCP2#..G,X SUPER RED 5,3P0 |
1 | ||
| 75731-52060H0 |
NCP2#..G,X AQUA M.M.,774 |
1 | ||
| 75731-52060F1 |
NCP2#..G,X CHAMPAGNE ME.,583 |
1 | ||
| 75731-52060C0 |
NCP2#..G,X BLACK MC.,209 |
1 | ||
| 75731-52060A0 |
NCP2#..G,X WHITE PEARL CS.,064 |
1 | ||
| 75732A - MOULDING, FRONT DOOR, OUTSIDE LH | ||||
| 75732-52060C0 |
NCP2#..G,X BLACK MC.,209 |
1 | ||
| 75732-52060A0 |
NCP2#..G,X WHITE PEARL CS.,064 |
1 | ||
| 75732-52060B0 |
NCP2#..G,X SILVER M.M.,1E7 |
1 | ||
| 75732-52060F1 |
NCP2#..G,X CHAMPAGNE ME.,583 |
1 | ||
| 75732-52060H0 |
NCP2#..G,X AQUA M.M.,774 |
1 | ||
| 75732-52060D0 |
NCP2#..G,X SUPER RED 5,3P0 |
1 | ||
| 75732-52060G0 |
NCP2#..G,X DARK GREEN MC.,6R4 |
1 | ||
| 75732-52060A1 |
NCP2#..G,X WHITE,068 |
1 | ||
| 75732-52060J0 |
NCP2#..G,X BLUE MC.,8M6 |
1 | ||
| 75741 - MOULDING, REAR DOOR, OUTSIDE RH | ||||
| 75741-52050A1 |
NCP2#..G,X WHITE,068 |
1 | ||
| 75741-52050B0 |
NCP2#..G,X SILVER M.M.,1E7 |
1 | ||
| 75741-52050A0 |
NCP2#..G,X WHITE PEARL CS.,064 |
1 | ||
| 75741-52050C0 |
NCP2#..G,X BLACK MC.,209 |
1 | ||
| 75741-52050D0 |
NCP2#..G,X SUPER RED 5,3P0 |
1 | ||
| 75741-52050H0 |
NCP2#..G,X AQUA M.M.,774 |
1 | ||
| 75741-52050F1 |
NCP2#..G,X CHAMPAGNE ME.,583 |
1 | ||
| 75741-52050G0 |
NCP2#..G,X DARK GREEN MC.,6R4 |
1 | ||
| 75741-52050J0 |
NCP2#..G,X BLUE MC.,8M6 |
1 | ||
| 75742 - MOULDING, REAR DOOR, OUTSIDE LH | ||||
| 75742-52050A1 |
NCP2#..G,X WHITE,068 |
1 | ||
| 75742-52050F1 |
NCP2#..G,X CHAMPAGNE ME.,583 |
1 | ||
| 75742-52050G0 |
NCP2#..G,X DARK GREEN MC.,6R4 |
1 | ||
| 75742-52050A0 |
NCP2#..G,X WHITE PEARL CS.,064 |
1 | ||
| 75742-52050D0 |
NCP2#..G,X SUPER RED 5,3P0 |
1 | ||
| 75742-52050J0 |
NCP2#..G,X BLUE MC.,8M6 |
1 | ||
| 75742-52050H0 |
NCP2#..G,X AQUA M.M.,774 |
1 | ||
| 75742-52050C0 |
NCP2#..G,X BLACK MC.,209 |
1 | ||
| 75742-52050B0 |
NCP2#..G,X SILVER M.M.,1E7 |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
