NCP25-CHSGK (1999)
Toyota Fun Cargo
Production
Aug 1999
-
Sep 2005
Engine
1NZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9908-0509)

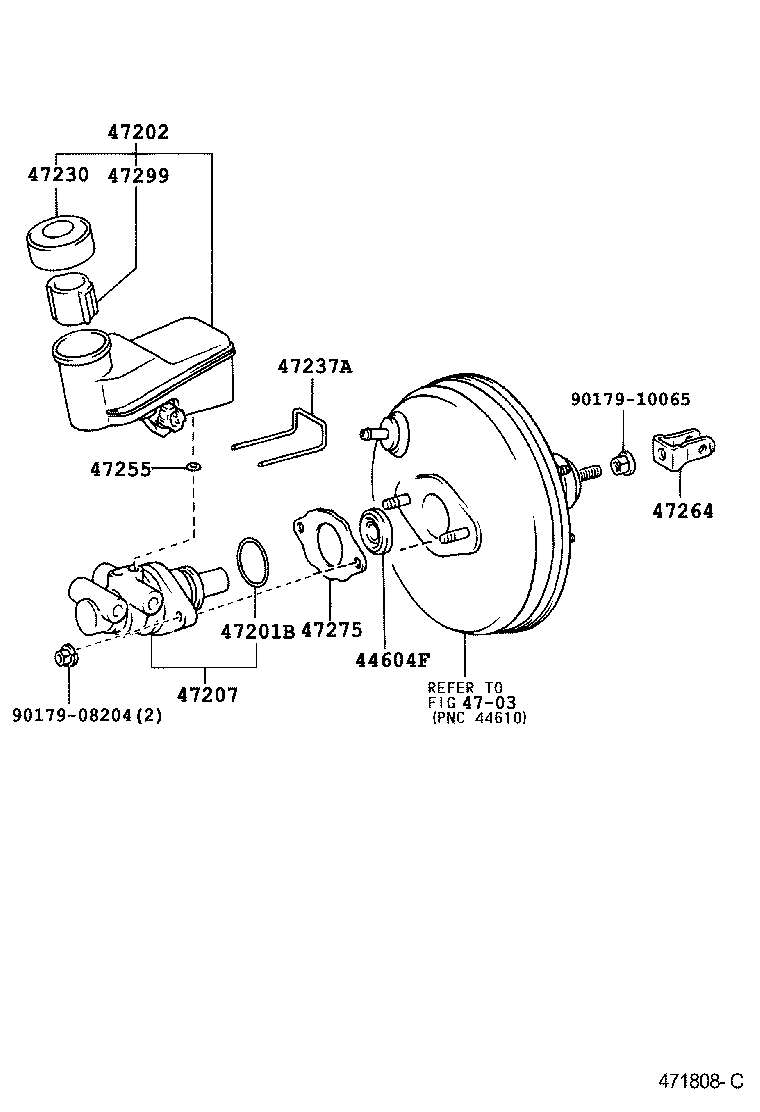

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44604F - SEAL, BRAKE BOOSTER BODY | ||||
| 44604-52070 |
NCP2# |
1 | ||
| 44604-52070 |
NCP2# |
1 | ||
| 47201B - RING, O(FOR BRAKE MASTER CYLINDER) | ||||
| 90015-EH001 |
NCP2# |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-52080 |
NCP2# |
1 | ||
| 47220-52080 |
NCP2# |
1 | ||
| 47207 - CYLINDER SUB-ASSY, BRAKE MASTER LESS RESERVOIR TANK | ||||
| 47207-52032 |
NCP2# |
1 | ||
| 47207-52031 |
NCP2# |
1 | ||
| 47207-52031 |
NCP2# |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-52030 |
NCP2# |
1 | ||
| 47230-52030 |
NCP2# |
1 | ||
| 47237A - STOPPER, BREKE MASTER CYLINDER RESERVOIR TANK | ||||
| 47237-52010 |
NCP2# |
1 | ||
| 47237-52010 |
NCP2# |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-52010 |
NCP2# |
2 | ||
| 47255-52010 |
NCP2# |
2 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-52020 |
NCP2# |
1 | ||
| 47264-52020 |
NCP2# |
1 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-52010 |
NCP2# |
1 | ||
| 47275-52010 |
NCP2# |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-52010 |
NCP2# |
1 | ||
| 47299-52010 |
NCP2# |
1 | ||
| Common parts | ||||
| 90179-08204 | ||||
| 90179-10065 | ||||
| Linked diagrams | ||||
| 4703 | ||||
