NCP25-CHSGK (1999)

Toyota Fun Cargo

Production Aug 1999 - Sep 2005
Engine 1NZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

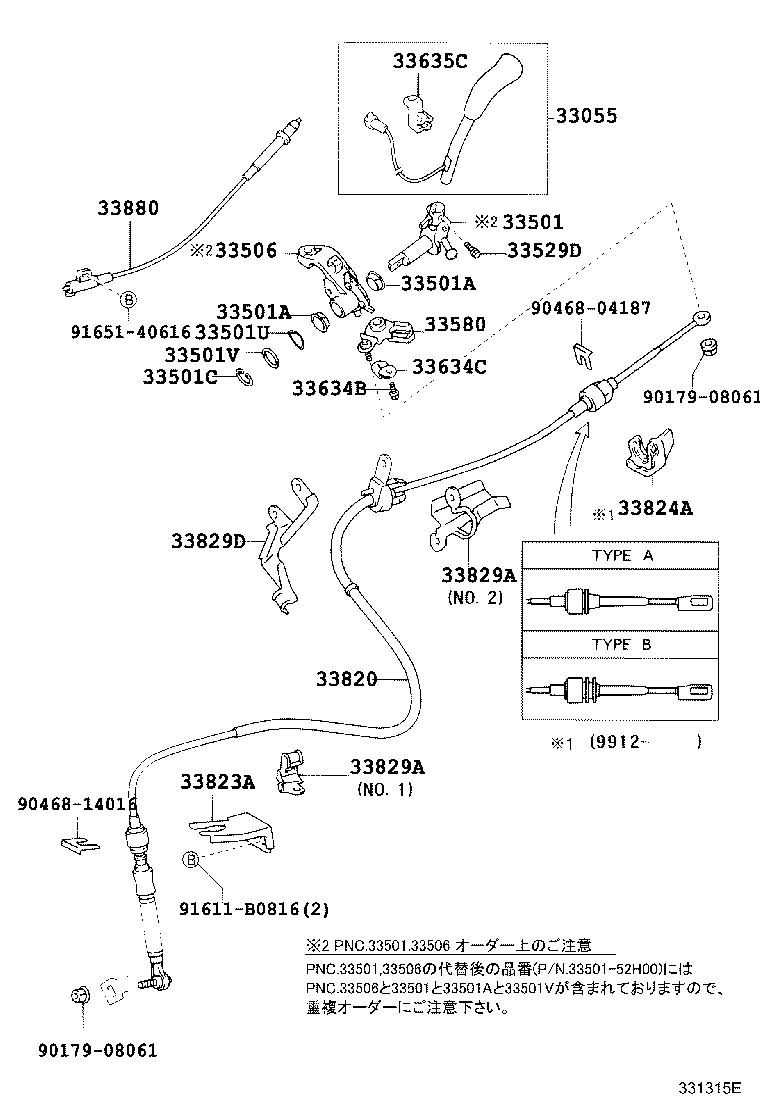

(9908-0208)NCP21,25

Click highlighted areas on diagram

diagram 33055 33501 33501A 33501A 33501C 33501U 33501V 33506 33529D 33580 33634B 33634C 33635C 33820 33823A 33824A 33829A 33829A 33829D 33880 9017908061 9017908061 9046804187 9046814016 91611B0816 9165140616
Part # Description Qty Price
33055 - LEVER SUB-ASSY, COLUMN SHIFT
33055-52031

NCP2#

 1
33501-52020

NCP2#

 1
33055-52030

NCP2#

 1
33501 - SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT)
33501-52012

NCP2#

 1
33501-52011

NCP2#

 1
33501-52010

NCP2#

 1
33501A - BUSH (FOR COLUMN SHIFT CONTROL SHAFT)
90386-21002

NCP2#

 2
90386-21002

NCP2#

 2
90386-20007

NCP2#

 2
33501A - BUSH (FOR COLUMN SHIFT CONTROL SHAFT)
90386-21002

NCP2#

 2
90386-21002

NCP2#

 2
90386-20007

NCP2#

 2
33501C - RING (FOR CONTROL SHAFT)
96150-02000

NCP2#

 1
96150-02000

NCP2#

 1
33501U - WASHER, WAVE(FOR COLUMN SHIFT CONTROL SHIFT)
90206-21002

NCP2#

 1
90206-21002

NCP2#

 1
33501V - SPACER(FOR COLUMN SHIFT CONTROL SHIFT)
90564-21001

NCP2#

 1
90560-22005

NCP2#

 1
90560-22005

NCP2#

 1
33506 - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR COLUMN SHIF
33506-52022

NCP2#

 1
33506-52022

NCP2#

 1
33506-52020

NCP2#

 1
33506-52021

NCP2#

 1
33529D - BOLT, SHIFT LEVER
33529-32010

NCP2#

 1
33580 - BELLCRANK ASSY, SHIFTING (FOR COLUMN SHIFT)
33580-52010

NCP2#

 1
33580-52010

NCP2#

 1
33634B - BOLT(FOR WIRE PROTECTOR)
33529-52010

NCP2#

 1
33529-52010

NCP2#

 1
33634C - BRACKET, SHIFT LEVER HARNESS CONNECTOR
33634-32010

NCP2#

 1
33634-32010

NCP2#

 1
33635C - GUIDE, WIRE
33635-52010

NCP2#

 1
33635-52010

NCP2#

 1
33820 - CABLE ASSY, TRANSMISSION CONTROL (FOR COLUMN SHIFT)
33820-52310

NCP21,25

 1
33820-52070

NCP21,25

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
33820-52071

NCP21,25

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
33823A - BRACKET, TRANSMISSION CONTROL CABLE
33823-52041

NCP21,25

 1
33823-52041

NCP21,25

 1
33824A - COVER, TRANSMISSION CONTROL CABLE
33824-52010

NCP2#

 1
33824-52010

NCP2#

 1
33829A - SUPPORT, TRANSMISSION CONTROL CABLE
33829-52050

NCP2#

NO.2

 1
33829-52030

NCP21,25

NO.1

 1
33829-52050

NCP2#

NO.2

 1
33829-52030

NCP21,25

NO.1

 1
33829A - SUPPORT, TRANSMISSION CONTROL CABLE
33829-52050

NCP2#

NO.2

 1
33829-52030

NCP21,25

NO.1

 1
33829-52050

NCP2#

NO.2

 1
33829-52030

NCP21,25

NO.1

 1
33829D - BRACKET, TRANSMISSION CONTROL CABLE
33829-52040

NCP2#

 1
33829-52070

NCP2#

 1
33880 - CABLE ASSY, PARKING LOCK (FOR COLUMN SHIFT)
33880-52030

NCP2#

 1
33880-52030

NCP2#

 1
Common parts
90179-08061
90468-04187
90468-14016
91611-B0816
91651-40616

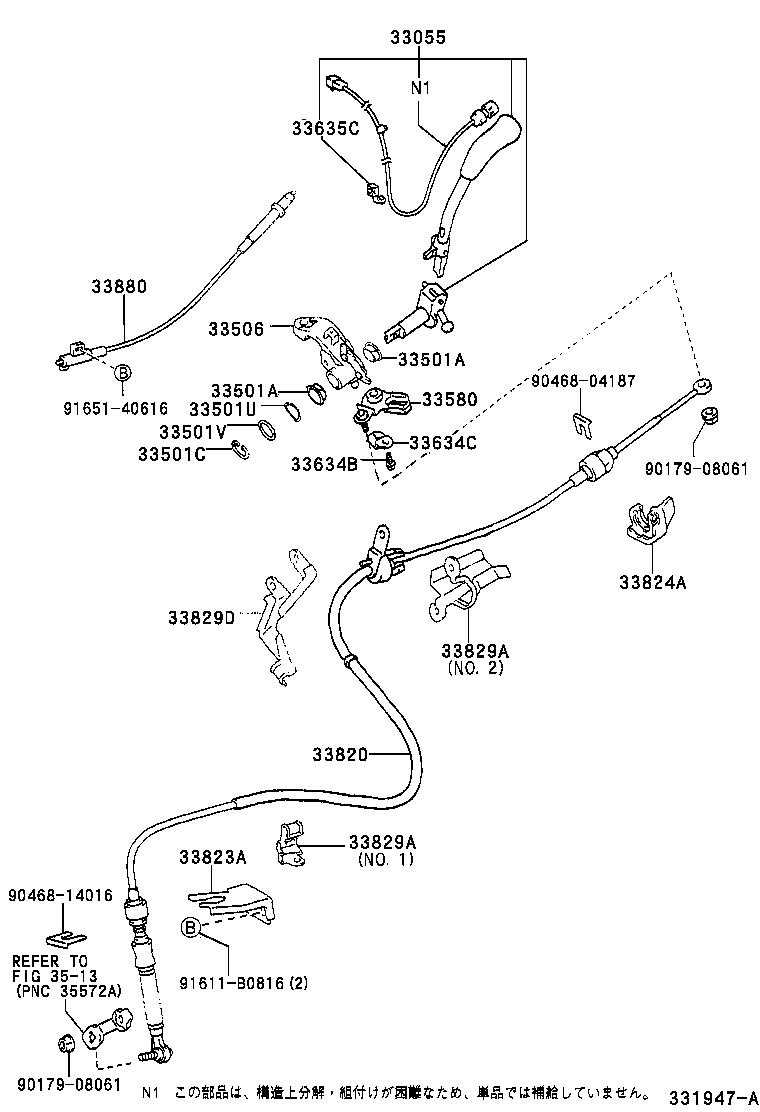

(0208-0509)NCP21,25

Click highlighted areas on diagram

diagram 33055 33501A 33501A 33501C 33501U 33501V 33506 33580 33634B 33634C 33635C 33820 33823A 33824A 33829A 33829A 33829D 33880 3513 9017908061 9017908061 9046804187 9046814016 91611B0816 9165140616
Part # Description Qty Price
33055 - LEVER SUB-ASSY, COLUMN SHIFT
33055-52031

NCP2#

 1
33501-52020

NCP2#

 1
33055-52030

NCP2#

 1
33501A - BUSH (FOR COLUMN SHIFT CONTROL SHAFT)
90386-21002

NCP2#

 2
90386-21002

NCP2#

 2
90386-20007

NCP2#

 2
33501A - BUSH (FOR COLUMN SHIFT CONTROL SHAFT)
90386-21002

NCP2#

 2
90386-21002

NCP2#

 2
90386-20007

NCP2#

 2
33501C - RING (FOR CONTROL SHAFT)
96150-02000

NCP2#

 1
96150-02000

NCP2#

 1
33501U - WASHER, WAVE(FOR COLUMN SHIFT CONTROL SHIFT)
90206-21002

NCP2#

 1
90206-21002

NCP2#

 1
33501V - SPACER(FOR COLUMN SHIFT CONTROL SHIFT)
90564-21001

NCP2#

 1
90560-22005

NCP2#

 1
90560-22005

NCP2#

 1
33506 - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR COLUMN SHIF
33506-52022

NCP2#

 1
33506-52022

NCP2#

 1
33506-52020

NCP2#

 1
33506-52021

NCP2#

 1
33580 - BELLCRANK ASSY, SHIFTING (FOR COLUMN SHIFT)
33580-52010

NCP2#

 1
33580-52010

NCP2#

 1
33634B - BOLT(FOR WIRE PROTECTOR)
33529-52010

NCP2#

 1
33529-52010

NCP2#

 1
33634C - BRACKET, SHIFT LEVER HARNESS CONNECTOR
33634-32010

NCP2#

 1
33634-32010

NCP2#

 1
33635C - GUIDE, WIRE
33635-52010

NCP2#

 1
33635-52010

NCP2#

 1
33820 - CABLE ASSY, TRANSMISSION CONTROL (FOR COLUMN SHIFT)
33820-52310

NCP21,25

 1
33820-52070

NCP21,25

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
33820-52071

NCP21,25

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
33823A - BRACKET, TRANSMISSION CONTROL CABLE
33823-52041

NCP21,25

 1
33823-52041

NCP21,25

 1
33824A - COVER, TRANSMISSION CONTROL CABLE
33824-52010

NCP2#

 1
33824-52010

NCP2#

 1
33829A - SUPPORT, TRANSMISSION CONTROL CABLE
33829-52050

NCP2#

NO.2

 1
33829-52030

NCP21,25

NO.1

 1
33829-52050

NCP2#

NO.2

 1
33829-52030

NCP21,25

NO.1

 1
33829A - SUPPORT, TRANSMISSION CONTROL CABLE
33829-52050

NCP2#

NO.2

 1
33829-52030

NCP21,25

NO.1

 1
33829-52050

NCP2#

NO.2

 1
33829-52030

NCP21,25

NO.1

 1
33829D - BRACKET, TRANSMISSION CONTROL CABLE
33829-52040

NCP2#

 1
33829-52070

NCP2#

 1
33880 - CABLE ASSY, PARKING LOCK (FOR COLUMN SHIFT)
33880-52030

NCP2#

 1
33880-52030

NCP2#

 1
Common parts
90179-08061
90468-04187
90468-14016
91611-B0816
91651-40616
Linked diagrams
3513
