NCP25-CHSDK (1999)

Toyota Fun Cargo

Production Aug 1999 - Sep 2005
Engine 1NZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

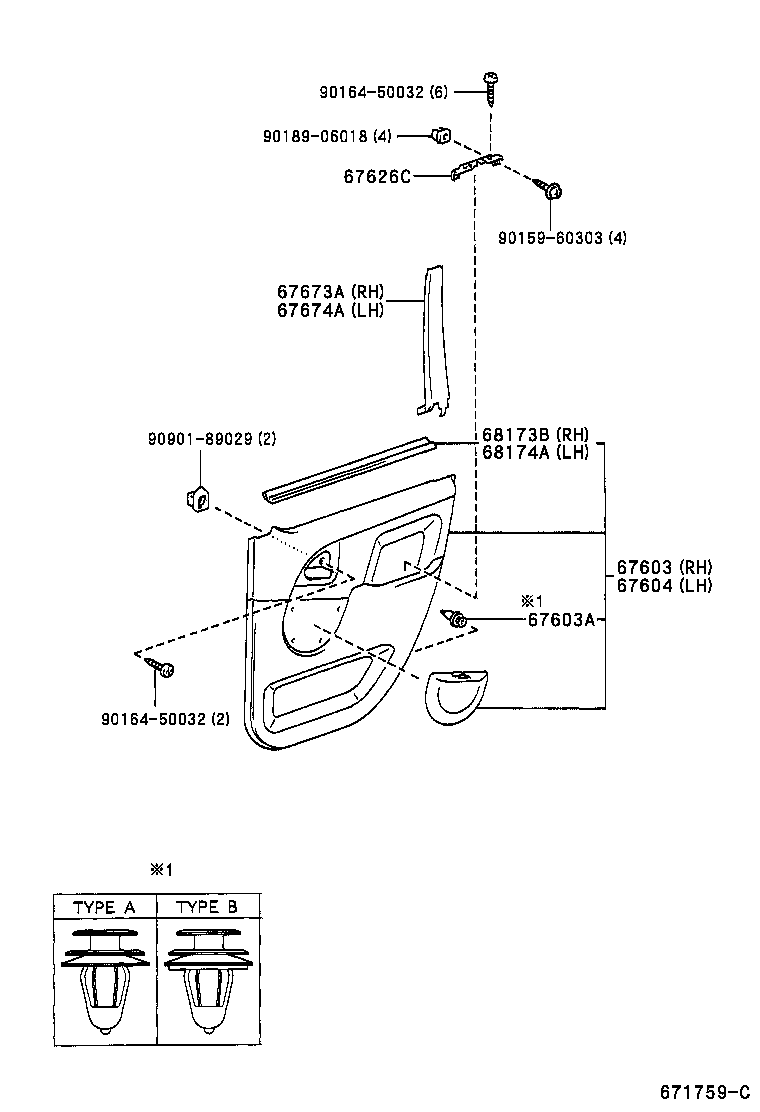

ILLUST NO. 1 OF 3(9908- )

Click highlighted areas on diagram

diagram 67603 67603A 67604 67626C 67673A 67674A 68173B 68174A 9015960303 9016450032 9016450032 9018906018 9090189029
Part # Description Qty Price
67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67630-52120H0

NCP20,25..J

ﾄﾞｱﾄﾘﾑ=TYPE A-*104,FRENCH TURQUOISE,TRIM7#

 1
67630-52120K0

NCP20,25..J

ﾄﾞｱﾄﾘﾑ=TYPE A-*104,SHADOW GRAY,TRIM9#

 1
67630-52120B0

NCP20,25..J

ﾄﾞｱﾄﾘﾑ=TYPE A-*104,DARK GRAY,TRIM10

 1
67630-52120B1

NCP20,25..J

ﾄﾞｱﾄﾘﾑ=TYPE B-*104,DK. GRAY,TRIM10

 1
67603A - RETAINER(FOR REAR DOOR TRIM BOARD)
67771-28020

NCP2#

TYPE B:ｲﾗｽﾄ参照

 8
67771-12050

NCP2#

TYPE A:ｲﾗｽﾄ参照

 8
67771-28020

NCP2#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 8
67771-12050

NCP2#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 8
67771-12050

NCP2#

 16
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-52120K0

NCP20,25..J

ﾄﾞｱﾄﾘﾑ=TYPE A-*104,SHADOW GRAY,TRIM9#

 1
67640-52120H0

NCP20,25..J

ﾄﾞｱﾄﾘﾑ=TYPE A-*104,FRENCH TURQUOISE,TRIM7#

 1
67640-52120B0

NCP20,25..J

ﾄﾞｱﾄﾘﾑ=TYPE A-*104,DARK GRAY,TRIM10

 1
67640-52120B1

NCP20,25..J

ﾄﾞｱﾄﾘﾑ=TYPE B-*104,DK.GRAY,TRIM10

 1
67626C - BRACKET, REAR DOOR TRIM, NO.2
67626-52010

NCP2#

 2
67626-52010

NCP2#

 2
67673A - GARNISH, REAR DOOR FRAME, RH
67673-52010

NCP2#

 1
67673-52010

NCP2#

 1
67674A - GARNISH, REAR DOOR FRAME, LH
67674-52010

NCP2#

 1
67674-52010

NCP2#

 1
68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH
68173-52030

NCP2#

 1
68173-52030

NCP2#

 1
68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH
68174-52020

NCP2#

 1
68174-52020

NCP2#

 1
Common parts
90159-60303
90164-50032
90189-06018
90901-89029

ILLUST NO. 2 OF 3(9908- )

Click highlighted areas on diagram

diagram 67003 67004 67216E 67216E 67407E 67408E 67836 67836H 67841E 67842E 67867D 67868B 67868D 67871 67871A 67872 68103 68104 68141F 68142C 68152C 68180C 6818712020 68230C 68630D 68640A 75921B 75922L 9010908295 9011906052 9017906159 9033330002 9054109117 9163140610
Part # Description Qty Price
67003 - PANEL SUB-ASSY, REAR DOOR, RH
67003-52030

NCP2#

 1
67003-52040

NCP2#

ｱﾘ(ｻｲﾄﾞ ﾌﾟﾛﾃｸｼﾖﾝ ﾓ-ﾙﾃﾞｲﾝｸﾞ = TYPE A)

 1
67003-52190

NCP2#

ｱﾘ(ｻｲﾄﾞ ﾌﾟﾛﾃｸｼﾖﾝ ﾓ-ﾙﾃﾞｲﾝｸﾞ = TYPE B)

 1
67004 - PANEL SUB-ASSY, REAR DOOR, LH
67004-52030

NCP2#

 1
67004-52040

NCP2#

ｱﾘ(ｻｲﾄﾞ ﾌﾟﾛﾃｸｼﾖﾝ ﾓ-ﾙﾃﾞｲﾝｸﾞ = TYPE A)

 1
67004-52210

NCP2#

ｱﾘ(ｻｲﾄﾞ ﾌﾟﾛﾃｸｼﾖﾝ ﾓ-ﾙﾃﾞｲﾝｸﾞ = TYPE B)

 1
67216E - STOPPER, REAR DOOR GLASS, UPPER NO.2
67217-52010

NCP2#

NO.2

 2
67215-52010

NCP2#

NO.1

 2
67217-52010

NCP2#

NO.2

 2
67217-52010

NCP2#

 2
67217-52012

NCP2#

NO.2

 2
67215-52010

NCP2#

NO.1

 2
67217-52011

NCP2#

NO.2

 2
67216E - STOPPER, REAR DOOR GLASS, UPPER NO.2
67217-52010

NCP2#

NO.2

 2
67215-52010

NCP2#

NO.1

 2
67217-52010

NCP2#

NO.2

 2
67217-52010

NCP2#

 2
67217-52012

NCP2#

NO.2

 2
67215-52010

NCP2#

NO.1

 2
67217-52011

NCP2#

NO.2

 2
67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67407-52020

NCP2#

 1
67407-52020

NCP2#

 1
67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67408-52020

NCP2#

 1
67408-52020

NCP2#

 1
67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH
67836-52010

NCP2#

 1
67836-52010

NCP2#

 1
67836H - COVER, REAR DOOR LOCK CHILD PROTECTION, LH
67846-52010

NCP2#

 1
67846-52010

NCP2#

 1
67841E - COVER, REAR DOOR SERVICE HOLE, RH
67841-52020

NCP2#

 1
67841-52020

NCP2#

 1
67842E - COVER, REAR DOOR SERVICE HOLE, LH
67841-52020

NCP2#

 1
67841-52020

NCP2#

 1
67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH
67867-12150

NCP2#

 26
67867-12150

NCP2#

 26
67868B - CLIP, DOOR GLASS WEATHERSTRIP(FOR REAR DOOR)
90467-06084

NCP2#

 2
90467-06084

NCP2#

 2
67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH
67867-12150

NCP2#

 26
67867-12150

NCP2#

 26
67871 - WEATHERSTRIP, REAR DOOR, RH
67871-52020

NCP2#

 1
67871-52020

NCP2#

 1
67871A - RETAINER(FOR REAR DOOR WEATHERSTRIP)
67867-52040

NCP2#

左側

 6
67867-52010

NCP2#

右側

 6
67867-52010

NCP2#

右側

 6
67867-52040

NCP2#

左側

 6
67872 - WEATHERSTRIP, REAR DOOR, LH
67872-52020

NCP2#

 1
67872-52020

NCP2#

 1
68103 - GLASS SUB-ASSY, REAR DOOR, RH
68130-52120

NCP2#

*UVCT,厚さ=3.1,ｸﾞﾘｰﾝ

 1
68130-52120

NCP2#

*UVCT,厚さ=3.1,ｸﾞﾘｰﾝ

 1
68130-52050

NCP25;NCP20,21..G,X

*TEM,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ

 1
68130-52130

NCP25;NCP20,21..G,X

*TEM,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ

 1
68130-52040

NCP2#

*UVCT,厚さ=3.1,ｸﾞﾘｰﾝ

 1
68104 - GLASS SUB-ASSY, REAR DOOR, LH
68140-52120

NCP2#

*UVCT,厚さ=3.1,ｸﾞﾘｰﾝ

 1
68140-52120

NCP2#

*UVCT,厚さ=3.1,ｸﾞﾘｰﾝ

 1
68140-52050

NCP25;NCP20,21..G,X

*TEM,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ

 1
68140-52040

NCP2#

*UVCT,厚さ=3.1,ｸﾞﾘｰﾝ

 1
68140-52130

NCP25;NCP20,21..G,X

*TEM,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ

 1
68141F - CLIP, REAR DOOR GLASS RUN
90467-06084

NCP2#

 2
90467-06084

NCP2#

 2
68142C - RUN, REAR DOOR GLASS, RH
68142-52022

NCP2#

 1
68142-52020

NCP2#

 1
68142-52021

NCP2#

 1
68142-52021

NCP2#

 1
68152C - RUN, REAR DOOR GLASS, LH
68152-52020

NCP2#

 1
68152-52021

NCP2#

 1
68152-52022

NCP2#

 1
68152-52021

NCP2#

 1
68180C - WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH
68180-52020

NCP2#

 1
68180-52020

NCP2#

 1
68230C - WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH
68230-52020

NCP2#

 1
68230-52020

NCP2#

 1
68630D - CHECK ASSY, REAR DOOR, RH
68630-52020

NCP2#

 1
68630-52020

NCP2#

 1
68640A - CHECK ASSY, REAR DOOR, LH
68640-52020

NCP2#

 1
68640-52020

NCP2#

 1
75921B - TAPE, BLACK OUT, NO.1 RH
75921-52010

NCP2#

 1
75921-52010

NCP2#

 1
75922L - TAPE, BLACK OUT, NO.1 LH
75922-52010

NCP2#

 1
75922-52010

NCP2#

 1
Common parts
68187-12020
90109-08295
90119-06052
90179-06159
90333-30002
90541-09117
91631-40610

ILLUST NO. 3 OF 3(9908-0208)

Click highlighted areas on diagram

diagram
Part # Description Qty Price

ILLUST NO. 3 OF 3(0208- )

Click highlighted areas on diagram

diagram
Part # Description Qty Price
