NCP25-CHSDK (1999)

Toyota Fun Cargo

Production Aug 1999 - Sep 2005
Engine 1NZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9908- )

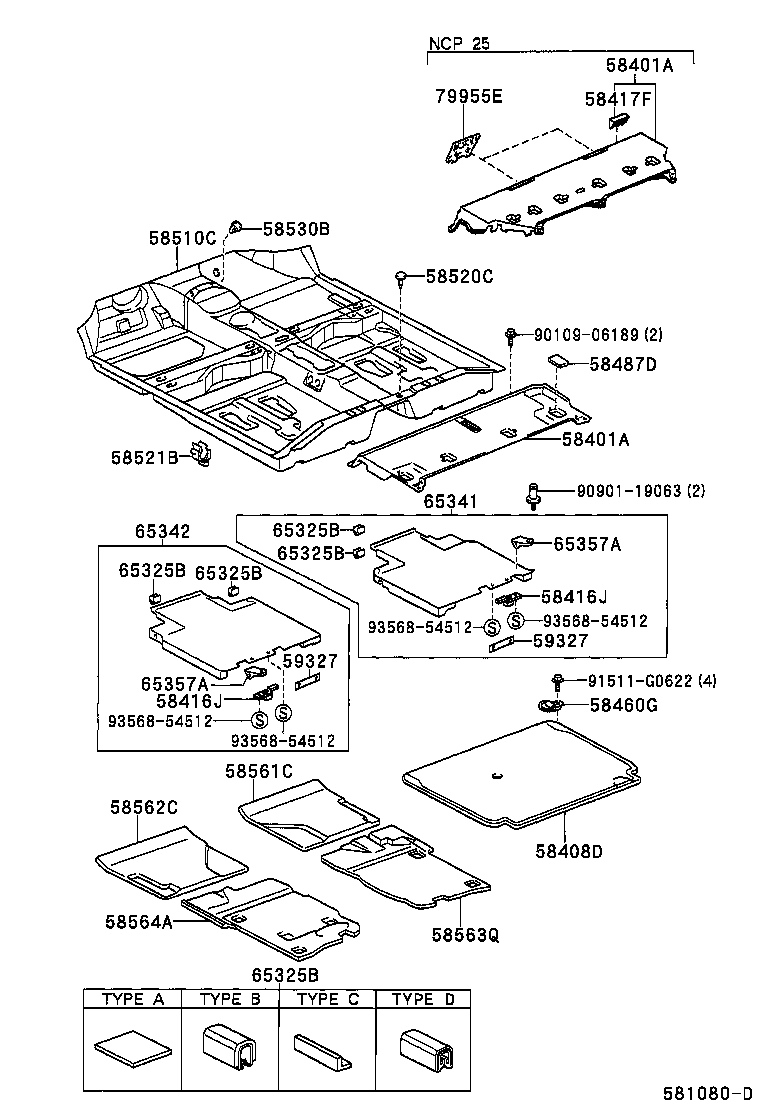

Click highlighted areas on diagram

diagram 58401A 58401A 58408D 58416J 58416J 58417F 58460G 58487D 58510C 58520C 58521B 58530B 58561C 58562C 58563Q 58564A 59327 59327 65325B 65325B 65325B 65325B 65325B 65341 65342 65357A 65357A 79955E 9010906189 9090119063 91511G0622 9356854512 9356854512 9356854512 9356854512
Part # Description Qty Price
58401A - BOARD SUB-ASSY, DECK, NO.1
58401-52020B1

NCP25

GRAY,TRIM7#,9#

 1
58401-52040B0

NCP25

DK.GRAY,TRIM1#

 1
58401A - BOARD SUB-ASSY, DECK, NO.1
58401-52020B1

NCP25

GRAY,TRIM7#,9#

 1
58401-52040B0

NCP25

DK.GRAY,TRIM1#

 1
58408D - BOARD SUB-ASSY, DECK, NO.2
58408-52020B1

NCP25

GRAY,TRIM7#,9#

 1
58408-52020B2

NCP25

DK.GRAY,TRIM1#

 1
58416J - BRACKET, DECK BOARD, NO.1
58416-52010

NCP2#

 2
58416-52010

NCP2#

 2
58416J - BRACKET, DECK BOARD, NO.1
58416-52010

NCP2#

 2
58416-52010

NCP2#

 2
58417F - BRACKET, DECK BOARD
58417-52010

NCP25

 4
58417-52010

NCP25

 4
58460G - STRIKER ASSY, LUGGAGE HOLD BELT
58460-52020

NCP2#

 4
58460-52020

NCP2#

 4
58487D - CAP, DECK BOARD SERVICE HOLE
58487-52020B0

NCP25

SHADOW GRAY,TRIM7#,9#

 4
58487-52020B1

NCP25

DK.GRAY,TRIM1#

 4
58510C - CARPET ASSY, FRONT FLOOR, FRONT
58510-52040B0

NCP25

ｶﾝﾚｲﾁ ｼﾖｳ,GRAY,TRIM7#,9#

 1
58510-52400B0

NCP25

ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ｱｸｾｻﾘ ｺﾝｾﾝﾄ (AC100V)),GRAY,TRIM7#,9#

 1
58510-52030B0

NCP25

GRAY,TRIM7#,9#

 1
58510-52390B0

NCP25

ｱﾘ(ｱｸｾｻﾘ ｺﾝｾﾝﾄ (AC100V)),GRAY,TRIM7#,9#

 1
58510-52041B0

NCP25

ｱﾘ(ﾘﾔ ﾋ-ﾀ ﾀﾞｸﾄ),GRAY,TRIM7#,9#

 1
58510-52031B0

NCP25

GRAY,TRIM7#,9#

 1
58510-52401B0

NCP25

ｱﾘ(ｱｸｾｻﾘ ｺﾝｾﾝﾄ (AC100V) & ﾘﾔ ﾋ-ﾀ ﾀﾞｸﾄ),GRAY,TRIM7#,9#

 1
58510-52391B0

NCP25

ｱﾘ(ｱｸｾｻﾘ ｺﾝｾﾝﾄ (AC100V)),GRAY,TRIM7#,9#

 1
58510-52031B2

NCP25

GRAY,TRIM1#

 1
58510-52041B1

NCP25

ｱﾘ(ﾘﾔ ﾋ-ﾀ ﾀﾞｸﾄ),GRAY,TRIM1#

 1
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-07049P0

NCP2#

SHADOW GRAY,TRIM7#,9#

 1
90467-06016P0

NCP25

GRAY,TRIM7#,9#

 3
90467-07049B7

NCP2#

DK.GRAY,TRIM1#

 2
90467-07049P0

NCP2#

SHADOW GRAY,TRIM7#,9#

 2
58521B - HOOK, FLOOR CARPET
58521-52010

NCP2#

 4
58521-52010

NCP2#

 4
58530B - CLIP(FOR FRONT FLOOR CARPET)
90467-10091

NCP2#

 1
90467-10091

NCP2#

 1
58561C - SILENCER, FRONT FLOOR, NO.1
58561-52060

NCP25

 1
58561-52060

NCP25

 1
58562C - SILENCER, FRONT FLOOR, NO.2
58562-52050

NCP2#

 1
58562-52050

NCP2#

 1
58563Q - SILENCER, FRONT FLOOR, NO.3
58563-52040

NCP25

 1
58563-52040

NCP25

 1
58564A - SILENCER, FRONT FLOOR, NO.4
58564-52030

NCP25

 1
58564-52030

NCP25

 1
59327 - BELT, FLOOR COVER
59327-32010

NCP2#

 2
59327-32010A0

NCP2#

IVORY

 2
59327 - BELT, FLOOR COVER
59327-32010

NCP2#

 2
59327-32010A0

NCP2#

IVORY

 2
65325B - PLATE, FLOOR BOARD, FRONT
65325-52010

NCP2#

TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ

 14
65325-52030

NCP2#

TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ,長さ=35

 4
65325-52012

NCP2#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,長さ=10

 14
65325-52020

NCP2#

TYPE A:ｲﾗｽﾄ参照

 2
65325-52030

NCP2#

TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ,長さ=35

 4
65325-52012

NCP2#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,長さ=10

 22
65325-52020

NCP2#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
65325-52012

NCP2#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,長さ=10

 14
65325-52030

NCP2#

TYPE D:ｲﾗｽﾄ参照

 4
65325-52011

NCP2#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 22
65325B - PLATE, FLOOR BOARD, FRONT
65325-52010

NCP2#

TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ

 14
65325-52030

NCP2#

TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ,長さ=35

 4
65325-52012

NCP2#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,長さ=10

 14
65325-52020

NCP2#

TYPE A:ｲﾗｽﾄ参照

 2
65325-52030

NCP2#

TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ,長さ=35

 4
65325-52012

NCP2#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,長さ=10

 22
65325-52020

NCP2#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
65325-52012

NCP2#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,長さ=10

 14
65325-52030

NCP2#

TYPE D:ｲﾗｽﾄ参照

 4
65325-52011

NCP2#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 22
65325B - PLATE, FLOOR BOARD, FRONT
65325-52010

NCP2#

TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ

 14
65325-52030

NCP2#

TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ,長さ=35

 4
65325-52012

NCP2#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,長さ=10

 14
65325-52020

NCP2#

TYPE A:ｲﾗｽﾄ参照

 2
65325-52030

NCP2#

TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ,長さ=35

 4
65325-52012

NCP2#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,長さ=10

 22
65325-52020

NCP2#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
65325-52012

NCP2#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,長さ=10

 14
65325-52030

NCP2#

TYPE D:ｲﾗｽﾄ参照

 4
65325-52011

NCP2#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 22
65325B - PLATE, FLOOR BOARD, FRONT
65325-52010

NCP2#

TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ

 14
65325-52030

NCP2#

TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ,長さ=35

 4
65325-52012

NCP2#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,長さ=10

 14
65325-52020

NCP2#

TYPE A:ｲﾗｽﾄ参照

 2
65325-52030

NCP2#

TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ,長さ=35

 4
65325-52012

NCP2#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,長さ=10

 22
65325-52020

NCP2#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
65325-52012

NCP2#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,長さ=10

 14
65325-52030

NCP2#

TYPE D:ｲﾗｽﾄ参照

 4
65325-52011

NCP2#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 22
65325B - PLATE, FLOOR BOARD, FRONT
65325-52010

NCP2#

TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ

 14
65325-52030

NCP2#

TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ,長さ=35

 4
65325-52012

NCP2#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,長さ=10

 14
65325-52020

NCP2#

TYPE A:ｲﾗｽﾄ参照

 2
65325-52030

NCP2#

TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ,長さ=35

 4
65325-52012

NCP2#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,長さ=10

 22
65325-52020

NCP2#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
65325-52012

NCP2#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,長さ=10

 14
65325-52030

NCP2#

TYPE D:ｲﾗｽﾄ参照

 4
65325-52011

NCP2#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 22
65341 - BOARD, FLOOR, NO.1
65341-52020B1

NCP25

GRAY,TRIM7#,9#

 1
65341-52020B2

NCP25

DK.GRAY,TRIM1#

 1
65342 - BOARD, FLOOR, NO.2
65342-52020B2

NCP25

DK.GRAY,TRIM1#

 1
65342-52020B1

NCP25

GRAY,TRIM7#,9#

 1
65357A - COVER, FLOOR BOARD
65357-52020

NCP25

 4
65357-52020

NCP25

 4
65357A - COVER, FLOOR BOARD
65357-52020

NCP25

 4
65357-52020

NCP25

 4
79955E - COVER, REAR SEAT FRONT BRACKET
79955-52030B0

NCP25

DK.GRAY,TRIM1#

 2
Common parts
90109-06189
90901-19063
91511-G0622
93568-54512
