NCP21-CHSGK (1999)
Toyota Fun Cargo
Production
Aug 1999
-
Sep 2005
Engine
1NZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

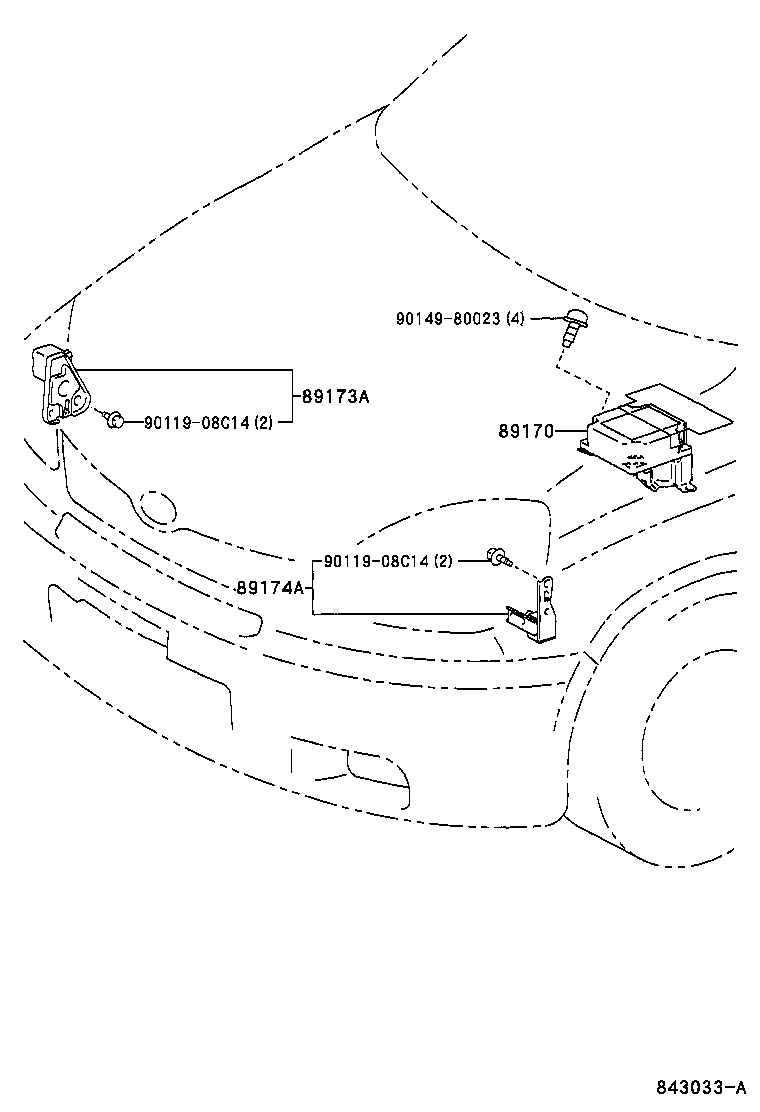

(9908-0208)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89170 - SENSOR ASSY, AIR BAG | ||||
| 89170-52150 |
NCP2# |
1 | ||
| 89170-52340 |
NCP2# |
1 | ||
| 89170-52070 |
NCP2# *80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ |
1 | ||
| 89170-52350 |
NCP2# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) |
1 | ||
| 89170-52060 |
NCP20,21 *80,ｳﾝﾃﾝｾｷ |
1 | ||
| 89173A - SENSOR, AIR BAG, FRONT RH | ||||
| 89173-59055 |
NCP2# |
1 | ||
| 89173-59125 |
NCP2# |
1 | ||
| 89173-59225 |
NCP2# |
1 | ||
| 89174A - SENSOR, AIR BAG, FRONT LH | ||||
| 89174-59015 |
NCP2# |
1 | ||
| 89174-59155 |
NCP2# |
1 | ||
| 89174-59065 |
NCP2# |
1 | ||
| Common parts | ||||
| 90119-08C14 | ||||
| 90149-80023 | ||||

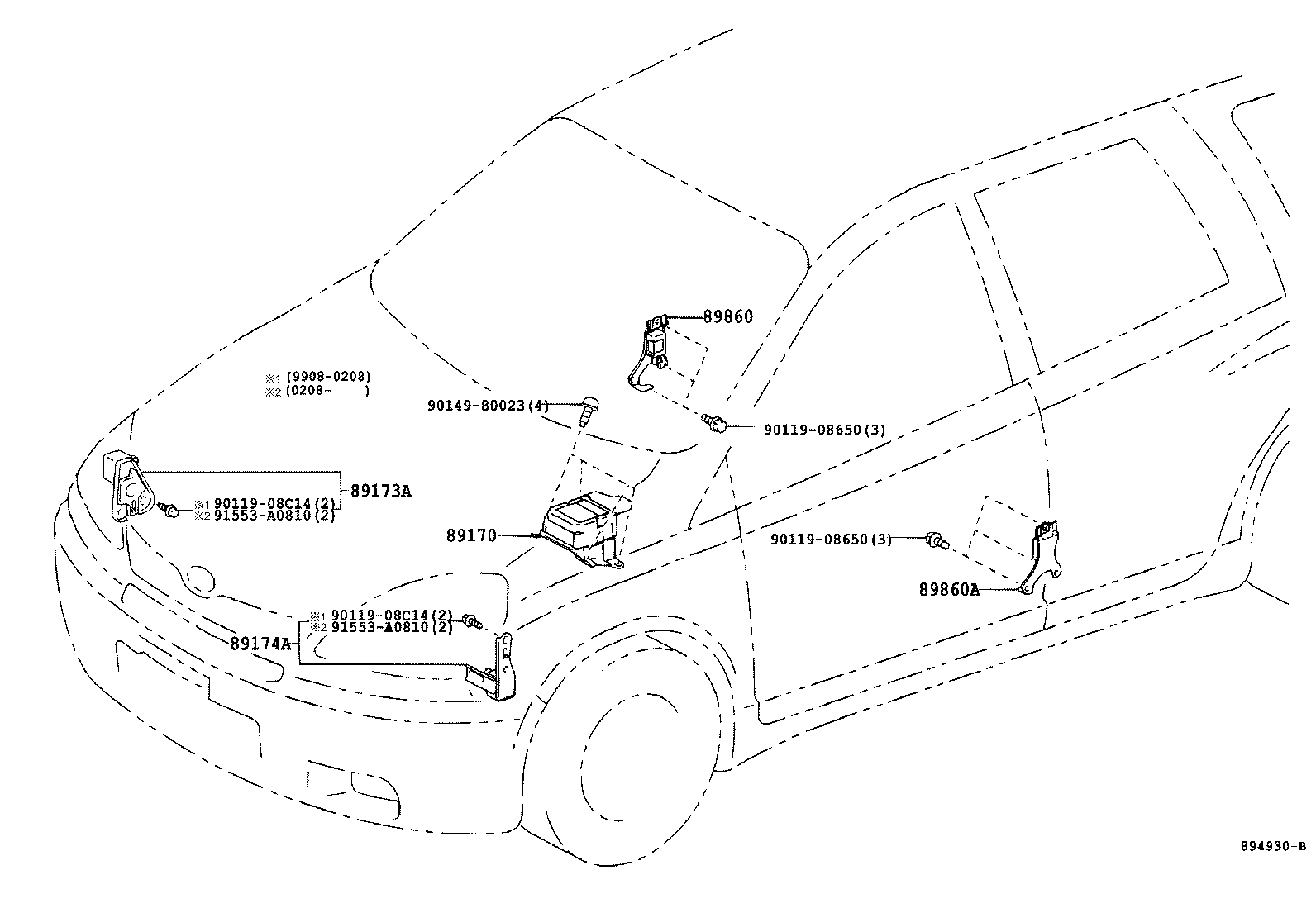

(0208-0509)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89170 - SENSOR ASSY, AIR BAG | ||||
| 89170-52150 |
NCP2# |
1 | ||
| 89170-52340 |
NCP2# |
1 | ||
| 89170-52070 |
NCP2# *80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ |
1 | ||
| 89170-52350 |
NCP2# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) |
1 | ||
| 89170-52060 |
NCP20,21 *80,ｳﾝﾃﾝｾｷ |
1 | ||
| 89173A - SENSOR, AIR BAG, FRONT RH | ||||
| 89173-59055 |
NCP2# |
1 | ||
| 89173-59125 |
NCP2# |
1 | ||
| 89173-59225 |
NCP2# |
1 | ||
| 89174A - SENSOR, AIR BAG, FRONT LH | ||||
| 89174-59015 |
NCP2# |
1 | ||
| 89174-59155 |
NCP2# |
1 | ||
| 89174-59065 |
NCP2# |
1 | ||
| 89860 - SENSOR ASSY, SIDE AIR BAG, RH | ||||
| 89860-52050 |
NCP2# |
1 | ||
| 89860A - SENSOR ASSY, SIDE AIR BAG, LH | ||||
| 89830-52050 |
NCP2# |
1 | ||
| Common parts | ||||
| 90119-08650 | ||||
| 90119-08C14 | ||||
| 90149-80023 | ||||
| 91553-A0810 | ||||
