Toyota Fun cargo NCP20 REAR WIPER

NCP20-CHSDK (1999)

Toyota Fun Cargo

Production Aug 1999 - Sep 2005

Engine 2NZFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

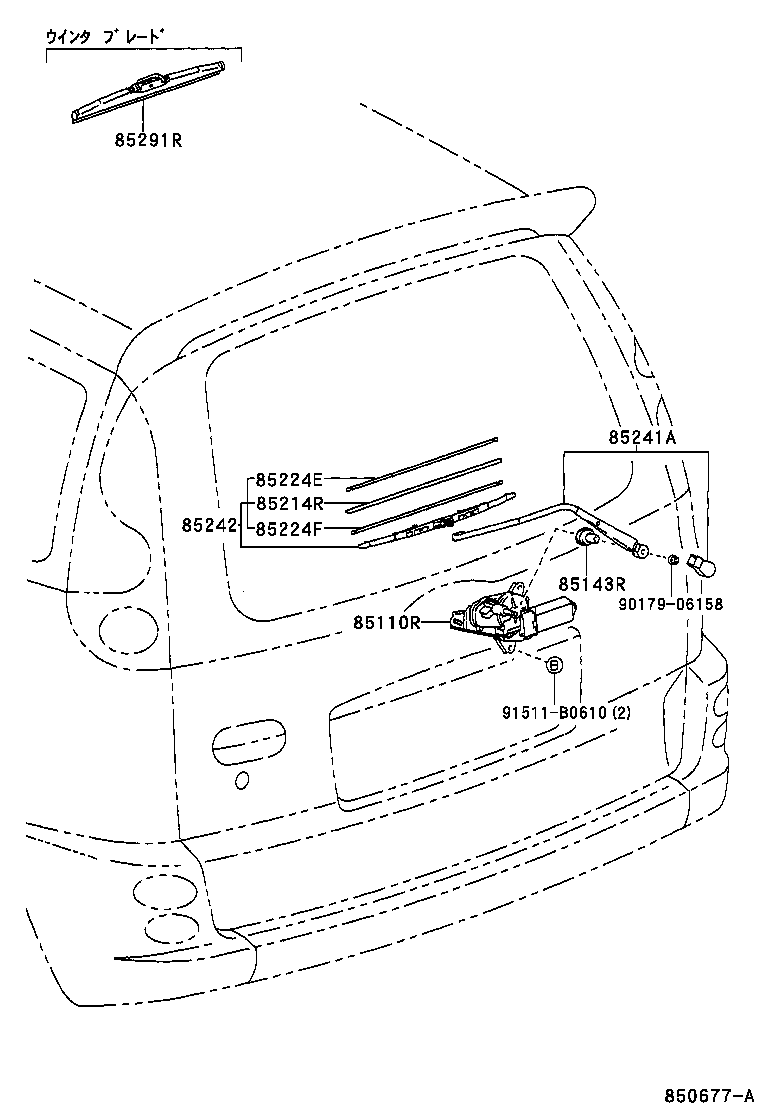

Click highlighted areas on diagram

Part #	Description	Period	Qty
85110R - MOTOR ASSY, REAR WIPER
85130-52080	NCP2#	08/2002 - 09/2005	1
85130-52020	NCP2#	08/1999 - 08/2002	1
85143R - GROMMET, REAR WIPER MOTOR
85143-52030	NCP2#	08/2002 - 09/2005	1
85143-35060	NCP2#	08/1999 - 08/2002	1
85214R - RUBBER, REAR WIPER
85214-10100	NCP2#	08/2002 - 09/2005	1
85214-10100	NCP2#	08/1999 - 08/2002	1
85224E - PLATE, REAR WIPER RUBBER BACKING, NO.1
85224-10200	NCP2#	08/1999 - 08/2002	1
85224F - PLATE, REAR WIPER RUBBER BACKING, NO.2
85224-10200	NCP2#	08/1999 - 08/2002	1
85241A - ARM, REAR WIPER
85241-52030	NCP2# ｽﾁ-ﾙﾜｲﾊﾟｱ-ﾑ	08/2002 - 09/2005	1
85241-52070	NCP2#	08/2002 - 09/2005	1
85241-52030	NCP2#	08/1999 - 08/2002	1
85242 - BLADE, RR WIPER
85242-10020	NCP2# ｱﾘ(ｽﾁ-ﾙﾜｲﾊﾟｱ-ﾑ)	08/2002 - 09/2005	1
85242-28060	NCP2#	08/2002 - 09/2005	1
85242-10020	NCP2#	08/1999 - 08/2002	1
85291R - BLADE,REAR WIPER, WINTER
85291-60060	NCP2#	08/1999 - 08/2002	1
85291-44080	NCP2# ｱﾘ(ｽﾁ-ﾙﾜｲﾊﾟｱ-ﾑ)	08/2002 - 09/2005	1
85291-44100	NCP2#	08/2002 - 09/2005	1
Common parts
90179-06158
91511-B0610

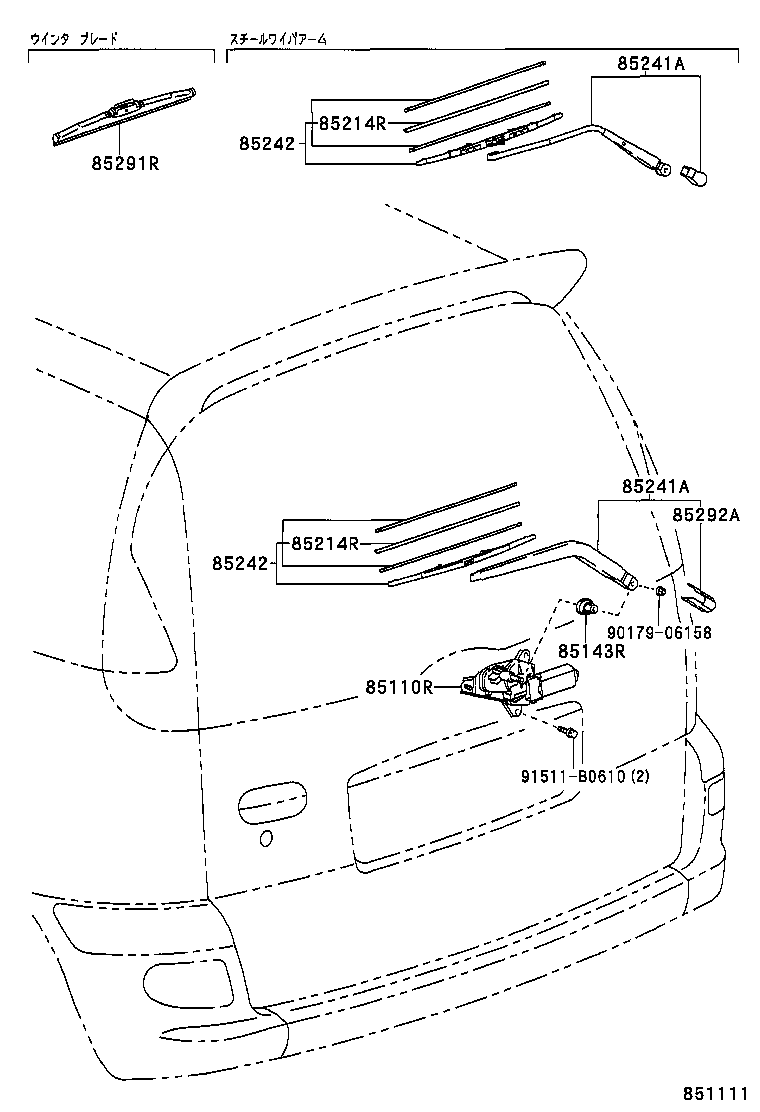

Click highlighted areas on diagram

Part #	Description	Period	Qty
85110R - MOTOR ASSY, REAR WIPER
85130-52080	NCP2#	08/2002 - 09/2005	1
85130-52020	NCP2#	08/1999 - 08/2002	1
85143R - GROMMET, REAR WIPER MOTOR
85143-52030	NCP2#	08/2002 - 09/2005	1
85143-35060	NCP2#	08/1999 - 08/2002	1
85214R - RUBBER, REAR WIPER
85214-10100	NCP2#	08/2002 - 09/2005	1
85214-10100	NCP2#	08/1999 - 08/2002	1
85214R - RUBBER, REAR WIPER
85214-10100	NCP2#	08/2002 - 09/2005	1
85214-10100	NCP2#	08/1999 - 08/2002	1
85241A - ARM, REAR WIPER
85241-52030	NCP2# ｽﾁ-ﾙﾜｲﾊﾟｱ-ﾑ	08/2002 - 09/2005	1
85241-52070	NCP2#	08/2002 - 09/2005	1
85241-52030	NCP2#	08/1999 - 08/2002	1
85241A - ARM, REAR WIPER
85241-52030	NCP2# ｽﾁ-ﾙﾜｲﾊﾟｱ-ﾑ	08/2002 - 09/2005	1
85241-52070	NCP2#	08/2002 - 09/2005	1
85241-52030	NCP2#	08/1999 - 08/2002	1
85242 - BLADE, RR WIPER
85242-10020	NCP2# ｱﾘ(ｽﾁ-ﾙﾜｲﾊﾟｱ-ﾑ)	08/2002 - 09/2005	1
85242-28060	NCP2#	08/2002 - 09/2005	1
85242-10020	NCP2#	08/1999 - 08/2002	1
85242 - BLADE, RR WIPER
85242-10020	NCP2# ｱﾘ(ｽﾁ-ﾙﾜｲﾊﾟｱ-ﾑ)	08/2002 - 09/2005	1
85242-28060	NCP2#	08/2002 - 09/2005	1
85242-10020	NCP2#	08/1999 - 08/2002	1
85291R - BLADE,REAR WIPER, WINTER
85291-60060	NCP2#	08/1999 - 08/2002	1
85291-44080	NCP2# ｱﾘ(ｽﾁ-ﾙﾜｲﾊﾟｱ-ﾑ)	08/2002 - 09/2005	1
85291-44100	NCP2#	08/2002 - 09/2005	1
85292A - CAP, REAR WIPER ARM HEAD
85292-28040	NCP2#	08/2002 - 09/2005	1
Common parts
90179-06158
91511-B0610
