NCP20-CHSDK (1999)

Toyota Fun Cargo

Production Aug 1999 - Sep 2005
Engine 2NZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9908-0208)

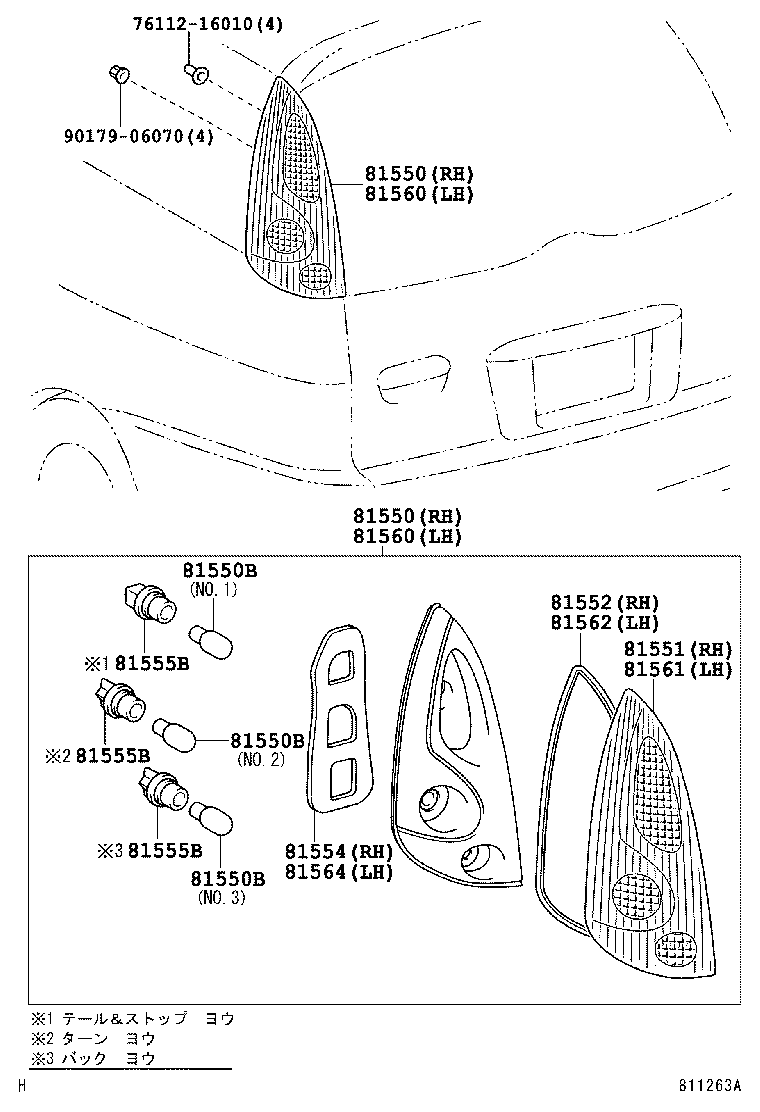

Click highlighted areas on diagram

diagram 7611216010 81550 81550 81550B 81550B 81550B 81551 81552 81554 81555B 81555B 81555B 81560 81560 81561 81562 81564 9017906070
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-52050

NCP2#

 1
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-52050

NCP2#

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-13044

NCP2#

12V 21/5W,NO.1

 2
90981-13044

NCP2#

12V 21/5W,NO.1

 2
90981-15011

NCP2#

12V 21W,ｱﾝﾊﾞｰ,NO.2

 2
90981-13043

NCP2#

12V 21W,NO.3

 2
90981-13043

NCP2#

12V 21W,NO.3

 2
90981-15011

NCP2#

12V 21W,ｱﾝﾊﾞｰ,NO.2

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-13044

NCP2#

12V 21/5W,NO.1

 2
90981-13044

NCP2#

12V 21/5W,NO.1

 2
90981-15011

NCP2#

12V 21W,ｱﾝﾊﾞｰ,NO.2

 2
90981-13043

NCP2#

12V 21W,NO.3

 2
90981-13043

NCP2#

12V 21W,NO.3

 2
90981-15011

NCP2#

12V 21W,ｱﾝﾊﾞｰ,NO.2

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-13044

NCP2#

12V 21/5W,NO.1

 2
90981-13044

NCP2#

12V 21/5W,NO.1

 2
90981-15011

NCP2#

12V 21W,ｱﾝﾊﾞｰ,NO.2

 2
90981-13043

NCP2#

12V 21W,NO.3

 2
90981-13043

NCP2#

12V 21W,NO.3

 2
90981-15011

NCP2#

12V 21W,ｱﾝﾊﾞｰ,NO.2

 2
81551 - LENS, REAR COMBINATION LAMP, RH
81551-52050

NCP2#

 1
81552 - GASKET, REAR COMBINATION LAMP LENS, RH
81552-52050

NCP2#

 1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81554-52050

NCP2#

 1
81554-52351

NCP2#

 1
81554-52350

NCP2#

 1
81555B - SOCKET PLUG, NO.1
90075-60015

NCP2#

ﾊﾞﾂｸﾖｳ

 2
90075-60027

NCP2#

ﾀ-ﾝﾖｳ

 2
90075-60017

NCP2#

NO.1

 2
90075-60015

NCP2#

NO.3

 2
90075-60017

NCP2#

ﾃ-ﾙ & ｽﾄﾂﾌﾟﾖｳ

 2
90075-60027

NCP2#

NO.2

 2
81555B - SOCKET PLUG, NO.1
90075-60015

NCP2#

ﾊﾞﾂｸﾖｳ

 2
90075-60027

NCP2#

ﾀ-ﾝﾖｳ

 2
90075-60017

NCP2#

NO.1

 2
90075-60015

NCP2#

NO.3

 2
90075-60017

NCP2#

ﾃ-ﾙ & ｽﾄﾂﾌﾟﾖｳ

 2
90075-60027

NCP2#

NO.2

 2
81555B - SOCKET PLUG, NO.1
90075-60015

NCP2#

ﾊﾞﾂｸﾖｳ

 2
90075-60027

NCP2#

ﾀ-ﾝﾖｳ

 2
90075-60017

NCP2#

NO.1

 2
90075-60015

NCP2#

NO.3

 2
90075-60017

NCP2#

ﾃ-ﾙ & ｽﾄﾂﾌﾟﾖｳ

 2
90075-60027

NCP2#

NO.2

 2
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-52040

NCP2#

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-52040

NCP2#

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-52040

NCP2#

 1
81562 - GASKET, REAR COMBINATION LAMP LENS, LH
81552-52050

NCP2#

 1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81564-52331

NCP2#

 1
81564-52040

NCP2#

 1
81564-52330

NCP2#

 1
Common parts
76112-16010
90179-06070

(0208- )

Click highlighted areas on diagram

diagram 7611216010 81550B 81550B 81550B 81551D 81554 81555B 81555B 81555B 81561D 81564 9017906115
Part # Description Qty Price
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-13044

NCP2#

12V 21/5W,NO.1

 2
90981-13044

NCP2#

12V 21/5W,NO.1

 2
90981-15011

NCP2#

12V 21W,ｱﾝﾊﾞｰ,NO.2

 2
90981-13043

NCP2#

12V 21W,NO.3

 2
90981-13043

NCP2#

12V 21W,NO.3

 2
90981-15011

NCP2#

12V 21W,ｱﾝﾊﾞｰ,NO.2

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-13044

NCP2#

12V 21/5W,NO.1

 2
90981-13044

NCP2#

12V 21/5W,NO.1

 2
90981-15011

NCP2#

12V 21W,ｱﾝﾊﾞｰ,NO.2

 2
90981-13043

NCP2#

12V 21W,NO.3

 2
90981-13043

NCP2#

12V 21W,NO.3

 2
90981-15011

NCP2#

12V 21W,ｱﾝﾊﾞｰ,NO.2

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-13044

NCP2#

12V 21/5W,NO.1

 2
90981-13044

NCP2#

12V 21/5W,NO.1

 2
90981-15011

NCP2#

12V 21W,ｱﾝﾊﾞｰ,NO.2

 2
90981-13043

NCP2#

12V 21W,NO.3

 2
90981-13043

NCP2#

12V 21W,NO.3

 2
90981-15011

NCP2#

12V 21W,ｱﾝﾊﾞｰ,NO.2

 2
81551D - LENS & BODY, REAR COMBINATION LAMP, RH
81551-52351

NCP2#

 1
81551-52350

NCP2#

 1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81554-52050

NCP2#

 1
81554-52351

NCP2#

 1
81554-52350

NCP2#

 1
81555B - SOCKET PLUG, NO.1
90075-60015

NCP2#

ﾊﾞﾂｸﾖｳ

 2
90075-60027

NCP2#

ﾀ-ﾝﾖｳ

 2
90075-60017

NCP2#

NO.1

 2
90075-60015

NCP2#

NO.3

 2
90075-60017

NCP2#

ﾃ-ﾙ & ｽﾄﾂﾌﾟﾖｳ

 2
90075-60027

NCP2#

NO.2

 2
81555B - SOCKET PLUG, NO.1
90075-60015

NCP2#

ﾊﾞﾂｸﾖｳ

 2
90075-60027

NCP2#

ﾀ-ﾝﾖｳ

 2
90075-60017

NCP2#

NO.1

 2
90075-60015

NCP2#

NO.3

 2
90075-60017

NCP2#

ﾃ-ﾙ & ｽﾄﾂﾌﾟﾖｳ

 2
90075-60027

NCP2#

NO.2

 2
81555B - SOCKET PLUG, NO.1
90075-60015

NCP2#

ﾊﾞﾂｸﾖｳ

 2
90075-60027

NCP2#

ﾀ-ﾝﾖｳ

 2
90075-60017

NCP2#

NO.1

 2
90075-60015

NCP2#

NO.3

 2
90075-60017

NCP2#

ﾃ-ﾙ & ｽﾄﾂﾌﾟﾖｳ

 2
90075-60027

NCP2#

NO.2

 2
81561D - LENS & BODY, REAR COMBINATION LAMP, LH
81561-52331

NCP2#

 1
81561-52330

NCP2#

 1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81564-52331

NCP2#

 1
81564-52040

NCP2#

 1
81564-52330

NCP2#

 1
Common parts
76112-16010
90179-06115
