NCP20-CHSDK (1999)
Toyota Fun Cargo
ILLUST NO. 2 OF 2(9908-0208)
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 2 OF 2(0208- )
| Part # | Description | Qty | Price |
|---|

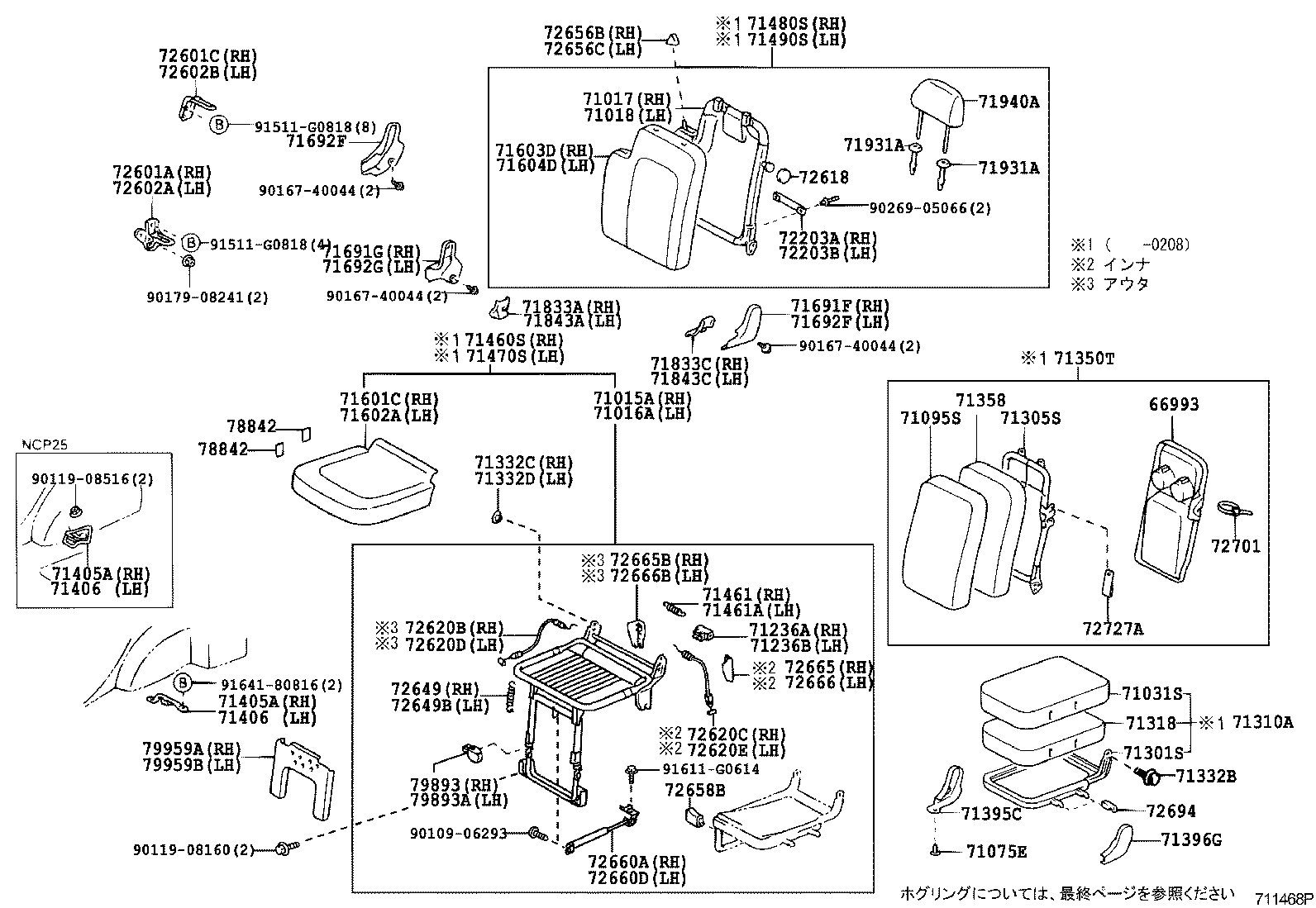

ILLUST NO. 1 OF 2(9908- )
ｶｸﾉｳ ｼ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 66993 - TRAY, REAR CENTER SEAT CUP HOLDER | ||||
| 66993-52010B0 |
NCP2# SHADOW GRAY,TRIM9# |
1 | ||
| 66993-52010B1 |
NCP2# DK.GRAY,TRIM1# |
1 | ||
| 66993-52010H0 |
NCP2# FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71015A - FRAME SUB-ASSY, REAR SEAT CUSHION, RH | ||||
| 71015-52080 |
NCP20,21 |
1 | ||
| 71015-52080 |
NCP20,21 |
1 | ||
| 71016A - FRAME SUB-ASSY, REAR SEAT CUSHION, LH | ||||
| 71016-52010 |
NCP20,21 |
1 | ||
| 71016-52010 |
NCP20,21 |
1 | ||
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-52130 |
NCP20,25..J,X |
1 | ||
| 71017-52140 |
NCP2# ｱﾘ(ﾕｶｼﾀｶｸﾉｳｼｷ) |
1 | ||
| 71017-52420 |
NCP2# ｱﾘ(ﾕｶｼﾀｶｸﾉｳｼｷ) |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-52240 |
NCP2# ｱﾘ(ﾕｶｼﾀｶｸﾉｳｼｷ) |
1 | ||
| 71018-52060 |
NCP20,25..J,X |
1 | ||
| 71018-52070 |
NCP2# ｱﾘ(ﾕｶｼﾀｶｸﾉｳｼｷ) |
1 | ||
| 71031S - COVER SUB-ASSY, CENTER SEAT CUSHION | ||||
| 71097-52010B0 |
NCP20,25..J,X ｼ-ﾄ = TYPE A-*104,SHADOW GRAY,TRIM9# |
1 | ||
| 71097-52020B0 |
NCP2# ｼ-ﾄ = TYPE B OR TYPE C-*104,SHADOW GRAY,TRIM9# |
1 | ||
| 71097-52020H0 |
NCP2# ｼ-ﾄ = TYPE B OR TYPE C-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71097-52040B0 |
NCP20,25..J,X DARK GRAY,TRIM1# |
1 | ||
| 71097-52010H0 |
NCP20,25..J,X ｼ-ﾄ = TYPE A-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71075E - CLIP(FOR REAR SEAT) | ||||
| 90467-06085H0 |
NCP2# FRENCH TURQUOISE,TRIM7# |
1 | ||
| 90467-06085B2 |
NCP2# DK.GRAY,TRIM1# |
1 | ||
| 90467-06085P0 |
NCP2# SHADOW GRAY,TRIM9# |
1 | ||
| 71095S - COVER SUB-ASSY, CENTER SEAT BACK | ||||
| 71095-52010B0 |
NCP20,25..J,X ｼ-ﾄ = TYPE A-*104,GRAY,TRIM9# |
1 | ||
| 71095-52060B0 |
NCP20,25..J,X DARK GRAY,TRIM1# |
1 | ||
| 71095-52020H0 |
NCP2# ｼ-ﾄ = TYPE B OR TYPE C-*104,TORQUOISE,TRIM7# |
1 | ||
| 71095-52010H0 |
NCP20,25..J,X ｼ-ﾄ = TYPE A-*104,TORQUOISE,TRIM7# |
1 | ||
| 71095-52020B0 |
NCP2# ｼ-ﾄ = TYPE B OR TYPE C-*104,GRAY,TRIM9# |
1 | ||
| 71236A - CLAMP, REAR SEAT CUSHION SPRING | ||||
| 71236-52010 |
NCP2# |
2 | ||
| 71236-52010 |
NCP2# |
2 | ||
| 71236B - CLAMP, REAR SEAT CUSHION SPRING | ||||
| 71236-52010 |
NCP2# |
2 | ||
| 71236-52010 |
NCP2# |
2 | ||
| 71301S - FRAME SUB-ASSY, CENTER SEAT CUSHION | ||||
| 71031-52010 |
NCP20,21 |
1 | ||
| 71031-52010 |
NCP20,21 |
1 | ||
| 71305S - FRAME SUB-ASSY, CENTER SEAT BACK | ||||
| 71305-52020 |
NCP2# |
1 | ||
| 71305-52020 |
NCP2# |
1 | ||
| 71310A - CUSHION ASSY, CENTER SEAT | ||||
| 71310-52010B1 |
NCP20 ***,ｼ-ﾄ = TYPE A-*104,SHADOW GRAY,TRIM9# |
1 | ||
| 71310-52010H1 |
NCP20 ***,ｼ-ﾄ = TYPE A-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71310-52040B1 |
NCP20,21 ***,ｼ-ﾄ = TYPE B OR TYPE C-*104,SHADOW GRAY,TRIM9# |
1 | ||
| 71310-52040H1 |
NCP20,21 ***,ｼ-ﾄ = TYPE B OR TYPE C-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71318 - PAD, CENTER SEAT CUSHION | ||||
| 71316-52020 |
NCP2# |
1 | ||
| 71316-52020 |
NCP2# |
1 | ||
| 71332B - SPACER, REAR SEAT BACK HINGE | ||||
| 71332-52030 |
NCP2# |
2 | ||
| 71332-52030 |
NCP2# |
2 | ||
| 71332C - SPACER, REAR SEAT BACK HINGE | ||||
| 71332-52010 |
NCP2# |
2 | ||
| 71332-52010 |
NCP2# |
2 | ||
| 71332D - SPACER, REAR SEAT BACK HINGE | ||||
| 71332-52010 |
NCP2# 外側 |
1 | ||
| 71332-52010 |
NCP2# 外側 |
1 | ||
| 71332-52020 |
NCP2# 内側 |
1 | ||
| 71332-52020 |
NCP2# 内側 |
1 | ||
| 71350T - BACK ASSY, CENTER SEAT | ||||
| 71350-52010H2 |
NCP20,25..J,X ***,ｼ-ﾄ = TYPE A-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71350-52030H1 |
NCP2# ***,ｼ-ﾄ = TYPE B OR TYPE C-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71350-52030B1 |
NCP2# ***,ｼ-ﾄ = TYPE B OR TYPE C-*104,SHADOW GRAY,TRIM9# |
1 | ||
| 71350-52010B2 |
NCP20,25..J,X ***,ｼ-ﾄ = TYPE A-*104,SHADOW GRAY,TRIM9# |
1 | ||
| 71358 - PAD, CENTER SEAT BACK | ||||
| 71365-52010 |
NCP2# |
1 | ||
| 71365-52010 |
NCP2# |
1 | ||
| 71395C - COVER, CENTER SEAT HINGE, RH | ||||
| 71395-52010B1 |
NCP2# DK.GRAY,TRIM1# |
1 | ||
| 71395-52010H0 |
NCP2# FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71395-52010B0 |
NCP2# SHADOW GRAY,TRIM9# |
1 | ||
| 71396G - COVER, CENTER SEAT HINGE, LH | ||||
| 71396-52010B0 |
NCP2# SHADOW GRAY,TRIM9# |
1 | ||
| 71396-52010H0 |
NCP2# FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71396-52010B1 |
NCP2# DK.GRAY,TRIM1# |
1 | ||
| 71405A - STRIKER SUB-ASSY, REAR SEAT LOCK, RH | ||||
| 71405-52010 |
NCP20,21 |
1 | ||
| 71405-52010 |
NCP20,21 |
1 | ||
| 71405A - STRIKER SUB-ASSY, REAR SEAT LOCK, RH | ||||
| 71405-52010 |
NCP20,21 |
1 | ||
| 71405-52010 |
NCP20,21 |
1 | ||
| 71406 - STRIKER SUB-ASSY, REAR SEAT LOCK, LH | ||||
| 71406-52010 |
NCP20,21 |
1 | ||
| 71406-52010 |
NCP20,21 |
1 | ||
| 71406 - STRIKER SUB-ASSY, REAR SEAT LOCK, LH | ||||
| 71406-52010 |
NCP20,21 |
1 | ||
| 71406-52010 |
NCP20,21 |
1 | ||
| 71460S - CUSHION ASSY, REAR SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71460-52270H1 |
NCP20,21 ***,ｼ-ﾄ = TYPE B OR TYPE C-*104,TORQUOISE,TRIM7# |
1 | ||
| 71460-52210H1 |
NCP20 ***,ｼ-ﾄ = TYPE A-*104,TORQUOISE,TRIM7# |
1 | ||
| 71460-52270B1 |
NCP20,21 ***,ｼ-ﾄ = TYPE B OR TYPE C-*104,GRAY,TRIM9# |
1 | ||
| 71460-52210B1 |
NCP20 ***,ｼ-ﾄ = TYPE A-*104,GRAY,TRIM9# |
1 | ||
| 71461 - SPRING, REAR SEAT CUSHION | ||||
| 71461-52010 |
NCP2# |
2 | ||
| 71461-52010 |
NCP2# |
2 | ||
| 71461A - SPRING, REAR SEAT CUSHION, NO.1 | ||||
| 71461-52010 |
NCP2# |
2 | ||
| 71461-52010 |
NCP2# |
2 | ||
| 71470S - CUSHION ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71470-52010B1 |
NCP20 ***,ｼ-ﾄ = TYPE A-*104,GRAY,TRIM9# |
1 | ||
| 71470-52010H1 |
NCP20 ***,ｼ-ﾄ = TYPE A-*104,TORQUOISE,TRIM7# |
1 | ||
| 71470-52070B1 |
NCP20,21 ***,ｼ-ﾄ = TYPE B OR TYPE C-*104,GRAY,TRIM9# |
1 | ||
| 71470-52070H1 |
NCP20,21 ***,ｼ-ﾄ = TYPE B OR TYPE C-*104,TORQUOISE,TRIM7# |
1 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-52340H1 |
NCP20,25..J,X ***,ｼ-ﾄ = TYPE A-*104,TORQUOISE,TRIM7# |
1 | ||
| 71480-52370H1 |
NCP20,25..J,X ***,ｼ-ﾄ = TYPE B-*104,TORQUOISE,TRIM7# |
1 | ||
| 71480-52380B1 |
NCP20,25..J,X ***,ｼ-ﾄ = TYPE B-*104 & ｱﾘ(ﾘﾔ ﾍﾂﾄﾞﾚｽﾄ),GRAY,TRIM9# |
1 | ||
| 71480-52350H2 |
NCP20,25..J,X ***,ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾘﾔ ﾍﾂﾄﾞﾚｽﾄ),TORQUOISE,TRIM7# |
1 | ||
| 71480-52370B1 |
NCP20,25..J,X ***,ｼ-ﾄ = TYPE B-*104,GRAY,TRIM9# |
1 | ||
| 71480-52350B2 |
NCP20,25..J,X ***,ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾘﾔ ﾍﾂﾄﾞﾚｽﾄ),GRAY,TRIM9# |
1 | ||
| 71480-52350B2 |
NCP20,25..J ***,ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾘﾔ ﾍﾂﾄﾞﾚｽﾄ),GRAY,TRIM9# |
1 | ||
| 71480-52380H2 |
NCP20,25..J,X ***,ｼ-ﾄ = TYPE B-*104 & ｱﾘ(ﾘﾔ ﾍﾂﾄﾞﾚｽﾄ),TORQUOISE,TRIM7# |
1 | ||
| 71480-52340B1 |
NCP20,25..J,X ***,ｼ-ﾄ = TYPE A-*104,GRAY,TRIM9# |
1 | ||
| 71480-52380H2 |
NCP20,25..J ***,ｼ-ﾄ = TYPE B-*104 & ｱﾘ(ﾘﾔ ﾍﾂﾄﾞﾚｽﾄ),TORQUOISE,TRIM7# |
1 | ||
| 71480-52380B1 |
NCP20,25..J ***,ｼ-ﾄ = TYPE B-*104 & ｱﾘ(ﾘﾔ ﾍﾂﾄﾞﾚｽﾄ),GRAY,TRIM9# |
1 | ||
| 71480-52350H2 |
NCP20,25..J ***,ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾘﾔ ﾍﾂﾄﾞﾚｽﾄ),TORQUOISE,TRIM7# |
1 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-52160B1 |
NCP20,25..J,X ***,ｼ-ﾄ = TYPE A-*104,GRAY,TRIM9# |
1 | ||
| 71490-52160H1 |
NCP20,25..J,X ***,ｼ-ﾄ = TYPE A-*104,TORQUOISE,TRIM7# |
1 | ||
| 71490-52200B1 |
NCP20,25..J,X ***,ｼ-ﾄ = TYPE B-*104,GRAY,TRIM9# |
1 | ||
| 71490-52200H1 |
NCP20,25..J,X ***,ｼ-ﾄ = TYPE B-*104,TORQUOISE,TRIM7# |
1 | ||
| 71490-52170B2 |
NCP20,25..J,X ***,ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾘﾔ ﾍﾂﾄﾞﾚｽﾄ),GRAY,TRIM9# |
1 | ||
| 71490-52180B1 |
NCP20,25..J,X ***,ｼ-ﾄ = TYPE B-*104 & ｱﾘ(ﾘﾔ ﾍﾂﾄﾞﾚｽﾄ),GRAY,TRIM9# |
1 | ||
| 71490-52170B2 |
NCP20,25..J ***,ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾘﾔ ﾍﾂﾄﾞﾚｽﾄ),GRAY,TRIM9# |
1 | ||
| 71490-52180B1 |
NCP20,25..J ***,ｼ-ﾄ = TYPE B-*104 & ｱﾘ(ﾘﾔ ﾍﾂﾄﾞﾚｽﾄ),GRAY,TRIM9# |
1 | ||
| 71490-52180H2 |
NCP20,25..J ***,ｼ-ﾄ = TYPE B-*104 & ｱﾘ(ﾘﾔ ﾍﾂﾄﾞﾚｽﾄ),TORQUOISE,TRIM7# |
1 | ||
| 71490-52170H2 |
NCP20,25..J,X ***,ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾘﾔ ﾍﾂﾄﾞﾚｽﾄ),TORQUOISE,TRIM7# |
1 | ||
| 71490-52180H2 |
NCP20,25..J,X ***,ｼ-ﾄ = TYPE B-*104 & ｱﾘ(ﾘﾔ ﾍﾂﾄﾞﾚｽﾄ),TORQUOISE,TRIM7# |
1 | ||
| 71490-52170H2 |
NCP20,25..J ***,ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾘﾔ ﾍﾂﾄﾞﾚｽﾄ),TORQUOISE,TRIM7# |
1 | ||
| 71601C - PAD SUB-ASSY, REAR SEAT CUSHION W/COVER, RH | ||||
| 71601-52510B0 |
NCP20,25..J,X ｼ-ﾄ = TYPE A-*104,SHADOW GRAY,TRIM9# |
1 | ||
| 71601-5C500B0 |
NCP20,25..J,X DARK GRAY,TRIM1# |
1 | ||
| 71601-52520B0 |
NCP2# ｼ-ﾄ = TYPE B OR TYPE C-*104,SHADOW GRAY,TRIM9# |
1 | ||
| 71601-52520H0 |
NCP2# ｼ-ﾄ = TYPE B OR TYPE C-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71601-52510H0 |
NCP20,25..J,X ｼ-ﾄ = TYPE A-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71602A - PAD SUB-ASSY, REAR SEAT CUSHION W/COVER, LH | ||||
| 71602-52010B0 |
NCP20,25..J,X ｼ-ﾄ = TYPE A-*104,SHADOW GRAY,TRIM9# |
1 | ||
| 71602-52040B0 |
NCP20,25..J,X DARK GRAY,TRIM1# |
1 | ||
| 71602-52010H0 |
NCP20,25..J,X ｼ-ﾄ = TYPE A-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71602-52020H0 |
NCP2# ｼ-ﾄ = TYPE B OR TYPE C-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71602-52020B0 |
NCP2# ｼ-ﾄ = TYPE B OR TYPE C-*104,SHADOW GRAY,TRIM9# |
1 | ||
| 71603D - PAD SUB-ASSY, REAR SEAT BACK W/COVER, RH | ||||
| 71603-52530B0 |
NCP20,25..J,X ｼ-ﾄ = TYPE B-*104,GRAY,TRIM9# |
1 | ||
| 71603-52550H0 |
NCP20,25..J,X ｼ-ﾄ = TYPE B-*104 & ｱﾘ(ﾘﾔ ﾍﾂﾄﾞﾚｽﾄ),TORQUOISE,TRIM7# |
1 | ||
| 71603-52530H0 |
NCP20,25..J,X ｼ-ﾄ = TYPE B-*104,TORQUOISE,TRIM7# |
1 | ||
| 71603-52560H0 |
NCP20,25..J,X ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾘﾔ ﾍﾂﾄﾞﾚｽﾄ),TORQUOISE,TRIM7# |
1 | ||
| 71603-52520H0 |
NCP20,25..J,X ｼ-ﾄ = TYPE A-*104,TORQUOISE,TRIM7# |
1 | ||
| 71603-52520B0 |
NCP20,25..J,X ｼ-ﾄ = TYPE A-*104,GRAY,TRIM9# |
1 | ||
| 71603-52550B0 |
NCP20,25..J,X ｼ-ﾄ = TYPE B-*104 & ｱﾘ(ﾘﾔ ﾍﾂﾄﾞﾚｽﾄ),GRAY,TRIM9# |
1 | ||
| 71603-5C830B0 |
NCP20,25..J,X DARK GRAY,TRIM1# |
1 | ||
| 71603-52560B0 |
NCP20,25..J,X ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾘﾔ ﾍﾂﾄﾞﾚｽﾄ),GRAY,TRIM9# |
1 | ||
| 71604D - PAD SUB-ASSY, REAR SEAT BACK W/COVER, LH | ||||
| 71604-52220H0 |
NCP20,25..J,X ｼ-ﾄ = TYPE B-*104,TORQUOISE,TRIM7# |
1 | ||
| 71604-52220B0 |
NCP20,25..J,X ｼ-ﾄ = TYPE B-*104,GRAY,TRIM9# |
1 | ||
| 71604-52240H0 |
NCP20,25..J,X ｼ-ﾄ = TYPE B-*104 & ｱﾘ(ﾘﾔ ﾍﾂﾄﾞﾚｽﾄ),TORQUOISE,TRIM7# |
1 | ||
| 71604-52210B0 |
NCP20,25..J,X ｼ-ﾄ = TYPE A-*104,GRAY,TRIM9# |
1 | ||
| 71604-5C030B0 |
NCP20,25..J,X DARK GRAY,TRIM1# |
1 | ||
| 71604-52250H0 |
NCP20,25..J,X ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾘﾔ ﾍﾂﾄﾞﾚｽﾄ),TORQUOISE,TRIM7# |
1 | ||
| 71604-52210H0 |
NCP20,25..J,X ｼ-ﾄ = TYPE A-*104,TORQUOISE,TRIM7# |
1 | ||
| 71604-52250B0 |
NCP20,25..J,X ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾘﾔ ﾍﾂﾄﾞﾚｽﾄ),GRAY,TRIM9# |
1 | ||
| 71604-52240B0 |
NCP20,25..J,X ｼ-ﾄ = TYPE B-*104 & ｱﾘ(ﾘﾔ ﾍﾂﾄﾞﾚｽﾄ),GRAY,TRIM9# |
1 | ||
| 71691F - COVER, REAR NO.1 SEAT CUSHION HINGE, INNER RH | ||||
| 71691-52020H0 |
NCP2# FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71691-52020B0 |
NCP2# SHADOW GRAY,TRIM9# |
1 | ||
| 71691-52020B1 |
NCP2# DK.GRAY,TRIM1# |
1 | ||
| 71691G - COVER, REAR NO.1 SEAT CUSHION HINGE, OUTER RH | ||||
| 71691-52010B0 |
NCP2# SHADOW GRAY,TRIM9# |
1 | ||
| 71691-52010H0 |
NCP2# FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71691-52010B1 |
NCP2# DK.GRAY,TRIM1# |
1 | ||
| 71692F - COVER, REAR NO.1 SEAT CUSHION HINGE, INNER LH | ||||
| 71692-52020B0 |
NCP2# SHADOW GRAY,TRIM9# |
1 | ||
| 71692-52020B1 |
NCP2# DK.GRAY,TRIM1# |
1 | ||
| 71692-52020H0 |
NCP2# FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71692F - COVER, REAR NO.1 SEAT CUSHION HINGE, INNER LH | ||||
| 71692-52020B0 |
NCP2# SHADOW GRAY,TRIM9# |
1 | ||
| 71692-52020B1 |
NCP2# DK.GRAY,TRIM1# |
1 | ||
| 71692-52020H0 |
NCP2# FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71692G - COVER, REAR NO.1 SEAT CUSHION HINGE, OUTER LH | ||||
| 71692-52010B1 |
NCP2# DK.GRAY,TRIM1# |
1 | ||
| 71692-52010H0 |
NCP2# FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71692-52010B0 |
NCP2# SHADOW GRAY,TRIM9# |
1 | ||
| 71833A - COVER, REAR SEAT RECLINING, NO.1 RH | ||||
| 71833-52010H0 |
NCP2# FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71833-52010B1 |
NCP2# DK.GRAY,TRIM1# |
1 | ||
| 71833-52010B0 |
NCP2# SHADOW GRAY,TRIM9# |
1 | ||
| 71833C - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71834-52010H0 |
NCP2# FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71834-52010B1 |
NCP2# DK.GRAY,TRIM1# |
1 | ||
| 71834-52010B0 |
NCP2# SHADOW GRAY,TRIM9# |
1 | ||
| 71843A - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71843-52010H0 |
NCP2# FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71843-52010B1 |
NCP2# DK.GRAY,TRIM1# |
1 | ||
| 71843-52010B0 |
NCP2# SHADOW GRAY,TRIM9# |
1 | ||
| 71843C - COVER, RECLINING ADJUSTER, RH | ||||
| 71844-52010B0 |
NCP2# SHADOW GRAY,TRIM9# |
1 | ||
| 71844-52010B1 |
NCP2# DK.GRAY,TRIM1# |
1 | ||
| 71844-52010H0 |
NCP2# FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-47010B2 |
NCP2# ﾛｯｸ付,DK.GRAY,TRIM1# |
1 | ||
| 71931-52010B0 |
NCP2# ﾛｯｸ無,SHADOW GRAY,TRIM7#,9# |
1 | ||
| 71930-52010B0 |
NCP2# ﾛｯｸ付,SHADOW GRAY,TRIM7#,9# |
1 | ||
| 71931-47010B2 |
NCP2# ﾛｯｸ無,DK.GRAY,TRIM1# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-47010B2 |
NCP2# ﾛｯｸ付,DK.GRAY,TRIM1# |
1 | ||
| 71931-52010B0 |
NCP2# ﾛｯｸ無,SHADOW GRAY,TRIM7#,9# |
1 | ||
| 71930-52010B0 |
NCP2# ﾛｯｸ付,SHADOW GRAY,TRIM7#,9# |
1 | ||
| 71931-47010B2 |
NCP2# ﾛｯｸ無,DK.GRAY,TRIM1# |
1 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71910-52010H0 |
NCP20,25..J,X FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71910-52010B0 |
NCP20,25..J,X SHADOW GRAY,TRIM9# |
2 | ||
| 71910-52010H0 |
NCP20,25..J FRENCH TURQUOISE,TRIM7# |
2 | ||
| 71910-52010B0 |
NCP20,25..J SHADOW GRAY,TRIM9# |
2 | ||
| 71910-52310B0 |
NCP20,25..J,X DARK GRAY,TRIM1# |
2 | ||
| 72203A - HANDLE SUB-ASSY, REAR SEAT TRACK, RH | ||||
| 72203-52020B0 |
NCP2# SHADOW GRAY,TRIM7#,9# |
1 | ||
| 72203-52010C1 |
NCP2# BLACK,TRIM1# |
1 | ||
| 72203B - HANDLE SUB-ASSY, REAR SEAT TRACK, LH | ||||
| 72203-52020B0 |
NCP2# SHADOW GRAY,TRIM7#,9# |
1 | ||
| 72203-52010C1 |
NCP2# BLACK,TRIM1# |
1 | ||
| 72601A - STRIKER SUB-ASSY, REAR SEAT BACK LOOK, RH | ||||
| 72601-52020 |
NCP2# |
1 | ||
| 72601-52020 |
NCP2# |
1 | ||
| 72601C - STRIKER SUB-ASSY, REAR SEAT BACK LOCK, NO.2 RH | ||||
| 72601-52030 |
NCP2# |
1 | ||
| 72601-52030 |
NCP2# |
1 | ||
| 72602A - STRIKER SUB-ASSY, REAR SEAT BACK LOCK, LH | ||||
| 72602-52010 |
NCP2# |
1 | ||
| 72602-52010 |
NCP2# |
1 | ||
| 72602B - STRIKER SUB-ASSY, REAR SEAT BACK LOCK, NO.2 LH | ||||
| 72602-52030 |
NCP2# |
1 | ||
| 72602-52030 |
NCP2# |
1 | ||
| 72618 - PROTECTOR, REAR SEAT BACK LOCK STRIKER | ||||
| 72618-52010 |
NCP2# |
1 | ||
| 72618-52010 |
NCP2# |
1 | ||
| 72620B - CABLE ASSY, REAR NO.1 SEAT LOCK | ||||
| 72620-52010 |
NCP2# |
1 | ||
| 72620-52010 |
NCP2# |
1 | ||
| 72620C - CABLE ASSY, REAR NO.1 SEAT LOCK | ||||
| 72620-52020 |
NCP2# |
1 | ||
| 72620-52020 |
NCP2# |
1 | ||
| 72620D - CABLE ASSY, REAR NO.1 SEAT LOCK | ||||
| 72620-52010 |
NCP2# |
1 | ||
| 72620-52010 |
NCP2# |
1 | ||
| 72620E - CABLE ASSY, REAR NO.1 SEAT LOCK | ||||
| 72620-52020 |
NCP2# |
1 | ||
| 72620-52020 |
NCP2# |
1 | ||
| 72649 - SPRING, REAR SEAT CUSHION SUPPORT | ||||
| 72649-52010 |
NCP2# |
2 | ||
| 72649-52010 |
NCP2# |
2 | ||
| 72649B - SPRING, REAR SEAT CUSHION SUPPORT | ||||
| 72649-52010 |
NCP2# |
2 | ||
| 72649-52010 |
NCP2# |
2 | ||
| 72656B - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72661-52010B0 |
NCP2# SHADOW GRAY,TRIM9# |
1 | ||
| 72661-52010H0 |
NCP2# FRENCH TURQUOISE,TRIM7# |
1 | ||
| 72661-52010B1 |
NCP2# DK.GRAY,TRIM1# |
1 | ||
| 72656C - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72662-52010B0 |
NCP2# SHADOW GRAY,TRIM9# |
1 | ||
| 72662-52010H0 |
NCP2# FRENCH TURQUOISE,TRIM7# |
1 | ||
| 72662-52010B1 |
NCP2# DK.GRAY,TRIM1# |
1 | ||
| 72658B - KNOB, REAR SEAT LOCK HANDLE | ||||
| 72658-52010 |
NCP2# |
1 | ||
| 72658-52010 |
NCP2# |
1 | ||
| 72660A - SUPPORT ASSY, REAR SEAT CUSHION | ||||
| 72660-52010 |
NCP2# |
1 | ||
| 72660-52010 |
NCP2# |
1 | ||
| 72660D - SUPPORT ASSY, REAR SEAT CUSHION | ||||
| 72660-52020 |
NCP2# |
1 | ||
| 72660-52020 |
NCP2# |
1 | ||
| 72665 - COVER, REAR SEAT BACK LOCK, RH | ||||
| 72665-52010 |
NCP2# |
1 | ||
| 72665-52010 |
NCP2# |
1 | ||
| 72665B - COVER, REAR SEAT BACK LOCK | ||||
| 72665-52020 |
NCP2# |
1 | ||
| 72665-52020 |
NCP2# |
1 | ||
| 72666 - COVER, REAR SEAT BACK LOCK, LH | ||||
| 72666-52010 |
NCP2# |
1 | ||
| 72666-52010 |
NCP2# |
1 | ||
| 72666B - COVER, REAR SEAT LOCK, LH | ||||
| 72666-52020 |
NCP2# |
1 | ||
| 72666-52020 |
NCP2# |
1 | ||
| 72694 - COVER, REAR SEAT CUSHION LOCK | ||||
| 72694-52010B0 |
NCP2# SHADOW GRAY,TRIM7#,9# |
2 | ||
| 72694-52010B1 |
NCP2# DK.GRAY,TRIM1# |
2 | ||
| 72701 - BRACKET SUB-ASSY, REAR SEAT BACK STOPPER | ||||
| 72687-52010 |
NCP2# |
1 | ||
| 72687-52010 |
NCP2# |
1 | ||
| 72727A - KNOB, REAR SEAT RECLINING CONTROL LEVER | ||||
| 72727-52010C0 |
NCP2# BLACK,TRIM1# |
1 | ||
| 72727-52010B0 |
NCP2# SHADOW GRAY,TRIM7#,9# |
1 | ||
| 78842 - SUPPORT, CENTER SUB SEAT BRACKET, NO.1 | ||||
| 78842-52010B0 |
NCP2# SHADOW GRAY,TRIM9#,ﾌﾛﾝﾄ |
1 | ||
| 78842-52020B0 |
NCP2# SHADOW GRAY,TRIM9#,ﾘﾔ |
1 | ||
| 78842-52010H0 |
NCP2# FRENCH TURQUOISE,TRIM7#,ﾌﾛﾝﾄ |
1 | ||
| 78842-52010B1 |
NCP2# DK.GRAY,TRIM1#,ﾌﾛﾝﾄ |
1 | ||
| 78842-52020H0 |
NCP2# FRENCH TURQUOISE,TRIM7#,ﾘﾔ |
1 | ||
| 78842-52020B1 |
NCP2# DK. GRAY,TRIM1#,ﾘﾔ |
1 | ||
| 78842 - SUPPORT, CENTER SUB SEAT BRACKET, NO.1 | ||||
| 78842-52010B0 |
NCP2# SHADOW GRAY,TRIM9#,ﾌﾛﾝﾄ |
1 | ||
| 78842-52020B0 |
NCP2# SHADOW GRAY,TRIM9#,ﾘﾔ |
1 | ||
| 78842-52010H0 |
NCP2# FRENCH TURQUOISE,TRIM7#,ﾌﾛﾝﾄ |
1 | ||
| 78842-52010B1 |
NCP2# DK.GRAY,TRIM1#,ﾌﾛﾝﾄ |
1 | ||
| 78842-52020H0 |
NCP2# FRENCH TURQUOISE,TRIM7#,ﾘﾔ |
1 | ||
| 78842-52020B1 |
NCP2# DK. GRAY,TRIM1#,ﾘﾔ |
1 | ||
| 79893 - CUSHION, FOLD SEAT LEG | ||||
| 79893-52010 |
NCP2# |
1 | ||
| 79893-52010 |
NCP2# |
1 | ||
| 79893A - CUSHION, FOLD SEAT LEG | ||||
| 79893-52010 |
NCP2# |
1 | ||
| 79893-52010 |
NCP2# |
1 | ||
| 79959A - COVER, REAR SEAT LEG, RH | ||||
| 79959-52010H0 |
NCP2# FRENCH TURQUOISE,TRIM7# |
1 | ||
| 79959-52010B0 |
NCP2# SHADOW GRAY,TRIM9# |
1 | ||
| 79959-52010B1 |
NCP2# DK.GRAY,TRIM1# |
1 | ||
| 79959B - COVER, REAR SEAT LEG, LH | ||||
| 79959-52020H0 |
NCP2# FRENCH TURQUOISE,TRIM7# |
1 | ||
| 79959-52020B1 |
NCP2# DK.GRAY,TRIM1# |
1 | ||
| 79959-52020B0 |
NCP2# SHADOW GRAY,TRIM9# |
1 | ||
| Common parts | ||||
| 90109-06293 | ||||
| 90119-08160 | ||||
| 90119-08516 | ||||
| 90167-40044 | ||||
| 90179-08241 | ||||
| 90269-05066 | ||||
| 91511-G0818 | ||||
| 91611-G0614 | ||||
| 91641-80816 | ||||
(9908- )
ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
