NCP20-CHSDK (1999)
Toyota Fun Cargo

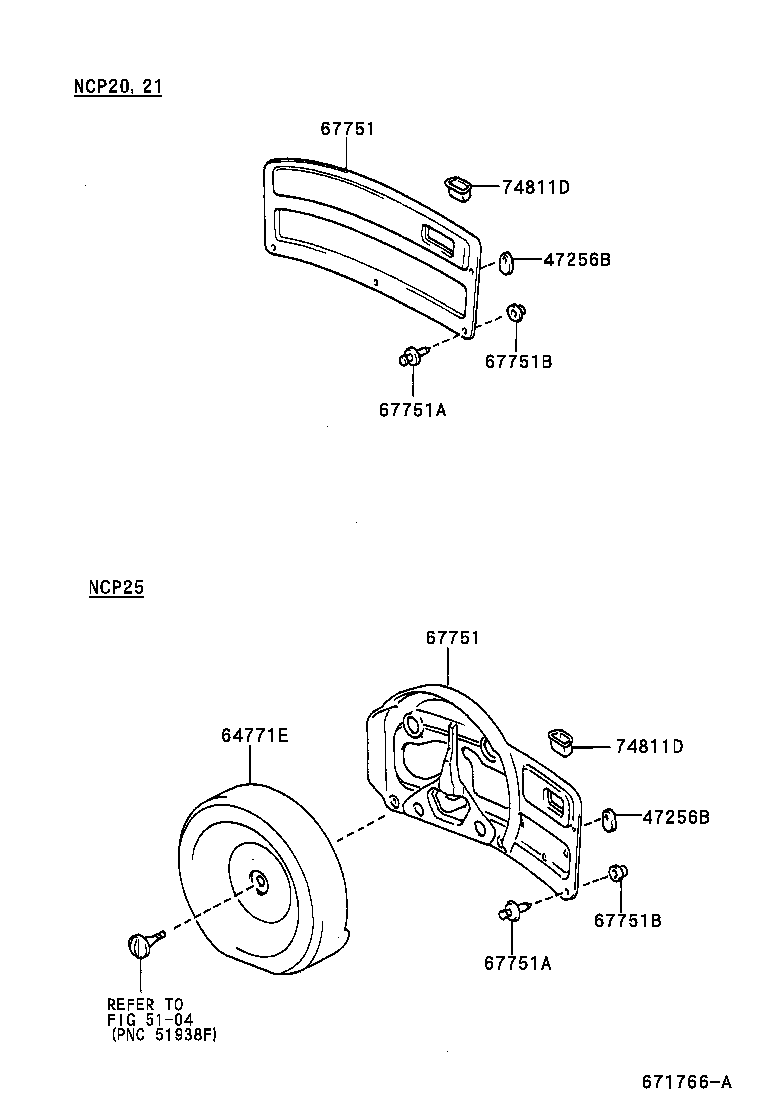

ILLUST NO. 1 OF 3(9908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47256B - GROMMET, CAP | ||||
| 47256-52020 |
NCP2# |
1 | ||
| 47256-52020 |
NCP2# |
1 | ||
| 47256B - GROMMET, CAP | ||||
| 47256-52020 |
NCP2# |
1 | ||
| 47256-52020 |
NCP2# |
1 | ||
| 67751 - BOARD, BACK DOOR TRIM | ||||
| 67750-52010G0 |
NCP20,21 ｱﾘ(ﾊﾞﾂｸﾄﾞｱ ﾎﾟｹﾂﾄ),MIST GREEN,TRIM7# |
1 | ||
| 67750-52030G0 |
NCP20,21 MIST GREEN,TRIM7# |
1 | ||
| 67750-52030B1 |
NCP20,21 DK.GRAY,TRIM1# |
1 | ||
| 67750-52010B0 |
NCP20,21 ｱﾘ(ﾊﾞﾂｸﾄﾞｱ ﾎﾟｹﾂﾄ),MD.GRAY,TRIM9# |
1 | ||
| 67750-52030B0 |
NCP20,21 MD.GRAY,TRIM9# |
1 | ||
| 67751 - BOARD, BACK DOOR TRIM | ||||
| 67750-52010G0 |
NCP20,21 ｱﾘ(ﾊﾞﾂｸﾄﾞｱ ﾎﾟｹﾂﾄ),MIST GREEN,TRIM7# |
1 | ||
| 67750-52030G0 |
NCP20,21 MIST GREEN,TRIM7# |
1 | ||
| 67750-52030B1 |
NCP20,21 DK.GRAY,TRIM1# |
1 | ||
| 67750-52010B0 |
NCP20,21 ｱﾘ(ﾊﾞﾂｸﾄﾞｱ ﾎﾟｹﾂﾄ),MD.GRAY,TRIM9# |
1 | ||
| 67750-52030B0 |
NCP20,21 MD.GRAY,TRIM9# |
1 | ||
| 67751A - CLIP(FOR BACK DOOR TRIM BOARD) | ||||
| 67771-52010G0 |
NCP2# MIST GREEN,TRIM7# |
4 | ||
| 67771-52010B0 |
NCP2# MD.GRAY,TRIM9# |
4 | ||
| 67771-52010B1 |
NCP2# DK.GRAY,TRIM1# |
4 | ||
| 67751A - CLIP(FOR BACK DOOR TRIM BOARD) | ||||
| 67771-52010G0 |
NCP2# MIST GREEN,TRIM7# |
4 | ||
| 67771-52010B0 |
NCP2# MD.GRAY,TRIM9# |
4 | ||
| 67771-52010B1 |
NCP2# DK.GRAY,TRIM1# |
4 | ||
| 67751B - RETAINER(FOR BACK DOOR TRIM BOARD) | ||||
| 47256-52010 |
NCP2# |
3 | ||
| 47256-52010 |
NCP2# |
3 | ||
| 67751B - RETAINER(FOR BACK DOOR TRIM BOARD) | ||||
| 47256-52010 |
NCP2# |
3 | ||
| 47256-52010 |
NCP2# |
3 | ||
| 74811D - HANDLE, DOOR PULL | ||||
| 74811-13010B5 |
NCP2# DK.GRAY,TRIM1# |
1 | ||
| 74811-13010B4 |
NCP2# MD.GRAY,TRIM9# |
1 | ||
| 74811-13010G0 |
NCP2# MIST GREEN,TRIM7# |
1 | ||
| 74811D - HANDLE, DOOR PULL | ||||
| 74811-13010B5 |
NCP2# DK.GRAY,TRIM1# |
1 | ||
| 74811-13010B4 |
NCP2# MD.GRAY,TRIM9# |
1 | ||
| 74811-13010G0 |
NCP2# MIST GREEN,TRIM7# |
1 | ||
| Linked diagrams | ||||
| 5104 | ||||

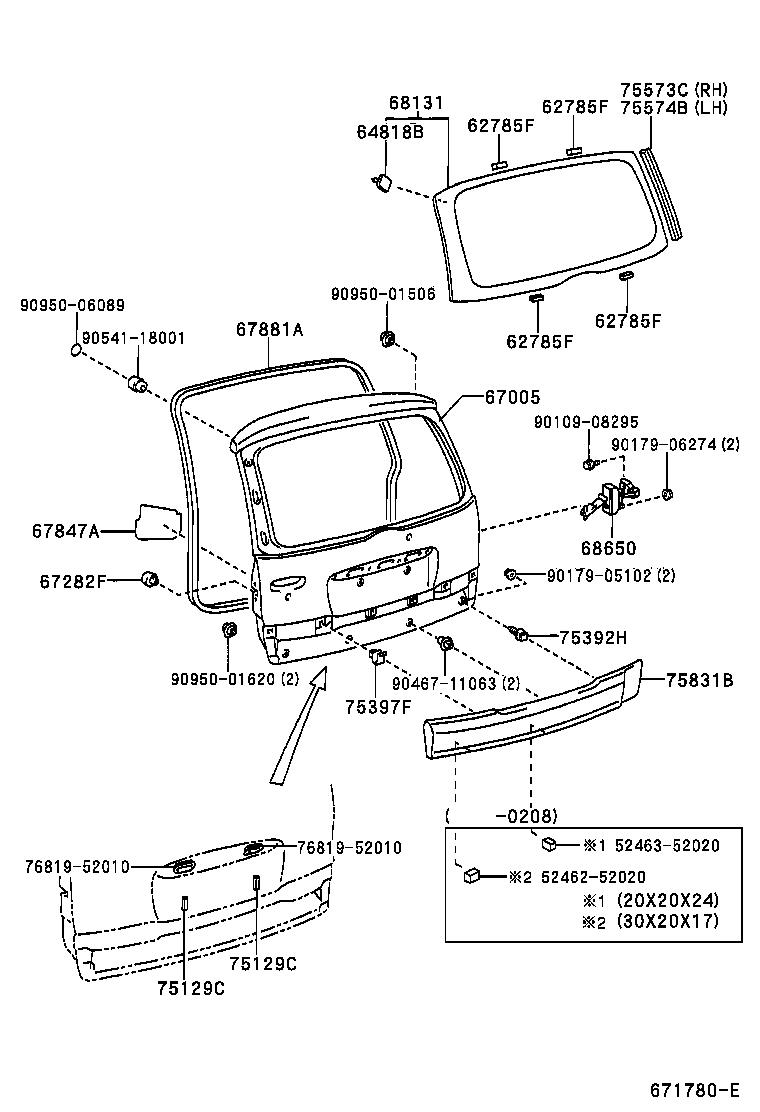

ILLUST NO. 2 OF 3(9908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62785F - SPACER, BACK DOOR GLASS | ||||
| 62785-16030 |
NCP2# |
4 | ||
| 62785-16030 |
NCP2# |
4 | ||
| 62785F - SPACER, BACK DOOR GLASS | ||||
| 62785-16030 |
NCP2# |
4 | ||
| 62785-16030 |
NCP2# |
4 | ||
| 62785F - SPACER, BACK DOOR GLASS | ||||
| 62785-16030 |
NCP2# |
4 | ||
| 62785-16030 |
NCP2# |
4 | ||
| 62785F - SPACER, BACK DOOR GLASS | ||||
| 62785-16030 |
NCP2# |
4 | ||
| 62785-16030 |
NCP2# |
4 | ||
| 64818B - SPACER, BACK DOOR GLASS, NO.1 | ||||
| 64818-52010 |
NCP2# 右側 |
1 | ||
| 64818-52010 |
NCP2# 右側 |
1 | ||
| 64819-52010 |
NCP2# 左側 |
1 | ||
| 64819-52010 |
NCP2# 左側 |
1 | ||
| 67005 - PANEL SUB-ASSY, BACK DOOR | ||||
| 67005-52080 |
NCP20,21 ｳｴﾙｷﾔﾌﾞ(ｸﾙﾏｲｽ ｼﾖｳ---ﾘﾌﾄﾀｲﾌﾟ) & ｱﾘ(ﾘﾔ ﾜｲﾊﾟ & ﾊﾞﾂｸ ﾓﾆﾀ-) |
1 | ||
| 67005-52260 |
NCP20,21 ｱﾘ(ﾘﾔﾜｲﾊﾟ & ﾊﾞﾂｸ ﾓﾆﾀ- & ﾊｲﾏｳﾝﾄ ｽﾄﾂﾌﾟﾗﾝﾌﾟ) |
1 | ||
| 67005-52110 |
NCP20,21 ｳｴﾙｷﾔﾌﾞ(ｸﾙﾏｲｽ ｼﾖｳ---ﾘﾌﾄﾀｲﾌﾟ) & ｱﾘ(ﾘﾔ ﾜｲﾊﾟ & ﾘﾔ ｽﾎﾟｲﾗ & ﾊﾞﾂｸ ﾓﾆﾀ-) |
1 | ||
| 67005-52050 |
NCP20,21 ｳｴﾙｷﾔﾌﾞ(ｸﾙﾏｲｽ ｼﾖｳ---ﾘﾌﾄﾀｲﾌﾟ) & ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 67005-52270 |
NCP20,21 ｱﾘ(ﾘﾔﾜｲﾊﾟ & ﾘﾔ ｽﾎﾟｲﾗ & ﾊﾞﾂｸ ﾓﾆﾀ-) |
1 | ||
| 67005-52240 |
NCP20,21 ｱﾘ(ﾘﾔﾜｲﾊﾟ & ﾊﾞﾂｸ ﾓﾆﾀ-) |
1 | ||
| 67005-52250 |
NCP20,21 ｱﾘ(ﾘﾔﾜｲﾊﾟ & ﾘﾔ ｽﾎﾟｲﾗ & ﾊｲﾏｳﾝﾄ ｽﾄﾂﾌﾟﾗﾝﾌﾟ) |
1 | ||
| 67005-52070 |
NCP20,21 ｳｴﾙｷﾔﾌﾞ(ｸﾙﾏｲｽ ｼﾖｳ---ﾘﾌﾄﾀｲﾌﾟ) & ｱﾘ(ﾘﾔ ﾜｲﾊﾟ & ﾘﾔ ｽﾎﾟｲﾗ) |
1 | ||
| 67005-52190 |
NCP20,21 ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 67005-52280 |
NCP20,21 ｱﾘ(ﾘﾔﾜｲﾊﾟ & ﾘﾔ ｽﾎﾟｲﾗ & ﾊﾞﾂｸ ﾓﾆﾀ- & ﾊｲﾏｳﾝﾄ ｽﾄﾂﾌﾟﾗﾝﾌﾟ) |
1 | ||
| 67005-52111 |
NCP20,21 ｳｴﾙｷﾔﾌﾞ(ｸﾙﾏｲｽ ｼﾖｳ---ﾘﾌﾄﾀｲﾌﾟ) & ｱﾘ(ﾘﾔ ﾜｲﾊﾟ & ﾘﾔ ｽﾎﾟｲﾗ & ﾊﾞﾂｸ ﾓﾆﾀ-) |
1 | ||
| 67005-52081 |
NCP20,21 ｳｴﾙｷﾔﾌﾞ(ｸﾙﾏｲｽ ｼﾖｳ---ﾘﾌﾄﾀｲﾌﾟ) & ｱﾘ(ﾘﾔ ﾜｲﾊﾟ & ﾊﾞﾂｸ ﾓﾆﾀ-) |
1 | ||
| 67005-52261 |
NCP20,21 ｱﾘ(ﾘﾔﾜｲﾊﾟ & ﾊﾞﾂｸ ﾓﾆﾀ- & ﾊｲﾏｳﾝﾄ ｽﾄﾂﾌﾟﾗﾝﾌﾟ) |
1 | ||
| 67005-52241 |
NCP20,21 ｱﾘ(ﾘﾔﾜｲﾊﾟ & ﾊﾞﾂｸ ﾓﾆﾀ-) |
1 | ||
| 67005-52210 |
NCP20,21 ｱﾘ(ﾘﾔﾜｲﾊﾟ & ﾊｲﾏｳﾝﾄ ｽﾄﾂﾌﾟﾗﾝﾌﾟ) |
1 | ||
| 67005-52230 |
NCP20,21 ｱﾘ(ﾘﾔﾜｲﾊﾟ & ﾘﾔ ｽﾎﾟｲﾗ) |
1 | ||
| 67005-52271 |
NCP20,21 ｱﾘ(ﾘﾔﾜｲﾊﾟ & ﾘﾔ ｽﾎﾟｲﾗ & ﾊﾞﾂｸ ﾓﾆﾀ-) |
1 | ||
| 67005-52190 |
NCP20,21 ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 67005-52281 |
NCP20,21 ｱﾘ(ﾘﾔﾜｲﾊﾟ & ﾘﾔ ｽﾎﾟｲﾗ & ﾊﾞﾂｸ ﾓﾆﾀ- & ﾊｲﾏｳﾝﾄ ｽﾄﾂﾌﾟﾗﾝﾌﾟ) |
1 | ||
| 67282F - STOPPER, BACK DOOR, LWR LH | ||||
| 67282-46010 |
NCP2# |
1 | ||
| 67282-46010 |
NCP2# |
1 | ||
| 67847A - COVER, BACK DOOR SERVICE HOLE | ||||
| 67847-52010 |
NCP2# |
1 | ||
| 67847-52010 |
NCP2# |
1 | ||
| 67881A - WEATHERSTRIP, BACK DOOR | ||||
| 67881-52020 |
NCP2# |
1 | ||
| 67881-52021 |
NCP2# |
1 | ||
| 67881-52020 |
NCP2# |
1 | ||
| 68131 - GLASS, BACK DOOR | ||||
| 68131-52070 |
NCP2# *EHT,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ |
1 | ||
| 68131-52100 |
NCP2# *UVCEHT,厚さ=3.1,ｸﾞﾘｰﾝ |
1 | ||
| 68131-52100 |
NCP2# *UVCEHT,厚さ=3.1,ｸﾞﾘｰﾝ |
1 | ||
| 68131-52101 |
NCP2# *UVCEHT,厚さ=3.1,ｸﾞﾘｰﾝ |
1 | ||
| 68650 - CHECK ASSY, BACK DOOR | ||||
| 68650-52010 |
NCP2# |
1 | ||
| 68650-52010 |
NCP2# |
1 | ||
| 75129C - CUSHION, REAR LICENCE PLATE | ||||
| 75129-13020 |
NCP2# |
2 | ||
| 75129-13020 |
NCP2# |
2 | ||
| 75129C - CUSHION, REAR LICENCE PLATE | ||||
| 75129-13020 |
NCP2# |
2 | ||
| 75129-13020 |
NCP2# |
2 | ||
| 75392H - RETAINER, OUTSIDE MOULDING | ||||
| 75392-33020 |
NCP2# |
2 | ||
| 75392-33020 |
NCP2# |
2 | ||
| 75397F - CLIP, OUTSIDE MOULDING, NO.3 | ||||
| 75397-52020 |
NCP2# ｾﾝﾀ |
2 | ||
| 75397-52010 |
NCP2# 右側 & 左側 |
4 | ||
| 75397-52010 |
NCP2# 右側 & 左側 |
4 | ||
| 75397-52020 |
NCP2# ｾﾝﾀ |
2 | ||
| 75397-52010 |
NCP2# |
6 | ||
| 75573C - MOULDING, BACK WINDOW, OUTSIDE | ||||
| 75573-52100 |
NCP2# |
1 | ||
| 75573-52100 |
NCP2# |
1 | ||
| 75574B - MOULDING, BACK WINDOW, OUTSIDE LH | ||||
| 75573-52100 |
NCP2# |
1 | ||
| 75573-52100 |
NCP2# |
1 | ||
| 75831B - PANEL, BACK DOOR FINISH | ||||
| 75831-52010 |
NCP20,25..J ﾄｿｳ ﾅｼ |
1 | ||
| 75831-52030 |
NCP20,25..J ﾄｿｳ ﾅｼ |
1 | ||
| Common parts | ||||
| 52462-52020 | ||||
| 52463-52020 | ||||
| 76819-52010 | ||||
| 90109-08295 | ||||
| 90179-05102 | ||||
| 90179-06274 | ||||
| 90467-11063 | ||||
| 90541-18001 | ||||
| 90950-01506 | ||||
| 90950-01620 | ||||
| 90950-06089 | ||||
ILLUST NO. 3 OF 3(9908-0208)
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 3 OF 3(0208- )
| Part # | Description | Qty | Price |
|---|
