NCP20-CHSDK (1999)
Toyota Fun Cargo
Production
Aug 1999
-
Sep 2005
Engine
2NZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

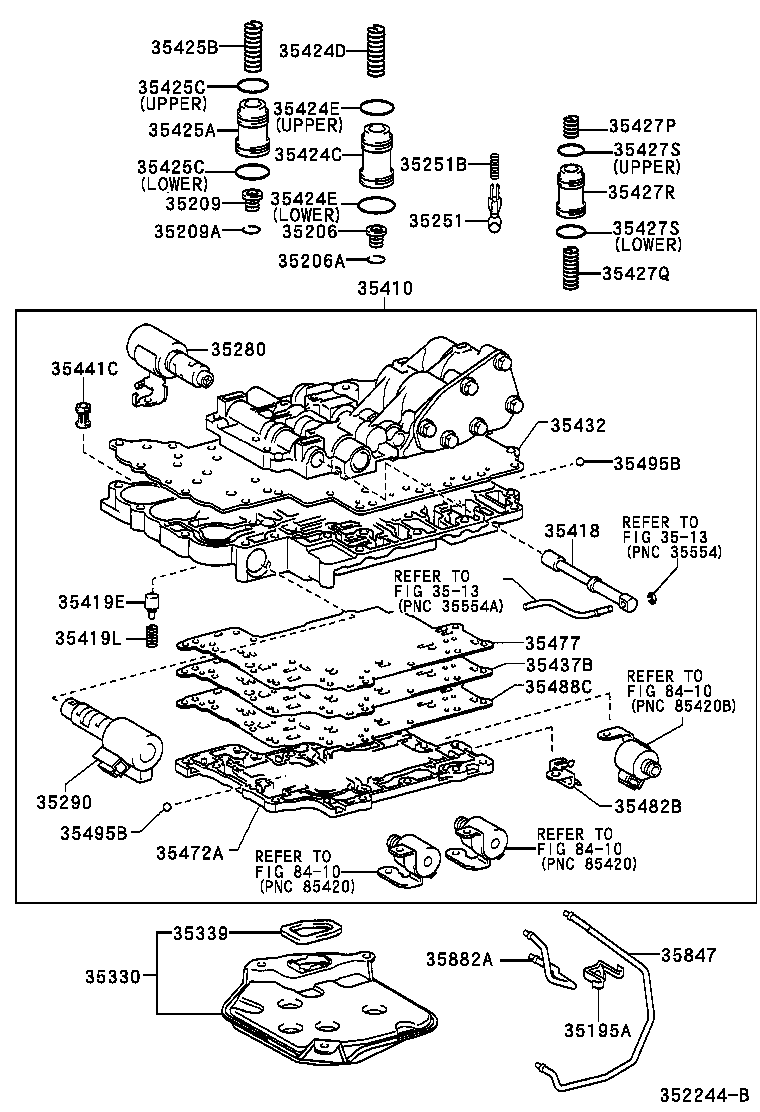

ILLUST NO. 1 OF 4(9908-0208)NCP20
Click highlighted areas on diagram
U441E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35195A - CLAMP, TRANSAXLE APPLY TUBE, NO.1 | ||||
| 35195-52010 |
NCP20 |
1 | ||
| 35195-52010 |
NCP20 |
1 | ||
| 35206 - SPRING SUB-ASSY, C-1 ACCUMULATOR | ||||
| 35206-52010 |
NCP20 |
1 | ||
| 35206-52010 |
NCP20 |
1 | ||
| 90905-01083 |
NCP20 |
1 | ||
| 35206A - RING, HOLE SNAP (FOR C-1 ACCUMULATOR SPRING) | ||||
| 90521-22004 |
NCP20 |
1 | ||
| 90521-22004 |
NCP20 |
1 | ||
| 35209 - SPRING SUB-ASSY, C-2 ACCUMULATOR | ||||
| 35209-52010 |
NCP20 |
1 | ||
| 35209-52010 |
NCP20 |
1 | ||
| 35209A - RING, HOLE SNAP (FOR C-2 ACCUMULATOR SPRING) | ||||
| 90521-22004 |
NCP20 |
1 | ||
| 90521-22004 |
NCP20 |
1 | ||
| 35251 - BODY, CHECK BALL | ||||
| 35251-30020 |
NCP2# |
1 | ||
| 35251-30020 |
NCP2# |
1 | ||
| 35251B - SPRING, COMPRESSION(FOR CHECK BALL BODY) | ||||
| 90501-03005 |
NCP20 |
1 | ||
| 90501-03005 |
NCP20 |
1 | ||
| 35280 - SOLENOID ASSY, LOCK UP CONTROL | ||||
| 35280-52010 |
NCP20 |
1 | ||
| 35280-52010 |
NCP20 |
1 | ||
| 35290 - SOLENOID ASSY, LINE PRESSURE CONTROL | ||||
| 35290-52010 |
NCP20 |
1 | ||
| 35290-52010 |
NCP20 |
1 | ||
| 35330 - STRAINER ASSY, VALVE BODY OIL | ||||
| 35330-52010 |
NCP20 |
1 | ||
| 35330-52010 |
NCP20 |
1 | ||
| 35339 - GASKET, OIL STRAINER | ||||
| 35339-52010 |
NCP20 |
1 | ||
| 35339-52010 |
NCP20 |
1 | ||
| 35410 - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-52020 |
NCP20 |
1 | ||
| 35410-52090 |
NCP20 |
1 | ||
| 35410-52090 |
NCP20 |
1 | ||
| 35418 - VALVE, MANUAL | ||||
| 35418-52010 |
NCP20 |
1 | ||
| 35419E - VALVE, CHECK, NO.3 | ||||
| 35419-52010 |
NCP20 |
1 | ||
| 35419L - SPRING, COMPRESSION (FOR CHECK VALVE NO.3) | ||||
| 90501-08187 |
NCP20 |
1 | ||
| 35424C - PISTON, C-1 ACCUMULATOR | ||||
| 35424-52010 |
NCP20 |
1 | ||
| 35424-52010 |
NCP20 |
1 | ||
| 35424D - SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90501-22046 |
NCP20 |
1 | ||
| 90501-22046 |
NCP20 |
1 | ||
| 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90301-21011 |
NCP20 上側 |
1 | ||
| 90301-29012 |
NCP20 下側 |
1 | ||
| 90301-21011 |
NCP20 上側 |
1 | ||
| 90301-29012 |
NCP20 下側 |
1 | ||
| 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90301-21011 |
NCP20 上側 |
1 | ||
| 90301-29012 |
NCP20 下側 |
1 | ||
| 90301-21011 |
NCP20 上側 |
1 | ||
| 90301-29012 |
NCP20 下側 |
1 | ||
| 35425A - PISTON, C-2 ACCUMULATOR | ||||
| 35425-52010 |
NCP20 |
1 | ||
| 35425-52010 |
NCP20 |
1 | ||
| 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-22042 |
NCP20 |
1 | ||
| 90501-22042 |
NCP20 |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-29012 |
NCP20 下側 |
1 | ||
| 90301-21011 |
NCP20 上側 |
1 | ||
| 90301-21011 |
NCP20 上側 |
1 | ||
| 90301-29012 |
NCP20 下側 |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-29012 |
NCP20 下側 |
1 | ||
| 90301-21011 |
NCP20 上側 |
1 | ||
| 90301-21011 |
NCP20 上側 |
1 | ||
| 90301-29012 |
NCP20 下側 |
1 | ||
| 35427P - SPRING, COMPRESSION, NO.1(FOR B-1 ACCUMULATOR PISTON) | ||||
| 90501-16165 |
NCP20 |
1 | ||
| 90501-16165 |
NCP20 |
1 | ||
| 35427Q - SPRING COMPRESSION, NO.2(FOR B1 ACCUMULATOR PISTON) | ||||
| 90501-21029 |
NCP20 |
1 | ||
| 90501-21029 |
NCP20 |
1 | ||
| 35427R - PISTON B-1 ACCUMULATOR | ||||
| 35427-52010 |
NCP20 |
1 | ||
| 35427-52010 |
NCP20 |
1 | ||
| 35427S - RING, O(FOR B-1 ACCUMULATOR PISTON) | ||||
| 90301-29012 |
NCP20 下側 |
1 | ||
| 90301-19016 |
NCP20 上側 |
1 | ||
| 90301-29012 |
NCP20 下側 |
1 | ||
| 90301-19016 |
NCP20 上側 |
1 | ||
| 35427S - RING, O(FOR B-1 ACCUMULATOR PISTON) | ||||
| 90301-29012 |
NCP20 下側 |
1 | ||
| 90301-19016 |
NCP20 上側 |
1 | ||
| 90301-29012 |
NCP20 下側 |
1 | ||
| 90301-19016 |
NCP20 上側 |
1 | ||
| 35432 - PLATE, VALVE BODY, NO.1 | ||||
| 35432-52020 |
NCP20 |
1 | ||
| 35437B - PLATE, VALVE BODY COVER | ||||
| 35437-52010 |
NCP20 |
1 | ||
| 35441C - STRAINER, SOLENOID OIL | ||||
| 35441-12020 |
NCP20 |
1 | ||
| 35472A - COVER, LOWER VALVE BODY | ||||
| 35472-52010 |
NCP20 |
1 | ||
| 35477 - GASKET, VALVE BODY COVER | ||||
| 35477-52011 |
NCP20 |
1 | ||
| 35482B - CLAMP, TEMPERATURE SENSOR | ||||
| 35482-52010 |
NCP20 |
1 | ||
| 35488C - GASKET, VALVE BODY COVER, NO.2 | ||||
| 35488-52020 |
NCP20 |
1 | ||
| 35495B - BALL, CHECK, NO.1 | ||||
| 35495-22020 |
NCP20 |
9 | ||
| 35495B - BALL, CHECK, NO.1 | ||||
| 35495-22020 |
NCP20 |
9 | ||
| 35847 - TUBE, TRANSMISSION LUBE APPLY | ||||
| 35847-52010 |
NCP20 |
1 | ||
| 35847-52010 |
NCP20 |
1 | ||
| 35882A - TUBE, DIFFERENTIAL GEAR LUBE APPLY | ||||
| 35882-52010 |
NCP20 |
1 | ||
| 35882-52010 |
NCP20 |
1 | ||
| Linked diagrams | ||||
| 3513 | ||||
| 8410 | ||||

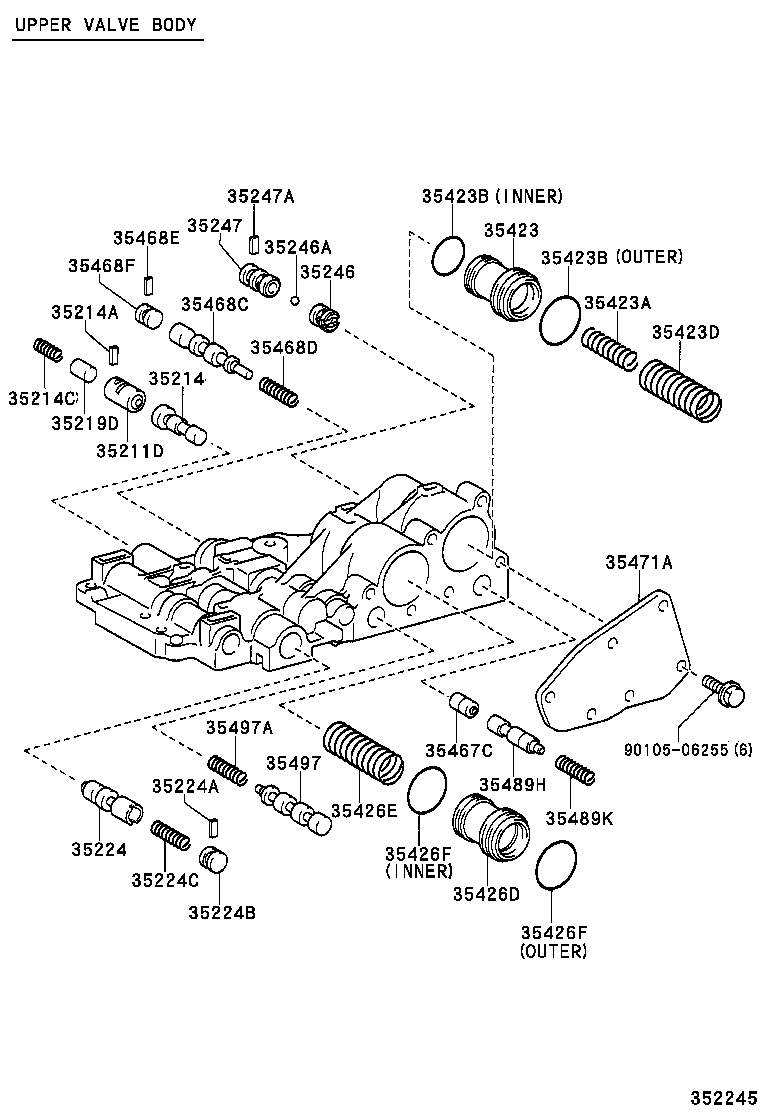

ILLUST NO. 2 OF 4(9908-0208)NCP20
Click highlighted areas on diagram
U441E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35211D - SLEEVE, LOCK UP CONTROL VALVE | ||||
| 35211-52010 |
NCP20 |
1 | ||
| 35214 - VALVE, LOCK UP CONTROL | ||||
| 35214-52010 |
NCP20 |
1 | ||
| 35214A - KEY, STRAIGHT (FOR LOCK UP CONTROL VALVE) | ||||
| 90282-03010 |
NCP20 |
1 | ||
| 35214C - SPRING, COMPRESSION (FOR LOCK UP CONTROL VALVE) | ||||
| 90501-07111 |
NCP20 |
1 | ||
| 35219D - PLUNGER, LOCK UP CONTROL VALVE | ||||
| 35219-52010 |
NCP20 |
1 | ||
| 35224 - VALVE, REVERSE CONTROL | ||||
| 35224-50010 |
NCP20 |
1 | ||
| 35224A - KEY, STRAIGHT (FOR REVERSE CONTROL VALVE) | ||||
| 90282-03002 |
NCP20 |
1 | ||
| 35224B - PLUG (FOR REVERSE CONTROL VALVE) | ||||
| 90339-05020 |
NCP20 |
1 | ||
| 35224C - SPRING, COMPRESSION (FOR REVERSE CONTROL VALVE) | ||||
| 90501-06056 |
NCP20 |
1 | ||
| 35246 - VALVE, CHECK, NO.1 | ||||
| 35246-30010 |
NCP20 |
1 | ||
| 35246A - BALL, REVERSE SHIFT RESTRICT (FOR CHECK VALVE NO.1) | ||||
| 90360-06004 |
NCP20 |
1 | ||
| 35247 - VALVE, CHECK, NO.2 | ||||
| 35247-30010 |
NCP20 |
1 | ||
| 35247A - KEY, STRAIGHT(FOR CHECK VALVE NO.2) | ||||
| 90282-03002 |
NCP20 |
1 | ||
| 35423 - PISTON, B-2 ACCUMULATOR | ||||
| 35423-52010 |
NCP20 |
1 | ||
| 35423A - SPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90501-19033 |
NCP20 |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-19016 |
NCP20 内側 |
1 | ||
| 90301-29012 |
NCP20 外側 |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-19016 |
NCP20 内側 |
1 | ||
| 90301-29012 |
NCP20 外側 |
1 | ||
| 35423D - SPRING, COMPRESSION (FOR B-2 ACCMULATOR PISTON) | ||||
| 90501-22047 |
NCP20 |
1 | ||
| 35426D - PISTON, C-3 ACCUMULATOR | ||||
| 35426-52010 |
NCP20 |
1 | ||
| 35426E - SPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90501-23148 |
NCP20 |
1 | ||
| 35426F - RING, O (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90301-24013 |
NCP20 外側 |
1 | ||
| 90301-21011 |
NCP20 内側 |
1 | ||
| 35426F - RING, O (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90301-24013 |
NCP20 外側 |
1 | ||
| 90301-21011 |
NCP20 内側 |
1 | ||
| 35467C - PLUNGER, ORIFICE CONTROL VALVE | ||||
| 35467-52010 |
NCP20 |
1 | ||
| 35468C - VALVE, SECONDARY REGULATOR | ||||
| 35468-52010 |
NCP20 |
1 | ||
| 35468D - SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE) | ||||
| 90501-12182 |
NCP20 |
1 | ||
| 35468E - KEY, STRAIGHT (FOR SECONDARY REGULATOR VALVE) | ||||
| 90282-03010 |
NCP20 |
1 | ||
| 35468F - PLUG (FOR SECONDARY REGULATOR VALVE) | ||||
| 90339-05020 |
NCP20 |
1 | ||
| 35471A - COVER, UPPER VALVE BODY | ||||
| 35474-52020 |
NCP20 |
1 | ||
| 35489H - VALVE, C-1 ORIFICE CONTROL | ||||
| 35466-52010 |
NCP20 |
1 | ||
| 35489K - SPRING, COMPRESSION (FOR C-1 ORIFICE CONTROL VALVE) | ||||
| 90501-07131 |
NCP20 |
1 | ||
| 35497 - VALVE, 3-4 SHIFT | ||||
| 35497-52010 |
NCP20 |
1 | ||
| 35497A - SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE) | ||||
| 90501-08135 |
NCP20 |
1 | ||

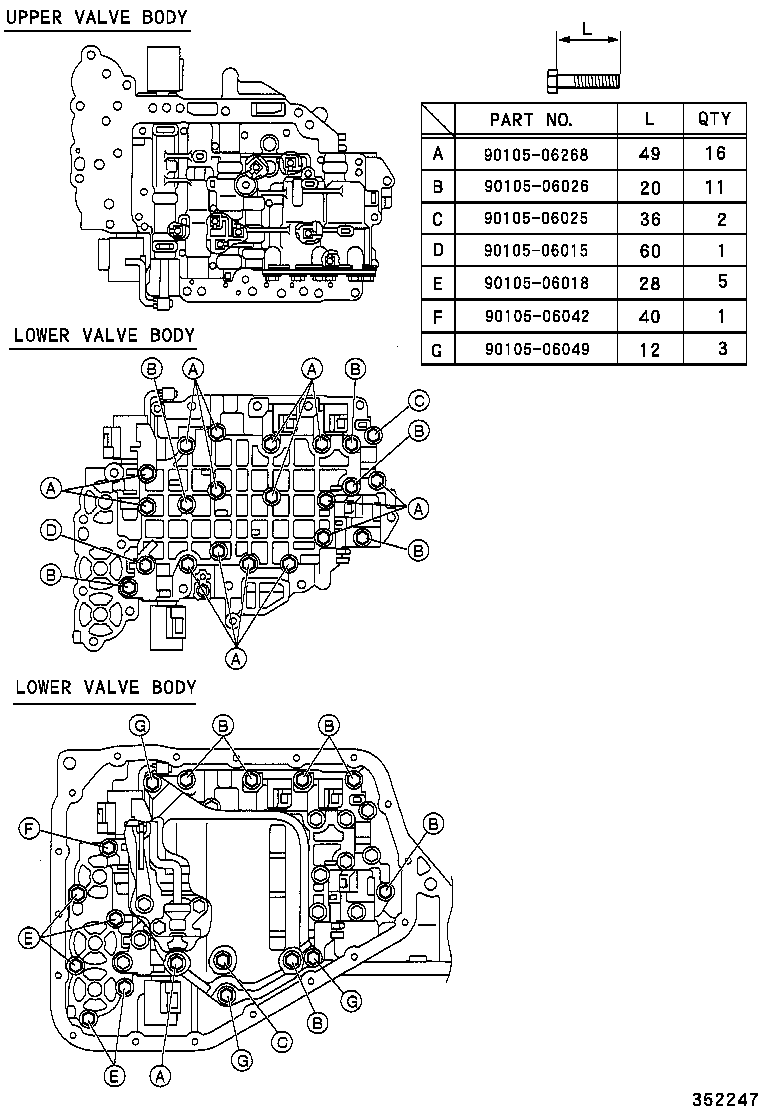

| Common parts | ||||
| 90105-06255 | ||||

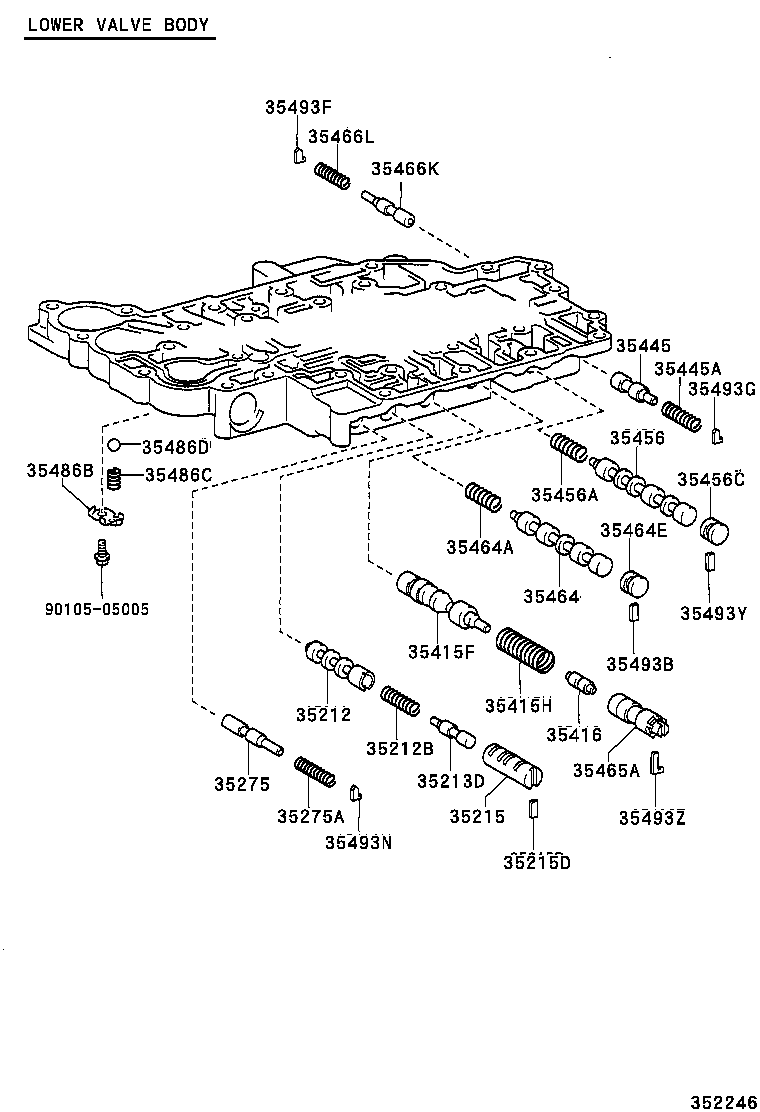

ILLUST NO. 3 OF 4(9908-0208)NCP20
Click highlighted areas on diagram
U441E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35212 - VALVE, LOCK UP RELAY | ||||
| 35212-52010 |
NCP20 |
1 | ||
| 35212B - SPRING, COMPRESSION (FOR LOCK UP RELAY VALVE) | ||||
| 90501-06057 |
NCP20 |
1 | ||
| 35213D - PLUNGER, LOCK UP RELAY VALVE | ||||
| 35213-24010 |
NCP20 |
1 | ||
| 35215 - SLEEVE, LOCK UP RELAY VALVE | ||||
| 35215-52010 |
NCP20 |
1 | ||
| 35215D - KEY, STRAIGHT(FOR LOCK UP RELAY VALVE SLEEVE) | ||||
| 90282-03010 |
NCP20 |
1 | ||
| 35275 - VALVE, SOLENOID MODULATOR | ||||
| 35275-52010 |
NCP20 |
1 | ||
| 35275A - SPRING, COMPRESSION (FOR SOLENOID MODULATOR VALVE) | ||||
| 90501-12143 |
NCP20 |
1 | ||
| 35415F - VALVE, PRIMARY REGULATOR | ||||
| 35415-52010 |
NCP20 |
1 | ||
| 35415H - SPRING, COMPRESSION (FOR PRIMARY REGULATOR VALVE) | ||||
| 90501-13052 |
NCP20 |
1 | ||
| 35416 - PLUNGER, PRIMARY REGULATOR VALVE, NO.1 | ||||
| 35416-52010 |
NCP20 |
1 | ||
| 35445 - VALVE, LOW MODULATOR | ||||
| 35445-12020 |
NCP20 |
1 | ||
| 35445A - SPRING, COMPRESSION (FOR LOW MODULATOR VALVE) | ||||
| 90501-08186 |
NCP20 |
1 | ||
| 35456 - VALVE, 2-3 SHIFT | ||||
| 35456-52010 |
NCP20 |
1 | ||
| 35456A - SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE) | ||||
| 90501-08135 |
NCP20 |
1 | ||
| 35456C - PLUG (FOR 2-3 SHIFT VALVE) | ||||
| 90339-05019 |
NCP20 |
1 | ||
| 35464 - VALVE, 1-2 SHIFT | ||||
| 35464-52010 |
NCP20 |
1 | ||
| 35464A - SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE) | ||||
| 90501-08135 |
NCP20 |
1 | ||
| 35464E - PLUG (FOR 1-2 SHIFT VALVE) | ||||
| 90339-05019 |
NCP20 |
1 | ||
| 35465A - SLEEVE, PRIMARY REGULATOR VALVE PLUNGER | ||||
| 35465-52010 |
NCP20 |
1 | ||
| 35466K - VALVE, CLUTCH APPLY CONTROL | ||||
| 35483-52020 |
NCP20 |
1 | ||
| 35466L - SPRING, COMPRESSION (FOR CLUTCH APPLY CONTROL VALVE) | ||||
| 90501-07113 |
NCP20 |
1 | ||
| 35486B - SEAT, PRESSURE RELIEF VALVE SPRING | ||||
| 35486-50010 |
NCP20 |
1 | ||
| 35486C - SPRING, COMPRESSION(FOR PRESSURE RELIFE VALVE) | ||||
| 90501-10143 |
NCP20 |
1 | ||
| 35486D - BALL (FOR PRESSURE RELIFE VALVE) | ||||
| 90360-08003 |
NCP20 |
1 | ||
| 35493B - SEAT, 1-2 SHIFT VALVE PLUG | ||||
| 35493-30030 |
NCP20 |
1 | ||
| 35493F - SEAT, SHIFT VALVE PLUG | ||||
| 35469-52010 |
NCP20 |
1 | ||
| 35493G - SEAT, LOW COAST MODULATOR VALVE PLUG | ||||
| 35478-52020 |
NCP20 |
1 | ||
| 35493N - SEAT, SOLENOID MODULATOR VALVE PLUG | ||||
| 35478-52020 |
NCP20 |
1 | ||
| 35493Y - SEAT, 2-3 SHIFT VALVE PLUG | ||||
| 35493-30030 |
NCP20 |
1 | ||
| 35493Z - SEAT, SHIFT VALVE PLUG, NO.1 | ||||
| 35479-52020 |
NCP20 |
1 | ||
| Common parts | ||||
| 90105-05005 | ||||
ILLUST NO. 4 OF 4(9908-0208)NCP20
Click highlighted areas on diagram
U441E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-06015 | ||||
| 90105-06018 | ||||
| 90105-06025 | ||||
| 90105-06026 | ||||
| 90105-06042 | ||||
| 90105-06049 | ||||
| 90105-06268 | ||||

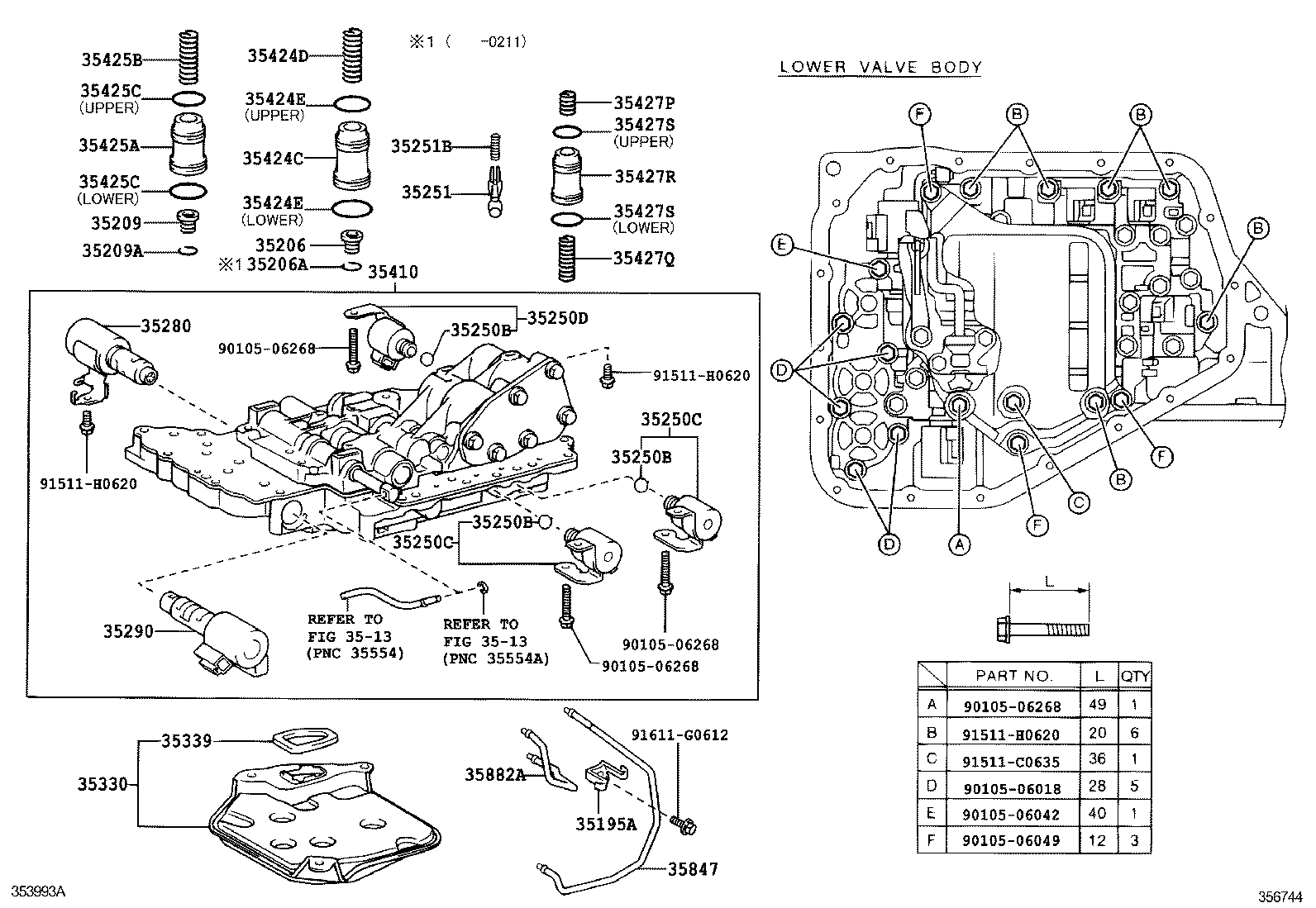

(0208-0509)NCP20
Click highlighted areas on diagram
U441E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35195A - CLAMP, TRANSAXLE APPLY TUBE, NO.1 | ||||
| 35195-52010 |
NCP20 |
1 | ||
| 35195-52010 |
NCP20 |
1 | ||
| 35206 - SPRING SUB-ASSY, C-1 ACCUMULATOR | ||||
| 35206-52010 |
NCP20 |
1 | ||
| 35206-52010 |
NCP20 |
1 | ||
| 90905-01083 |
NCP20 |
1 | ||
| 35206A - RING, HOLE SNAP (FOR C-1 ACCUMULATOR SPRING) | ||||
| 90521-22004 |
NCP20 |
1 | ||
| 90521-22004 |
NCP20 |
1 | ||
| 35209 - SPRING SUB-ASSY, C-2 ACCUMULATOR | ||||
| 35209-52010 |
NCP20 |
1 | ||
| 35209-52010 |
NCP20 |
1 | ||
| 35209A - RING, HOLE SNAP (FOR C-2 ACCUMULATOR SPRING) | ||||
| 90521-22004 |
NCP20 |
1 | ||
| 90521-22004 |
NCP20 |
1 | ||
| 35250B - RING, O NO.3(FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
NCP20 |
3 | ||
| 35250B - RING, O NO.3(FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
NCP20 |
3 | ||
| 35250B - RING, O NO.3(FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
NCP20 |
3 | ||
| 35250C - SOLENOID ASSY, TRANSMISSION NO.1 | ||||
| 35250-52020 |
NCP20 |
2 | ||
| 35250C - SOLENOID ASSY, TRANSMISSION NO.1 | ||||
| 35250-52020 |
NCP20 |
2 | ||
| 35250D - SOLENOID ASSY, TRANSMISSION NO.2 | ||||
| 35250-52050 |
NCP20 |
1 | ||
| 35251 - BODY, CHECK BALL | ||||
| 35251-30020 |
NCP2# |
1 | ||
| 35251-30020 |
NCP2# |
1 | ||
| 35251B - SPRING, COMPRESSION(FOR CHECK BALL BODY) | ||||
| 90501-03005 |
NCP20 |
1 | ||
| 90501-03005 |
NCP20 |
1 | ||
| 35280 - SOLENOID ASSY, LOCK UP CONTROL | ||||
| 35280-52010 |
NCP20 |
1 | ||
| 35280-52010 |
NCP20 |
1 | ||
| 35290 - SOLENOID ASSY, LINE PRESSURE CONTROL | ||||
| 35290-52010 |
NCP20 |
1 | ||
| 35290-52010 |
NCP20 |
1 | ||
| 35330 - STRAINER ASSY, VALVE BODY OIL | ||||
| 35330-52010 |
NCP20 |
1 | ||
| 35330-52010 |
NCP20 |
1 | ||
| 35339 - GASKET, OIL STRAINER | ||||
| 35339-52010 |
NCP20 |
1 | ||
| 35339-52010 |
NCP20 |
1 | ||
| 35410 - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-52020 |
NCP20 |
1 | ||
| 35410-52090 |
NCP20 |
1 | ||
| 35410-52090 |
NCP20 |
1 | ||
| 35424C - PISTON, C-1 ACCUMULATOR | ||||
| 35424-52010 |
NCP20 |
1 | ||
| 35424-52010 |
NCP20 |
1 | ||
| 35424D - SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90501-22046 |
NCP20 |
1 | ||
| 90501-22046 |
NCP20 |
1 | ||
| 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90301-21011 |
NCP20 上側 |
1 | ||
| 90301-29012 |
NCP20 下側 |
1 | ||
| 90301-21011 |
NCP20 上側 |
1 | ||
| 90301-29012 |
NCP20 下側 |
1 | ||
| 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90301-21011 |
NCP20 上側 |
1 | ||
| 90301-29012 |
NCP20 下側 |
1 | ||
| 90301-21011 |
NCP20 上側 |
1 | ||
| 90301-29012 |
NCP20 下側 |
1 | ||
| 35425A - PISTON, C-2 ACCUMULATOR | ||||
| 35425-52010 |
NCP20 |
1 | ||
| 35425-52010 |
NCP20 |
1 | ||
| 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-22042 |
NCP20 |
1 | ||
| 90501-22042 |
NCP20 |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-29012 |
NCP20 下側 |
1 | ||
| 90301-21011 |
NCP20 上側 |
1 | ||
| 90301-21011 |
NCP20 上側 |
1 | ||
| 90301-29012 |
NCP20 下側 |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-29012 |
NCP20 下側 |
1 | ||
| 90301-21011 |
NCP20 上側 |
1 | ||
| 90301-21011 |
NCP20 上側 |
1 | ||
| 90301-29012 |
NCP20 下側 |
1 | ||
| 35427P - SPRING, COMPRESSION, NO.1(FOR B-1 ACCUMULATOR PISTON) | ||||
| 90501-16165 |
NCP20 |
1 | ||
| 90501-16165 |
NCP20 |
1 | ||
| 35427Q - SPRING COMPRESSION, NO.2(FOR B1 ACCUMULATOR PISTON) | ||||
| 90501-21029 |
NCP20 |
1 | ||
| 90501-21029 |
NCP20 |
1 | ||
| 35427R - PISTON B-1 ACCUMULATOR | ||||
| 35427-52010 |
NCP20 |
1 | ||
| 35427-52010 |
NCP20 |
1 | ||
| 35427S - RING, O(FOR B-1 ACCUMULATOR PISTON) | ||||
| 90301-29012 |
NCP20 下側 |
1 | ||
| 90301-19016 |
NCP20 上側 |
1 | ||
| 90301-29012 |
NCP20 下側 |
1 | ||
| 90301-19016 |
NCP20 上側 |
1 | ||
| 35427S - RING, O(FOR B-1 ACCUMULATOR PISTON) | ||||
| 90301-29012 |
NCP20 下側 |
1 | ||
| 90301-19016 |
NCP20 上側 |
1 | ||
| 90301-29012 |
NCP20 下側 |
1 | ||
| 90301-19016 |
NCP20 上側 |
1 | ||
| 35847 - TUBE, TRANSMISSION LUBE APPLY | ||||
| 35847-52010 |
NCP20 |
1 | ||
| 35847-52010 |
NCP20 |
1 | ||
| 35882A - TUBE, DIFFERENTIAL GEAR LUBE APPLY | ||||
| 35882-52010 |
NCP20 |
1 | ||
| 35882-52010 |
NCP20 |
1 | ||
| Common parts | ||||
| 90105-06018 | ||||
| 90105-06042 | ||||
| 90105-06049 | ||||
| 90105-06268 | ||||
| 91511-C0635 | ||||
| 91511-H0620 | ||||
| 91611-G0612 | ||||
| Linked diagrams | ||||
| 3513 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
Unable to retrieve price information.
