NCP20-CHSDK (1999)

Toyota Fun Cargo

Production Aug 1999 - Sep 2005
Engine 2NZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9908-0509)1NZFE,2NZFE..NCP20,21

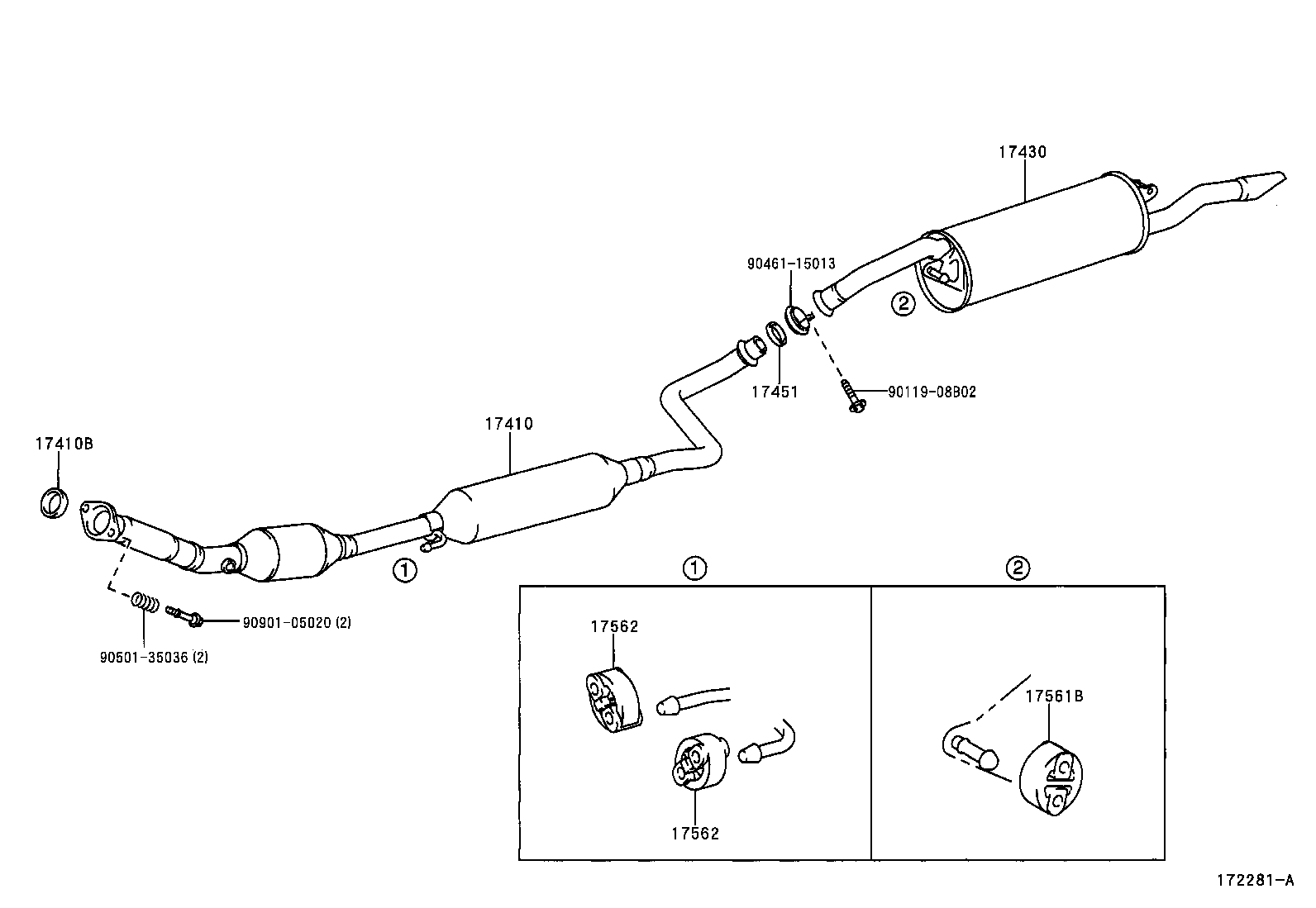

Click highlighted areas on diagram

diagram 17410 17410B 17430 17451 17561B 17562 17562 9011908B02 9046115013 9050135036 9090105020
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-21090

2NZFE..NCP20

 1
17410-21550

1NZFE,2NZFE..NCP20,21

 1
17410-21091

2NZFE..NCP20

 1
17410B - GASKET, EXHAUST PIPE
17451-21030

1NZFE,2NZFE..NCP2#

 1
17451-21030

1NZFE,2NZFE..NCP2#

 1
17451-21030

1NZFE,2NZFE..NCP20,21

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-21040

2NZFE..NCP20

 1
17430-21420

1NZFE,2NZFE..NCP20,21

 1
17451 - GASKET, EXHAUST PIPE
90917-06082

1NZFE,2NZFE..NCP2#

 1
90917-06082

1NZFE,2NZFE..NCP2#

 1
17561B - SUPPORT, EXHAUST PIPE, NO.1
17565-74280

1NZFE,2NZFE..NCP20,21

 2
17565-74280

1NZFE,2NZFE..NCP20,21

 2
17562 - SUPPORT, EXHAUST PIPE, NO.2
17562-23040

1NZFE,2NZFE..NCP20,21

 2
17562-23040

1NZFE,2NZFE..NCP20,21

 2
17562 - SUPPORT, EXHAUST PIPE, NO.2
17562-23040

1NZFE,2NZFE..NCP20,21

 2
17562-23040

1NZFE,2NZFE..NCP20,21

 2
Common parts
90119-08B02
90461-15013
90501-35036
90901-05020
