MCR40W-MRSEK (1999)

Toyota Estima T/L

Production Dec 1999 - Apr 2003
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9912- )

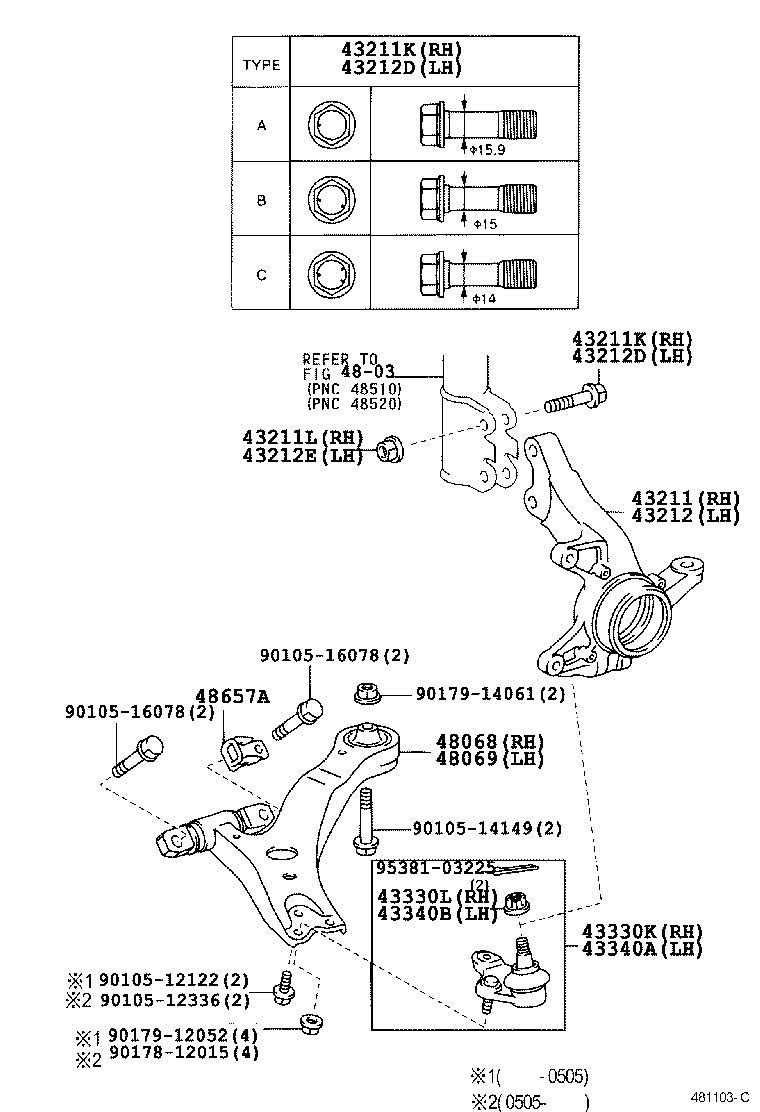

Click highlighted areas on diagram

diagram 43211 43211K 43211K 43211L 43212 43212D 43212D 43212E 43330K 43330L 43340A 43340B 4803 48068 48069 48657A 9010512122 9010512336 9010514149 9010516078 9010516078 9017812015 9017912052 9017914061 9538103225
Part # Description Qty Price
43211 - KNUCKLE, STEERING, RH
43211-28120

ACR40,MCR40

 1
43211K - BOLT (FOR STEERING KNUCKLE RH)
90105-17003

ACR30,40,MCR30,40

外径=15.9,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
90105-17004

ACR30,40,MCR30,40

外径=15,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90105-17005

ACR30,40,MCR30,40

外径=14,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ

 1
43211K - BOLT (FOR STEERING KNUCKLE RH)
90105-17003

ACR30,40,MCR30,40

外径=15.9,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
90105-17004

ACR30,40,MCR30,40

外径=15,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90105-17005

ACR30,40,MCR30,40

外径=14,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ

 1
43211L - NUT (FOR STEERING KNUCKLE RH)
90179-17001

ACR30,40,MCR30,40

 2
43212 - KNUCKLE, STEERING, LH
43212-28100

ACR40,MCR40

 1
43212D - BOLT (FOR STEERING KNUCKLE LH)
90105-17003

ACR30,40,MCR30,40

外径=15.9,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
90105-17004

ACR30,40,MCR30,40

外径=15,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90105-17005

ACR30,40,MCR30,40

外径=14,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ

 1
43212D - BOLT (FOR STEERING KNUCKLE LH)
90105-17003

ACR30,40,MCR30,40

外径=15.9,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
90105-17004

ACR30,40,MCR30,40

外径=15,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90105-17005

ACR30,40,MCR30,40

外径=14,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ

 1
43212E - NUT (FOR STEERING KNUCKLE LH)
90179-17001

ACR30,40,MCR30,40

 2
43330K - JOINT ASSY, LOWER BALL, FRONT RH
43330-29405

ACR30,40,MCR30,40

 1
43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
90171-14003

ACR30,40,MCR30,40

 1
43340A - JOINT ASSY, LOWER BALL, FRONT LH
43340-29175

ACR30,40,MCR30,40

 1
43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
90171-14003

ACR30,40,MCR30,40

 1
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-58010

ACR30,40,MCR30,40

 1
48068-28120

ACR30,40,MCR30,40

 1
48068-33050

ACR30,40,MCR30,40

 1
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-58010

ACR30,40,MCR30,40

 1
48069-28120

ACR30,40,MCR30,40

 1
48069-33050

ACR30,40,MCR30,40

 1
48657A - STOPPER, FRONT LOWER ARM BUSH
48657-28010

ACR30,40,MCR30,40

 2
Common parts
90105-12122
90105-12336
90105-14149
90105-16078
90178-12015
90179-12052
90179-14061
95381-03225
Linked diagrams
4803
