MCR40W-MRSEK (1999)
Toyota Estima T/L

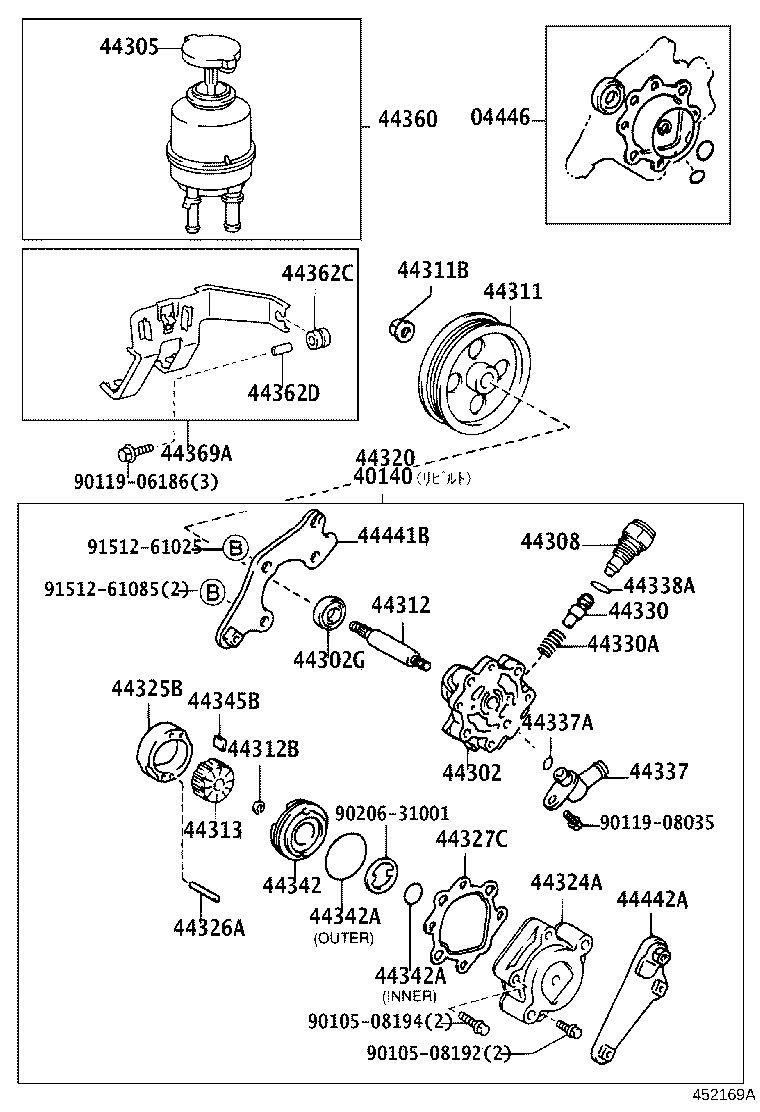

(9912-0304)MCR30,40
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-32050 |
ACR30,40 |
1 | ||
| 04446-34010 |
MCR30,40 |
1 | ||
| 40140 - PUMP ASSY,VANE REBUILT | ||||
| 40140-28160 |
MCR30,40 TOYODA KOKI |
1 | ||
| 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT | ||||
| 44302-33020 |
MCR30,40 |
1 | ||
| 44302-32100 |
ACR30,40 |
1 | ||
| 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90311-18015 |
MCR30,40 |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-28030 |
ACR30,40,MCR30,40 |
1 | ||
| 44308 - UNION SUB-ASSY, PRESSURE PORT | ||||
| 44308-28040 |
ACR30,40 |
1 | ||
| 44308-28030 |
MCR30,40 |
1 | ||
| 44311 - PULLEY, VANE PUMP | ||||
| 44311-33020 |
MCR30,40 |
1 | ||
| 44311-28110 |
MCR30,40 |
1 | ||
| 44311B - NUT(FOR VANE PUMP PULLEY) | ||||
| 90178-12003 |
MCR30,40 |
1 | ||
| 44312 - SHAFT, VANE PUMP | ||||
| 44312-32020 |
MCR30,40 |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90520-10003 |
ACR30,40,MCR30,40 |
1 | ||
| 44313 - ROTOR, VANE PUMP | ||||
| 44313-26060 |
MCR30,40 ﾏｰｸ無し |
1 | ||
| 44313-26070 |
MCR30,40 ﾏｰｸ 1 |
1 | ||
| 44313-26080 |
MCR30,40 ﾏｰｸ 2 |
1 | ||
| 44313-26090 |
MCR30,40 ﾏｰｸ 3 |
1 | ||
| 44313-32100 |
ACR30,40 ﾏｰｸ 4 |
1 | ||
| 44313-32080 |
ACR30,40 ﾏｰｸ 2 |
1 | ||
| 44313-32060 |
ACR30,40 ﾏｰｸ無し |
1 | ||
| 44313-32070 |
ACR30,40 ﾏｰｸ 1 |
1 | ||
| 44313-26100 |
MCR30,40 ﾏｰｸ 4 |
1 | ||
| 44313-32090 |
ACR30,40 ﾏｰｸ 3 |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44310-28240 |
ACR30,40 |
1 | ||
| 44320-28160 |
MCR30,40 |
1 | ||
| 44324A - HOUSING, PUMP, REAR | ||||
| 44324-33030 |
MCR30,40 |
1 | ||
| 44325B - RING, VANE PUMP CAM | ||||
| 44325-12280 |
MCR30,40 ﾏｰｸ 1 |
1 | ||
| 44325-12290 |
MCR30,40 ﾏｰｸ 2 |
1 | ||
| 44325-12300 |
MCR30,40 ﾏｰｸ 3 |
1 | ||
| 44325-28010 |
ACR30,40 ﾏｰｸ 0 |
1 | ||
| 44325-12310 |
MCR30,40 ﾏｰｸ 4 |
1 | ||
| 44325-28050 |
ACR30,40 ﾏｰｸ 4 |
1 | ||
| 44325-12270 |
MCR30,40 ﾏｰｸ無し |
1 | ||
| 44325-28020 |
ACR30,40 ﾏｰｸ 1 |
1 | ||
| 44325-28040 |
ACR30,40 ﾏｰｸ 3 |
1 | ||
| 44325-28030 |
ACR30,40 ﾏｰｸ 2 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-04071 |
MCR30,40 長さ=23.3,外径=4.0 |
2 | ||
| 44327C - GASKET, VANE PUMP HOUSING | ||||
| 44327-26010 |
MCR30,40 |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-28190 |
ACR30,40 ﾏｰｸ A |
1 | ||
| 44330-28200 |
ACR30,40 ﾏｰｸ B |
1 | ||
| 44330-28220 |
ACR30,40 ﾏｰｸ D |
1 | ||
| 44330-26091 |
MCR30,40 ﾏｰｸ C |
1 | ||
| 44330-28210 |
ACR30,40 ﾏｰｸ C |
1 | ||
| 44330-28240 |
ACR30,40 ﾏｰｸ F |
1 | ||
| 44330-26111 |
MCR30,40 ﾏｰｸ E |
1 | ||
| 44330-35360 |
ACR30,40 ﾏｰｸ F |
1 | ||
| 44330-26081 |
MCR30,40 ﾏｰｸ B |
1 | ||
| 44330-28230 |
ACR30,40 ﾏｰｸ E |
1 | ||
| 44330-35320 |
ACR30,40 ﾏｰｸ B |
1 | ||
| 44330-35340 |
ACR30,40 ﾏｰｸ D |
1 | ||
| 44330-26071 |
MCR30,40 ﾏｰｸ A |
1 | ||
| 44330-35350 |
ACR30,40 ﾏｰｸ E |
1 | ||
| 44330-26101 |
MCR30,40 ﾏｰｸ D |
1 | ||
| 44330-26121 |
MCR30,40 ﾏｰｸ F |
1 | ||
| 44330-35330 |
ACR30,40 ﾏｰｸ C |
1 | ||
| 44330-35310 |
ACR30,40 ﾏｰｸ A |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90501-13034 |
MCR30,40 |
1 | ||
| 90501-12103 |
ACR30,40 |
1 | ||
| 90501-13069 |
ACR30,40 |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 44337-32110 |
ACR30,40 |
1 | ||
| 44337-28110 |
MCR30,40 |
1 | ||
| 44337A - RING, O(FOR POWER STEERING SUCTION PORT) | ||||
| 90301-11016 |
MCR30,40 |
1 | ||
| 90301-11020 |
ACR30,40 |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 90301-19018 |
MCR30,40 内径=19.2,外径=22.3 |
1 | ||
| 90301-18009 |
ACR30,40 外径=22,内径=18.6 |
1 | ||
| 90301-19013 |
MCR30,40 内径=19.2,外径=22.3 |
1 | ||
| 44342 - PLATE, VANE PUMP SIDE, REAR | ||||
| 44342-26020 |
MCR30,40 |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90301-47001 |
MCR30,40 外側 |
1 | ||
| 90301-18007 |
MCR30,40 内側 |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90301-47001 |
MCR30,40 外側 |
1 | ||
| 90301-18007 |
MCR30,40 内側 |
1 | ||
| 44345B - PLATE, VANE PUMP | ||||
| 44345-26010 |
MCR30,40 長さ=15.000 |
10 | ||
| 44345-26030 |
MCR30,40 長さ=14.996 |
10 | ||
| 44345-32130 |
ACR30,40 ﾛｰﾀ ﾏｰｸ 3 |
10 | ||
| 44345-26050 |
MCR30,40 長さ=14.992 |
10 | ||
| 44345-32120 |
ACR30,40 ﾛｰﾀ ﾏｰｸ 2 |
10 | ||
| 44345-32140 |
ACR30,40 ﾛｰﾀ ﾏｰｸ 4 |
10 | ||
| 44345-26040 |
MCR30,40 長さ=14.994 |
10 | ||
| 44345-26020 |
MCR30,40 長さ=14.998 |
10 | ||
| 44345-32110 |
ACR30,40 ﾛｰﾀ ﾏｰｸ 1 |
10 | ||
| 44345-32100 |
ACR30,40 ﾛｰﾀ ﾏｰｸ無し |
10 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-28150 |
ACR30,40,MCR30,40 |
1 | ||
| 44362C - CUSHION(FOR VANE PUMP OIL RESERVOIR) | ||||
| 90540-09004 |
ACR30,40,MCR30,40 |
3 | ||
| 44362D - SPACER(FOR VANE PUMP OIL RESERVOIR) | ||||
| 90560-06014 |
ACR30,40,MCR30,40 |
3 | ||
| 44369A - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44390-28030 |
ACR30,40,MCR30,40 |
1 | ||
| 44441B - BRACKET, PUMP, FRONT | ||||
| 44441-28020 |
MCR30,40 |
1 | ||
| 44442A - BRACKET, VANE PUMP, REAR | ||||
| 44442-33021 |
MCR30,40 |
1 | ||
| Common parts | ||||
| 90105-08192 | ||||
| 90105-08194 | ||||
| 90119-06186 | ||||
| 90119-08035 | ||||
| 90206-31001 | ||||
| 91512-61025 | ||||
| 91512-61085 | ||||

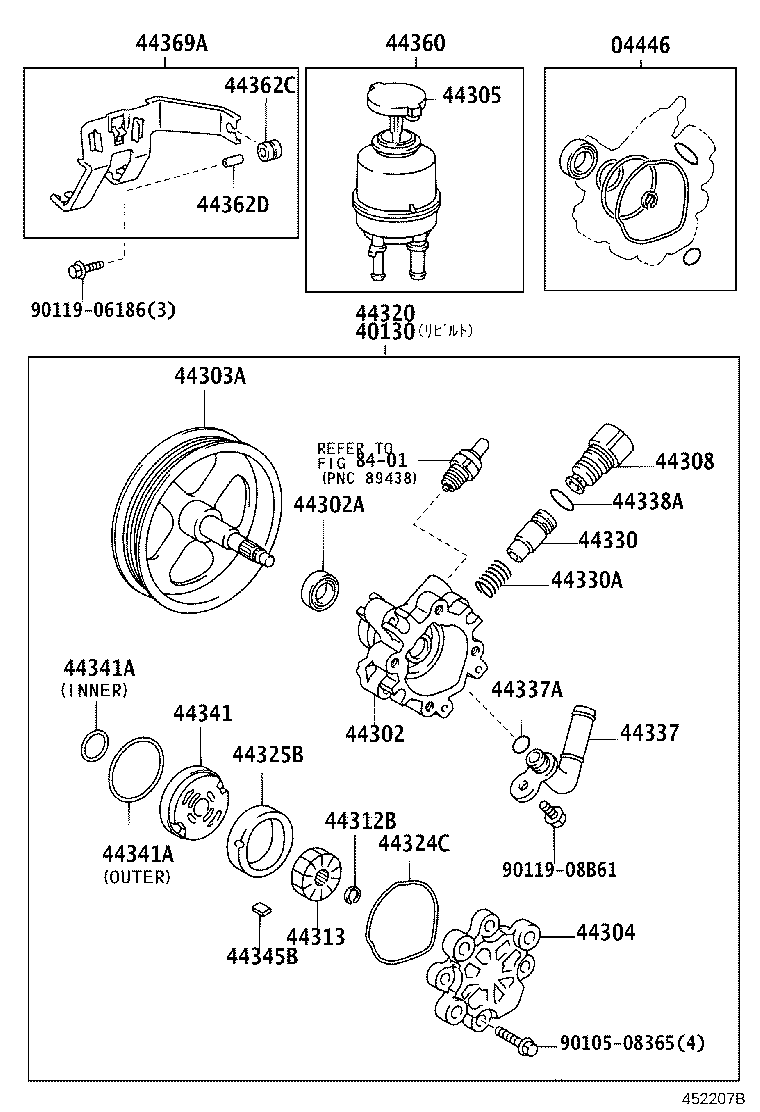

(0002-0304)ACR30,40
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-32050 |
ACR30,40 |
1 | ||
| 04446-34010 |
MCR30,40 |
1 | ||
| 40130 - PUMP ASSY,VANE REBUILT | ||||
| 40130-28240 |
ACR30,40 TOYODA KOKI |
1 | ||
| 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT | ||||
| 44302-33020 |
MCR30,40 |
1 | ||
| 44302-32100 |
ACR30,40 |
1 | ||
| 44302A - SEAL, OIL, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90311-15012 |
ACR30,40 |
1 | ||
| 44303A - SHAFT SUB-ASSY, W/PULLEY | ||||
| 44303-28010 |
ACR30,40 |
1 | ||
| 44304 - HOUSING SUB-ASSY, VANE PUMP, REAR | ||||
| 44304-32041 |
ACR30,40 |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-28030 |
ACR30,40,MCR30,40 |
1 | ||
| 44308 - UNION SUB-ASSY, PRESSURE PORT | ||||
| 44308-28040 |
ACR30,40 |
1 | ||
| 44308-28030 |
MCR30,40 |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90520-10003 |
ACR30,40,MCR30,40 |
1 | ||
| 44313 - ROTOR, VANE PUMP | ||||
| 44313-26060 |
MCR30,40 ﾏｰｸ無し |
1 | ||
| 44313-26070 |
MCR30,40 ﾏｰｸ 1 |
1 | ||
| 44313-26080 |
MCR30,40 ﾏｰｸ 2 |
1 | ||
| 44313-26090 |
MCR30,40 ﾏｰｸ 3 |
1 | ||
| 44313-32100 |
ACR30,40 ﾏｰｸ 4 |
1 | ||
| 44313-32080 |
ACR30,40 ﾏｰｸ 2 |
1 | ||
| 44313-32060 |
ACR30,40 ﾏｰｸ無し |
1 | ||
| 44313-32070 |
ACR30,40 ﾏｰｸ 1 |
1 | ||
| 44313-26100 |
MCR30,40 ﾏｰｸ 4 |
1 | ||
| 44313-32090 |
ACR30,40 ﾏｰｸ 3 |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44310-28240 |
ACR30,40 |
1 | ||
| 44320-28160 |
MCR30,40 |
1 | ||
| 44324C - RING, O(FOR PUMP HOUSING REAR) | ||||
| 90903-01007 |
ACR30,40 |
1 | ||
| 44325B - RING, VANE PUMP CAM | ||||
| 44325-12280 |
MCR30,40 ﾏｰｸ 1 |
1 | ||
| 44325-12290 |
MCR30,40 ﾏｰｸ 2 |
1 | ||
| 44325-12300 |
MCR30,40 ﾏｰｸ 3 |
1 | ||
| 44325-28010 |
ACR30,40 ﾏｰｸ 0 |
1 | ||
| 44325-12310 |
MCR30,40 ﾏｰｸ 4 |
1 | ||
| 44325-28050 |
ACR30,40 ﾏｰｸ 4 |
1 | ||
| 44325-12270 |
MCR30,40 ﾏｰｸ無し |
1 | ||
| 44325-28020 |
ACR30,40 ﾏｰｸ 1 |
1 | ||
| 44325-28040 |
ACR30,40 ﾏｰｸ 3 |
1 | ||
| 44325-28030 |
ACR30,40 ﾏｰｸ 2 |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-28190 |
ACR30,40 ﾏｰｸ A |
1 | ||
| 44330-28200 |
ACR30,40 ﾏｰｸ B |
1 | ||
| 44330-28220 |
ACR30,40 ﾏｰｸ D |
1 | ||
| 44330-26091 |
MCR30,40 ﾏｰｸ C |
1 | ||
| 44330-28210 |
ACR30,40 ﾏｰｸ C |
1 | ||
| 44330-28240 |
ACR30,40 ﾏｰｸ F |
1 | ||
| 44330-26111 |
MCR30,40 ﾏｰｸ E |
1 | ||
| 44330-35360 |
ACR30,40 ﾏｰｸ F |
1 | ||
| 44330-26081 |
MCR30,40 ﾏｰｸ B |
1 | ||
| 44330-28230 |
ACR30,40 ﾏｰｸ E |
1 | ||
| 44330-35320 |
ACR30,40 ﾏｰｸ B |
1 | ||
| 44330-35340 |
ACR30,40 ﾏｰｸ D |
1 | ||
| 44330-26071 |
MCR30,40 ﾏｰｸ A |
1 | ||
| 44330-35350 |
ACR30,40 ﾏｰｸ E |
1 | ||
| 44330-26101 |
MCR30,40 ﾏｰｸ D |
1 | ||
| 44330-26121 |
MCR30,40 ﾏｰｸ F |
1 | ||
| 44330-35330 |
ACR30,40 ﾏｰｸ C |
1 | ||
| 44330-35310 |
ACR30,40 ﾏｰｸ A |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90501-13034 |
MCR30,40 |
1 | ||
| 90501-12103 |
ACR30,40 |
1 | ||
| 90501-13069 |
ACR30,40 |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 44337-32110 |
ACR30,40 |
1 | ||
| 44337-28110 |
MCR30,40 |
1 | ||
| 44337A - RING, O(FOR POWER STEERING SUCTION PORT) | ||||
| 90301-11016 |
MCR30,40 |
1 | ||
| 90301-11020 |
ACR30,40 |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 90301-19018 |
MCR30,40 内径=19.2,外径=22.3 |
1 | ||
| 90301-18009 |
ACR30,40 外径=22,内径=18.6 |
1 | ||
| 90301-19013 |
MCR30,40 内径=19.2,外径=22.3 |
1 | ||
| 44341 - PLATE, VANE PUMP SIDE, FRONT | ||||
| 44341-32031 |
ACR30,40 |
1 | ||
| 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90301-16012 |
ACR30,40 内側 |
1 | ||
| 90301-45003 |
ACR30,40 外側 |
1 | ||
| 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90301-16012 |
ACR30,40 内側 |
1 | ||
| 90301-45003 |
ACR30,40 外側 |
1 | ||
| 44345B - PLATE, VANE PUMP | ||||
| 44345-26010 |
MCR30,40 長さ=15.000 |
10 | ||
| 44345-26030 |
MCR30,40 長さ=14.996 |
10 | ||
| 44345-32130 |
ACR30,40 ﾛｰﾀ ﾏｰｸ 3 |
10 | ||
| 44345-26050 |
MCR30,40 長さ=14.992 |
10 | ||
| 44345-32120 |
ACR30,40 ﾛｰﾀ ﾏｰｸ 2 |
10 | ||
| 44345-32140 |
ACR30,40 ﾛｰﾀ ﾏｰｸ 4 |
10 | ||
| 44345-26040 |
MCR30,40 長さ=14.994 |
10 | ||
| 44345-26020 |
MCR30,40 長さ=14.998 |
10 | ||
| 44345-32110 |
ACR30,40 ﾛｰﾀ ﾏｰｸ 1 |
10 | ||
| 44345-32100 |
ACR30,40 ﾛｰﾀ ﾏｰｸ無し |
10 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-28150 |
ACR30,40,MCR30,40 |
1 | ||
| 44362C - CUSHION(FOR VANE PUMP OIL RESERVOIR) | ||||
| 90540-09004 |
ACR30,40,MCR30,40 |
3 | ||
| 44362D - SPACER(FOR VANE PUMP OIL RESERVOIR) | ||||
| 90560-06014 |
ACR30,40,MCR30,40 |
3 | ||
| 44369A - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44390-28030 |
ACR30,40,MCR30,40 |
1 | ||
| Common parts | ||||
| 90105-08365 | ||||
| 90119-06186 | ||||
| 90119-08B61 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
