MCR40W-MRSEK (1999)
Toyota Estima T/L
(9912- )MCR30,40
U140E,U140F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

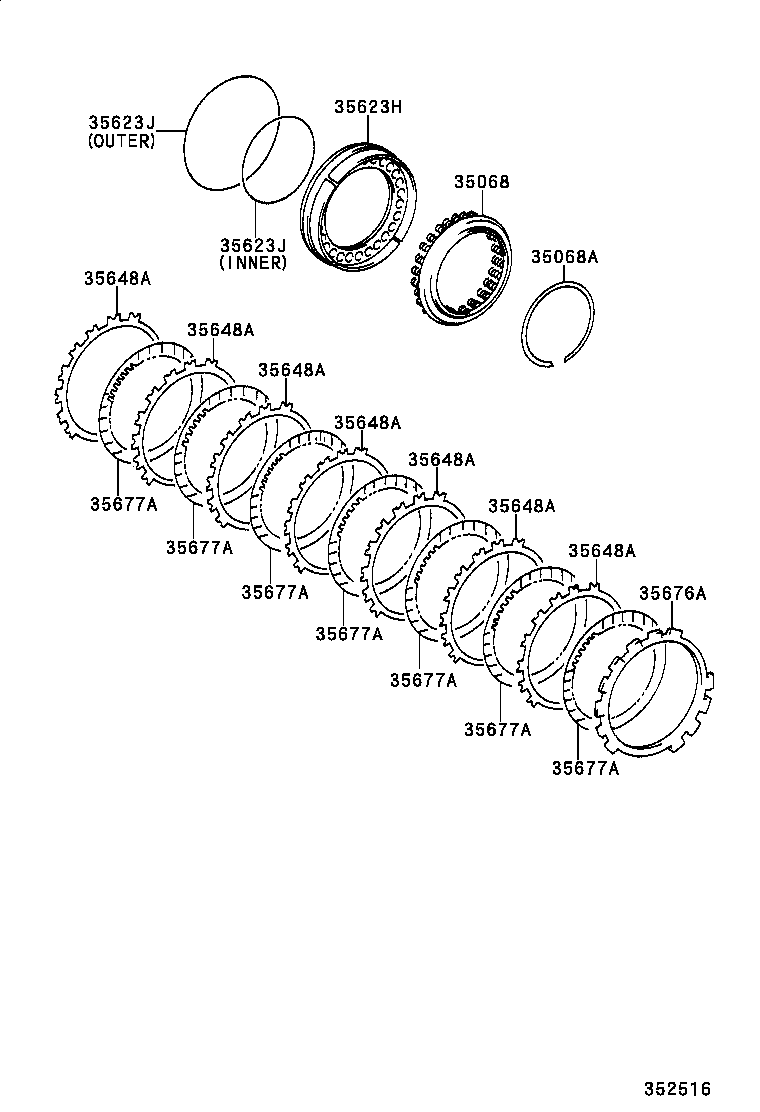

| 35068 - SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN | ||||
| 35068-21010 |
ACR30,40,MCR30,40 |
1 | ||
| 35068A - RING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING | ||||
| 90520-99035 |
ACR30,40,MCR30,40 |
1 | ||
| 35623H - PISTON, 1ST & REVERSE BRAKE | ||||
| 35623-28010 |
MCR30,40 |
1 | ||
| 35623J - RING, O (FOR 1ST & REVERSE BRAKE) | ||||
| 90301-99098 |
ACR30,40,MCR30,40 外側 |
1 | ||
| 90301-99096 |
ACR30,40,MCR30,40 内側 |
1 | ||
| 35623J - RING, O (FOR 1ST & REVERSE BRAKE) | ||||
| 90301-99098 |
ACR30,40,MCR30,40 外側 |
1 | ||
| 90301-99096 |
ACR30,40,MCR30,40 内側 |
1 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35692-28010 |
MCR30,40 |
7 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35692-28010 |
MCR30,40 |
7 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35692-28010 |
MCR30,40 |
7 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35692-28010 |
MCR30,40 |
7 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35692-28010 |
MCR30,40 |
7 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35692-28010 |
MCR30,40 |
7 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35692-28010 |
MCR30,40 |
7 | ||
| 35676A - FLANGE, BRAKE (FOR 1ST & REVERSE BRAKE) | ||||
| 35678-21020 |
ACR30,40,MCR30,40 厚さ=1.9,ﾏｰｸ 2 |
1 | ||
| 35678-21080 |
ACR30,40,MCR30,40 厚さ=2.5,ﾏｰｸ 8 |
1 | ||
| 35678-21010 |
ACR30,40,MCR30,40 厚さ=1.8,ﾏｰｸ 1 |
1 | ||
| 35678-21070 |
ACR30,40,MCR30,40 厚さ=2.4,ﾏｰｸ 7 |
1 | ||
| 35678-21040 |
ACR30,40,MCR30,40 厚さ=2.1,ﾏｰｸ 4 |
1 | ||
| 35678-21050 |
ACR30,40,MCR30,40 厚さ=2.2,ﾏｰｸ 5 |
1 | ||
| 35678-21060 |
ACR30,40,MCR30,40 厚さ=2.3,ﾏｰｸ 6 |
1 | ||
| 35678-21030 |
ACR30,40,MCR30,40 厚さ=2.0,ﾏｰｸ 3 |
1 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35682-28010 |
MCR30,40 |
7 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35682-28010 |
MCR30,40 |
7 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35682-28010 |
MCR30,40 |
7 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35682-28010 |
MCR30,40 |
7 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35682-28010 |
MCR30,40 |
7 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35682-28010 |
MCR30,40 |
7 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35682-28010 |
MCR30,40 |
7 | ||
(0002- )ACR30,40
U140F,U241E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35068 - SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN | ||||
| 35068-21010 |
ACR30,40,MCR30,40 |
1 | ||
| 35068A - RING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING | ||||
| 90520-99035 |
ACR30,40,MCR30,40 |
1 | ||
| 35623H - PISTON, 1ST & REVERSE BRAKE | ||||
| 35623-28010 |
MCR30,40 |
1 | ||
| 35623J - RING, O (FOR 1ST & REVERSE BRAKE) | ||||
| 90301-99098 |
ACR30,40,MCR30,40 外側 |
1 | ||
| 90301-99096 |
ACR30,40,MCR30,40 内側 |
1 | ||
| 35623J - RING, O (FOR 1ST & REVERSE BRAKE) | ||||
| 90301-99098 |
ACR30,40,MCR30,40 外側 |
1 | ||
| 90301-99096 |
ACR30,40,MCR30,40 内側 |
1 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35692-28010 |
MCR30,40 |
7 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35692-28010 |
MCR30,40 |
7 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35692-28010 |
MCR30,40 |
7 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35692-28010 |
MCR30,40 |
7 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35692-28010 |
MCR30,40 |
7 | ||
| 35676A - FLANGE, BRAKE (FOR 1ST & REVERSE BRAKE) | ||||
| 35678-21020 |
ACR30,40,MCR30,40 厚さ=1.9,ﾏｰｸ 2 |
1 | ||
| 35678-21080 |
ACR30,40,MCR30,40 厚さ=2.5,ﾏｰｸ 8 |
1 | ||
| 35678-21010 |
ACR30,40,MCR30,40 厚さ=1.8,ﾏｰｸ 1 |
1 | ||
| 35678-21070 |
ACR30,40,MCR30,40 厚さ=2.4,ﾏｰｸ 7 |
1 | ||
| 35678-21040 |
ACR30,40,MCR30,40 厚さ=2.1,ﾏｰｸ 4 |
1 | ||
| 35678-21050 |
ACR30,40,MCR30,40 厚さ=2.2,ﾏｰｸ 5 |
1 | ||
| 35678-21060 |
ACR30,40,MCR30,40 厚さ=2.3,ﾏｰｸ 6 |
1 | ||
| 35678-21030 |
ACR30,40,MCR30,40 厚さ=2.0,ﾏｰｸ 3 |
1 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35682-28010 |
MCR30,40 |
7 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35682-28010 |
MCR30,40 |
7 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35682-28010 |
MCR30,40 |
7 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35682-28010 |
MCR30,40 |
7 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35682-28010 |
MCR30,40 |
7 | ||
