MCR40W-MRSEK (1999)

Toyota Estima T/L

Production Dec 1999 - Apr 2003
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

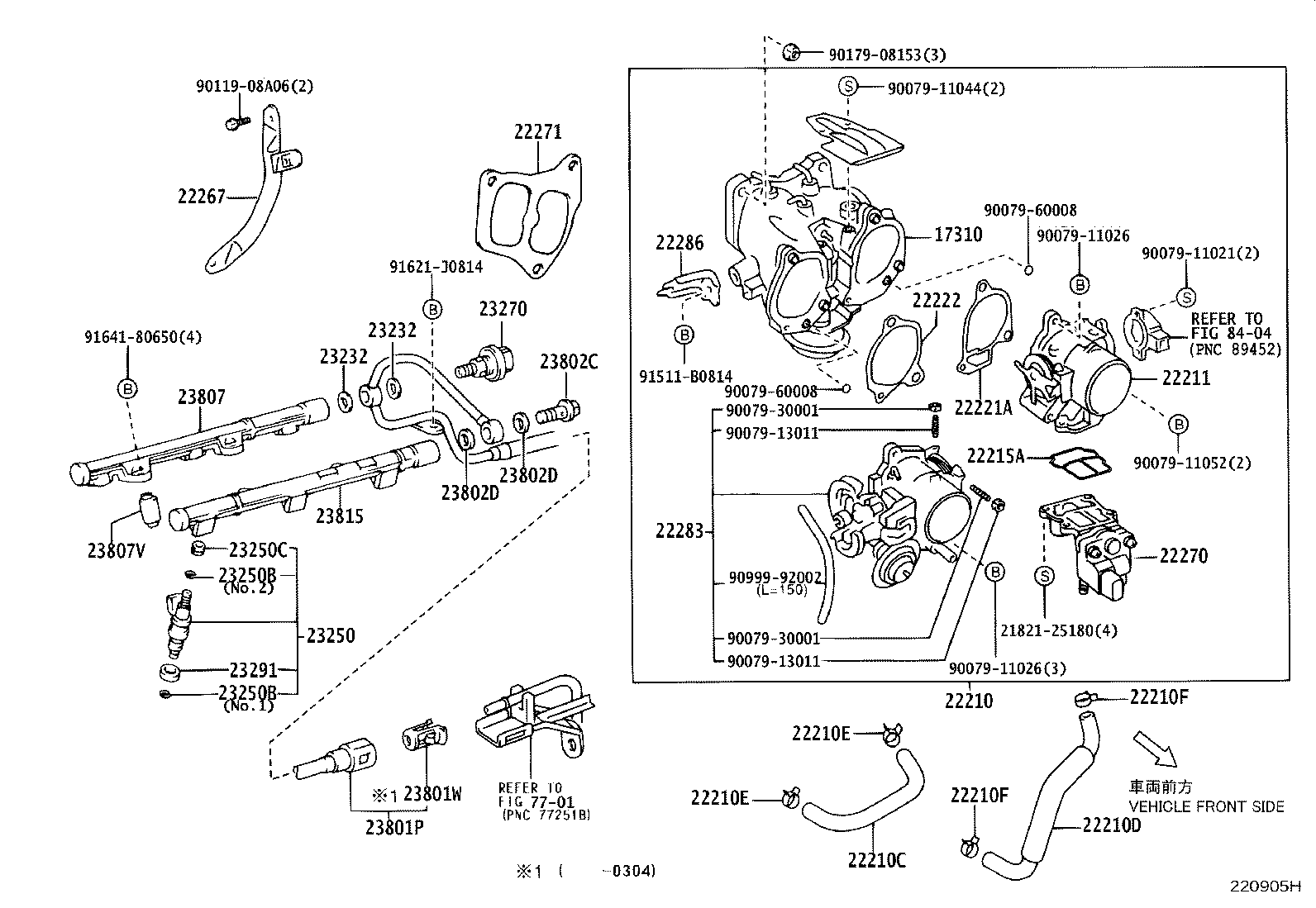

ILLUST NO. 1 OF 2(9912- )1MZFE

Click highlighted areas on diagram

diagram 17310 2182125180 22210 22210C 22210D 22210E 22210E 22210F 22210F 22211 22215A 22221A 22222 22267 22270 22271 22283 22286 23232 23232 23250 23250B 23250B 23250C 23270 23291 23801P 23801W 23802C 23802D 23802D 23807 23807V 23815 7701 8404 9007911021 9007911026 9007911026 9007911044 9007911052 9007913011 9007913011 9007930001 9007930001 9007960008 9007960008 9011908A06 9017908153 9099992002 91511B0814 91621J0814 9164180650
Part # Description Qty Price
17310 - VALVE ASSY, INTAKE AIR CONTROL, NO.1
17310-20010

1MZFE..MCR30,40

 1
22210 - BODY ASSY, THROTTLE
22210-20130

1MZFE..MCR30,40

 1
22210C - HOSE, WATER BY-PASS, NO.1
16264-20020

1MZFE..MCR30,40

 1
22210D - HOSE, WATER BY-PASS, NO.2
16267-20020

1MZFE..MCR30,40

 1
22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)
96135-41300

1MZFE..MCR30,40

 2
22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)
96135-41300

1MZFE..MCR30,40

 2
22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)
96135-41300

1MZFE..MCR30,40

 2
22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)
96135-41300

1MZFE..MCR30,40

 2
22211 - BODY, THROTTLE
22211-20130

1MZFE..MCR30,40

 1
22215A - GASKET, IDLE SPEED CONTROL VALVE
22215-20010

1MZFE..MCR30,40

 1
22221A - GASKET, INTAKE AIR CONTROL VALVE, NO.1
22221-20132

1MZFE..MCR30,40

 1
22222 - GASKET, INTAKE AIR CONTROL VALVE, NO.2
22222-20132

1MZFE..MCR30,40

 1
22267 - BRACKET, THROTTLE BODY
22267-20010

1MZFE..MCR30,40

 1
22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22270-20050

1MZFE..MCR30,40

 1
22271 - GASKET, THROTTLE BODY
22271-20020

1MZFE..MCR30,40

 1
22283 - BODY, THROTTLE, NO.2
22283-20130

1MZFE..MCR30,40

 1
22286 - BRACKET, THROTTLE BODY
22286-20130

1MZFE..MCR30,40

 1
23232 - GASKET(FOR FUEL PUMP HOSE)
23232-41081

1MZFE..MCR30,40

 2
23232 - GASKET(FOR FUEL PUMP HOSE)
23232-41081

1MZFE..MCR30,40

 2
23250 - INJECTOR ASSY, FUEL
23209-20020

1MZFE..MCR30,40

 6
23250B - RING, O(FOR FUEL INJECTOR)
90301-07024

1MZFE..MCR30,40

 12
23250B - RING, O(FOR FUEL INJECTOR)
90301-07024

1MZFE..MCR30,40

 12
23250C - GROMMET(FOR FUEL INJECTOR)
90480-13005

1MZFE..MCR30,40

 6
23270 - DAMPER ASSY, FUEL PRESSURE PULSATION
23270-62010

1MZFE..MCR30,40

 1
23291 - INSULATOR, INJECTOR VIBRATION
23291-20010

1MZFE..MCR30,40

 6
23801P - PIPE SUB-ASSY, FUEL, NO.1
23801-20100

1MZFE..MCR30,40

 1
23801W - CLIP, FUEL TUBE CONNECTOR
90923-07010

1MZFE..MCR30,40

 1
23802C - BOLT, UNION(FOR FUEL PIPE NO.2)
90401-12015

1MZFE..MCR30,40

 1
23802D - GASKET(FOR FUEL PIPE NO.2)
90430-12026

1MZFE..MCR30,40

 2
23802D - GASKET(FOR FUEL PIPE NO.2)
90430-12026

1MZFE..MCR30,40

 2
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23814-20020

1MZFE..MCR30,40

 1
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
90561-08020

1MZFE..MCR30,40

 4
23815 - PIPE, FUEL DELIVERY, NO.2
23815-20020

1MZFE..MCR30,40

 1
Common parts
21821-25180
90079-11021
90079-11026
90079-11044
90079-11052
90079-13011
90079-30001
90079-60008
90119-08A06
90179-08153
90999-92002
91511-B0814
91621-J0814
91641-80650
Linked diagrams
7701
8404

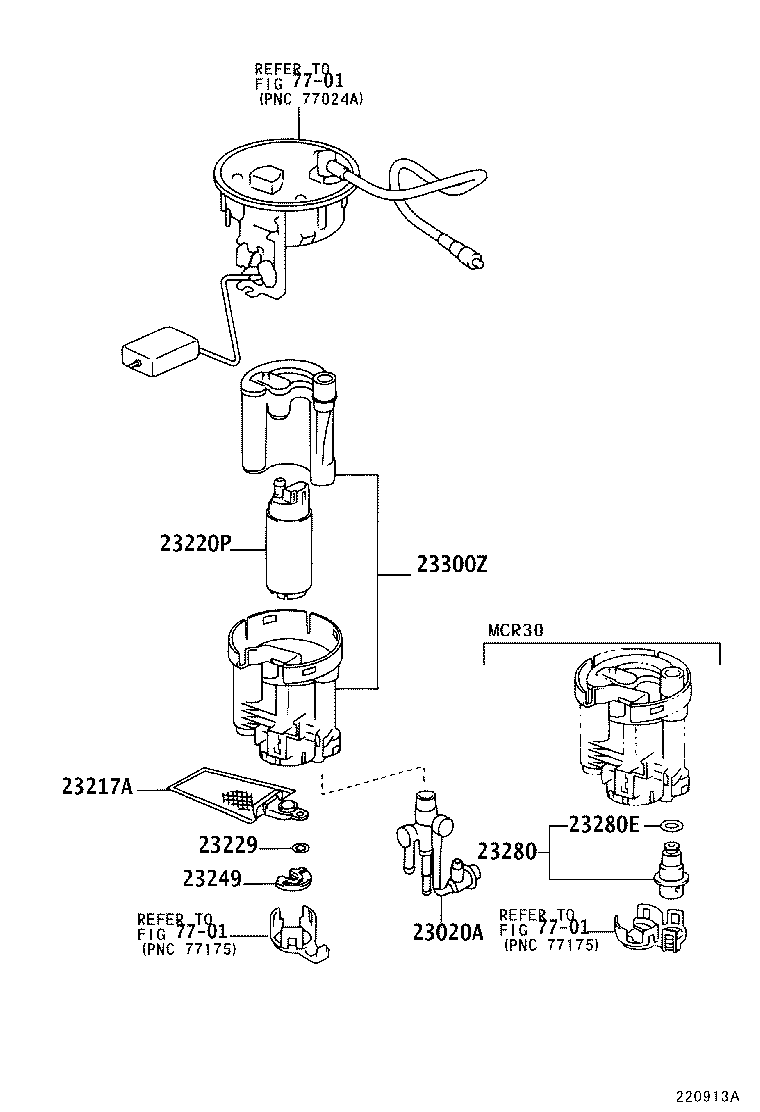

ILLUST NO. 2 OF 2(9912- )1MZFE

Click highlighted areas on diagram

diagram 23020A 23217A 23220P 23229 23249 23280 23280E 23300Z 7701 7701 7701
Part # Description Qty Price
23020A - REGULATOR ASSY, FUEL PRESSURE W/JET PUMP
23020-70010

1MZFE..MCR40

 1
23217A - FILTER, FUEL PUMP
23217-76040

1MZFE..MCR30,40

 1
23220P - PUMP ASSY, FUEL
23221-74090

1MZFE..MCR30,40

 1
23229 - CLIP(FOR FUEL PUMP FILTER)
23229-16010

1MZFE..MCR30,40

 1
23249 - RUBBER, CUSHION(FOR FUEL PUMP)
23249-46180

1MZFE..MCR30,40

 1
23300Z - FILTER, FUEL(FOR FUEL TANK)
23300-21010

1MZFE..MCR30,40

 1
Linked diagrams
7701
