MCR40W-MFSZK (2003)
Toyota Estima T/L

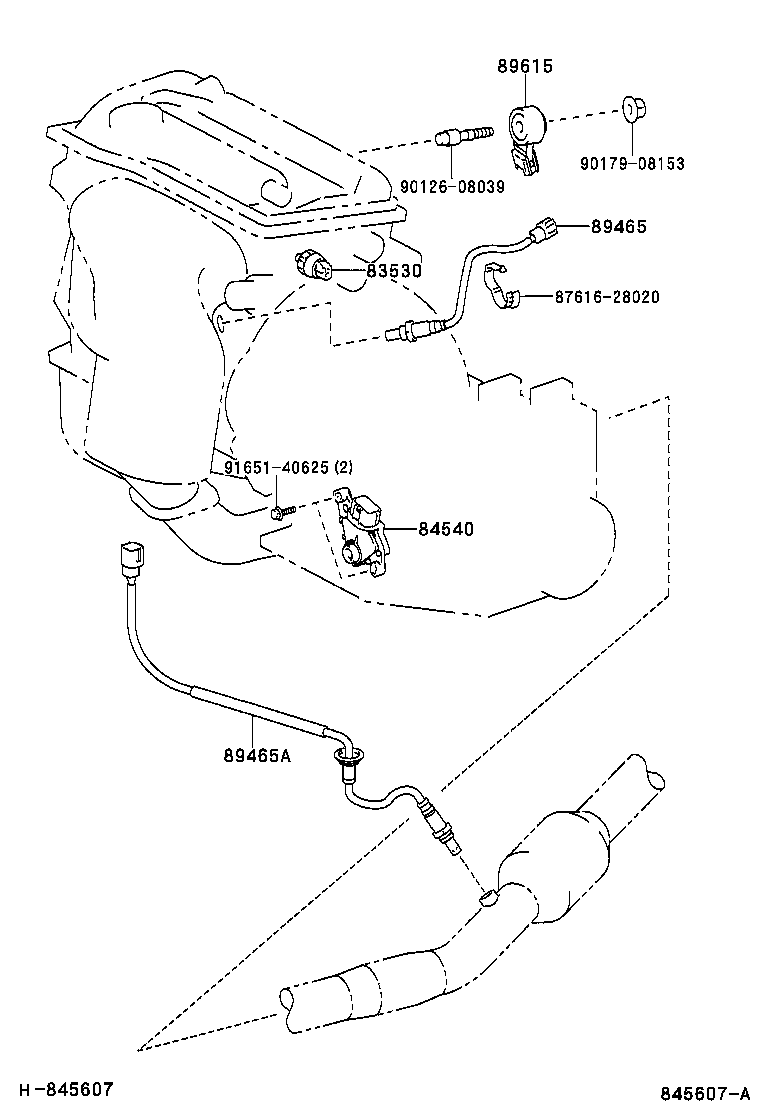

ILLUST NO. 1 OF 7(0304- )ACR30,40
ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐﾂｼﾖﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-60020 |
ACR30,40,MCR30,40 YAZAKI |
1 | ||
| 83530-28020 |
ACR30,40,MCR30,40 DENSO |
1 | ||
| 83530-60020 |
ACR30,40,MCR30,40 YAZAKI |
1 | ||
| 83530-28020 |
ACR30,40,MCR30,40 DENSO |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-12230 |
ACR30,40,MCR30,40 |
1 | ||
| 84540-48010 |
ACR30,40,MCR30,40 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-28270 |
ACR30,40 |
1 | ||
| 89465-41060 |
MCR30,40 ﾌﾛﾝﾄ |
1 | ||
| 89465-41060 |
MCR30,40 ﾌﾛﾝﾄ |
1 | ||
| 89465-30610 |
MCR30,40 ﾘﾔ |
1 | ||
| 89467-28120 |
ACR30,40 |
1 | ||
| 89465-30610 |
MCR30,40 ﾘﾔ |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-12090 |
MCR30,40 |
2 | ||
| 89615-20090 |
ACR30,40 |
1 | ||
| 89615-12090 |
MCR30,40 |
2 | ||
| Common parts | ||||
| 87616-28020 | ||||
| 90126-08039 | ||||
| 90179-08153 | ||||
| 91651-40625 | ||||

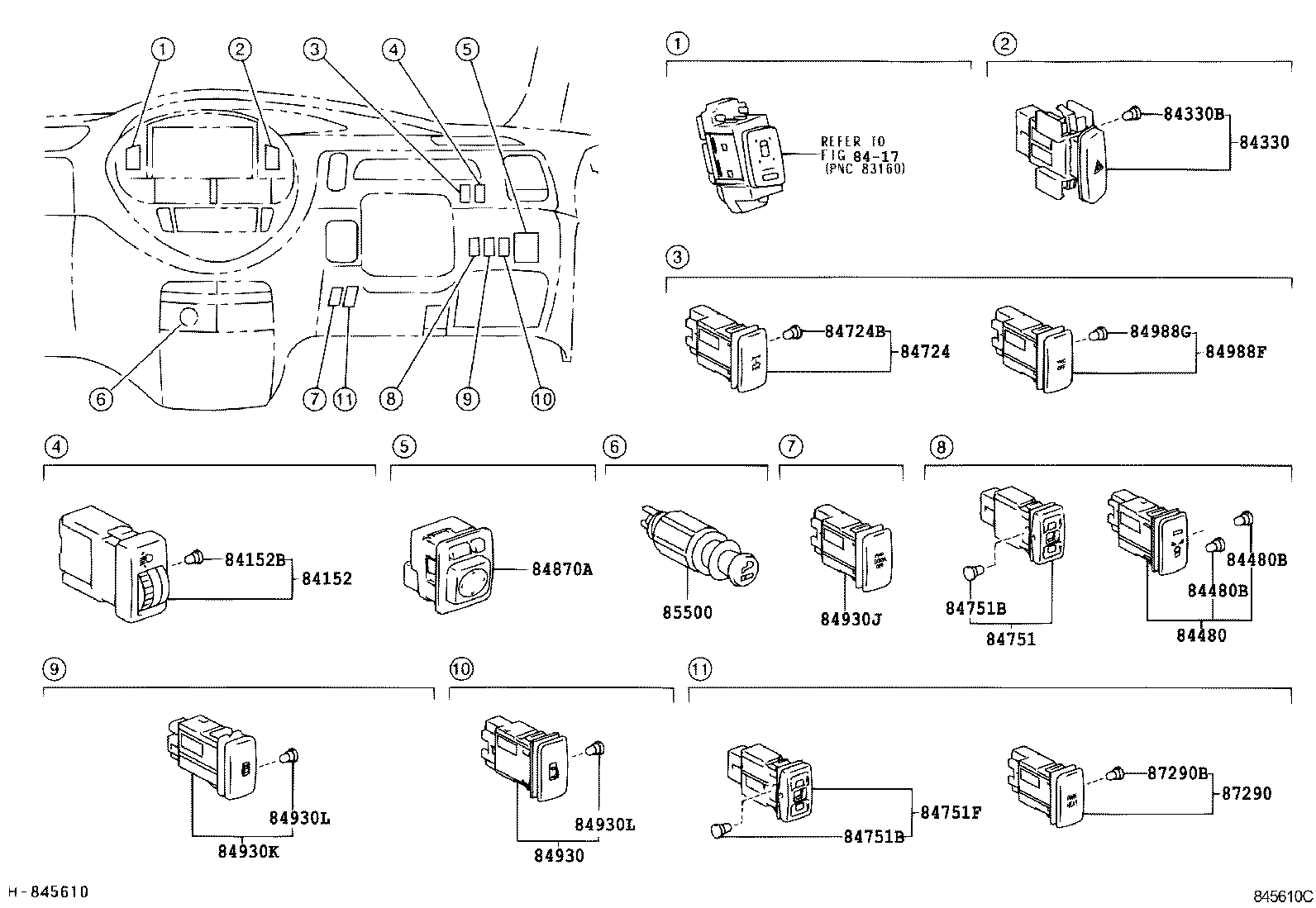

ILLUST NO. 4 OF 7(0304- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-44020 |
ACR30,40,MCR30,40..AERAS,AERSS,G |
1 | ||
| 84152B - BULB (FOR HEADLAMP LEVELING SWITCH) | ||||
| 90010-08107 |
ACR30,40,MCR30,40..AERAS,AERSS,G 14V 40MA,ｸﾞﾘｰﾝ |
1 | ||
| 90010-08100 |
ACR30,40,MCR30,40..AERAS,AERSS,G 14V 40MA,ｸﾞﾘｰﾝ |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-28160 |
ACR30,40,MCR30,40 |
1 | ||
| 84332-28160 |
ACR30,40,MCR30,40 |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10860 |
ACR30,40,MCR30,40 14V 0.91W |
1 | ||
| 84999-10860 |
ACR30,40,MCR30,40 14V 0.91W |
1 | ||
| 84480 - SWITCH ASSY, MAIN | ||||
| 84480-28010 |
ACR30,40,MCR30,40..AERSS |
1 | ||
| 84480B - BULB, MAIN SWITCH ASSY | ||||
| 90010-01062 |
ACR30,40,MCR30,40..AERSS 14V0.63W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-01080 |
ACR30,40,MCR30,40..AERSS 14V 0.91W,ｷｬｯﾌﾟ付き |
1 | ||
| 84480B - BULB, MAIN SWITCH ASSY | ||||
| 90010-01062 |
ACR30,40,MCR30,40..AERSS 14V0.63W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-01080 |
ACR30,40,MCR30,40..AERSS 14V 0.91W,ｷｬｯﾌﾟ付き |
1 | ||
| 84724 - SWITCH, 4 WHEEL DRIVE CONTROL | ||||
| 84724-28050 |
ACR40,MCR40 |
1 | ||
| 84724-28050 |
ACR40,MCR40 |
1 | ||
| 84724B - BULB, 4 WHEEL DRIVE CONTROL SWITCH | ||||
| 90010-01039 |
ACR40,MCR40 |
1 | ||
| 90010-01039 |
ACR40,MCR40 |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-28020 |
ACR30,40,MCR30,40..AERAS,AERSS,G,X |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-28080 |
ACR30,40,MCR30,40..AERAS,AERSS,G,X |
1 | ||
| 84930J - SWITCH ASSY, AUTO SLIDE DOOR MAIN | ||||
| 84930-28060 |
ACR30,40,MCR30,40..AERAS,AERSS,G,X |
1 | ||
| 84930-28060 |
ACR30,40,MCR30,40 |
1 | ||
| 84930K - SWITCH ASSY, AUTO SLIDE DOOR CONTROL | ||||
| 84930-58021 |
ACR30,40,MCR30,40..AERAS,AERSS,G,X |
1 | ||
| 84930-28040 |
ACR30,40,MCR30,40 |
1 | ||
| 84930L - BULB, AUTO SLIDE DOOR CONTROL SWITCH | ||||
| 90010-01039 |
ACR30,40,MCR30,40 14V0.91W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-01061 |
ACR30,40,MCR30,40..AERAS,AERSS,G,X 14V0.84W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
2 | ||
| 84930L - BULB, AUTO SLIDE DOOR CONTROL SWITCH | ||||
| 90010-01039 |
ACR30,40,MCR30,40 14V0.91W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-01061 |
ACR30,40,MCR30,40..AERAS,AERSS,G,X 14V0.84W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
2 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-28070 |
ACR30,40,MCR30,40 |
1 | ||
| 85500-28070 |
ACR30,40,MCR30,40 |
1 | ||
| 87290 - SWITCH ASSY, HEATER | ||||
| 87290-28010 |
ACR30,40 |
1 | ||
| 87290B - BULB (FOR HEATER SWITCH) | ||||
| 90010-01039 |
ACR30,40 14V0.91W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| Linked diagrams | ||||
| 8417 | ||||

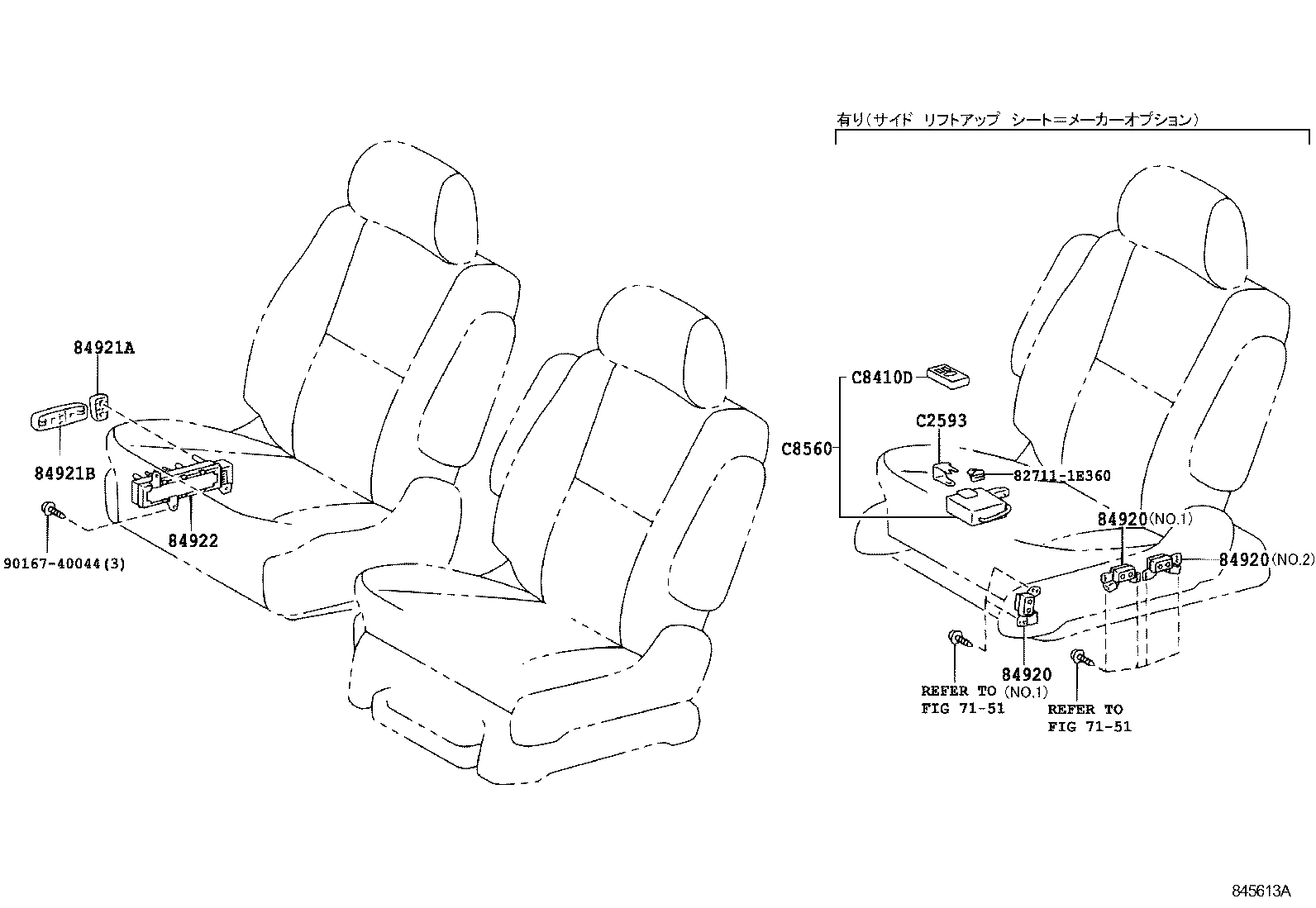

ILLUST NO. 6 OF 7(0304- )
ｼ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-1E360 | ||||
| 90167-40044 | ||||
| Linked diagrams | ||||
| 7151 | ||||
ILLUST NO. 7 OF 7(0304- )
ﾄﾞｱ,ﾙ-ﾌ & ﾌﾛｱ

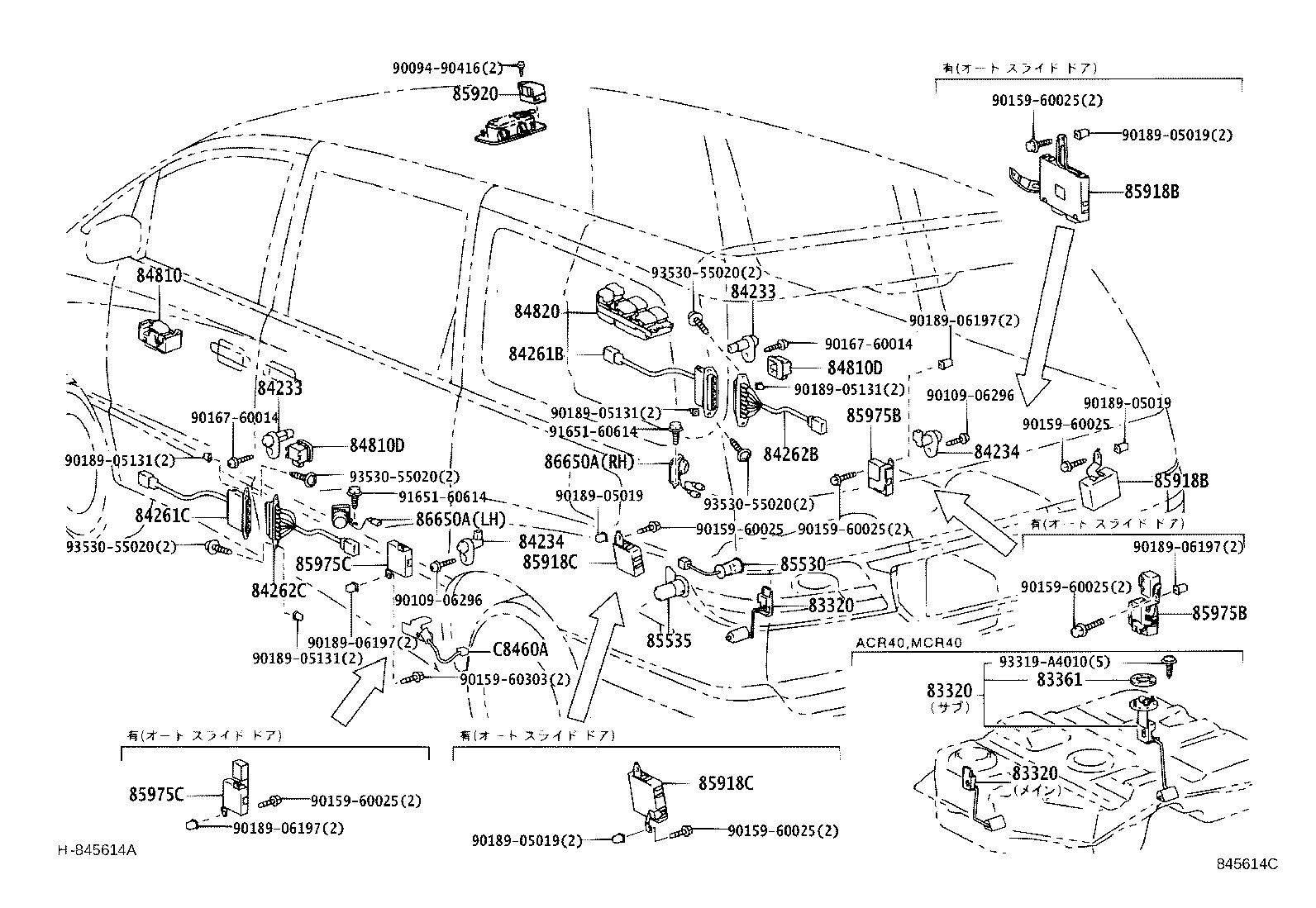

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-28490 |
ACR40,MCR40 ﾒｲﾝ |
1 | ||
| 83320-28490 |
ACR40,MCR40 ﾒｲﾝ |
1 | ||
| 83320-80378 |
ACR40,MCR40 ｻﾌﾞ |
1 | ||
| 83320-80378 |
ACR40,MCR40 ｻﾌﾞ |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-28490 |
ACR40,MCR40 ﾒｲﾝ |
1 | ||
| 83320-28490 |
ACR40,MCR40 ﾒｲﾝ |
1 | ||
| 83320-80378 |
ACR40,MCR40 ｻﾌﾞ |
1 | ||
| 83320-80378 |
ACR40,MCR40 ｻﾌﾞ |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-28490 |
ACR40,MCR40 ﾒｲﾝ |
1 | ||
| 83320-28490 |
ACR40,MCR40 ﾒｲﾝ |
1 | ||
| 83320-80378 |
ACR40,MCR40 ｻﾌﾞ |
1 | ||
| 83320-80378 |
ACR40,MCR40 ｻﾌﾞ |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 77169-14020 |
ACR40,MCR40 |
1 | ||
| 77169-14020 |
ACR40,MCR40 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-52010 |
ACR30,40,MCR30,40 |
2 | ||
| 84231-52010 |
ACR30,40,MCR30,40 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-52010 |
ACR30,40,MCR30,40 |
2 | ||
| 84231-52010 |
ACR30,40,MCR30,40 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
ACR30,40,MCR30,40 |
2 | ||
| 84231-53010 |
ACR30,40,MCR30,40 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
ACR30,40,MCR30,40 |
2 | ||
| 84231-53010 |
ACR30,40,MCR30,40 |
2 | ||
| 84261B - JUNCTION, SLIDE DOOR CONTROL,MALE | ||||
| 84261-28180 |
ACR30,40,MCR30,40 ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ) |
1 | ||
| 84261-28180 |
ACR30,40,MCR30,40..AERAS,AERSS,G,X ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ) |
1 | ||
| 84261-28200 |
ACR30,40,MCR30,40..AERAS,AERSS,J,X |
1 | ||
| 84261C - JUNCTION, SLIDE DOOR CONTROL,MALE NO.1 | ||||
| 84261-28190 |
ACR30,40,MCR30,40..AERAS,AERSS,G,X ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ) |
1 | ||
| 84261-28190 |
ACR30,40,MCR30,40 ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ) |
1 | ||
| 84261-28210 |
ACR30,40,MCR30,40..AERAS,AERSS,J,X |
1 | ||
| 84262B - JUNCTION, SLIDE DOOR CONTROL, FEMALE | ||||
| 84262-28210 |
ACR30,40,MCR30,40..AERAS,AERSS,G,X ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ) |
1 | ||
| 84262-28210 |
ACR30,40,MCR30,40 ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ) |
1 | ||
| 84262-28230 |
ACR30,40,MCR30,40..AERAS,AERSS,J,X |
1 | ||
| 84262C - JUNCTION, SLIDE DOOR CONTROL, FEMALE, NO.1 | ||||
| 84262-28220 |
ACR30,40,MCR30,40 ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ) |
1 | ||
| 84262-28220 |
ACR30,40,MCR30,40..AERAS,AERSS,G,X ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ) |
1 | ||
| 84262-28240 |
ACR30,40,MCR30,40..AERAS,AERSS,J,X |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-60050 |
ACR30,40,MCR30,40 |
1 | ||
| 84810-60050 |
ACR30,40,MCR30,40 |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-52010B6 |
ACR30,40,MCR30,40..AERAS,AERSS,J MD.GRAY,TRIM1# |
2 | ||
| 84810-52010B3 |
ACR30,40,MCR30,40 MD.CHARCOAL,TRIM12 |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-52010B6 |
ACR30,40,MCR30,40..AERAS,AERSS,J MD.GRAY,TRIM1# |
2 | ||
| 84810-52010B3 |
ACR30,40,MCR30,40 MD.CHARCOAL,TRIM12 |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84040-28050 |
ACR30,40,MCR30,40 |
1 | ||
| 84040-28050 |
ACR30,40,MCR30,40 |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-28020 |
ACR30,40,MCR30,40 |
1 | ||
| 85530-28020 |
ACR30,40,MCR30,40 |
1 | ||
| 85535 - PANEL, CIGARETTE LIGHTER HEAT DIFFUSE | ||||
| 85535-28020B2 |
ACR30,40,MCR30,40..AERAS,AERSS,J MD.GRAY,TRIM1# |
1 | ||
| 85918B - RELAY, DOOR CONTROL, RH | ||||
| 85918-28060 |
ACR30,40,MCR30,40..AERAS,AERSS,G,X |
1 | ||
| 85918-28060 |
ACR30,40,MCR30,40 |
1 | ||
| 85918-28080 |
ACR30,40,MCR30,40..AERAS,AERSS,G,X ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ) |
1 | ||
| 85918B - RELAY, DOOR CONTROL, RH | ||||
| 85918-28060 |
ACR30,40,MCR30,40..AERAS,AERSS,G,X |
1 | ||
| 85918-28060 |
ACR30,40,MCR30,40 |
1 | ||
| 85918-28080 |
ACR30,40,MCR30,40..AERAS,AERSS,G,X ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ) |
1 | ||
| 85918C - RELAY, DOOR CONTROL, LH | ||||
| 85918-28040 |
ACR30,40,MCR30,40..AERAS,AERSS,G,X |
1 | ||
| 85918-28090 |
ACR30,40,MCR30,40..AERAS,AERSS,G,X ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ) |
1 | ||
| 85918-28040 |
ACR30,40,MCR30,40 |
1 | ||
| 85918-28050 |
ACR30,40,MCR30,40 ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ) |
1 | ||
| 85918C - RELAY, DOOR CONTROL, LH | ||||
| 85918-28040 |
ACR30,40,MCR30,40..AERAS,AERSS,G,X |
1 | ||
| 85918-28090 |
ACR30,40,MCR30,40..AERAS,AERSS,G,X ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ) |
1 | ||
| 85918-28040 |
ACR30,40,MCR30,40 |
1 | ||
| 85918-28050 |
ACR30,40,MCR30,40 ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ) |
1 | ||
| 85920 - RELAY & SWITCH ASSY, SLIDING ROOF | ||||
| 85920-28020B2 |
ACR30,40,MCR30,40..AERAS,AERSS LT.GRAY,TRIM1# |
1 | ||
| 85975B - RELAY, SLIDE DOOR CLOSER, RH | ||||
| 85980-28070 |
ACR30,40,MCR30,40..AERAS,AERSS,G,X ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ) |
1 | ||
| 85975-28080 |
ACR30,40,MCR30,40 |
1 | ||
| 85975-28080 |
ACR30,40,MCR30,40..AERAS,AERSS,G,X |
1 | ||
| 85975B - RELAY, SLIDE DOOR CLOSER, RH | ||||
| 85980-28070 |
ACR30,40,MCR30,40..AERAS,AERSS,G,X ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ) |
1 | ||
| 85975-28080 |
ACR30,40,MCR30,40 |
1 | ||
| 85975-28080 |
ACR30,40,MCR30,40..AERAS,AERSS,G,X |
1 | ||
| 85975C - RELAY, SLIDE DOOR CLOSER, LH | ||||
| 85975-28060 |
ACR30,40,MCR30,40 |
1 | ||
| 85980-28090 |
ACR30,40,MCR30,40..AERAS,AERSS,G,X ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ) |
1 | ||
| 85980-28090 |
ACR30,40,MCR30,40 ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ) |
1 | ||
| 85975-28060 |
ACR30,40,MCR30,40..AERAS,AERSS,G,X |
1 | ||
| 85975C - RELAY, SLIDE DOOR CLOSER, LH | ||||
| 85975-28060 |
ACR30,40,MCR30,40 |
1 | ||
| 85980-28090 |
ACR30,40,MCR30,40..AERAS,AERSS,G,X ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ) |
1 | ||
| 85980-28090 |
ACR30,40,MCR30,40 ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ) |
1 | ||
| 85975-28060 |
ACR30,40,MCR30,40..AERAS,AERSS,G,X |
1 | ||
| 86650A - BUZZER ASSY, DOOR OPENING | ||||
| 86650-28090 |
ACR30,40,MCR30,40..AERAS,AERSS,G,X 左側 |
1 | ||
| 86650-28110 |
ACR30,40,MCR30,40..AERAS,AERSS,G,X 右側 |
1 | ||
| 86650-28090 |
ACR30,40,MCR30,40 |
1 | ||
| 86650A - BUZZER ASSY, DOOR OPENING | ||||
| 86650-28090 |
ACR30,40,MCR30,40..AERAS,AERSS,G,X 左側 |
1 | ||
| 86650-28110 |
ACR30,40,MCR30,40..AERAS,AERSS,G,X 右側 |
1 | ||
| 86650-28090 |
ACR30,40,MCR30,40 |
1 | ||
| Common parts | ||||
| 90094-90416 | ||||
| 90109-06296 | ||||
| 90159-60025 | ||||
| 90159-60303 | ||||
| 90167-60014 | ||||
| 90189-05019 | ||||
| 90189-05131 | ||||
| 90189-06197 | ||||
| 91651-60614 | ||||
| 93319-A4010 | ||||
| 93530-55020 | ||||

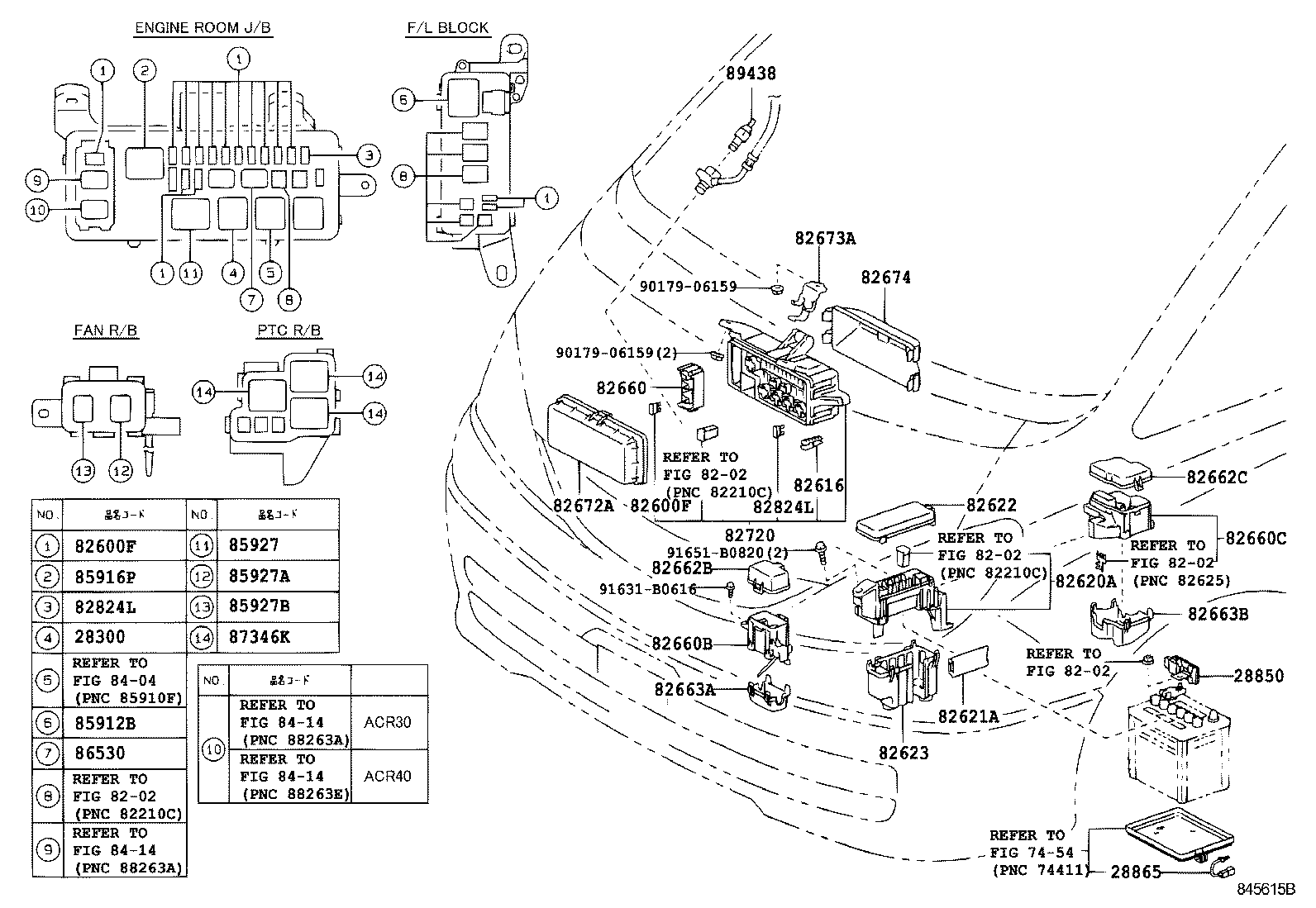

ILLUST NO. 2 OF 7(0304- )ACR30,40
ｴﾝｼﾞﾝﾙ-ﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-10020 |
2AZFE,1MZFE..ACR30,40,MCR30,40 |
1 | ||
| 28300-10020 |
2AZFE,1MZFE..ACR30,40,MCR30,40 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09009 |
ACR30,40,MCR30,40 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09007 |
ACR30,40,MCR30,40 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09011 |
ACR30,40,MCR30,40 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09012 |
ACR30,40,MCR30,40 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09008 |
ACR30,40,MCR30,40 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09013 |
ACR30,40,MCR30,40 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09009 |
ACR30,40,MCR30,40 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09013 |
ACR30,40,MCR30,40 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09007 |
ACR30,40,MCR30,40 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09012 |
ACR30,40,MCR30,40 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09010 |
ACR30,40,MCR30,40 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09010 |
ACR30,40,MCR30,40 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09011 |
ACR30,40,MCR30,40 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09008 |
ACR30,40,MCR30,40 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09009 |
ACR30,40,MCR30,40 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09007 |
ACR30,40,MCR30,40 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09011 |
ACR30,40,MCR30,40 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09012 |
ACR30,40,MCR30,40 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09008 |
ACR30,40,MCR30,40 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09013 |
ACR30,40,MCR30,40 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09009 |
ACR30,40,MCR30,40 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09013 |
ACR30,40,MCR30,40 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09007 |
ACR30,40,MCR30,40 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09012 |
ACR30,40,MCR30,40 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09010 |
ACR30,40,MCR30,40 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09010 |
ACR30,40,MCR30,40 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09011 |
ACR30,40,MCR30,40 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09008 |
ACR30,40,MCR30,40 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-20010 |
ACR30,40,MCR30,40 |
1 | ||
| 82616-20010 |
ACR30,40,MCR30,40 |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-28230 |
ACR30,40 |
1 | ||
| 82620-28220 |
MCR30,40 |
1 | ||
| 82620-28220 |
MCR30,40 |
1 | ||
| 82621A - COVER, FUSIBLE LINK | ||||
| 82621-28080 |
ACR30,40,MCR30,40 |
2 | ||
| 82622 - COVER, FUSIBLE LINK, UPPER | ||||
| 82622-28050 |
ACR30,40 |
1 | ||
| 82622-28010 |
MCR30,40 |
1 | ||
| 82622-28010 |
MCR30,40 |
1 | ||
| 82623 - COVER, FUSIBLE LINK, LOWER | ||||
| 82623-28020 |
MCR30,40 |
1 | ||
| 82623-28020 |
MCR30,40 |
1 | ||
| 82623-28010 |
ACR30,40 |
1 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-28190 |
ACR30,40,MCR30,40 |
1 | ||
| 82660-28190 |
ACR30,40,MCR30,40 |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-28200 |
ACR30,40 |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-28010 |
ACR30,40 |
1 | ||
| 82662C - COVER, RELAY BLOCK, UPPER, NO.3 | ||||
| 82662-28020 |
ACR30,40 |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-28010 |
ACR30,40 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-28060 |
MCR30,40 |
1 | ||
| 82672-28090 |
ACR30,40 |
1 | ||
| 82672-28080 |
MCR30,40 |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-28040 |
ACR30,40,MCR30,40 |
1 | ||
| 82673-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 82674 - COVER, JUNCTION BLOCK LOWER | ||||
| 82674-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 82674-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 82720 - BLOCK ASSY, ENGINE ROOM JUNCTION | ||||
| 82720-28010 |
MCR30,40 |
1 | ||
| 82720-28080 |
ACR30,40 |
1 | ||
| 82720-28070 |
MCR30,40 |
1 | ||
| 82824L - PIN, SHORT | ||||
| 82824-20140 |
ACR30,40,MCR30,40 |
1 | ||
| 82824-20140 |
ACR30,40,MCR30,40 |
1 | ||
| 82824L - PIN, SHORT | ||||
| 82824-20140 |
ACR30,40,MCR30,40 |
1 | ||
| 82824-20140 |
ACR30,40,MCR30,40 |
1 | ||
| 85912B - RELAY, DEFOGGER(FOR FRONT WINDOW) | ||||
| 90987-02025 |
ACR30,40,MCR30,40 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02016 |
ACR30,40,MCR30,40 |
1 | ||
| 90987-02025 |
ACR30,40,MCR30,40 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02025 |
ACR30,40,MCR30,40 |
1 | ||
| 90987-02016 |
ACR30,40,MCR30,40 |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-04004 |
ACR30,40 |
1 | ||
| 85927B - RELAY, COOLING FAN, NO.3 | ||||
| 90987-02012 |
ACR30,40 |
1 | ||
| 90987-02027 |
ACR30,40 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02028 |
ACR30,40,MCR30,40 |
1 | ||
| 90987-02012 |
ACR30,40,MCR30,40 |
1 | ||
| 87346K - RELAY, PTC HEATER | ||||
| 90987-02025 |
ACR30,40 |
3 | ||
| 89438 - SWITCH, POWER STEERING OIL PRESSURE | ||||
| 89438-33010 |
ACR30,40,MCR30,40 |
1 | ||
| 89438-33010 |
ACR30,40,MCR30,40 |
1 | ||
| Common parts | ||||
| 90179-06159 | ||||
| 91631-B0616 | ||||
| 91651-B0820 | ||||
| Linked diagrams | ||||
| 7454 | ||||
| 8202 | ||||
| 8404 | ||||
| 8414 | ||||

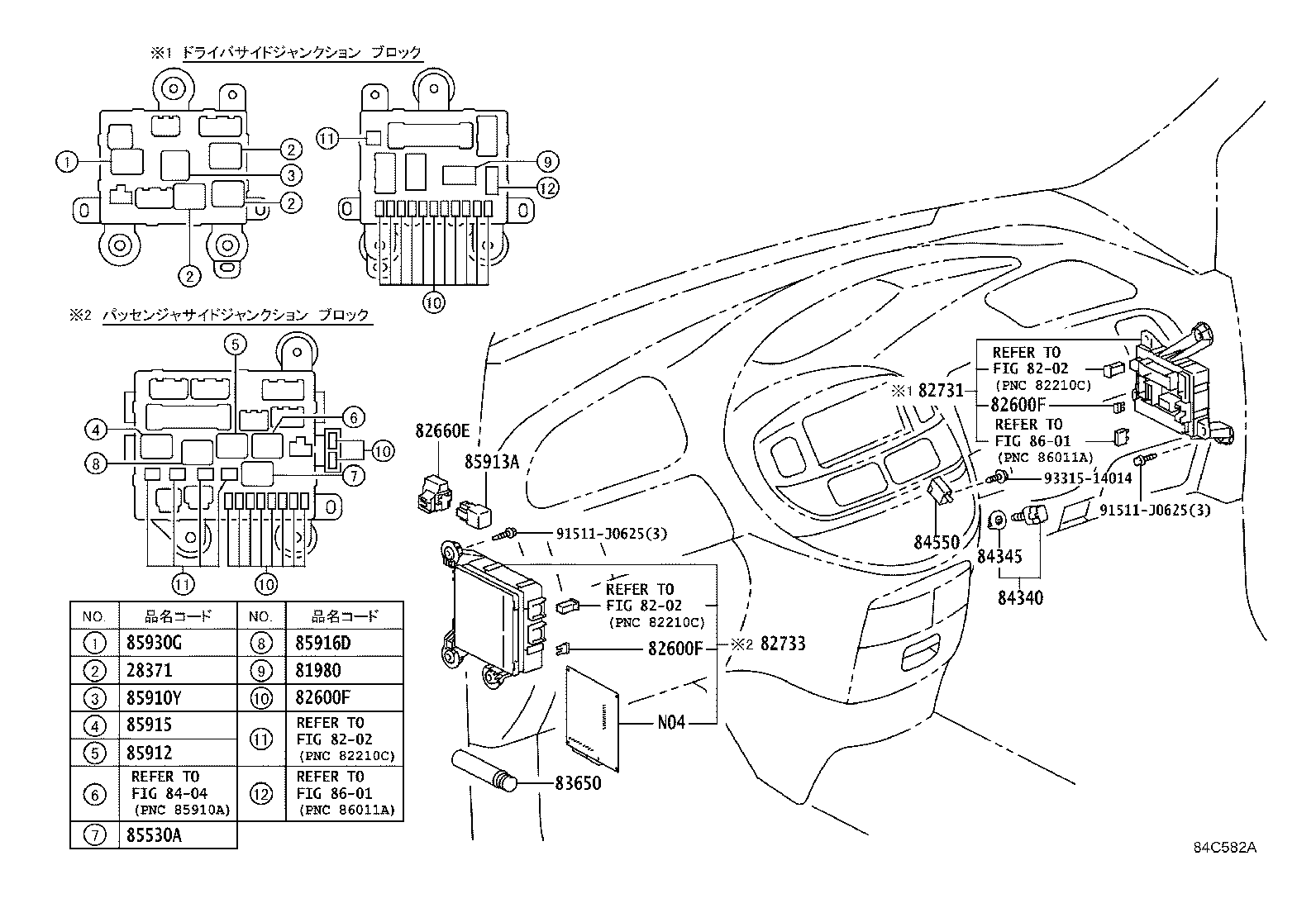

ILLUST NO. 3 OF 7(0304- )
ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02027 |
2AZFE,1MZFE..ACR30,40,MCR30,40 |
2 | ||
| 90987-02012 |
1MZFE..MCR30,40 |
3 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-50030 |
ACR30,40,MCR30,40 |
1 | ||
| 81980-50030 |
ACR30,40,MCR30,40 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09009 |
ACR30,40,MCR30,40 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09007 |
ACR30,40,MCR30,40 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09011 |
ACR30,40,MCR30,40 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09012 |
ACR30,40,MCR30,40 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09008 |
ACR30,40,MCR30,40 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09013 |
ACR30,40,MCR30,40 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09009 |
ACR30,40,MCR30,40 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09013 |
ACR30,40,MCR30,40 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09007 |
ACR30,40,MCR30,40 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09012 |
ACR30,40,MCR30,40 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09010 |
ACR30,40,MCR30,40 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09010 |
ACR30,40,MCR30,40 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09011 |
ACR30,40,MCR30,40 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09008 |
ACR30,40,MCR30,40 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09009 |
ACR30,40,MCR30,40 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09007 |
ACR30,40,MCR30,40 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09011 |
ACR30,40,MCR30,40 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09012 |
ACR30,40,MCR30,40 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09008 |
ACR30,40,MCR30,40 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09013 |
ACR30,40,MCR30,40 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09009 |
ACR30,40,MCR30,40 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09013 |
ACR30,40,MCR30,40 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09007 |
ACR30,40,MCR30,40 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09012 |
ACR30,40,MCR30,40 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09010 |
ACR30,40,MCR30,40 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09010 |
ACR30,40,MCR30,40 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09011 |
ACR30,40,MCR30,40 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09008 |
ACR30,40,MCR30,40 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09009 |
ACR30,40,MCR30,40 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09007 |
ACR30,40,MCR30,40 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09011 |
ACR30,40,MCR30,40 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09012 |
ACR30,40,MCR30,40 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09008 |
ACR30,40,MCR30,40 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09013 |
ACR30,40,MCR30,40 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09009 |
ACR30,40,MCR30,40 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09013 |
ACR30,40,MCR30,40 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09007 |
ACR30,40,MCR30,40 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09012 |
ACR30,40,MCR30,40 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09010 |
ACR30,40,MCR30,40 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09010 |
ACR30,40,MCR30,40 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09011 |
ACR30,40,MCR30,40 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09008 |
ACR30,40,MCR30,40 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-28230 |
ACR30,40,MCR30,40 |
1 | ||
| 82660-28230 |
ACR30,40,MCR30,40 |
1 | ||
| 82731 - BLOCK, DRIVER SIDE JUNCTION | ||||
| 82731-28040 |
ACR30,40,MCR30,40 |
1 | ||
| 82731-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 82733 - BLOCK, PASSENGER SIDE JUNCTION | ||||
| 82733-28100 |
ACR30,40,MCR30,40 |
1 | ||
| 82733-28110 |
ACR30,40,MCR30,40 ｶﾝﾚｲﾁ ｼﾖｳ OR ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞ ﾄﾞｱ & ｲ-ｼﾞ-ｸﾛ-ｻﾞ = RH & LH) |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
ACR30,40,MCR30,40 |
1 | ||
| 90986-01005 |
ACR30,40,MCR30,40 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-35020 |
ACR30,40,MCR30,40 東海理化 |
1 | ||
| 84340-32050 |
ACR30,40,MCR30,40 MATSUSHITA |
1 | ||
| 84340-69025 |
ACR30,40;MCR30,40..G |
1 | ||
| 84340-69035 |
MCR30,40..AERAS,AERSS |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
ACR30,40,MCR30,40 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-30080 |
ACR30,40,MCR30,40 |
1 | ||
| 84550-30080 |
ACR30,40,MCR30,40 |
1 | ||
| 85530A - RELAY, POWER OUTLET SOCKET | ||||
| 90987-02027 |
ACR30,40,MCR30,40 |
1 | ||
| 90987-02012 |
ACR30,40,MCR30,40 |
1 | ||
| 90987-02012 |
ACR30,40,MCR30,40 |
1 | ||
| 85910Y - RELAY, REAR HEATER | ||||
| 90987-02009 |
ACR30,40,MCR30,40 |
1 | ||
| 90987-02009 |
ACR30,40,MCR30,40 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02027 |
ACR30,40,MCR30,40 |
1 | ||
| 90987-02012 |
ACR30,40,MCR30,40 |
1 | ||
| 85913A - RELAY, HEATER CONTROL | ||||
| 90987-02025 |
ACR30,40,MCR30,40 |
1 | ||
| 90987-02016 |
ACR30,40,MCR30,40 |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-02012 |
ACR30,40,MCR30,40 |
1 | ||
| 90987-02027 |
ACR30,40,MCR30,40 |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02027 |
ACR30,40,MCR30,40 |
1 | ||
| 85930G - RELAY, ACC | ||||
| 90987-02027 |
ACR30,40,MCR30,40 |
1 | ||
| 90987-02012 |
ACR30,40,MCR30,40 |
1 | ||
| Common parts | ||||
| 91511-J0625 | ||||
| 93315-14014 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8404 | ||||
| 8601 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
