MCR40W-MFSSK (2001)

Toyota Estima T/L

Production Apr 2001 - Jan 2006
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

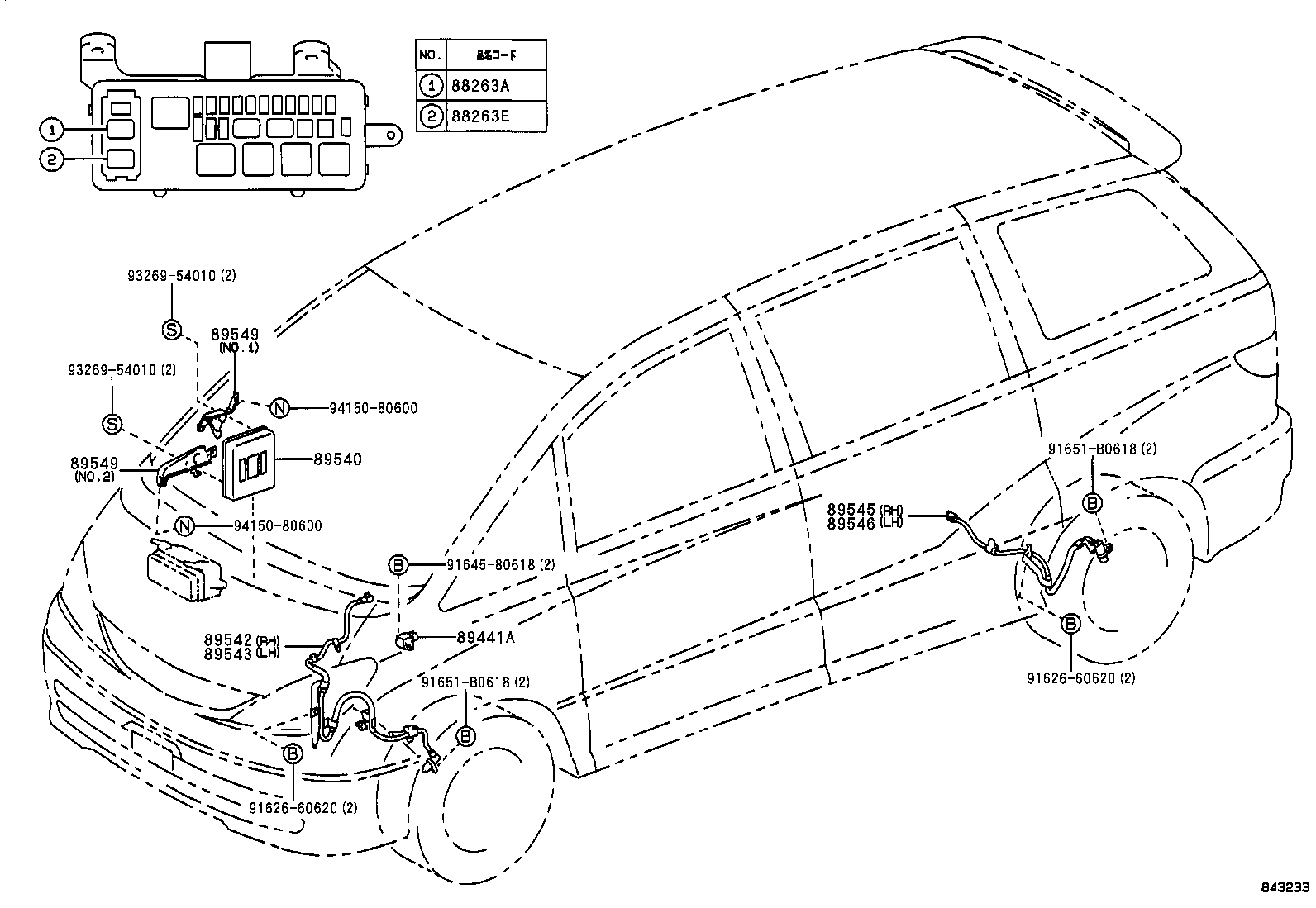

(9912-0304)ACR40,MCR40

Click highlighted areas on diagram

diagram 88263A 88263E 89441A 89540 89542 89543 89545 89546 89549 89549 9162660620 9162660620 9164580618 91651B0618 91651B0618 9326954010 9326954010 9415080600 9415080600
Part # Description Qty Price
88263A - RELAY, SKID CONTROL
88263-32070

MCR30,40

ｱﾘ(VSC)

 2
88263-32070

ACR30,40,MCR30,40

 1
88263-32070

ACR40,MCR40

 1
88263E - RELAY, SKID CONTROL NO.2
88263-32080

ACR40,MCR40

 1
88263-32080

ACR30,40,MCR30,40

 1
89441A - SENSOR, DECELERATION
89441-60010

ACR40,MCR40

 1
89441-60010

ACR40,MCR40

 1
89540 - COMPUTER ASSY, SKID CONTROL
89540-28450

MCR40

 1
89540-28520

MCR40..AERAS,G

ｱﾘ(VSC)

 1
89541-28170

ACR40,MCR40

 1
89542 - SENSOR, SPEED, FRONT RH
89542-28090

ACR30,40,MCR30,40

 1
89542-28090

ACR30,40,MCR30,40

 1
89543 - SENSOR, SPEED, FRONT LH
89543-28090

ACR30,40,MCR30,40

 1
89543-28090

ACR30,40,MCR30,40

 1
89545 - SENSOR, SPEED, REAR RH
89545-28150

ACR40,MCR40

 1
89545-28150

ACR40,MCR40

 1
89546 - SENSOR, SPEED, REAR LH
89546-28110

ACR40,MCR40

 1
89546-28110

ACR40,MCR40

 1
89549 - BRACKET, SKID CONTROL COMPUTER
89549-28130

ACR40,MCR40

NO.1

 1
89549-28140

ACR40,MCR40

NO.2

 1
89549 - BRACKET, SKID CONTROL COMPUTER
89549-28130

ACR40,MCR40

NO.1

 1
89549-28140

ACR40,MCR40

NO.2

 1
Common parts
91626-60620
91645-80618
91651-B0618
93269-54010
94150-80600

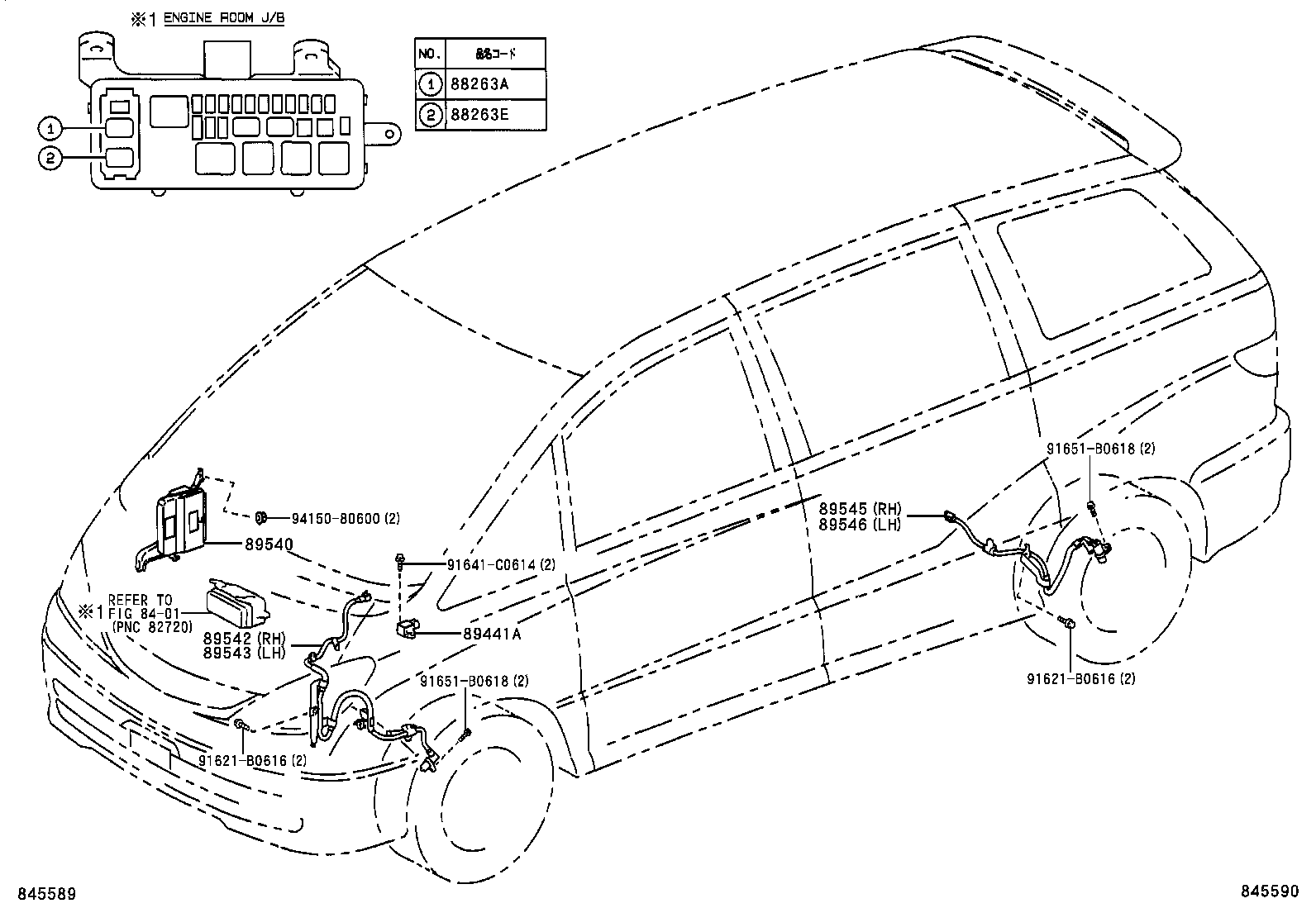

(0304- )ACR40,MCR40

Click highlighted areas on diagram

diagram 8401 88263A 88263E 89441A 89540 89542 89543 89545 89546 91621B0616 91621B0616 91641C0614 91651B0618 91651B0618 9415080600
Part # Description Qty Price
88263A - RELAY, SKID CONTROL
88263-32070

MCR30,40

ｱﾘ(VSC)

 2
88263-32070

ACR30,40,MCR30,40

 1
88263-32070

ACR40,MCR40

 1
88263E - RELAY, SKID CONTROL NO.2
88263-32080

ACR40,MCR40

 1
88263-32080

ACR30,40,MCR30,40

 1
89441A - SENSOR, DECELERATION
89441-60010

ACR40,MCR40

 1
89441-60010

ACR40,MCR40

 1
89540 - COMPUTER ASSY, SKID CONTROL
89540-28450

MCR40

 1
89540-28520

MCR40..AERAS,G

ｱﾘ(VSC)

 1
89541-28170

ACR40,MCR40

 1
89542 - SENSOR, SPEED, FRONT RH
89542-28090

ACR30,40,MCR30,40

 1
89542-28090

ACR30,40,MCR30,40

 1
89543 - SENSOR, SPEED, FRONT LH
89543-28090

ACR30,40,MCR30,40

 1
89543-28090

ACR30,40,MCR30,40

 1
89545 - SENSOR, SPEED, REAR RH
89545-28150

ACR40,MCR40

 1
89545-28150

ACR40,MCR40

 1
89546 - SENSOR, SPEED, REAR LH
89546-28110

ACR40,MCR40

 1
89546-28110

ACR40,MCR40

 1
Common parts
91621-B0616
91641-C0614
91651-B0618
94150-80600
Linked diagrams
8401

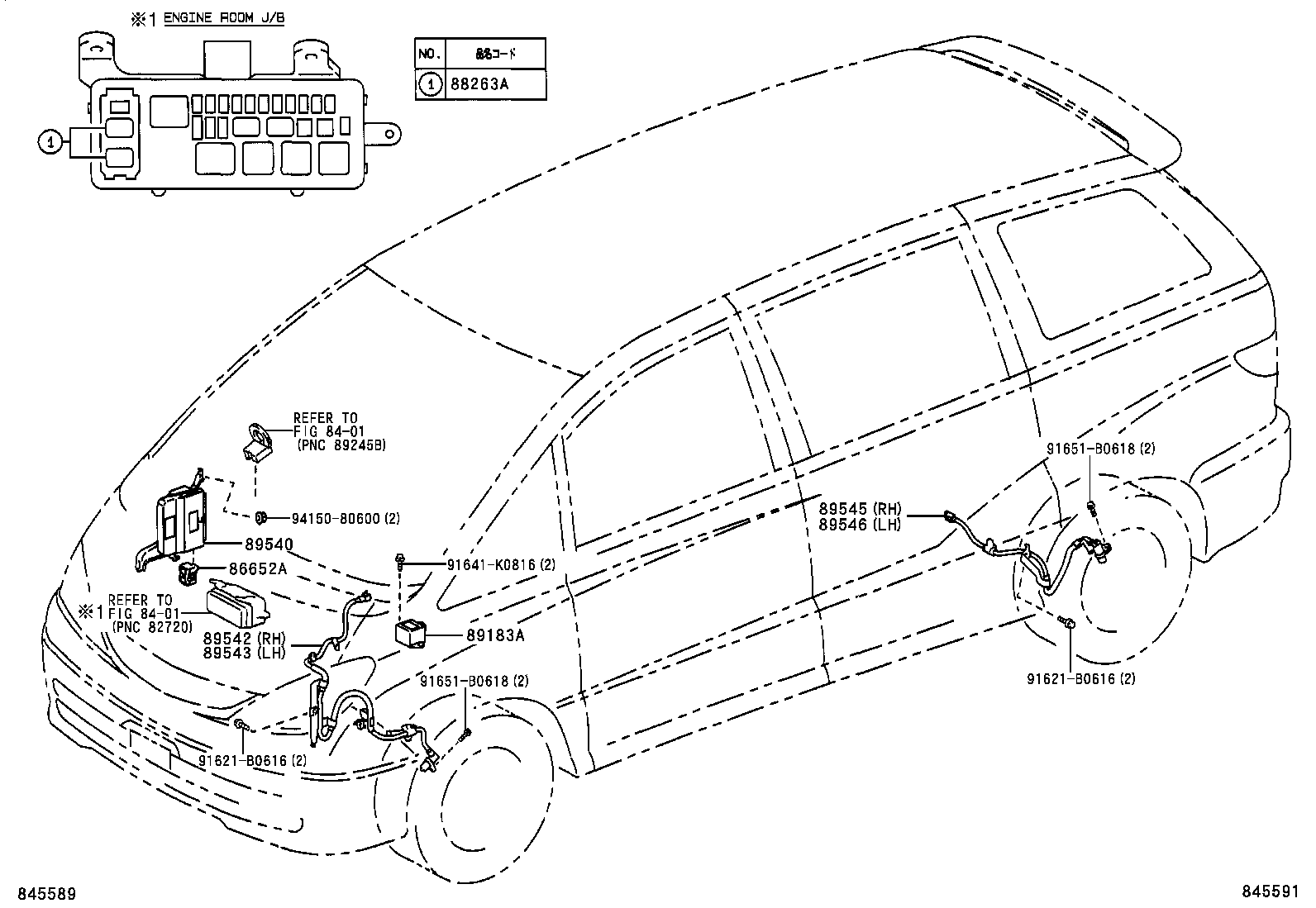

(0304- )MCR40

Click highlighted areas on diagram

ｱﾘ(VSC)

diagram 8401 8401 86652A 88263A 89183A 89540 89542 89543 89545 89546 91621B0616 91621B0616 91641K0816 91651B0618 91651B0618 9415080600
Part # Description Qty Price
86652A - BUZZER ASSY, SKID CONTROL
86652-51010

MCR30,40

 1
88263A - RELAY, SKID CONTROL
88263-32070

MCR30,40

ｱﾘ(VSC)

 2
88263-32070

ACR30,40,MCR30,40

 1
88263-32070

ACR40,MCR40

 1
89183A - SENSOR, YAWRATE
89183-60010

MCR30,40

 1
89540 - COMPUTER ASSY, SKID CONTROL
89540-28450

MCR40

 1
89540-28520

MCR40..AERAS,G

ｱﾘ(VSC)

 1
89541-28170

ACR40,MCR40

 1
89542 - SENSOR, SPEED, FRONT RH
89542-28090

ACR30,40,MCR30,40

 1
89542-28090

ACR30,40,MCR30,40

 1
89543 - SENSOR, SPEED, FRONT LH
89543-28090

ACR30,40,MCR30,40

 1
89543-28090

ACR30,40,MCR30,40

 1
89545 - SENSOR, SPEED, REAR RH
89545-28150

ACR40,MCR40

 1
89545-28150

ACR40,MCR40

 1
89546 - SENSOR, SPEED, REAR LH
89546-28110

ACR40,MCR40

 1
89546-28110

ACR40,MCR40

 1
Common parts
91621-B0616
91641-K0816
91651-B0618
94150-80600
Linked diagrams
8401
