MCR40W-MFSSK (2001)
Toyota Estima T/L
Production
Apr 2001
-
Jan 2006
Engine
1MZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

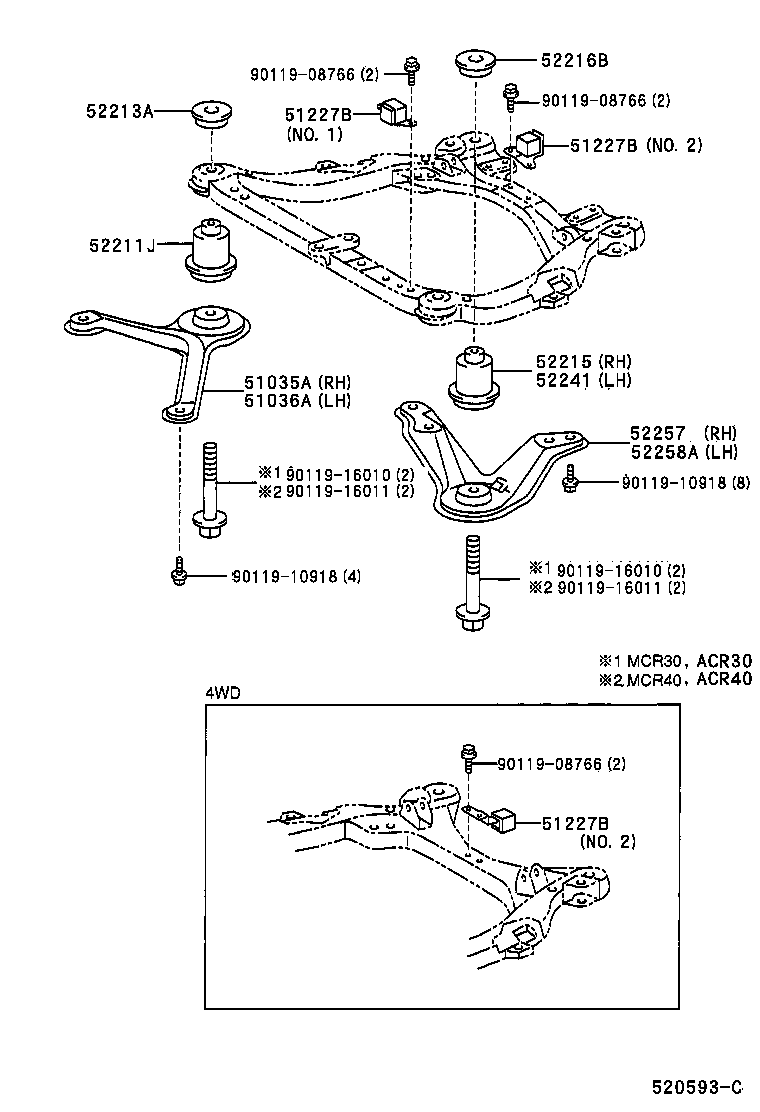

(9912-0304)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51035A - PLATE SUB-ASSY, FRAME SIDE RAIL, RH | ||||
| 51035-28040 |
ACR40,MCR40 |
1 | ||
| 51035-28040 |
ACR40,MCR40 |
1 | ||
| 51036A - PLATE SUB-ASSY, FRAME SIDE RAIL, LH | ||||
| 51036-28020 |
ACR40,MCR40 |
1 | ||
| 51036-28020 |
ACR40,MCR40 |
1 | ||
| 51227B - DAMPER, FRONT SUSPENSION MEMBER DYNAMIC | ||||
| 51227-28050 |
MCR30,40 |
1 | ||
| 51227B - DAMPER, FRONT SUSPENSION MEMBER DYNAMIC | ||||
| 51227-28050 |
MCR30,40 |
1 | ||
| 51227B - DAMPER, FRONT SUSPENSION MEMBER DYNAMIC | ||||
| 51227-28050 |
MCR30,40 |
1 | ||
| 52211J - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT | ||||
| 52211-28020 |
ACR40,MCR40 |
2 | ||
| 52211-28020 |
ACR40,MCR40 |
2 | ||
| 52213A - STOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT | ||||
| 52213-58010 |
ACR40,MCR40 |
2 | ||
| 52213-28020 |
ACR40,MCR40 |
2 | ||
| 52215 - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR | ||||
| 52215-28020 |
ACR40,MCR40 |
1 | ||
| 52215-28020 |
ACR40,MCR40 |
1 | ||
| 52216B - STOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR | ||||
| 52216-28020 |
ACR40,MCR40 |
2 | ||
| 52216-28020 |
ACR40,MCR40 |
2 | ||
| 52241 - CUSHION, BODY MOUNT, NO.4 UPPER | ||||
| 52217-28020 |
ACR40,MCR40 |
1 | ||
| 52217-28020 |
ACR40,MCR40 |
1 | ||
| 52257 - BRACE, FRONT SUSPENSION MEMBER, REAR RH | ||||
| 51023-28020 |
ACR40,MCR40 |
1 | ||
| 51023-28020 |
ACR40,MCR40 |
1 | ||
| 52258A - BRACE, FRONT SUSPENSION MEMBER, REAR LH | ||||
| 51024-28020 |
ACR40,MCR40 |
1 | ||
| 51024-28020 |
ACR40,MCR40 |
1 | ||
| Common parts | ||||
| 90119-08766 | ||||
| 90119-10918 | ||||
| 90119-16010 | ||||
| 90119-16011 | ||||

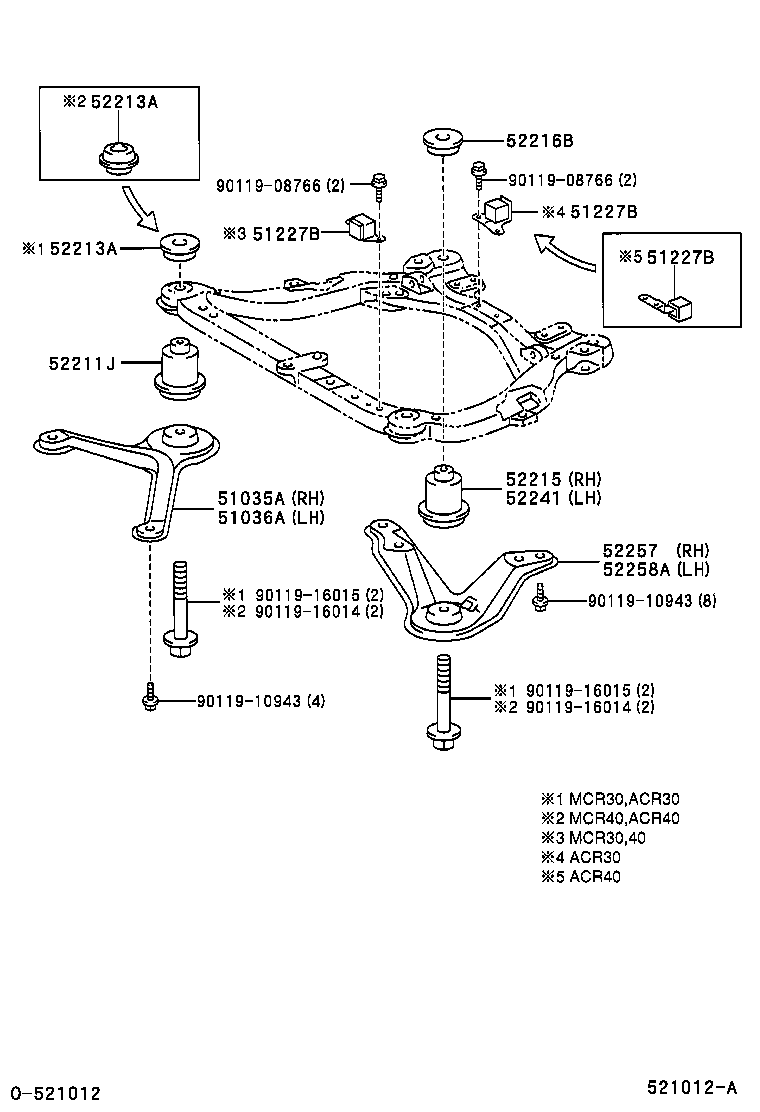

(0304- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51035A - PLATE SUB-ASSY, FRAME SIDE RAIL, RH | ||||
| 51035-28040 |
ACR40,MCR40 |
1 | ||
| 51035-28040 |
ACR40,MCR40 |
1 | ||
| 51036A - PLATE SUB-ASSY, FRAME SIDE RAIL, LH | ||||
| 51036-28020 |
ACR40,MCR40 |
1 | ||
| 51036-28020 |
ACR40,MCR40 |
1 | ||
| 51227B - DAMPER, FRONT SUSPENSION MEMBER DYNAMIC | ||||
| 51227-28050 |
MCR30,40 |
1 | ||
| 51227B - DAMPER, FRONT SUSPENSION MEMBER DYNAMIC | ||||
| 51227-28050 |
MCR30,40 |
1 | ||
| 51227B - DAMPER, FRONT SUSPENSION MEMBER DYNAMIC | ||||
| 51227-28050 |
MCR30,40 |
1 | ||
| 52211J - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT | ||||
| 52211-28020 |
ACR40,MCR40 |
2 | ||
| 52211-28020 |
ACR40,MCR40 |
2 | ||
| 52213A - STOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT | ||||
| 52213-58010 |
ACR40,MCR40 |
2 | ||
| 52213-28020 |
ACR40,MCR40 |
2 | ||
| 52213A - STOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT | ||||
| 52213-58010 |
ACR40,MCR40 |
2 | ||
| 52213-28020 |
ACR40,MCR40 |
2 | ||
| 52215 - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR | ||||
| 52215-28020 |
ACR40,MCR40 |
1 | ||
| 52215-28020 |
ACR40,MCR40 |
1 | ||
| 52216B - STOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR | ||||
| 52216-28020 |
ACR40,MCR40 |
2 | ||
| 52216-28020 |
ACR40,MCR40 |
2 | ||
| 52241 - CUSHION, BODY MOUNT, NO.4 UPPER | ||||
| 52217-28020 |
ACR40,MCR40 |
1 | ||
| 52217-28020 |
ACR40,MCR40 |
1 | ||
| 52257 - BRACE, FRONT SUSPENSION MEMBER, REAR RH | ||||
| 51023-28020 |
ACR40,MCR40 |
1 | ||
| 51023-28020 |
ACR40,MCR40 |
1 | ||
| 52258A - BRACE, FRONT SUSPENSION MEMBER, REAR LH | ||||
| 51024-28020 |
ACR40,MCR40 |
1 | ||
| 51024-28020 |
ACR40,MCR40 |
1 | ||
| Common parts | ||||
| 90119-08766 | ||||
| 90119-10943 | ||||
| 90119-16014 | ||||
| 90119-16015 | ||||
