MCR40W-MFSSK (2001)
Toyota Estima T/L

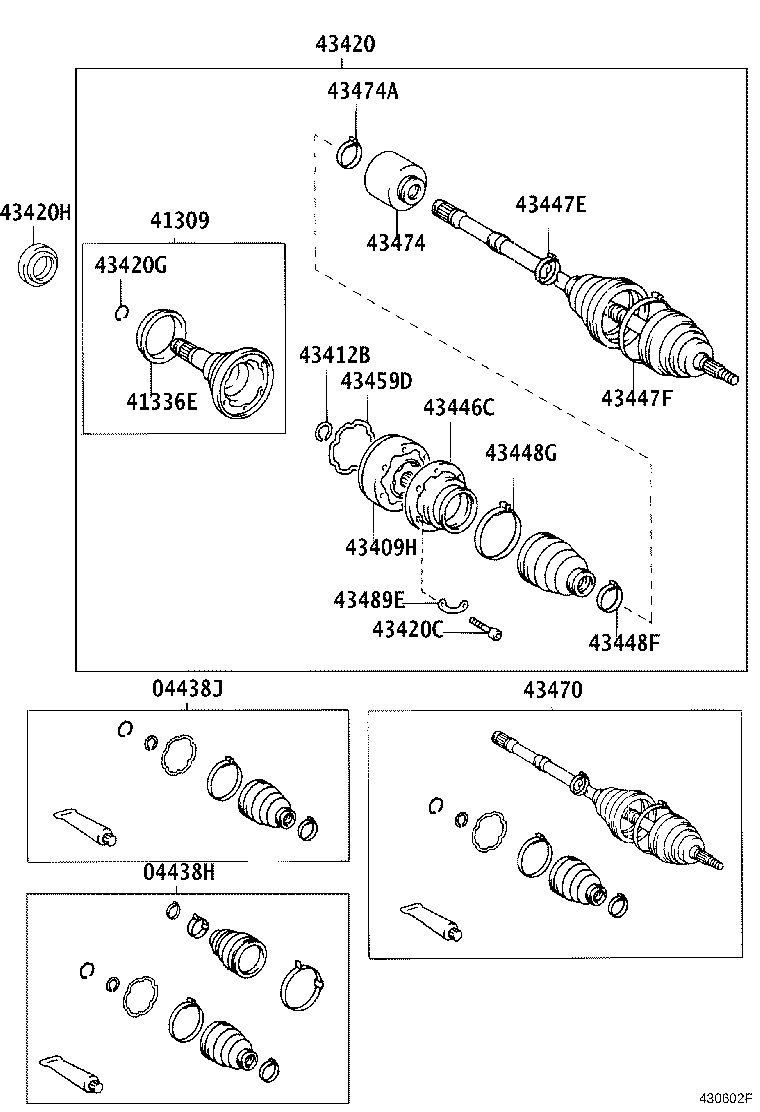

(9912-0304)MCR30,40
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH | ||||
| 04438-33080 |
MCR30,40 |
1 | ||
| 04438-28052 |
ACR30,40 |
1 | ||
| 04438-44051 |
MCR30,40 |
1 | ||
| 04438-28052 |
ACR30,40 |
1 | ||
| 04428-58030 |
ACR30,40 |
1 | ||
| 04428-58060 |
MCR30,40 |
1 | ||
| 04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04438-28041 |
ACR30,40 |
1 | ||
| 04438-28041 |
ACR30,40,MCR30,40 |
1 | ||
| 04438-33070 |
MCR30,40 |
1 | ||
| 04438-58020 |
ACR30,40,MCR30,40 |
1 | ||
| 41309 - SHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, LH | ||||
| 41309-28030 |
MCR30,40 |
1 | ||
| 41336E - COVER, FRONT DRIVE SHAFT DUST, LH | ||||
| 41336-17020 |
MCR30,40 |
1 | ||
| 41336-28030 |
ACR40,MCR30,40 |
1 | ||
| 43409H - JOINT SUB-ASSY, FRONT DRIVE SHAFT CROSS GROOVE, LH | ||||
| 43409-28010 |
MCR30,40 |
1 | ||
| 43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) | ||||
| 43425-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 90520-26028 |
MCR30,40 |
1 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43420-28050 |
MCR30,40 |
1 | ||
| 43420-33230 |
MCR30,40 |
1 | ||
| 43420-33200 |
MCR30,40 |
1 | ||
| 43420C - BOLT (FOR FRONT DRIVE SHAFT CROSS GROOVE JOINT LH) | ||||
| 90110-10015 |
MCR30,40 |
6 | ||
| 43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) | ||||
| 90521-33002 |
ACR30,40,MCR30,40 |
1 | ||
| 90521-33002 |
ACR30,40,MCR30,40 |
1 | ||
| 43420H - OIL SEAL, FRONT DRIVE SHAFT, LH | ||||
| 90311-50023 |
ACR40,MCR30,40 |
1 | ||
| 90311-50023 |
MCR40 ﾏｰｸ=NOK |
1 | ||
| 43446C - COVER, FRONT AXLE INBOARD JOINT, LH | ||||
| 43446-28010 |
MCR30,40 |
1 | ||
| 43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-48030 |
MCR30,40 |
1 | ||
| 42345-04030 |
MCR30,40 内径=33.7 |
1 | ||
| 42345-48030 |
MCR30,40 |
1 | ||
| 42345-20040 |
ACR30,40 |
1 | ||
| 43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-04040 |
MCR30,40 内径=99.8 |
1 | ||
| 42345-44010 |
MCR30,40 内径=98.7 |
1 | ||
| 42345-28020 |
ACR30,40 |
1 | ||
| 42345-44020 |
MCR30,40 |
1 | ||
| 42345-44020 |
MCR30,40 |
1 | ||
| 43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 90949-01559 |
ACR30,40 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 42345-42010 |
ACR30,40 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 42345-42010 |
ACR30,40,MCR30,40 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 42345-14010 |
MCR30,40 |
1 | ||
| 90949-01559 |
ACR30,40,MCR30,40 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 90949-01340 |
MCR30,40 |
1 | ||
| 42345-12160 |
ACR30,40,MCR30,40 |
1 | ||
| 42345-12160 |
ACR30,40 |
1 | ||
| 43459D - GASKET, FRONT DRIVE SHAFT CROSS GROOVE JOINT, LH | ||||
| 43459-17010 |
MCR30,40 |
1 | ||
| 43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH | ||||
| 43470-39376 |
MCR30,40 |
1 | ||
| 43470-39385 |
MCR30,40 |
1 | ||
| 43470-39465 |
MCR30,40 |
1 | ||
| 43470-29615 |
MCR30,40 |
1 | ||
| 43474 - DAMPER, DRIVE SHAFT | ||||
| 43474-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 43474-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 43474-28010 |
ACR30,40 |
1 | ||
| 43474-33010 |
MCR30,40 |
1 | ||
| 43474A - CLAMP (FOR DRIVE SHAFT DAMPER SETTING) | ||||
| 42345-14010 |
ACR30,40,MCR30,40 |
1 | ||
| 42345-14010 |
ACR30,40,MCR30,40 |
1 | ||
| 43489E - WASHER, FRONT DRIVE SHAFT CROSS GROOVE JOINT, LH | ||||
| 43489-17010 |
MCR30,40 |
3 | ||

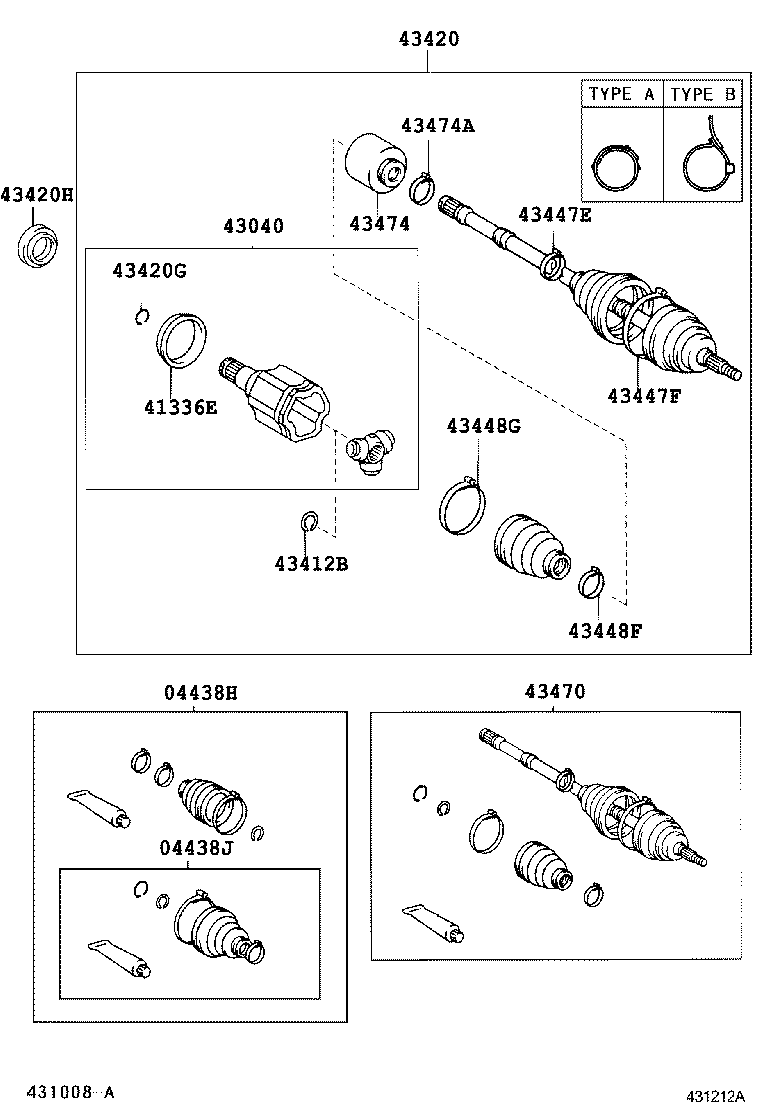

(0304- )MCR30,40
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH | ||||
| 04438-33080 |
MCR30,40 |
1 | ||
| 04438-28052 |
ACR30,40 |
1 | ||
| 04438-44051 |
MCR30,40 |
1 | ||
| 04438-28052 |
ACR30,40 |
1 | ||
| 04428-58030 |
ACR30,40 |
1 | ||
| 04428-58060 |
MCR30,40 |
1 | ||
| 04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04438-28041 |
ACR30,40 |
1 | ||
| 04438-28041 |
ACR30,40,MCR30,40 |
1 | ||
| 04438-33070 |
MCR30,40 |
1 | ||
| 04438-58020 |
ACR30,40,MCR30,40 |
1 | ||
| 41336E - COVER, FRONT DRIVE SHAFT DUST, LH | ||||
| 41336-17020 |
MCR30,40 |
1 | ||
| 41336-28030 |
ACR40,MCR30,40 |
1 | ||
| 43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH | ||||
| 43040-28021 |
ACR40,MCR30,40 |
1 | ||
| 43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) | ||||
| 43425-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 90520-26028 |
MCR30,40 |
1 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43420-28050 |
MCR30,40 |
1 | ||
| 43420-33230 |
MCR30,40 |
1 | ||
| 43420-33200 |
MCR30,40 |
1 | ||
| 43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) | ||||
| 90521-33002 |
ACR30,40,MCR30,40 |
1 | ||
| 90521-33002 |
ACR30,40,MCR30,40 |
1 | ||
| 43420H - OIL SEAL, FRONT DRIVE SHAFT, LH | ||||
| 90311-50023 |
ACR40,MCR30,40 |
1 | ||
| 90311-50023 |
MCR40 ﾏｰｸ=NOK |
1 | ||
| 43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-48030 |
MCR30,40 |
1 | ||
| 42345-04030 |
MCR30,40 内径=33.7 |
1 | ||
| 42345-48030 |
MCR30,40 |
1 | ||
| 42345-20040 |
ACR30,40 |
1 | ||
| 43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-04040 |
MCR30,40 内径=99.8 |
1 | ||
| 42345-44010 |
MCR30,40 内径=98.7 |
1 | ||
| 42345-28020 |
ACR30,40 |
1 | ||
| 42345-44020 |
MCR30,40 |
1 | ||
| 42345-44020 |
MCR30,40 |
1 | ||
| 43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 90949-01559 |
ACR30,40 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 42345-42010 |
ACR30,40 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 42345-42010 |
ACR30,40,MCR30,40 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 42345-14010 |
MCR30,40 |
1 | ||
| 90949-01559 |
ACR30,40,MCR30,40 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 90949-01340 |
MCR30,40 |
1 | ||
| 42345-12160 |
ACR30,40,MCR30,40 |
1 | ||
| 42345-12160 |
ACR30,40 |
1 | ||
| 43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH | ||||
| 43470-39376 |
MCR30,40 |
1 | ||
| 43470-39385 |
MCR30,40 |
1 | ||
| 43470-39465 |
MCR30,40 |
1 | ||
| 43470-29615 |
MCR30,40 |
1 | ||
| 43474 - DAMPER, DRIVE SHAFT | ||||
| 43474-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 43474-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 43474-28010 |
ACR30,40 |
1 | ||
| 43474-33010 |
MCR30,40 |
1 | ||
| 43474A - CLAMP (FOR DRIVE SHAFT DAMPER SETTING) | ||||
| 42345-14010 |
ACR30,40,MCR30,40 |
1 | ||
| 42345-14010 |
ACR30,40,MCR30,40 |
1 | ||

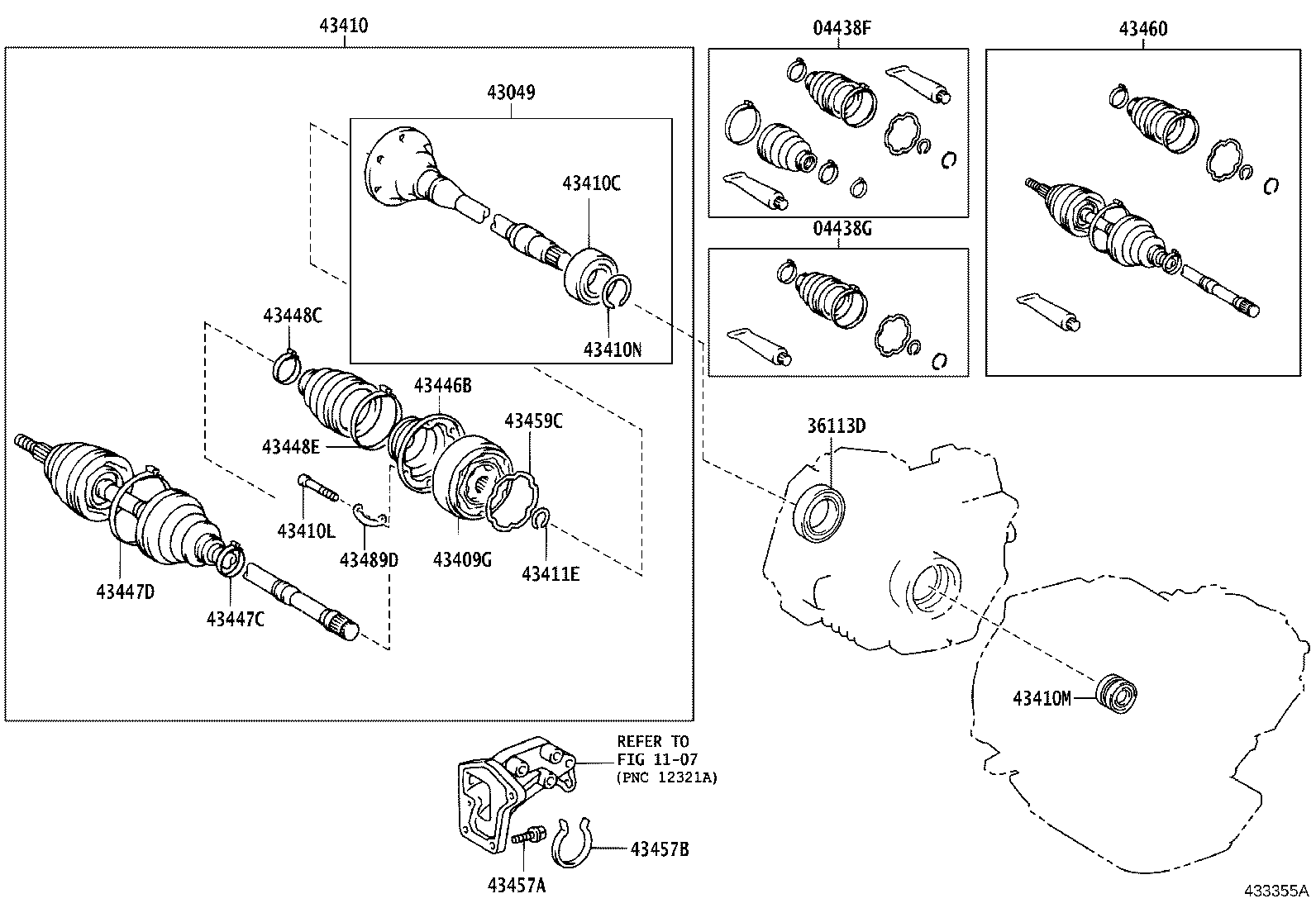

(9912-0304)MCR40
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH | ||||
| 04438-28052 |
ACR30,40 |
1 | ||
| 04438-28052 |
ACR30,40 |
1 | ||
| 04428-58030 |
ACR30,40 |
1 | ||
| 04438-33080 |
MCR30,40 |
1 | ||
| 04428-58060 |
MCR30,40 |
1 | ||
| 04438-44051 |
MCR30,40 |
1 | ||
| 04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04438-33070 |
MCR30,40 |
1 | ||
| 04438-28041 |
ACR30,40,MCR30,40 |
1 | ||
| 04438-58020 |
ACR30,40,MCR30,40 |
1 | ||
| 04438-28041 |
ACR30,40 |
1 | ||
| 36113D - SEAL, OIL (FOR TRANSFER CASE RH) | ||||
| 90311-36006 |
ACR40,MCR40 |
1 | ||
| 90311-36006 |
ACR40,MCR40 |
1 | ||
| 43049 - SHAFT SUB-ASSY, FRONT DRIVE FLANGE | ||||
| 43049-28020 |
MCR40 |
1 | ||
| 43409G - JOINT SUB-ASSY, FRONT DRIVE SHAFT CROSS GROOVE, RH | ||||
| 43409-28010 |
MCR30,40 |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-28060 |
MCR40 |
1 | ||
| 43410-28061 |
MCR40 |
1 | ||
| 43410-28110 |
MCR40 |
1 | ||
| 43410C - BEARING (FOR FRONT DRIVE SHAFT) | ||||
| 90363-36006 |
ACR40,MCR40 |
1 | ||
| 90363-36006 |
ACR40,MCR40 |
1 | ||
| 43410L - BOLT (FOR FRONT DRIVE SHAFT CROSS GROOVE JOINT RH) | ||||
| 90110-10015 |
MCR30,40 |
6 | ||
| 43410M - OIL SEAL, FRONT DRIVE SHAFT, RH | ||||
| 90316-34001 |
ACR40,MCR40 |
1 | ||
| 90316-34001 |
ACR40,MCR40 |
1 | ||
| 43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH) | ||||
| 90520-33008 |
ACR40,MCR40 |
1 | ||
| 90520-33008 |
ACR40,MCR40 |
2 | ||
| 43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) | ||||
| 90520-26028 |
MCR30,40 |
1 | ||
| 43425-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 43446B - COVER, FRONT AXLE INBOARD JOINT, RH | ||||
| 43446-28010 |
MCR30,40 |
1 | ||
| 43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-48030 |
MCR30,40 |
1 | ||
| 42345-04030 |
MCR30,40 内径=33.7 |
1 | ||
| 42345-20040 |
ACR30,40 |
1 | ||
| 42345-48030 |
MCR30,40 |
1 | ||
| 43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-44010 |
MCR30,40 内径=98.7 |
1 | ||
| 42345-44020 |
MCR30,40 |
1 | ||
| 42345-28020 |
ACR30,40 |
1 | ||
| 42345-04040 |
MCR30,40 内径=99.8 |
1 | ||
| 42345-44020 |
MCR30,40 |
1 | ||
| 43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 90949-01559 |
ACR40,MCR40 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 42345-42010 |
ACR30,40 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 42345-42010 |
ACR40,MCR40 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90949-01559 |
ACR30,40 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 42345-14010 |
MCR30,40 |
1 | ||
| 43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 90949-01340 |
MCR30,40 |
1 | ||
| 42345-12160 |
ACR30,40 |
1 | ||
| 42345-12160 |
ACR30,40,MCR30,40 |
1 | ||
| 43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1) | ||||
| 90901-19060 |
ACR40,MCR40 *10−1.25PX28.5−14.8 |
1 | ||
| 90901-19060 |
ACR40,MCR40 *10−1.25PX28.5−14.8 |
1 | ||
| 43457B - RING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET) | ||||
| 90521-75002 |
ACR40,MCR40 |
1 | ||
| 90521-75002 |
ACR40,MCR40 |
1 | ||
| 43459C - GASKET, FRONT DRIVE SHAFT CROSS GROOVE JOINT, RH | ||||
| 43459-17010 |
MCR30,40 |
1 | ||
| 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH | ||||
| 43460-39165 |
MCR30,40 |
1 | ||
| 43460-29495 |
MCR40 |
1 | ||
| 43470-29605 |
MCR30,40 |
1 | ||
| 43460-29585 |
MCR40 |
1 | ||
| 43489D - WASHER, FRONT DRIVE SHAFT CROSS GROOVE JOINT, RH | ||||
| 43489-17010 |
MCR30,40 |
3 | ||
| Linked diagrams | ||||
| 1107 | ||||

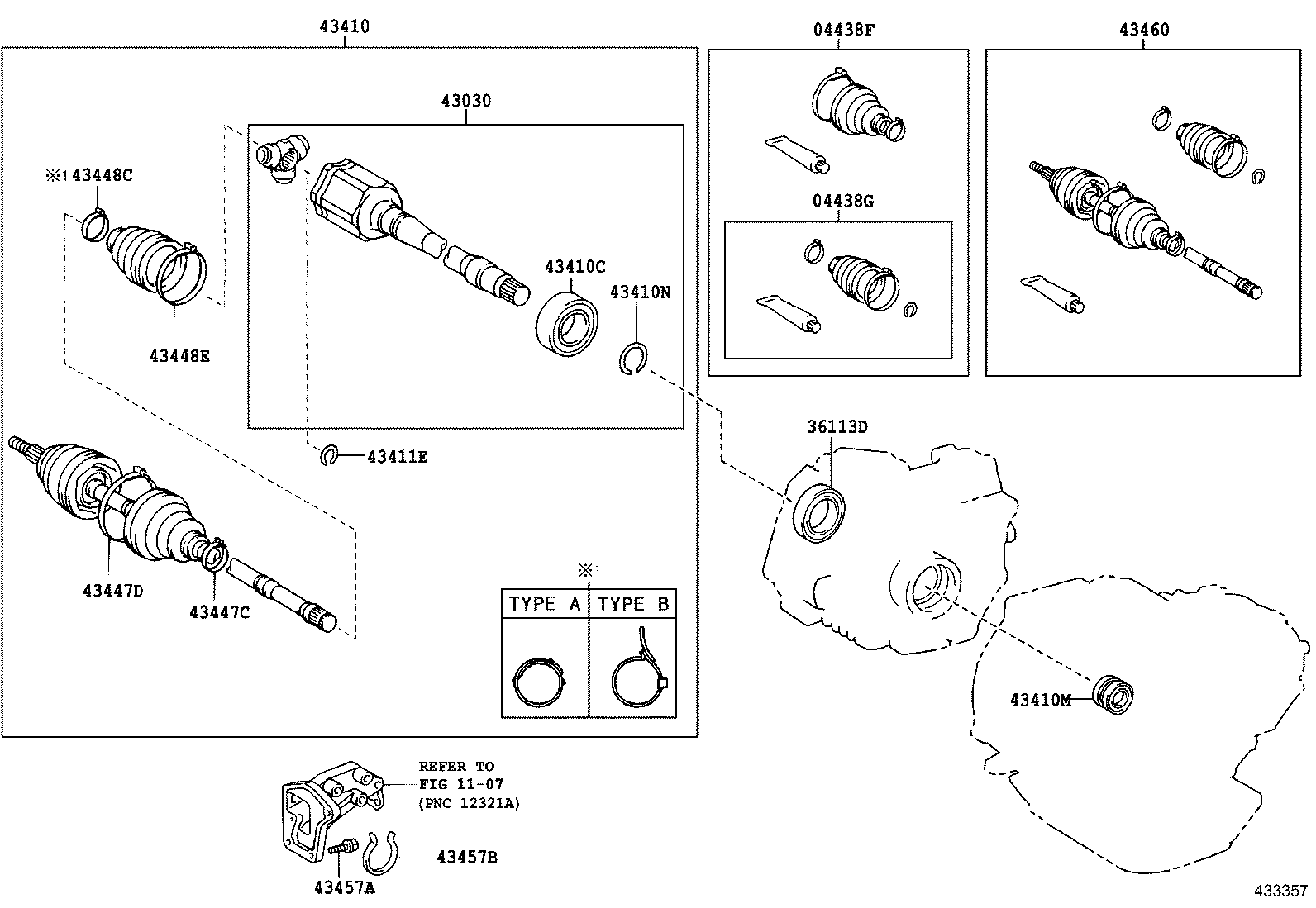

(0304- )MCR40
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH | ||||
| 04438-28052 |
ACR30,40 |
1 | ||
| 04438-28052 |
ACR30,40 |
1 | ||
| 04428-58030 |
ACR30,40 |
1 | ||
| 04438-33080 |
MCR30,40 |
1 | ||
| 04428-58060 |
MCR30,40 |
1 | ||
| 04438-44051 |
MCR30,40 |
1 | ||
| 04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04438-33070 |
MCR30,40 |
1 | ||
| 04438-28041 |
ACR30,40,MCR30,40 |
1 | ||
| 04438-58020 |
ACR30,40,MCR30,40 |
1 | ||
| 04438-28041 |
ACR30,40 |
1 | ||
| 36113D - SEAL, OIL (FOR TRANSFER CASE RH) | ||||
| 90311-36006 |
ACR40,MCR40 |
1 | ||
| 90311-36006 |
ACR40,MCR40 |
1 | ||
| 43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH | ||||
| 43030-28021 |
ACR40,MCR40 |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-28060 |
MCR40 |
1 | ||
| 43410-28061 |
MCR40 |
1 | ||
| 43410-28110 |
MCR40 |
1 | ||
| 43410C - BEARING (FOR FRONT DRIVE SHAFT) | ||||
| 90363-36006 |
ACR40,MCR40 |
1 | ||
| 90363-36006 |
ACR40,MCR40 |
1 | ||
| 43410M - OIL SEAL, FRONT DRIVE SHAFT, RH | ||||
| 90316-34001 |
ACR40,MCR40 |
1 | ||
| 90316-34001 |
ACR40,MCR40 |
1 | ||
| 43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH) | ||||
| 90520-33008 |
ACR40,MCR40 |
1 | ||
| 90520-33008 |
ACR40,MCR40 |
2 | ||
| 43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) | ||||
| 90520-26028 |
MCR30,40 |
1 | ||
| 43425-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-48030 |
MCR30,40 |
1 | ||
| 42345-04030 |
MCR30,40 内径=33.7 |
1 | ||
| 42345-20040 |
ACR30,40 |
1 | ||
| 42345-48030 |
MCR30,40 |
1 | ||
| 43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-44010 |
MCR30,40 内径=98.7 |
1 | ||
| 42345-44020 |
MCR30,40 |
1 | ||
| 42345-28020 |
ACR30,40 |
1 | ||
| 42345-04040 |
MCR30,40 内径=99.8 |
1 | ||
| 42345-44020 |
MCR30,40 |
1 | ||
| 43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 90949-01559 |
ACR40,MCR40 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 42345-42010 |
ACR30,40 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 42345-42010 |
ACR40,MCR40 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90949-01559 |
ACR30,40 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 42345-14010 |
MCR30,40 |
1 | ||
| 43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 90949-01340 |
MCR30,40 |
1 | ||
| 42345-12160 |
ACR30,40 |
1 | ||
| 42345-12160 |
ACR30,40,MCR30,40 |
1 | ||
| 43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1) | ||||
| 90901-19060 |
ACR40,MCR40 *10−1.25PX28.5−14.8 |
1 | ||
| 90901-19060 |
ACR40,MCR40 *10−1.25PX28.5−14.8 |
1 | ||
| 43457B - RING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET) | ||||
| 90521-75002 |
ACR40,MCR40 |
1 | ||
| 90521-75002 |
ACR40,MCR40 |
1 | ||
| 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH | ||||
| 43460-39165 |
MCR30,40 |
1 | ||
| 43460-29495 |
MCR40 |
1 | ||
| 43470-29605 |
MCR30,40 |
1 | ||
| 43460-29585 |
MCR40 |
1 | ||
| Linked diagrams | ||||
| 1107 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
