MCR40W-MFSQK (1999)

Toyota Estima T/L

Production Dec 1999 - Jan 2006
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

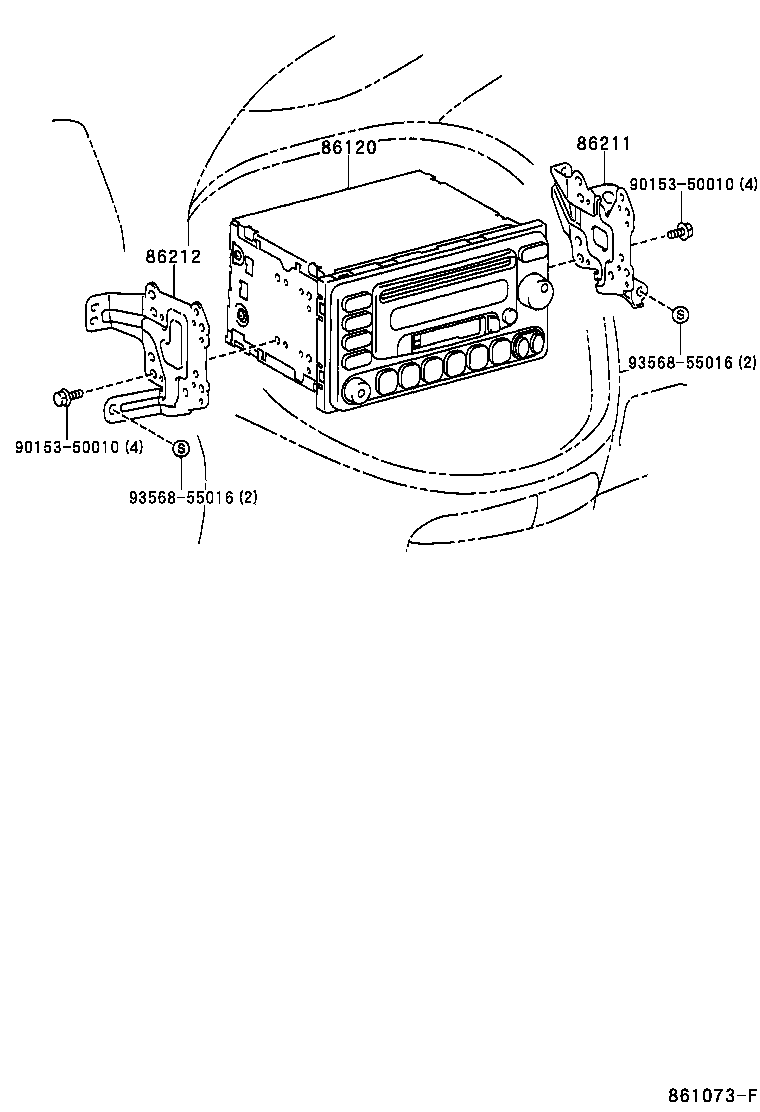

ILLUST NO. 1 OF 3(9912- )

Click highlighted areas on diagram

diagram 86120 86211 86212 9015350010 9015350010 9356855016 9356855016
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-2B660

ACR30,40,MCR30,40..G

MATSUSHITA,ID=55827,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
86120-44110

ACR30,40,MCR30,40..G

MATSUSHITA,ID=50310,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
86120-52251

ACR30,40,MCR30,40..G

FUJITSU TEN,ID=10319,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ

 1
86211 - BRACKET, RADIO, NO.1
86211-28110

ACR30,40,MCR30,40

 1
86211-28110

ACR30,40,MCR30,40

 1
86212 - BRACKET, RADIO, NO.2
86212-28110

ACR30,40,MCR30,40

 1
86212-28110

ACR30,40,MCR30,40

 1
Common parts
90153-50010
93568-55016

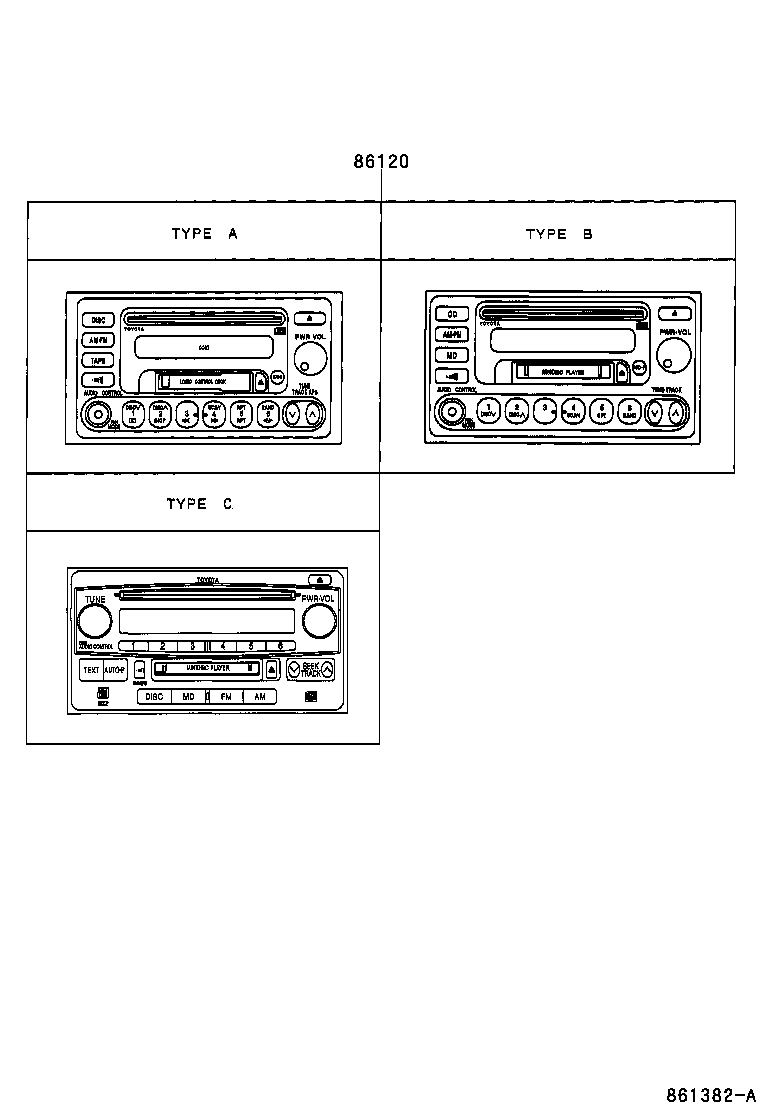

ILLUST NO. 2 OF 3(9912- )

Click highlighted areas on diagram

diagram 86120
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-2B660

ACR30,40,MCR30,40..G

MATSUSHITA,ID=55827,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
86120-44110

ACR30,40,MCR30,40..G

MATSUSHITA,ID=50310,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
86120-52251

ACR30,40,MCR30,40..G

FUJITSU TEN,ID=10319,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ

 1

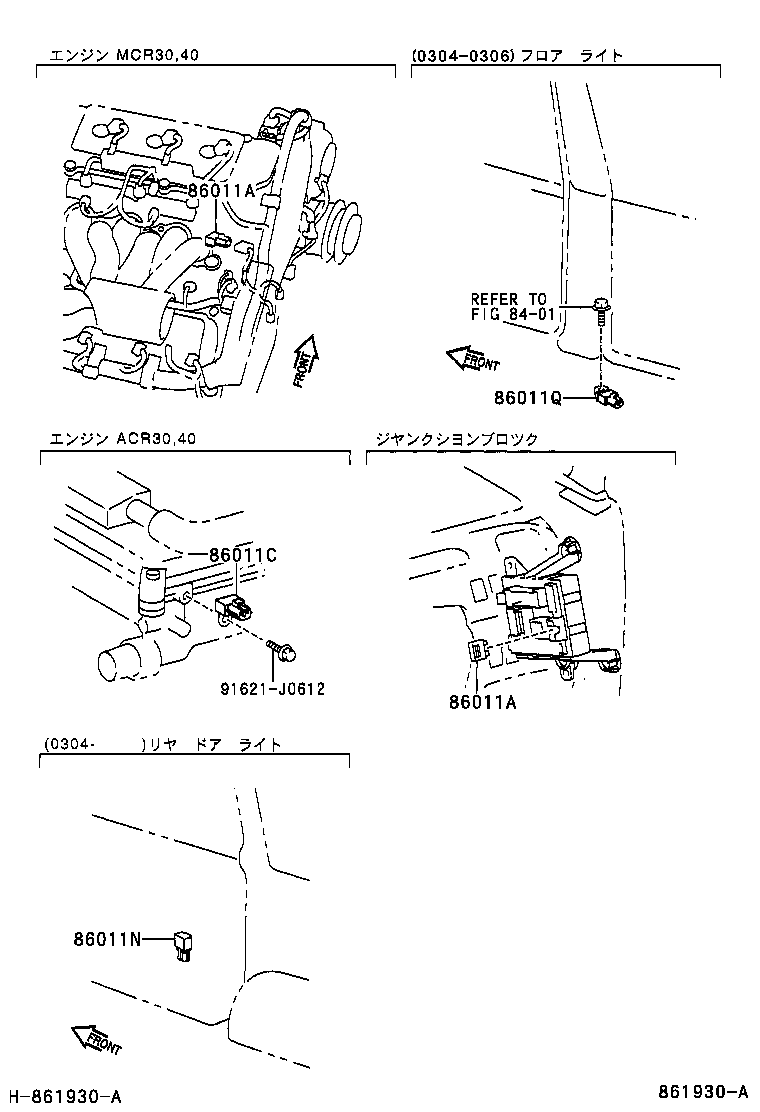

ILLUST NO. 3 OF 3(9912- )

Click highlighted areas on diagram

ｺﾝﾃﾞﾝｻ- & ﾉｲｽﾞﾌｲﾙﾀ-

diagram 8401 86011A 86011A 86011C 86011N 86011Q 91621J0612
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04083

MCR30,40

ｴﾝｼﾞﾝ

 1
90980-04066

ACR30,40,MCR30,40

ｼﾞｬﾝｸｼｮﾝ ﾌﾞﾛｯｸ

 1
90980-04066

ACR30,40,MCR30,40

ｼﾞｬﾝｸｼｮﾝ ﾌﾞﾛｯｸ

 1
90980-04153

MCR30,40

ｴﾝｼﾞﾝ

 1
86011A - CONDENSER, RADIO SETTING
90980-04083

MCR30,40

ｴﾝｼﾞﾝ

 1
90980-04066

ACR30,40,MCR30,40

ｼﾞｬﾝｸｼｮﾝ ﾌﾞﾛｯｸ

 1
90980-04066

ACR30,40,MCR30,40

ｼﾞｬﾝｸｼｮﾝ ﾌﾞﾛｯｸ

 1
90980-04153

MCR30,40

ｴﾝｼﾞﾝ

 1
86011C - FILTER, NOISE
90980-05314

ACR30,40

 1
90980-05314

ACR30,40

 1
86011N - FILTER, NOISE
90980-04111

ACR30,40,MCR30,40..AERAS,AERSS,G,X

 1
86011Q - CONDENSER, RADIO SETTING
90980-04130

ACR30,40,MCR30,40..AERAS,AERSS,G,X

 1
Common parts
91621-J0612
Linked diagrams
8401
