Toyota Estima t/l MCR40 WIRELESS DOOR LOCK

MCR40W-MFSQK (1999)

Toyota Estima T/L

Production Dec 1999 - Jan 2006

Engine 1MZFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(9912-0103)

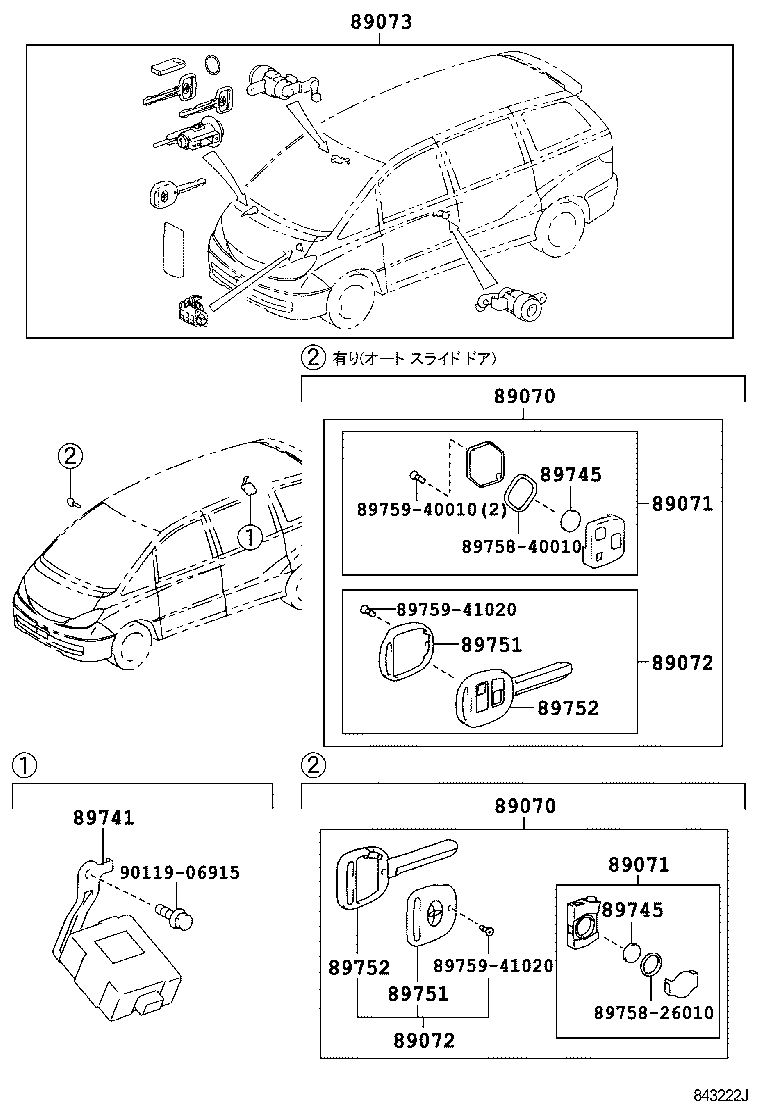

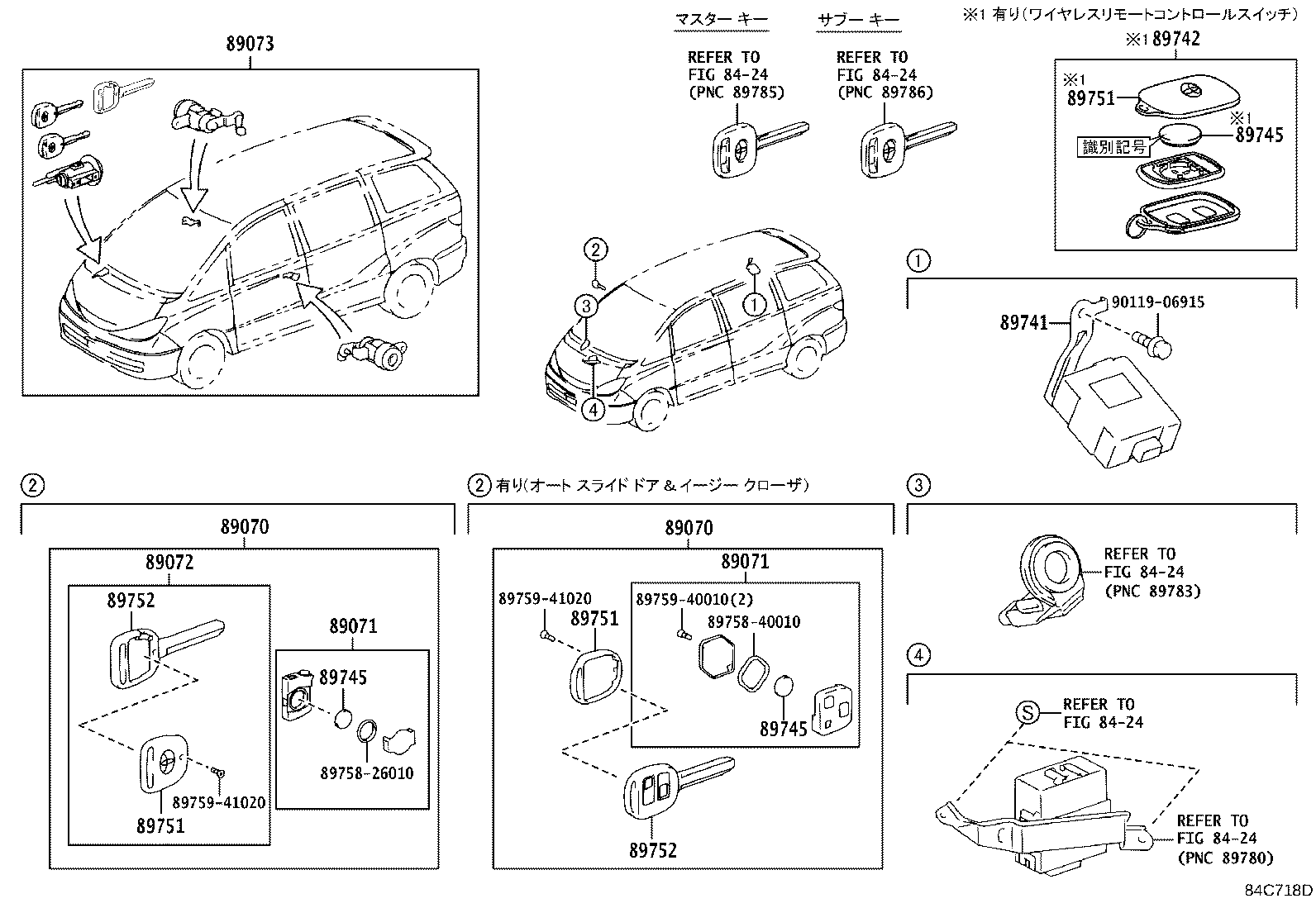

Click highlighted areas on diagram

Part #	Description	Period	Qty
89070 - TRANSMITTER ASSY, DOOR CONTROL
89070-28160	ACR30,40,MCR30,40 ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	12/1999 - 04/2001	1
89070-28460	ACR30,40..AERAS,AERSS,G,X ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 12/2005	1
89070-28171	ACR30,40,MCR30,40 ﾚｼ-ﾊﾞﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89741-28121	03/2001 - 04/2001	1
89070-44060	MCR30,40	04/2003 - 01/2006	1
89070-28290	ACR30,40,MCR30,40..AERAS,G,X ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ- & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2001 - 04/2003	1
89070-12290	ACR30,40	04/2003 - 01/2006	1
89070-28170	ACR30,40,MCR30,40 ﾚｼ-ﾊﾞﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89741-28120	12/1999 - 03/2001	1
89070-58050	MCR30,40 ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 01/2006	1
89070-28300	ACR30,40,MCR30,40..AERAS,G,X ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ)	04/2001 - 04/2003	1
89070 - TRANSMITTER ASSY, DOOR CONTROL
89070-28160	ACR30,40,MCR30,40 ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	12/1999 - 04/2001	1
89070-28460	ACR30,40..AERAS,AERSS,G,X ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 12/2005	1
89070-28171	ACR30,40,MCR30,40 ﾚｼ-ﾊﾞﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89741-28121	03/2001 - 04/2001	1
89070-44060	MCR30,40	04/2003 - 01/2006	1
89070-28290	ACR30,40,MCR30,40..AERAS,G,X ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ- & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2001 - 04/2003	1
89070-12290	ACR30,40	04/2003 - 01/2006	1
89070-28170	ACR30,40,MCR30,40 ﾚｼ-ﾊﾞﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89741-28120	12/1999 - 03/2001	1
89070-58050	MCR30,40 ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 01/2006	1
89070-28300	ACR30,40,MCR30,40..AERAS,G,X ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ)	04/2001 - 04/2003	1
89071 - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89071-28050	ACR30,40,MCR30,40 ﾚｼ-ﾊﾞﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89741-28120	12/1999 - 03/2001	1
89071-28010	ACR30,40,MCR30,40 ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	12/1999 - 04/2001	1
89071-30050	ACR30,40,MCR30,40..AERAS,G,X ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ) & ﾚｼ-ﾊﾞﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89741-28110	02/2001 - 04/2003	1
89071-58060	ACR30,40..AERAS,AERSS,G,X ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 01/2006	1
89071-12041	ACR30,40	04/2003 - 01/2006	1
89071-28060	ACR30,40,MCR30,40..AERAS,G,X ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ- & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2001 - 04/2003	1
89071-60070	MCR30,40 ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 01/2006	1
89071-12021	ACR30,40,MCR30,40 ﾚｼ-ﾊﾞﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89741-28121	03/2001 - 04/2001	1
89071-30050	MCR30,40	04/2003 - 01/2006	1
89071 - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89071-28050	ACR30,40,MCR30,40 ﾚｼ-ﾊﾞﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89741-28120	12/1999 - 03/2001	1
89071-28010	ACR30,40,MCR30,40 ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	12/1999 - 04/2001	1
89071-30050	ACR30,40,MCR30,40..AERAS,G,X ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ) & ﾚｼ-ﾊﾞﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89741-28110	02/2001 - 04/2003	1
89071-58060	ACR30,40..AERAS,AERSS,G,X ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 01/2006	1
89071-12041	ACR30,40	04/2003 - 01/2006	1
89071-28060	ACR30,40,MCR30,40..AERAS,G,X ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ- & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2001 - 04/2003	1
89071-60070	MCR30,40 ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 01/2006	1
89071-12021	ACR30,40,MCR30,40 ﾚｼ-ﾊﾞﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89741-28121	03/2001 - 04/2001	1
89071-30050	MCR30,40	04/2003 - 01/2006	1
89072 - HOUSING SET, DOOR CONTROL TRANSMITTER
89072-28030	ACR30,40,MCR30,40	03/2001 - 04/2001	1
89072-28030	ACR30,40,MCR30,40	12/1999 - 03/2001	1
89072-28030	ACR30,40,MCR30,40..AERAS,G,X ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ)	04/2001 - 04/2003	1
89072-28580	ACR30,40,MCR30,40..AERAS,G,X ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ- & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2001 - 04/2003	1
89072-47020	ACR30,40,MCR30,40	04/2003 - 01/2006	1
89072-28580	ACR30,40,MCR30,40 ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	12/1999 - 04/2001	1
89072 - HOUSING SET, DOOR CONTROL TRANSMITTER
89072-28030	ACR30,40,MCR30,40	03/2001 - 04/2001	1
89072-28030	ACR30,40,MCR30,40	12/1999 - 03/2001	1
89072-28030	ACR30,40,MCR30,40..AERAS,G,X ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ)	04/2001 - 04/2003	1
89072-28580	ACR30,40,MCR30,40..AERAS,G,X ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ- & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2001 - 04/2003	1
89072-47020	ACR30,40,MCR30,40	04/2003 - 01/2006	1
89072-28580	ACR30,40,MCR30,40 ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	12/1999 - 04/2001	1
89073 - CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)
89073-28100	ACR30,40,MCR30,40 ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	12/1999 - 04/2001	1
89073-28240	ACR30,40,MCR30,40..AERAS,G,X ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ)	04/2001 - 04/2003	1
89073-28230	ACR30,40,MCR30,40..AERAS,G,X ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ- & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2001 - 04/2003	1
69005-28780	MCR30,40	04/2003 - 12/2999	1
69005-28800	MCR30,40 ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 12/2005	1
89073-28110	ACR30,40,MCR30,40	12/1999 - 04/2001	1
69005-28770	ACR30,40	04/2003 - 12/2999	1
69005-28790	ACR30,40..AERAS,AERSS,G,X ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 12/2005	1
89741 - RECEIVER, DOOR CONTROL
89741-28120	ACR30,40,MCR30,40 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89741-28120	12/1999 - 03/2001	1
89741-28110	ACR30,40,MCR30,40..08S;ACR30,40,MCR30,40..07S..G ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89741-28110	12/1999 - 04/2003	1
89741-28220	ACR30,40,MCR30,40	04/2003 - 01/2006	1
89741-28121	ACR30,40,MCR30,40 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89741-28121	03/2001 - 04/2001	1
89745 - BATTERY, TRANSMITTER
89745-26010	ACR30,40,MCR30,40	12/1999 - 04/2003	1
89745-26010	ACR30,40,MCR30,40	04/2003 - 01/2006	1
89745-40010	ACR30,40,MCR30,40 ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	12/1999 - 04/2003	1
89745-48030	ACR30,40,MCR30,40..AERAS,AERSS,G,X ｱﾘ(ﾜｲﾔﾚｽﾘﾓｰﾄｺﾝﾄﾛｰﾙｽｲﾂﾁ),無し(識別記号=JAPAN 1)	04/2003 - 01/2006	1
89745-40010	MCR30,40 ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 01/2006	1
89745-48030	ACR30,40..AERAS,AERSS,G,X ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 01/2006	1
89745-50010	ACR30,40,MCR30,40..AERAS,AERSS,G,X ｱﾘ(ﾜｲﾔﾚｽﾘﾓｰﾄｺﾝﾄﾛｰﾙｽｲﾂﾁ),有り(識別記号=JAPAN 1)	04/2003 - 01/2006	1
89745 - BATTERY, TRANSMITTER
89745-26010	ACR30,40,MCR30,40	12/1999 - 04/2003	1
89745-26010	ACR30,40,MCR30,40	04/2003 - 01/2006	1
89745-40010	ACR30,40,MCR30,40 ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	12/1999 - 04/2003	1
89745-48030	ACR30,40,MCR30,40..AERAS,AERSS,G,X ｱﾘ(ﾜｲﾔﾚｽﾘﾓｰﾄｺﾝﾄﾛｰﾙｽｲﾂﾁ),無し(識別記号=JAPAN 1)	04/2003 - 01/2006	1
89745-40010	MCR30,40 ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 01/2006	1
89745-48030	ACR30,40..AERAS,AERSS,G,X ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 01/2006	1
89745-50010	ACR30,40,MCR30,40..AERAS,AERSS,G,X ｱﾘ(ﾜｲﾔﾚｽﾘﾓｰﾄｺﾝﾄﾛｰﾙｽｲﾂﾁ),有り(識別記号=JAPAN 1)	04/2003 - 01/2006	1
89751 - COVER, TRANSMITTER HOUSING
89751-44010	ACR30,40,MCR30,40	12/1999 - 04/2003	1
89751-44050	ACR30,40,MCR30,40..AERAS,AERSS,G,X ｱﾘ(ﾜｲﾔﾚｽﾘﾓｰﾄｺﾝﾄﾛｰﾙｽｲﾂﾁ)	04/2003 - 01/2006	1
89751-50010	ACR30,40,MCR30,40..AERAS,AERSS,G,X ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 01/2006	1
89751-50010	ACR30,40,MCR30,40 ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	12/1999 - 04/2003	1
89751-44010	ACR30,40,MCR30,40	04/2003 - 01/2006	1
89751 - COVER, TRANSMITTER HOUSING
89751-44010	ACR30,40,MCR30,40	12/1999 - 04/2003	1
89751-44050	ACR30,40,MCR30,40..AERAS,AERSS,G,X ｱﾘ(ﾜｲﾔﾚｽﾘﾓｰﾄｺﾝﾄﾛｰﾙｽｲﾂﾁ)	04/2003 - 01/2006	1
89751-50010	ACR30,40,MCR30,40..AERAS,AERSS,G,X ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 01/2006	1
89751-50010	ACR30,40,MCR30,40 ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	12/1999 - 04/2003	1
89751-44010	ACR30,40,MCR30,40	04/2003 - 01/2006	1
89752 - CASE, TRANSMITTER HOUSING
89752-28080	ACR30,40,MCR30,40	12/1999 - 03/2001	1
89752-28120	ACR30,40,MCR30,40 ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	12/1999 - 04/2001	1
89752-28120	ACR30,40,MCR30,40..AERAS,G,X ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ- & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2001 - 04/2003	1
89752-28080	ACR30,40,MCR30,40	03/2001 - 04/2001	1
89752-13020	ACR30,40,MCR30,40..AERAS,AERSS,G,X ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 01/2006	1
89752-28080	ACR30,40,MCR30,40..AERAS,G,X	04/2001 - 04/2003	1
89752-46020	ACR30,40,MCR30,40	04/2003 - 01/2006	1
89752 - CASE, TRANSMITTER HOUSING
89752-28080	ACR30,40,MCR30,40	12/1999 - 03/2001	1
89752-28120	ACR30,40,MCR30,40 ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	12/1999 - 04/2001	1
89752-28120	ACR30,40,MCR30,40..AERAS,G,X ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ- & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2001 - 04/2003	1
89752-28080	ACR30,40,MCR30,40	03/2001 - 04/2001	1
89752-13020	ACR30,40,MCR30,40..AERAS,AERSS,G,X ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 01/2006	1
89752-28080	ACR30,40,MCR30,40..AERAS,G,X	04/2001 - 04/2003	1
89752-46020	ACR30,40,MCR30,40	04/2003 - 01/2006	1
Common parts
89758-26010
89758-40010
89759-40010
89759-41020
90119-06915

(0304- )

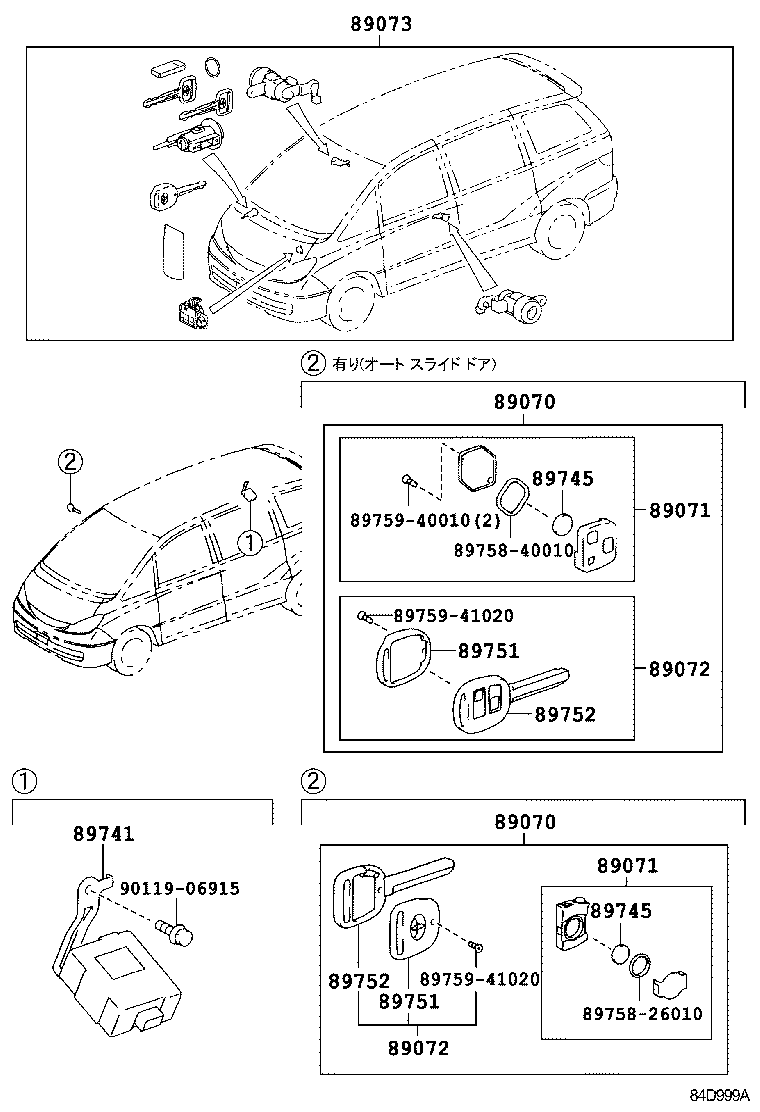

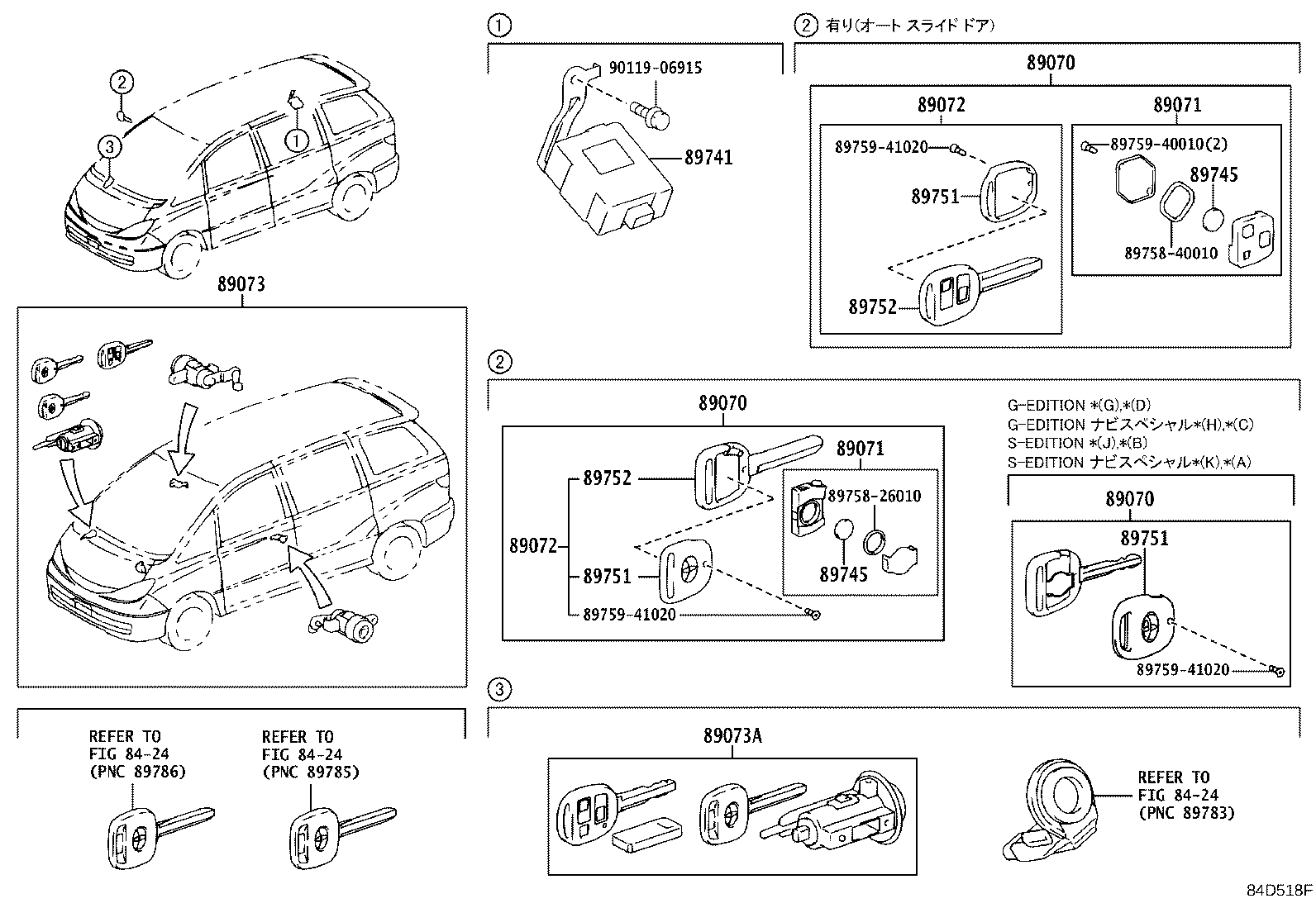

Click highlighted areas on diagram

Part #	Description	Period	Qty
89070 - TRANSMITTER ASSY, DOOR CONTROL
89070-28160	ACR30,40,MCR30,40 ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	12/1999 - 04/2001	1
89070-28460	ACR30,40..AERAS,AERSS,G,X ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 12/2005	1
89070-28171	ACR30,40,MCR30,40 ﾚｼ-ﾊﾞﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89741-28121	03/2001 - 04/2001	1
89070-44060	MCR30,40	04/2003 - 01/2006	1
89070-28290	ACR30,40,MCR30,40..AERAS,G,X ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ- & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2001 - 04/2003	1
89070-12290	ACR30,40	04/2003 - 01/2006	1
89070-28170	ACR30,40,MCR30,40 ﾚｼ-ﾊﾞﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89741-28120	12/1999 - 03/2001	1
89070-58050	MCR30,40 ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 01/2006	1
89070-28300	ACR30,40,MCR30,40..AERAS,G,X ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ)	04/2001 - 04/2003	1
89070 - TRANSMITTER ASSY, DOOR CONTROL
89070-28160	ACR30,40,MCR30,40 ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	12/1999 - 04/2001	1
89070-28460	ACR30,40..AERAS,AERSS,G,X ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 12/2005	1
89070-28171	ACR30,40,MCR30,40 ﾚｼ-ﾊﾞﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89741-28121	03/2001 - 04/2001	1
89070-44060	MCR30,40	04/2003 - 01/2006	1
89070-28290	ACR30,40,MCR30,40..AERAS,G,X ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ- & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2001 - 04/2003	1
89070-12290	ACR30,40	04/2003 - 01/2006	1
89070-28170	ACR30,40,MCR30,40 ﾚｼ-ﾊﾞﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89741-28120	12/1999 - 03/2001	1
89070-58050	MCR30,40 ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 01/2006	1
89070-28300	ACR30,40,MCR30,40..AERAS,G,X ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ)	04/2001 - 04/2003	1
89071 - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89071-28050	ACR30,40,MCR30,40 ﾚｼ-ﾊﾞﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89741-28120	12/1999 - 03/2001	1
89071-28010	ACR30,40,MCR30,40 ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	12/1999 - 04/2001	1
89071-30050	ACR30,40,MCR30,40..AERAS,G,X ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ) & ﾚｼ-ﾊﾞﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89741-28110	02/2001 - 04/2003	1
89071-58060	ACR30,40..AERAS,AERSS,G,X ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 01/2006	1
89071-12041	ACR30,40	04/2003 - 01/2006	1
89071-28060	ACR30,40,MCR30,40..AERAS,G,X ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ- & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2001 - 04/2003	1
89071-60070	MCR30,40 ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 01/2006	1
89071-12021	ACR30,40,MCR30,40 ﾚｼ-ﾊﾞﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89741-28121	03/2001 - 04/2001	1
89071-30050	MCR30,40	04/2003 - 01/2006	1
89071 - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89071-28050	ACR30,40,MCR30,40 ﾚｼ-ﾊﾞﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89741-28120	12/1999 - 03/2001	1
89071-28010	ACR30,40,MCR30,40 ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	12/1999 - 04/2001	1
89071-30050	ACR30,40,MCR30,40..AERAS,G,X ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ) & ﾚｼ-ﾊﾞﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89741-28110	02/2001 - 04/2003	1
89071-58060	ACR30,40..AERAS,AERSS,G,X ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 01/2006	1
89071-12041	ACR30,40	04/2003 - 01/2006	1
89071-28060	ACR30,40,MCR30,40..AERAS,G,X ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ- & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2001 - 04/2003	1
89071-60070	MCR30,40 ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 01/2006	1
89071-12021	ACR30,40,MCR30,40 ﾚｼ-ﾊﾞﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89741-28121	03/2001 - 04/2001	1
89071-30050	MCR30,40	04/2003 - 01/2006	1
89072 - HOUSING SET, DOOR CONTROL TRANSMITTER
89072-28030	ACR30,40,MCR30,40	03/2001 - 04/2001	1
89072-28030	ACR30,40,MCR30,40	12/1999 - 03/2001	1
89072-28030	ACR30,40,MCR30,40..AERAS,G,X ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ)	04/2001 - 04/2003	1
89072-28580	ACR30,40,MCR30,40..AERAS,G,X ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ- & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2001 - 04/2003	1
89072-47020	ACR30,40,MCR30,40	04/2003 - 01/2006	1
89072-28580	ACR30,40,MCR30,40 ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	12/1999 - 04/2001	1
89073 - CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)
89073-28100	ACR30,40,MCR30,40 ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	12/1999 - 04/2001	1
89073-28240	ACR30,40,MCR30,40..AERAS,G,X ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ)	04/2001 - 04/2003	1
89073-28230	ACR30,40,MCR30,40..AERAS,G,X ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ- & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2001 - 04/2003	1
69005-28780	MCR30,40	04/2003 - 12/2999	1
69005-28800	MCR30,40 ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 12/2005	1
89073-28110	ACR30,40,MCR30,40	12/1999 - 04/2001	1
69005-28770	ACR30,40	04/2003 - 12/2999	1
69005-28790	ACR30,40..AERAS,AERSS,G,X ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 12/2005	1
89741 - RECEIVER, DOOR CONTROL
89741-28120	ACR30,40,MCR30,40 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89741-28120	12/1999 - 03/2001	1
89741-28110	ACR30,40,MCR30,40..08S;ACR30,40,MCR30,40..07S..G ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89741-28110	12/1999 - 04/2003	1
89741-28220	ACR30,40,MCR30,40	04/2003 - 01/2006	1
89741-28121	ACR30,40,MCR30,40 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89741-28121	03/2001 - 04/2001	1
89742 - TRANSMITTER, DOOR CONTROL
89742-28120	ACR30,40,MCR30,40..AERAS,AERSS,G,X ｱﾘ(ﾜｲﾔﾚｽﾘﾓｰﾄｺﾝﾄﾛｰﾙｽｲﾂﾁ)	04/2003 - 01/2006	1
89745 - BATTERY, TRANSMITTER
89745-26010	ACR30,40,MCR30,40	12/1999 - 04/2003	1
89745-26010	ACR30,40,MCR30,40	04/2003 - 01/2006	1
89745-40010	ACR30,40,MCR30,40 ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	12/1999 - 04/2003	1
89745-48030	ACR30,40,MCR30,40..AERAS,AERSS,G,X ｱﾘ(ﾜｲﾔﾚｽﾘﾓｰﾄｺﾝﾄﾛｰﾙｽｲﾂﾁ),無し(識別記号=JAPAN 1)	04/2003 - 01/2006	1
89745-40010	MCR30,40 ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 01/2006	1
89745-48030	ACR30,40..AERAS,AERSS,G,X ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 01/2006	1
89745-50010	ACR30,40,MCR30,40..AERAS,AERSS,G,X ｱﾘ(ﾜｲﾔﾚｽﾘﾓｰﾄｺﾝﾄﾛｰﾙｽｲﾂﾁ),有り(識別記号=JAPAN 1)	04/2003 - 01/2006	1
89745 - BATTERY, TRANSMITTER
89745-26010	ACR30,40,MCR30,40	12/1999 - 04/2003	1
89745-26010	ACR30,40,MCR30,40	04/2003 - 01/2006	1
89745-40010	ACR30,40,MCR30,40 ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	12/1999 - 04/2003	1
89745-48030	ACR30,40,MCR30,40..AERAS,AERSS,G,X ｱﾘ(ﾜｲﾔﾚｽﾘﾓｰﾄｺﾝﾄﾛｰﾙｽｲﾂﾁ),無し(識別記号=JAPAN 1)	04/2003 - 01/2006	1
89745-40010	MCR30,40 ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 01/2006	1
89745-48030	ACR30,40..AERAS,AERSS,G,X ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 01/2006	1
89745-50010	ACR30,40,MCR30,40..AERAS,AERSS,G,X ｱﾘ(ﾜｲﾔﾚｽﾘﾓｰﾄｺﾝﾄﾛｰﾙｽｲﾂﾁ),有り(識別記号=JAPAN 1)	04/2003 - 01/2006	1
89745 - BATTERY, TRANSMITTER
89745-26010	ACR30,40,MCR30,40	12/1999 - 04/2003	1
89745-26010	ACR30,40,MCR30,40	04/2003 - 01/2006	1
89745-40010	ACR30,40,MCR30,40 ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	12/1999 - 04/2003	1
89745-48030	ACR30,40,MCR30,40..AERAS,AERSS,G,X ｱﾘ(ﾜｲﾔﾚｽﾘﾓｰﾄｺﾝﾄﾛｰﾙｽｲﾂﾁ),無し(識別記号=JAPAN 1)	04/2003 - 01/2006	1
89745-40010	MCR30,40 ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 01/2006	1
89745-48030	ACR30,40..AERAS,AERSS,G,X ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 01/2006	1
89745-50010	ACR30,40,MCR30,40..AERAS,AERSS,G,X ｱﾘ(ﾜｲﾔﾚｽﾘﾓｰﾄｺﾝﾄﾛｰﾙｽｲﾂﾁ),有り(識別記号=JAPAN 1)	04/2003 - 01/2006	1
89751 - COVER, TRANSMITTER HOUSING
89751-44010	ACR30,40,MCR30,40	12/1999 - 04/2003	1
89751-44050	ACR30,40,MCR30,40..AERAS,AERSS,G,X ｱﾘ(ﾜｲﾔﾚｽﾘﾓｰﾄｺﾝﾄﾛｰﾙｽｲﾂﾁ)	04/2003 - 01/2006	1
89751-50010	ACR30,40,MCR30,40..AERAS,AERSS,G,X ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 01/2006	1
89751-50010	ACR30,40,MCR30,40 ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	12/1999 - 04/2003	1
89751-44010	ACR30,40,MCR30,40	04/2003 - 01/2006	1
89751 - COVER, TRANSMITTER HOUSING
89751-44010	ACR30,40,MCR30,40	12/1999 - 04/2003	1
89751-44050	ACR30,40,MCR30,40..AERAS,AERSS,G,X ｱﾘ(ﾜｲﾔﾚｽﾘﾓｰﾄｺﾝﾄﾛｰﾙｽｲﾂﾁ)	04/2003 - 01/2006	1
89751-50010	ACR30,40,MCR30,40..AERAS,AERSS,G,X ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 01/2006	1
89751-50010	ACR30,40,MCR30,40 ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	12/1999 - 04/2003	1
89751-44010	ACR30,40,MCR30,40	04/2003 - 01/2006	1
89751 - COVER, TRANSMITTER HOUSING
89751-44010	ACR30,40,MCR30,40	12/1999 - 04/2003	1
89751-44050	ACR30,40,MCR30,40..AERAS,AERSS,G,X ｱﾘ(ﾜｲﾔﾚｽﾘﾓｰﾄｺﾝﾄﾛｰﾙｽｲﾂﾁ)	04/2003 - 01/2006	1
89751-50010	ACR30,40,MCR30,40..AERAS,AERSS,G,X ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 01/2006	1
89751-50010	ACR30,40,MCR30,40 ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	12/1999 - 04/2003	1
89751-44010	ACR30,40,MCR30,40	04/2003 - 01/2006	1
89752 - CASE, TRANSMITTER HOUSING
89752-28080	ACR30,40,MCR30,40	12/1999 - 03/2001	1
89752-28120	ACR30,40,MCR30,40 ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	12/1999 - 04/2001	1
89752-28120	ACR30,40,MCR30,40..AERAS,G,X ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ- & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2001 - 04/2003	1
89752-28080	ACR30,40,MCR30,40	03/2001 - 04/2001	1
89752-13020	ACR30,40,MCR30,40..AERAS,AERSS,G,X ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 01/2006	1
89752-28080	ACR30,40,MCR30,40..AERAS,G,X	04/2001 - 04/2003	1
89752-46020	ACR30,40,MCR30,40	04/2003 - 01/2006	1
89752 - CASE, TRANSMITTER HOUSING
89752-28080	ACR30,40,MCR30,40	12/1999 - 03/2001	1
89752-28120	ACR30,40,MCR30,40 ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	12/1999 - 04/2001	1
89752-28120	ACR30,40,MCR30,40..AERAS,G,X ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ- & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2001 - 04/2003	1
89752-28080	ACR30,40,MCR30,40	03/2001 - 04/2001	1
89752-13020	ACR30,40,MCR30,40..AERAS,AERSS,G,X ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 01/2006	1
89752-28080	ACR30,40,MCR30,40..AERAS,G,X	04/2001 - 04/2003	1
89752-46020	ACR30,40,MCR30,40	04/2003 - 01/2006	1
Common parts
89758-26010
89758-40010
89759-40010
89759-41020
90119-06915
Linked diagrams
8424

(0104-0304)

Click highlighted areas on diagram

ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ)

Part #	Description	Period	Qty
89070 - TRANSMITTER ASSY, DOOR CONTROL
89070-28160	ACR30,40,MCR30,40 ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	12/1999 - 04/2001	1
89070-28460	ACR30,40..AERAS,AERSS,G,X ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 12/2005	1
89070-28171	ACR30,40,MCR30,40 ﾚｼ-ﾊﾞﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89741-28121	03/2001 - 04/2001	1
89070-44060	MCR30,40	04/2003 - 01/2006	1
89070-28290	ACR30,40,MCR30,40..AERAS,G,X ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ- & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2001 - 04/2003	1
89070-12290	ACR30,40	04/2003 - 01/2006	1
89070-28170	ACR30,40,MCR30,40 ﾚｼ-ﾊﾞﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89741-28120	12/1999 - 03/2001	1
89070-58050	MCR30,40 ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 01/2006	1
89070-28300	ACR30,40,MCR30,40..AERAS,G,X ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ)	04/2001 - 04/2003	1
89070 - TRANSMITTER ASSY, DOOR CONTROL
89070-28160	ACR30,40,MCR30,40 ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	12/1999 - 04/2001	1
89070-28460	ACR30,40..AERAS,AERSS,G,X ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 12/2005	1
89070-28171	ACR30,40,MCR30,40 ﾚｼ-ﾊﾞﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89741-28121	03/2001 - 04/2001	1
89070-44060	MCR30,40	04/2003 - 01/2006	1
89070-28290	ACR30,40,MCR30,40..AERAS,G,X ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ- & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2001 - 04/2003	1
89070-12290	ACR30,40	04/2003 - 01/2006	1
89070-28170	ACR30,40,MCR30,40 ﾚｼ-ﾊﾞﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89741-28120	12/1999 - 03/2001	1
89070-58050	MCR30,40 ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 01/2006	1
89070-28300	ACR30,40,MCR30,40..AERAS,G,X ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ)	04/2001 - 04/2003	1
89070 - TRANSMITTER ASSY, DOOR CONTROL
89070-28160	ACR30,40,MCR30,40 ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	12/1999 - 04/2001	1
89070-28460	ACR30,40..AERAS,AERSS,G,X ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 12/2005	1
89070-28171	ACR30,40,MCR30,40 ﾚｼ-ﾊﾞﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89741-28121	03/2001 - 04/2001	1
89070-44060	MCR30,40	04/2003 - 01/2006	1
89070-28290	ACR30,40,MCR30,40..AERAS,G,X ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ- & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2001 - 04/2003	1
89070-12290	ACR30,40	04/2003 - 01/2006	1
89070-28170	ACR30,40,MCR30,40 ﾚｼ-ﾊﾞﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89741-28120	12/1999 - 03/2001	1
89070-58050	MCR30,40 ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 01/2006	1
89070-28300	ACR30,40,MCR30,40..AERAS,G,X ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ)	04/2001 - 04/2003	1
89071 - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89071-28050	ACR30,40,MCR30,40 ﾚｼ-ﾊﾞﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89741-28120	12/1999 - 03/2001	1
89071-28010	ACR30,40,MCR30,40 ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	12/1999 - 04/2001	1
89071-30050	ACR30,40,MCR30,40..AERAS,G,X ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ) & ﾚｼ-ﾊﾞﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89741-28110	02/2001 - 04/2003	1
89071-58060	ACR30,40..AERAS,AERSS,G,X ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 01/2006	1
89071-12041	ACR30,40	04/2003 - 01/2006	1
89071-28060	ACR30,40,MCR30,40..AERAS,G,X ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ- & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2001 - 04/2003	1
89071-60070	MCR30,40 ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 01/2006	1
89071-12021	ACR30,40,MCR30,40 ﾚｼ-ﾊﾞﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89741-28121	03/2001 - 04/2001	1
89071-30050	MCR30,40	04/2003 - 01/2006	1
89071 - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89071-28050	ACR30,40,MCR30,40 ﾚｼ-ﾊﾞﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89741-28120	12/1999 - 03/2001	1
89071-28010	ACR30,40,MCR30,40 ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	12/1999 - 04/2001	1
89071-30050	ACR30,40,MCR30,40..AERAS,G,X ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ) & ﾚｼ-ﾊﾞﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89741-28110	02/2001 - 04/2003	1
89071-58060	ACR30,40..AERAS,AERSS,G,X ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 01/2006	1
89071-12041	ACR30,40	04/2003 - 01/2006	1
89071-28060	ACR30,40,MCR30,40..AERAS,G,X ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ- & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2001 - 04/2003	1
89071-60070	MCR30,40 ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 01/2006	1
89071-12021	ACR30,40,MCR30,40 ﾚｼ-ﾊﾞﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89741-28121	03/2001 - 04/2001	1
89071-30050	MCR30,40	04/2003 - 01/2006	1
89072 - HOUSING SET, DOOR CONTROL TRANSMITTER
89072-28030	ACR30,40,MCR30,40	03/2001 - 04/2001	1
89072-28030	ACR30,40,MCR30,40	12/1999 - 03/2001	1
89072-28030	ACR30,40,MCR30,40..AERAS,G,X ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ)	04/2001 - 04/2003	1
89072-28580	ACR30,40,MCR30,40..AERAS,G,X ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ- & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2001 - 04/2003	1
89072-47020	ACR30,40,MCR30,40	04/2003 - 01/2006	1
89072-28580	ACR30,40,MCR30,40 ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	12/1999 - 04/2001	1
89072 - HOUSING SET, DOOR CONTROL TRANSMITTER
89072-28030	ACR30,40,MCR30,40	03/2001 - 04/2001	1
89072-28030	ACR30,40,MCR30,40	12/1999 - 03/2001	1
89072-28030	ACR30,40,MCR30,40..AERAS,G,X ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ)	04/2001 - 04/2003	1
89072-28580	ACR30,40,MCR30,40..AERAS,G,X ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ- & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2001 - 04/2003	1
89072-47020	ACR30,40,MCR30,40	04/2003 - 01/2006	1
89072-28580	ACR30,40,MCR30,40 ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	12/1999 - 04/2001	1
89073 - CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)
89073-28100	ACR30,40,MCR30,40 ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	12/1999 - 04/2001	1
89073-28240	ACR30,40,MCR30,40..AERAS,G,X ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ)	04/2001 - 04/2003	1
89073-28230	ACR30,40,MCR30,40..AERAS,G,X ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ- & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2001 - 04/2003	1
69005-28780	MCR30,40	04/2003 - 12/2999	1
69005-28800	MCR30,40 ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 12/2005	1
89073-28110	ACR30,40,MCR30,40	12/1999 - 04/2001	1
69005-28770	ACR30,40	04/2003 - 12/2999	1
69005-28790	ACR30,40..AERAS,AERSS,G,X ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 12/2005	1
89073A - IGN CYLINDER SET LOCK W/TRANSMITTER HOUSING (CUT KEY)
89073-28210	ACR30,40,MCR30,40..AERAS,G,X ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ- & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2001 - 04/2003	1
89073-28220	ACR30,40,MCR30,40..AERAS,G,X ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ)	04/2001 - 04/2003	1
89741 - RECEIVER, DOOR CONTROL
89741-28120	ACR30,40,MCR30,40 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89741-28120	12/1999 - 03/2001	1
89741-28110	ACR30,40,MCR30,40..08S;ACR30,40,MCR30,40..07S..G ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89741-28110	12/1999 - 04/2003	1
89741-28220	ACR30,40,MCR30,40	04/2003 - 01/2006	1
89741-28121	ACR30,40,MCR30,40 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89741-28121	03/2001 - 04/2001	1
89745 - BATTERY, TRANSMITTER
89745-26010	ACR30,40,MCR30,40	12/1999 - 04/2003	1
89745-26010	ACR30,40,MCR30,40	04/2003 - 01/2006	1
89745-40010	ACR30,40,MCR30,40 ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	12/1999 - 04/2003	1
89745-48030	ACR30,40,MCR30,40..AERAS,AERSS,G,X ｱﾘ(ﾜｲﾔﾚｽﾘﾓｰﾄｺﾝﾄﾛｰﾙｽｲﾂﾁ),無し(識別記号=JAPAN 1)	04/2003 - 01/2006	1
89745-40010	MCR30,40 ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 01/2006	1
89745-48030	ACR30,40..AERAS,AERSS,G,X ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 01/2006	1
89745-50010	ACR30,40,MCR30,40..AERAS,AERSS,G,X ｱﾘ(ﾜｲﾔﾚｽﾘﾓｰﾄｺﾝﾄﾛｰﾙｽｲﾂﾁ),有り(識別記号=JAPAN 1)	04/2003 - 01/2006	1
89745 - BATTERY, TRANSMITTER
89745-26010	ACR30,40,MCR30,40	12/1999 - 04/2003	1
89745-26010	ACR30,40,MCR30,40	04/2003 - 01/2006	1
89745-40010	ACR30,40,MCR30,40 ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	12/1999 - 04/2003	1
89745-48030	ACR30,40,MCR30,40..AERAS,AERSS,G,X ｱﾘ(ﾜｲﾔﾚｽﾘﾓｰﾄｺﾝﾄﾛｰﾙｽｲﾂﾁ),無し(識別記号=JAPAN 1)	04/2003 - 01/2006	1
89745-40010	MCR30,40 ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 01/2006	1
89745-48030	ACR30,40..AERAS,AERSS,G,X ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 01/2006	1
89745-50010	ACR30,40,MCR30,40..AERAS,AERSS,G,X ｱﾘ(ﾜｲﾔﾚｽﾘﾓｰﾄｺﾝﾄﾛｰﾙｽｲﾂﾁ),有り(識別記号=JAPAN 1)	04/2003 - 01/2006	1
89751 - COVER, TRANSMITTER HOUSING
89751-44010	ACR30,40,MCR30,40	12/1999 - 04/2003	1
89751-44050	ACR30,40,MCR30,40..AERAS,AERSS,G,X ｱﾘ(ﾜｲﾔﾚｽﾘﾓｰﾄｺﾝﾄﾛｰﾙｽｲﾂﾁ)	04/2003 - 01/2006	1
89751-50010	ACR30,40,MCR30,40..AERAS,AERSS,G,X ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 01/2006	1
89751-50010	ACR30,40,MCR30,40 ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	12/1999 - 04/2003	1
89751-44010	ACR30,40,MCR30,40	04/2003 - 01/2006	1
89751 - COVER, TRANSMITTER HOUSING
89751-44010	ACR30,40,MCR30,40	12/1999 - 04/2003	1
89751-44050	ACR30,40,MCR30,40..AERAS,AERSS,G,X ｱﾘ(ﾜｲﾔﾚｽﾘﾓｰﾄｺﾝﾄﾛｰﾙｽｲﾂﾁ)	04/2003 - 01/2006	1
89751-50010	ACR30,40,MCR30,40..AERAS,AERSS,G,X ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 01/2006	1
89751-50010	ACR30,40,MCR30,40 ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	12/1999 - 04/2003	1
89751-44010	ACR30,40,MCR30,40	04/2003 - 01/2006	1
89751 - COVER, TRANSMITTER HOUSING
89751-44010	ACR30,40,MCR30,40	12/1999 - 04/2003	1
89751-44050	ACR30,40,MCR30,40..AERAS,AERSS,G,X ｱﾘ(ﾜｲﾔﾚｽﾘﾓｰﾄｺﾝﾄﾛｰﾙｽｲﾂﾁ)	04/2003 - 01/2006	1
89751-50010	ACR30,40,MCR30,40..AERAS,AERSS,G,X ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 01/2006	1
89751-50010	ACR30,40,MCR30,40 ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	12/1999 - 04/2003	1
89751-44010	ACR30,40,MCR30,40	04/2003 - 01/2006	1
89752 - CASE, TRANSMITTER HOUSING
89752-28080	ACR30,40,MCR30,40	12/1999 - 03/2001	1
89752-28120	ACR30,40,MCR30,40 ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	12/1999 - 04/2001	1
89752-28120	ACR30,40,MCR30,40..AERAS,G,X ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ- & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2001 - 04/2003	1
89752-28080	ACR30,40,MCR30,40	03/2001 - 04/2001	1
89752-13020	ACR30,40,MCR30,40..AERAS,AERSS,G,X ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 01/2006	1
89752-28080	ACR30,40,MCR30,40..AERAS,G,X	04/2001 - 04/2003	1
89752-46020	ACR30,40,MCR30,40	04/2003 - 01/2006	1
89752 - CASE, TRANSMITTER HOUSING
89752-28080	ACR30,40,MCR30,40	12/1999 - 03/2001	1
89752-28120	ACR30,40,MCR30,40 ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	12/1999 - 04/2001	1
89752-28120	ACR30,40,MCR30,40..AERAS,G,X ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ- & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2001 - 04/2003	1
89752-28080	ACR30,40,MCR30,40	03/2001 - 04/2001	1
89752-13020	ACR30,40,MCR30,40..AERAS,AERSS,G,X ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 01/2006	1
89752-28080	ACR30,40,MCR30,40..AERAS,G,X	04/2001 - 04/2003	1
89752-46020	ACR30,40,MCR30,40	04/2003 - 01/2006	1
Common parts
89758-26010
89758-40010
89759-40010
89759-41020
90119-06915
Linked diagrams
8424

(0103-0304)08S ; (0103-0304)07S..G

Click highlighted areas on diagram

Part #	Description	Period	Qty
89070 - TRANSMITTER ASSY, DOOR CONTROL
89070-28160	ACR30,40,MCR30,40 ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	12/1999 - 04/2001	1
89070-28460	ACR30,40..AERAS,AERSS,G,X ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 12/2005	1
89070-28171	ACR30,40,MCR30,40 ﾚｼ-ﾊﾞﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89741-28121	03/2001 - 04/2001	1
89070-44060	MCR30,40	04/2003 - 01/2006	1
89070-28290	ACR30,40,MCR30,40..AERAS,G,X ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ- & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2001 - 04/2003	1
89070-12290	ACR30,40	04/2003 - 01/2006	1
89070-28170	ACR30,40,MCR30,40 ﾚｼ-ﾊﾞﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89741-28120	12/1999 - 03/2001	1
89070-58050	MCR30,40 ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 01/2006	1
89070-28300	ACR30,40,MCR30,40..AERAS,G,X ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ)	04/2001 - 04/2003	1
89070 - TRANSMITTER ASSY, DOOR CONTROL
89070-28160	ACR30,40,MCR30,40 ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	12/1999 - 04/2001	1
89070-28460	ACR30,40..AERAS,AERSS,G,X ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 12/2005	1
89070-28171	ACR30,40,MCR30,40 ﾚｼ-ﾊﾞﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89741-28121	03/2001 - 04/2001	1
89070-44060	MCR30,40	04/2003 - 01/2006	1
89070-28290	ACR30,40,MCR30,40..AERAS,G,X ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ- & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2001 - 04/2003	1
89070-12290	ACR30,40	04/2003 - 01/2006	1
89070-28170	ACR30,40,MCR30,40 ﾚｼ-ﾊﾞﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89741-28120	12/1999 - 03/2001	1
89070-58050	MCR30,40 ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 01/2006	1
89070-28300	ACR30,40,MCR30,40..AERAS,G,X ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ)	04/2001 - 04/2003	1
89071 - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89071-28050	ACR30,40,MCR30,40 ﾚｼ-ﾊﾞﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89741-28120	12/1999 - 03/2001	1
89071-28010	ACR30,40,MCR30,40 ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	12/1999 - 04/2001	1
89071-30050	ACR30,40,MCR30,40..AERAS,G,X ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ) & ﾚｼ-ﾊﾞﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89741-28110	02/2001 - 04/2003	1
89071-58060	ACR30,40..AERAS,AERSS,G,X ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 01/2006	1
89071-12041	ACR30,40	04/2003 - 01/2006	1
89071-28060	ACR30,40,MCR30,40..AERAS,G,X ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ- & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2001 - 04/2003	1
89071-60070	MCR30,40 ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 01/2006	1
89071-12021	ACR30,40,MCR30,40 ﾚｼ-ﾊﾞﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89741-28121	03/2001 - 04/2001	1
89071-30050	MCR30,40	04/2003 - 01/2006	1
89071 - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89071-28050	ACR30,40,MCR30,40 ﾚｼ-ﾊﾞﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89741-28120	12/1999 - 03/2001	1
89071-28010	ACR30,40,MCR30,40 ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	12/1999 - 04/2001	1
89071-30050	ACR30,40,MCR30,40..AERAS,G,X ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ) & ﾚｼ-ﾊﾞﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89741-28110	02/2001 - 04/2003	1
89071-58060	ACR30,40..AERAS,AERSS,G,X ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 01/2006	1
89071-12041	ACR30,40	04/2003 - 01/2006	1
89071-28060	ACR30,40,MCR30,40..AERAS,G,X ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ- & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2001 - 04/2003	1
89071-60070	MCR30,40 ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 01/2006	1
89071-12021	ACR30,40,MCR30,40 ﾚｼ-ﾊﾞﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89741-28121	03/2001 - 04/2001	1
89071-30050	MCR30,40	04/2003 - 01/2006	1
89072 - HOUSING SET, DOOR CONTROL TRANSMITTER
89072-28030	ACR30,40,MCR30,40	03/2001 - 04/2001	1
89072-28030	ACR30,40,MCR30,40	12/1999 - 03/2001	1
89072-28030	ACR30,40,MCR30,40..AERAS,G,X ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ)	04/2001 - 04/2003	1
89072-28580	ACR30,40,MCR30,40..AERAS,G,X ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ- & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2001 - 04/2003	1
89072-47020	ACR30,40,MCR30,40	04/2003 - 01/2006	1
89072-28580	ACR30,40,MCR30,40 ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	12/1999 - 04/2001	1
89072 - HOUSING SET, DOOR CONTROL TRANSMITTER
89072-28030	ACR30,40,MCR30,40	03/2001 - 04/2001	1
89072-28030	ACR30,40,MCR30,40	12/1999 - 03/2001	1
89072-28030	ACR30,40,MCR30,40..AERAS,G,X ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ)	04/2001 - 04/2003	1
89072-28580	ACR30,40,MCR30,40..AERAS,G,X ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ- & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2001 - 04/2003	1
89072-47020	ACR30,40,MCR30,40	04/2003 - 01/2006	1
89072-28580	ACR30,40,MCR30,40 ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	12/1999 - 04/2001	1
89073 - CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)
89073-28100	ACR30,40,MCR30,40 ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	12/1999 - 04/2001	1
89073-28240	ACR30,40,MCR30,40..AERAS,G,X ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ)	04/2001 - 04/2003	1
89073-28230	ACR30,40,MCR30,40..AERAS,G,X ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ- & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2001 - 04/2003	1
69005-28780	MCR30,40	04/2003 - 12/2999	1
69005-28800	MCR30,40 ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 12/2005	1
89073-28110	ACR30,40,MCR30,40	12/1999 - 04/2001	1
69005-28770	ACR30,40	04/2003 - 12/2999	1
69005-28790	ACR30,40..AERAS,AERSS,G,X ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 12/2005	1
89741 - RECEIVER, DOOR CONTROL
89741-28120	ACR30,40,MCR30,40 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89741-28120	12/1999 - 03/2001	1
89741-28110	ACR30,40,MCR30,40..08S;ACR30,40,MCR30,40..07S..G ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89741-28110	12/1999 - 04/2003	1
89741-28220	ACR30,40,MCR30,40	04/2003 - 01/2006	1
89741-28121	ACR30,40,MCR30,40 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89741-28121	03/2001 - 04/2001	1
89745 - BATTERY, TRANSMITTER
89745-26010	ACR30,40,MCR30,40	12/1999 - 04/2003	1
89745-26010	ACR30,40,MCR30,40	04/2003 - 01/2006	1
89745-40010	ACR30,40,MCR30,40 ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	12/1999 - 04/2003	1
89745-48030	ACR30,40,MCR30,40..AERAS,AERSS,G,X ｱﾘ(ﾜｲﾔﾚｽﾘﾓｰﾄｺﾝﾄﾛｰﾙｽｲﾂﾁ),無し(識別記号=JAPAN 1)	04/2003 - 01/2006	1
89745-40010	MCR30,40 ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 01/2006	1
89745-48030	ACR30,40..AERAS,AERSS,G,X ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 01/2006	1
89745-50010	ACR30,40,MCR30,40..AERAS,AERSS,G,X ｱﾘ(ﾜｲﾔﾚｽﾘﾓｰﾄｺﾝﾄﾛｰﾙｽｲﾂﾁ),有り(識別記号=JAPAN 1)	04/2003 - 01/2006	1
89745 - BATTERY, TRANSMITTER
89745-26010	ACR30,40,MCR30,40	12/1999 - 04/2003	1
89745-26010	ACR30,40,MCR30,40	04/2003 - 01/2006	1
89745-40010	ACR30,40,MCR30,40 ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	12/1999 - 04/2003	1
89745-48030	ACR30,40,MCR30,40..AERAS,AERSS,G,X ｱﾘ(ﾜｲﾔﾚｽﾘﾓｰﾄｺﾝﾄﾛｰﾙｽｲﾂﾁ),無し(識別記号=JAPAN 1)	04/2003 - 01/2006	1
89745-40010	MCR30,40 ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 01/2006	1
89745-48030	ACR30,40..AERAS,AERSS,G,X ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 01/2006	1
89745-50010	ACR30,40,MCR30,40..AERAS,AERSS,G,X ｱﾘ(ﾜｲﾔﾚｽﾘﾓｰﾄｺﾝﾄﾛｰﾙｽｲﾂﾁ),有り(識別記号=JAPAN 1)	04/2003 - 01/2006	1
89751 - COVER, TRANSMITTER HOUSING
89751-44010	ACR30,40,MCR30,40	12/1999 - 04/2003	1
89751-44050	ACR30,40,MCR30,40..AERAS,AERSS,G,X ｱﾘ(ﾜｲﾔﾚｽﾘﾓｰﾄｺﾝﾄﾛｰﾙｽｲﾂﾁ)	04/2003 - 01/2006	1
89751-50010	ACR30,40,MCR30,40..AERAS,AERSS,G,X ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 01/2006	1
89751-50010	ACR30,40,MCR30,40 ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	12/1999 - 04/2003	1
89751-44010	ACR30,40,MCR30,40	04/2003 - 01/2006	1
89751 - COVER, TRANSMITTER HOUSING
89751-44010	ACR30,40,MCR30,40	12/1999 - 04/2003	1
89751-44050	ACR30,40,MCR30,40..AERAS,AERSS,G,X ｱﾘ(ﾜｲﾔﾚｽﾘﾓｰﾄｺﾝﾄﾛｰﾙｽｲﾂﾁ)	04/2003 - 01/2006	1
89751-50010	ACR30,40,MCR30,40..AERAS,AERSS,G,X ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 01/2006	1
89751-50010	ACR30,40,MCR30,40 ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	12/1999 - 04/2003	1
89751-44010	ACR30,40,MCR30,40	04/2003 - 01/2006	1
89752 - CASE, TRANSMITTER HOUSING
89752-28080	ACR30,40,MCR30,40	12/1999 - 03/2001	1
89752-28120	ACR30,40,MCR30,40 ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	12/1999 - 04/2001	1
89752-28120	ACR30,40,MCR30,40..AERAS,G,X ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ- & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2001 - 04/2003	1
89752-28080	ACR30,40,MCR30,40	03/2001 - 04/2001	1
89752-13020	ACR30,40,MCR30,40..AERAS,AERSS,G,X ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 01/2006	1
89752-28080	ACR30,40,MCR30,40..AERAS,G,X	04/2001 - 04/2003	1
89752-46020	ACR30,40,MCR30,40	04/2003 - 01/2006	1
89752 - CASE, TRANSMITTER HOUSING
89752-28080	ACR30,40,MCR30,40	12/1999 - 03/2001	1
89752-28120	ACR30,40,MCR30,40 ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	12/1999 - 04/2001	1
89752-28120	ACR30,40,MCR30,40..AERAS,G,X ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ- & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2001 - 04/2003	1
89752-28080	ACR30,40,MCR30,40	03/2001 - 04/2001	1
89752-13020	ACR30,40,MCR30,40..AERAS,AERSS,G,X ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 01/2006	1
89752-28080	ACR30,40,MCR30,40..AERAS,G,X	04/2001 - 04/2003	1
89752-46020	ACR30,40,MCR30,40	04/2003 - 01/2006	1
Common parts
89758-26010
89758-40010
89759-40010
89759-41020
90119-06915

MCR40W-MFSQK (1999)

(9912-0103)

(0304- )

(0104-0304)

(0103-0304)08S ; (0103-0304)07S..G

Part Price Details
