MCR40W-MFSQK (1999)
Toyota Estima T/L

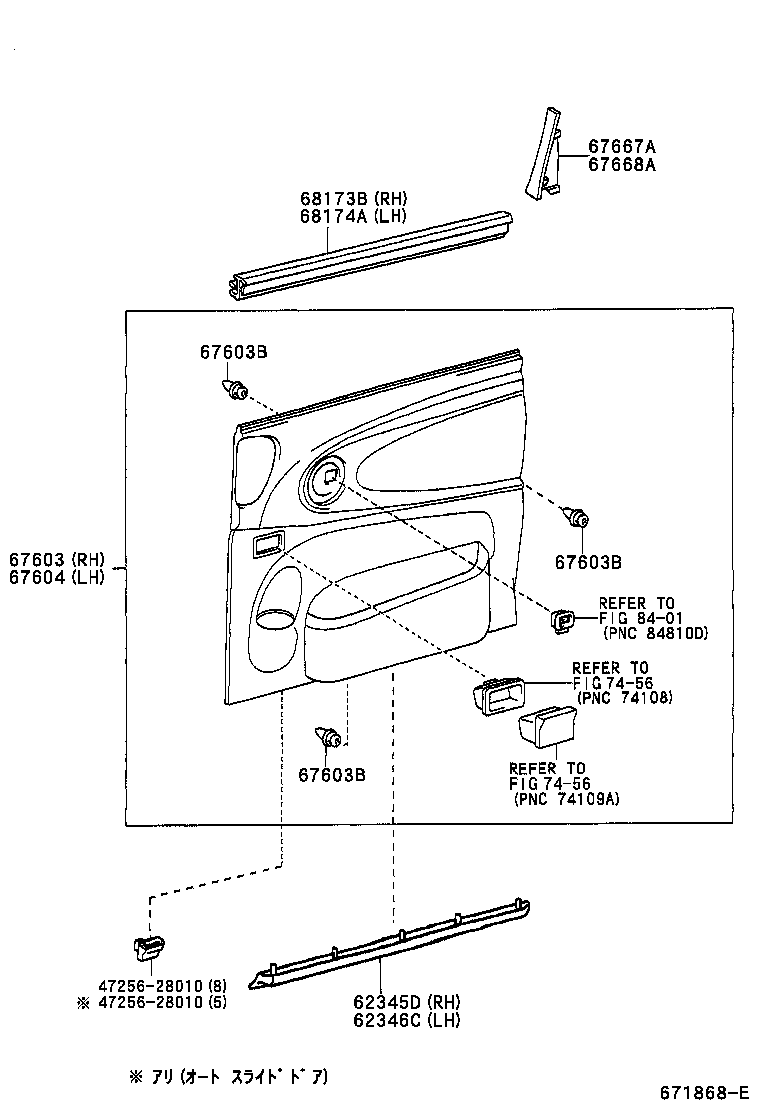

ILLUST NO. 2 OF 3(9912-0304)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62345D - WEATHERSTRIP, SLIDE DOOR, NO.3 RH | ||||
| 62345-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 62345-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 62346C - WEATHERSTRIP, SLIDE DOOR, NO.3 LH | ||||
| 62346-28020 |
ACR30,40,MCR30,40 |
1 | ||
| 62346-28020 |
ACR30,40,MCR30,40 |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67680-28060B7 |
ACR30,40,MCR30,40..G MD. CHARCOAL,TRIM12 |
1 | ||
| 67680-28060B6 |
ACR30,40,MCR30,40..G LT. BLUISH GRAY,TRIM11 |
1 | ||
| 67680-28250A0 |
ACR30,40,MCR30,40..G ﾄﾞｱﾄﾘﾑ=TYPE D-*104 & ｱﾘ(ｵｰﾄｽﾗｲﾄﾞ ﾄﾞｱ),IVORY,TRIM0# |
1 | ||
| 67680-28230A0 |
MCR30,40..07S..G ﾄﾞｱﾄﾘﾑ=TYPE E-*104 & ｱﾘ(ｵｰﾄｽﾗｲﾄﾞﾄﾞｱ),IVORY,TRIM0# |
1 | ||
| 67680-28200A0 |
ACR30,40,MCR30,40..G ﾄﾞｱﾄﾘﾑ=TYPE D-*104,IVORY,TRIM0# |
1 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-09203 |
ACR30,40,MCR30,40 ﾌﾞﾙｰ |
26 | ||
| 90467-09203 |
ACR30,40,MCR30,40 ﾌﾞﾙｰ |
26 | ||
| 90467-09182 |
ACR30,40,MCR30,40 ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞ ﾄﾞｱ & ｲ-ｼﾞ-ｸﾛ-ｻﾞ),ﾌﾞﾗｳﾝ |
2 | ||
| 90467-09203 |
ACR30,40,MCR30,40 ﾚｯﾄﾞ |
22 | ||
| 90467-09182 |
ACR30,40,MCR30,40..AERAS,AERSS,G,X ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞ ﾄﾞｱ & ｲ-ｼﾞ-ｸﾛ-ｻﾞ),ﾌﾞﾗｳﾝ |
4 | ||
| 67771-35010 |
ACR30,40,MCR30,40 ﾅﾁｭﾗﾙ |
4 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-09203 |
ACR30,40,MCR30,40 ﾌﾞﾙｰ |
26 | ||
| 90467-09203 |
ACR30,40,MCR30,40 ﾌﾞﾙｰ |
26 | ||
| 90467-09182 |
ACR30,40,MCR30,40 ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞ ﾄﾞｱ & ｲ-ｼﾞ-ｸﾛ-ｻﾞ),ﾌﾞﾗｳﾝ |
2 | ||
| 90467-09203 |
ACR30,40,MCR30,40 ﾚｯﾄﾞ |
22 | ||
| 90467-09182 |
ACR30,40,MCR30,40..AERAS,AERSS,G,X ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞ ﾄﾞｱ & ｲ-ｼﾞ-ｸﾛ-ｻﾞ),ﾌﾞﾗｳﾝ |
4 | ||
| 67771-35010 |
ACR30,40,MCR30,40 ﾅﾁｭﾗﾙ |
4 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-09203 |
ACR30,40,MCR30,40 ﾌﾞﾙｰ |
26 | ||
| 90467-09203 |
ACR30,40,MCR30,40 ﾌﾞﾙｰ |
26 | ||
| 90467-09182 |
ACR30,40,MCR30,40 ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞ ﾄﾞｱ & ｲ-ｼﾞ-ｸﾛ-ｻﾞ),ﾌﾞﾗｳﾝ |
2 | ||
| 90467-09203 |
ACR30,40,MCR30,40 ﾚｯﾄﾞ |
22 | ||
| 90467-09182 |
ACR30,40,MCR30,40..AERAS,AERSS,G,X ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞ ﾄﾞｱ & ｲ-ｼﾞ-ｸﾛ-ｻﾞ),ﾌﾞﾗｳﾝ |
4 | ||
| 67771-35010 |
ACR30,40,MCR30,40 ﾅﾁｭﾗﾙ |
4 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67690-28290B5 |
ACR30,40,MCR30,40..G LT. BLUISH GRAY,TRIM11 |
1 | ||
| 67690-28330B6 |
ACR30,40,MCR30,40..G ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞ ﾄﾞｱ & ｲ-ｼﾞ-ｸﾛ-ｻﾞ),MD. CHARCOAL,TRIM12 |
1 | ||
| 67690-28290B6 |
ACR30,40,MCR30,40..G MD. CHARCOAL,TRIM12 |
1 | ||
| 67690-28330B5 |
ACR30,40,MCR30,40..G ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞ ﾄﾞｱ & ｲ-ｼﾞ-ｸﾛ-ｻﾞ),LT.BLUISH GRAY,TRIM11 |
1 | ||
| 67690-28560A0 |
MCR30,40..07S..G ﾄﾞｱﾄﾘﾑ=TYPE E-*104 & ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞ ﾄﾞｱ & ｲ-ｼﾞ-ｸﾛ-ｻﾞ),IVORY,TRIM0# |
1 | ||
| 67690-28580A0 |
ACR30,40,MCR30,40..G ﾄﾞｱﾄﾘﾑ=TYPE D-*104 & ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞ ﾄﾞｱ & ｲ-ｼﾞ-ｸﾛ-ｻﾞ),IVORY,TRIM0# |
1 | ||
| 67690-28530A0 |
ACR30,40,MCR30,40..G ﾄﾞｱﾄﾘﾑ=TYPE D-*104,IVORY,TRIM0# |
1 | ||
| 67667A - GARNISH, SLIDE DOOR WINDOW, RH | ||||
| 67667-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 67667-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 67668A - GARNISH, SLIDE DOOR WINDOW, LH | ||||
| 67668-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 67668-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 68173-28011 |
ACR30,40,MCR30,40 |
1 | ||
| 68173-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-28021 |
ACR30,40,MCR30,40 |
1 | ||
| 68174-28020 |
ACR30,40,MCR30,40 |
1 | ||
| 68174-28020 |
ACR30,40,MCR30,40 |
1 | ||
| Common parts | ||||
| 47256-28010 | ||||
| Linked diagrams | ||||
| 7456 | ||||
| 8401 | ||||
ILLUST NO. 3 OF 3(9912-0304)
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 3 OF 3(0304- )
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 2 OF 3(0304- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62345D - WEATHERSTRIP, SLIDE DOOR, NO.3 RH | ||||
| 62345-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 62345-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 62346C - WEATHERSTRIP, SLIDE DOOR, NO.3 LH | ||||
| 62346-28020 |
ACR30,40,MCR30,40 |
1 | ||
| 62346-28020 |
ACR30,40,MCR30,40 |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67680-28060B7 |
ACR30,40,MCR30,40..G MD. CHARCOAL,TRIM12 |
1 | ||
| 67680-28060B6 |
ACR30,40,MCR30,40..G LT. BLUISH GRAY,TRIM11 |
1 | ||
| 67680-28250A0 |
ACR30,40,MCR30,40..G ﾄﾞｱﾄﾘﾑ=TYPE D-*104 & ｱﾘ(ｵｰﾄｽﾗｲﾄﾞ ﾄﾞｱ),IVORY,TRIM0# |
1 | ||
| 67680-28230A0 |
MCR30,40..07S..G ﾄﾞｱﾄﾘﾑ=TYPE E-*104 & ｱﾘ(ｵｰﾄｽﾗｲﾄﾞﾄﾞｱ),IVORY,TRIM0# |
1 | ||
| 67680-28200A0 |
ACR30,40,MCR30,40..G ﾄﾞｱﾄﾘﾑ=TYPE D-*104,IVORY,TRIM0# |
1 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-09203 |
ACR30,40,MCR30,40 ﾌﾞﾙｰ |
26 | ||
| 90467-09203 |
ACR30,40,MCR30,40 ﾌﾞﾙｰ |
26 | ||
| 90467-09182 |
ACR30,40,MCR30,40 ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞ ﾄﾞｱ & ｲ-ｼﾞ-ｸﾛ-ｻﾞ),ﾌﾞﾗｳﾝ |
2 | ||
| 90467-09203 |
ACR30,40,MCR30,40 ﾚｯﾄﾞ |
22 | ||
| 90467-09182 |
ACR30,40,MCR30,40..AERAS,AERSS,G,X ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞ ﾄﾞｱ & ｲ-ｼﾞ-ｸﾛ-ｻﾞ),ﾌﾞﾗｳﾝ |
4 | ||
| 67771-35010 |
ACR30,40,MCR30,40 ﾅﾁｭﾗﾙ |
4 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-09203 |
ACR30,40,MCR30,40 ﾌﾞﾙｰ |
26 | ||
| 90467-09203 |
ACR30,40,MCR30,40 ﾌﾞﾙｰ |
26 | ||
| 90467-09182 |
ACR30,40,MCR30,40 ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞ ﾄﾞｱ & ｲ-ｼﾞ-ｸﾛ-ｻﾞ),ﾌﾞﾗｳﾝ |
2 | ||
| 90467-09203 |
ACR30,40,MCR30,40 ﾚｯﾄﾞ |
22 | ||
| 90467-09182 |
ACR30,40,MCR30,40..AERAS,AERSS,G,X ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞ ﾄﾞｱ & ｲ-ｼﾞ-ｸﾛ-ｻﾞ),ﾌﾞﾗｳﾝ |
4 | ||
| 67771-35010 |
ACR30,40,MCR30,40 ﾅﾁｭﾗﾙ |
4 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-09203 |
ACR30,40,MCR30,40 ﾌﾞﾙｰ |
26 | ||
| 90467-09203 |
ACR30,40,MCR30,40 ﾌﾞﾙｰ |
26 | ||
| 90467-09182 |
ACR30,40,MCR30,40 ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞ ﾄﾞｱ & ｲ-ｼﾞ-ｸﾛ-ｻﾞ),ﾌﾞﾗｳﾝ |
2 | ||
| 90467-09203 |
ACR30,40,MCR30,40 ﾚｯﾄﾞ |
22 | ||
| 90467-09182 |
ACR30,40,MCR30,40..AERAS,AERSS,G,X ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞ ﾄﾞｱ & ｲ-ｼﾞ-ｸﾛ-ｻﾞ),ﾌﾞﾗｳﾝ |
4 | ||
| 67771-35010 |
ACR30,40,MCR30,40 ﾅﾁｭﾗﾙ |
4 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67690-28290B5 |
ACR30,40,MCR30,40..G LT. BLUISH GRAY,TRIM11 |
1 | ||
| 67690-28330B6 |
ACR30,40,MCR30,40..G ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞ ﾄﾞｱ & ｲ-ｼﾞ-ｸﾛ-ｻﾞ),MD. CHARCOAL,TRIM12 |
1 | ||
| 67690-28290B6 |
ACR30,40,MCR30,40..G MD. CHARCOAL,TRIM12 |
1 | ||
| 67690-28330B5 |
ACR30,40,MCR30,40..G ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞ ﾄﾞｱ & ｲ-ｼﾞ-ｸﾛ-ｻﾞ),LT.BLUISH GRAY,TRIM11 |
1 | ||
| 67690-28560A0 |
MCR30,40..07S..G ﾄﾞｱﾄﾘﾑ=TYPE E-*104 & ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞ ﾄﾞｱ & ｲ-ｼﾞ-ｸﾛ-ｻﾞ),IVORY,TRIM0# |
1 | ||
| 67690-28580A0 |
ACR30,40,MCR30,40..G ﾄﾞｱﾄﾘﾑ=TYPE D-*104 & ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞ ﾄﾞｱ & ｲ-ｼﾞ-ｸﾛ-ｻﾞ),IVORY,TRIM0# |
1 | ||
| 67690-28530A0 |
ACR30,40,MCR30,40..G ﾄﾞｱﾄﾘﾑ=TYPE D-*104,IVORY,TRIM0# |
1 | ||
| 67667A - GARNISH, SLIDE DOOR WINDOW, RH | ||||
| 67667-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 67667-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 67668A - GARNISH, SLIDE DOOR WINDOW, LH | ||||
| 67668-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 67668-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 68173-28011 |
ACR30,40,MCR30,40 |
1 | ||
| 68173-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-28021 |
ACR30,40,MCR30,40 |
1 | ||
| 68174-28020 |
ACR30,40,MCR30,40 |
1 | ||
| 68174-28020 |
ACR30,40,MCR30,40 |
1 | ||
| Common parts | ||||
| 47256-28010 | ||||
| Linked diagrams | ||||
| 7456 | ||||
| 8401 | ||||

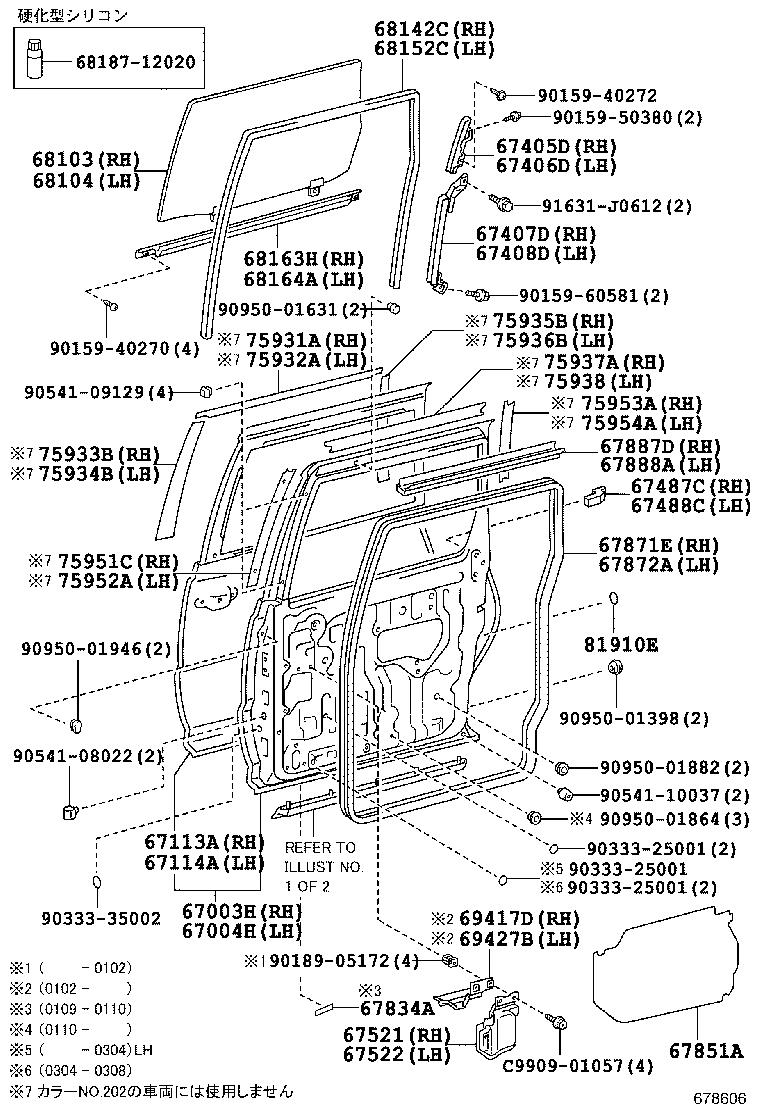

ILLUST NO. 1 OF 3(9912- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003H - DOOR SUB-ASSY, SLIDE, RH | ||||
| 67003-28290 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ) |
1 | ||
| 67003-28291 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ) |
1 | ||
| 67003-28330 |
ACR30,40,MCR30,40..G,J,X ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ) |
1 | ||
| 67003-28332 |
ACR30,40,MCR30,40..G,J,X ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ) |
1 | ||
| 67003-28333 |
ACR30,40,MCR30,40..G,X ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ) |
1 | ||
| 67003-28331 |
ACR30,40,MCR30,40..G,J,X ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ) |
1 | ||
| 67003-28401 |
ACR30,40,MCR30,40..G,X ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄ ｽﾗｲﾄﾞﾄﾞｱ) |
1 | ||
| 67003-28293 |
ACR30,40,MCR30,40..G,X ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ) |
1 | ||
| 67003-28381 |
ACR30,40,MCR30,40..G,X ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ) |
1 | ||
| 67003-28292 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ) |
1 | ||
| 67004H - DOOR SUB-ASSY, SLIDE, LH | ||||
| 67004-28290 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ) |
1 | ||
| 67004-28330 |
ACR30,40,MCR30,40..G,J,X ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄ ｽﾗｲﾄﾞﾄﾞｱ) |
1 | ||
| 67004-28270 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ) |
1 | ||
| 67004-28291 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ) |
1 | ||
| 67004-28351 |
ACR30,40,MCR30,40..G,J,X ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ) |
1 | ||
| 67004-28350 |
ACR30,40,MCR30,40..G,J,X ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ) |
1 | ||
| 67004-28292 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ) |
1 | ||
| 67004-28332 |
ACR30,40,MCR30,40..G,J,X ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄ ｽﾗｲﾄﾞﾄﾞｱ) |
1 | ||
| 67004-28331 |
ACR30,40,MCR30,40..G,J,X ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄ ｽﾗｲﾄﾞﾄﾞｱ) |
1 | ||
| 67004-28271 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ) |
1 | ||
| 67004-28272 |
ACR30,40,MCR30,40..G,X ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ) |
1 | ||
| 67004-28352 |
ACR30,40,MCR30,40..G,J,X ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ) |
1 | ||
| 67004-28332 |
ACR30,40,MCR30,40..G,X ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄ ｽﾗｲﾄﾞﾄﾞｱ) |
1 | ||
| 67004-28272 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ) |
1 | ||
| 67004-28352 |
ACR30,40,MCR30,40..G,X ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ) |
1 | ||
| 67004-28292 |
ACR30,40,MCR30,40..G,X ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ) |
1 | ||
| 67113A - PANEL, SLIDE DOOR, OUTER RH | ||||
| 67113-28080 |
ACR30,40,MCR30,40..G,J,X |
1 | ||
| 67114A - PANEL, SLIDE DOOR, OUTER LH | ||||
| 67114-28070 |
ACR30,40,MCR30,40..G,J,X |
1 | ||
| 67405D - GUIDE SUB-ASSY, SLIDE DOOR WINDOW, FRONT RH | ||||
| 67405-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 67405-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 67406D - GUIDE SUB-ASSY, SLIDE DOOR WINDOW, FRONT LH | ||||
| 67406-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 67406-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 67407D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH | ||||
| 67407-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 67407-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 67408D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH | ||||
| 67408-28040 |
ACR30,40,MCR30,40 |
1 | ||
| 67408-28040 |
ACR30,40,MCR30,40 |
1 | ||
| 67487C - SEAL, REAR DOOR REAR GUIDE, RH | ||||
| 67487-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 67487-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 67488C - SEAL, REAR DOOR REAR GUIDE, LH | ||||
| 67487-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 67487-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 67521 - COVER SUB-ASSY, SLIDE DOOR PANEL, RH | ||||
| 67521-28020 |
ACR30,40,MCR30,40 |
1 | ||
| 67521-28020 |
ACR30,40,MCR30,40 |
1 | ||
| 67522 - COVER SUB-ASSY, SLIDE DOOR PANEL, LH | ||||
| 67522-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 67522-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 67834A - COVER, SLIDE DOOR SERVICE HOLE, NO.2 | ||||
| 67833-28010 |
ACR30,40,MCR30,40 |
4 | ||
| 67851A - COVER, SLIDE DOOR SERVICE HOLE, NO.1 | ||||
| 67851-28040 |
ACR30,40,MCR30,40 |
2 | ||
| 67851-28040 |
ACR30,40,MCR30,40 |
2 | ||
| 67871E - WEATHERSTRIP, SLIDE DOOR, NO.1 RH | ||||
| 67871-28030B0 |
ACR30,40,MCR30,40..G,J,X LT. BLUISH GRAY,TRIM11 |
1 | ||
| 67871-28030B1 |
ACR30,40,MCR30,40..G,J,X MD.CHARCOAL,TRIM12 |
1 | ||
| 67871-28030A0 |
ACR40..G,X;ACR30,MCR30,40..G,J,X IVORY,TRIM0# |
1 | ||
| 67872A - WEATHERSTRIP, SLIDE DOOR, NO.1 LH | ||||
| 67872-28070A0 |
ACR40..G,X;ACR30,MCR30,40..G,J,X IVORY,TRIM0# |
1 | ||
| 67872-28070B1 |
ACR30,40,MCR30,40..G,J,X MD.CHARCOAL,TRIM12 |
1 | ||
| 67872-28070B0 |
ACR30,40,MCR30,40..G,J,X LT. BLUISH GRAY,TRIM11 |
1 | ||
| 67887D - WEATHERSTRIP, SLIDE DOOR, NO.2 RH | ||||
| 67887-28050 |
ACR30,40,MCR30,40 |
1 | ||
| 67887-28070 |
ACR30,40,MCR30,40 |
1 | ||
| 67887-28050 |
ACR30,40,MCR30,40 |
1 | ||
| 67888A - WEATHERSTRIP, REAR DOOR, NO.2 LH | ||||
| 67888-28080 |
ACR30,40,MCR30,40 |
1 | ||
| 67888-28060 |
ACR30,40,MCR30,40 |
1 | ||
| 67888-28060 |
ACR30,40,MCR30,40 |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68103-28111 |
ACR30,40,MCR30,40 *TEM,厚さ=4.0,ｸﾞﾚｰ |
1 | ||
| 68103-28110 |
ACR30,40,MCR30,40 *TEM,厚さ=4.0,ｸﾞﾚｰ |
1 | ||
| 68103-28111 |
ACR30,40,MCR30,40..AERAS,AERSS,G,X *TEM,厚さ=4.0,ｸﾞﾚｰ |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68104-28140 |
ACR30,40,MCR30,40 *TEM,厚さ=4.0,ｸﾞﾚｰ |
1 | ||
| 68104-28141 |
ACR30,40,MCR30,40 *TEM,厚さ=4.0,ｸﾞﾚｰ |
1 | ||
| 68104-28141 |
ACR30,40,MCR30,40..AERAS,AERSS,G,X *TEM,厚さ=4.0,ｸﾞﾚｰ |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-28060 |
ACR30,40,MCR30,40 |
1 | ||
| 68142-28060 |
ACR30,40,MCR30,40 |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-28030 |
ACR30,40,MCR30,40 |
1 | ||
| 68152-28030 |
ACR30,40,MCR30,40 |
1 | ||
| 68163H - WEATHERSTRIP, REAR DOOR GLASS, OUTER RH | ||||
| 68163-28020 |
ACR30,40,MCR30,40 |
1 | ||
| 68163-28020 |
ACR30,40,MCR30,40 |
1 | ||
| 68163-28021 |
ACR30,40,MCR30,40 |
1 | ||
| 68164A - WEATHERSTRIP, REAR DOOR GLASS, OUTER LH | ||||
| 68164-28021 |
ACR30,40,MCR30,40 |
1 | ||
| 68164-28020 |
ACR30,40,MCR30,40 |
1 | ||
| 68164-28020 |
ACR30,40,MCR30,40 |
1 | ||
| 69417D - COVER, SLIDE DOOR OPEN STOP, RH | ||||
| 69417-28030 |
ACR30,40,MCR30,40 |
1 | ||
| 69417-28030 |
ACR30,40,MCR30,40 |
1 | ||
| 69427B - COVER, SLIDE DOOR OPEN STOP, LH | ||||
| 69427-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 69427-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 75931A - TAPE, BLACK OUT, OUTER UPPER RH | ||||
| 75931-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 75931-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 75932A - TAPE, BLACK OUT, OUTER UPPER LH | ||||
| 75932-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 75932-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 75933B - TAPE, BLACK OUT, OUTER FRONT RH | ||||
| 75933-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 75933-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 75934B - TAPE, BLACK OUT, OUTER FRONT LH | ||||
| 75934-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 75934-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 75935B - TAPE, BLACK OUT, OUTER REAR RH | ||||
| 75935-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 75935-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 75936B - TAPE, BLACK OUT, OUTER REAR LH | ||||
| 75936-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 75936-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 75937A - TAPE, BLACK OUT, INNER UPPER RH | ||||
| 75937-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 75937-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 75938 - TAPE, BLACK OUT, INNER UPPER LH | ||||
| 75938-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 75938-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 75951C - TAPE, BLACK OUT, INNER FRONT RH | ||||
| 75951-28020 |
ACR30,40,MCR30,40 |
1 | ||
| 75951-28020 |
ACR30,40,MCR30,40 |
1 | ||
| 75952A - TAPE, BLACK OUT, INNER FRONT LH | ||||
| 75952-28020 |
ACR30,40,MCR30,40 |
1 | ||
| 75952-28020 |
ACR30,40,MCR30,40 |
1 | ||
| 75953A - TAPE, BLACK OUT, INNER REAR RH | ||||
| 75953-28020 |
ACR30,40,MCR30,40 |
1 | ||
| 75953-28020 |
ACR30,40,MCR30,40 |
1 | ||
| 75954A - TAPE, BLACK OUT, INNER REAR LH | ||||
| 75954-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 75954-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 81910E - REFLECTOR ASSY, REFLEX | ||||
| 81910-21030 |
ACR30,40,MCR30,40 |
2 | ||
| 81910-21030 |
ACR30,40,MCR30,40 |
2 | ||
| Common parts | ||||
| 68187-12020 | ||||
| 90159-40270 | ||||
| 90159-40272 | ||||
| 90159-50380 | ||||
| 90159-60581 | ||||
| 90189-05172 | ||||
| 90333-25001 | ||||
| 90333-35002 | ||||
| 90541-08022 | ||||
| 90541-09129 | ||||
| 90541-10037 | ||||
| 90950-01398 | ||||
| 90950-01631 | ||||
| 90950-01864 | ||||
| 90950-01882 | ||||
| 90950-01946 | ||||
| 91631-J0612 | ||||
| C9909-01057 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
