MCR40W-MFSQK (1999)

Toyota Estima T/L

Production Dec 1999 - Jan 2006
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

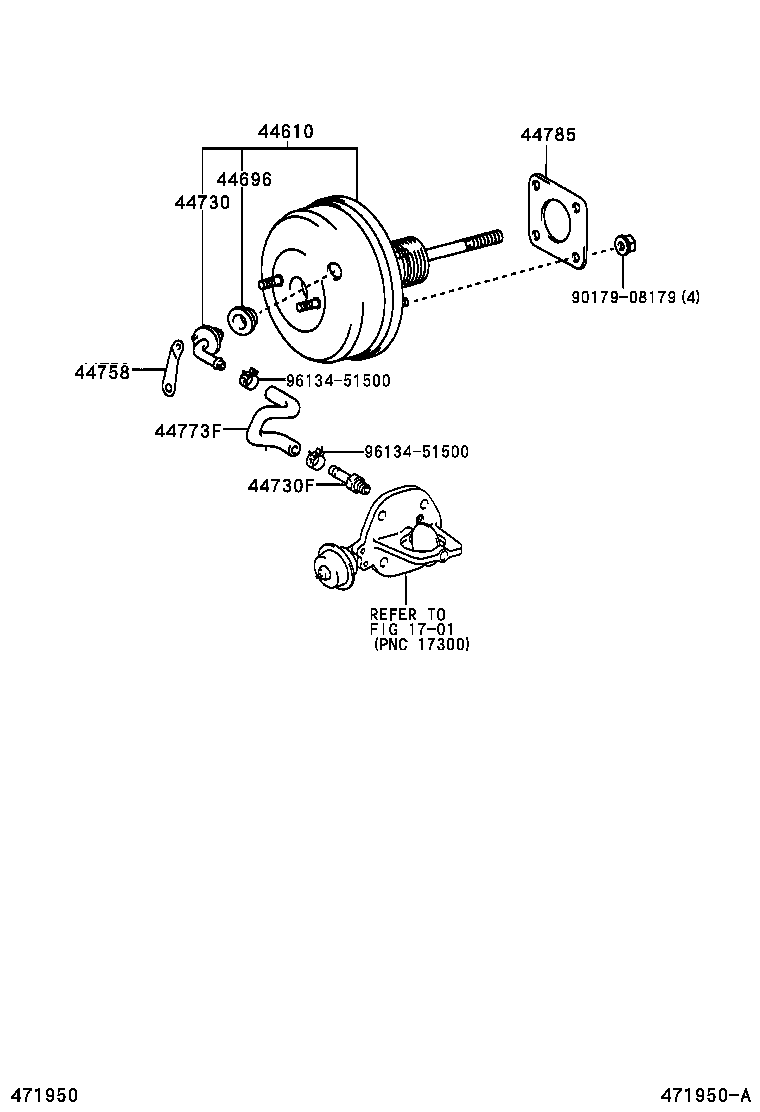

(9912-0304)MCR30,40

Click highlighted areas on diagram

diagram 1701 44610 44696 44730 44730F 44758 44773F 44785 9017908179 9613451500 9613451500
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-2J050

MCR30,40

 1
44610-2J130

MCR30,40

ｱﾘ(VSC)

 1
44610-2J080

ACR30,40

 1
44610-2J140

ACR30,40,MCR30,40

 1
44696 - GROMMET, CHECK VALVE
90480-24015

ACR30,40,MCR30,40

 1
90480-24015

ACR30,40,MCR30,40

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-30010

ACR30,40

 1
44730-28030

ACR30,40

 1
44730-28010

MCR30,40

 1
44730-28030

ACR30,40,MCR30,40

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51319

MCR30,40

 1
90404-51319

MCR30,40

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-28130

MCR30,40

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-28110

MCR30,40

 1
44773-28160

ACR30,40

 1
44773-28150

MCR30,40

 1
44773-28120

ACR30,40

 1
44785 - GASKET, BRAKE BOOSTER
44785-32010

ACR30,40,MCR30,40

 1
44785-32010

ACR30,40,MCR30,40

 1
Common parts
90179-08179
96134-51500
Linked diagrams
1701

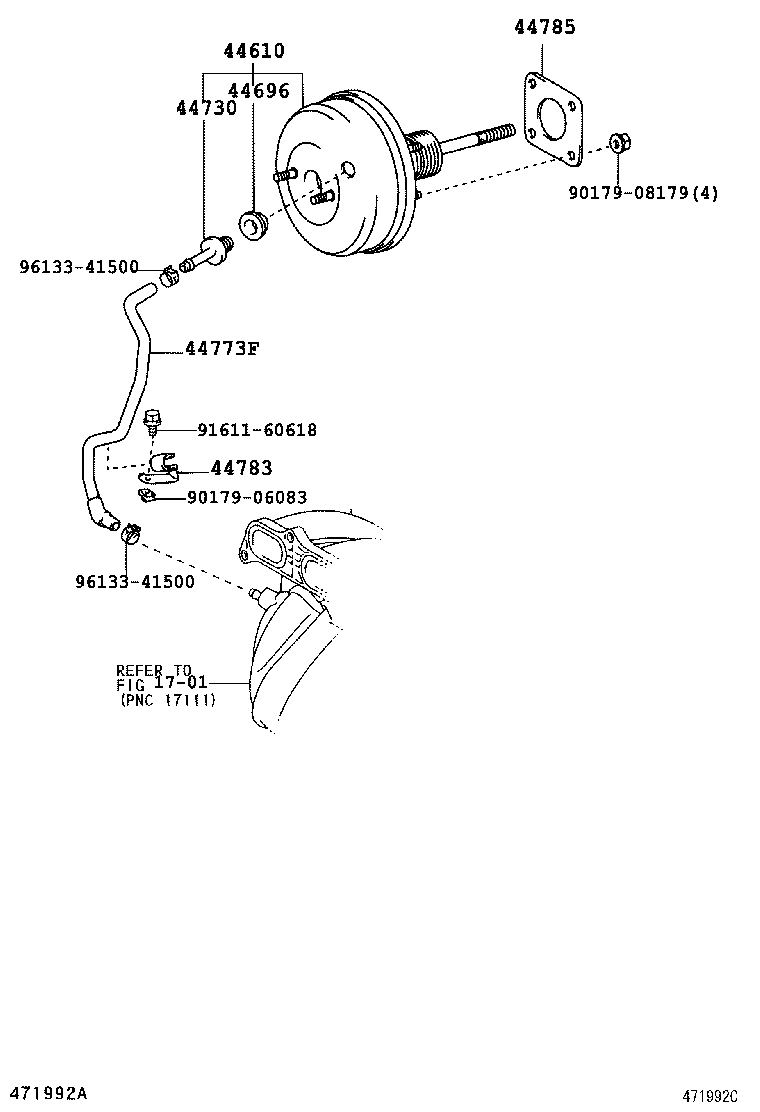

(0002- )ACR30,40

Click highlighted areas on diagram

diagram 1701 44610 44696 44730 44773F 44783 44785 9017906083 9017908179 9161160618 9613341500 9613341500
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-2J050

MCR30,40

 1
44610-2J130

MCR30,40

ｱﾘ(VSC)

 1
44610-2J080

ACR30,40

 1
44610-2J140

ACR30,40,MCR30,40

 1
44696 - GROMMET, CHECK VALVE
90480-24015

ACR30,40,MCR30,40

 1
90480-24015

ACR30,40,MCR30,40

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-30010

ACR30,40

 1
44730-28030

ACR30,40

 1
44730-28010

MCR30,40

 1
44730-28030

ACR30,40,MCR30,40

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-28110

MCR30,40

 1
44773-28160

ACR30,40

 1
44773-28150

MCR30,40

 1
44773-28120

ACR30,40

 1
44783 - CLAMP, VACUUM HOSE
44783-28010

ACR30,40

 1
44783-28010

ACR30,40

 1
44785 - GASKET, BRAKE BOOSTER
44785-32010

ACR30,40,MCR30,40

 1
44785-32010

ACR30,40,MCR30,40

 1
Common parts
90179-06083
90179-08179
91611-60618
96133-41500
Linked diagrams
1701

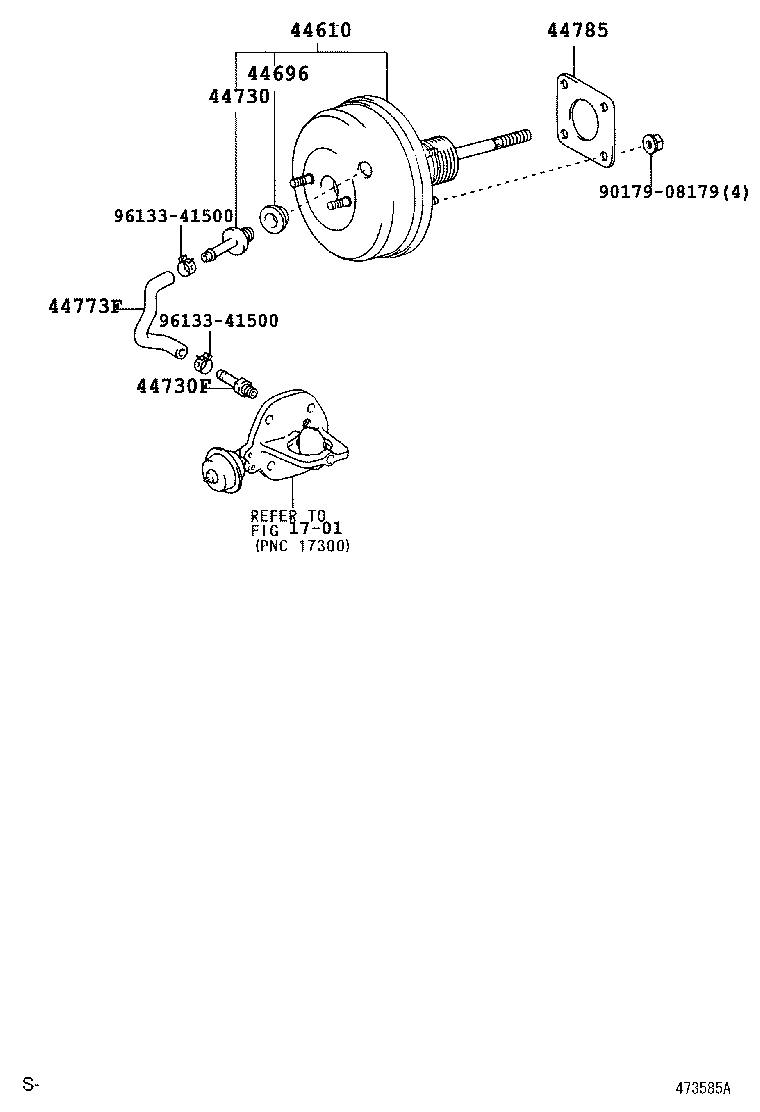

(0304- )MCR30,40

Click highlighted areas on diagram

diagram 1701 44610 44696 44730 44730F 44773F 44785 9017908179 9613341500 9613341500
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-2J050

MCR30,40

 1
44610-2J130

MCR30,40

ｱﾘ(VSC)

 1
44610-2J080

ACR30,40

 1
44610-2J140

ACR30,40,MCR30,40

 1
44696 - GROMMET, CHECK VALVE
90480-24015

ACR30,40,MCR30,40

 1
90480-24015

ACR30,40,MCR30,40

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-30010

ACR30,40

 1
44730-28030

ACR30,40

 1
44730-28010

MCR30,40

 1
44730-28030

ACR30,40,MCR30,40

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51319

MCR30,40

 1
90404-51319

MCR30,40

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-28110

MCR30,40

 1
44773-28160

ACR30,40

 1
44773-28150

MCR30,40

 1
44773-28120

ACR30,40

 1
44785 - GASKET, BRAKE BOOSTER
44785-32010

ACR30,40,MCR30,40

 1
44785-32010

ACR30,40,MCR30,40

 1
Common parts
90179-08179
96133-41500
Linked diagrams
1701
