ACR40W-MRSEK (2000)
Toyota Estima T/L

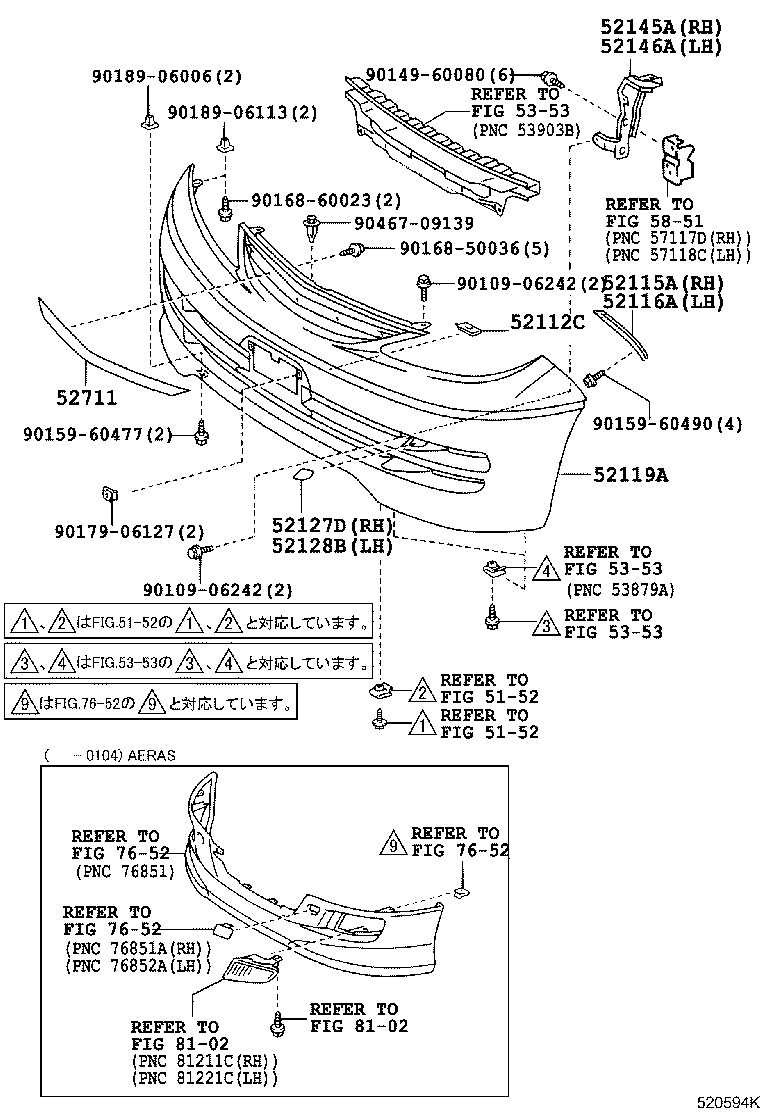

(9912-0104) ; (0104-0304)G,J,X
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52112C - EXTENSION, FRONT BUMPER | ||||
| 52112-28080 |
ACR30,40,MCR30,40 |
2 | ||
| 52112-28080 |
ACR30,40,MCR30,40 |
6 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-28090 |
ACR30,40,MCR30,40 |
1 | ||
| 52115-28070 |
ACR30,40,MCR30,40 |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-28030 |
ACR30,40,MCR30,40 |
1 | ||
| 52116-28050 |
ACR30,40,MCR30,40 |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-28710F0 |
ACR30,40,MCR30,40..G,J,X CHAMPAGNE ME.,TRIM12&583 |
1 | ||
| 52119-28710D1 |
ACR30,40,MCR30,40..G,J,X BORDEAUX MC.,3P2 |
1 | ||
| 52119-28710B0 |
ACR30,40,MCR30,40..G,J,X SILVER ME.,TRIM12&1C0 |
1 | ||
| 52119-28770D1 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ-ｼｶｸ ｱﾅ),BORDEAUX MC.,3P2 |
1 | ||
| 52119-28770B0 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ-ｼｶｸ ｱﾅ),SILVER ME.,1C0 |
1 | ||
| 52119-28710J0 |
ACR30,40,MCR30,40..G,J,X DK.BLUE MC.,TRIM11&8P4 |
1 | ||
| 52119-28710A0 |
ACR30,40,MCR30,40..G,J,X WHITE PM.,042 |
1 | ||
| 52119-28770F0 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ-ｼｶｸ ｱﾅ),CHAMPAGNE ME.,583 |
1 | ||
| 52119-28710D0 |
ACR30,40,MCR30,40..G,J,X RED MC.,TRIM12&3J7 |
1 | ||
| 52119-28770D0 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ-ｼｶｸ ｱﾅ),RED MC.,3J7 |
1 | ||
| 52119-28710G0 |
ACR30,40,MCR30,40..G,J,X DK.GREEN MC.,TRIM11&6Q7 |
1 | ||
| 52119-28710J1 |
ACR30,40,MCR30,40..G,J,X GRAYISH BLUE ME.,TRIM11&8P6 |
1 | ||
| 52119-28770J1 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ-ｼｶｸ ｱﾅ),GRAYISH BLUE ME.,8P6 |
1 | ||
| 52119-28770A0 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ-ｼｶｸ ｱﾅ),WHITE PM.,042 |
1 | ||
| 52119-28770G0 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ-ｼｶｸ ｱﾅ),DK.GREEN MC.,6Q7 |
1 | ||
| 52119-28770J0 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ-ｼｶｸ ｱﾅ),DK.BLUE MC.,8P4 |
1 | ||
| 52119-2J290D2 |
ACR30,40,MCR30,40..X Xﾘﾐﾃﾂﾄﾞﾅﾋﾞｽﾍﾟｼﾔﾙ *(E) OR Xﾘﾐﾃﾂﾄﾞ *(F),LT. ROSE MICA ME.,3Q1 |
1 | ||
| 52119-2J290B0 |
ACR30,40,MCR30,40..G,J,X SILVER ME.,TRIM12&1C0 |
1 | ||
| 52119-2J290A0 |
ACR30,40,MCR30,40..G,J,X WHITE PM.,042 |
1 | ||
| 52119-2J290J0 |
ACR30,40,MCR30,40..G,J,X DK.BLUE M.M.,TRIM11&8P4 |
1 | ||
| 52119-2J300C0 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ-ｼｶｸ ｱﾅ),BLUE BLACK MC.CC.,TRIM11&210 |
1 | ||
| 52119-2J300D0 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ-ｼｶｸ ｱﾅ),SUPER RED MC.,TRIM12&3J7 |
1 | ||
| 52119-2J290C0 |
ACR30,40,MCR30,40..G,J,X BLUE BLACK MC.CC.,TRIM11&210 |
1 | ||
| 52119-2J290D1 |
ACR30,40,MCR30,40..G,J,X BORDEAUX MC.,3P2 |
1 | ||
| 52119-2J300J0 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ-ｼｶｸ ｱﾅ),DK.BLUE M.M.,TRIM11&8P4 |
1 | ||
| 52119-2J300B0 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ-ｼｶｸ ｱﾅ),SILVER ME.,TRIM12&1C0 |
1 | ||
| 52119-2J290D0 |
ACR30,40,MCR30,40..G,J,X SUPER RED MC.,TRIM12&3J7 |
1 | ||
| 52119-2J290G0 |
ACR30,40,MCR30,40..G,J,X DK.GREEN MC.,TRIM11&6Q7 |
1 | ||
| 52119-2J300A0 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ-ｼｶｸ ｱﾅ),WHITE PM.,042 |
1 | ||
| 52119-2J290J1 |
ACR30,40,MCR30,40..G,J,X GRAYISH BLUE ME.,TRIM11&8P6 |
1 | ||
| 52119-2J300D1 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ-ｼｶｸ ｱﾅ),BORDEAUX MC.,3P2 |
1 | ||
| 52119-2J300J1 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ-ｼｶｸ ｱﾅ),GRAYISH BLUE ME.,TRIM11&8P6 |
1 | ||
| 52119-2J300G0 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ-ｼｶｸ ｱﾅ),DK.GREEN MC.,TRIM11&6Q7 |
1 | ||
| 52119-2J290F0 |
ACR30,40,MCR30,40..G,J,X CHAMPAGNE ME.,TRIM12&583 |
1 | ||
| 52119-2J300F0 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ-ｼｶｸ ｱﾅ),CHAMPAGNE ME.,TRIM12&583 |
1 | ||
| 52119-28590A0 |
ACR40..G,X;ACR30,MCR30,40..G,J,X WHITE PM.,042 |
1 | ||
| 52119-28590D0 |
ACR40..G,X;ACR30,MCR30,40..G,J,X SUPER RED MC.,3J7 |
1 | ||
| 52119-28590B0 |
ACR30,40,MCR30,40..G,J,X SILVER ME.,1C0 |
1 | ||
| 52119-28590J0 |
ACR40..G,X;ACR30,MCR30,40..G,J,X DK.BLUE M.M.,8P4 |
1 | ||
| 52119-28590E0 |
ACR30,40,MCR30,40..G,J,X BEIGE ME.,4R4 |
1 | ||
| 52119-28600D0 |
ACR30,40,MCR30,40..G,X ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-),SUPER RED MC.,3J7 |
1 | ||
| 52119-28590G1 |
ACR30,40,MCR30,40..G,J,X LT.GREEN M.M.,6T4 |
1 | ||
| 52119-28600G1 |
ACR30,40,MCR30,40..G,X ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-),LT.GREEN M.M.,6T4 |
1 | ||
| 52119-28600A0 |
ACR30,40,MCR30,40..G,X ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-),WHITE PM.,042 |
1 | ||
| 52119-28600J0 |
ACR30,40,MCR30,40..G,X ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-),DK.BLUE M.M.,8P4 |
1 | ||
| 52119-28600E0 |
ACR30,40,MCR30,40..G,X ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-),BEIGE ME.,4R4 |
1 | ||
| 52119-28600B0 |
ACR30,40,MCR30,40..G,X ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-),SILVER ME.,1C0 |
1 | ||
| 52119-28610B0 |
ACR30,40,MCR30,40..G,X ｱﾘ(ﾌﾛﾝﾄ ﾓﾆﾀ-),SILVER ME.,1C0 |
1 | ||
| 52119-28610G0 |
ACR30,40,MCR30,40..G,X ｱﾘ(ﾌﾛﾝﾄ ﾓﾆﾀ-),LT.GREEN M.M.,6T4 |
1 | ||
| 52119-28610E0 |
ACR30,40,MCR30,40..G,X ｱﾘ(ﾌﾛﾝﾄ ﾓﾆﾀ-),BEIGE ME.,4R4 |
1 | ||
| 52119-28640B0 |
ACR30,40,MCR30,40..G,X ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- & ﾌﾛﾝﾄ ﾓﾆﾀ-),SILVER ME.,1C0 |
1 | ||
| 52119-28610D0 |
ACR30,40,MCR30,40..G,X ｱﾘ(ﾌﾛﾝﾄ ﾓﾆﾀ-),SUPER RED MC.,3J7 |
1 | ||
| 52119-28640A0 |
ACR30,40,MCR30,40..G,X ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- & ﾌﾛﾝﾄ ﾓﾆﾀ-),WHITE PM.,042 |
1 | ||
| 52119-28640G0 |
ACR30,40,MCR30,40..G,X ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- & ﾌﾛﾝﾄ ﾓﾆﾀ-),LT.GREEN M.M.,6T4 |
1 | ||
| 52119-28610A0 |
ACR30,40,MCR30,40..G,X ｱﾘ(ﾌﾛﾝﾄ ﾓﾆﾀ-),WHITE PM.,042 |
1 | ||
| 52119-28640E0 |
ACR30,40,MCR30,40..G,X ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- & ﾌﾛﾝﾄ ﾓﾆﾀ-),BEIGE ME.,4R4 |
1 | ||
| 52119-28640D0 |
ACR30,40,MCR30,40..G,X ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- & ﾌﾛﾝﾄ ﾓﾆﾀ-),SUPER RED MC.,3J7 |
1 | ||
| 52119-28640J0 |
ACR30,40,MCR30,40..G,X ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- & ﾌﾛﾝﾄ ﾓﾆﾀ-),DK.BLUE M.M.,8P4 |
1 | ||
| 52119-28610J0 |
ACR30,40,MCR30,40..G,X ｱﾘ(ﾌﾛﾝﾄ ﾓﾆﾀ-),DK.BLUE M.M.,8P4 |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-28080A0 |
ACR30,40,MCR30,40..G,J,X WHITE PM.,042 |
1 | ||
| 52127-28080D2 |
ACR30,40,MCR30,40..X Xﾘﾐﾃﾂﾄﾞﾅﾋﾞｽﾍﾟｼﾔﾙ *(E) OR Xﾘﾐﾃﾂﾄﾞ *(F),LT. ROSE MICA ME.,3Q1 |
1 | ||
| 52127-28080G0 |
ACR30,40,MCR30,40..G,J,X DK.GREEN MC.,6Q7 |
1 | ||
| 52127-28080J0 |
ACR30,40,MCR30,40..G,J,X DK.BLUE MC.,8P4 |
1 | ||
| 52127-28080D0 |
ACR30,40,MCR30,40..G,J,X RED MC.,3J7 |
1 | ||
| 52127-28080F0 |
ACR30,40,MCR30,40..G,J,X CHAMPAGNE ME.,583 |
1 | ||
| 52127-28080B0 |
ACR30,40,MCR30,40..G,J,X SILVER ME.,1C0 |
1 | ||
| 52127-28080C0 |
ACR30,40,MCR30,40..G,J,X BLACK MC.CC.,210 |
1 | ||
| 52127-28080J1 |
ACR30,40,MCR30,40..G,J,X GRAYISH BLUE ME.,8P6 |
1 | ||
| 52127-28110J0 |
ACR40..G,X;ACR30,MCR30,40..G,J,X DK.BLUE M.M.,8P4 |
1 | ||
| 52127-28080D1 |
ACR30,40,MCR30,40..G,J,X BORDEAUX MC.,3P2 |
1 | ||
| 52127-28110B0 |
ACR30,40,MCR30,40..G,J,X SILVER ME.,1C0 |
1 | ||
| 52127-28110A0 |
ACR40..G,X;ACR30,MCR30,40..G,J,X WHITE PM.,042 |
1 | ||
| 52127-28110G1 |
ACR30,40,MCR30,40..G,J,X LT.GREEN M.M.,6T4 |
1 | ||
| 52127-28110D0 |
ACR40..G,X;ACR30,MCR30,40..G,J,X SUPER RED MC.,3J7 |
1 | ||
| 52127-28110E0 |
ACR30,40,MCR30,40..G,J,X BEIGE ME.,4R4 |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-28050D2 |
ACR30,40,MCR30,40..X Xﾘﾐﾃﾂﾄﾞﾅﾋﾞｽﾍﾟｼﾔﾙ *(E) OR Xﾘﾐﾃﾂﾄﾞ *(F),LT. ROSE MICA ME.,3Q1 |
1 | ||
| 52128-28050A0 |
ACR30,40,MCR30,40..G,J,X WHITE PM.,042 |
1 | ||
| 52128-28050D1 |
ACR30,40,MCR30,40..G,J,X BORDEAUX MC.,3P2 |
1 | ||
| 52128-28050J1 |
ACR30,40,MCR30,40..G,J,X GRAYISH BLUE ME.,8P6 |
1 | ||
| 52128-28050B0 |
ACR30,40,MCR30,40..G,J,X SILVER ME.,1C0 |
1 | ||
| 52128-28050C0 |
ACR30,40,MCR30,40..G,J,X BLACK MC.CC.,210 |
1 | ||
| 52128-28050G0 |
ACR30,40,MCR30,40..G,J,X DK.GREEN MC.,6Q7 |
1 | ||
| 52128-28050F0 |
ACR30,40,MCR30,40..G,J,X CHAMPAGNE ME.,583 |
1 | ||
| 52128-28070A0 |
ACR40..G,X;ACR30,MCR30,40..G,J,X WHITE PM.,042 |
1 | ||
| 52128-28070G1 |
ACR30,40,MCR30,40..G,J,X LT.GREEN M.M.,6T4 |
1 | ||
| 52128-28050J0 |
ACR30,40,MCR30,40..G,J,X DK.BLUE MC.,8P4 |
1 | ||
| 52128-28070J0 |
ACR40..G,X;ACR30,MCR30,40..G,J,X DK.BLUE M.M.,8P4 |
1 | ||
| 52128-28070E0 |
ACR30,40,MCR30,40..G,J,X BEIGE ME.,4R4 |
1 | ||
| 52128-28070D0 |
ACR40..G,X;ACR30,MCR30,40..G,J,X SUPER RED MC.,3J7 |
1 | ||
| 52128-28070B0 |
ACR30,40,MCR30,40..G,J,X SILVER ME.,1C0 |
1 | ||
| 52128-28050D0 |
ACR30,40,MCR30,40..G,J,X RED MC.,3J7 |
1 | ||
| 52145A - STAY, FRONT BUMPER, NO.2 RH | ||||
| 52145-28070 |
ACR30,40,MCR30,40 |
1 | ||
| 52145-28040 |
ACR30,40,MCR30,40 |
1 | ||
| 52146A - STAY, FRONT BUMPER, NO.2 LH | ||||
| 52146-28050 |
ACR30,40,MCR30,40 |
1 | ||
| 52146-28090 |
ACR30,40,MCR30,40 |
1 | ||
| 52711 - MOULDING, FRONT BUMPER | ||||
| 52711-28050 |
ACR30,40,MCR30,40..G,J,X |
1 | ||
| 52711-28090 |
ACR30,40,MCR30,40..G,J,X NO.1 |
1 | ||
| 53121-28050 |
ACR30,40,MCR30,40..G,X ｱﾘ(ﾌﾛﾝﾄ ﾓﾆﾀ-),NO.2 |
1 | ||
| Common parts | ||||
| 90109-06242 | ||||
| 90149-60080 | ||||
| 90159-60477 | ||||
| 90159-60490 | ||||
| 90168-50036 | ||||
| 90168-60023 | ||||
| 90179-06127 | ||||
| 90189-06006 | ||||
| 90189-06113 | ||||
| 90467-09139 | ||||
| Linked diagrams | ||||
| 5152 | ||||
| 5353 | ||||
| 5851 | ||||
| 7652 | ||||
| 8102 | ||||

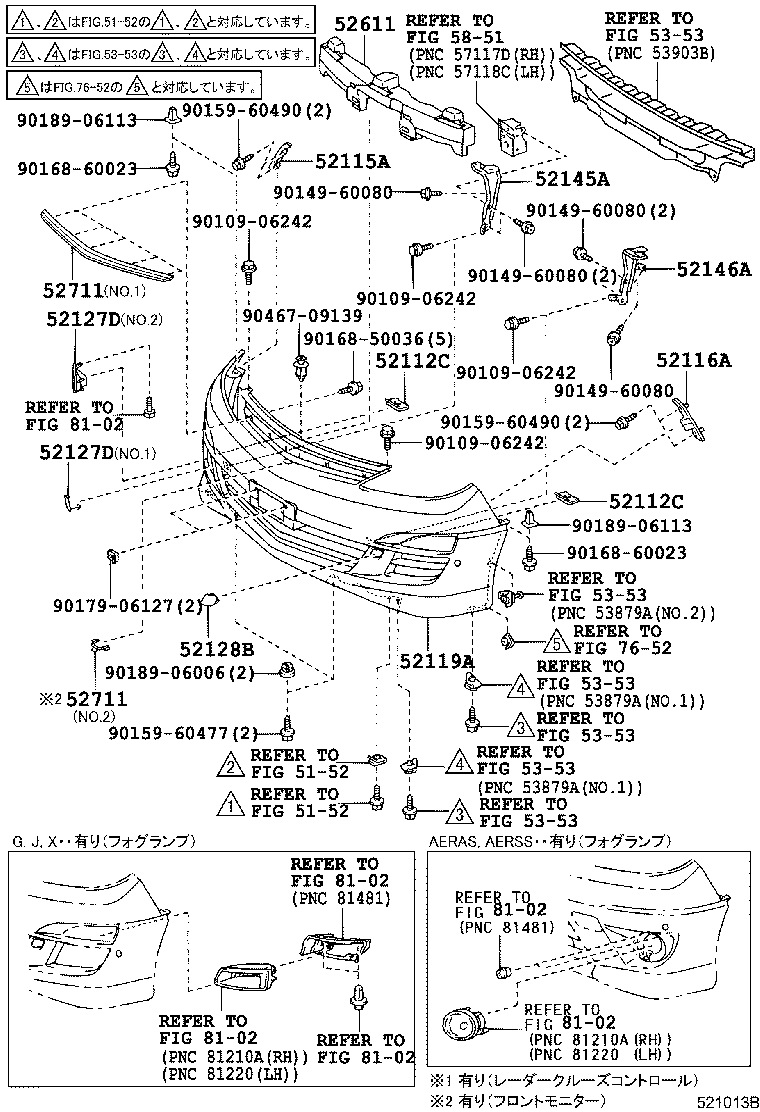

(0304- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52112C - EXTENSION, FRONT BUMPER | ||||
| 52112-28080 |
ACR30,40,MCR30,40 |
2 | ||
| 52112-28080 |
ACR30,40,MCR30,40 |
6 | ||
| 52112C - EXTENSION, FRONT BUMPER | ||||
| 52112-28080 |
ACR30,40,MCR30,40 |
2 | ||
| 52112-28080 |
ACR30,40,MCR30,40 |
6 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-28090 |
ACR30,40,MCR30,40 |
1 | ||
| 52115-28070 |
ACR30,40,MCR30,40 |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-28030 |
ACR30,40,MCR30,40 |
1 | ||
| 52116-28050 |
ACR30,40,MCR30,40 |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-28710F0 |
ACR30,40,MCR30,40..G,J,X CHAMPAGNE ME.,TRIM12&583 |
1 | ||
| 52119-28710D1 |
ACR30,40,MCR30,40..G,J,X BORDEAUX MC.,3P2 |
1 | ||
| 52119-28710B0 |
ACR30,40,MCR30,40..G,J,X SILVER ME.,TRIM12&1C0 |
1 | ||
| 52119-28770D1 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ-ｼｶｸ ｱﾅ),BORDEAUX MC.,3P2 |
1 | ||
| 52119-28770B0 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ-ｼｶｸ ｱﾅ),SILVER ME.,1C0 |
1 | ||
| 52119-28710J0 |
ACR30,40,MCR30,40..G,J,X DK.BLUE MC.,TRIM11&8P4 |
1 | ||
| 52119-28710A0 |
ACR30,40,MCR30,40..G,J,X WHITE PM.,042 |
1 | ||
| 52119-28770F0 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ-ｼｶｸ ｱﾅ),CHAMPAGNE ME.,583 |
1 | ||
| 52119-28710D0 |
ACR30,40,MCR30,40..G,J,X RED MC.,TRIM12&3J7 |
1 | ||
| 52119-28770D0 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ-ｼｶｸ ｱﾅ),RED MC.,3J7 |
1 | ||
| 52119-28710G0 |
ACR30,40,MCR30,40..G,J,X DK.GREEN MC.,TRIM11&6Q7 |
1 | ||
| 52119-28710J1 |
ACR30,40,MCR30,40..G,J,X GRAYISH BLUE ME.,TRIM11&8P6 |
1 | ||
| 52119-28770J1 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ-ｼｶｸ ｱﾅ),GRAYISH BLUE ME.,8P6 |
1 | ||
| 52119-28770A0 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ-ｼｶｸ ｱﾅ),WHITE PM.,042 |
1 | ||
| 52119-28770G0 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ-ｼｶｸ ｱﾅ),DK.GREEN MC.,6Q7 |
1 | ||
| 52119-28770J0 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ-ｼｶｸ ｱﾅ),DK.BLUE MC.,8P4 |
1 | ||
| 52119-2J290D2 |
ACR30,40,MCR30,40..X Xﾘﾐﾃﾂﾄﾞﾅﾋﾞｽﾍﾟｼﾔﾙ *(E) OR Xﾘﾐﾃﾂﾄﾞ *(F),LT. ROSE MICA ME.,3Q1 |
1 | ||
| 52119-2J290B0 |
ACR30,40,MCR30,40..G,J,X SILVER ME.,TRIM12&1C0 |
1 | ||
| 52119-2J290A0 |
ACR30,40,MCR30,40..G,J,X WHITE PM.,042 |
1 | ||
| 52119-2J290J0 |
ACR30,40,MCR30,40..G,J,X DK.BLUE M.M.,TRIM11&8P4 |
1 | ||
| 52119-2J300C0 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ-ｼｶｸ ｱﾅ),BLUE BLACK MC.CC.,TRIM11&210 |
1 | ||
| 52119-2J300D0 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ-ｼｶｸ ｱﾅ),SUPER RED MC.,TRIM12&3J7 |
1 | ||
| 52119-2J290C0 |
ACR30,40,MCR30,40..G,J,X BLUE BLACK MC.CC.,TRIM11&210 |
1 | ||
| 52119-2J290D1 |
ACR30,40,MCR30,40..G,J,X BORDEAUX MC.,3P2 |
1 | ||
| 52119-2J300J0 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ-ｼｶｸ ｱﾅ),DK.BLUE M.M.,TRIM11&8P4 |
1 | ||
| 52119-2J300B0 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ-ｼｶｸ ｱﾅ),SILVER ME.,TRIM12&1C0 |
1 | ||
| 52119-2J290D0 |
ACR30,40,MCR30,40..G,J,X SUPER RED MC.,TRIM12&3J7 |
1 | ||
| 52119-2J290G0 |
ACR30,40,MCR30,40..G,J,X DK.GREEN MC.,TRIM11&6Q7 |
1 | ||
| 52119-2J300A0 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ-ｼｶｸ ｱﾅ),WHITE PM.,042 |
1 | ||
| 52119-2J290J1 |
ACR30,40,MCR30,40..G,J,X GRAYISH BLUE ME.,TRIM11&8P6 |
1 | ||
| 52119-2J300D1 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ-ｼｶｸ ｱﾅ),BORDEAUX MC.,3P2 |
1 | ||
| 52119-2J300J1 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ-ｼｶｸ ｱﾅ),GRAYISH BLUE ME.,TRIM11&8P6 |
1 | ||
| 52119-2J300G0 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ-ｼｶｸ ｱﾅ),DK.GREEN MC.,TRIM11&6Q7 |
1 | ||
| 52119-2J290F0 |
ACR30,40,MCR30,40..G,J,X CHAMPAGNE ME.,TRIM12&583 |
1 | ||
| 52119-2J300F0 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ-ｼｶｸ ｱﾅ),CHAMPAGNE ME.,TRIM12&583 |
1 | ||
| 52119-28590A0 |
ACR40..G,X;ACR30,MCR30,40..G,J,X WHITE PM.,042 |
1 | ||
| 52119-28590D0 |
ACR40..G,X;ACR30,MCR30,40..G,J,X SUPER RED MC.,3J7 |
1 | ||
| 52119-28590B0 |
ACR30,40,MCR30,40..G,J,X SILVER ME.,1C0 |
1 | ||
| 52119-28590J0 |
ACR40..G,X;ACR30,MCR30,40..G,J,X DK.BLUE M.M.,8P4 |
1 | ||
| 52119-28590E0 |
ACR30,40,MCR30,40..G,J,X BEIGE ME.,4R4 |
1 | ||
| 52119-28600D0 |
ACR30,40,MCR30,40..G,X ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-),SUPER RED MC.,3J7 |
1 | ||
| 52119-28590G1 |
ACR30,40,MCR30,40..G,J,X LT.GREEN M.M.,6T4 |
1 | ||
| 52119-28600G1 |
ACR30,40,MCR30,40..G,X ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-),LT.GREEN M.M.,6T4 |
1 | ||
| 52119-28600A0 |
ACR30,40,MCR30,40..G,X ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-),WHITE PM.,042 |
1 | ||
| 52119-28600J0 |
ACR30,40,MCR30,40..G,X ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-),DK.BLUE M.M.,8P4 |
1 | ||
| 52119-28600E0 |
ACR30,40,MCR30,40..G,X ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-),BEIGE ME.,4R4 |
1 | ||
| 52119-28600B0 |
ACR30,40,MCR30,40..G,X ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-),SILVER ME.,1C0 |
1 | ||
| 52119-28610B0 |
ACR30,40,MCR30,40..G,X ｱﾘ(ﾌﾛﾝﾄ ﾓﾆﾀ-),SILVER ME.,1C0 |
1 | ||
| 52119-28610G0 |
ACR30,40,MCR30,40..G,X ｱﾘ(ﾌﾛﾝﾄ ﾓﾆﾀ-),LT.GREEN M.M.,6T4 |
1 | ||
| 52119-28610E0 |
ACR30,40,MCR30,40..G,X ｱﾘ(ﾌﾛﾝﾄ ﾓﾆﾀ-),BEIGE ME.,4R4 |
1 | ||
| 52119-28640B0 |
ACR30,40,MCR30,40..G,X ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- & ﾌﾛﾝﾄ ﾓﾆﾀ-),SILVER ME.,1C0 |
1 | ||
| 52119-28610D0 |
ACR30,40,MCR30,40..G,X ｱﾘ(ﾌﾛﾝﾄ ﾓﾆﾀ-),SUPER RED MC.,3J7 |
1 | ||
| 52119-28640A0 |
ACR30,40,MCR30,40..G,X ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- & ﾌﾛﾝﾄ ﾓﾆﾀ-),WHITE PM.,042 |
1 | ||
| 52119-28640G0 |
ACR30,40,MCR30,40..G,X ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- & ﾌﾛﾝﾄ ﾓﾆﾀ-),LT.GREEN M.M.,6T4 |
1 | ||
| 52119-28610A0 |
ACR30,40,MCR30,40..G,X ｱﾘ(ﾌﾛﾝﾄ ﾓﾆﾀ-),WHITE PM.,042 |
1 | ||
| 52119-28640E0 |
ACR30,40,MCR30,40..G,X ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- & ﾌﾛﾝﾄ ﾓﾆﾀ-),BEIGE ME.,4R4 |
1 | ||
| 52119-28640D0 |
ACR30,40,MCR30,40..G,X ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- & ﾌﾛﾝﾄ ﾓﾆﾀ-),SUPER RED MC.,3J7 |
1 | ||
| 52119-28640J0 |
ACR30,40,MCR30,40..G,X ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- & ﾌﾛﾝﾄ ﾓﾆﾀ-),DK.BLUE M.M.,8P4 |
1 | ||
| 52119-28610J0 |
ACR30,40,MCR30,40..G,X ｱﾘ(ﾌﾛﾝﾄ ﾓﾆﾀ-),DK.BLUE M.M.,8P4 |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-28080A0 |
ACR30,40,MCR30,40..G,J,X WHITE PM.,042 |
1 | ||
| 52127-28080D2 |
ACR30,40,MCR30,40..X Xﾘﾐﾃﾂﾄﾞﾅﾋﾞｽﾍﾟｼﾔﾙ *(E) OR Xﾘﾐﾃﾂﾄﾞ *(F),LT. ROSE MICA ME.,3Q1 |
1 | ||
| 52127-28080G0 |
ACR30,40,MCR30,40..G,J,X DK.GREEN MC.,6Q7 |
1 | ||
| 52127-28080J0 |
ACR30,40,MCR30,40..G,J,X DK.BLUE MC.,8P4 |
1 | ||
| 52127-28080D0 |
ACR30,40,MCR30,40..G,J,X RED MC.,3J7 |
1 | ||
| 52127-28080F0 |
ACR30,40,MCR30,40..G,J,X CHAMPAGNE ME.,583 |
1 | ||
| 52127-28080B0 |
ACR30,40,MCR30,40..G,J,X SILVER ME.,1C0 |
1 | ||
| 52127-28080C0 |
ACR30,40,MCR30,40..G,J,X BLACK MC.CC.,210 |
1 | ||
| 52127-28080J1 |
ACR30,40,MCR30,40..G,J,X GRAYISH BLUE ME.,8P6 |
1 | ||
| 52127-28110J0 |
ACR40..G,X;ACR30,MCR30,40..G,J,X DK.BLUE M.M.,8P4 |
1 | ||
| 52127-28080D1 |
ACR30,40,MCR30,40..G,J,X BORDEAUX MC.,3P2 |
1 | ||
| 52127-28110B0 |
ACR30,40,MCR30,40..G,J,X SILVER ME.,1C0 |
1 | ||
| 52127-28110A0 |
ACR40..G,X;ACR30,MCR30,40..G,J,X WHITE PM.,042 |
1 | ||
| 52127-28110G1 |
ACR30,40,MCR30,40..G,J,X LT.GREEN M.M.,6T4 |
1 | ||
| 52127-28110D0 |
ACR40..G,X;ACR30,MCR30,40..G,J,X SUPER RED MC.,3J7 |
1 | ||
| 52127-28110E0 |
ACR30,40,MCR30,40..G,J,X BEIGE ME.,4R4 |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-28080A0 |
ACR30,40,MCR30,40..G,J,X WHITE PM.,042 |
1 | ||
| 52127-28080D2 |
ACR30,40,MCR30,40..X Xﾘﾐﾃﾂﾄﾞﾅﾋﾞｽﾍﾟｼﾔﾙ *(E) OR Xﾘﾐﾃﾂﾄﾞ *(F),LT. ROSE MICA ME.,3Q1 |
1 | ||
| 52127-28080G0 |
ACR30,40,MCR30,40..G,J,X DK.GREEN MC.,6Q7 |
1 | ||
| 52127-28080J0 |
ACR30,40,MCR30,40..G,J,X DK.BLUE MC.,8P4 |
1 | ||
| 52127-28080D0 |
ACR30,40,MCR30,40..G,J,X RED MC.,3J7 |
1 | ||
| 52127-28080F0 |
ACR30,40,MCR30,40..G,J,X CHAMPAGNE ME.,583 |
1 | ||
| 52127-28080B0 |
ACR30,40,MCR30,40..G,J,X SILVER ME.,1C0 |
1 | ||
| 52127-28080C0 |
ACR30,40,MCR30,40..G,J,X BLACK MC.CC.,210 |
1 | ||
| 52127-28080J1 |
ACR30,40,MCR30,40..G,J,X GRAYISH BLUE ME.,8P6 |
1 | ||
| 52127-28110J0 |
ACR40..G,X;ACR30,MCR30,40..G,J,X DK.BLUE M.M.,8P4 |
1 | ||
| 52127-28080D1 |
ACR30,40,MCR30,40..G,J,X BORDEAUX MC.,3P2 |
1 | ||
| 52127-28110B0 |
ACR30,40,MCR30,40..G,J,X SILVER ME.,1C0 |
1 | ||
| 52127-28110A0 |
ACR40..G,X;ACR30,MCR30,40..G,J,X WHITE PM.,042 |
1 | ||
| 52127-28110G1 |
ACR30,40,MCR30,40..G,J,X LT.GREEN M.M.,6T4 |
1 | ||
| 52127-28110D0 |
ACR40..G,X;ACR30,MCR30,40..G,J,X SUPER RED MC.,3J7 |
1 | ||
| 52127-28110E0 |
ACR30,40,MCR30,40..G,J,X BEIGE ME.,4R4 |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-28050D2 |
ACR30,40,MCR30,40..X Xﾘﾐﾃﾂﾄﾞﾅﾋﾞｽﾍﾟｼﾔﾙ *(E) OR Xﾘﾐﾃﾂﾄﾞ *(F),LT. ROSE MICA ME.,3Q1 |
1 | ||
| 52128-28050A0 |
ACR30,40,MCR30,40..G,J,X WHITE PM.,042 |
1 | ||
| 52128-28050D1 |
ACR30,40,MCR30,40..G,J,X BORDEAUX MC.,3P2 |
1 | ||
| 52128-28050J1 |
ACR30,40,MCR30,40..G,J,X GRAYISH BLUE ME.,8P6 |
1 | ||
| 52128-28050B0 |
ACR30,40,MCR30,40..G,J,X SILVER ME.,1C0 |
1 | ||
| 52128-28050C0 |
ACR30,40,MCR30,40..G,J,X BLACK MC.CC.,210 |
1 | ||
| 52128-28050G0 |
ACR30,40,MCR30,40..G,J,X DK.GREEN MC.,6Q7 |
1 | ||
| 52128-28050F0 |
ACR30,40,MCR30,40..G,J,X CHAMPAGNE ME.,583 |
1 | ||
| 52128-28070A0 |
ACR40..G,X;ACR30,MCR30,40..G,J,X WHITE PM.,042 |
1 | ||
| 52128-28070G1 |
ACR30,40,MCR30,40..G,J,X LT.GREEN M.M.,6T4 |
1 | ||
| 52128-28050J0 |
ACR30,40,MCR30,40..G,J,X DK.BLUE MC.,8P4 |
1 | ||
| 52128-28070J0 |
ACR40..G,X;ACR30,MCR30,40..G,J,X DK.BLUE M.M.,8P4 |
1 | ||
| 52128-28070E0 |
ACR30,40,MCR30,40..G,J,X BEIGE ME.,4R4 |
1 | ||
| 52128-28070D0 |
ACR40..G,X;ACR30,MCR30,40..G,J,X SUPER RED MC.,3J7 |
1 | ||
| 52128-28070B0 |
ACR30,40,MCR30,40..G,J,X SILVER ME.,1C0 |
1 | ||
| 52128-28050D0 |
ACR30,40,MCR30,40..G,J,X RED MC.,3J7 |
1 | ||
| 52145A - STAY, FRONT BUMPER, NO.2 RH | ||||
| 52145-28070 |
ACR30,40,MCR30,40 |
1 | ||
| 52145-28040 |
ACR30,40,MCR30,40 |
1 | ||
| 52146A - STAY, FRONT BUMPER, NO.2 LH | ||||
| 52146-28050 |
ACR30,40,MCR30,40 |
1 | ||
| 52146-28090 |
ACR30,40,MCR30,40 |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-28070 |
ACR30,40,MCR30,40 |
1 | ||
| 52711 - MOULDING, FRONT BUMPER | ||||
| 52711-28050 |
ACR30,40,MCR30,40..G,J,X |
1 | ||
| 52711-28090 |
ACR30,40,MCR30,40..G,J,X NO.1 |
1 | ||
| 53121-28050 |
ACR30,40,MCR30,40..G,X ｱﾘ(ﾌﾛﾝﾄ ﾓﾆﾀ-),NO.2 |
1 | ||
| 52711 - MOULDING, FRONT BUMPER | ||||
| 52711-28050 |
ACR30,40,MCR30,40..G,J,X |
1 | ||
| 52711-28090 |
ACR30,40,MCR30,40..G,J,X NO.1 |
1 | ||
| 53121-28050 |
ACR30,40,MCR30,40..G,X ｱﾘ(ﾌﾛﾝﾄ ﾓﾆﾀ-),NO.2 |
1 | ||
| Common parts | ||||
| 90109-06242 | ||||
| 90149-60080 | ||||
| 90159-60477 | ||||
| 90159-60490 | ||||
| 90168-50036 | ||||
| 90168-60023 | ||||
| 90179-06127 | ||||
| 90189-06006 | ||||
| 90189-06113 | ||||
| 90467-09139 | ||||
| Linked diagrams | ||||
| 5152 | ||||
| 5353 | ||||
| 5851 | ||||
| 7652 | ||||
| 8102 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
