ACR40W-MRSEK (2000)

Toyota Estima T/L

Production Feb 2000 - Jan 2006
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9912-0304)

Click highlighted areas on diagram

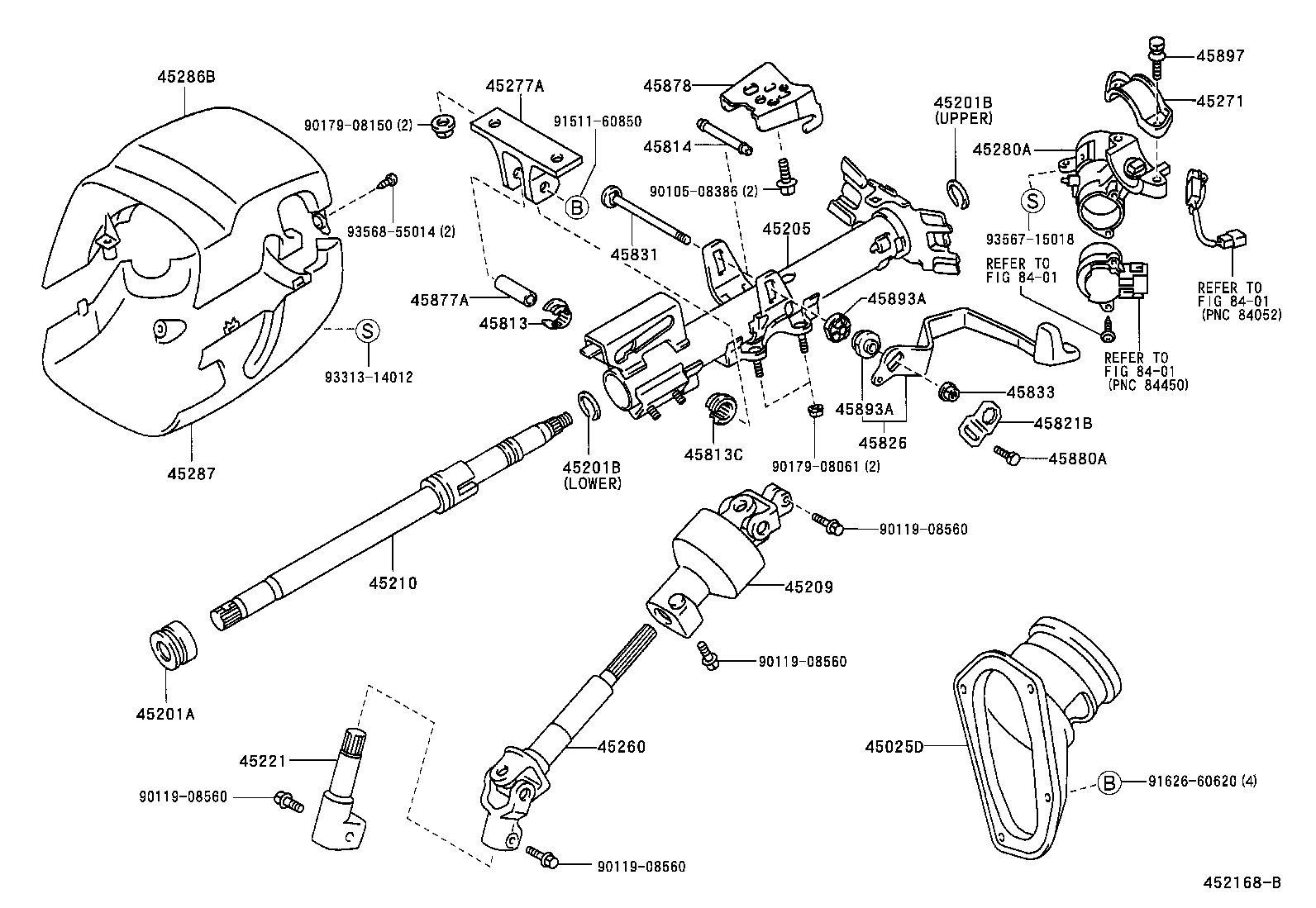

diagram 45025D 45201A 45201B 45201B 45205 45209 45210 45221 45260 45271 45277A 45280A 45286B 45287 45813 45813C 45814 45821B 45826 45831 45833 45877A 45878 45880A 45893A 45893A 45897 8401 8401 8401 9010508386 9011908560 9011908560 9011908560 9011908560 9017908061 9017908150 9151160850 9162660620 9331314012 9356715018 9356855014
Part # Description Qty Price
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-28050

ACR40,MCR40

 1
45025-28050

ACR40,MCR40

 1
45201A - BEARING(FOR STEERING MAIN SHAFT)
45274-28010

ACR30,40,MCR30,40

 1
45274-28010

ACR30,40,MCR30,40

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17269

ACR30,40,MCR30,40

厚さ=1.20,上側

 1
90520-17042

ACR30,40,MCR30,40

厚さ=1.20,下側

 1
90520-17042

ACR30,40,MCR30,40

厚さ=1.20,下側

 1
90520-17269

ACR30,40,MCR30,40

厚さ=1.20,上側

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17269

ACR30,40,MCR30,40

厚さ=1.20,上側

 1
90520-17042

ACR30,40,MCR30,40

厚さ=1.20,下側

 1
90520-17042

ACR30,40,MCR30,40

厚さ=1.20,下側

 1
90520-17269

ACR30,40,MCR30,40

厚さ=1.20,上側

 1
45205 - TUBE SUB-ASSY, STEERING COLUMN
45205-28230

MCR30,40

 1
45205-28230

MCR30,40

 1
45205-28210

ACR30,40

 1
45205-28210

ACR30,40

 1
45209 - YOKE SUB-ASSY, STEERING SLIDING
45209-28010

ACR30,40,MCR30,40

 1
45209-28040

ACR30,40,MCR30,40..AERAS,G,J,X

 1
45210 - SHAFT ASSY, STEERING MAIN
45210-27110

ACR30,40

 1
45210-28130

MCR30,40

 1
45210-27110

ACR30,40

 1
45210-28130

MCR30,40

 1
45221 - SHAFT, STEERING INTERMEDIATE
45221-28080

ACR40,MCR40

 1
45221-28080

ACR40,MCR40

 1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-28070

ACR40,MCR40

 1
45260-28070

ACR40,MCR40

 1
45271 - CLAMP, STEERING COLUMN, UPPER
45271-16020

ACR30,40,MCR30,40

 1
45271-16020

ACR30,40,MCR30,40

 1
45277A - SUPPORT, TILT STEERING
45277-28040

MCR30,40

 1
45277-28030

ACR30,40

 1
45277-28050

ACR30,40,MCR30,40

 1
45280A - BRACKET ASSY, STEERING COLUMN, UPPER
45280-28280

ACR30,40,MCR30,40

 1
45280-28280

ACR30,40,MCR30,40

 1
45286B - COVER, STEERING COLUMN, UPR
45286-28350B1

ACR30,40,MCR30,40..G,J,X

DK.CHARCOAL,TRIM12

 1
45286-28350E1

ACR40..G,X;ACR30,MCR30,40..G,J,X

SANDAL WOOD,TRIM0#

 1
45286-28350B0

ACR30,40,MCR30,40..G,J,X

BLUISH GRAY,TRIM11

 1
45287 - COVER, STEERING COLUMN, LWR
45287-28390B0

ACR30,40,MCR30,40..G,J,X

BLUISH GRAY,TRIM11

 1
45287-28391B0

ACR30,40,MCR30,40..G,J,X

BLUISH GRAY,TRIM11

 1
45287-28391E1

ACR40..G,X;ACR30,MCR30,40..G,J,X

SANDAL WOOD,TRIM0#

 1
45287-28390B1

ACR30,40,MCR30,40..G,J,X

DK.CHARCOAL,TRIM12

 1
45287-28391B1

ACR30,40,MCR30,40..G,J,X

DK.CHARCOAL,TRIM12

 1
45813 - COLLAR, TILT STEERING SUPPORT, NO.1
45813-52010

ACR30,40,MCR30,40

外径=24

 1
45813C - COLLAR, TILT STEERING SUPPORT, NO.1
45813-52020

ACR30,40,MCR30,40

 1
45814 - COLLAR, TILT STEERING SUPPORT, NO.2
45814-52010

ACR30,40,MCR30,40

外径=8

 1
45821B - REINFORCE, TILT STEERING SUPPORT, NO.1
45821-52010

ACR30,40,MCR30,40

 1
45821-52010

ACR30,40,MCR30,40

 1
45826 - LEVER, STEERING TILT
45826-28051

ACR30,40,MCR30,40

 1
45826-26060

ACR30,40,MCR30,40

 1
45826-28050

MCR30,40

 1
45826-28051

ACR30,40,MCR30,40

 1
45831 - BOLT, TILT LEVER LOCK, NO.1
45831-52010

ACR30,40,MCR30,40

 1
45831-52010

ACR30,40,MCR30,40

 1
45833 - NUT, TILT STEERING ADJUSTING, NO.1
45833-52010

ACR30,40,MCR30,40

 1
45833-52010

ACR30,40,MCR30,40

 1
45877A - SPACER, STEERING COLUMN BRACKET
45877-52010

ACR30,40,MCR30,40

 1
45878 - BRACKET, STEERING COLUMN UPPER SUPPORT
45878-52010

ACR30,40,MCR30,40

 1
45880A - BOLT(FOR STEERING TILT LEVER)
45832-12010

ACR30,40,MCR30,40

 1
45832-12010

ACR30,40,MCR30,40

 1
45893A - STOPPER, TILT STEERING PAWL
45893-52010

ACR30,40,MCR30,40

 2
45893-52010

ACR30,40,MCR30,40

 2
45893A - STOPPER, TILT STEERING PAWL
45893-52010

ACR30,40,MCR30,40

 2
45893-52010

ACR30,40,MCR30,40

 2
45897 - BOLT, STEERING LOCK SET
45897-12020

ACR30,40,MCR30,40

 2
45897-12020

ACR30,40,MCR30,40

 2
Common parts
90105-08386
90119-08560
90179-08061
90179-08150
91511-60850
91626-60620
93313-14012
93567-15018
93568-55014
Linked diagrams
8401

(0304- )

Click highlighted areas on diagram

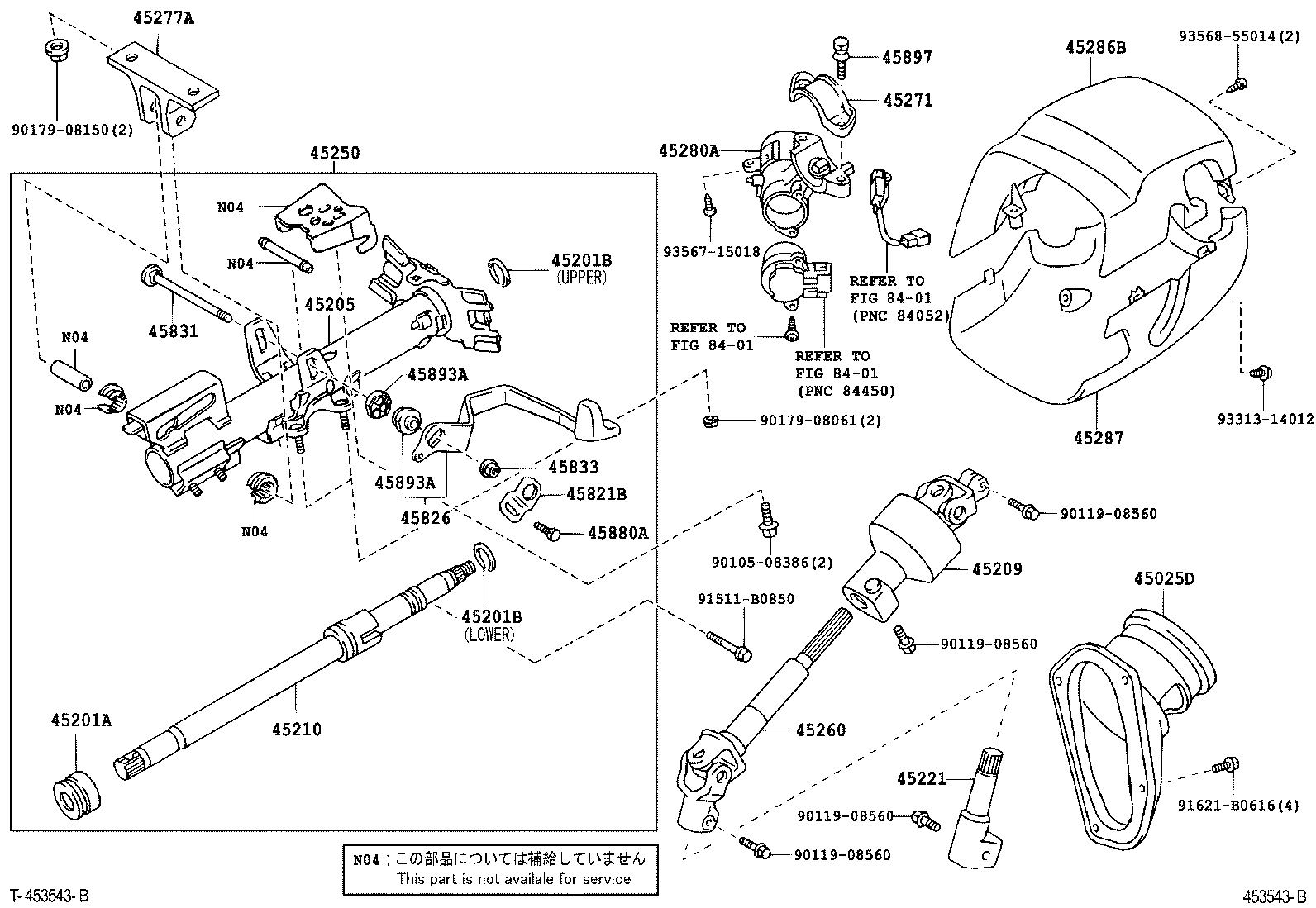

diagram 45025D 45201A 45201B 45201B 45205 45209 45210 45221 45250 45260 45271 45277A 45280A 45286B 45287 45821B 45826 45831 45833 45880A 45893A 45893A 45897 8401 8401 8401 9010508386 9011908560 9011908560 9011908560 9011908560 9017908061 9017908150 91511B0850 91621B0616 9331314012 9356715018 9356855014
Part # Description Qty Price
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-28050

ACR40,MCR40

 1
45025-28050

ACR40,MCR40

 1
45201A - BEARING(FOR STEERING MAIN SHAFT)
45274-28010

ACR30,40,MCR30,40

 1
45274-28010

ACR30,40,MCR30,40

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17269

ACR30,40,MCR30,40

厚さ=1.20,上側

 1
90520-17042

ACR30,40,MCR30,40

厚さ=1.20,下側

 1
90520-17042

ACR30,40,MCR30,40

厚さ=1.20,下側

 1
90520-17269

ACR30,40,MCR30,40

厚さ=1.20,上側

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17269

ACR30,40,MCR30,40

厚さ=1.20,上側

 1
90520-17042

ACR30,40,MCR30,40

厚さ=1.20,下側

 1
90520-17042

ACR30,40,MCR30,40

厚さ=1.20,下側

 1
90520-17269

ACR30,40,MCR30,40

厚さ=1.20,上側

 1
45205 - TUBE SUB-ASSY, STEERING COLUMN
45205-28230

MCR30,40

 1
45205-28230

MCR30,40

 1
45205-28210

ACR30,40

 1
45205-28210

ACR30,40

 1
45209 - YOKE SUB-ASSY, STEERING SLIDING
45209-28010

ACR30,40,MCR30,40

 1
45209-28040

ACR30,40,MCR30,40..AERAS,G,J,X

 1
45210 - SHAFT ASSY, STEERING MAIN
45210-27110

ACR30,40

 1
45210-28130

MCR30,40

 1
45210-27110

ACR30,40

 1
45210-28130

MCR30,40

 1
45221 - SHAFT, STEERING INTERMEDIATE
45221-28080

ACR40,MCR40

 1
45221-28080

ACR40,MCR40

 1
45250 - COLUMN ASSY, STEERING
45250-28481

ACR30,40

 1
45250-28501

MCR30,40

 1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-28070

ACR40,MCR40

 1
45260-28070

ACR40,MCR40

 1
45271 - CLAMP, STEERING COLUMN, UPPER
45271-16020

ACR30,40,MCR30,40

 1
45271-16020

ACR30,40,MCR30,40

 1
45277A - SUPPORT, TILT STEERING
45277-28040

MCR30,40

 1
45277-28030

ACR30,40

 1
45277-28050

ACR30,40,MCR30,40

 1
45280A - BRACKET ASSY, STEERING COLUMN, UPPER
45280-28280

ACR30,40,MCR30,40

 1
45280-28280

ACR30,40,MCR30,40

 1
45286B - COVER, STEERING COLUMN, UPR
45286-28350B1

ACR30,40,MCR30,40..G,J,X

DK.CHARCOAL,TRIM12

 1
45286-28350E1

ACR40..G,X;ACR30,MCR30,40..G,J,X

SANDAL WOOD,TRIM0#

 1
45286-28350B0

ACR30,40,MCR30,40..G,J,X

BLUISH GRAY,TRIM11

 1
45287 - COVER, STEERING COLUMN, LWR
45287-28390B0

ACR30,40,MCR30,40..G,J,X

BLUISH GRAY,TRIM11

 1
45287-28391B0

ACR30,40,MCR30,40..G,J,X

BLUISH GRAY,TRIM11

 1
45287-28391E1

ACR40..G,X;ACR30,MCR30,40..G,J,X

SANDAL WOOD,TRIM0#

 1
45287-28390B1

ACR30,40,MCR30,40..G,J,X

DK.CHARCOAL,TRIM12

 1
45287-28391B1

ACR30,40,MCR30,40..G,J,X

DK.CHARCOAL,TRIM12

 1
45821B - REINFORCE, TILT STEERING SUPPORT, NO.1
45821-52010

ACR30,40,MCR30,40

 1
45821-52010

ACR30,40,MCR30,40

 1
45826 - LEVER, STEERING TILT
45826-28051

ACR30,40,MCR30,40

 1
45826-26060

ACR30,40,MCR30,40

 1
45826-28050

MCR30,40

 1
45826-28051

ACR30,40,MCR30,40

 1
45831 - BOLT, TILT LEVER LOCK, NO.1
45831-52010

ACR30,40,MCR30,40

 1
45831-52010

ACR30,40,MCR30,40

 1
45833 - NUT, TILT STEERING ADJUSTING, NO.1
45833-52010

ACR30,40,MCR30,40

 1
45833-52010

ACR30,40,MCR30,40

 1
45880A - BOLT(FOR STEERING TILT LEVER)
45832-12010

ACR30,40,MCR30,40

 1
45832-12010

ACR30,40,MCR30,40

 1
45893A - STOPPER, TILT STEERING PAWL
45893-52010

ACR30,40,MCR30,40

 2
45893-52010

ACR30,40,MCR30,40

 2
45893A - STOPPER, TILT STEERING PAWL
45893-52010

ACR30,40,MCR30,40

 2
45893-52010

ACR30,40,MCR30,40

 2
45897 - BOLT, STEERING LOCK SET
45897-12020

ACR30,40,MCR30,40

 2
45897-12020

ACR30,40,MCR30,40

 2
Common parts
90105-08386
90119-08560
90179-08061
90179-08150
91511-B0850
91621-B0616
93313-14012
93567-15018
93568-55014
Linked diagrams
8401
