Toyota Estima t/l ACR40 NAVIGATION & FRONT MONITOR DISPLAY

ACR40W-MRSDK (2000)

Toyota Estima T/L

Production Feb 2000 - Jan 2006

Engine 2AZFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

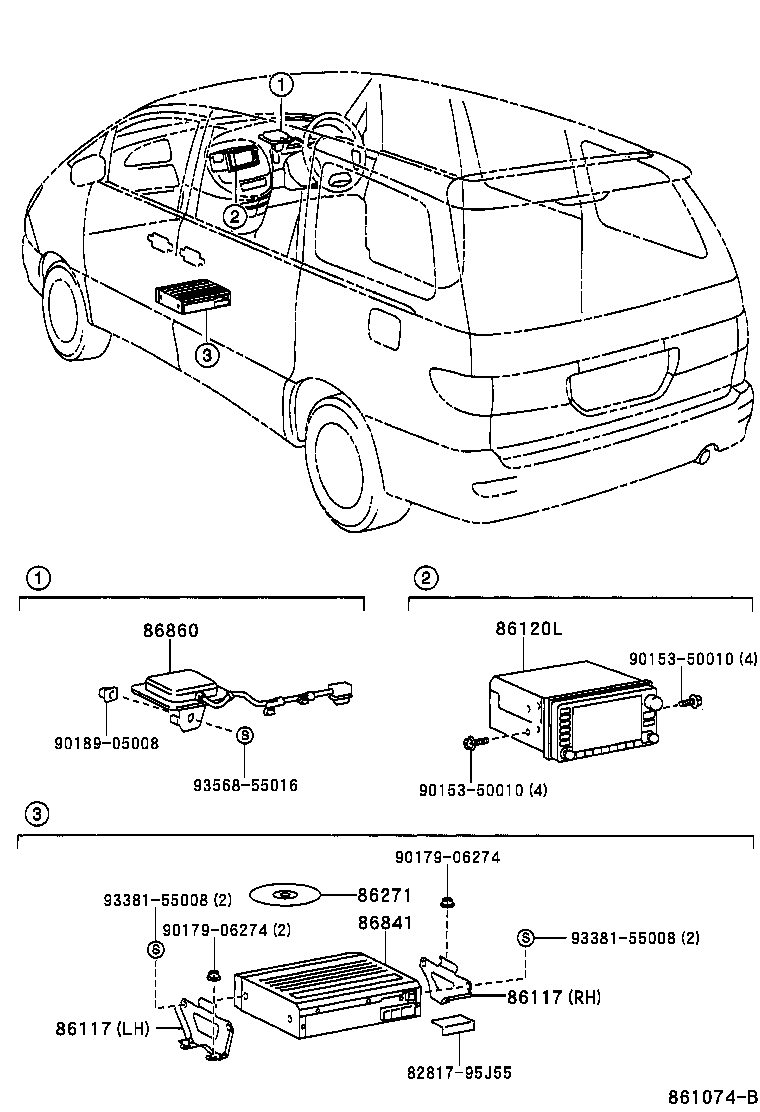

Click highlighted areas on diagram

Part #	Description	Period	Qty
86117 - BRACKET, MULTI-DISPLAY CONTROLLER, A
86117-28040	ACR30,40,MCR30,40..08S;ACR30,40,MCR30,40..07S..G 右側	12/1999 - 05/2001	1
86117-28100	ACR30,40,MCR30,40 右側	05/2001 - 04/2003	1
86117-28110	ACR30,40,MCR30,40 左側	05/2001 - 04/2003	1
86117-28050	ACR30,40,MCR30,40..08S;ACR30,40,MCR30,40..07S..G 左側	12/1999 - 05/2001	1
86117 - BRACKET, MULTI-DISPLAY CONTROLLER, A
86117-28040	ACR30,40,MCR30,40..08S;ACR30,40,MCR30,40..07S..G 右側	12/1999 - 05/2001	1
86117-28100	ACR30,40,MCR30,40 右側	05/2001 - 04/2003	1
86117-28110	ACR30,40,MCR30,40 左側	05/2001 - 04/2003	1
86117-28050	ACR30,40,MCR30,40..08S;ACR30,40,MCR30,40..07S..G 左側	12/1999 - 05/2001	1
86120L - RECEIVER ASSY, NAVIGATION
86120-28450	ACR30,40,MCR30,40 FUJITSU TEN,ID=16034	04/2001 - 02/2003	1
86120-28451	ACR30,40,MCR30,40 FUJITSU TEN,ID=16050	02/2003 - 04/2003	1
86120-28390	ACR30,40,MCR30,40 FUJITSU TEN,ID=16023	12/1999 - 04/2001	1
86271 - DISC, DISC PLAYER
86271-33020	ACR30,40,MCR30,40	06/2000 - 04/2001	1
86271-30470	ACR30,40,MCR30,40	12/1999 - 06/2000	1
86271-44020	ACR30,40,MCR30,40	04/2001 - 04/2003	1
86841 - COMPUTER, NAVIGATION
86841-20010	ACR30,40,MCR30,40	12/1999 - 06/2000	1
86841-44010	ACR30,40,MCR30,40	04/2001 - 04/2003	1
86841-33040	ACR30,40,MCR30,40	06/2000 - 04/2001	1
86860 - ANTENNA ASSY, NAVIGATION
86860-28050	ACR30,40,MCR30,40..08S;ACR30,40,MCR30,40..07S..G	12/1999 - 05/2001	1
86860-28080	ACR30,40,MCR30,40	05/2001 - 04/2003	1
Common parts
82817-95J55
90153-50010
90179-06274
90189-05008
93381-55008
93568-55016

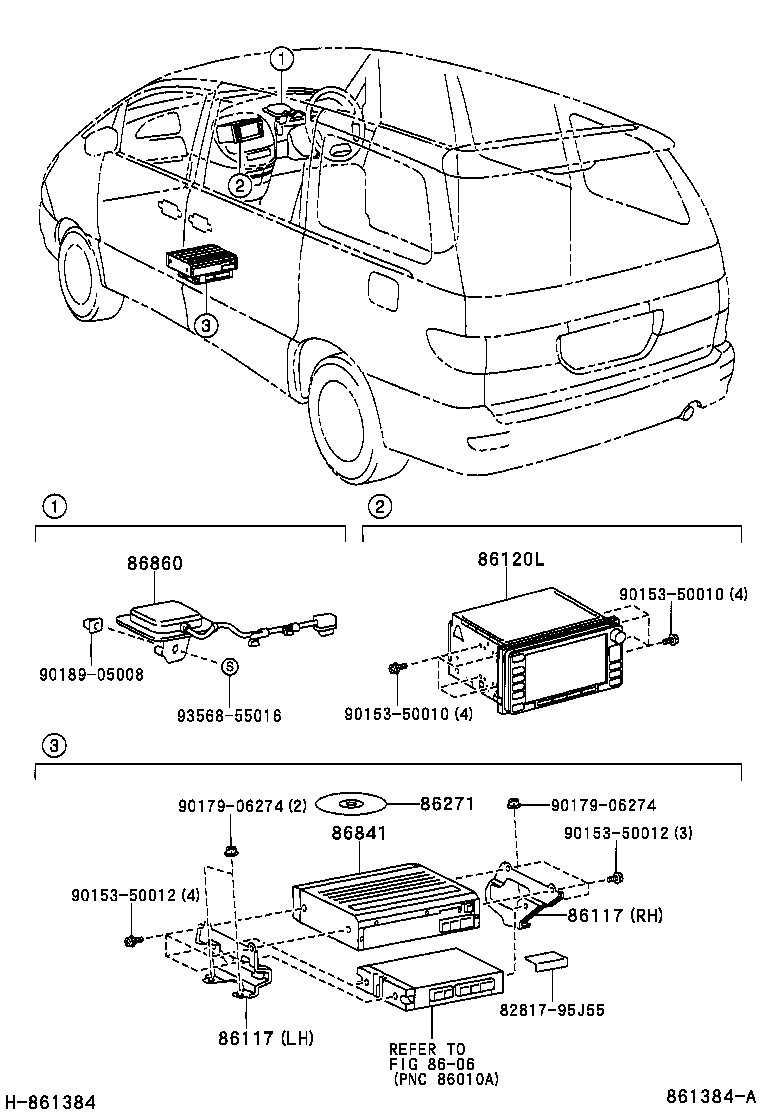

Click highlighted areas on diagram

Part #	Description	Period	Qty
86117 - BRACKET, MULTI-DISPLAY CONTROLLER, A
86117-28040	ACR30,40,MCR30,40..08S;ACR30,40,MCR30,40..07S..G 右側	12/1999 - 05/2001	1
86117-28100	ACR30,40,MCR30,40 右側	05/2001 - 04/2003	1
86117-28110	ACR30,40,MCR30,40 左側	05/2001 - 04/2003	1
86117-28050	ACR30,40,MCR30,40..08S;ACR30,40,MCR30,40..07S..G 左側	12/1999 - 05/2001	1
86117 - BRACKET, MULTI-DISPLAY CONTROLLER, A
86117-28040	ACR30,40,MCR30,40..08S;ACR30,40,MCR30,40..07S..G 右側	12/1999 - 05/2001	1
86117-28100	ACR30,40,MCR30,40 右側	05/2001 - 04/2003	1
86117-28110	ACR30,40,MCR30,40 左側	05/2001 - 04/2003	1
86117-28050	ACR30,40,MCR30,40..08S;ACR30,40,MCR30,40..07S..G 左側	12/1999 - 05/2001	1
86120L - RECEIVER ASSY, NAVIGATION
86120-28450	ACR30,40,MCR30,40 FUJITSU TEN,ID=16034	04/2001 - 02/2003	1
86120-28451	ACR30,40,MCR30,40 FUJITSU TEN,ID=16050	02/2003 - 04/2003	1
86120-28390	ACR30,40,MCR30,40 FUJITSU TEN,ID=16023	12/1999 - 04/2001	1
86271 - DISC, DISC PLAYER
86271-33020	ACR30,40,MCR30,40	06/2000 - 04/2001	1
86271-30470	ACR30,40,MCR30,40	12/1999 - 06/2000	1
86271-44020	ACR30,40,MCR30,40	04/2001 - 04/2003	1
86841 - COMPUTER, NAVIGATION
86841-20010	ACR30,40,MCR30,40	12/1999 - 06/2000	1
86841-44010	ACR30,40,MCR30,40	04/2001 - 04/2003	1
86841-33040	ACR30,40,MCR30,40	06/2000 - 04/2001	1
86860 - ANTENNA ASSY, NAVIGATION
86860-28050	ACR30,40,MCR30,40..08S;ACR30,40,MCR30,40..07S..G	12/1999 - 05/2001	1
86860-28080	ACR30,40,MCR30,40	05/2001 - 04/2003	1
Common parts
82817-95J55
90153-50010
90153-50012
90179-06274
90189-05008
93568-55016
