ACR40W-MRSDK (2000)
Toyota Estima T/L
(9912-0304)

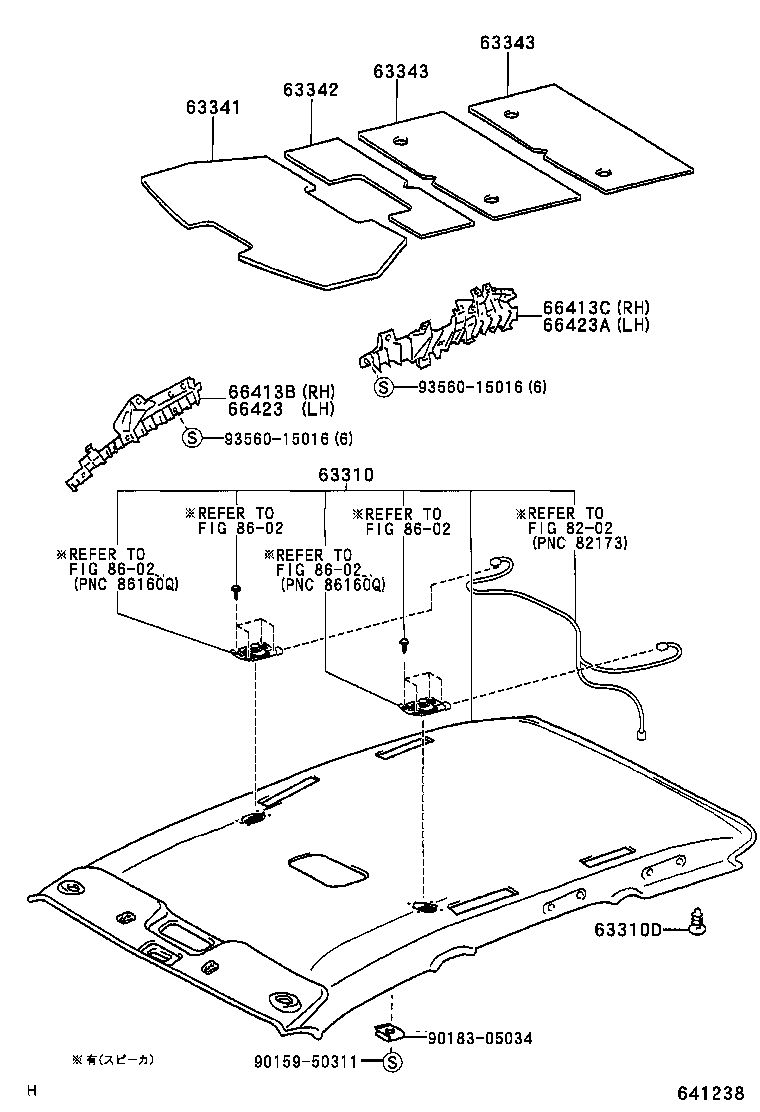

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-28710B1 |
ACR30,40,MCR30,40..G,J,X LT. BL. GRAY,TRIM11 |
1 | ||
| 63310-28720B0 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 63310-28710B0 |
ACR30,40,MCR30,40..G,J,X MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 63310-28750B1 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ﾘﾔ ﾃﾚﾋﾞ),LT. BL. GRAY,TRIM11 |
1 | ||
| 63310-28750B0 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ﾘﾔ ﾃﾚﾋﾞ),MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 63310-28770B0 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ & ﾘﾔ ﾃﾚﾋﾞ),MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 63310-28720B1 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),LT. BL. GRAY,TRIM11 |
1 | ||
| 63310-28770B1 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ & ﾘﾔ ﾃﾚﾋﾞ),LT. BL. GRAY,TRIM11 |
1 | ||
| 63310-2J010A0 |
ACR40..G,X;ACR30,MCR30,40..G,J,X IVORY,TRIM0# |
1 | ||
| 63310-2J010B0 |
ACR30,40,MCR30,40..AERAS,AERSS,J LT. GRAY,TRIM1# |
1 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-05164B3 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),LT. BLUISH GRAY,TRIM11 |
3 | ||
| 90467-06177B3 |
ACR30,40,MCR30,40..G,J,X LT. BLUISH GRAY,TRIM11 |
7 | ||
| 90467-06177B4 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),MD.CHARCOAL,TRIM12 |
3 | ||
| 90467-06177B4 |
ACR30,40,MCR30,40..G,J,X MD.CHARCOAL,TRIM12 |
7 | ||
| 90467-06177B3 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),LT. BLUISH GRAY,TRIM11 |
3 | ||
| 90467-05164B3 |
ACR30,40,MCR30,40..G,J,X LT. BLUISH GRAY,TRIM11 |
7 | ||
| 90467-05164B4 |
ACR30,40,MCR30,40..G,J,X MD.CHARCOAL,TRIM12 |
7 | ||
| 90467-05164B4 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),MD.CHARCOAL,TRIM12 |
3 | ||
| 90467-05164A0 |
ACR40..G,X;ACR30,MCR30,40..G,J,X IVORY,TRIM0# |
7 | ||
| 90467-05164B0 |
ACR30,40,MCR30,40..AERAS,AERSS,J LT.GRAY,TRIM1# |
7 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-28070 |
ACR30,40,MCR30,40 |
1 | ||
| 63341-28070 |
ACR30,40,MCR30,40 |
1 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-28040 |
ACR30,40,MCR30,40 |
1 | ||
| 63342-28040 |
ACR30,40,MCR30,40 |
1 | ||
| 63343 - PAD, ROOF SILENCER, NO.3 | ||||
| 63343-28030 |
ACR30,40,MCR30,40 |
2 | ||
| 63343-28030 |
ACR30,40,MCR30,40 |
2 | ||
| 63343 - PAD, ROOF SILENCER, NO.3 | ||||
| 63343-28030 |
ACR30,40,MCR30,40 |
2 | ||
| 63343-28030 |
ACR30,40,MCR30,40 |
2 | ||
| 66413B - SPACER, SIDE RAIL, FRONT RH | ||||
| 66413-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 66413-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 66413C - SPACER, SIDE RAIL, FRONT RH | ||||
| 66413-28030 |
ACR30,40,MCR30,40 |
1 | ||
| 66413-28030 |
ACR30,40,MCR30,40 |
1 | ||
| 66423 - SPACER, SIDE RAIL, FRONT LH | ||||
| 66423-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 66423-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 66423A - SPACER, SIDE RAIL, FRONT LH | ||||
| 66423-28030 |
ACR30,40,MCR30,40 |
1 | ||
| 66423-28030 |
ACR30,40,MCR30,40 |
1 | ||
| Common parts | ||||
| 90159-50311 | ||||
| 90183-05034 | ||||
| 93560-15016 | ||||

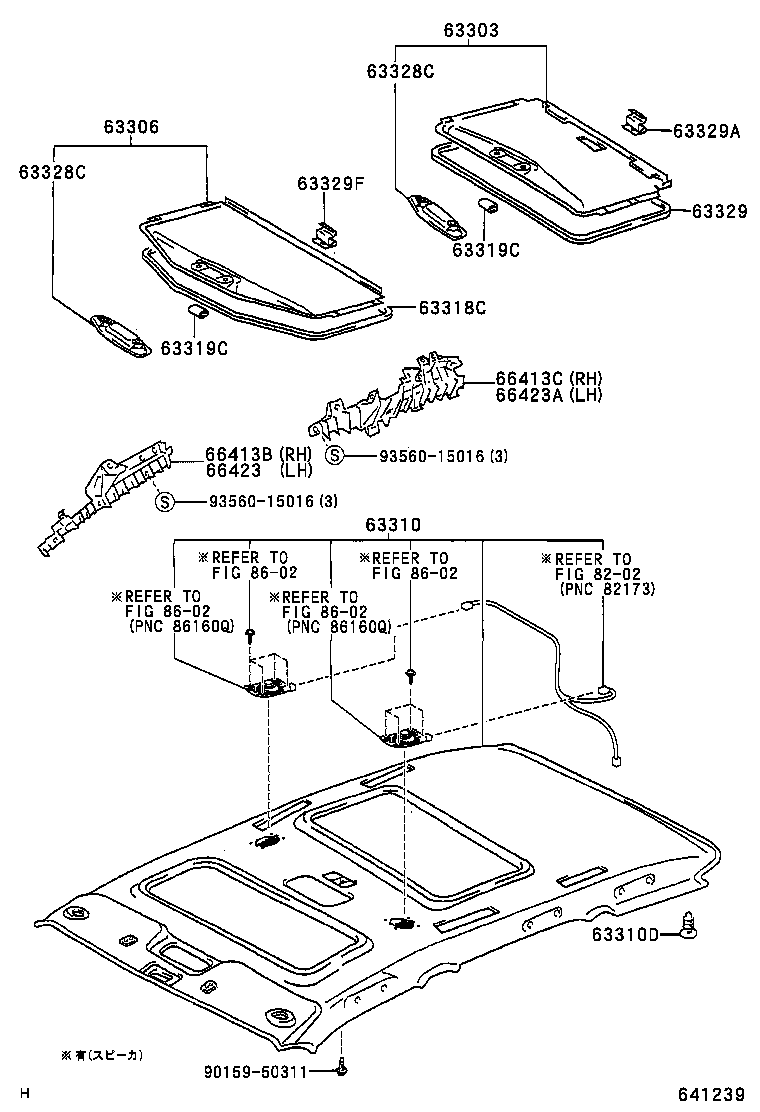

(9912-0304)
ｱﾘ(ﾂｲﾝ ﾑｰﾝ ﾙｰﾌ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63303 - TRIM SUB-ASSY, SUNSHADE, NO.2 | ||||
| 63303-28060B1 |
ACR30,40,MCR30,40..G,J,X LT. BL. GRAY,TRIM11 |
1 | ||
| 63303-28060B0 |
ACR30,40,MCR30,40..G,J,X MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 63306 - TRIM SUB-ASSY, SUNSHADE | ||||
| 63306-28070B0 |
ACR30,40,MCR30,40..G,J,X MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 63306-28070B1 |
ACR30,40,MCR30,40..G,J,X LT. BL. GRAY,TRIM11 |
1 | ||
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-28710B1 |
ACR30,40,MCR30,40..G,J,X LT. BL. GRAY,TRIM11 |
1 | ||
| 63310-28720B0 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 63310-28710B0 |
ACR30,40,MCR30,40..G,J,X MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 63310-28750B1 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ﾘﾔ ﾃﾚﾋﾞ),LT. BL. GRAY,TRIM11 |
1 | ||
| 63310-28750B0 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ﾘﾔ ﾃﾚﾋﾞ),MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 63310-28770B0 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ & ﾘﾔ ﾃﾚﾋﾞ),MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 63310-28720B1 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),LT. BL. GRAY,TRIM11 |
1 | ||
| 63310-28770B1 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ & ﾘﾔ ﾃﾚﾋﾞ),LT. BL. GRAY,TRIM11 |
1 | ||
| 63310-2J010A0 |
ACR40..G,X;ACR30,MCR30,40..G,J,X IVORY,TRIM0# |
1 | ||
| 63310-2J010B0 |
ACR30,40,MCR30,40..AERAS,AERSS,J LT. GRAY,TRIM1# |
1 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-05164B3 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),LT. BLUISH GRAY,TRIM11 |
3 | ||
| 90467-06177B3 |
ACR30,40,MCR30,40..G,J,X LT. BLUISH GRAY,TRIM11 |
7 | ||
| 90467-06177B4 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),MD.CHARCOAL,TRIM12 |
3 | ||
| 90467-06177B4 |
ACR30,40,MCR30,40..G,J,X MD.CHARCOAL,TRIM12 |
7 | ||
| 90467-06177B3 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),LT. BLUISH GRAY,TRIM11 |
3 | ||
| 90467-05164B3 |
ACR30,40,MCR30,40..G,J,X LT. BLUISH GRAY,TRIM11 |
7 | ||
| 90467-05164B4 |
ACR30,40,MCR30,40..G,J,X MD.CHARCOAL,TRIM12 |
7 | ||
| 90467-05164B4 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),MD.CHARCOAL,TRIM12 |
3 | ||
| 90467-05164A0 |
ACR40..G,X;ACR30,MCR30,40..G,J,X IVORY,TRIM0# |
7 | ||
| 90467-05164B0 |
ACR30,40,MCR30,40..AERAS,AERSS,J LT.GRAY,TRIM1# |
7 | ||
| 63318C - MOULDING, SUN ROOF OPENING TRIM | ||||
| 63318-28030B1 |
ACR30,40,MCR30,40..G,J,X 長さ=2159,MD.CHARCOAL,TRIM12 |
1 | ||
| 63318-28030B0 |
ACR30,40,MCR30,40..G,J,X 長さ=2159,LT. BLUISH GRAY,TRIM11 |
1 | ||
| 63319C - JOINT, SUN ROOF OPENING TRIM | ||||
| 63319-87004B0 |
ACR30,40,MCR30,40..G,J,X LT.BLUISH GRAY,TRIM11 |
2 | ||
| 63319-87004B3 |
ACR30,40,MCR30,40..G,J,X MD.CHARCOAL,TRIM12 |
2 | ||
| 63319C - JOINT, SUN ROOF OPENING TRIM | ||||
| 63319-87004B0 |
ACR30,40,MCR30,40..G,J,X LT.BLUISH GRAY,TRIM11 |
2 | ||
| 63319-87004B3 |
ACR30,40,MCR30,40..G,J,X MD.CHARCOAL,TRIM12 |
2 | ||
| 63328C - KNOB, SUNSHADE TRIM | ||||
| 63328-12030B5 |
ACR30,40,MCR30,40..G,J,X LT.BLUISH GRAY,TRIM11 |
2 | ||
| 63328-12030B4 |
ACR30,40,MCR30,40..G,J,X MD.CHARCOAL,TRIM12 |
2 | ||
| 63328C - KNOB, SUNSHADE TRIM | ||||
| 63328-12030B5 |
ACR30,40,MCR30,40..G,J,X LT.BLUISH GRAY,TRIM11 |
2 | ||
| 63328-12030B4 |
ACR30,40,MCR30,40..G,J,X MD.CHARCOAL,TRIM12 |
2 | ||
| 63329 - MOULDING, SUN ROOF OPENING TRIM, NO.2 | ||||
| 63329-28060B0 |
ACR30,40,MCR30,40..G,J,X LT. BLUISH GRAY,TRIM11 |
1 | ||
| 63329-28060B1 |
ACR30,40,MCR30,40..G,J,X MD.CHARCOAL,TRIM12 |
1 | ||
| 63329A - STOPPER, SUNSHADE LOCK | ||||
| 63329-28090 |
ACR30,40,MCR30,40 |
2 | ||
| 63329-28070 |
ACR30,40,MCR30,40 |
2 | ||
| 63329A - STOPPER, SUNSHADE LOCK | ||||
| 63329-28090 |
ACR30,40,MCR30,40 |
2 | ||
| 63329-28070 |
ACR30,40,MCR30,40 |
2 | ||
| 63329F - STOPPER, SUNSHADE LOCK | ||||
| 63329-28070 |
ACR30,40,MCR30,40 |
1 | ||
| 66413B - SPACER, SIDE RAIL, FRONT RH | ||||
| 66413-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 66413-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 66413C - SPACER, SIDE RAIL, FRONT RH | ||||
| 66413-28030 |
ACR30,40,MCR30,40 |
1 | ||
| 66413-28030 |
ACR30,40,MCR30,40 |
1 | ||
| 66423 - SPACER, SIDE RAIL, FRONT LH | ||||
| 66423-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 66423-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 66423A - SPACER, SIDE RAIL, FRONT LH | ||||
| 66423-28030 |
ACR30,40,MCR30,40 |
1 | ||
| 66423-28030 |
ACR30,40,MCR30,40 |
1 | ||
| Common parts | ||||
| 90159-50311 | ||||
| 93560-15016 | ||||

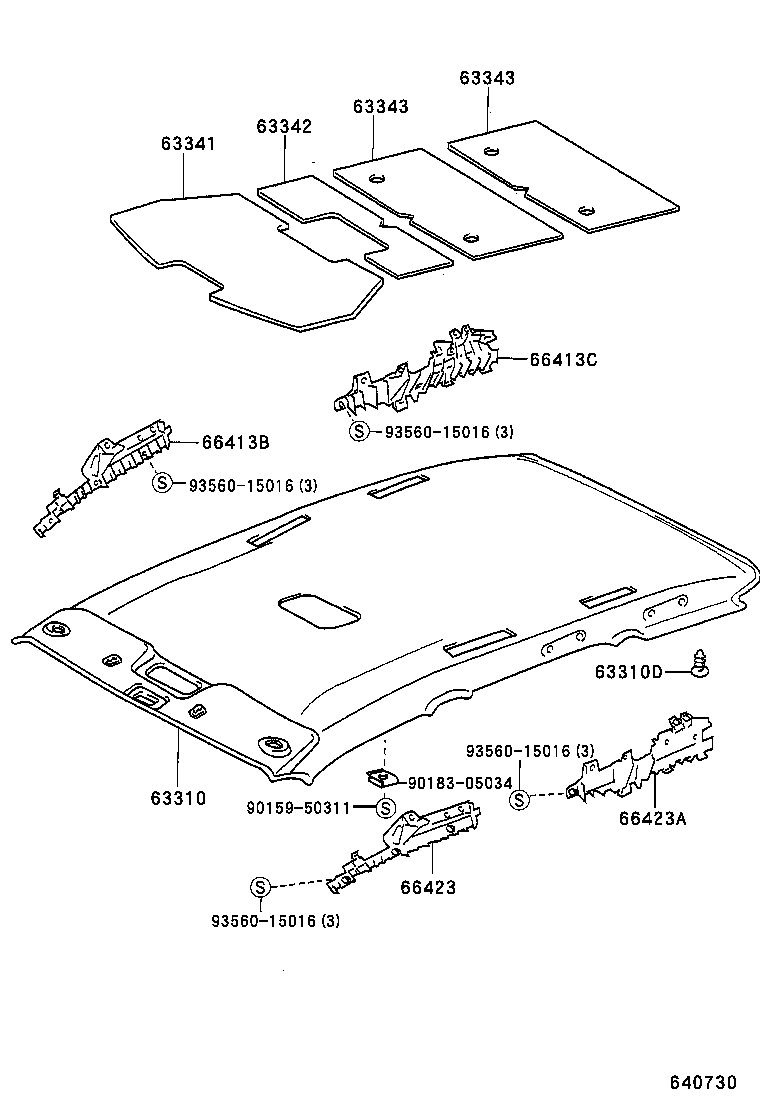

(0304- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-28710B1 |
ACR30,40,MCR30,40..G,J,X LT. BL. GRAY,TRIM11 |
1 | ||
| 63310-28720B0 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 63310-28710B0 |
ACR30,40,MCR30,40..G,J,X MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 63310-28750B1 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ﾘﾔ ﾃﾚﾋﾞ),LT. BL. GRAY,TRIM11 |
1 | ||
| 63310-28750B0 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ﾘﾔ ﾃﾚﾋﾞ),MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 63310-28770B0 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ & ﾘﾔ ﾃﾚﾋﾞ),MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 63310-28720B1 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),LT. BL. GRAY,TRIM11 |
1 | ||
| 63310-28770B1 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ & ﾘﾔ ﾃﾚﾋﾞ),LT. BL. GRAY,TRIM11 |
1 | ||
| 63310-2J010A0 |
ACR40..G,X;ACR30,MCR30,40..G,J,X IVORY,TRIM0# |
1 | ||
| 63310-2J010B0 |
ACR30,40,MCR30,40..AERAS,AERSS,J LT. GRAY,TRIM1# |
1 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-05164B3 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),LT. BLUISH GRAY,TRIM11 |
3 | ||
| 90467-06177B3 |
ACR30,40,MCR30,40..G,J,X LT. BLUISH GRAY,TRIM11 |
7 | ||
| 90467-06177B4 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),MD.CHARCOAL,TRIM12 |
3 | ||
| 90467-06177B4 |
ACR30,40,MCR30,40..G,J,X MD.CHARCOAL,TRIM12 |
7 | ||
| 90467-06177B3 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),LT. BLUISH GRAY,TRIM11 |
3 | ||
| 90467-05164B3 |
ACR30,40,MCR30,40..G,J,X LT. BLUISH GRAY,TRIM11 |
7 | ||
| 90467-05164B4 |
ACR30,40,MCR30,40..G,J,X MD.CHARCOAL,TRIM12 |
7 | ||
| 90467-05164B4 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),MD.CHARCOAL,TRIM12 |
3 | ||
| 90467-05164A0 |
ACR40..G,X;ACR30,MCR30,40..G,J,X IVORY,TRIM0# |
7 | ||
| 90467-05164B0 |
ACR30,40,MCR30,40..AERAS,AERSS,J LT.GRAY,TRIM1# |
7 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-28070 |
ACR30,40,MCR30,40 |
1 | ||
| 63341-28070 |
ACR30,40,MCR30,40 |
1 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-28040 |
ACR30,40,MCR30,40 |
1 | ||
| 63342-28040 |
ACR30,40,MCR30,40 |
1 | ||
| 63343 - PAD, ROOF SILENCER, NO.3 | ||||
| 63343-28030 |
ACR30,40,MCR30,40 |
2 | ||
| 63343-28030 |
ACR30,40,MCR30,40 |
2 | ||
| 63343 - PAD, ROOF SILENCER, NO.3 | ||||
| 63343-28030 |
ACR30,40,MCR30,40 |
2 | ||
| 63343-28030 |
ACR30,40,MCR30,40 |
2 | ||
| 66413B - SPACER, SIDE RAIL, FRONT RH | ||||
| 66413-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 66413-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 66413C - SPACER, SIDE RAIL, FRONT RH | ||||
| 66413-28030 |
ACR30,40,MCR30,40 |
1 | ||
| 66413-28030 |
ACR30,40,MCR30,40 |
1 | ||
| 66423 - SPACER, SIDE RAIL, FRONT LH | ||||
| 66423-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 66423-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 66423A - SPACER, SIDE RAIL, FRONT LH | ||||
| 66423-28030 |
ACR30,40,MCR30,40 |
1 | ||
| 66423-28030 |
ACR30,40,MCR30,40 |
1 | ||
| Common parts | ||||
| 90159-50311 | ||||
| 90183-05034 | ||||
| 93560-15016 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8602 | ||||

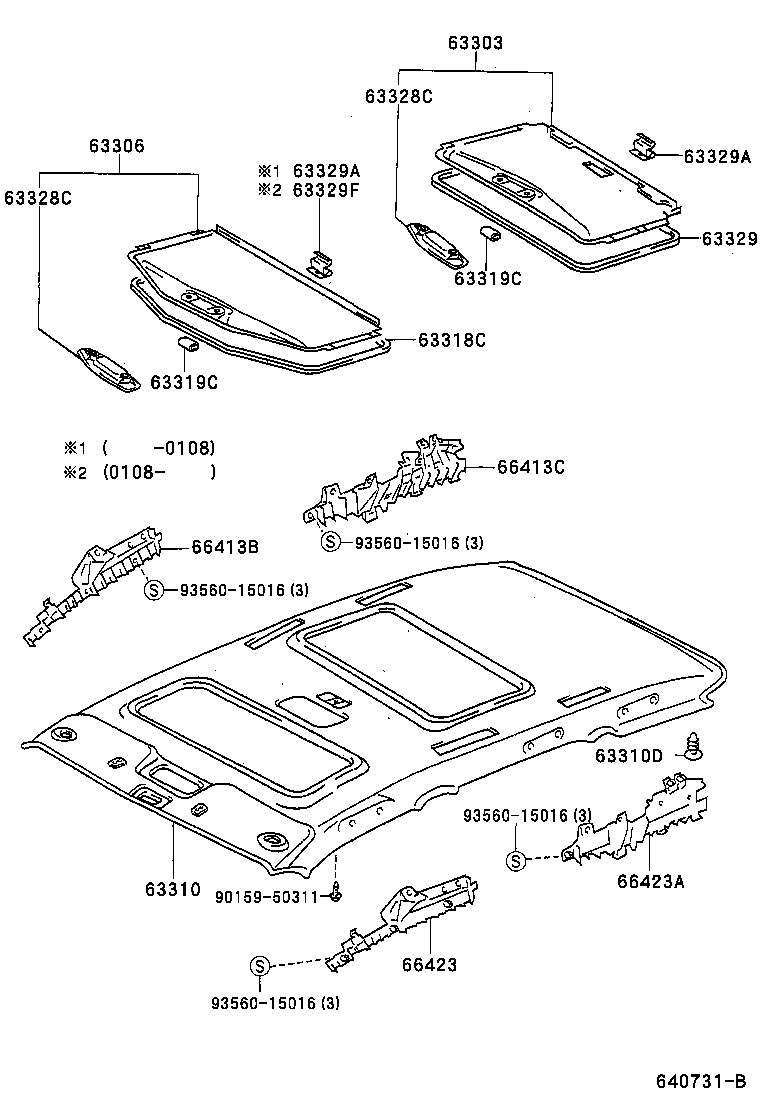

(0304- )
ｱﾘ(ﾂｲﾝ ﾑ-ﾝ ﾙ-ﾌ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63303 - TRIM SUB-ASSY, SUNSHADE, NO.2 | ||||
| 63303-28060B1 |
ACR30,40,MCR30,40..G,J,X LT. BL. GRAY,TRIM11 |
1 | ||
| 63303-28060B0 |
ACR30,40,MCR30,40..G,J,X MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 63306 - TRIM SUB-ASSY, SUNSHADE | ||||
| 63306-28070B0 |
ACR30,40,MCR30,40..G,J,X MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 63306-28070B1 |
ACR30,40,MCR30,40..G,J,X LT. BL. GRAY,TRIM11 |
1 | ||
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-28710B1 |
ACR30,40,MCR30,40..G,J,X LT. BL. GRAY,TRIM11 |
1 | ||
| 63310-28720B0 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 63310-28710B0 |
ACR30,40,MCR30,40..G,J,X MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 63310-28750B1 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ﾘﾔ ﾃﾚﾋﾞ),LT. BL. GRAY,TRIM11 |
1 | ||
| 63310-28750B0 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ﾘﾔ ﾃﾚﾋﾞ),MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 63310-28770B0 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ & ﾘﾔ ﾃﾚﾋﾞ),MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 63310-28720B1 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),LT. BL. GRAY,TRIM11 |
1 | ||
| 63310-28770B1 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ & ﾘﾔ ﾃﾚﾋﾞ),LT. BL. GRAY,TRIM11 |
1 | ||
| 63310-2J010A0 |
ACR40..G,X;ACR30,MCR30,40..G,J,X IVORY,TRIM0# |
1 | ||
| 63310-2J010B0 |
ACR30,40,MCR30,40..AERAS,AERSS,J LT. GRAY,TRIM1# |
1 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-05164B3 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),LT. BLUISH GRAY,TRIM11 |
3 | ||
| 90467-06177B3 |
ACR30,40,MCR30,40..G,J,X LT. BLUISH GRAY,TRIM11 |
7 | ||
| 90467-06177B4 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),MD.CHARCOAL,TRIM12 |
3 | ||
| 90467-06177B4 |
ACR30,40,MCR30,40..G,J,X MD.CHARCOAL,TRIM12 |
7 | ||
| 90467-06177B3 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),LT. BLUISH GRAY,TRIM11 |
3 | ||
| 90467-05164B3 |
ACR30,40,MCR30,40..G,J,X LT. BLUISH GRAY,TRIM11 |
7 | ||
| 90467-05164B4 |
ACR30,40,MCR30,40..G,J,X MD.CHARCOAL,TRIM12 |
7 | ||
| 90467-05164B4 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),MD.CHARCOAL,TRIM12 |
3 | ||
| 90467-05164A0 |
ACR40..G,X;ACR30,MCR30,40..G,J,X IVORY,TRIM0# |
7 | ||
| 90467-05164B0 |
ACR30,40,MCR30,40..AERAS,AERSS,J LT.GRAY,TRIM1# |
7 | ||
| 63318C - MOULDING, SUN ROOF OPENING TRIM | ||||
| 63318-28030B1 |
ACR30,40,MCR30,40..G,J,X 長さ=2159,MD.CHARCOAL,TRIM12 |
1 | ||
| 63318-28030B0 |
ACR30,40,MCR30,40..G,J,X 長さ=2159,LT. BLUISH GRAY,TRIM11 |
1 | ||
| 63319C - JOINT, SUN ROOF OPENING TRIM | ||||
| 63319-87004B0 |
ACR30,40,MCR30,40..G,J,X LT.BLUISH GRAY,TRIM11 |
2 | ||
| 63319-87004B3 |
ACR30,40,MCR30,40..G,J,X MD.CHARCOAL,TRIM12 |
2 | ||
| 63319C - JOINT, SUN ROOF OPENING TRIM | ||||
| 63319-87004B0 |
ACR30,40,MCR30,40..G,J,X LT.BLUISH GRAY,TRIM11 |
2 | ||
| 63319-87004B3 |
ACR30,40,MCR30,40..G,J,X MD.CHARCOAL,TRIM12 |
2 | ||
| 63328C - KNOB, SUNSHADE TRIM | ||||
| 63328-12030B5 |
ACR30,40,MCR30,40..G,J,X LT.BLUISH GRAY,TRIM11 |
2 | ||
| 63328-12030B4 |
ACR30,40,MCR30,40..G,J,X MD.CHARCOAL,TRIM12 |
2 | ||
| 63328C - KNOB, SUNSHADE TRIM | ||||
| 63328-12030B5 |
ACR30,40,MCR30,40..G,J,X LT.BLUISH GRAY,TRIM11 |
2 | ||
| 63328-12030B4 |
ACR30,40,MCR30,40..G,J,X MD.CHARCOAL,TRIM12 |
2 | ||
| 63329 - MOULDING, SUN ROOF OPENING TRIM, NO.2 | ||||
| 63329-28060B0 |
ACR30,40,MCR30,40..G,J,X LT. BLUISH GRAY,TRIM11 |
1 | ||
| 63329-28060B1 |
ACR30,40,MCR30,40..G,J,X MD.CHARCOAL,TRIM12 |
1 | ||
| 63329A - STOPPER, SUNSHADE LOCK | ||||
| 63329-28090 |
ACR30,40,MCR30,40 |
2 | ||
| 63329-28070 |
ACR30,40,MCR30,40 |
2 | ||
| 63329F - STOPPER, SUNSHADE LOCK | ||||
| 63329-28070 |
ACR30,40,MCR30,40 |
1 | ||
| 66413B - SPACER, SIDE RAIL, FRONT RH | ||||
| 66413-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 66413-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 66413C - SPACER, SIDE RAIL, FRONT RH | ||||
| 66413-28030 |
ACR30,40,MCR30,40 |
1 | ||
| 66413-28030 |
ACR30,40,MCR30,40 |
1 | ||
| 66423 - SPACER, SIDE RAIL, FRONT LH | ||||
| 66423-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 66423-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 66423A - SPACER, SIDE RAIL, FRONT LH | ||||
| 66423-28030 |
ACR30,40,MCR30,40 |
1 | ||
| 66423-28030 |
ACR30,40,MCR30,40 |
1 | ||
| Common parts | ||||
| 90159-50311 | ||||
| 93560-15016 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8602 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
