ACR40W-MFSZK (2003)

Toyota Estima T/L

Production Apr 2003 - Jan 2006
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0304- )

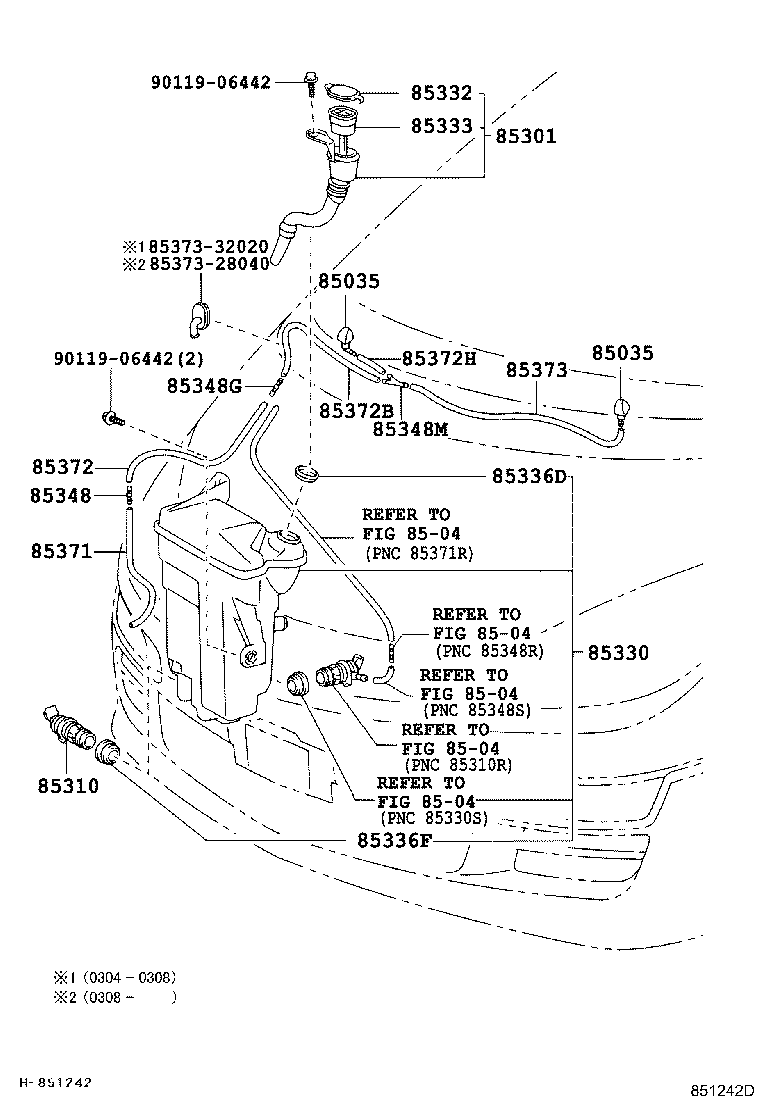

Click highlighted areas on diagram

diagram 85035 85035 8504 8504 8504 8504 8504 85301 85310 85330 85332 85333 85336D 85336F 85348 85348G 85348M 85371 85372 85372B 85372H 85373 8537328040 8537332020 9011906442 9011906442
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85381-28130

ACR30,40,MCR30,40

左側

 1
85381-28150

ACR30,40,MCR30,40

右側

 1
85381-28150

ACR30,40,MCR30,40

右側

 1
85381-28130

ACR30,40,MCR30,40

左側

 1
85035 - NOZZLE SUB-ASSY, WASHER
85381-28130

ACR30,40,MCR30,40

左側

 1
85381-28150

ACR30,40,MCR30,40

右側

 1
85381-28150

ACR30,40,MCR30,40

右側

 1
85381-28130

ACR30,40,MCR30,40

左側

 1
85301 - INLET SUB-ASSY, WASHER
85301-28060

ACR30,40,MCR30,40

 1
85301-28010

ACR30,40,MCR30,40

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-14480

ACR30,40,MCR30,40

ﾏｰｸ=85330−14480

 1
85330-21010

ACR30,40,MCR30,40

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-28200

ACR30,40,MCR30,40

 1
85315-28110

ACR30,40,MCR30,40

 1
85332 - CAP, WINDSHIELD WASHER JAR
85316-26060

ACR30,40,MCR30,40

 1
85316-28060

ACR30,40,MCR30,40

 1
85333 - FILTER, WINDSHIELD WASHER JAR
85312-44020

ACR30,40,MCR30,40

 1
85336D - PACKING, WINDSHIELD WASHER JAR
85336-30160

ACR30,40,MCR30,40

 1
85336-30160

ACR30,40,MCR30,40

 1
85336F - PACKING, WINDSHIELD WASHER JAR
85336-60300

ACR30,40,MCR30,40

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-89122

ACR30,40,MCR30,40

 1
85349-89122

ACR30,40,MCR30,40

 1
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85349-89122

ACR30,40,MCR30,40

 1
85349-89122

ACR30,40,MCR30,40

 1
85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3
85348-14390

ACR30,40,MCR30,40

 1
85348-14390

ACR30,40,MCR30,40

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33080

ACR30,40,MCR30,40

*H,L=30

 1
90099-33082

ACR30,40,MCR30,40

*H,L=310

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33080

ACR30,40,MCR30,40

*H,L=440

 1
90099-33080

ACR30,40,MCR30,40

*H,L=460

 1
90099-33080

ACR30,40,MCR30,40

*H,L=530

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90446-07001

ACR30,40,MCR30,40

*H,L=540

 1
90446-07001

ACR30,40,MCR30,40

*H,L=520

 1
85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
90099-33080

ACR30,40,MCR30,40

*H,L=160

 1
90099-33080

ACR30,40,MCR30,40

*H,L=160

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

MCR30,40

*H,L=730

 1
90099-33080

ACR30,40,MCR30,40

*H,L=660

 1
Common parts
85373-28040
85373-32020
90119-06442
Linked diagrams
8504
