ACR40W-MFSZK (2003)

Toyota Estima T/L

Production Apr 2003 - Jan 2006
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0304- )

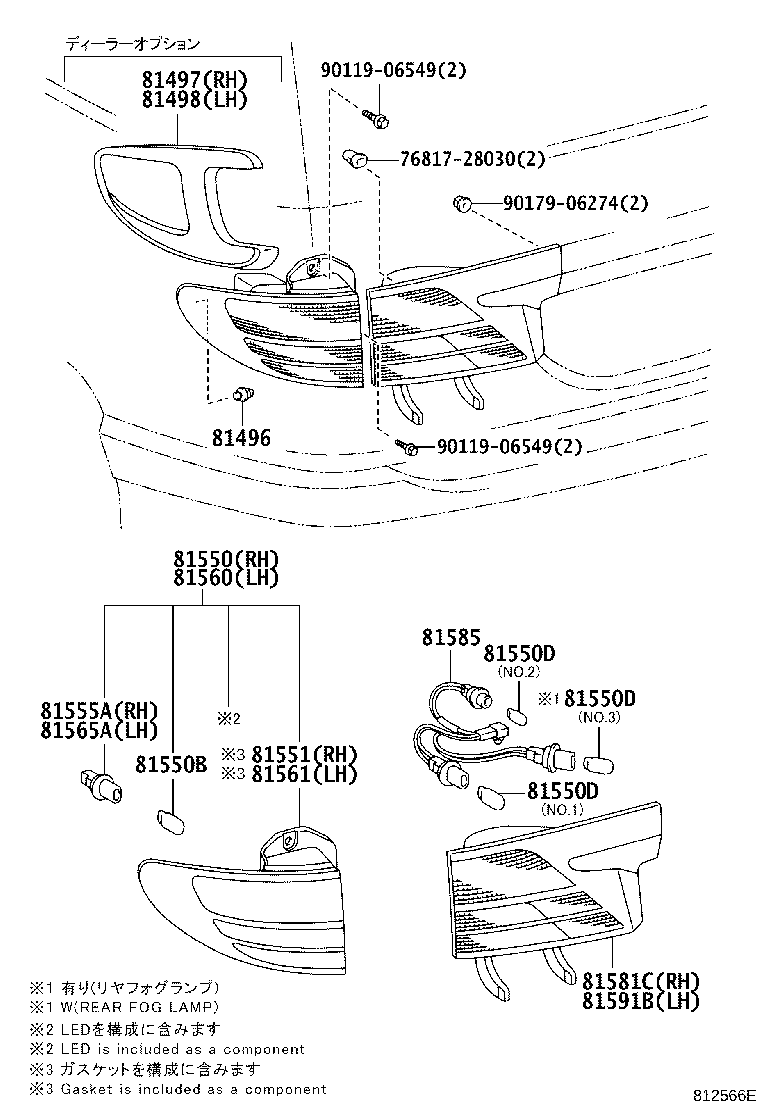

Click highlighted areas on diagram

diagram 7681728030 81496 81497 81498 81550 81550B 81550D 81550D 81550D 81551 81555A 81560 81561 81565A 81581C 81585 81591B 9011906549 9011906549 9017906274
Part # Description Qty Price
81496 - GUIDE, REAR COMBINATION LAMP
81496-28010

ACR30,40,MCR30,40

 2
81496-28010

ACR30,40,MCR30,40

 2
81497 - COVER, REAR COMBINATION LAMP, RH
81497-28050B1

ACR30,40,MCR30,40..AERAS,AERSS

GRAY ME.,1D2,ﾃﾞｨｰﾗｰｵﾌﾟｼｮﾝ

 1
81497-28050C0

ACR30,40,MCR30,40..AERAS,AERSS

BLACK,202,ﾃﾞｨｰﾗｰｵﾌﾟｼｮﾝ

 1
81497-28050D0

ACR30,MCR30,40;ACR40..AERAS,AERSS,G,X

SUPER RED MC.,3J7,ﾃﾞｨｰﾗｰｵﾌﾟｼｮﾝ

 1
81497-28050A0

ACR30,MCR30,40;ACR40..AERAS,AERSS,G,X

WHITE PM.,042,ﾃﾞｨｰﾗｰｵﾌﾟｼｮﾝ

 1
81498 - COVER, REAR COMBINATION LAMP, LH
81498-28050A0

ACR30,MCR30,40;ACR40..AERAS,AERSS,G,X

WHITE PM.,042,ﾃﾞｨｰﾗｰｵﾌﾟｼｮﾝ

 1
81498-28050B1

ACR30,40,MCR30,40..AERAS,AERSS

GRAY ME.,1D2,ﾃﾞｨｰﾗｰｵﾌﾟｼｮﾝ

 1
81498-28050C0

ACR30,40,MCR30,40..AERAS,AERSS

BLACK,202,ﾃﾞｨｰﾗｰｵﾌﾟｼｮﾝ

 1
81498-28050D0

ACR30,MCR30,40;ACR40..AERAS,AERSS,G,X

SUPER RED MC.,3J7,ﾃﾞｨｰﾗｰｵﾌﾟｼｮﾝ

 1
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-28370

ACR30,40,MCR30,40..AERAS,AERSS

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-15011

ACR30,40,MCR30,40

12V 21W,ｱﾝﾊﾞｰ

 2
90981-11043

ACR30,40,MCR30,40

12V 21/5W,NO.2

 2
90981-11042

ACR30,40,MCR30,40

12V 21W,ESTIMA-L,NO.1

 2
90981-15013

ACR30,40,MCR30,40

12V 21W,ESTIMA-T,NO.1

 2
81550D - BULB(FOR REAR COMBINATION LAMP)
90981-11043

ACR30,40,MCR30,40

12V 21/5W,NO.2

 2
90981-13043

ACR30,40,MCR30,40

12V 21W,ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),NO.3

 2
90981-11059

ACR30,40,MCR30,40

12V 16W,NO.1

 2
90981-11048

ACR30,40,MCR30,40

12V 21/5W,NO.2

 2
90981-11042

ACR30,40,MCR30,40

12V 21W,ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),NO.2

 2
90981-11055

ACR30,40,MCR30,40

12V 16W,NO.1

 2
81550D - BULB(FOR REAR COMBINATION LAMP)
90981-11043

ACR30,40,MCR30,40

12V 21/5W,NO.2

 2
90981-13043

ACR30,40,MCR30,40

12V 21W,ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),NO.3

 2
90981-11059

ACR30,40,MCR30,40

12V 16W,NO.1

 2
90981-11048

ACR30,40,MCR30,40

12V 21/5W,NO.2

 2
90981-11042

ACR30,40,MCR30,40

12V 21W,ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),NO.2

 2
90981-11055

ACR30,40,MCR30,40

12V 16W,NO.1

 2
81550D - BULB(FOR REAR COMBINATION LAMP)
90981-11043

ACR30,40,MCR30,40

12V 21/5W,NO.2

 2
90981-13043

ACR30,40,MCR30,40

12V 21W,ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),NO.3

 2
90981-11059

ACR30,40,MCR30,40

12V 16W,NO.1

 2
90981-11048

ACR30,40,MCR30,40

12V 21/5W,NO.2

 2
90981-11042

ACR30,40,MCR30,40

12V 21W,ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),NO.2

 2
90981-11055

ACR30,40,MCR30,40

12V 16W,NO.1

 2
81551 - LENS, REAR COMBINATION LAMP, RH
81551-28370

ACR30,40,MCR30,40..AERAS,AERSS

 1
81555A - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-28260

ACR30,40,MCR30,40

ESTIMA-T

 1
81555-28260

ACR30,40,MCR30,40

 1
81555-21190

ACR30,40,MCR30,40

ESTIMA-L

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-28370

ACR30,40,MCR30,40..AERAS,AERSS

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-28370

ACR30,40,MCR30,40..AERAS,AERSS

 1
81565A - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-28260

ACR30,40,MCR30,40

 1
81555-21190

ACR30,40,MCR30,40

ESTIMA-L

 1
81555-28260

ACR30,40,MCR30,40

ESTIMA-T

 1
81581C - LENS AND BODY, REAR LAMP, RH
81581-28160

ACR30,40,MCR30,40..AERAS,AERSS

 1
81581-28190

ACR30,40,MCR30,40..AERAS,AERSS

ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ)

 1
81585 - SOCKET & WIRE, REAR LAMP
81585-28170

ACR30,40,MCR30,40

ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),右側

 1
81595-28070

ACR30,40,MCR30,40

ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),左側

 1
81595-28140

ACR30,40,MCR30,40

左側

 1
81585-28050

ACR30,40,MCR30,40

右側

 1
81585-28140

ACR30,40,MCR30,40

右側

 1
81595-28050

ACR30,40,MCR30,40

左側

 1
81595-28170

ACR30,40,MCR30,40

ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),左側

 1
81585-28070

ACR30,40,MCR30,40

ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),右側

 1
81591B - LENS AND BODY, REAR LAMP, LH
81591-28160

ACR30,40,MCR30,40..AERAS,AERSS

 1
81591-28190

ACR30,40,MCR30,40..AERAS,AERSS

ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ)

 1
Common parts
76817-28030
90119-06549
90179-06274
