ACR40W-MFSZK (2003)

Toyota Estima T/L

Production Apr 2003 - Jan 2006
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0304- )

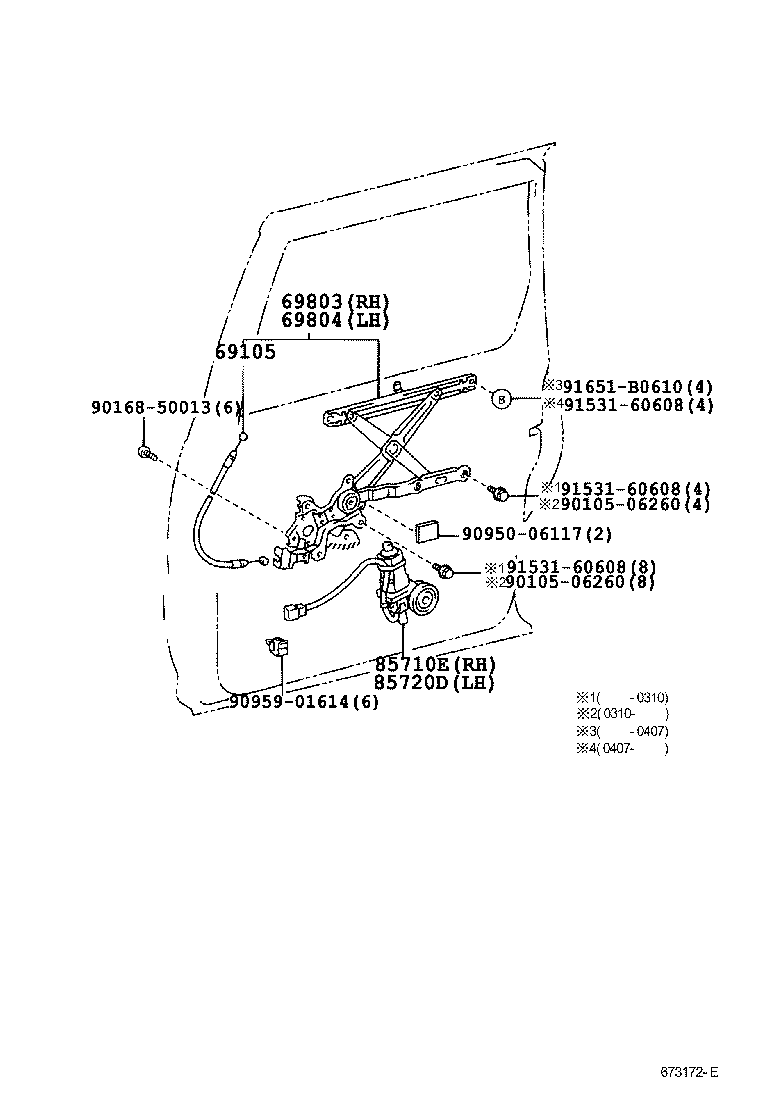

Click highlighted areas on diagram

diagram 69105 69803 69804 85710E 85720D 9010506260 9010506260 9016850013 9095006117 9095901614 9153160608 9153160608 9153160608 91651B0610
Part # Description Qty Price
69105 - CABLE SUB-ASSY, SLIDE DOOR HALF STOP CONTROL
69105-28010

ACR30,40,MCR30,40

 2
69105-28010

ACR30,40,MCR30,40

 2
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69803-28010

ACR30,40,MCR30,40

 1
69803-28010

ACR30,40,MCR30,40

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69804-28050

ACR30,40,MCR30,40

ｱﾘ(ﾃﾞﾝﾄﾞｳ ｽﾗｲﾄﾞﾄﾞｱ)

 1
69804-28060

ACR30,40,MCR30,40

 1
69804-28060

ACR30,40,MCR30,40

 1
85710E - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85710-28050

ACR30,40,MCR30,40

 1
85710-28050

ACR30,40,MCR30,40

 1
85720D - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85720-28070

ACR30,40,MCR30,40

 1
85720-28070

ACR30,40,MCR30,40

 1
Common parts
90105-06260
90168-50013
90950-06117
90959-01614
91531-60608
91651-B0610
