Toyota Estima t/l ACR40 HEATING & AIR CONDITIONING - COOLER UNIT

Manufacturers Home
Toyota
JP
ESTIMA T/L
ACR40W-MFSSK (2001)
8714 - HEATING & AIR CONDITIONING - COOLER UNIT

ACR40W-MFSSK (2001)

Toyota Estima T/L

Production Apr 2001 - Jan 2006

Engine 2AZFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

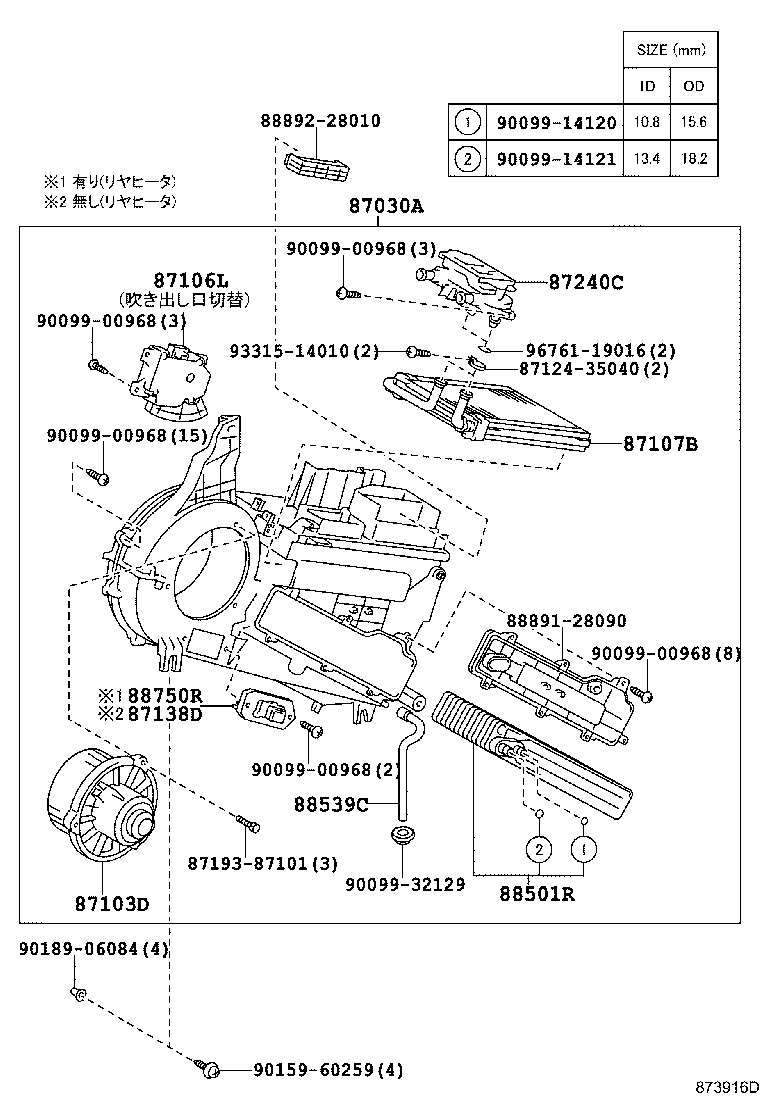

ILLUST NO. 2 OF 2(9912-0304)

Click highlighted areas on diagram

ﾘﾔ

Part #	Description	Period	Qty
87030A - UNIT ASSY, COOLING, REAR
87030-28150	ACR30,40,MCR30,40..AERAS,J,X	04/2001 - 04/2003	1
87030-28130	ACR30,40,MCR30,40..AERAS,J,X	12/1999 - 04/2001	1
87030-28180	ACR30,40,MCR30,40..AERAS,AERSS,J,X	04/2003 - 01/2006	1
87030-28190	ACR30,40,MCR30,40..AERAS,AERSS,J,X ｱﾘ(ﾘﾔﾋ-ﾀ)	04/2003 - 01/2006	1
87030-28160	ACR30,40,MCR30,40 ｱﾘ(ﾘﾔﾋ-ﾀ)	04/2001 - 04/2003	1
87030-28140	ACR30,40,MCR30,40 ｱﾘ(ﾘﾔﾋ-ﾀ)	12/1999 - 04/2001	1
87103D - MOTOR SUB-ASSY, BLOWER W/FAN(FOR REAR)
87103-28060	ACR30,40,MCR30,40	12/1999 - 02/2001	1
87103-58010	ACR30,40,MCR30,40	04/2003 - 01/2006	1
87106L - SERVO SUB-ASSY, DAMPER
87106-28100	ACR30,40,MCR30,40	12/1999 - 04/2003	1
87106-28100	ACR30,40,MCR30,40	04/2003 - 01/2006	1
87107B - UNIT SUB-ASSY, HEATER RADIATOR
87107-28210	ACR30,40,MCR30,40	04/2003 - 01/2006	1
87107-28210	ACR30,40,MCR30,40	12/1999 - 04/2003	1
87138D - RESISTOR, BLOWER (REAR)
87138-28220	ACR30,40,MCR30,40..AERAS,J,X	12/1999 - 04/2003	1
87138-28220	ACR30,40,MCR30,40..AERAS,AERSS,J,X	04/2003 - 12/2999	1
87240C - VALVE ASSY, HEATER WATER
87240-28100	ACR30,40,MCR30,40	04/2003 - 01/2006	1
87240-28100	ACR30,40,MCR30,40	12/1999 - 04/2003	1
88501R - EVAPORATOR SUB-ASSY (REAR)
88501-28330	ACR30,40,MCR30,40	12/1999 - 04/2003	1
88501-28330	ACR30,40,MCR30,40	04/2003 - 01/2006	1
88539C - HOSE, COOLER UNIT DRAIN, NO.2
88539-28230	ACR30,40,MCR30,40	12/1999 - 04/2003	1
88539-28230	ACR30,40,MCR30,40	04/2003 - 01/2006	1
88750R - TRANSISTOR ASSY, BLOWER RESISTOR(REAR)
88750-28050	ACR30,40,MCR30,40	12/1999 - 04/2003	1
88750-28060	ACR30,40,MCR30,40	04/2003 - 01/2006	1
Common parts
87124-35040
87193-87101
88891-28090
88892-28010
90099-00968
90099-14120
90099-14121
90099-32129
90159-60259
90189-06084
93315-14010
96761-19016

ILLUST NO. 1 OF 2(9912-0304)

Click highlighted areas on diagram

ﾌﾛﾝﾄ

Part #	Description	Period	Qty
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-28240	MCR30,40	12/1999 - 04/2003	1
87050-28480	ACR30,40 ｶﾝﾚｲﾁｼﾖｳ	04/2003 - 01/2006	1
87050-28490	MCR30,40	04/2003 - 01/2006	1
87050-28470	ACR30,40	04/2003 - 01/2006	1
87103A - MOTOR SUB-ASSY, COOLING UNIT, W/FAN
87103-28070	ACR30,40,MCR30,40	04/2003 - 01/2006	1
87103-28070	ACR30,40,MCR30,40	12/1999 - 04/2003	1
87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX)
87106-28120	ACR30,40,MCR30,40	04/2003 - 01/2006	1
87106-28120	ACR30,40,MCR30,40	12/1999 - 04/2003	1
87106J - SERVO SUB-ASSY, DAMPER(FOR MODE)
87106-28110	ACR30,40,MCR30,40	04/2003 - 01/2006	1
87106-28110	ACR30,40,MCR30,40	12/1999 - 04/2003	1
87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)
87106-28150	ACR30,40,MCR30,40	04/2003 - 01/2006	1
87106-28150	ACR30,40,MCR30,40	12/1999 - 04/2003	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-28220	ACR30,40,MCR30,40	12/1999 - 04/2003	1
87107-28230	ACR30,40 ｶﾝﾚｲﾁｼﾖｳ	04/2003 - 01/2006	1
87107-28220	ACR30,40,MCR30,40	04/2003 - 01/2006	1
87130D - BLOWER ASSY
87130-28430	ACR30,40,MCR30,40	12/1999 - 04/2003	1
87130-28430	ACR30,40,MCR30,40	04/2003 - 01/2006	1
87137B - COVER, HEATER BLOWER
87137-28010	ACR30,40,MCR30,40	04/2003 - 01/2006	1
87137-28010	ACR30,40,MCR30,40	12/1999 - 04/2003	1
87139C - FILTER, CLEAN AIR
87139-28010	ACR30,40,MCR30,40 花粉ﾌｨﾙﾀ	12/1999 - 04/2003	1
87139-47020	ACR30,40,MCR30,40 脱臭 & 花粉ﾌｨﾙﾀ	12/1999 - 04/2003	1
87139-28010	ACR30,40,MCR30,40 花粉ﾌｨﾙﾀ	04/2003 - 01/2006	1
87139-47020	ACR30,40,MCR30,40 脱臭 & 花粉ﾌｨﾙﾀ	04/2003 - 01/2006	1
87165C - CONTROL, BLOWER MOTOR
87165-32010	ACR30,40,MCR30,40..AERAS,G,X	12/1999 - 04/2003	1
87165-32010	ACR30,40,MCR30,40	04/2003 - 01/2006	1
87211K - DUCT, AIR
87211-28190	ACR30,40,MCR30,40	12/1999 - 04/2003	1
87211-28190	ACR30,40,MCR30,40	04/2003 - 01/2006	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-28310	ACR30,40,MCR30,40	04/2003 - 01/2006	1
88501-28310	ACR30,40,MCR30,40	12/1999 - 04/2003	1
88508 - FILTER SUB-ASSY, CLEAN AIR
88508-20120	ACR30,40,MCR30,40	12/1999 - 04/2003	1
88515 - VALVE, COOLER EXPANSION
88515-28160	ACR30,40,MCR30,40	09/2001 - 04/2003	1
88515-28150	ACR30,40	07/2001 - 09/2001	1
88515-28160	MCR30,40	04/2003 - 01/2006	1
88515-28160	MCR30,40	07/2001 - 09/2001	1
88515-28150	ACR30,40,MCR30,40	12/1999 - 07/2001	1
88515-28180	ACR30,40	04/2003 - 01/2006	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-28240	ACR30,40,MCR30,40	12/1999 - 04/2003	1
88539-28240	ACR30,40,MCR30,40	04/2003 - 01/2006	1
88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE)
90480-26022	ACR30,40,MCR30,40	04/2003 - 01/2006	1
90480-26022	ACR30,40,MCR30,40	12/1999 - 04/2003	1
88625 - THERMISTOR, COOLER, NO.1
88625-52020	MCR30,40	04/2003 - 01/2006	1
88625-52020	ACR30,40,MCR30,40	12/1999 - 04/2003	1
88625-48030	ACR30,40	04/2003 - 01/2006	1
88648 - WIRING, COOLER, NO.1
88648-28280	ACR30,40,MCR30,40	04/2003 - 01/2006	1
88648-28280	ACR30,40,MCR30,40	12/1999 - 04/2003	1
88669B - HOSE, COOLER AIR
88669-28030	ACR30,40,MCR30,40..AERAS,G,X	12/1999 - 04/2003	1
88710H - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-2R500	ACR30,40,MCR30,40	12/1999 - 04/2003	1
88710-2R500	ACR30,40,MCR30,40	04/2003 - 01/2006	1
88790D - THERMISTOR ASSY
88790-20080	MCR30,40	12/1999 - 04/2003	1
88790-20080	MCR30,40	04/2003 - 12/2999	1
88891S - COVER, COOLER, NO.1
88891-28070	ACR30,40,MCR30,40	12/1999 - 04/2003	1
88891Z - BRACKET, COOLER THERMISTOR
88891-44100	MCR30,40	07/2001 - 09/2001	1
88891-32100	ACR30,40,MCR30,40	12/1999 - 04/2001	1
88891-50060	ACR30,40,MCR30,40	04/2001 - 07/2001	1
88891-44100	ACR30,40,MCR30,40	09/2001 - 04/2003	1
88891-50060	ACR30,40	07/2001 - 09/2001	1
88897U - PIPE, ASPIRATOR
88897-12210	ACR30,40,MCR30,40..AERAS,G,X	12/1999 - 04/2003	1
88899K - PLATE, COVER
88899-47030	ACR30,40,MCR30,40	12/1999 - 04/2003	1
Common parts
87124-28280
87127-28060
87193-87101
88578-20590
88578-26060
88899-41010
88899-44050
90099-00303
90099-00968
90099-14119
90099-14120
90099-14121
90119-06390
90159-60213
90179-06054
91635-60616
93567-55016

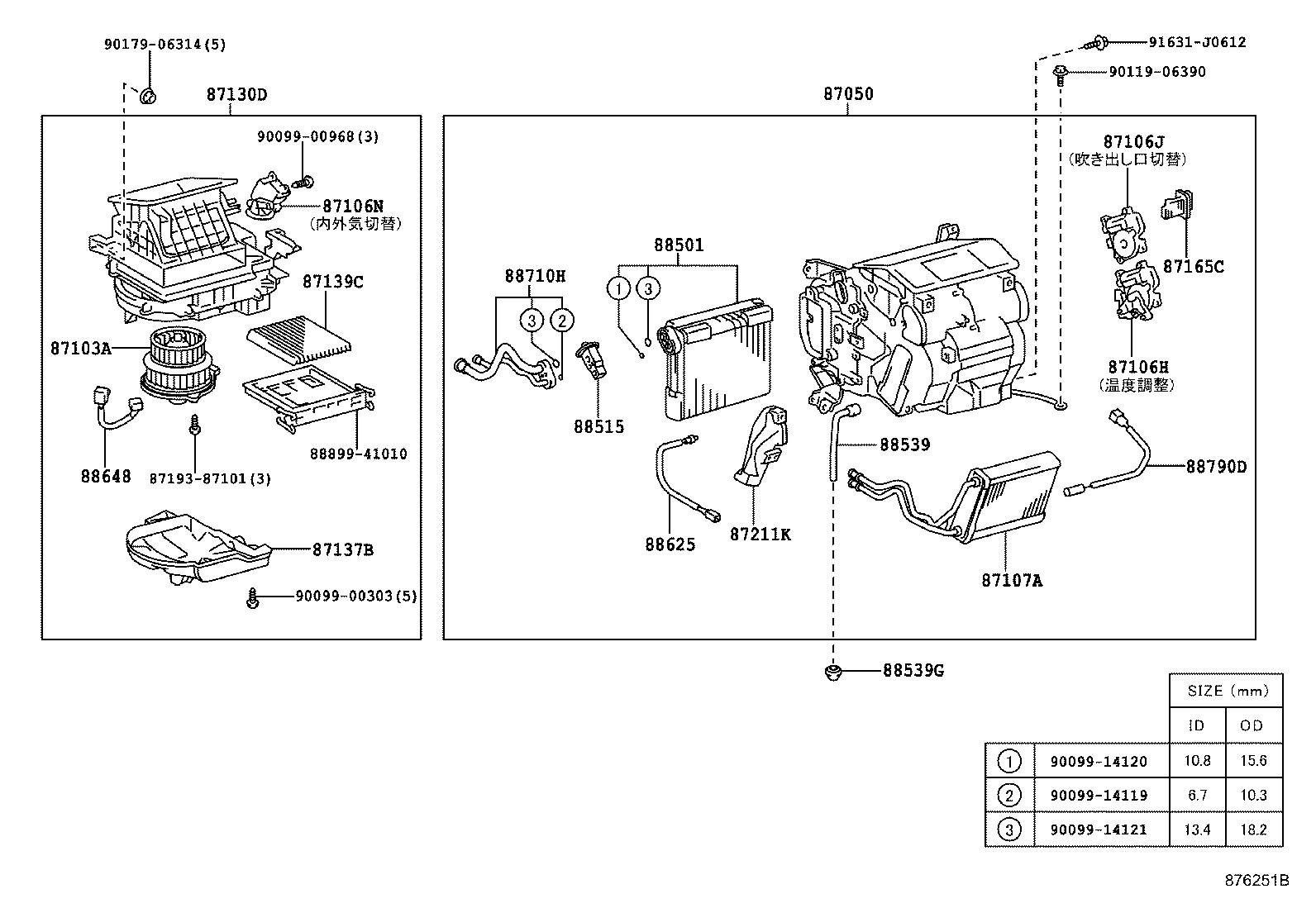

ILLUST NO. 1 OF 2(0304- )

Click highlighted areas on diagram

ﾌﾛﾝﾄ

Part #	Description	Period	Qty
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-28240	MCR30,40	12/1999 - 04/2003	1
87050-28480	ACR30,40 ｶﾝﾚｲﾁｼﾖｳ	04/2003 - 01/2006	1
87050-28490	MCR30,40	04/2003 - 01/2006	1
87050-28470	ACR30,40	04/2003 - 01/2006	1
87103A - MOTOR SUB-ASSY, COOLING UNIT, W/FAN
87103-28070	ACR30,40,MCR30,40	04/2003 - 01/2006	1
87103-28070	ACR30,40,MCR30,40	12/1999 - 04/2003	1
87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX)
87106-28120	ACR30,40,MCR30,40	04/2003 - 01/2006	1
87106-28120	ACR30,40,MCR30,40	12/1999 - 04/2003	1
87106J - SERVO SUB-ASSY, DAMPER(FOR MODE)
87106-28110	ACR30,40,MCR30,40	04/2003 - 01/2006	1
87106-28110	ACR30,40,MCR30,40	12/1999 - 04/2003	1
87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)
87106-28150	ACR30,40,MCR30,40	04/2003 - 01/2006	1
87106-28150	ACR30,40,MCR30,40	12/1999 - 04/2003	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-28220	ACR30,40,MCR30,40	12/1999 - 04/2003	1
87107-28230	ACR30,40 ｶﾝﾚｲﾁｼﾖｳ	04/2003 - 01/2006	1
87107-28220	ACR30,40,MCR30,40	04/2003 - 01/2006	1
87130D - BLOWER ASSY
87130-28430	ACR30,40,MCR30,40	12/1999 - 04/2003	1
87130-28430	ACR30,40,MCR30,40	04/2003 - 01/2006	1
87137B - COVER, HEATER BLOWER
87137-28010	ACR30,40,MCR30,40	04/2003 - 01/2006	1
87137-28010	ACR30,40,MCR30,40	12/1999 - 04/2003	1
87139C - FILTER, CLEAN AIR
87139-28010	ACR30,40,MCR30,40 花粉ﾌｨﾙﾀ	12/1999 - 04/2003	1
87139-47020	ACR30,40,MCR30,40 脱臭 & 花粉ﾌｨﾙﾀ	12/1999 - 04/2003	1
87139-28010	ACR30,40,MCR30,40 花粉ﾌｨﾙﾀ	04/2003 - 01/2006	1
87139-47020	ACR30,40,MCR30,40 脱臭 & 花粉ﾌｨﾙﾀ	04/2003 - 01/2006	1
87165C - CONTROL, BLOWER MOTOR
87165-32010	ACR30,40,MCR30,40..AERAS,G,X	12/1999 - 04/2003	1
87165-32010	ACR30,40,MCR30,40	04/2003 - 01/2006	1
87211K - DUCT, AIR
87211-28190	ACR30,40,MCR30,40	12/1999 - 04/2003	1
87211-28190	ACR30,40,MCR30,40	04/2003 - 01/2006	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-28310	ACR30,40,MCR30,40	04/2003 - 01/2006	1
88501-28310	ACR30,40,MCR30,40	12/1999 - 04/2003	1
88515 - VALVE, COOLER EXPANSION
88515-28160	ACR30,40,MCR30,40	09/2001 - 04/2003	1
88515-28150	ACR30,40	07/2001 - 09/2001	1
88515-28160	MCR30,40	04/2003 - 01/2006	1
88515-28160	MCR30,40	07/2001 - 09/2001	1
88515-28150	ACR30,40,MCR30,40	12/1999 - 07/2001	1
88515-28180	ACR30,40	04/2003 - 01/2006	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-28240	ACR30,40,MCR30,40	12/1999 - 04/2003	1
88539-28240	ACR30,40,MCR30,40	04/2003 - 01/2006	1
88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE)
90480-26022	ACR30,40,MCR30,40	04/2003 - 01/2006	1
90480-26022	ACR30,40,MCR30,40	12/1999 - 04/2003	1
88625 - THERMISTOR, COOLER, NO.1
88625-52020	MCR30,40	04/2003 - 01/2006	1
88625-52020	ACR30,40,MCR30,40	12/1999 - 04/2003	1
88625-48030	ACR30,40	04/2003 - 01/2006	1
88648 - WIRING, COOLER, NO.1
88648-28280	ACR30,40,MCR30,40	04/2003 - 01/2006	1
88648-28280	ACR30,40,MCR30,40	12/1999 - 04/2003	1
88710H - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-2R500	ACR30,40,MCR30,40	12/1999 - 04/2003	1
88710-2R500	ACR30,40,MCR30,40	04/2003 - 01/2006	1
88790D - THERMISTOR ASSY
88790-20080	MCR30,40	12/1999 - 04/2003	1
88790-20080	MCR30,40	04/2003 - 12/2999	1
Common parts
87193-87101
88899-41010
90099-00303
90099-00968
90099-14119
90099-14120
90099-14121
90119-06390
90179-06314
91631-J0612

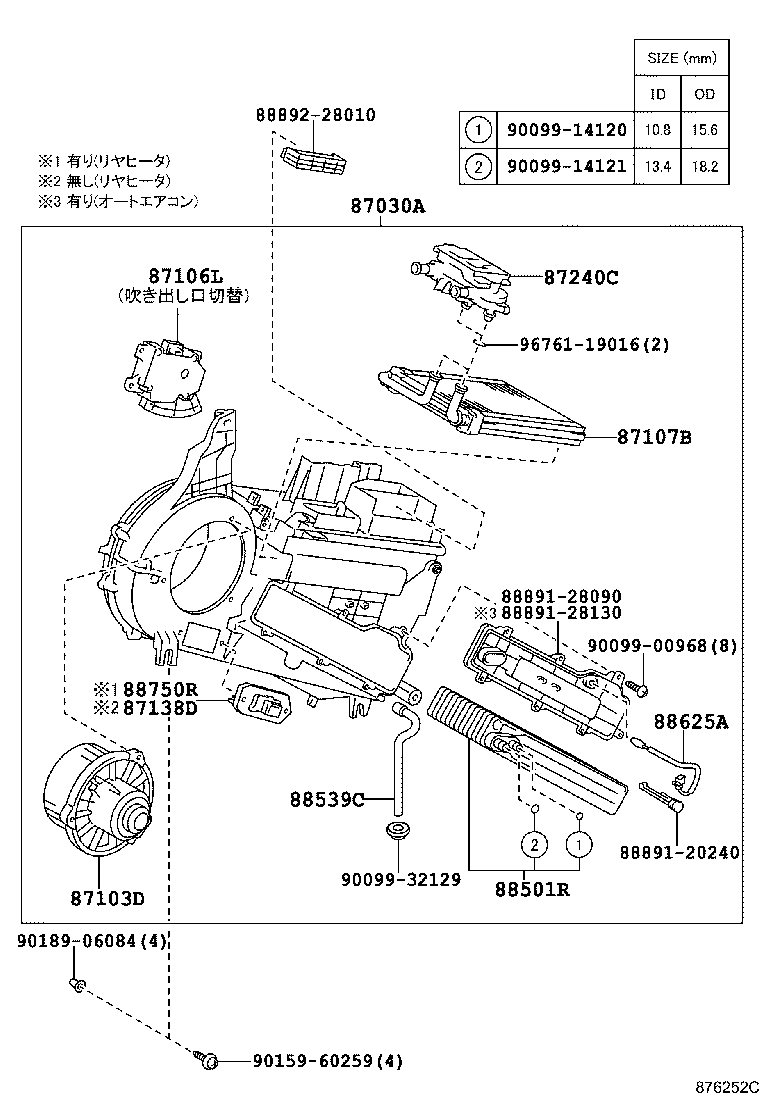

ILLUST NO. 2 OF 2(0304- )

Click highlighted areas on diagram

ﾘﾔ

Part #	Description	Period	Qty
87030A - UNIT ASSY, COOLING, REAR
87030-28150	ACR30,40,MCR30,40..AERAS,J,X	04/2001 - 04/2003	1
87030-28130	ACR30,40,MCR30,40..AERAS,J,X	12/1999 - 04/2001	1
87030-28180	ACR30,40,MCR30,40..AERAS,AERSS,J,X	04/2003 - 01/2006	1
87030-28190	ACR30,40,MCR30,40..AERAS,AERSS,J,X ｱﾘ(ﾘﾔﾋ-ﾀ)	04/2003 - 01/2006	1
87030-28160	ACR30,40,MCR30,40 ｱﾘ(ﾘﾔﾋ-ﾀ)	04/2001 - 04/2003	1
87030-28140	ACR30,40,MCR30,40 ｱﾘ(ﾘﾔﾋ-ﾀ)	12/1999 - 04/2001	1
87103D - MOTOR SUB-ASSY, BLOWER W/FAN(FOR REAR)
87103-28060	ACR30,40,MCR30,40	12/1999 - 02/2001	1
87103-58010	ACR30,40,MCR30,40	04/2003 - 01/2006	1
87106L - SERVO SUB-ASSY, DAMPER
87106-28100	ACR30,40,MCR30,40	12/1999 - 04/2003	1
87106-28100	ACR30,40,MCR30,40	04/2003 - 01/2006	1
87107B - UNIT SUB-ASSY, HEATER RADIATOR
87107-28210	ACR30,40,MCR30,40	04/2003 - 01/2006	1
87107-28210	ACR30,40,MCR30,40	12/1999 - 04/2003	1
87138D - RESISTOR, BLOWER (REAR)
87138-28220	ACR30,40,MCR30,40..AERAS,J,X	12/1999 - 04/2003	1
87138-28220	ACR30,40,MCR30,40..AERAS,AERSS,J,X	04/2003 - 12/2999	1
87240C - VALVE ASSY, HEATER WATER
87240-28100	ACR30,40,MCR30,40	04/2003 - 01/2006	1
87240-28100	ACR30,40,MCR30,40	12/1999 - 04/2003	1
88501R - EVAPORATOR SUB-ASSY (REAR)
88501-28330	ACR30,40,MCR30,40	12/1999 - 04/2003	1
88501-28330	ACR30,40,MCR30,40	04/2003 - 01/2006	1
88539C - HOSE, COOLER UNIT DRAIN, NO.2
88539-28230	ACR30,40,MCR30,40	12/1999 - 04/2003	1
88539-28230	ACR30,40,MCR30,40	04/2003 - 01/2006	1
88750R - TRANSISTOR ASSY, BLOWER RESISTOR(REAR)
88750-28050	ACR30,40,MCR30,40	12/1999 - 04/2003	1
88750-28060	ACR30,40,MCR30,40	04/2003 - 01/2006	1
Common parts
88891-20240
88891-28090
88891-28130
88892-28010
90099-00968
90099-14120
90099-14121
90099-32129
90159-60259
90189-06084
96761-19016

ACR40W-MFSSK (2001)

ILLUST NO. 2 OF 2(9912-0304)

ILLUST NO. 1 OF 2(9912-0304)

ILLUST NO. 1 OF 2(0304- )

ILLUST NO. 2 OF 2(0304- )

Part Price Details
