ACR40W-MFSQK (2000)
Toyota Estima T/L
Production
Feb 2000
-
Jan 2006
Engine
2AZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

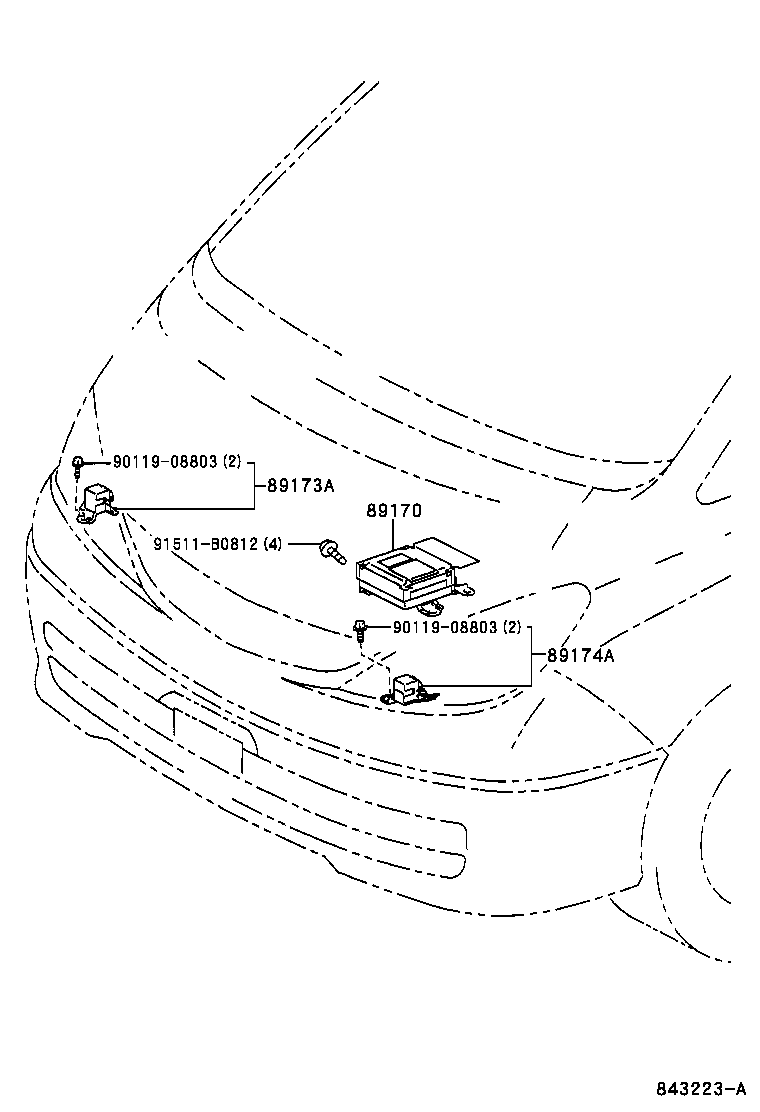

(9912-0304)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89170 - SENSOR ASSY, AIR BAG | ||||
| 89170-28220 |
ACR30,40,MCR30,40 |
1 | ||
| 89170-28170 |
ACR30,40,MCR30,40 |
1 | ||
| 89173A - SENSOR, AIR BAG, FRONT RH | ||||
| 89173-29185 |
ACR30,40,MCR30,40 |
1 | ||
| 89173-59205 |
ACR30,40,MCR30,40 |
1 | ||
| 89174A - SENSOR, AIR BAG, FRONT LH | ||||
| 89174-29065 |
ACR30,40,MCR30,40 |
1 | ||
| 89174-59135 |
ACR30,40,MCR30,40 |
1 | ||
| Common parts | ||||
| 90119-08803 | ||||
| 91511-B0812 | ||||

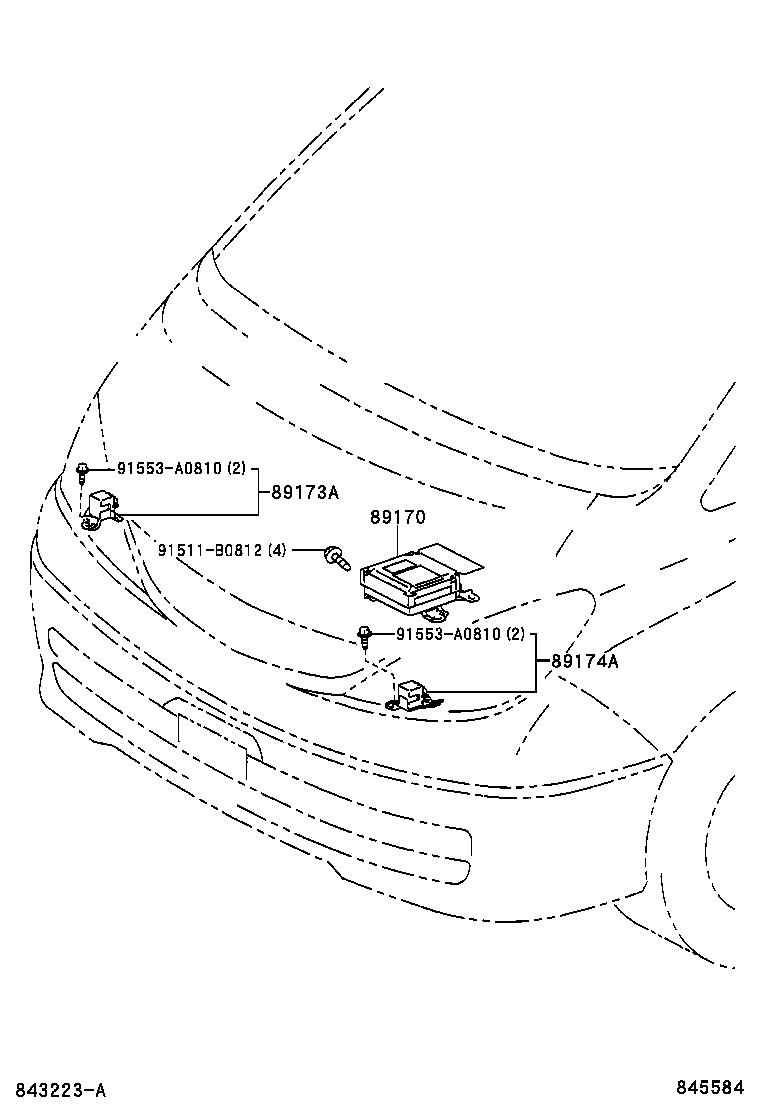

(0304- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89170 - SENSOR ASSY, AIR BAG | ||||
| 89170-28220 |
ACR30,40,MCR30,40 |
1 | ||
| 89170-28170 |
ACR30,40,MCR30,40 |
1 | ||
| 89173A - SENSOR, AIR BAG, FRONT RH | ||||
| 89173-29185 |
ACR30,40,MCR30,40 |
1 | ||
| 89173-59205 |
ACR30,40,MCR30,40 |
1 | ||
| 89174A - SENSOR, AIR BAG, FRONT LH | ||||
| 89174-29065 |
ACR30,40,MCR30,40 |
1 | ||
| 89174-59135 |
ACR30,40,MCR30,40 |
1 | ||
| Common parts | ||||
| 91511-B0812 | ||||
| 91553-A0810 | ||||
