ACR40W-MFSQK (2000)
Toyota Estima T/L

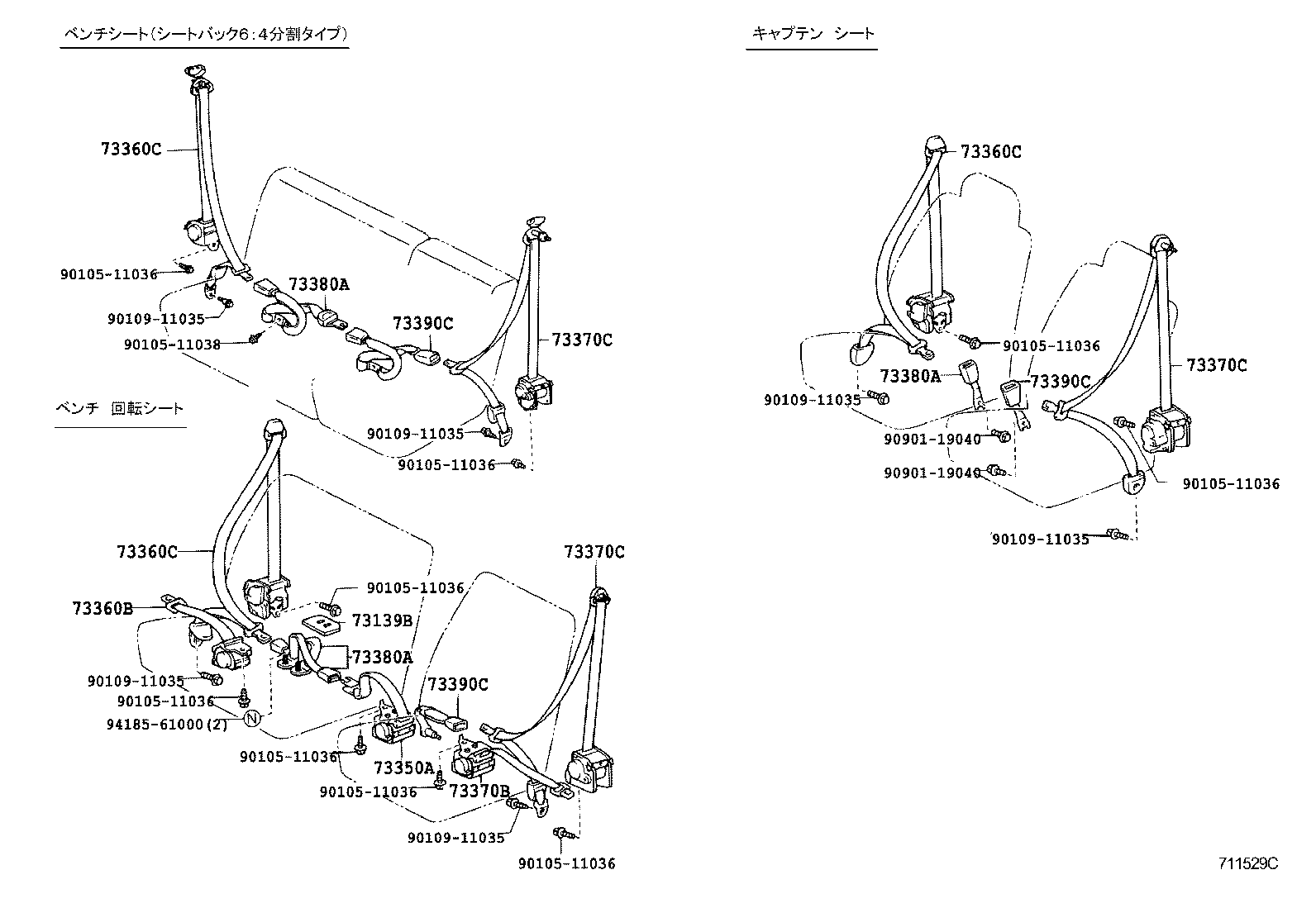

ILLUST NO. 2 OF 3(9912-0304)
ﾘﾔ NO.1 ｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH | ||||
| 73360-28580B1 |
ACR30,40,MCR30,40..G,J,X GRAY,TRIM12 |
1 | ||
| 73360-28580B0 |
ACR30,40,MCR30,40..G,J,X BLUISH GRAY,TRIM11 |
1 | ||
| 73360-28630A1 |
ACR40..G,X;ACR30,MCR30,40..G,J,X IVORY,TRIM0# |
1 | ||
| 73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH | ||||
| 73360-28580B1 |
ACR30,40,MCR30,40..G,J,X GRAY,TRIM12 |
1 | ||
| 73360-28580B0 |
ACR30,40,MCR30,40..G,J,X BLUISH GRAY,TRIM11 |
1 | ||
| 73360-28630A1 |
ACR40..G,X;ACR30,MCR30,40..G,J,X IVORY,TRIM0# |
1 | ||
| 73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH | ||||
| 73360-28580B1 |
ACR30,40,MCR30,40..G,J,X GRAY,TRIM12 |
1 | ||
| 73360-28580B0 |
ACR30,40,MCR30,40..G,J,X BLUISH GRAY,TRIM11 |
1 | ||
| 73360-28630A1 |
ACR40..G,X;ACR30,MCR30,40..G,J,X IVORY,TRIM0# |
1 | ||
| 73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH | ||||
| 73370-28550A1 |
ACR40..G,X;ACR30,MCR30,40..G,J,X IVORY,TRIM0# |
1 | ||
| 73370-28500B0 |
ACR30,40,MCR30,40..G,J,X BLUISH GRAY,TRIM11 |
1 | ||
| 73370-28500B1 |
ACR30,40,MCR30,40..G,J,X GRAY,TRIM12 |
1 | ||
| 73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH | ||||
| 73370-28550A1 |
ACR40..G,X;ACR30,MCR30,40..G,J,X IVORY,TRIM0# |
1 | ||
| 73370-28500B0 |
ACR30,40,MCR30,40..G,J,X BLUISH GRAY,TRIM11 |
1 | ||
| 73370-28500B1 |
ACR30,40,MCR30,40..G,J,X GRAY,TRIM12 |
1 | ||
| 73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH | ||||
| 73370-28550A1 |
ACR40..G,X;ACR30,MCR30,40..G,J,X IVORY,TRIM0# |
1 | ||
| 73370-28500B0 |
ACR30,40,MCR30,40..G,J,X BLUISH GRAY,TRIM11 |
1 | ||
| 73370-28500B1 |
ACR30,40,MCR30,40..G,J,X GRAY,TRIM12 |
1 | ||
| 73380A - BELT ASSY, REAR SEAT, INNER | ||||
| 73230-28250B0 |
ACR30,40,MCR30,40..07S BLUE GRAY,TRIM11 |
1 | ||
| 73230-28250B1 |
ACR30,40,MCR30,40..J,X;ACR30,40,MCR30,40..07S..G ﾊﾝﾃﾞｲｷﾔﾌﾞ(ｻｲﾄﾞﾘﾌﾄｱﾂﾌﾟ),DK.CHARCOAL,TRIM12 |
1 | ||
| 73230-28250B1 |
ACR30,40,MCR30,40..07S..G DK.CHARCOAL,TRIM12 |
1 | ||
| 73230-28250B0 |
ACR30,40,MCR30,40..J,X;ACR30,40,MCR30,40..07S..G ﾊﾝﾃﾞｲｷﾔﾌﾞ(ｻｲﾄﾞﾘﾌﾄｱﾂﾌﾟ),BLUE GRAY,TRIM11 |
1 | ||
| 73230-28390A0 |
ACR30,40..X;ACR30,40,MCR30,40..07S..G ｱﾘ(ﾘﾔ NO.1 ｼｰﾄ = ｷｬﾌﾟﾃﾝ ｼｰﾄ),IVORY,TRIM0# |
1 | ||
| 73380A - BELT ASSY, REAR SEAT, INNER | ||||
| 73230-28250B0 |
ACR30,40,MCR30,40..07S BLUE GRAY,TRIM11 |
1 | ||
| 73230-28250B1 |
ACR30,40,MCR30,40..J,X;ACR30,40,MCR30,40..07S..G ﾊﾝﾃﾞｲｷﾔﾌﾞ(ｻｲﾄﾞﾘﾌﾄｱﾂﾌﾟ),DK.CHARCOAL,TRIM12 |
1 | ||
| 73230-28250B1 |
ACR30,40,MCR30,40..07S..G DK.CHARCOAL,TRIM12 |
1 | ||
| 73230-28250B0 |
ACR30,40,MCR30,40..J,X;ACR30,40,MCR30,40..07S..G ﾊﾝﾃﾞｲｷﾔﾌﾞ(ｻｲﾄﾞﾘﾌﾄｱﾂﾌﾟ),BLUE GRAY,TRIM11 |
1 | ||
| 73230-28390A0 |
ACR30,40..X;ACR30,40,MCR30,40..07S..G ｱﾘ(ﾘﾔ NO.1 ｼｰﾄ = ｷｬﾌﾟﾃﾝ ｼｰﾄ),IVORY,TRIM0# |
1 | ||
| 73380A - BELT ASSY, REAR SEAT, INNER | ||||
| 73230-28250B0 |
ACR30,40,MCR30,40..07S BLUE GRAY,TRIM11 |
1 | ||
| 73230-28250B1 |
ACR30,40,MCR30,40..J,X;ACR30,40,MCR30,40..07S..G ﾊﾝﾃﾞｲｷﾔﾌﾞ(ｻｲﾄﾞﾘﾌﾄｱﾂﾌﾟ),DK.CHARCOAL,TRIM12 |
1 | ||
| 73230-28250B1 |
ACR30,40,MCR30,40..07S..G DK.CHARCOAL,TRIM12 |
1 | ||
| 73230-28250B0 |
ACR30,40,MCR30,40..J,X;ACR30,40,MCR30,40..07S..G ﾊﾝﾃﾞｲｷﾔﾌﾞ(ｻｲﾄﾞﾘﾌﾄｱﾂﾌﾟ),BLUE GRAY,TRIM11 |
1 | ||
| 73230-28390A0 |
ACR30,40..X;ACR30,40,MCR30,40..07S..G ｱﾘ(ﾘﾔ NO.1 ｼｰﾄ = ｷｬﾌﾟﾃﾝ ｼｰﾄ),IVORY,TRIM0# |
1 | ||
| 73390C - BELT ASSY, REAR NO.1 SEAT, INNER LH | ||||
| 73230-28250B1 |
ACR30,40,MCR30,40..07S..G DK.CHARCOAL,TRIM12 |
1 | ||
| 73230-28250B0 |
ACR30,40,MCR30,40..07S..G BLUE GRAY,TRIM11 |
1 | ||
| 73230-28390A0 |
ACR30,40,MCR30,40..07S..G IVORY,TRIM0# |
1 | ||
| 73230-28400A0 |
ACR30,40,MCR30,40..07S..G ｱﾘ(ｻｲﾄﾞﾘﾌﾄｱﾂﾌﾟ ｼ-ﾄ=ﾒ-ｶ-ｵﾌﾟｼﾖﾝ),IVORY,TRIM0# |
1 | ||
| 73390C - BELT ASSY, REAR NO.1 SEAT, INNER LH | ||||
| 73230-28250B1 |
ACR30,40,MCR30,40..07S..G DK.CHARCOAL,TRIM12 |
1 | ||
| 73230-28250B0 |
ACR30,40,MCR30,40..07S..G BLUE GRAY,TRIM11 |
1 | ||
| 73230-28390A0 |
ACR30,40,MCR30,40..07S..G IVORY,TRIM0# |
1 | ||
| 73230-28400A0 |
ACR30,40,MCR30,40..07S..G ｱﾘ(ｻｲﾄﾞﾘﾌﾄｱﾂﾌﾟ ｼ-ﾄ=ﾒ-ｶ-ｵﾌﾟｼﾖﾝ),IVORY,TRIM0# |
1 | ||
| 73390C - BELT ASSY, REAR NO.1 SEAT, INNER LH | ||||
| 73230-28250B1 |
ACR30,40,MCR30,40..07S..G DK.CHARCOAL,TRIM12 |
1 | ||
| 73230-28250B0 |
ACR30,40,MCR30,40..07S..G BLUE GRAY,TRIM11 |
1 | ||
| 73230-28390A0 |
ACR30,40,MCR30,40..07S..G IVORY,TRIM0# |
1 | ||
| 73230-28400A0 |
ACR30,40,MCR30,40..07S..G ｱﾘ(ｻｲﾄﾞﾘﾌﾄｱﾂﾌﾟ ｼ-ﾄ=ﾒ-ｶ-ｵﾌﾟｼﾖﾝ),IVORY,TRIM0# |
1 | ||
| Common parts | ||||
| 90105-11036 | ||||
| 90105-11038 | ||||
| 90109-11035 | ||||
| 90901-19040 | ||||
| 94185-61000 | ||||

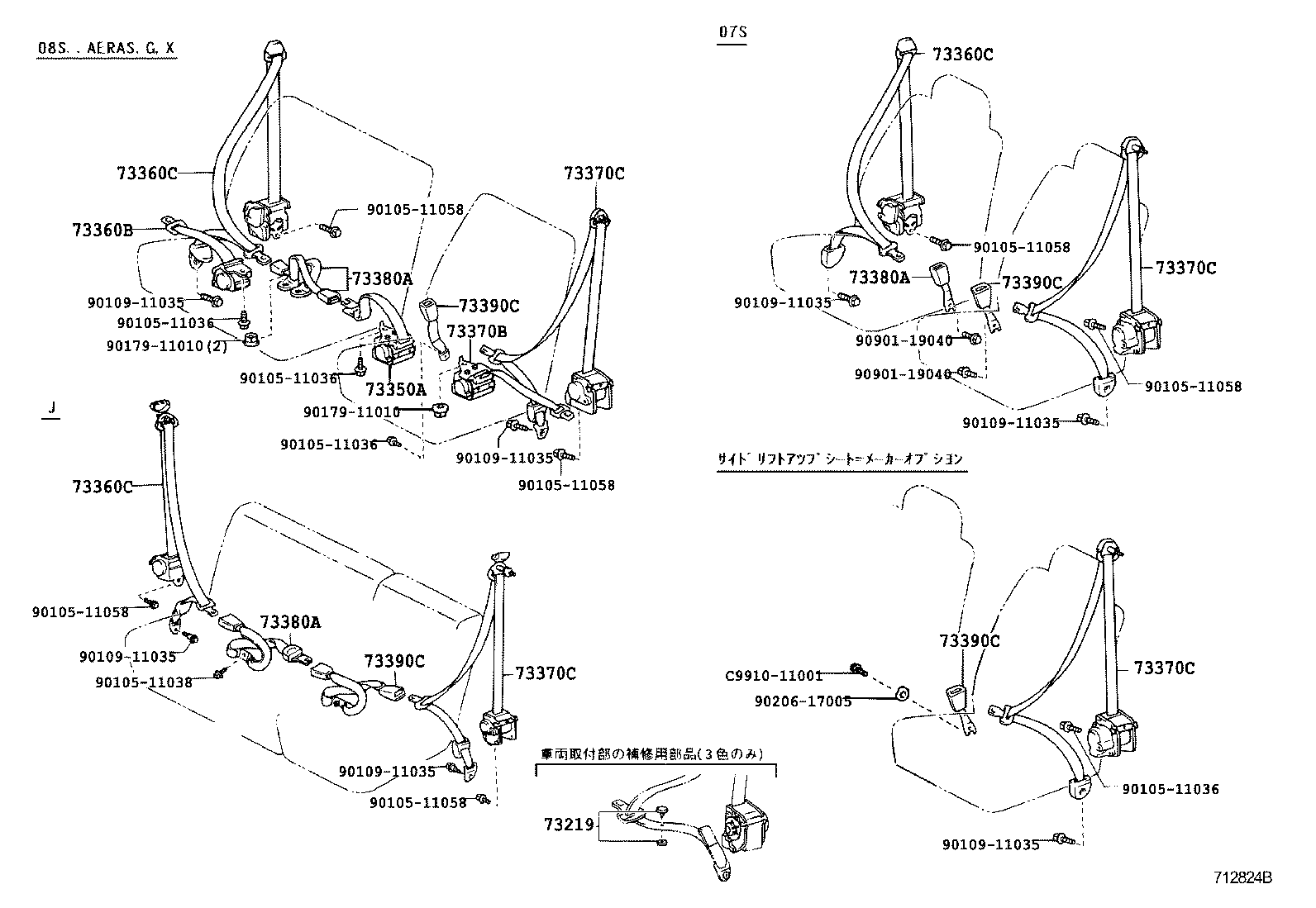

ILLUST NO. 2 OF 3(0304- )
ﾘﾔ NO.1 ｼ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33030 |
ACR30,40,MCR30,40 ﾍﾞｰｼﾞｭ |
1 | ||
| 73219-33020 |
ACR30,40,MCR30,40 ｸﾞﾚｰ |
1 | ||
| 73219-33010 |
ACR30,40,MCR30,40 ﾌﾞﾗｯｸ |
1 | ||
| 73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH | ||||
| 73360-28580B1 |
ACR30,40,MCR30,40..G,J,X GRAY,TRIM12 |
1 | ||
| 73360-28580B0 |
ACR30,40,MCR30,40..G,J,X BLUISH GRAY,TRIM11 |
1 | ||
| 73360-28630A1 |
ACR40..G,X;ACR30,MCR30,40..G,J,X IVORY,TRIM0# |
1 | ||
| 73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH | ||||
| 73360-28580B1 |
ACR30,40,MCR30,40..G,J,X GRAY,TRIM12 |
1 | ||
| 73360-28580B0 |
ACR30,40,MCR30,40..G,J,X BLUISH GRAY,TRIM11 |
1 | ||
| 73360-28630A1 |
ACR40..G,X;ACR30,MCR30,40..G,J,X IVORY,TRIM0# |
1 | ||
| 73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH | ||||
| 73360-28580B1 |
ACR30,40,MCR30,40..G,J,X GRAY,TRIM12 |
1 | ||
| 73360-28580B0 |
ACR30,40,MCR30,40..G,J,X BLUISH GRAY,TRIM11 |
1 | ||
| 73360-28630A1 |
ACR40..G,X;ACR30,MCR30,40..G,J,X IVORY,TRIM0# |
1 | ||
| 73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH | ||||
| 73370-28550A1 |
ACR40..G,X;ACR30,MCR30,40..G,J,X IVORY,TRIM0# |
1 | ||
| 73370-28500B0 |
ACR30,40,MCR30,40..G,J,X BLUISH GRAY,TRIM11 |
1 | ||
| 73370-28500B1 |
ACR30,40,MCR30,40..G,J,X GRAY,TRIM12 |
1 | ||
| 73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH | ||||
| 73370-28550A1 |
ACR40..G,X;ACR30,MCR30,40..G,J,X IVORY,TRIM0# |
1 | ||
| 73370-28500B0 |
ACR30,40,MCR30,40..G,J,X BLUISH GRAY,TRIM11 |
1 | ||
| 73370-28500B1 |
ACR30,40,MCR30,40..G,J,X GRAY,TRIM12 |
1 | ||
| 73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH | ||||
| 73370-28550A1 |
ACR40..G,X;ACR30,MCR30,40..G,J,X IVORY,TRIM0# |
1 | ||
| 73370-28500B0 |
ACR30,40,MCR30,40..G,J,X BLUISH GRAY,TRIM11 |
1 | ||
| 73370-28500B1 |
ACR30,40,MCR30,40..G,J,X GRAY,TRIM12 |
1 | ||
| 73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH | ||||
| 73370-28550A1 |
ACR40..G,X;ACR30,MCR30,40..G,J,X IVORY,TRIM0# |
1 | ||
| 73370-28500B0 |
ACR30,40,MCR30,40..G,J,X BLUISH GRAY,TRIM11 |
1 | ||
| 73370-28500B1 |
ACR30,40,MCR30,40..G,J,X GRAY,TRIM12 |
1 | ||
| 73380A - BELT ASSY, REAR SEAT, INNER | ||||
| 73230-28250B0 |
ACR30,40,MCR30,40..07S BLUE GRAY,TRIM11 |
1 | ||
| 73230-28250B1 |
ACR30,40,MCR30,40..J,X;ACR30,40,MCR30,40..07S..G ﾊﾝﾃﾞｲｷﾔﾌﾞ(ｻｲﾄﾞﾘﾌﾄｱﾂﾌﾟ),DK.CHARCOAL,TRIM12 |
1 | ||
| 73230-28250B1 |
ACR30,40,MCR30,40..07S..G DK.CHARCOAL,TRIM12 |
1 | ||
| 73230-28250B0 |
ACR30,40,MCR30,40..J,X;ACR30,40,MCR30,40..07S..G ﾊﾝﾃﾞｲｷﾔﾌﾞ(ｻｲﾄﾞﾘﾌﾄｱﾂﾌﾟ),BLUE GRAY,TRIM11 |
1 | ||
| 73230-28390A0 |
ACR30,40..X;ACR30,40,MCR30,40..07S..G ｱﾘ(ﾘﾔ NO.1 ｼｰﾄ = ｷｬﾌﾟﾃﾝ ｼｰﾄ),IVORY,TRIM0# |
1 | ||
| 73380A - BELT ASSY, REAR SEAT, INNER | ||||
| 73230-28250B0 |
ACR30,40,MCR30,40..07S BLUE GRAY,TRIM11 |
1 | ||
| 73230-28250B1 |
ACR30,40,MCR30,40..J,X;ACR30,40,MCR30,40..07S..G ﾊﾝﾃﾞｲｷﾔﾌﾞ(ｻｲﾄﾞﾘﾌﾄｱﾂﾌﾟ),DK.CHARCOAL,TRIM12 |
1 | ||
| 73230-28250B1 |
ACR30,40,MCR30,40..07S..G DK.CHARCOAL,TRIM12 |
1 | ||
| 73230-28250B0 |
ACR30,40,MCR30,40..J,X;ACR30,40,MCR30,40..07S..G ﾊﾝﾃﾞｲｷﾔﾌﾞ(ｻｲﾄﾞﾘﾌﾄｱﾂﾌﾟ),BLUE GRAY,TRIM11 |
1 | ||
| 73230-28390A0 |
ACR30,40..X;ACR30,40,MCR30,40..07S..G ｱﾘ(ﾘﾔ NO.1 ｼｰﾄ = ｷｬﾌﾟﾃﾝ ｼｰﾄ),IVORY,TRIM0# |
1 | ||
| 73380A - BELT ASSY, REAR SEAT, INNER | ||||
| 73230-28250B0 |
ACR30,40,MCR30,40..07S BLUE GRAY,TRIM11 |
1 | ||
| 73230-28250B1 |
ACR30,40,MCR30,40..J,X;ACR30,40,MCR30,40..07S..G ﾊﾝﾃﾞｲｷﾔﾌﾞ(ｻｲﾄﾞﾘﾌﾄｱﾂﾌﾟ),DK.CHARCOAL,TRIM12 |
1 | ||
| 73230-28250B1 |
ACR30,40,MCR30,40..07S..G DK.CHARCOAL,TRIM12 |
1 | ||
| 73230-28250B0 |
ACR30,40,MCR30,40..J,X;ACR30,40,MCR30,40..07S..G ﾊﾝﾃﾞｲｷﾔﾌﾞ(ｻｲﾄﾞﾘﾌﾄｱﾂﾌﾟ),BLUE GRAY,TRIM11 |
1 | ||
| 73230-28390A0 |
ACR30,40..X;ACR30,40,MCR30,40..07S..G ｱﾘ(ﾘﾔ NO.1 ｼｰﾄ = ｷｬﾌﾟﾃﾝ ｼｰﾄ),IVORY,TRIM0# |
1 | ||
| 73390C - BELT ASSY, REAR NO.1 SEAT, INNER LH | ||||
| 73230-28250B1 |
ACR30,40,MCR30,40..07S..G DK.CHARCOAL,TRIM12 |
1 | ||
| 73230-28250B0 |
ACR30,40,MCR30,40..07S..G BLUE GRAY,TRIM11 |
1 | ||
| 73230-28390A0 |
ACR30,40,MCR30,40..07S..G IVORY,TRIM0# |
1 | ||
| 73230-28400A0 |
ACR30,40,MCR30,40..07S..G ｱﾘ(ｻｲﾄﾞﾘﾌﾄｱﾂﾌﾟ ｼ-ﾄ=ﾒ-ｶ-ｵﾌﾟｼﾖﾝ),IVORY,TRIM0# |
1 | ||
| 73390C - BELT ASSY, REAR NO.1 SEAT, INNER LH | ||||
| 73230-28250B1 |
ACR30,40,MCR30,40..07S..G DK.CHARCOAL,TRIM12 |
1 | ||
| 73230-28250B0 |
ACR30,40,MCR30,40..07S..G BLUE GRAY,TRIM11 |
1 | ||
| 73230-28390A0 |
ACR30,40,MCR30,40..07S..G IVORY,TRIM0# |
1 | ||
| 73230-28400A0 |
ACR30,40,MCR30,40..07S..G ｱﾘ(ｻｲﾄﾞﾘﾌﾄｱﾂﾌﾟ ｼ-ﾄ=ﾒ-ｶ-ｵﾌﾟｼﾖﾝ),IVORY,TRIM0# |
1 | ||
| 73390C - BELT ASSY, REAR NO.1 SEAT, INNER LH | ||||
| 73230-28250B1 |
ACR30,40,MCR30,40..07S..G DK.CHARCOAL,TRIM12 |
1 | ||
| 73230-28250B0 |
ACR30,40,MCR30,40..07S..G BLUE GRAY,TRIM11 |
1 | ||
| 73230-28390A0 |
ACR30,40,MCR30,40..07S..G IVORY,TRIM0# |
1 | ||
| 73230-28400A0 |
ACR30,40,MCR30,40..07S..G ｱﾘ(ｻｲﾄﾞﾘﾌﾄｱﾂﾌﾟ ｼ-ﾄ=ﾒ-ｶ-ｵﾌﾟｼﾖﾝ),IVORY,TRIM0# |
1 | ||
| 73390C - BELT ASSY, REAR NO.1 SEAT, INNER LH | ||||
| 73230-28250B1 |
ACR30,40,MCR30,40..07S..G DK.CHARCOAL,TRIM12 |
1 | ||
| 73230-28250B0 |
ACR30,40,MCR30,40..07S..G BLUE GRAY,TRIM11 |
1 | ||
| 73230-28390A0 |
ACR30,40,MCR30,40..07S..G IVORY,TRIM0# |
1 | ||
| 73230-28400A0 |
ACR30,40,MCR30,40..07S..G ｱﾘ(ｻｲﾄﾞﾘﾌﾄｱﾂﾌﾟ ｼ-ﾄ=ﾒ-ｶ-ｵﾌﾟｼﾖﾝ),IVORY,TRIM0# |
1 | ||
| Common parts | ||||
| 90105-11036 | ||||
| 90105-11038 | ||||
| 90105-11058 | ||||
| 90109-11035 | ||||
| 90179-11010 | ||||
| 90206-17005 | ||||
| 90901-19040 | ||||
| C9910-11001 | ||||

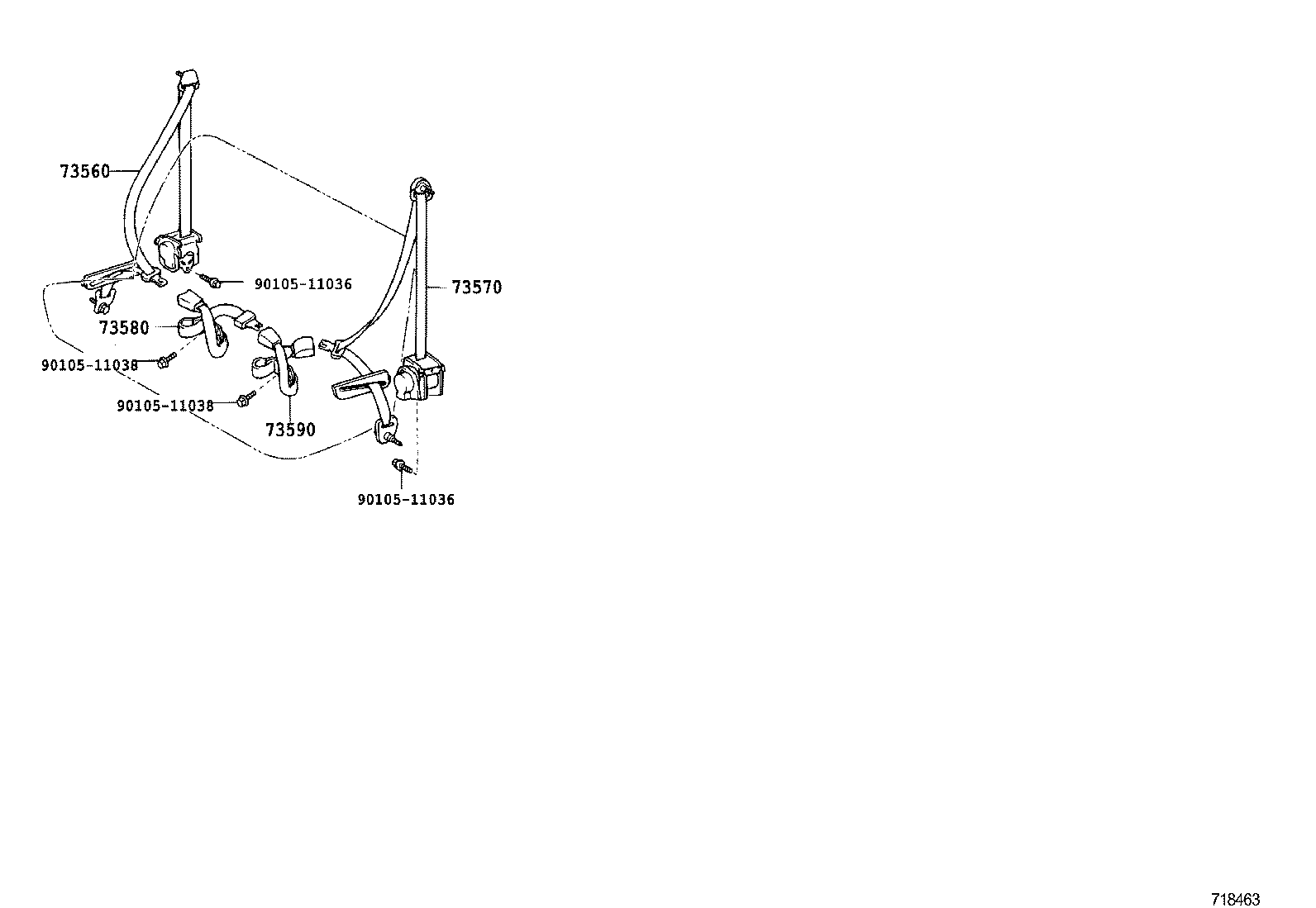

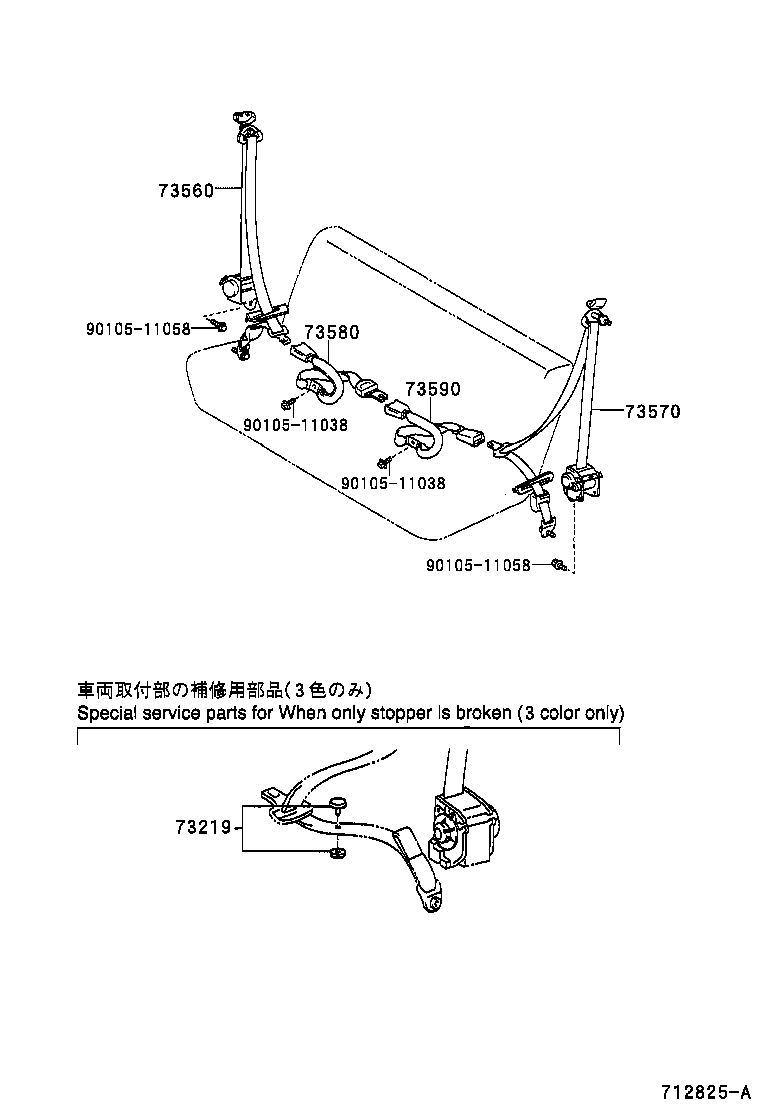

ILLUST NO. 3 OF 3(0304- )
ﾘﾔ NO.2 ｼ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33030 |
ACR30,40,MCR30,40 ﾍﾞｰｼﾞｭ |
1 | ||
| 73219-33020 |
ACR30,40,MCR30,40 ｸﾞﾚｰ |
1 | ||
| 73219-33010 |
ACR30,40,MCR30,40 ﾌﾞﾗｯｸ |
1 | ||
| 73560 - BELT ASSY, REAR NO.2 SEAT, OUTER RH | ||||
| 73560-28300B0 |
ACR30,40,MCR30,40..G,J,X BLUISH GRAY,TRIM11 |
1 | ||
| 73560-28320B1 |
ACR30,40,MCR30,40..G,J,X GRAY,TRIM12 |
1 | ||
| 73560-28320B0 |
ACR30,40,MCR30,40..G,J,X BLUISH GRAY,TRIM11 |
1 | ||
| 73560-28300B1 |
ACR30,40,MCR30,40..G,J,X GRAY,TRIM12 |
1 | ||
| 73560-28340A1 |
ACR40..G,X;ACR30,MCR30,40..G,J,X IVORY,TRIM0# |
1 | ||
| 73570 - BELT ASSY, REAR NO.2 SEAT, OUTER LH | ||||
| 73570-28300B0 |
ACR30,40,MCR30,40..G,J,X BLUISH GRAY,TRIM11 |
1 | ||
| 73570-28320B0 |
ACR30,40,MCR30,40..G,J,X BLUISH GRAY,TRIM11 |
1 | ||
| 73570-28320B1 |
ACR30,40,MCR30,40..G,J,X GRAY,TRIM12 |
1 | ||
| 73570-28300B1 |
ACR30,40,MCR30,40..G,J,X GRAY,TRIM12 |
1 | ||
| 73570-28340A1 |
ACR40..G,X;ACR30,MCR30,40..G,J,X IVORY,TRIM0# |
1 | ||
| 73580 - BELT ASSY, REAR NO.2 SEAT, INNER RH | ||||
| 73380-28280B0 |
ACR30,40,MCR30,40..G,J,X BLUISH GRAY,TRIM11 |
1 | ||
| 73380-28370A0 |
ACR40..G,X;ACR30,MCR30,40..G,J,X IVORY,TRIM0# |
1 | ||
| 73380-28280B1 |
ACR30,40,MCR30,40..G,J,X GRAY,TRIM12 |
1 | ||
| 73590 - BELT ASSY, REAR NO.2 SEAT, INNER LH | ||||
| 73590-28120A0 |
ACR40..G,X;ACR30,MCR30,40..G,J,X IVORY,TRIM0# |
1 | ||
| 73590-28090B1 |
ACR30,40,MCR30,40..G,J,X GRAY,TRIM12 |
1 | ||
| 73590-28090B0 |
ACR30,40,MCR30,40..G,J,X BLUISH GRAY,TRIM11 |
1 | ||
| Common parts | ||||
| 90105-11038 | ||||
| 90105-11058 | ||||
ILLUST NO. 3 OF 3(9912-0304)
ﾘﾔ NO.2 ｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73560 - BELT ASSY, REAR NO.2 SEAT, OUTER RH | ||||
| 73560-28300B0 |
ACR30,40,MCR30,40..G,J,X BLUISH GRAY,TRIM11 |
1 | ||
| 73560-28320B1 |
ACR30,40,MCR30,40..G,J,X GRAY,TRIM12 |
1 | ||
| 73560-28320B0 |
ACR30,40,MCR30,40..G,J,X BLUISH GRAY,TRIM11 |
1 | ||
| 73560-28300B1 |
ACR30,40,MCR30,40..G,J,X GRAY,TRIM12 |
1 | ||
| 73560-28340A1 |
ACR40..G,X;ACR30,MCR30,40..G,J,X IVORY,TRIM0# |
1 | ||
| 73570 - BELT ASSY, REAR NO.2 SEAT, OUTER LH | ||||
| 73570-28300B0 |
ACR30,40,MCR30,40..G,J,X BLUISH GRAY,TRIM11 |
1 | ||
| 73570-28320B0 |
ACR30,40,MCR30,40..G,J,X BLUISH GRAY,TRIM11 |
1 | ||
| 73570-28320B1 |
ACR30,40,MCR30,40..G,J,X GRAY,TRIM12 |
1 | ||
| 73570-28300B1 |
ACR30,40,MCR30,40..G,J,X GRAY,TRIM12 |
1 | ||
| 73570-28340A1 |
ACR40..G,X;ACR30,MCR30,40..G,J,X IVORY,TRIM0# |
1 | ||
| 73580 - BELT ASSY, REAR NO.2 SEAT, INNER RH | ||||
| 73380-28280B0 |
ACR30,40,MCR30,40..G,J,X BLUISH GRAY,TRIM11 |
1 | ||
| 73380-28370A0 |
ACR40..G,X;ACR30,MCR30,40..G,J,X IVORY,TRIM0# |
1 | ||
| 73380-28280B1 |
ACR30,40,MCR30,40..G,J,X GRAY,TRIM12 |
1 | ||
| 73590 - BELT ASSY, REAR NO.2 SEAT, INNER LH | ||||
| 73590-28120A0 |
ACR40..G,X;ACR30,MCR30,40..G,J,X IVORY,TRIM0# |
1 | ||
| 73590-28090B1 |
ACR30,40,MCR30,40..G,J,X GRAY,TRIM12 |
1 | ||
| 73590-28090B0 |
ACR30,40,MCR30,40..G,J,X BLUISH GRAY,TRIM11 |
1 | ||
| Common parts | ||||
| 90105-11036 | ||||
| 90105-11038 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
