Toyota Estima t/l ACR30 HEATING & AIR CONDITIONING - COOLER PIPING

Manufacturers Home
Toyota
JP
ESTIMA T/L
ACR30W-MRSQK (2000)
8718 - HEATING & AIR CONDITIONING - COOLER PIPING

ACR30W-MRSQK (2000)

Toyota Estima T/L

Production Feb 2000 - Jan 2006

Engine 2AZFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

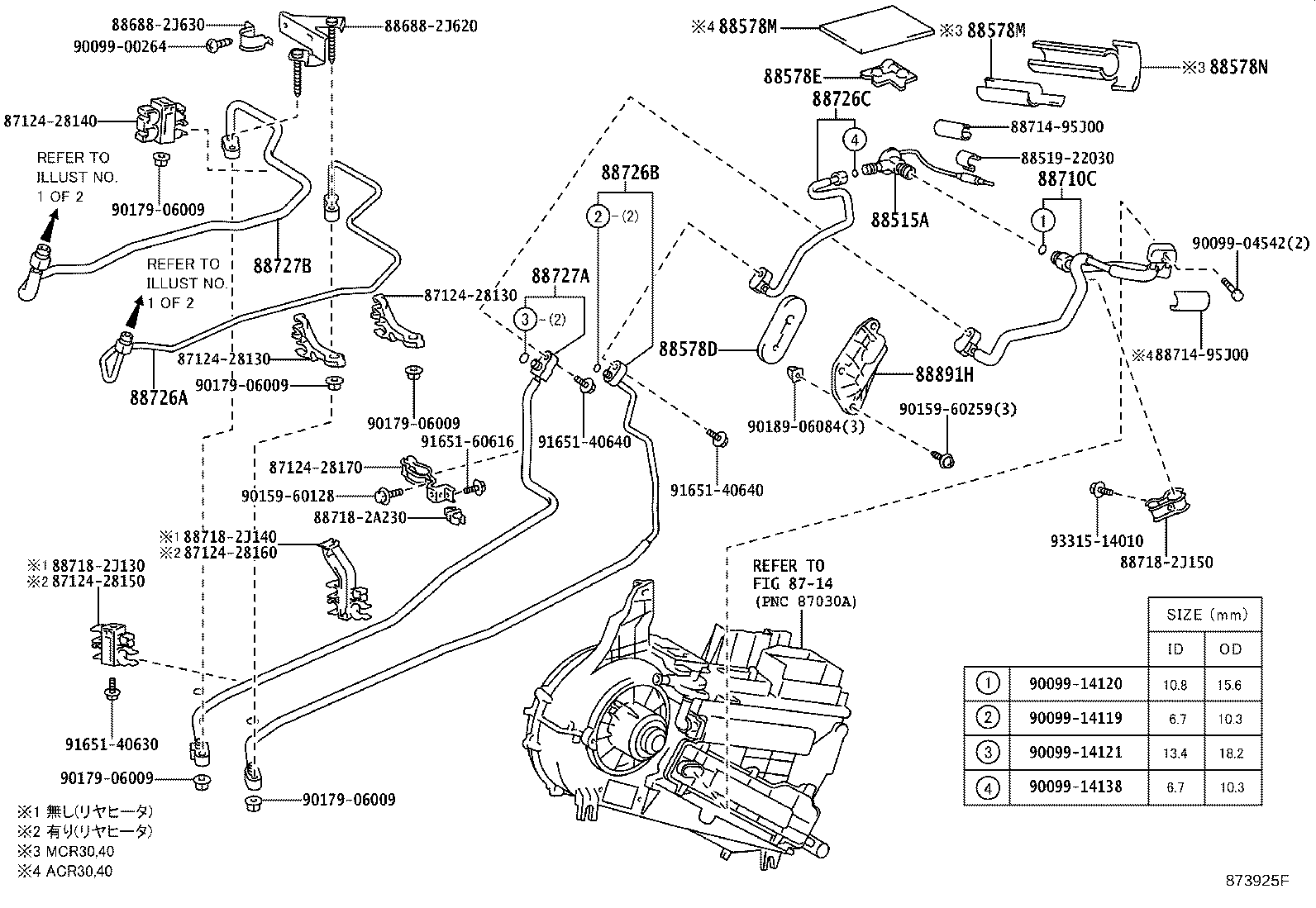

ILLUST NO. 2 OF 2(9912-0304)

Click highlighted areas on diagram

ﾘﾔ

Part #	Description	Period	Qty
88515A - VALVE, COOLER EXPANSION
88515-08030	ACR30,40	02/2000 - 04/2003	1
88515-58020	ACR30,40,MCR30,40	04/2003 - 01/2006	1
88578D - PACKING, COOLER PIPE, NO.1
88578-28300	ACR30,40,MCR30,40	12/1999 - 04/2003	1
88578-28300	ACR30,40,MCR30,40	04/2003 - 01/2006	1
88578E - PACKING, COOLER PIPE, NO.2
88578-28310	ACR30,40,MCR30,40	12/1999 - 04/2003	1
88578M - PACKING, COOLING PIPE, NO.3
88578-28340	ACR30,40	02/2000 - 04/2003	1
88578-28430	ACR30,40,MCR30,40	04/2003 - 01/2006	1
88578M - PACKING, COOLING PIPE, NO.3
88578-28340	ACR30,40	02/2000 - 04/2003	1
88578-28430	ACR30,40,MCR30,40	04/2003 - 01/2006	1
88710C - TUBE ASSY, AIR CONDITIONER
88710-2R620	ACR30,40	02/2000 - 04/2003	1
88710-2R620	ACR30,40	04/2003 - 01/2006	1
88726A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-2X050	ACR30,40,MCR30,40	12/1999 - 04/2003	1
88716-2X050	ACR30,40,MCR30,40	04/2003 - 01/2006	1
88726B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-2X370	ACR30,40,MCR30,40..AERAS,AERSS,G,X ｱﾘ(ｵｰﾄｽﾗｲﾄﾞﾄﾞｱ & ﾘﾔﾋｰﾀ) OR ｱﾘ(ｵｰﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 01/2006	1
88716-2X060	ACR30,40,MCR30,40 ｱﾘ(ﾘﾔﾋ-ﾀ)	04/2003 - 01/2006	1
88716-2X060	ACR30,40,MCR30,40 ｱﾘ(ﾘﾔﾋ-ﾀ)	12/1999 - 04/2003	1
88726C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-2X090	ACR30,40,MCR30,40	04/2003 - 01/2006	1
88716-2X090	ACR30,40,MCR30,40	12/1999 - 04/2003	1
88727A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-2R190	ACR30,40,MCR30,40	12/1999 - 04/2003	1
88715-28510	ACR30,40,MCR30,40	04/2003 - 01/2006	1
88715-28540	ACR30,40,MCR30,40..AERAS,AERSS,G,X ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 01/2006	1
88727B - PIPE, COOLER REFRIGERANT SUCTION, B
88715-28500	ACR30,40,MCR30,40	04/2003 - 01/2006	1
88717-2R180	ACR30,40,MCR30,40	12/1999 - 04/2003	1
88891H - COVER, COOLER, NO.1
88891-28050	ACR30,40,MCR30,40	04/2003 - 01/2006	1
88891-28050	ACR30,40,MCR30,40	12/1999 - 04/2003	1
Common parts
87124-28130
87124-28140
87124-28150
87124-28160
87124-28170
88519-22030
88688-2J620
88688-2J630
88714-95J00
88718-2A230
88718-2J130
88718-2J140
88718-2J150
90099-00264
90099-04542
90099-14119
90099-14120
90099-14121
90099-14138
90159-60128
90159-60259
90179-06009
90189-06084
91651-40630
91651-40640
91651-60616
93315-14010
Linked diagrams
8714

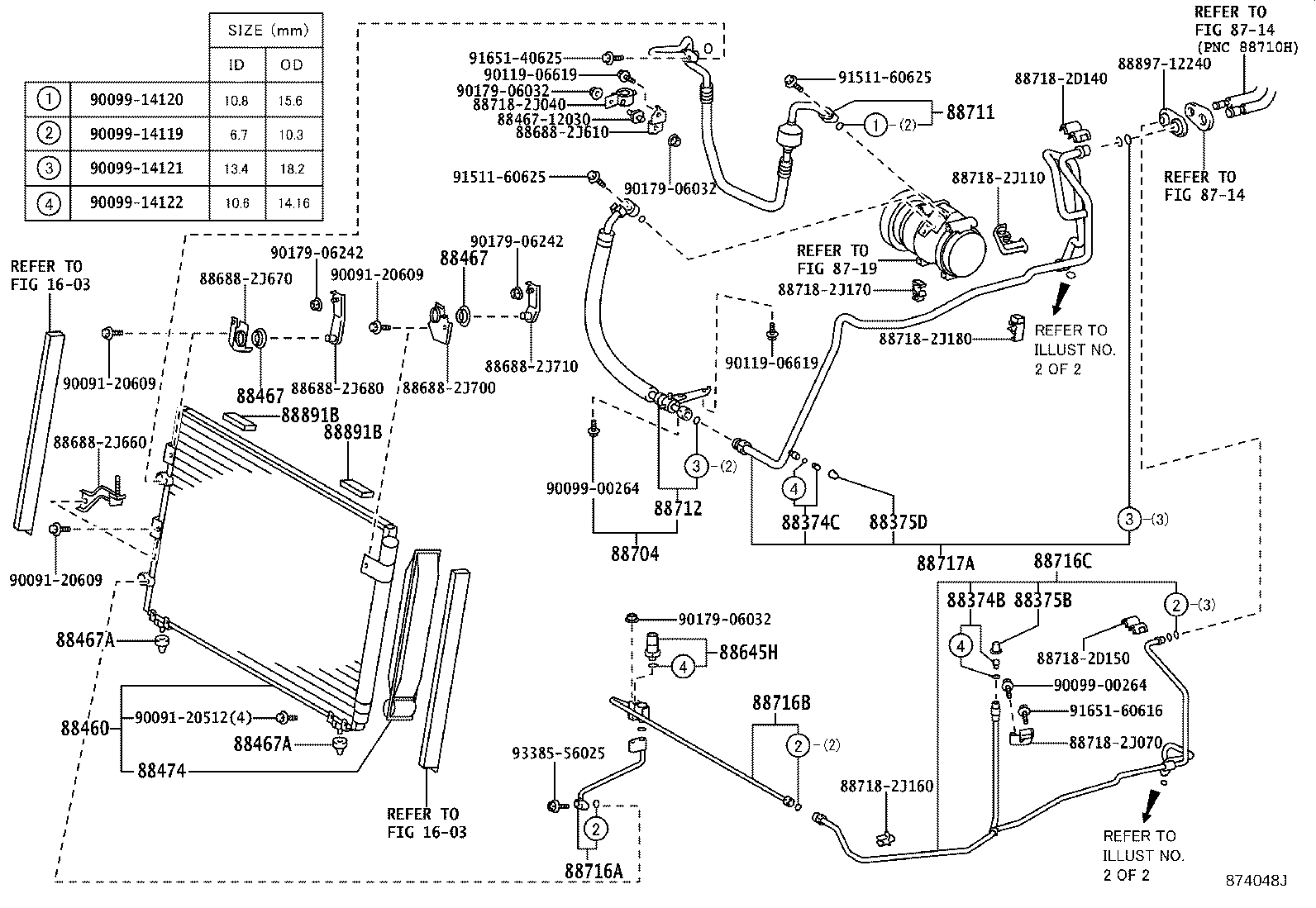

ILLUST NO. 1 OF 2(0002-0304)ACR30,40

Click highlighted areas on diagram

ﾌﾛﾝﾄ

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	ACR30,40,MCR30,40	12/1999 - 04/2003	1
88374C - VALVE, SERVICE, NO.2
88374-30010	ACR30,40,MCR30,40	12/1999 - 04/2003	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30280	ACR30,40,MCR30,40	12/1999 - 04/2003	1
88375D - CAP, SERVICE VALVE, NO.2
88375-30290	ACR30,40,MCR30,40	12/1999 - 04/2003	1
88460 - CONDENSER ASSY, COOLER
88460-28550	ACR30,40,MCR30,40	04/2003 - 01/2006	1
88460-28550	ACR30,40,MCR30,40	12/1999 - 04/2003	1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28050	ACR30,40,MCR30,40	12/1999 - 04/2003	2
88467-28050	ACR30,40,MCR30,40	04/2003 - 01/2006	2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28050	ACR30,40,MCR30,40	12/1999 - 04/2003	2
88467-28050	ACR30,40,MCR30,40	04/2003 - 01/2006	2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-28040	ACR30,40,MCR30,40	04/2003 - 01/2006	2
88467-28040	ACR30,40,MCR30,40	12/1999 - 04/2003	2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-28040	ACR30,40,MCR30,40	04/2003 - 01/2006	2
88467-28040	ACR30,40,MCR30,40	12/1999 - 04/2003	2
88474 - DRYER, COOLER
88474-47010	ACR30,40,MCR30,40	04/2003 - 12/2999	1
88474-47010	ACR30,40,MCR30,40	12/1999 - 04/2003	1
88645H - SWITCH, PRESSURE NO.1
88645-60030	ACR30,40,MCR30,40	12/1999 - 04/2003	1
88704 - HOSE SUB-ASSY, SUCTION
88704-28170	ACR30,40	04/2003 - 01/2006	1
88704-28100	ACR30,40	02/2000 - 04/2003	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-2J190	ACR30,40	04/2003 - 01/2006	1
88711-2J140	ACR30,40	02/2000 - 04/2003	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-28670	ACR30,40	02/2000 - 04/2003	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-2R860	ACR30,40,MCR30,40	12/1999 - 04/2003	1
88716-2R860	ACR30,40,MCR30,40	04/2003 - 01/2006	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-2R870	ACR30,40,MCR30,40	12/1999 - 04/2003	1
88710-2R840	ACR30,40	04/2003 - 01/2006	1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88710-2X060	ACR30,40	04/2003 - 01/2006	1
88716-2X020	ACR30,40	02/2000 - 04/2003	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-2R380	ACR30	04/2003 - 01/2006	1
88717-2R130	ACR30	02/2000 - 04/2003	1
88891B - PACKING B (FOR COOLER)
88578-28350	ACR30,40,MCR30,40	12/1999 - 04/2003	2
88578-28350	ACR30,40,MCR30,40	04/2003 - 01/2006	2
88891B - PACKING B (FOR COOLER)
88578-28350	ACR30,40,MCR30,40	12/1999 - 04/2003	2
88578-28350	ACR30,40,MCR30,40	04/2003 - 01/2006	2
Common parts
88467-12030
88688-2J610
88688-2J660
88688-2J670
88688-2J680
88688-2J700
88688-2J710
88718-2D140
88718-2D150
88718-2J040
88718-2J070
88718-2J110
88718-2J160
88718-2J170
88718-2J180
88897-12240
90091-20512
90091-20609
90099-00264
90099-14119
90099-14120
90099-14121
90099-14122
90119-06619
90179-06032
90179-06242
91511-60625
91651-40625
91651-60616
93385-56025
Linked diagrams
1603
8714
8719

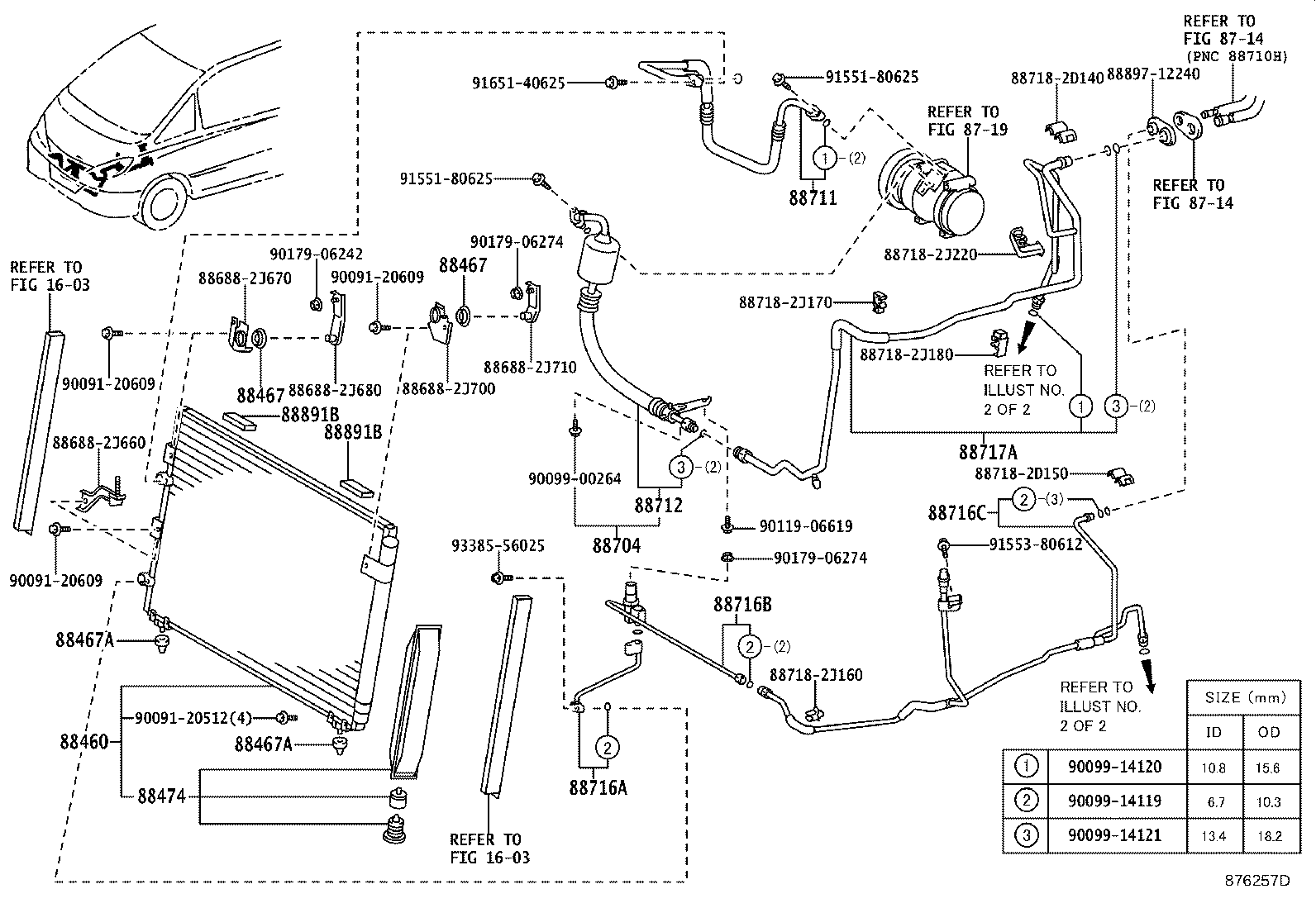

ILLUST NO. 1 OF 2(0304- )ACR30,40

Click highlighted areas on diagram

ﾌﾛﾝﾄ

Part #	Description	Period	Qty
88460 - CONDENSER ASSY, COOLER
88460-28550	ACR30,40,MCR30,40	04/2003 - 01/2006	1
88460-28550	ACR30,40,MCR30,40	12/1999 - 04/2003	1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28050	ACR30,40,MCR30,40	12/1999 - 04/2003	2
88467-28050	ACR30,40,MCR30,40	04/2003 - 01/2006	2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28050	ACR30,40,MCR30,40	12/1999 - 04/2003	2
88467-28050	ACR30,40,MCR30,40	04/2003 - 01/2006	2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-28040	ACR30,40,MCR30,40	04/2003 - 01/2006	2
88467-28040	ACR30,40,MCR30,40	12/1999 - 04/2003	2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-28040	ACR30,40,MCR30,40	04/2003 - 01/2006	2
88467-28040	ACR30,40,MCR30,40	12/1999 - 04/2003	2
88474 - DRYER, COOLER
88474-47010	ACR30,40,MCR30,40	04/2003 - 12/2999	1
88474-47010	ACR30,40,MCR30,40	12/1999 - 04/2003	1
88704 - HOSE SUB-ASSY, SUCTION
88704-28170	ACR30,40	04/2003 - 01/2006	1
88704-28100	ACR30,40	02/2000 - 04/2003	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-2J190	ACR30,40	04/2003 - 01/2006	1
88711-2J140	ACR30,40	02/2000 - 04/2003	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-28670	ACR30,40	02/2000 - 04/2003	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-2R860	ACR30,40,MCR30,40	12/1999 - 04/2003	1
88716-2R860	ACR30,40,MCR30,40	04/2003 - 01/2006	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-2R870	ACR30,40,MCR30,40	12/1999 - 04/2003	1
88710-2R840	ACR30,40	04/2003 - 01/2006	1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88710-2X060	ACR30,40	04/2003 - 01/2006	1
88716-2X020	ACR30,40	02/2000 - 04/2003	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-2R380	ACR30	04/2003 - 01/2006	1
88717-2R130	ACR30	02/2000 - 04/2003	1
88891B - PACKING B (FOR COOLER)
88578-28350	ACR30,40,MCR30,40	12/1999 - 04/2003	2
88578-28350	ACR30,40,MCR30,40	04/2003 - 01/2006	2
88891B - PACKING B (FOR COOLER)
88578-28350	ACR30,40,MCR30,40	12/1999 - 04/2003	2
88578-28350	ACR30,40,MCR30,40	04/2003 - 01/2006	2
Common parts
88688-2J660
88688-2J670
88688-2J680
88688-2J700
88688-2J710
88718-2D140
88718-2D150
88718-2J160
88718-2J170
88718-2J180
88718-2J220
88897-12240
90091-20512
90091-20609
90099-00264
90099-14119
90099-14120
90099-14121
90119-06619
90179-06242
90179-06274
91551-80625
91553-80612
91651-40625
93385-56025
Linked diagrams
1603
8714
8719

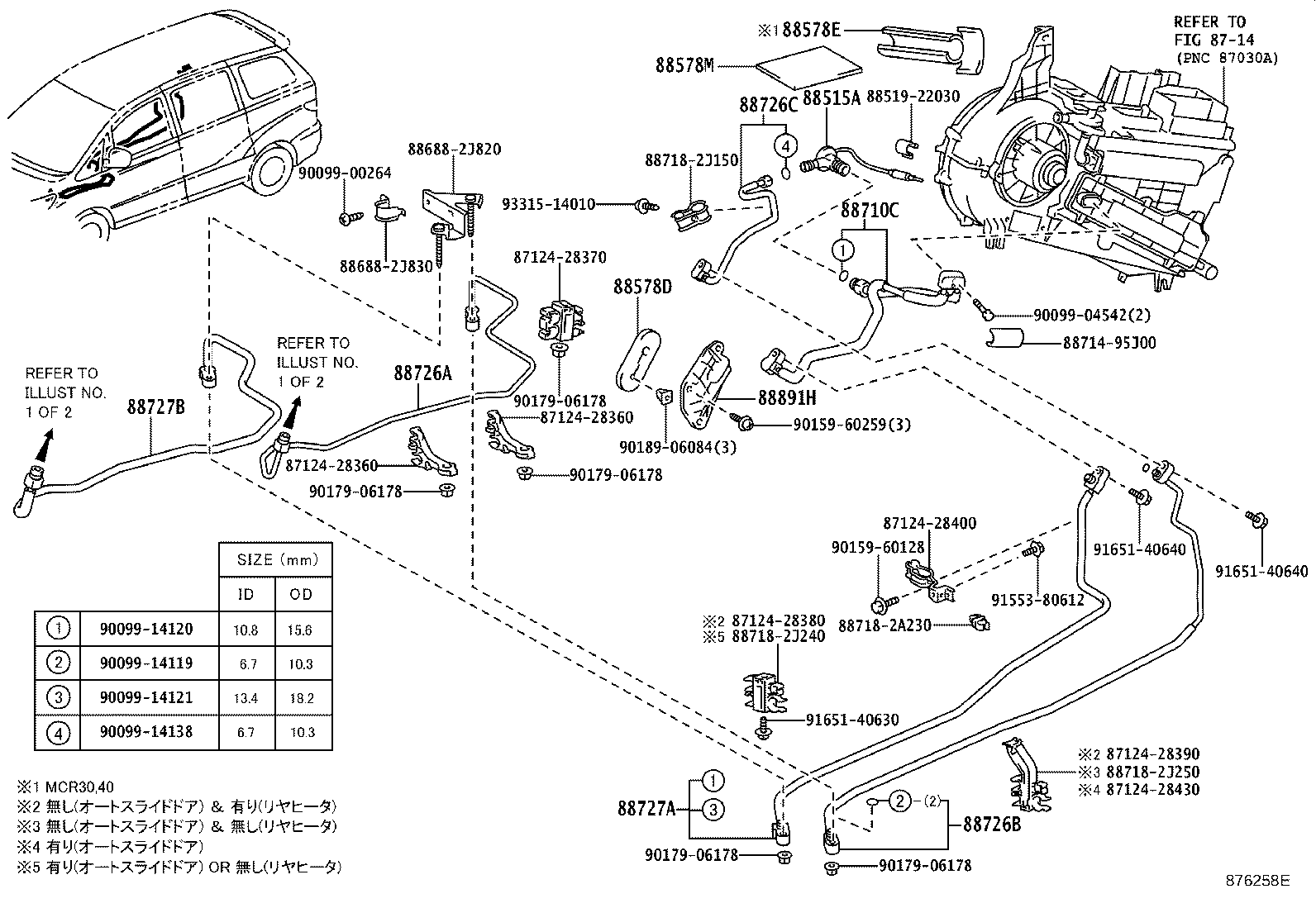

ILLUST NO. 2 OF 2(0304- )

Click highlighted areas on diagram

ﾘﾔ

Part #	Description	Period	Qty
88515A - VALVE, COOLER EXPANSION
88515-08030	ACR30,40	02/2000 - 04/2003	1
88515-58020	ACR30,40,MCR30,40	04/2003 - 01/2006	1
88578D - PACKING, COOLER PIPE, NO.1
88578-28300	ACR30,40,MCR30,40	12/1999 - 04/2003	1
88578-28300	ACR30,40,MCR30,40	04/2003 - 01/2006	1
88578E - PACKING, COOLER PIPE, NO.2
88578-28310	ACR30,40,MCR30,40	12/1999 - 04/2003	1
88578M - PACKING, COOLING PIPE, NO.3
88578-28340	ACR30,40	02/2000 - 04/2003	1
88578-28430	ACR30,40,MCR30,40	04/2003 - 01/2006	1
88710C - TUBE ASSY, AIR CONDITIONER
88710-2R620	ACR30,40	02/2000 - 04/2003	1
88710-2R620	ACR30,40	04/2003 - 01/2006	1
88726A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-2X050	ACR30,40,MCR30,40	12/1999 - 04/2003	1
88716-2X050	ACR30,40,MCR30,40	04/2003 - 01/2006	1
88726B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-2X370	ACR30,40,MCR30,40..AERAS,AERSS,G,X ｱﾘ(ｵｰﾄｽﾗｲﾄﾞﾄﾞｱ & ﾘﾔﾋｰﾀ) OR ｱﾘ(ｵｰﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 01/2006	1
88716-2X060	ACR30,40,MCR30,40 ｱﾘ(ﾘﾔﾋ-ﾀ)	04/2003 - 01/2006	1
88716-2X060	ACR30,40,MCR30,40 ｱﾘ(ﾘﾔﾋ-ﾀ)	12/1999 - 04/2003	1
88726C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-2X090	ACR30,40,MCR30,40	04/2003 - 01/2006	1
88716-2X090	ACR30,40,MCR30,40	12/1999 - 04/2003	1
88727A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-2R190	ACR30,40,MCR30,40	12/1999 - 04/2003	1
88715-28510	ACR30,40,MCR30,40	04/2003 - 01/2006	1
88715-28540	ACR30,40,MCR30,40..AERAS,AERSS,G,X ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ)	04/2003 - 01/2006	1
88727B - PIPE, COOLER REFRIGERANT SUCTION, B
88715-28500	ACR30,40,MCR30,40	04/2003 - 01/2006	1
88717-2R180	ACR30,40,MCR30,40	12/1999 - 04/2003	1
88891H - COVER, COOLER, NO.1
88891-28050	ACR30,40,MCR30,40	04/2003 - 01/2006	1
88891-28050	ACR30,40,MCR30,40	12/1999 - 04/2003	1
Common parts
87124-28360
87124-28370
87124-28380
87124-28390
87124-28400
87124-28430
88519-22030
88688-2J820
88688-2J830
88714-95J00
88718-2A230
88718-2J150
88718-2J240
88718-2J250
90099-00264
90099-04542
90099-14119
90099-14120
90099-14121
90099-14138
90159-60128
90159-60259
90179-06178
90189-06084
91553-80612
91651-40630
91651-40640
93315-14010
Linked diagrams
8714

ACR30W-MRSQK (2000)

ILLUST NO. 2 OF 2(9912-0304)

ILLUST NO. 1 OF 2(0002-0304)ACR30,40

ILLUST NO. 1 OF 2(0304- )ACR30,40

ILLUST NO. 2 OF 2(0304- )
