ACR30W-MRSQK (2000)
Toyota Estima T/L
(9912-0304)

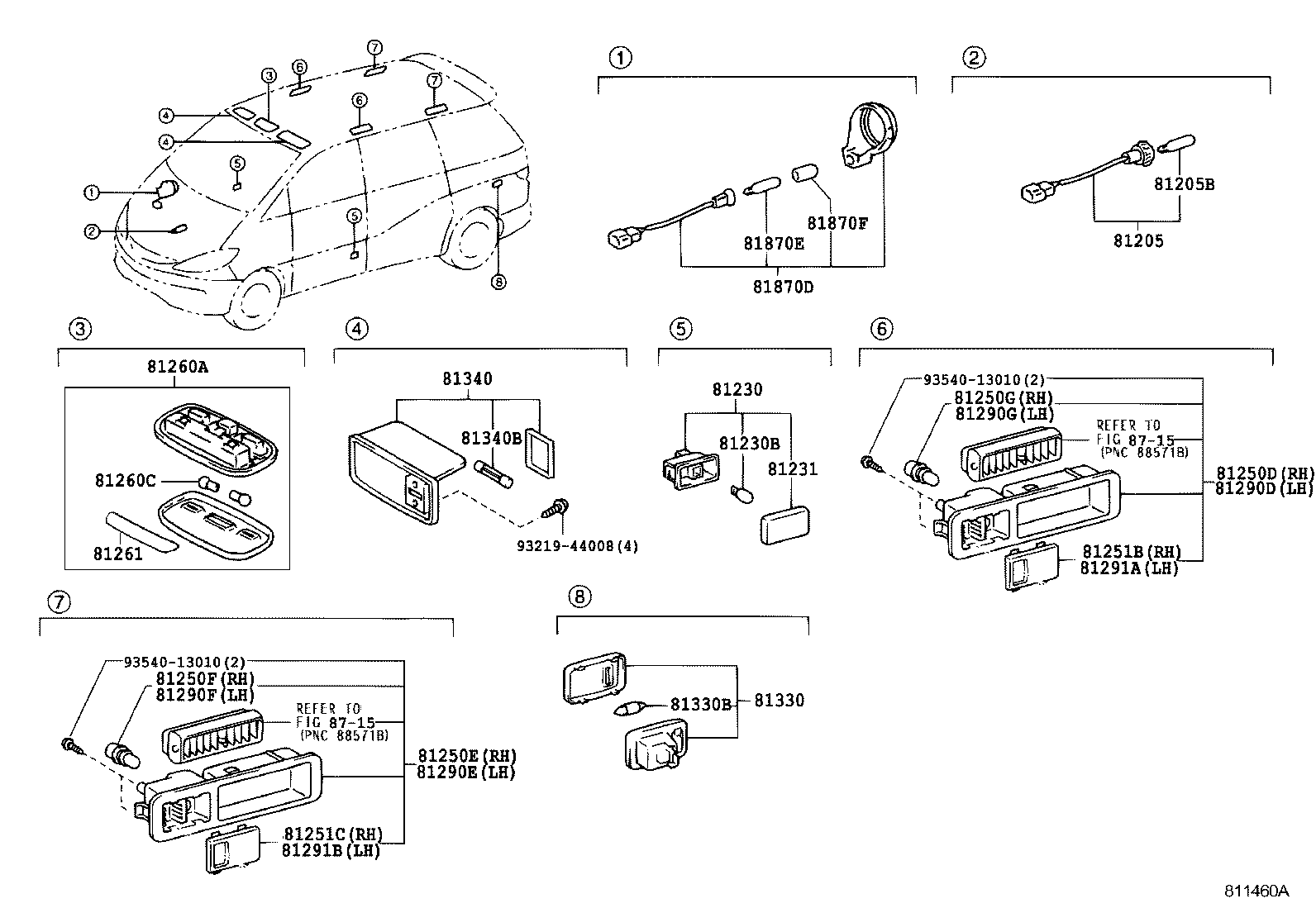

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81205 - LAMP SUB-ASSY, ASH RECEPTACLE | ||||
| 81850-28050 |
ACR30,40,MCR30,40 |
1 | ||
| 81850-28050 |
ACR30,40,MCR30,40 |
1 | ||
| 81205B - BULB, ASH RECEPTACLE LAMP | ||||
| 90981-11014 |
ACR30,40,MCR30,40 14V 1.4W |
1 | ||
| 90981-11014 |
ACR30,40,MCR30,40 14V 1.4W |
1 | ||
| 81230 - LAMP ASSY, COURTESY | ||||
| 81230-30140 |
ACR30,40,MCR30,40..G |
2 | ||
| 81230-30140 |
ACR30,40,MCR30,40..G |
2 | ||
| 81230B - BULB(FOR COURTESY LAMP) | ||||
| 90981-11020 |
ACR30,40,MCR30,40..G 12V 3.8W |
2 | ||
| 90981-11020 |
ACR30,40,MCR30,40..G 12V 3.8W |
2 | ||
| 81231 - LENS, COURTESY LAMP | ||||
| 81231-50010 |
ACR30,40,MCR30,40..G |
2 | ||
| 81231-50010 |
ACR30,40,MCR30,40..G |
2 | ||
| 81250D - LAMP ASSY, REAR ROOM, RH | ||||
| 81250-28100B2 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),LT. BLUISH GRAY,TRIM11 |
1 | ||
| 81250-28060B2 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ﾘﾔ ﾋ-ﾀ),LT. BLUISH GRAY,TRIM11 |
1 | ||
| 81250-28060B3 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ﾘﾔ ﾋ-ﾀ),MD.CHARCOAL,TRIM12 |
1 | ||
| 81250-28100B3 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),MD.CHARCOAL,TRIM12 |
1 | ||
| 81250-28100A0 |
ACR30,40,MCR30,40..G,X ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),IVORY,TRIM0# |
1 | ||
| 81250-28090A0 |
ACR30,40,MCR30,40..G IVORY,TRIM0# |
1 | ||
| 81250E - LAMP ASSY, REAR ROOM, RH NO.2 | ||||
| 81250-28020B2 |
ACR30,40,MCR30,40..G,J,X LT. BLUISH GRAY,TRIM11 |
1 | ||
| 81250-28020A0 |
ACR40..G,X;ACR30,MCR30,40..G,J,X IVORY,TRIM0# |
1 | ||
| 81250-28020B3 |
ACR30,40,MCR30,40..G,J,X MD.CHARCOAL,TRIM12 |
1 | ||
| 81250F - BULB, REAR ROOM LAMP RH NO.2 | ||||
| 81936-28010 |
ACR30,40,MCR30,40 12V 5W |
1 | ||
| 81936-28010 |
ACR30,40,MCR30,40 12V 5W |
1 | ||
| 81250G - BULB, REAR ROOM LAMP, RH | ||||
| 81936-28010 |
ACR30,40,MCR30,40 12V 5W |
1 | ||
| 81936-28010 |
ACR30,40,MCR30,40 12V 5W |
1 | ||
| 81251B - LENS, REAR ROOM LAMP, RH | ||||
| 81251-28040 |
ACR30,40,MCR30,40 |
1 | ||
| 81251-28040 |
ACR30,40,MCR30,40 |
1 | ||
| 81251C - LENS, REAR ROOM LAMP, RH NO.2 | ||||
| 81251-28020 |
ACR30,40,MCR30,40 |
1 | ||
| 81251-28020 |
ACR30,40,MCR30,40 |
1 | ||
| 81260A - LAMP ASSY, MAP | ||||
| 81260-16061A0 |
ACR40..G,X;ACR30,MCR30,40..G,J,X IVORY,TRIM0# |
1 | ||
| 81260-16061B1 |
ACR30,40,MCR30,40..G,J,X MD.CHARCOAL,TRIM12 |
1 | ||
| 81260-16061B2 |
ACR30,40,MCR30,40..G,J,X LT. BLUISH GRAY,TRIM11 |
1 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-12005 |
ACR30,40,MCR30,40 12V 8W |
2 | ||
| 90981-12005 |
ACR30,40,MCR30,40 12V 8W |
2 | ||
| 81261 - LENS AND COVER, MAP LAMP | ||||
| 81261-16060 |
ACR30,40,MCR30,40 |
1 | ||
| 81261-16060 |
ACR30,40,MCR30,40 |
1 | ||
| 81290D - LAMP ASSY, REAR ROOM, LH | ||||
| 81290-28010B2 |
ACR30,40,MCR30,40..G,J,X LT. BLUISH GRAY,TRIM11 |
1 | ||
| 81290-28010B3 |
ACR30,40,MCR30,40..G,J,X MD.CHARCOAL,TRIM12 |
1 | ||
| 81290-28010A0 |
ACR40..G,X;ACR30,MCR30,40..G,J,X IVORY,TRIM0# |
1 | ||
| 81290E - LAMP ASSY, REAR ROOM, LH NO.2 | ||||
| 81290-28010B3 |
ACR30,40,MCR30,40..G,J,X MD.CHARCOAL,TRIM12 |
1 | ||
| 81290-28010A0 |
ACR40..G,X;ACR30,MCR30,40..G,J,X IVORY,TRIM0# |
1 | ||
| 81290-28010B2 |
ACR30,40,MCR30,40..G,J,X LT. BLUISH GRAY,TRIM11 |
1 | ||
| 81290F - BULB, REAR ROOM LAMP LH NO.2 | ||||
| 81936-28010 |
ACR30,40,MCR30,40 12V 5W |
1 | ||
| 81936-28010 |
ACR30,40,MCR30,40 12V 5W |
1 | ||
| 81290G - BULB, REAR ROOM LAMP, LH | ||||
| 81936-28010 |
ACR30,40,MCR30,40 12V 5W |
1 | ||
| 81936-28010 |
ACR30,40,MCR30,40 12V 5W |
1 | ||
| 81291A - LENS, REAR ROOM LAMP, LH | ||||
| 81291-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 81291-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 81291B - LENS, REAR ROOM LAMP, LH NO.2 | ||||
| 81291-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 81291-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1 | ||||
| 81250-95J05B1 |
ACR30,40,MCR30,40..G,J,X LT. BLUISH GRAY,TRIM11 |
1 | ||
| 81250-12030A0 |
ACR40..G,X;ACR30,MCR30,40..G,J,X IVORY,TRIM0# |
1 | ||
| 81250-12030B3 |
ACR30,40,MCR30,40..G,J,X MD.CHARCOAL,TRIM12 |
1 | ||
| 81250-12030B6 |
ACR30,40,MCR30,40..G,J,X LT. BLUISH GRAY,TRIM11 |
1 | ||
| 81250-95J05B2 |
ACR30,40,MCR30,40..G,J,X MD.CHARCOAL,TRIM12 |
1 | ||
| 81330B - BULB, LUGGAGE COMPARTMENT LAMP | ||||
| 99132-13050 |
ACR30,40,MCR30,40 12V 5W |
1 | ||
| 99132-13050 |
ACR30,40,MCR30,40 12V 5W |
1 | ||
| 81340 - LAMP ASSY, VANITY | ||||
| 81340-33090B3 |
ACR30,40,MCR30,40..G MD.CHARCOAL,TRIM12,右側 |
1 | ||
| 81350-33040B6 |
ACR30,40,MCR30,40..G LT.BLUISH GRAY,TRIM11,左側 |
1 | ||
| 81350-33040A1 |
ACR30,40,MCR30,40..G IVORY,TRIM0#,左側 |
1 | ||
| 81340-33090B6 |
ACR30,40,MCR30,40..G LT.BLUISH GRAY,TRIM11,右側 |
1 | ||
| 81340-33090A1 |
ACR30,40,MCR30,40..G IVORY,TRIM0#,右側 |
1 | ||
| 81350-33040B3 |
ACR30,40,MCR30,40..G MD.CHARCOAL,TRIM12,左側 |
1 | ||
| 81340B - BULB (FOR VANITY LAMP) | ||||
| 90981-14003 |
ACR30,40,MCR30,40..G 12V 1.5W |
2 | ||
| 90981-14003 |
ACR30,40,MCR30,40..G 12V 1.5W |
2 | ||
| 81870D - LAMP ASSY, KEY CYLINDER | ||||
| 81870-28040 |
ACR40..J;ACR30,MCR30..08S..(G,J,X) |
1 | ||
| 81870-28040 |
ACR30,40,MCR30,40 |
1 | ||
| 81870E - BULB, KEY CYLINDER LAMP | ||||
| 90981-11014 |
ACR40..J;ACR30,MCR30..08S..(G,J,X) 14V 1.4W |
1 | ||
| 90981-11014 |
ACR30,40,MCR30,40 14V 1.4W |
1 | ||
| 81870F - CAP, KEY CYLINDER LAMP BULB | ||||
| 84998-10070 |
ACR40..J;ACR30,MCR30..08S..(G,J,X) |
1 | ||
| 84998-10070 |
ACR30,40,MCR30,40 |
1 | ||
| Common parts | ||||
| 93219-44008 | ||||
| 93540-13010 | ||||
| Linked diagrams | ||||
| 8715 | ||||

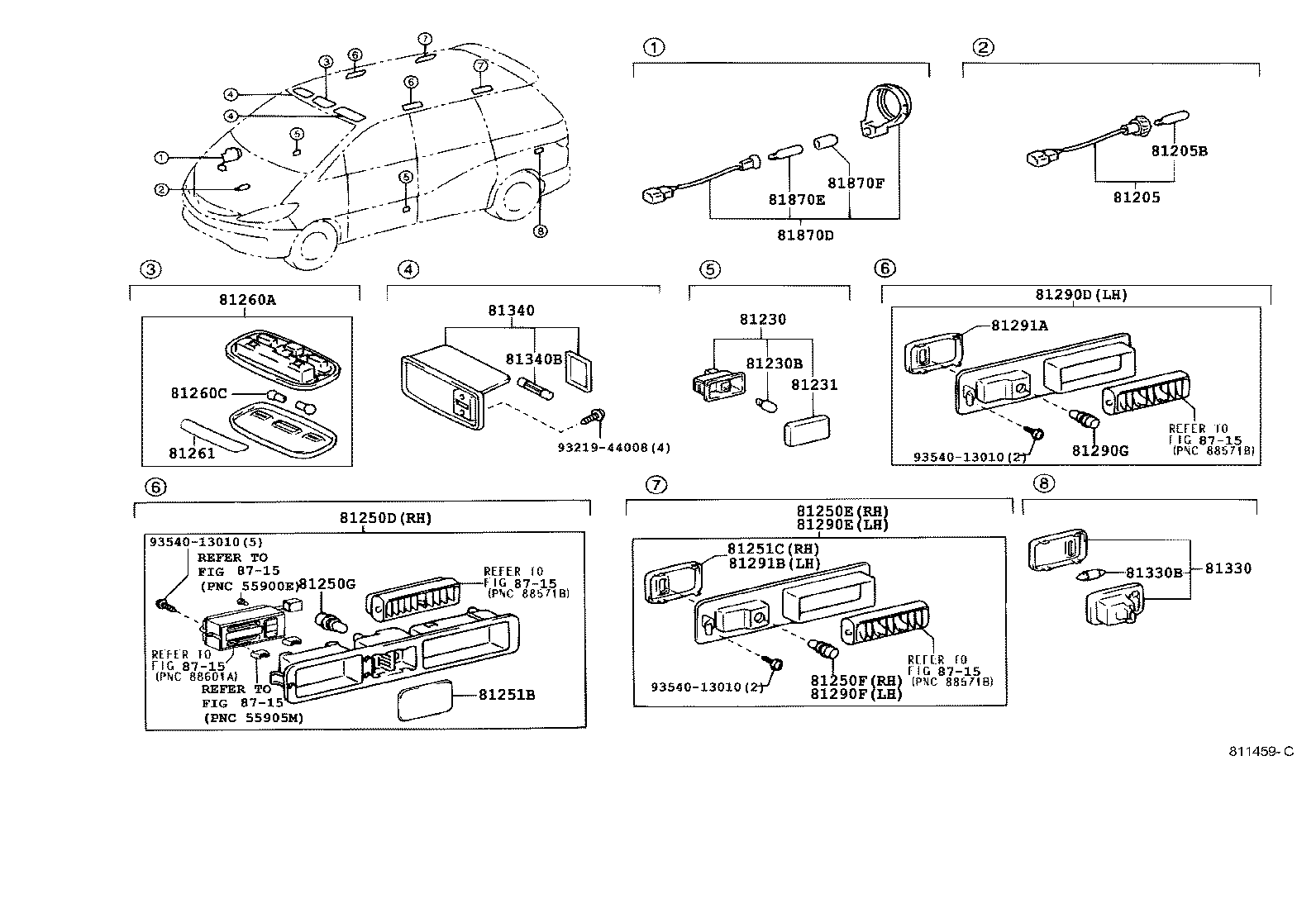

(9912-0304)
ｱﾘ(ﾂｲﾝ ﾑ-ﾝ ﾙ-ﾌ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81205 - LAMP SUB-ASSY, ASH RECEPTACLE | ||||
| 81850-28050 |
ACR30,40,MCR30,40 |
1 | ||
| 81850-28050 |
ACR30,40,MCR30,40 |
1 | ||
| 81205B - BULB, ASH RECEPTACLE LAMP | ||||
| 90981-11014 |
ACR30,40,MCR30,40 14V 1.4W |
1 | ||
| 90981-11014 |
ACR30,40,MCR30,40 14V 1.4W |
1 | ||
| 81230 - LAMP ASSY, COURTESY | ||||
| 81230-30140 |
ACR30,40,MCR30,40..G |
2 | ||
| 81230-30140 |
ACR30,40,MCR30,40..G |
2 | ||
| 81230B - BULB(FOR COURTESY LAMP) | ||||
| 90981-11020 |
ACR30,40,MCR30,40..G 12V 3.8W |
2 | ||
| 90981-11020 |
ACR30,40,MCR30,40..G 12V 3.8W |
2 | ||
| 81231 - LENS, COURTESY LAMP | ||||
| 81231-50010 |
ACR30,40,MCR30,40..G |
2 | ||
| 81231-50010 |
ACR30,40,MCR30,40..G |
2 | ||
| 81250D - LAMP ASSY, REAR ROOM, RH | ||||
| 81250-28100B2 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),LT. BLUISH GRAY,TRIM11 |
1 | ||
| 81250-28060B2 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ﾘﾔ ﾋ-ﾀ),LT. BLUISH GRAY,TRIM11 |
1 | ||
| 81250-28060B3 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ﾘﾔ ﾋ-ﾀ),MD.CHARCOAL,TRIM12 |
1 | ||
| 81250-28100B3 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),MD.CHARCOAL,TRIM12 |
1 | ||
| 81250-28100A0 |
ACR30,40,MCR30,40..G,X ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),IVORY,TRIM0# |
1 | ||
| 81250-28090A0 |
ACR30,40,MCR30,40..G IVORY,TRIM0# |
1 | ||
| 81250E - LAMP ASSY, REAR ROOM, RH NO.2 | ||||
| 81250-28020B2 |
ACR30,40,MCR30,40..G,J,X LT. BLUISH GRAY,TRIM11 |
1 | ||
| 81250-28020A0 |
ACR40..G,X;ACR30,MCR30,40..G,J,X IVORY,TRIM0# |
1 | ||
| 81250-28020B3 |
ACR30,40,MCR30,40..G,J,X MD.CHARCOAL,TRIM12 |
1 | ||
| 81250F - BULB, REAR ROOM LAMP RH NO.2 | ||||
| 81936-28010 |
ACR30,40,MCR30,40 12V 5W |
1 | ||
| 81936-28010 |
ACR30,40,MCR30,40 12V 5W |
1 | ||
| 81250G - BULB, REAR ROOM LAMP, RH | ||||
| 81936-28010 |
ACR30,40,MCR30,40 12V 5W |
1 | ||
| 81936-28010 |
ACR30,40,MCR30,40 12V 5W |
1 | ||
| 81251B - LENS, REAR ROOM LAMP, RH | ||||
| 81251-28040 |
ACR30,40,MCR30,40 |
1 | ||
| 81251-28040 |
ACR30,40,MCR30,40 |
1 | ||
| 81251C - LENS, REAR ROOM LAMP, RH NO.2 | ||||
| 81251-28020 |
ACR30,40,MCR30,40 |
1 | ||
| 81251-28020 |
ACR30,40,MCR30,40 |
1 | ||
| 81260A - LAMP ASSY, MAP | ||||
| 81260-16061A0 |
ACR40..G,X;ACR30,MCR30,40..G,J,X IVORY,TRIM0# |
1 | ||
| 81260-16061B1 |
ACR30,40,MCR30,40..G,J,X MD.CHARCOAL,TRIM12 |
1 | ||
| 81260-16061B2 |
ACR30,40,MCR30,40..G,J,X LT. BLUISH GRAY,TRIM11 |
1 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-12005 |
ACR30,40,MCR30,40 12V 8W |
2 | ||
| 90981-12005 |
ACR30,40,MCR30,40 12V 8W |
2 | ||
| 81261 - LENS AND COVER, MAP LAMP | ||||
| 81261-16060 |
ACR30,40,MCR30,40 |
1 | ||
| 81261-16060 |
ACR30,40,MCR30,40 |
1 | ||
| 81290D - LAMP ASSY, REAR ROOM, LH | ||||
| 81290-28010B2 |
ACR30,40,MCR30,40..G,J,X LT. BLUISH GRAY,TRIM11 |
1 | ||
| 81290-28010B3 |
ACR30,40,MCR30,40..G,J,X MD.CHARCOAL,TRIM12 |
1 | ||
| 81290-28010A0 |
ACR40..G,X;ACR30,MCR30,40..G,J,X IVORY,TRIM0# |
1 | ||
| 81290E - LAMP ASSY, REAR ROOM, LH NO.2 | ||||
| 81290-28010B3 |
ACR30,40,MCR30,40..G,J,X MD.CHARCOAL,TRIM12 |
1 | ||
| 81290-28010A0 |
ACR40..G,X;ACR30,MCR30,40..G,J,X IVORY,TRIM0# |
1 | ||
| 81290-28010B2 |
ACR30,40,MCR30,40..G,J,X LT. BLUISH GRAY,TRIM11 |
1 | ||
| 81290F - BULB, REAR ROOM LAMP LH NO.2 | ||||
| 81936-28010 |
ACR30,40,MCR30,40 12V 5W |
1 | ||
| 81936-28010 |
ACR30,40,MCR30,40 12V 5W |
1 | ||
| 81290G - BULB, REAR ROOM LAMP, LH | ||||
| 81936-28010 |
ACR30,40,MCR30,40 12V 5W |
1 | ||
| 81936-28010 |
ACR30,40,MCR30,40 12V 5W |
1 | ||
| 81291A - LENS, REAR ROOM LAMP, LH | ||||
| 81291-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 81291-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 81291B - LENS, REAR ROOM LAMP, LH NO.2 | ||||
| 81291-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 81291-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1 | ||||
| 81250-95J05B1 |
ACR30,40,MCR30,40..G,J,X LT. BLUISH GRAY,TRIM11 |
1 | ||
| 81250-12030A0 |
ACR40..G,X;ACR30,MCR30,40..G,J,X IVORY,TRIM0# |
1 | ||
| 81250-12030B3 |
ACR30,40,MCR30,40..G,J,X MD.CHARCOAL,TRIM12 |
1 | ||
| 81250-12030B6 |
ACR30,40,MCR30,40..G,J,X LT. BLUISH GRAY,TRIM11 |
1 | ||
| 81250-95J05B2 |
ACR30,40,MCR30,40..G,J,X MD.CHARCOAL,TRIM12 |
1 | ||
| 81330B - BULB, LUGGAGE COMPARTMENT LAMP | ||||
| 99132-13050 |
ACR30,40,MCR30,40 12V 5W |
1 | ||
| 99132-13050 |
ACR30,40,MCR30,40 12V 5W |
1 | ||
| 81340 - LAMP ASSY, VANITY | ||||
| 81340-33090B3 |
ACR30,40,MCR30,40..G MD.CHARCOAL,TRIM12,右側 |
1 | ||
| 81350-33040B6 |
ACR30,40,MCR30,40..G LT.BLUISH GRAY,TRIM11,左側 |
1 | ||
| 81350-33040A1 |
ACR30,40,MCR30,40..G IVORY,TRIM0#,左側 |
1 | ||
| 81340-33090B6 |
ACR30,40,MCR30,40..G LT.BLUISH GRAY,TRIM11,右側 |
1 | ||
| 81340-33090A1 |
ACR30,40,MCR30,40..G IVORY,TRIM0#,右側 |
1 | ||
| 81350-33040B3 |
ACR30,40,MCR30,40..G MD.CHARCOAL,TRIM12,左側 |
1 | ||
| 81340B - BULB (FOR VANITY LAMP) | ||||
| 90981-14003 |
ACR30,40,MCR30,40..G 12V 1.5W |
2 | ||
| 90981-14003 |
ACR30,40,MCR30,40..G 12V 1.5W |
2 | ||
| 81870D - LAMP ASSY, KEY CYLINDER | ||||
| 81870-28040 |
ACR40..J;ACR30,MCR30..08S..(G,J,X) |
1 | ||
| 81870-28040 |
ACR30,40,MCR30,40 |
1 | ||
| 81870E - BULB, KEY CYLINDER LAMP | ||||
| 90981-11014 |
ACR40..J;ACR30,MCR30..08S..(G,J,X) 14V 1.4W |
1 | ||
| 90981-11014 |
ACR30,40,MCR30,40 14V 1.4W |
1 | ||
| 81870F - CAP, KEY CYLINDER LAMP BULB | ||||
| 84998-10070 |
ACR40..J;ACR30,MCR30..08S..(G,J,X) |
1 | ||
| 84998-10070 |
ACR30,40,MCR30,40 |
1 | ||
| Common parts | ||||
| 93219-44008 | ||||
| 93540-13010 | ||||
| Linked diagrams | ||||
| 8715 | ||||

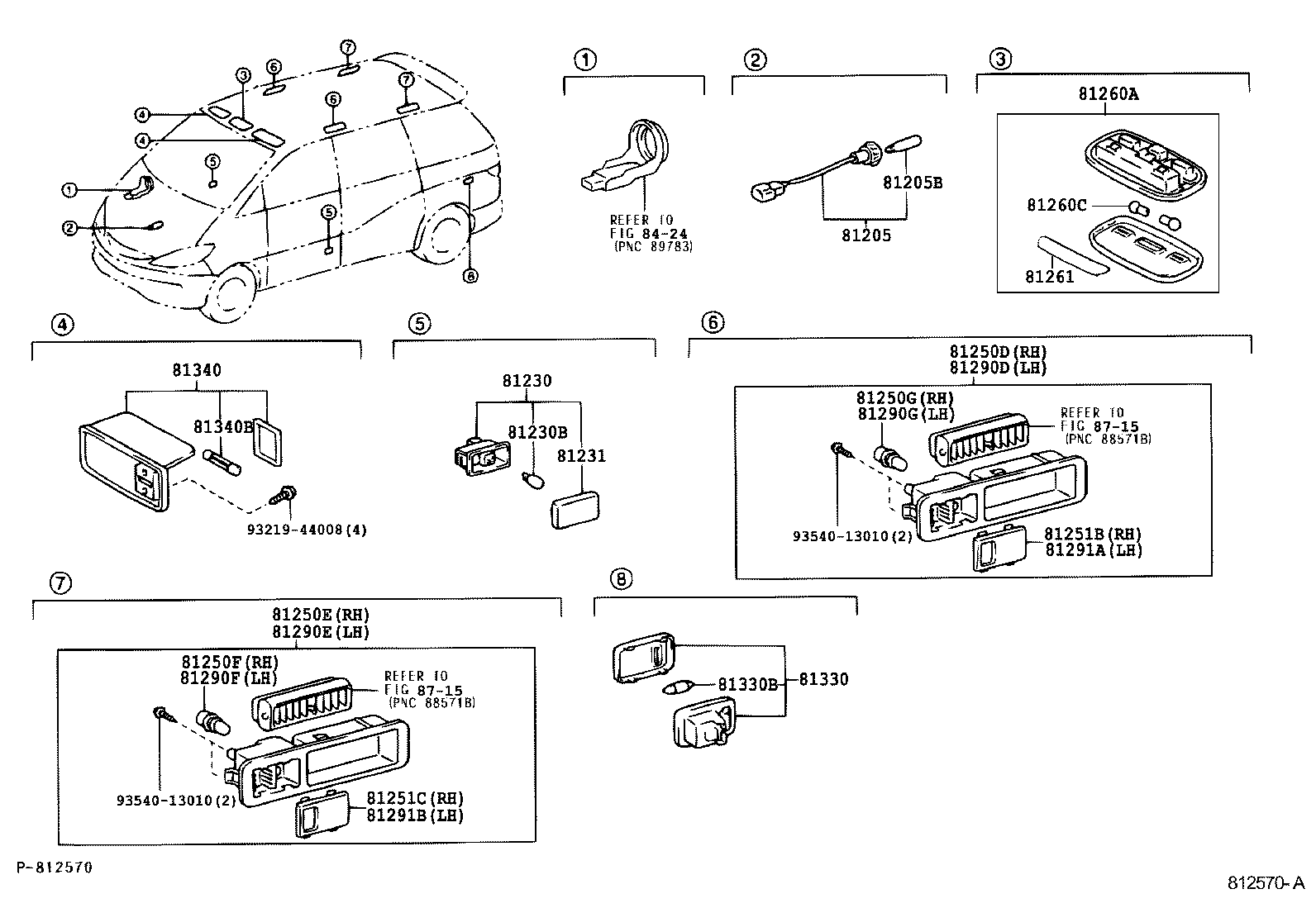

(0304- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81205 - LAMP SUB-ASSY, ASH RECEPTACLE | ||||
| 81850-28050 |
ACR30,40,MCR30,40 |
1 | ||
| 81850-28050 |
ACR30,40,MCR30,40 |
1 | ||
| 81205B - BULB, ASH RECEPTACLE LAMP | ||||
| 90981-11014 |
ACR30,40,MCR30,40 14V 1.4W |
1 | ||
| 90981-11014 |
ACR30,40,MCR30,40 14V 1.4W |
1 | ||
| 81230 - LAMP ASSY, COURTESY | ||||
| 81230-30140 |
ACR30,40,MCR30,40..G |
2 | ||
| 81230-30140 |
ACR30,40,MCR30,40..G |
2 | ||
| 81230B - BULB(FOR COURTESY LAMP) | ||||
| 90981-11020 |
ACR30,40,MCR30,40..G 12V 3.8W |
2 | ||
| 90981-11020 |
ACR30,40,MCR30,40..G 12V 3.8W |
2 | ||
| 81231 - LENS, COURTESY LAMP | ||||
| 81231-50010 |
ACR30,40,MCR30,40..G |
2 | ||
| 81231-50010 |
ACR30,40,MCR30,40..G |
2 | ||
| 81250D - LAMP ASSY, REAR ROOM, RH | ||||
| 81250-28100B2 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),LT. BLUISH GRAY,TRIM11 |
1 | ||
| 81250-28060B2 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ﾘﾔ ﾋ-ﾀ),LT. BLUISH GRAY,TRIM11 |
1 | ||
| 81250-28060B3 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ﾘﾔ ﾋ-ﾀ),MD.CHARCOAL,TRIM12 |
1 | ||
| 81250-28100B3 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),MD.CHARCOAL,TRIM12 |
1 | ||
| 81250-28100A0 |
ACR30,40,MCR30,40..G,X ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),IVORY,TRIM0# |
1 | ||
| 81250-28090A0 |
ACR30,40,MCR30,40..G IVORY,TRIM0# |
1 | ||
| 81250E - LAMP ASSY, REAR ROOM, RH NO.2 | ||||
| 81250-28020B2 |
ACR30,40,MCR30,40..G,J,X LT. BLUISH GRAY,TRIM11 |
1 | ||
| 81250-28020A0 |
ACR40..G,X;ACR30,MCR30,40..G,J,X IVORY,TRIM0# |
1 | ||
| 81250-28020B3 |
ACR30,40,MCR30,40..G,J,X MD.CHARCOAL,TRIM12 |
1 | ||
| 81250F - BULB, REAR ROOM LAMP RH NO.2 | ||||
| 81936-28010 |
ACR30,40,MCR30,40 12V 5W |
1 | ||
| 81936-28010 |
ACR30,40,MCR30,40 12V 5W |
1 | ||
| 81250G - BULB, REAR ROOM LAMP, RH | ||||
| 81936-28010 |
ACR30,40,MCR30,40 12V 5W |
1 | ||
| 81936-28010 |
ACR30,40,MCR30,40 12V 5W |
1 | ||
| 81251B - LENS, REAR ROOM LAMP, RH | ||||
| 81251-28040 |
ACR30,40,MCR30,40 |
1 | ||
| 81251-28040 |
ACR30,40,MCR30,40 |
1 | ||
| 81251C - LENS, REAR ROOM LAMP, RH NO.2 | ||||
| 81251-28020 |
ACR30,40,MCR30,40 |
1 | ||
| 81251-28020 |
ACR30,40,MCR30,40 |
1 | ||
| 81260A - LAMP ASSY, MAP | ||||
| 81260-16061A0 |
ACR40..G,X;ACR30,MCR30,40..G,J,X IVORY,TRIM0# |
1 | ||
| 81260-16061B1 |
ACR30,40,MCR30,40..G,J,X MD.CHARCOAL,TRIM12 |
1 | ||
| 81260-16061B2 |
ACR30,40,MCR30,40..G,J,X LT. BLUISH GRAY,TRIM11 |
1 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-12005 |
ACR30,40,MCR30,40 12V 8W |
2 | ||
| 90981-12005 |
ACR30,40,MCR30,40 12V 8W |
2 | ||
| 81261 - LENS AND COVER, MAP LAMP | ||||
| 81261-16060 |
ACR30,40,MCR30,40 |
1 | ||
| 81261-16060 |
ACR30,40,MCR30,40 |
1 | ||
| 81290D - LAMP ASSY, REAR ROOM, LH | ||||
| 81290-28010B2 |
ACR30,40,MCR30,40..G,J,X LT. BLUISH GRAY,TRIM11 |
1 | ||
| 81290-28010B3 |
ACR30,40,MCR30,40..G,J,X MD.CHARCOAL,TRIM12 |
1 | ||
| 81290-28010A0 |
ACR40..G,X;ACR30,MCR30,40..G,J,X IVORY,TRIM0# |
1 | ||
| 81290E - LAMP ASSY, REAR ROOM, LH NO.2 | ||||
| 81290-28010B3 |
ACR30,40,MCR30,40..G,J,X MD.CHARCOAL,TRIM12 |
1 | ||
| 81290-28010A0 |
ACR40..G,X;ACR30,MCR30,40..G,J,X IVORY,TRIM0# |
1 | ||
| 81290-28010B2 |
ACR30,40,MCR30,40..G,J,X LT. BLUISH GRAY,TRIM11 |
1 | ||
| 81290F - BULB, REAR ROOM LAMP LH NO.2 | ||||
| 81936-28010 |
ACR30,40,MCR30,40 12V 5W |
1 | ||
| 81936-28010 |
ACR30,40,MCR30,40 12V 5W |
1 | ||
| 81290G - BULB, REAR ROOM LAMP, LH | ||||
| 81936-28010 |
ACR30,40,MCR30,40 12V 5W |
1 | ||
| 81936-28010 |
ACR30,40,MCR30,40 12V 5W |
1 | ||
| 81291A - LENS, REAR ROOM LAMP, LH | ||||
| 81291-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 81291-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 81291B - LENS, REAR ROOM LAMP, LH NO.2 | ||||
| 81291-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 81291-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1 | ||||
| 81250-95J05B1 |
ACR30,40,MCR30,40..G,J,X LT. BLUISH GRAY,TRIM11 |
1 | ||
| 81250-12030A0 |
ACR40..G,X;ACR30,MCR30,40..G,J,X IVORY,TRIM0# |
1 | ||
| 81250-12030B3 |
ACR30,40,MCR30,40..G,J,X MD.CHARCOAL,TRIM12 |
1 | ||
| 81250-12030B6 |
ACR30,40,MCR30,40..G,J,X LT. BLUISH GRAY,TRIM11 |
1 | ||
| 81250-95J05B2 |
ACR30,40,MCR30,40..G,J,X MD.CHARCOAL,TRIM12 |
1 | ||
| 81330B - BULB, LUGGAGE COMPARTMENT LAMP | ||||
| 99132-13050 |
ACR30,40,MCR30,40 12V 5W |
1 | ||
| 99132-13050 |
ACR30,40,MCR30,40 12V 5W |
1 | ||
| 81340 - LAMP ASSY, VANITY | ||||
| 81340-33090B3 |
ACR30,40,MCR30,40..G MD.CHARCOAL,TRIM12,右側 |
1 | ||
| 81350-33040B6 |
ACR30,40,MCR30,40..G LT.BLUISH GRAY,TRIM11,左側 |
1 | ||
| 81350-33040A1 |
ACR30,40,MCR30,40..G IVORY,TRIM0#,左側 |
1 | ||
| 81340-33090B6 |
ACR30,40,MCR30,40..G LT.BLUISH GRAY,TRIM11,右側 |
1 | ||
| 81340-33090A1 |
ACR30,40,MCR30,40..G IVORY,TRIM0#,右側 |
1 | ||
| 81350-33040B3 |
ACR30,40,MCR30,40..G MD.CHARCOAL,TRIM12,左側 |
1 | ||
| 81340B - BULB (FOR VANITY LAMP) | ||||
| 90981-14003 |
ACR30,40,MCR30,40..G 12V 1.5W |
2 | ||
| 90981-14003 |
ACR30,40,MCR30,40..G 12V 1.5W |
2 | ||
| Common parts | ||||
| 93219-44008 | ||||
| 93540-13010 | ||||
| Linked diagrams | ||||
| 8424 | ||||
| 8715 | ||||

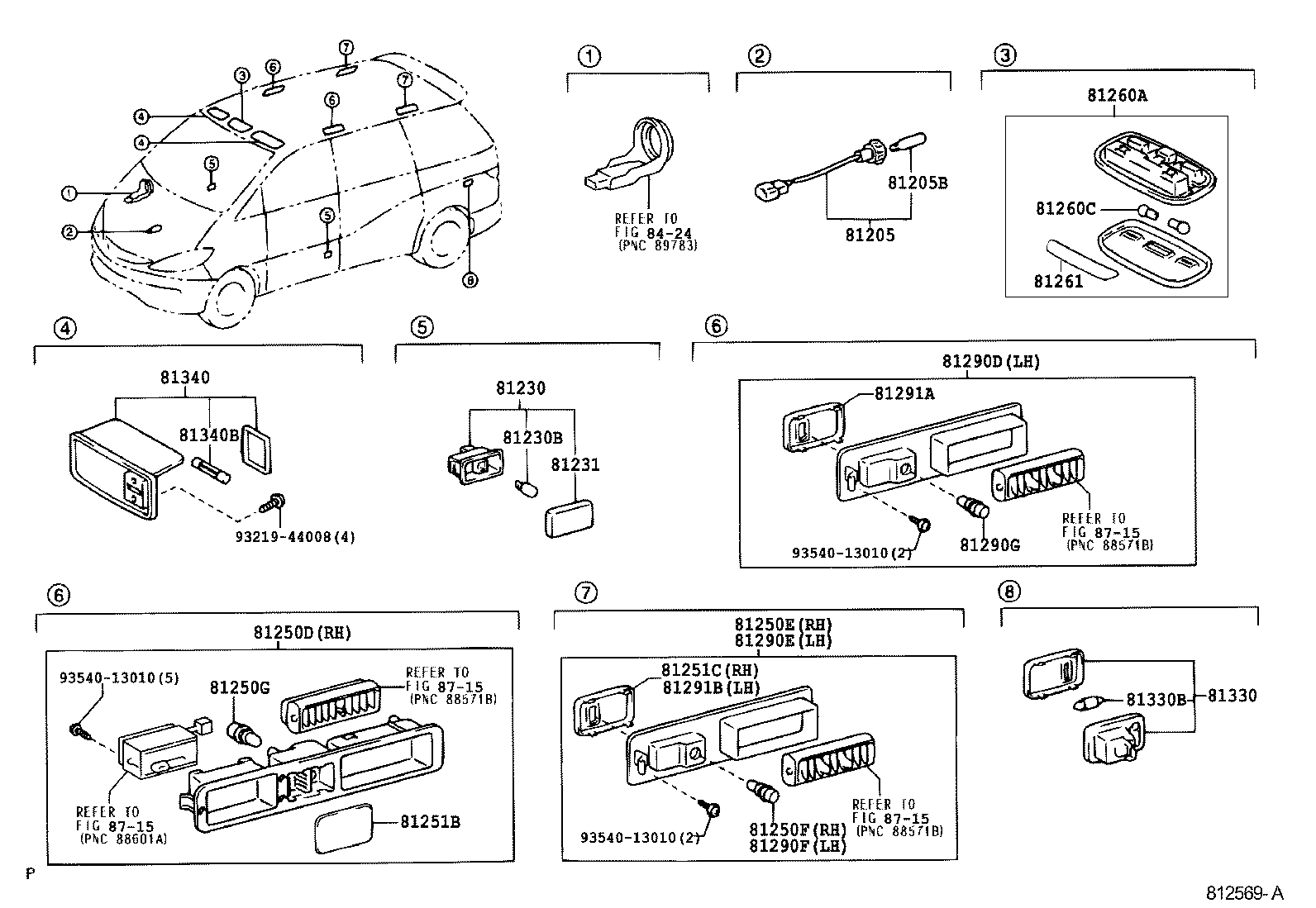

(0304- )
ｱﾘ(ﾂｲﾝ ﾑ-ﾝ ﾙ-ﾌ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81205 - LAMP SUB-ASSY, ASH RECEPTACLE | ||||
| 81850-28050 |
ACR30,40,MCR30,40 |
1 | ||
| 81850-28050 |
ACR30,40,MCR30,40 |
1 | ||
| 81205B - BULB, ASH RECEPTACLE LAMP | ||||
| 90981-11014 |
ACR30,40,MCR30,40 14V 1.4W |
1 | ||
| 90981-11014 |
ACR30,40,MCR30,40 14V 1.4W |
1 | ||
| 81230 - LAMP ASSY, COURTESY | ||||
| 81230-30140 |
ACR30,40,MCR30,40..G |
2 | ||
| 81230-30140 |
ACR30,40,MCR30,40..G |
2 | ||
| 81230B - BULB(FOR COURTESY LAMP) | ||||
| 90981-11020 |
ACR30,40,MCR30,40..G 12V 3.8W |
2 | ||
| 90981-11020 |
ACR30,40,MCR30,40..G 12V 3.8W |
2 | ||
| 81231 - LENS, COURTESY LAMP | ||||
| 81231-50010 |
ACR30,40,MCR30,40..G |
2 | ||
| 81231-50010 |
ACR30,40,MCR30,40..G |
2 | ||
| 81250D - LAMP ASSY, REAR ROOM, RH | ||||
| 81250-28100B2 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),LT. BLUISH GRAY,TRIM11 |
1 | ||
| 81250-28060B2 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ﾘﾔ ﾋ-ﾀ),LT. BLUISH GRAY,TRIM11 |
1 | ||
| 81250-28060B3 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ﾘﾔ ﾋ-ﾀ),MD.CHARCOAL,TRIM12 |
1 | ||
| 81250-28100B3 |
ACR30,40,MCR30,40..G,J,X ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),MD.CHARCOAL,TRIM12 |
1 | ||
| 81250-28100A0 |
ACR30,40,MCR30,40..G,X ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),IVORY,TRIM0# |
1 | ||
| 81250-28090A0 |
ACR30,40,MCR30,40..G IVORY,TRIM0# |
1 | ||
| 81250E - LAMP ASSY, REAR ROOM, RH NO.2 | ||||
| 81250-28020B2 |
ACR30,40,MCR30,40..G,J,X LT. BLUISH GRAY,TRIM11 |
1 | ||
| 81250-28020A0 |
ACR40..G,X;ACR30,MCR30,40..G,J,X IVORY,TRIM0# |
1 | ||
| 81250-28020B3 |
ACR30,40,MCR30,40..G,J,X MD.CHARCOAL,TRIM12 |
1 | ||
| 81250F - BULB, REAR ROOM LAMP RH NO.2 | ||||
| 81936-28010 |
ACR30,40,MCR30,40 12V 5W |
1 | ||
| 81936-28010 |
ACR30,40,MCR30,40 12V 5W |
1 | ||
| 81250G - BULB, REAR ROOM LAMP, RH | ||||
| 81936-28010 |
ACR30,40,MCR30,40 12V 5W |
1 | ||
| 81936-28010 |
ACR30,40,MCR30,40 12V 5W |
1 | ||
| 81251B - LENS, REAR ROOM LAMP, RH | ||||
| 81251-28040 |
ACR30,40,MCR30,40 |
1 | ||
| 81251-28040 |
ACR30,40,MCR30,40 |
1 | ||
| 81251C - LENS, REAR ROOM LAMP, RH NO.2 | ||||
| 81251-28020 |
ACR30,40,MCR30,40 |
1 | ||
| 81251-28020 |
ACR30,40,MCR30,40 |
1 | ||
| 81260A - LAMP ASSY, MAP | ||||
| 81260-16061A0 |
ACR40..G,X;ACR30,MCR30,40..G,J,X IVORY,TRIM0# |
1 | ||
| 81260-16061B1 |
ACR30,40,MCR30,40..G,J,X MD.CHARCOAL,TRIM12 |
1 | ||
| 81260-16061B2 |
ACR30,40,MCR30,40..G,J,X LT. BLUISH GRAY,TRIM11 |
1 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-12005 |
ACR30,40,MCR30,40 12V 8W |
2 | ||
| 90981-12005 |
ACR30,40,MCR30,40 12V 8W |
2 | ||
| 81261 - LENS AND COVER, MAP LAMP | ||||
| 81261-16060 |
ACR30,40,MCR30,40 |
1 | ||
| 81261-16060 |
ACR30,40,MCR30,40 |
1 | ||
| 81290D - LAMP ASSY, REAR ROOM, LH | ||||
| 81290-28010B2 |
ACR30,40,MCR30,40..G,J,X LT. BLUISH GRAY,TRIM11 |
1 | ||
| 81290-28010B3 |
ACR30,40,MCR30,40..G,J,X MD.CHARCOAL,TRIM12 |
1 | ||
| 81290-28010A0 |
ACR40..G,X;ACR30,MCR30,40..G,J,X IVORY,TRIM0# |
1 | ||
| 81290E - LAMP ASSY, REAR ROOM, LH NO.2 | ||||
| 81290-28010B3 |
ACR30,40,MCR30,40..G,J,X MD.CHARCOAL,TRIM12 |
1 | ||
| 81290-28010A0 |
ACR40..G,X;ACR30,MCR30,40..G,J,X IVORY,TRIM0# |
1 | ||
| 81290-28010B2 |
ACR30,40,MCR30,40..G,J,X LT. BLUISH GRAY,TRIM11 |
1 | ||
| 81290F - BULB, REAR ROOM LAMP LH NO.2 | ||||
| 81936-28010 |
ACR30,40,MCR30,40 12V 5W |
1 | ||
| 81936-28010 |
ACR30,40,MCR30,40 12V 5W |
1 | ||
| 81290G - BULB, REAR ROOM LAMP, LH | ||||
| 81936-28010 |
ACR30,40,MCR30,40 12V 5W |
1 | ||
| 81936-28010 |
ACR30,40,MCR30,40 12V 5W |
1 | ||
| 81291A - LENS, REAR ROOM LAMP, LH | ||||
| 81291-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 81291-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 81291B - LENS, REAR ROOM LAMP, LH NO.2 | ||||
| 81291-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 81291-28010 |
ACR30,40,MCR30,40 |
1 | ||
| 81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1 | ||||
| 81250-95J05B1 |
ACR30,40,MCR30,40..G,J,X LT. BLUISH GRAY,TRIM11 |
1 | ||
| 81250-12030A0 |
ACR40..G,X;ACR30,MCR30,40..G,J,X IVORY,TRIM0# |
1 | ||
| 81250-12030B3 |
ACR30,40,MCR30,40..G,J,X MD.CHARCOAL,TRIM12 |
1 | ||
| 81250-12030B6 |
ACR30,40,MCR30,40..G,J,X LT. BLUISH GRAY,TRIM11 |
1 | ||
| 81250-95J05B2 |
ACR30,40,MCR30,40..G,J,X MD.CHARCOAL,TRIM12 |
1 | ||
| 81330B - BULB, LUGGAGE COMPARTMENT LAMP | ||||
| 99132-13050 |
ACR30,40,MCR30,40 12V 5W |
1 | ||
| 99132-13050 |
ACR30,40,MCR30,40 12V 5W |
1 | ||
| 81340 - LAMP ASSY, VANITY | ||||
| 81340-33090B6 |
ACR30,40,MCR30,40..G LT.BLUISH GRAY,TRIM11,右側 |
1 | ||
| 81340-33090B3 |
ACR30,40,MCR30,40..G MD.CHARCOAL,TRIM12,右側 |
1 | ||
| 81350-33040B6 |
ACR30,40,MCR30,40..G LT.BLUISH GRAY,TRIM11,左側 |
1 | ||
| 81350-33040A1 |
ACR30,40,MCR30,40..G IVORY,TRIM0#,左側 |
1 | ||
| 81340-33090A1 |
ACR30,40,MCR30,40..G IVORY,TRIM0#,右側 |
1 | ||
| 81350-33040B3 |
ACR30,40,MCR30,40..G MD.CHARCOAL,TRIM12,左側 |
1 | ||
| 81340B - BULB (FOR VANITY LAMP) | ||||
| 90981-14003 |
ACR30,40,MCR30,40..G 12V 1.5W |
2 | ||
| 90981-14003 |
ACR30,40,MCR30,40..G 12V 1.5W |
2 | ||
| Common parts | ||||
| 93219-44008 | ||||
| 93540-13010 | ||||
| Linked diagrams | ||||
| 8424 | ||||
| 8715 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
