ACR30W-MRSQK (2000)

Toyota Estima T/L

Production Feb 2000 - Jan 2006
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0002- )2AZFE

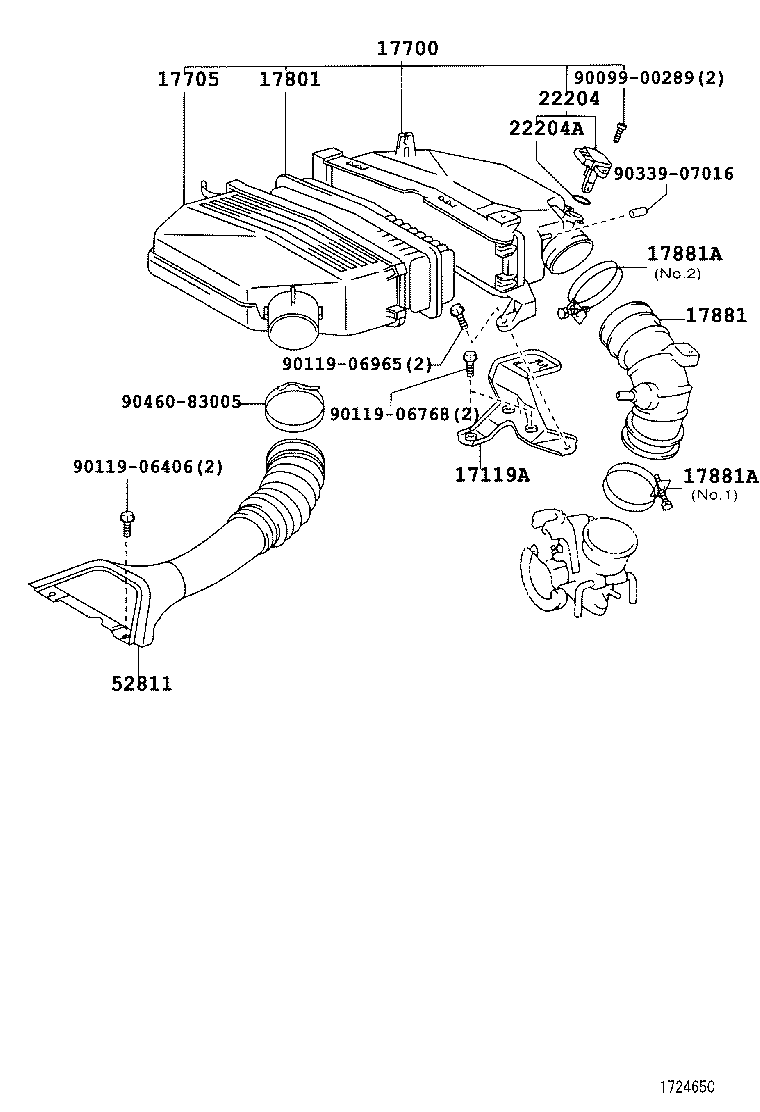

Click highlighted areas on diagram

diagram 17119A 17700 17705 17801 17881 17881A 17881A 22204 22204A 52811 9009900289 9011906406 9011906768 9011906965 9033907016 9046083005
Part # Description Qty Price
17119A - BRACKET, AIR CLEANER
17119-28010

2AZFE..ACR30,40

 1
17119-28010

2AZFE..ACR30,40

 1
17700 - CLEANER ASSY, AIR
17700-28090

2AZFE..ACR30,40

 1
17700-28091

2AZFE..ACR30,40

 1
17700-28092

2AZFE..ACR30,40

 1
17700-28091

2AZFE..ACR30,40

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-28050

2AZFE..ACR30,40

 1
17705-28050

2AZFE..ACR30,40

 1
17705-28050

2AZFE..ACR30,40

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-28010

2AZFE..ACR30,40

 1
17801-28010

2AZFE..ACR30,40

 1
17801-28010

2AZFE..ACR30,40

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-28040

2AZFE..ACR30,40

 1
17881-28180

2AZFE..ACR30,40

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10730

2AZFE..ACR30,40

NO.1

 1
96111-10730

2AZFE..ACR30,40

NO.1

 1
96111-10830

2AZFE..ACR30,40

NO.2

 1
96111-10830

2AZFE..ACR30,40

NO.2

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10730

2AZFE..ACR30,40

NO.1

 1
96111-10730

2AZFE..ACR30,40

NO.1

 1
96111-10830

2AZFE..ACR30,40

NO.2

 1
96111-10830

2AZFE..ACR30,40

NO.2

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-22010

2AZFE..ACR30,40

 1
22204-22010

2AZFE..ACR30,40

 1
22204-22010

2AZFE..ACR30,40

 1
22204A - RING, O(FOR INTAKE AIR FLOW METER)
90099-14141

2AZFE..ACR30,40

 1
90099-14141

2AZFE..ACR30,40

 1
52811 - DUCT, COOL AIR INTAKE, NO.1
52810-28110

ACR30,40

 1
52810-28110

ACR30,40

 1
Common parts
90099-00289
90119-06406
90119-06768
90119-06965
90339-07016
90460-83005
