Toyota Estima t/l ACR30 HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

Part #	Description	Period	Qty

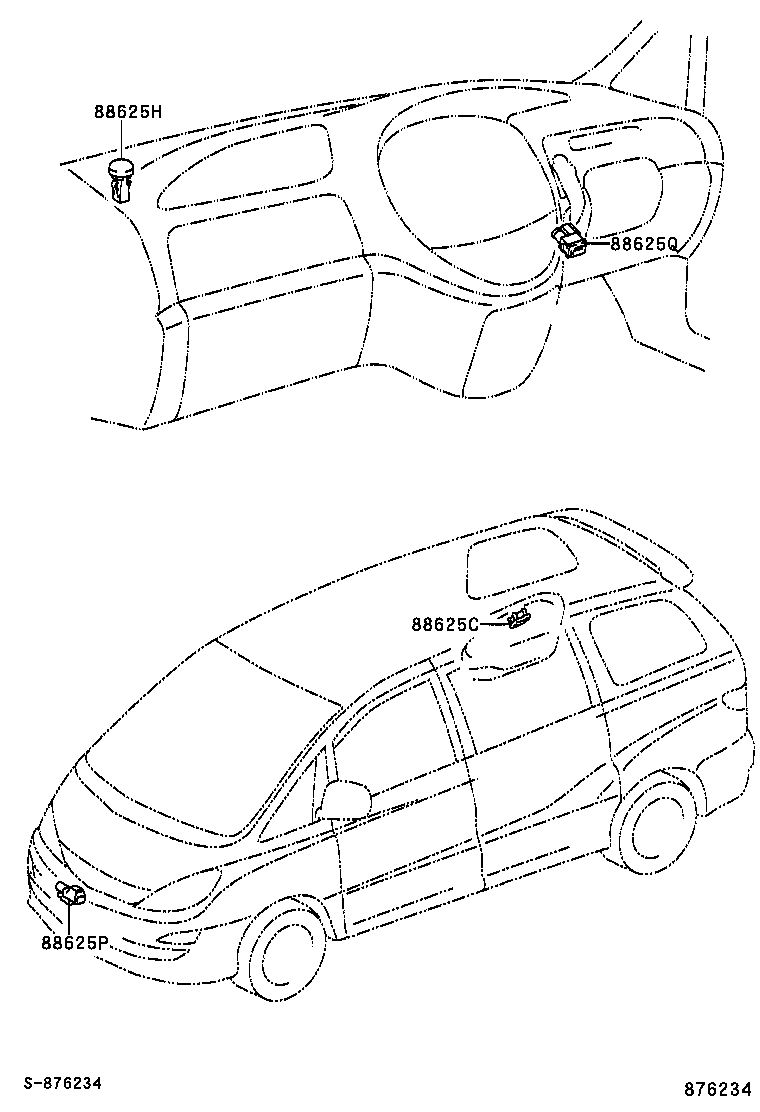

88625H - THERMISTOR, COOLER (SOLAR SENSOR)
88625-47031	ACR30,40,MCR30,40	04/2003 - 01/2006	1
88625P - THERMISTOR, COOLER (AMBIENT TEMP. SENSOR)
88625-32171	ACR30,40,MCR30,40	08/2001 - 04/2003	1
88625-32171	ACR30,40,MCR30,40	04/2003 - 01/2006	1
88625-32170	ACR30,40,MCR30,40	12/1999 - 08/2001	1
88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR)
88625-47021	ACR30,40,MCR30,40	04/2003 - 01/2006	1

Part #	Description	Period	Qty
88625H - THERMISTOR, COOLER (SOLAR SENSOR)
88625-47031	ACR30,40,MCR30,40	04/2003 - 01/2006	1
88625P - THERMISTOR, COOLER (AMBIENT TEMP. SENSOR)
88625-32171	ACR30,40,MCR30,40	08/2001 - 04/2003	1
88625-32171	ACR30,40,MCR30,40	04/2003 - 01/2006	1
88625-32170	ACR30,40,MCR30,40	12/1999 - 08/2001	1
88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR)
88625-47021	ACR30,40,MCR30,40	04/2003 - 01/2006	1

Part #	Description	Period	Qty

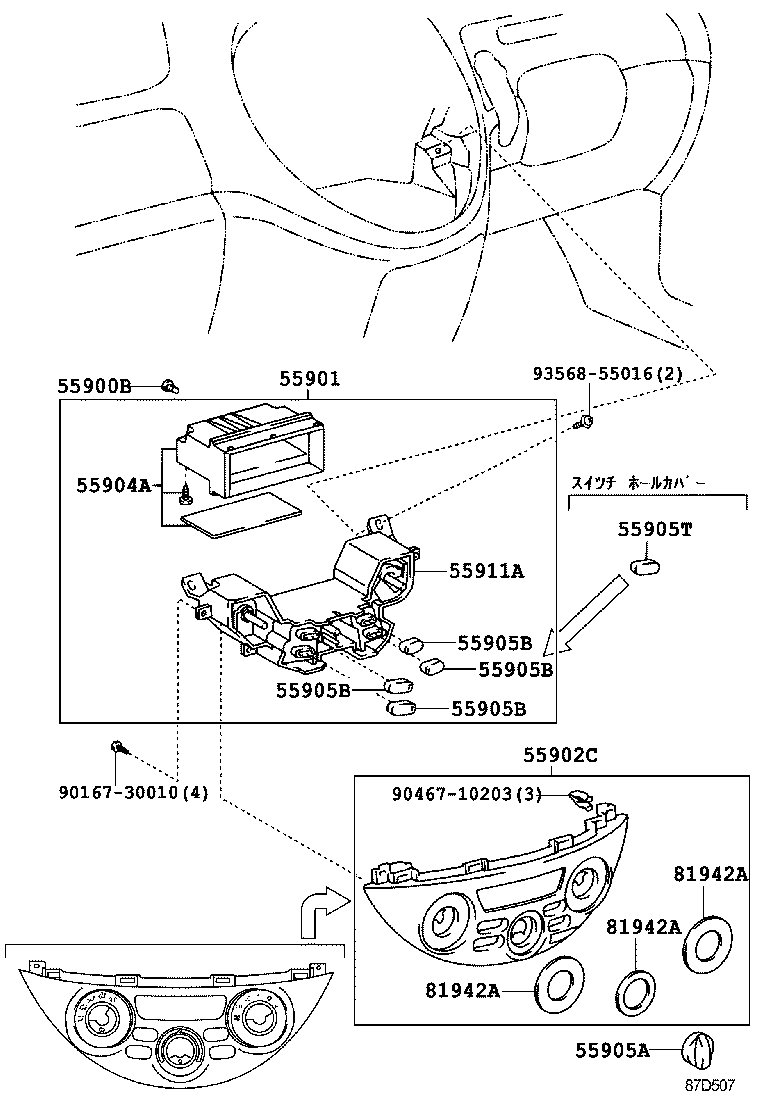

55900B - BULB, AIR CONDITIONER CONTROL
90010-03042	ACR30,40,MCR30,40 14V 1.12W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き	04/2003 - 12/2999	3
84999-60700	ACR30,40,MCR30,40 14V 1.4W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き	04/2003 - 12/2999	4
90010-05123	ACR30,40..J 14V 0.84W	02/2000 - 04/2003	7
55901 - BASE SUB-ASSY, HEATER CONTROL
55901-28230	ACR30,40..J	04/2001 - 07/2002	1
55901-28070	ACR30,40..J	02/2000 - 04/2001	1
55901-28210	ACR30,40..J,X	04/2003 - 12/2999	1
55901-28231	ACR30,40..J	07/2002 - 04/2003	1
55902C - PANEL SUB-ASSY, AIR CONDITIONER
55902-28180	ACR30,40..J	02/2000 - 04/2001	1
55902-28310	ACR30,40..J	04/2001 - 04/2003	1
55902-28350	ACR30,40..J,X	04/2003 - 12/2999	1
55904A - HOUSING SUB-ASSY, HEATER CONTROL
55904-28010	ACR30,40..J	02/2000 - 04/2003	1
55905A - KNOB, HEATER CONTROL
55905-28280	ACR30,40,MCR30,40	04/2003 - 12/2999	1
55905-28190	ACR30,40..J	02/2000 - 04/2001	3
55905-28310	ACR30,40..J	04/2001 - 04/2003	3
55905B - KNOB, HEATER CONTROL, NO.2
55905-28220	ACR30,40..J A/C	02/2000 - 04/2001	1
55905-28200	ACR30,40..J ﾘﾔﾃﾞﾌｫｶﾞ	02/2000 - 04/2001	1
55905-28400	ACR30,40..J ﾘﾔﾃﾞﾌｫｶﾞ	04/2001 - 04/2003	1
55905-28290	ACR30,40..J,X	04/2003 - 12/2999	1
55905-28420	ACR30,40..J A/C	04/2001 - 04/2003	1
55905-28210	ACR30,40..J ｴｱﾐｯｸｽ	02/2000 - 04/2001	1
55905-28410	ACR30,40..J ｴｱﾐｯｸｽ	04/2001 - 04/2003	1
55905B - KNOB, HEATER CONTROL, NO.2
55905-28220	ACR30,40..J A/C	02/2000 - 04/2001	1
55905-28200	ACR30,40..J ﾘﾔﾃﾞﾌｫｶﾞ	02/2000 - 04/2001	1
55905-28400	ACR30,40..J ﾘﾔﾃﾞﾌｫｶﾞ	04/2001 - 04/2003	1
55905-28290	ACR30,40..J,X	04/2003 - 12/2999	1
55905-28420	ACR30,40..J A/C	04/2001 - 04/2003	1
55905-28210	ACR30,40..J ｴｱﾐｯｸｽ	02/2000 - 04/2001	1
55905-28410	ACR30,40..J ｴｱﾐｯｸｽ	04/2001 - 04/2003	1
55905B - KNOB, HEATER CONTROL, NO.2
55905-28220	ACR30,40..J A/C	02/2000 - 04/2001	1
55905-28200	ACR30,40..J ﾘﾔﾃﾞﾌｫｶﾞ	02/2000 - 04/2001	1
55905-28400	ACR30,40..J ﾘﾔﾃﾞﾌｫｶﾞ	04/2001 - 04/2003	1
55905-28290	ACR30,40..J,X	04/2003 - 12/2999	1
55905-28420	ACR30,40..J A/C	04/2001 - 04/2003	1
55905-28210	ACR30,40..J ｴｱﾐｯｸｽ	02/2000 - 04/2001	1
55905-28410	ACR30,40..J ｴｱﾐｯｸｽ	04/2001 - 04/2003	1
55905B - KNOB, HEATER CONTROL, NO.2
55905-28220	ACR30,40..J A/C	02/2000 - 04/2001	1
55905-28200	ACR30,40..J ﾘﾔﾃﾞﾌｫｶﾞ	02/2000 - 04/2001	1
55905-28400	ACR30,40..J ﾘﾔﾃﾞﾌｫｶﾞ	04/2001 - 04/2003	1
55905-28290	ACR30,40..J,X	04/2003 - 12/2999	1
55905-28420	ACR30,40..J A/C	04/2001 - 04/2003	1
55905-28210	ACR30,40..J ｴｱﾐｯｸｽ	02/2000 - 04/2001	1
55905-28410	ACR30,40..J ｴｱﾐｯｸｽ	04/2001 - 04/2003	1
55905T - COVER, SWITCH HOLE, NO.1
55539-28150	ACR30,40..J	04/2001 - 04/2003	1
55539-28130	ACR30,40..J	02/2000 - 04/2001	1
55911A - BASE, HEATER CONTROL
55911-28020	ACR30,40..J	04/2001 - 04/2003	1
81942A - SHEET, HEATER CONTROL NAME, NO.1
81942-28060	ACR30,40..J TEMP	02/2000 - 04/2003	1
81942-28100	ACR30,40..J ﾓｰﾄﾞ	02/2000 - 04/2003	1
81942-28040	ACR30,40..J ﾌﾞﾛﾜ	02/2000 - 04/2003	1
81942A - SHEET, HEATER CONTROL NAME, NO.1
81942-28060	ACR30,40..J TEMP	02/2000 - 04/2003	1
81942-28100	ACR30,40..J ﾓｰﾄﾞ	02/2000 - 04/2003	1
81942-28040	ACR30,40..J ﾌﾞﾛﾜ	02/2000 - 04/2003	1
81942A - SHEET, HEATER CONTROL NAME, NO.1
81942-28060	ACR30,40..J TEMP	02/2000 - 04/2003	1
81942-28100	ACR30,40..J ﾓｰﾄﾞ	02/2000 - 04/2003	1
81942-28040	ACR30,40..J ﾌﾞﾛﾜ	02/2000 - 04/2003	1
Common parts
90167-30010
90467-10203
93568-55016

ACR30W-MRSDK (2000)

ILLUST NO. 6 OF 6(9912-0304)

ILLUST NO. 6 OF 6(0304- )

ILLUST NO. 1 OF 6(0002-0304)
