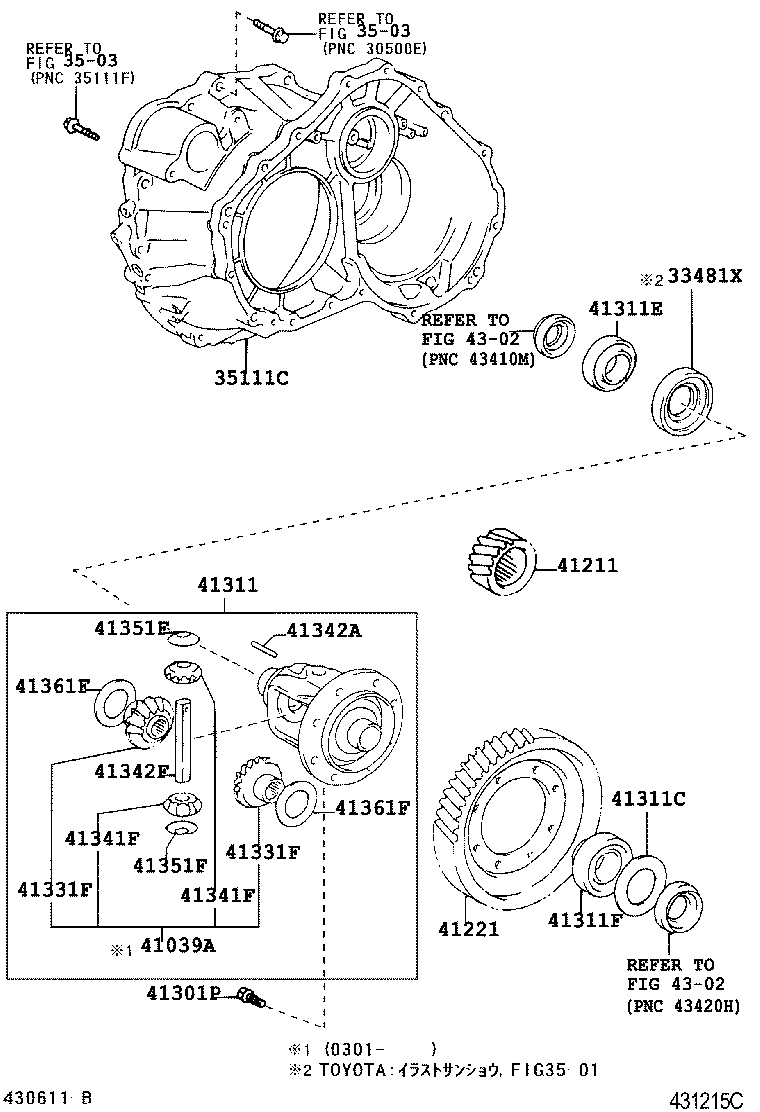

ACR30W-MRSDK (2000)
Toyota Estima T/L
(0002- )ACR30
U241E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33481X - GEAR, SPEEDOMETER DRIVE | ||||
| 33481-28060 |
ACR30 TOYOTA:ｲﾗｽﾄｻﾝｼﾖｳ FIG.35-01 |
1 | ||
| 35111C - HOUSING, TRANSAXLE | ||||
| 35105-28030 |
ACR30 |
1 | ||
| 35105-28031 |
ACR30 AISIN AW:ｲﾗｽﾄｻﾝｼﾖｳ FIG.35-01 |
1 | ||
| 35105-28031 |
ACR30 AISIN AW:ｲﾗｽﾄｻﾝｼﾖｳ FIG.35-01 |
1 | ||
| 35105-44011 |
ACR30 |
1 | ||
| 41039A - GEAR KIT, DIFFERENTIAL | ||||
| 41039-28020 |
ACR30 |
1 | ||
| 41039-28020 |
ACR30 |
1 | ||
| 41211 - PINION, DIFFERENTIAL DRIVE | ||||
| 41211-28090 |
ACR30 AISIN AW:ｲﾗｽﾄｻﾝｼﾖｳ FIG.35-01 |
1 | ||
| 41211-28090 |
ACR30 AISIN AW:ｲﾗｽﾄｻﾝｼﾖｳ FIG.35-01 |
1 | ||
| 41211-32130 |
ACR30 TOYOTA:ｲﾗｽﾄｻﾝｼﾖｳ FIG.35-01 |
1 | ||
| 41221 - GEAR, FRONT DIFFERENTIAL RING | ||||
| 41221-28110 |
ACR30 AISIN AW:ｲﾗｽﾄｻﾝｼﾖｳ FIG.35-01 |
1 | ||
| 41221-28110 |
ACR30 AISIN AW:ｲﾗｽﾄｻﾝｼﾖｳ FIG.35-01 |
1 | ||
| 41221-44010 |
ACR30 TOYOTA:ｲﾗｽﾄｻﾝｼﾖｳ FIG.35-01 |
1 | ||
| 41301P - SCREW(FOR FRONT DIFFERENTIAL CASE) | ||||
| 90105-12303 |
ACR30 |
10 | ||
| 90105-12303 |
ACR30 |
10 | ||
| 41311 - CASE, FRONT DIFFERENTIAL | ||||
| 41301-28090 |
ACR30 AISIN AW:ｲﾗｽﾄｻﾝｼﾖｳ FIG.35-01 |
1 | ||
| 41301-33070 |
ACR30 TOYOTA:ｲﾗｽﾄｻﾝｼﾖｳ FIG.35-01 |
1 | ||
| 41301-33110 |
ACR30 |
1 | ||
| 41301-28090 |
ACR30 AISIN AW:ｲﾗｽﾄｻﾝｼﾖｳ FIG.35-01 |
1 | ||
| 41301-33090 |
ACR30 TOYOTA:ｲﾗｽﾄｻﾝｼﾖｳ FIG.35-01 |
1 | ||
| 41311C - SHIM (FOR FRONT DIFFERENTIAL CASE REAR) | ||||
| 90564-68007 |
ACR30 厚さ=1.95,ﾏｰｸ 1 |
1 | ||
| 90564-68010 |
ACR30 厚さ=2.10,ﾏｰｸ 4 |
1 | ||
| 90564-68011 |
ACR30 厚さ=2.15,ﾏｰｸ 5 |
1 | ||
| 90564-68016 |
ACR30 厚さ=2.40,ﾏｰｸ A |
1 | ||
| 90564-68015 |
ACR30 厚さ=2.35,ﾏｰｸ 9 |
1 | ||
| 90564-68012 |
ACR30 厚さ=2.20,ﾏｰｸ 6 |
1 | ||
| 90564-68009 |
ACR30 厚さ=2.05,ﾏｰｸ 3 |
1 | ||
| 90564-68022 |
ACR30 厚さ=2.70,ﾏｰｸ G |
1 | ||
| 90564-68020 |
ACR30 厚さ=2.60,ﾏｰｸ E |
1 | ||
| 90564-68006 |
ACR30 厚さ=1.90,ﾏｰｸ 0 |
1 | ||
| 90564-68008 |
ACR30 厚さ=2.00,ﾏｰｸ 2 |
1 | ||
| 90564-68014 |
ACR30 厚さ=2.30,ﾏｰｸ 8 |
1 | ||
| 90564-68013 |
ACR30 厚さ=2.25,ﾏｰｸ 7 |
1 | ||
| 90564-68019 |
ACR30 厚さ=2.55,ﾏｰｸ D |
1 | ||
| 90564-68017 |
ACR30 厚さ=2.45,ﾏｰｸ B |
1 | ||
| 90564-68011 |
ACR30 厚さ=2.15,ﾏｰｸ 5 |
1 | ||
| 90564-68009 |
ACR30 厚さ=2.05,ﾏｰｸ 3 |
1 | ||
| 90564-68018 |
ACR30 厚さ=2.50,ﾏｰｸ C |
1 | ||
| 90564-68012 |
ACR30 厚さ=2.20,ﾏｰｸ 6 |
1 | ||
| 90564-68014 |
ACR30 厚さ=2.30,ﾏｰｸ 8 |
1 | ||
| 90564-68007 |
ACR30 厚さ=1.95,ﾏｰｸ 1 |
1 | ||
| 90564-68016 |
ACR30 厚さ=2.40,ﾏｰｸ A |
1 | ||
| 90564-68017 |
ACR30 厚さ=2.45,ﾏｰｸ B |
1 | ||
| 90564-68024 |
ACR30 厚さ=2.80,ﾏｰｸ J |
1 | ||
| 90564-68019 |
ACR30 厚さ=2.55,ﾏｰｸ D |
1 | ||
| 90564-68021 |
ACR30 厚さ=2.65,ﾏｰｸ F |
1 | ||
| 90564-68015 |
ACR30 厚さ=2.35,ﾏｰｸ 9 |
1 | ||
| 90564-68023 |
ACR30 厚さ=2.75,ﾏｰｸ H |
1 | ||
| 90564-68008 |
ACR30 厚さ=2.00,ﾏｰｸ 2 |
1 | ||
| 90564-68020 |
ACR30 厚さ=2.60,ﾏｰｸ E |
1 | ||
| 90564-68018 |
ACR30 厚さ=2.50,ﾏｰｸ C |
1 | ||
| 90564-68006 |
ACR30 厚さ=1.90,ﾏｰｸ 0 |
1 | ||
| 90564-68024 |
ACR30 厚さ=2.80,ﾏｰｸ J |
1 | ||
| 90564-68013 |
ACR30 厚さ=2.25,ﾏｰｸ 7 |
1 | ||
| 90564-68010 |
ACR30 厚さ=2.10,ﾏｰｸ 4 |
1 | ||
| 90564-68021 |
ACR30 厚さ=2.65,ﾏｰｸ F |
1 | ||
| 90564-68022 |
ACR30 厚さ=2.70,ﾏｰｸ G |
1 | ||
| 90564-68023 |
ACR30 厚さ=2.75,ﾏｰｸ H |
1 | ||
| 41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR | ||||
| 90366-50084 |
ACR30 TOYOTA:ｲﾗｽﾄｻﾝｼﾖｳ FIG.35-01 |
1 | ||
| 90366-50075 |
ACR30 AISIN AW:ｲﾗｽﾄｻﾝｼﾖｳ FIG.35-01 |
1 | ||
| 90366-50075 |
ACR30 AISIN AW:ｲﾗｽﾄｻﾝｼﾖｳ FIG.35-01 |
1 | ||
| 41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE | ||||
| 90366-50078 |
ACR30 |
1 | ||
| 90366-50078 |
ACR30 |
1 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-28020 |
ACR30 |
2 | ||
| 41331-33030 |
ACR30 |
2 | ||
| 41331-33030 |
ACR30 |
2 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-28020 |
ACR30 |
2 | ||
| 41331-33030 |
ACR30 |
2 | ||
| 41331-33030 |
ACR30 |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-14041 |
ACR30 |
2 | ||
| 41341-14041 |
ACR30 |
2 | ||
| 41341-28010 |
ACR30 |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-14041 |
ACR30 |
2 | ||
| 41341-14041 |
ACR30 |
2 | ||
| 41341-28010 |
ACR30 |
2 | ||
| 41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT) | ||||
| 90250-06058 |
ACR30,40,MCR30,40 |
1 | ||
| 90250-06058 |
ACR30,40,MCR30,40 |
1 | ||
| 41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1 | ||||
| 41342-28030 |
ACR30 AISIN AW:ｲﾗｽﾄｻﾝｼﾖｳ FIG.35-01 |
1 | ||
| 41342-28030 |
ACR30 |
1 | ||
| 41342-28030 |
ACR30 AISIN AW:ｲﾗｽﾄｻﾝｼﾖｳ FIG.35-01 |
1 | ||
| 41342-33040 |
ACR30 TOYOTA:ｲﾗｽﾄｻﾝｼﾖｳ FIG.35-01 |
1 | ||
| 41342-33040 |
ACR30 TOYOTA:ｲﾗｽﾄｻﾝｼﾖｳ FIG.35-01 |
1 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-28010 |
ACR30 |
2 | ||
| 41351-28010 |
ACR30 |
2 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-28010 |
ACR30 |
2 | ||
| 41351-28010 |
ACR30 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-28230 |
ACR30 厚さ=1.0,ﾏｰｸ 1 |
2 | ||
| 41361-28240 |
ACR30 厚さ=1.1,ﾏｰｸ 2 |
2 | ||
| 41361-28250 |
ACR30 厚さ=1.2,ﾏｰｸ 3 |
2 | ||
| 41361-28230 |
ACR30 厚さ=1.0,ﾏｰｸ 1 |
2 | ||
| 41361-28260 |
ACR30 厚さ=1.3,ﾏｰｸ 4 |
2 | ||
| 41361-28260 |
ACR30 厚さ=1.3,ﾏｰｸ 4 |
2 | ||
| 41361-28240 |
ACR30 厚さ=1.1,ﾏｰｸ 2 |
2 | ||
| 41361-28250 |
ACR30 厚さ=1.2,ﾏｰｸ 3 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-28230 |
ACR30 厚さ=1.0,ﾏｰｸ 1 |
2 | ||
| 41361-28240 |
ACR30 厚さ=1.1,ﾏｰｸ 2 |
2 | ||
| 41361-28250 |
ACR30 厚さ=1.2,ﾏｰｸ 3 |
2 | ||
| 41361-28230 |
ACR30 厚さ=1.0,ﾏｰｸ 1 |
2 | ||
| 41361-28260 |
ACR30 厚さ=1.3,ﾏｰｸ 4 |
2 | ||
| 41361-28260 |
ACR30 厚さ=1.3,ﾏｰｸ 4 |
2 | ||
| 41361-28240 |
ACR30 厚さ=1.1,ﾏｰｸ 2 |
2 | ||
| 41361-28250 |
ACR30 厚さ=1.2,ﾏｰｸ 3 |
2 | ||
| Linked diagrams | ||||
| 3503 | ||||
| 4302 | ||||
