ACR30W-MFSZK (2003)

Toyota Estima T/L

Production Apr 2003 - Jan 2006
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0304- )

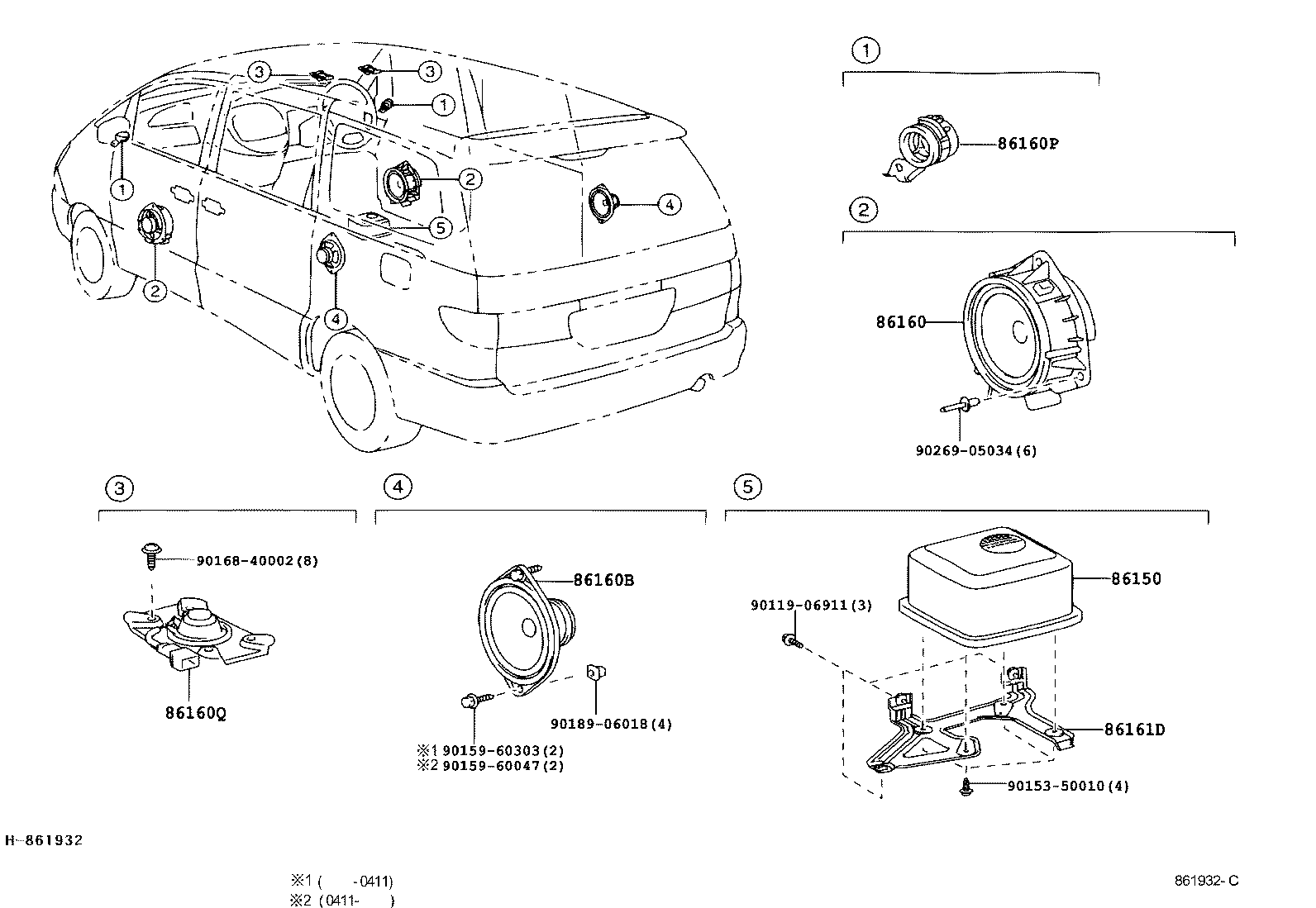

Click highlighted areas on diagram

diagram 86150 86160 86160B 86160P 86160Q 86161D 9011906911 9015350010 9015960047 9015960303 9016840002 9018906018 9026905034
Part # Description Qty Price
86150 - SPEAKER ASSY, W/BOX, NO.1
86150-21010

ACR30,40,MCR30,40..AERAS,AERSS,G

 1
86160 - SPEAKER ASSY, FRONT NO.1
86160-28520

ACR30,40,MCR30,40

ｱﾘ(ﾜｲﾄﾞ ﾏﾙﾁ AV ｽﾃ-ｼﾖﾝ 6ｽﾋﾟ-ｶ)

 2
86160-28511

ACR30,40,MCR30,40

17.5W

 2
86160-28510

ACR30,40,MCR30,40

 2
86160-28600

ACR30,40,MCR30,40..AERAS,AERSS,G,X

20W

 2
86160B - SPEAKER ASSY, REAR
86160-28540

ACR30,40,MCR30,40

ｱﾘ(ﾜｲﾄﾞ ﾏﾙﾁ AV ｽﾃ-ｼﾖﾝ 6ｽﾋﾟ-ｶ)

 2
86160-28530

ACR30,40,MCR30,40

 2
86160-28531

ACR30,40,MCR30,40

17.5W

 2
86160-28610

ACR30,40,MCR30,40..AERAS,AERSS,G,X

20W

 2
86160P - SPEAKER ASSY, FRONT NO.2
86160-28500

ACR30,40,MCR30,40

左側

 1
86160-28420

ACR30,40,MCR30,40

右側

 1
86160-28640

ACR30,40,MCR30,40..AERAS,AERSS,G,X

右側

 1
86160-28650

ACR30,40,MCR30,40..AERAS,AERSS,G,X

左側

 1
86160Q - SPEAKER ASSY, ROOF
86160-28620

ACR30,40,MCR30,40..AERAS,AERSS,G

 2
86161D - BRACKET, SPEAKER MOUNTING, NO.1
86161-28040

ACR30,40,MCR30,40..AERAS,AERSS,G

 1
Common parts
90119-06911
90153-50010
90159-60047
90159-60303
90168-40002
90189-06018
90269-05034
